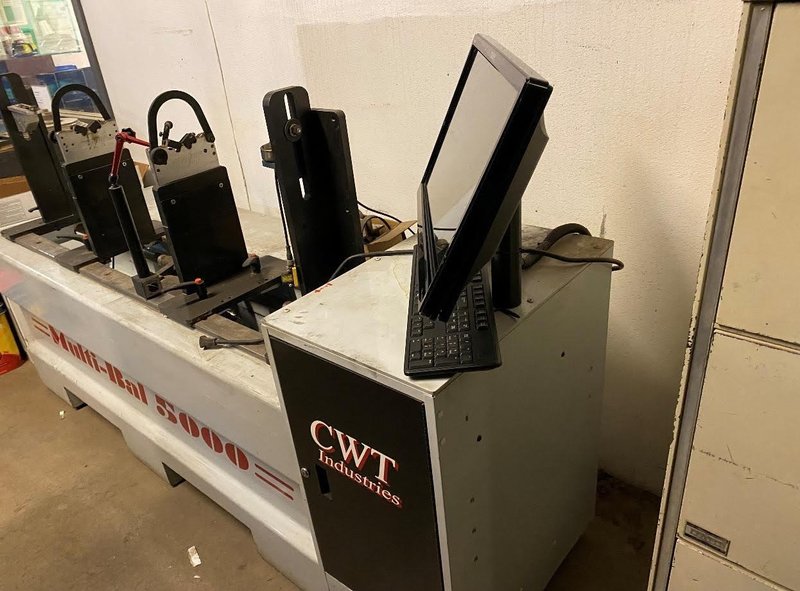

CWT Industries Multi-Bal 5000 Crankshaft Balancing Machine

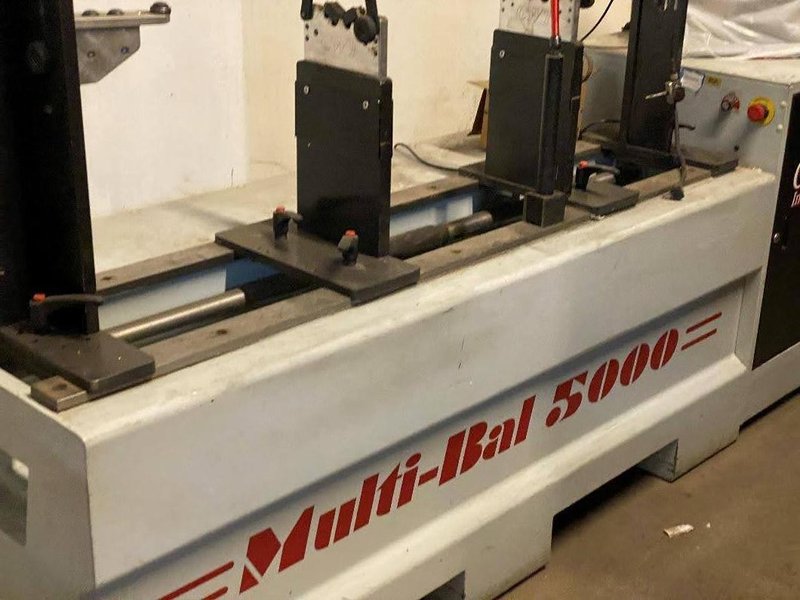

4000 Lb Base: The solid filled base is surrounded by heavy gauge Steel that insures máximum rigidity and years of trouble-free maintenance.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Total CNC manufacturing: CWT’s In-house manufacturing with CNC machines allow extremely close tolerance specifications to be maintained with every machine built.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Third Plane Analysis: Unlike conventional Balancers that only use Left and Right Plane Separation, commonly called Dynamic Plane Separation.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,CWT uses a third plane for its inspection which allows a faster and better method of determining unbalance forcé and location.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,On Machine Drill Corrections: Linear Rail Mounting System allows free movement of our Mill/Drill for fast stock removal of excess weight. Single throw air-switch clamps the drill into position.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heavy Metal Stand: Installing heavy metal has never been easier with the CWT Crankshaft Mounting Stand.

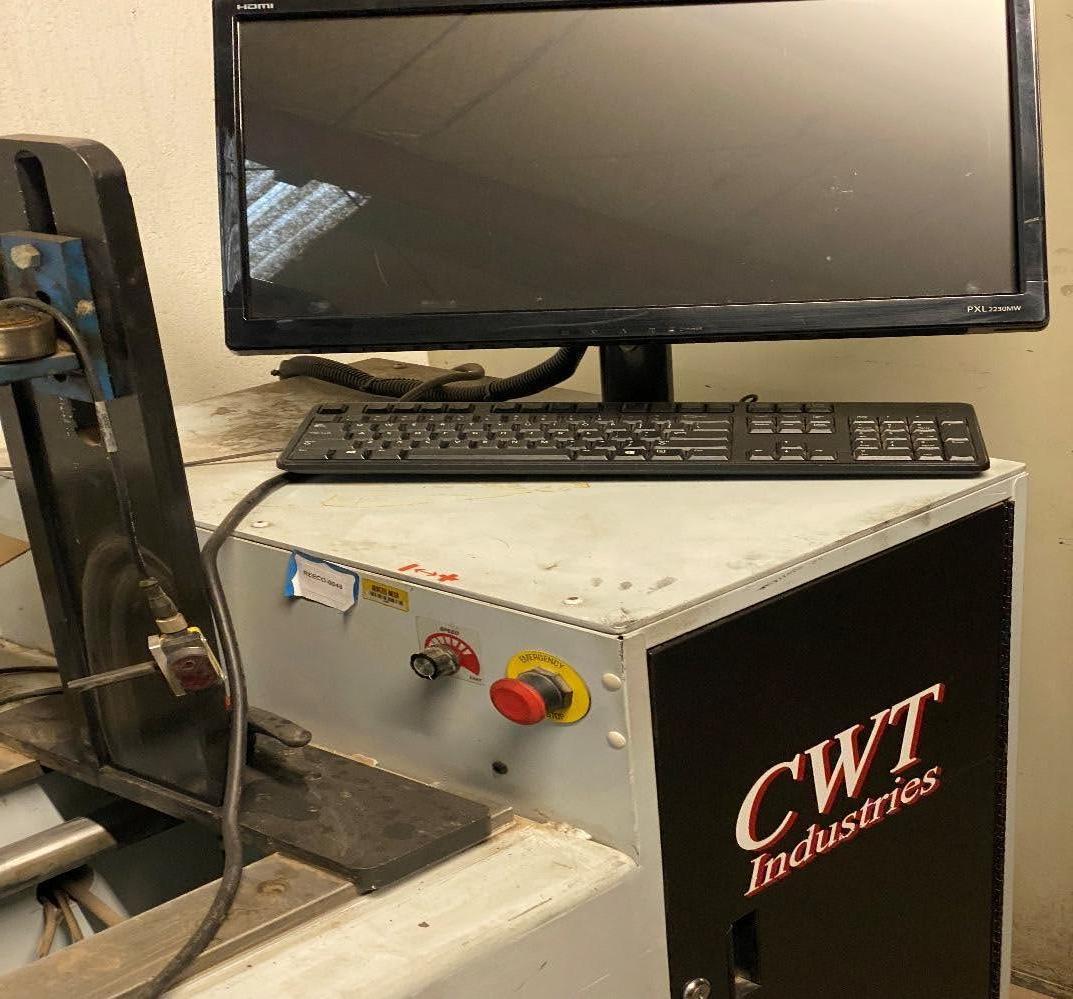

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes 3.0Gig 512 Ram PC systems 80 Gig Hard Drive with CD-ROM Auto Data Backup System 17″ Screen Monitor Precision Drive Motor 720 Degree High Resolution Encoding System Variable Speed Control “Pinging” Software Full Three Plane Analysis Drill and Weight Compensation Software Heavy Metal Software PDQ Drilling Software Vector Forecasting Software Unbalance Before & After Reports Unlimited Parts Storage Non-contact Photocell encoding system

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
