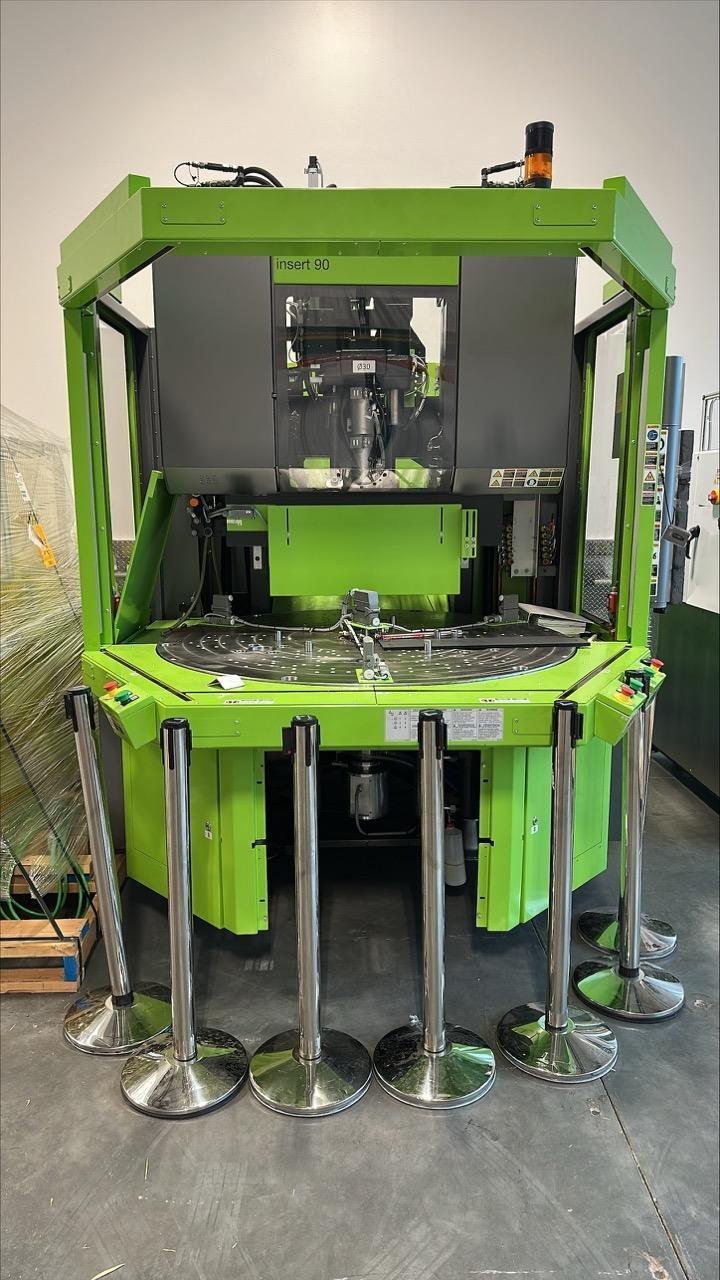

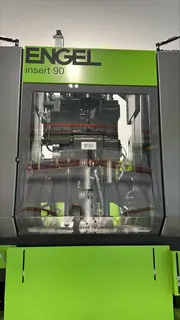

Engel 80 Ton Vertical Injection Press – 2019 – Insert Molding System with Rotary Table

Plasticizing 1 Screw diameter: 30 mm Screw diameter options: 22 / 25 / 30 / 35 mm Screw stroke: 150 mm Maximum injection capacity: 106 cm³ Screw retraction time: 2.8 s Screw torque: 250 Nm Recovery rate (3-zone screw): 16.8 g/s Injection 1 Injection rate: 149 cm³/s Injection pressure (regenerative): 1450 bar Injection pressure (max): 2210 bar Nozzle 1 Nozzle stroke: 530 mm Nozzle contact pressure: 28.0 kN Material Cylinder 1 L/D ratio: 20.5 Heating zones incl. nozzle: 4 Heating wattage: 6.8 kW Clamping Unit Clamping force: 800 kN Opening force + cylinder tolerance: 250 kN Maximum distance between platen: 550 mm Minimum mold height: 200 mm Max. ejector stroke vertical: 300 mm Max. weight moving platen: 500 kg Max. mold weight fixed platen: 1000 kg Max. mold weight total: 1500 kg Dry cycle (stroke): 1.8 s Dry cycle (opening): 2.0 s Ejector Ejector stroke: 160 mm Ejector force: 20.1 kN Drive Unit Oil reservoir capacity – Injection unit: 198 l Oil reservoir capacity – Clamping unit: 30 l Oil Cooler Maximum cooling power (25°C water inlet temp.): 7.40 kWcool Flow rate: 1.4 m³/h Machine Basics Weight (without oil): 8.0 t Weight total (without oil): 9.1 t Weight injection unit (without oil): 3.4 t Weight clamping unit (without oil): 5.7 t Total power: 21.0 kW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
