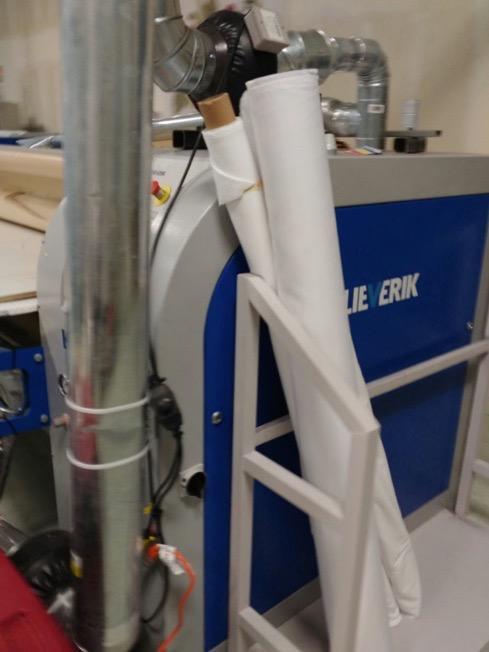

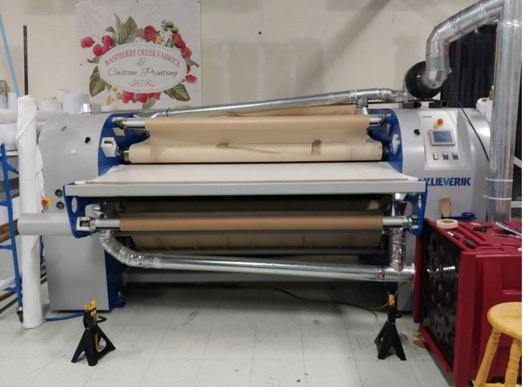

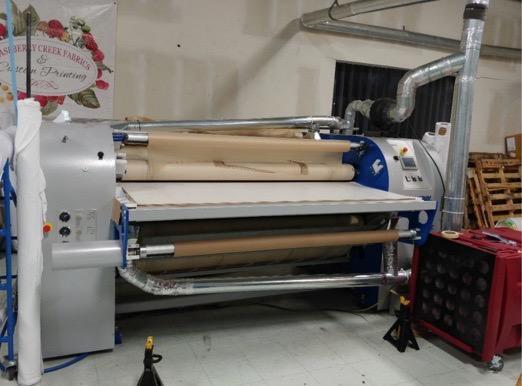

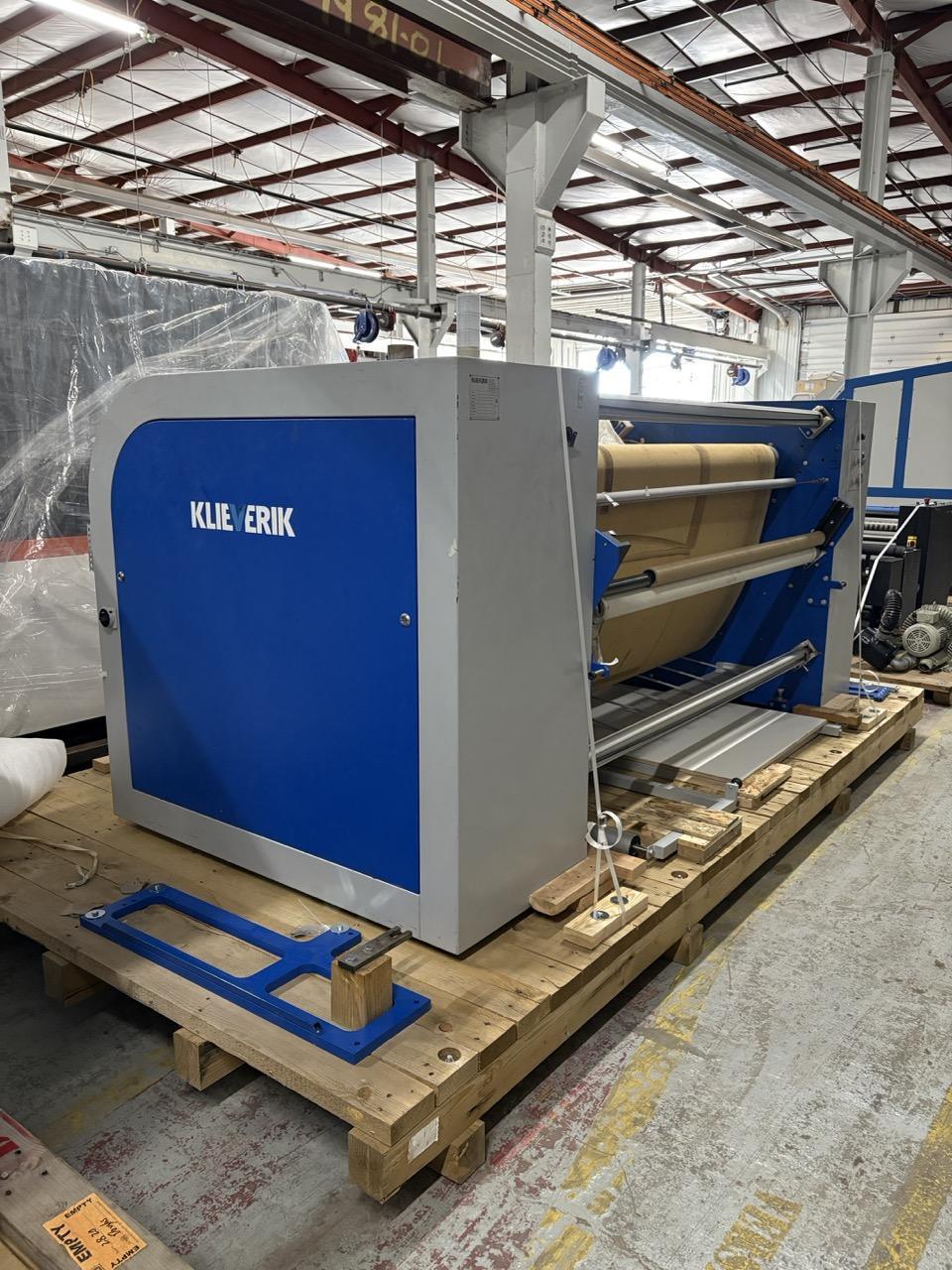

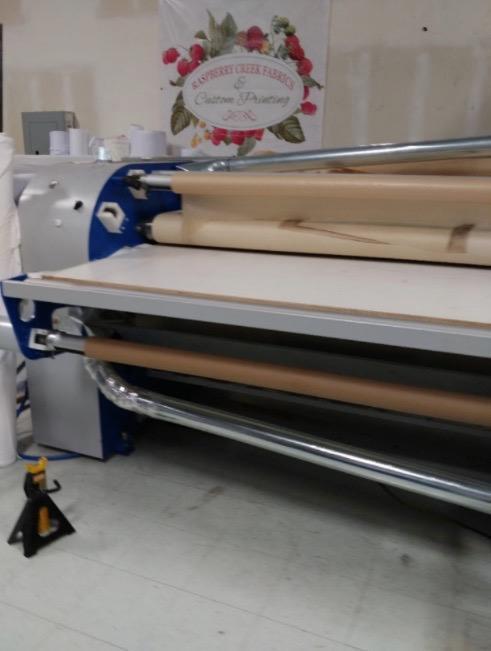

Klieverik GTC111-2000SP Flowline Transfer Printing Heat Calendar, 2018

Machine width 3156 mm/124,3″ Machine length 3677 mm/144,8″ 1457 mm/57,4″ Machine weight ± 2350 kg DIAMETER / WIDHT

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heating cylinder diameter 500 mm/19,7″ Maximum working width 1800 mm/70,9″ Substrate unwind diameter 250 mm/9,8″ Substrate rewind diameter 250 mm/9,8″ Maximum transfer paper width 1800 mm/70,9″ Transfer paper unwind diameter 250 mm/9,8″ Transfer paper rewind diameter 250 mm/9,8″ Maximum protective paper width 1830 mm/72″ Protective paper unwind diameter 400 mm/15,8″ Protective paper rewind diameter 250 mm/9,8″ Internal core diameter 76 mm/3″ TABLE / FUME EXTRACTOR Lenght infeed table SP FL 160 cm/63″ Lenght extended table SP FL 100 cm/39,4″ Outer diameter connection fume extractor 70 mm/2,76″ BLANKET Printing blanket width 2000 mm/78,7″ Printing blanket length 4550 mm/179,1″ Printing blanket thickness 7 mm/0,28″ Arc of contact blanket-cylinder 2100 TEMPERATURE/SPEED/AIR/PRESSURE/OIL Maximum temperature 2400C Mechinal speed 0,4-5 m/min Air consumption 0,1 Nm3/hr Air 6 bar max./G 1/4″ Maximum linear pressure – Oil capacity heating cylinder 215 l. ELECTRICAL INFORMATION Total installed power kVA 37 kVA Amps required at 208/400/480 V 104/55/34 Amp. Power heating 36 kW E-consumption (estimate) – Power main drive 0,55 kW Voltage 400 V Number of phases 3ph Frequency 50 Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
