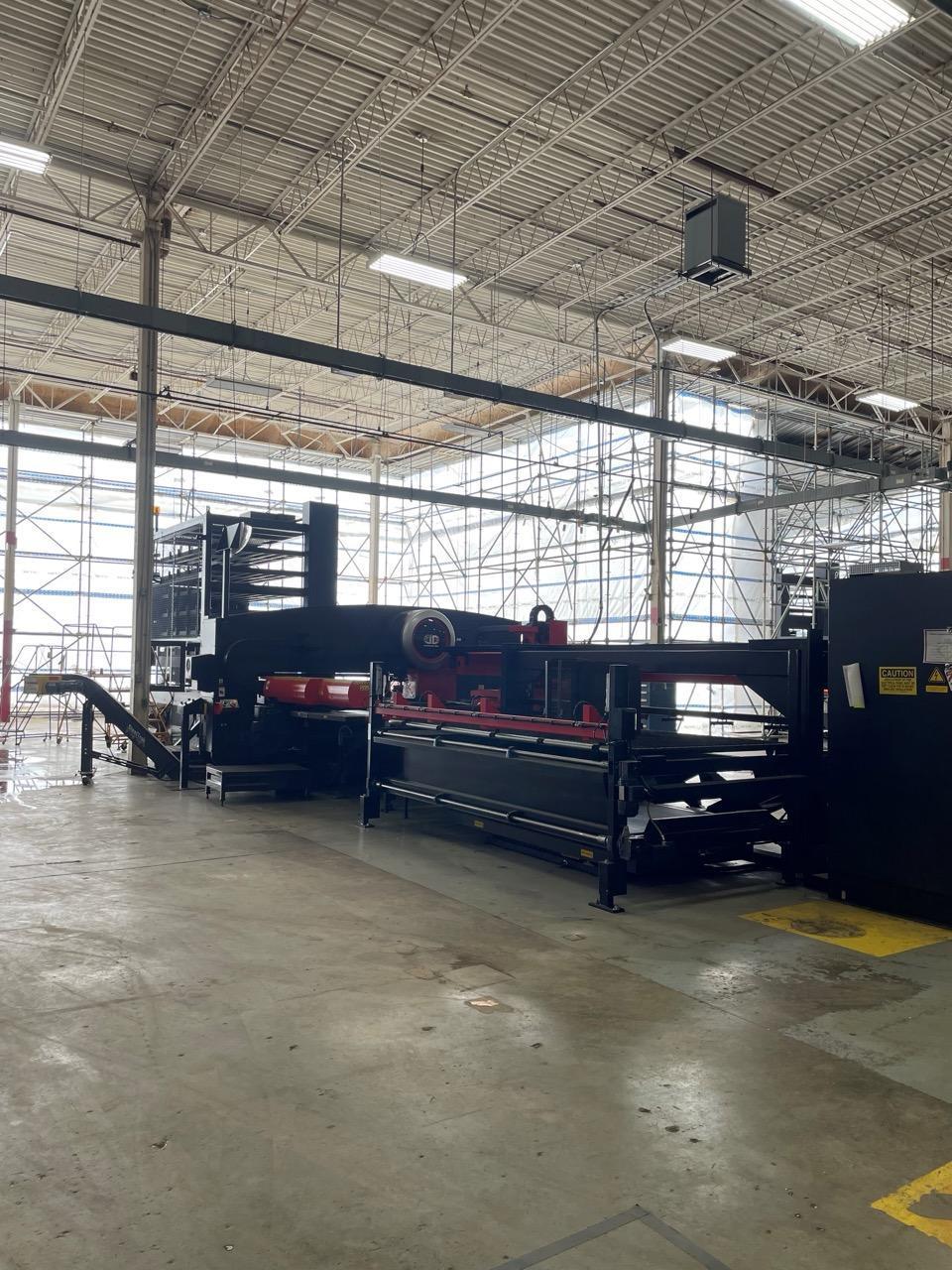

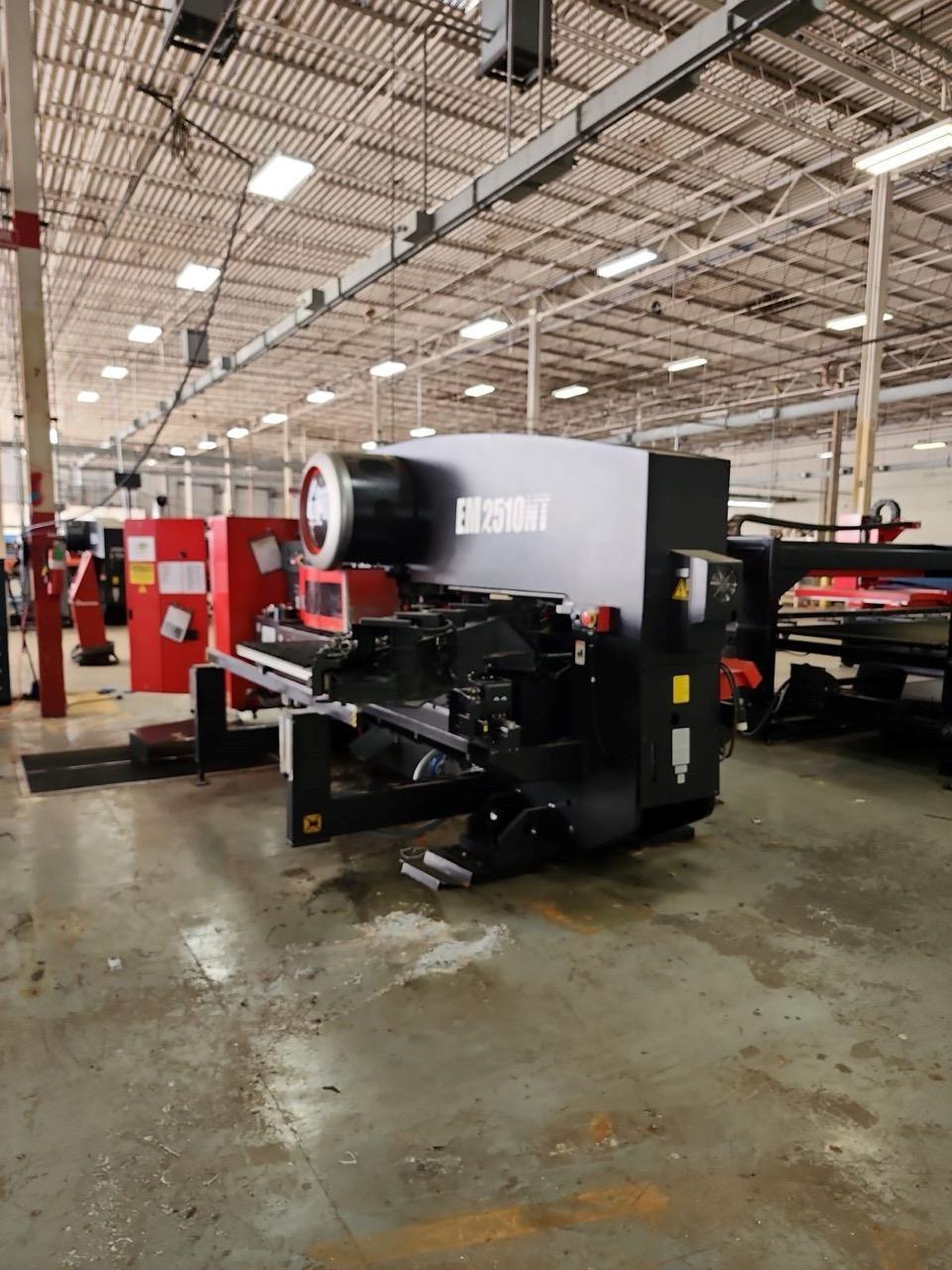

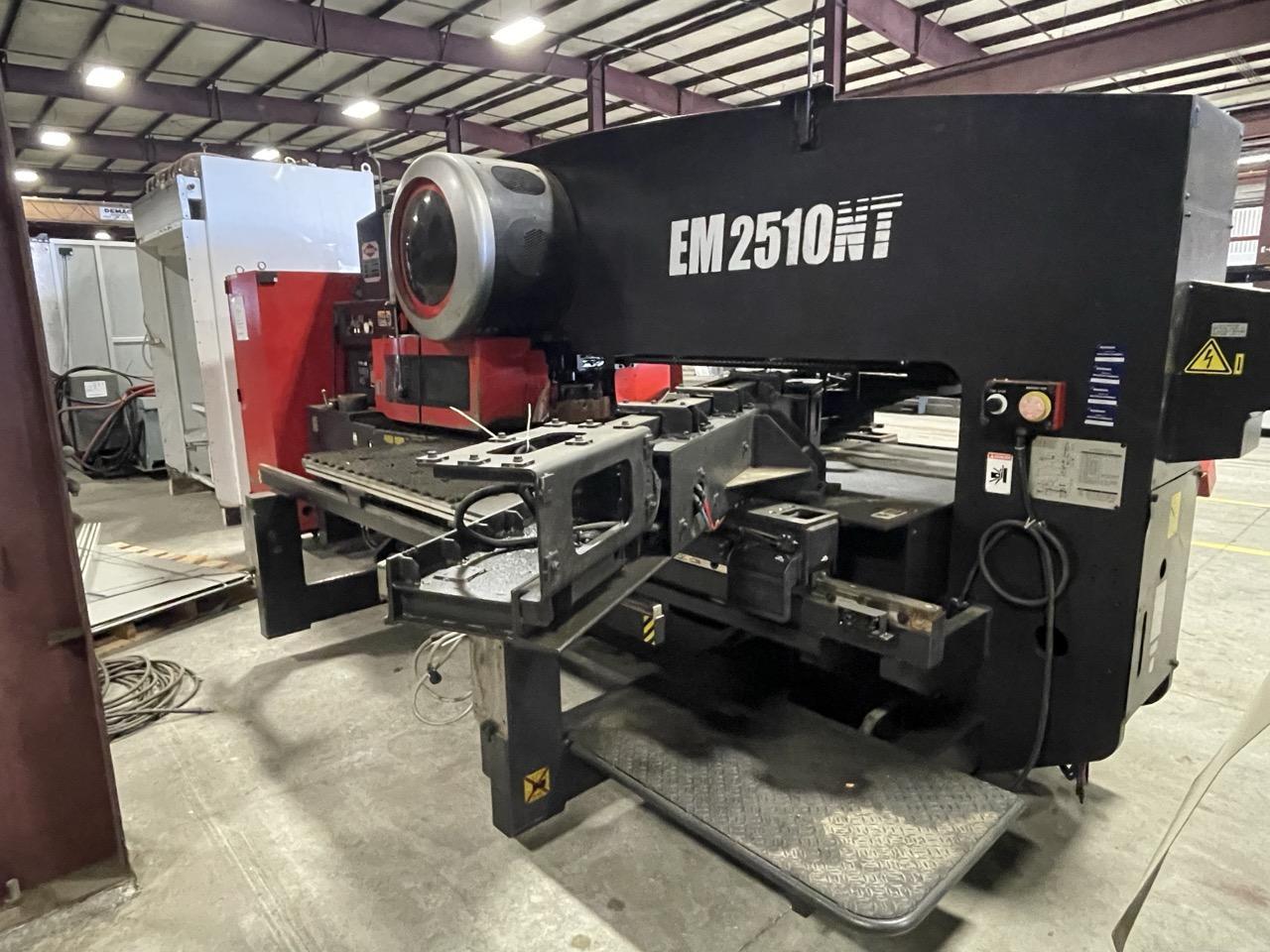

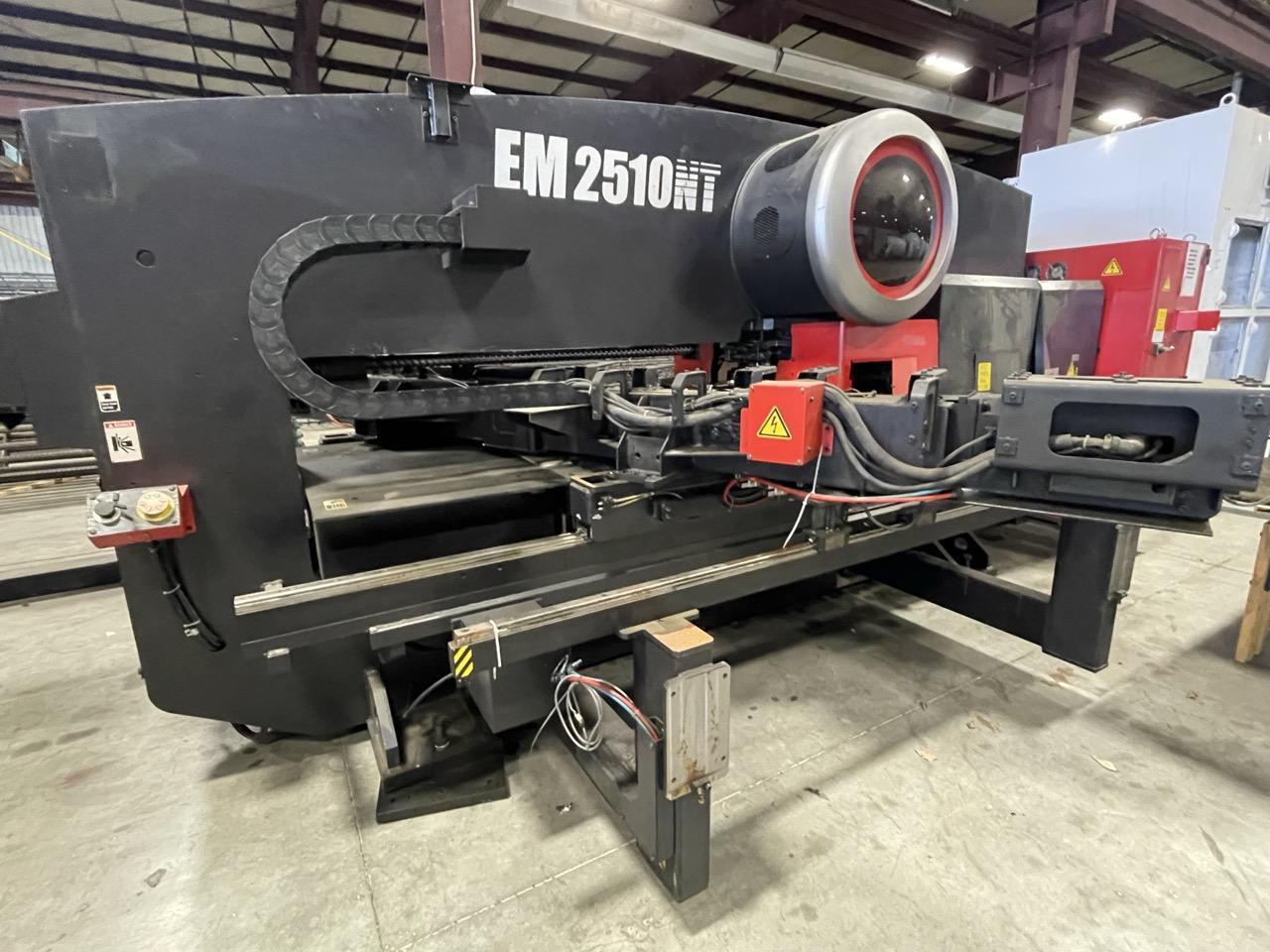

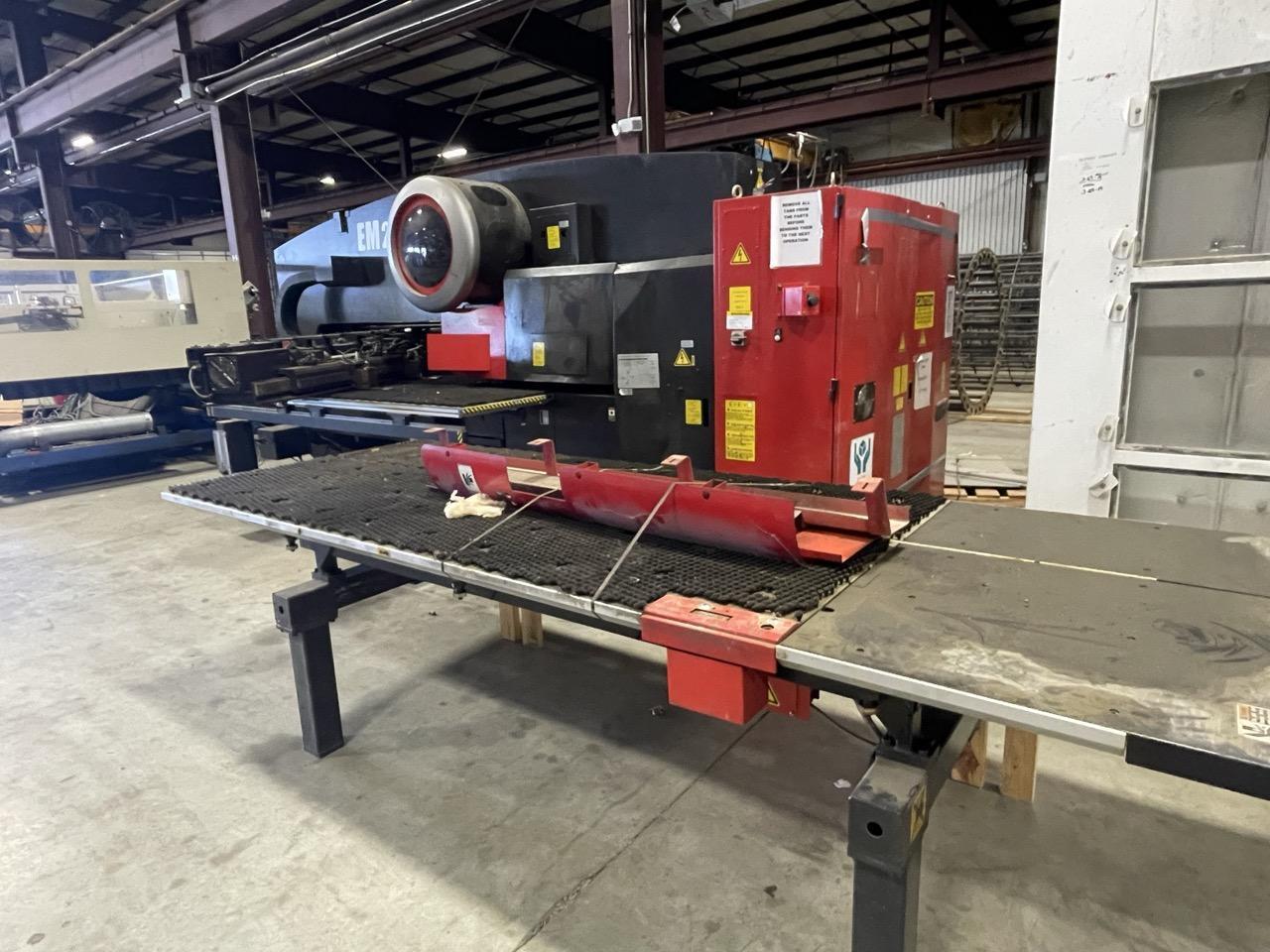

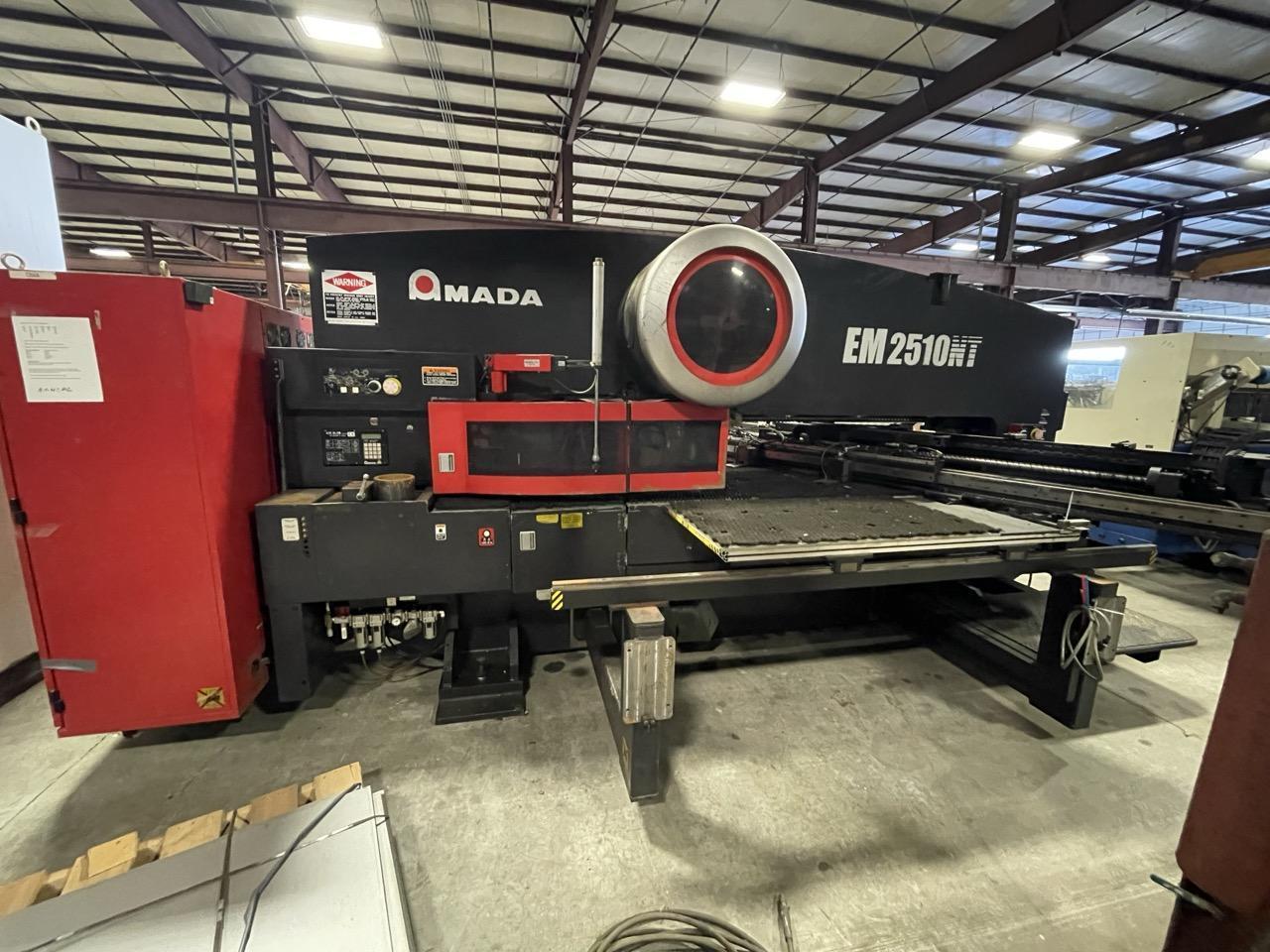

Amada EM2510NT CNC Turret Punch Press, 2004 – With AMS4020ROS Loader

Amada EM2510NT CNC Turret Punch Press, 2004 – With AMS4020ROS Loader

Name: Used AMADA EM2510NT For Sale 572387
Brand: AMADA
SKU: 572387
Availability: PreOrder

Brand

AMADA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Capacity: 22 Ton Sheet Width: 50″ Sheet Length: 100″ Turret Stations: 45 Stations with 2 Auto Indexers Throat Depth: 50″ Tooling Style: Thick Puch/Form/Scribe Drive Type: AC Servo Max Punch Stroke: 1.65″ Max Travel w/o Reposition: 50″ x 98.4″ (50″ x 196.8″ with 1 reposition) Max Feed Rate X-Axis: 3,150 ipm Max Feed Rate Y-Axis: 2,362 ipm Max Material Weight: 331 lbs Max Hit Rate: 900 hpm (at 0.019″ pitch and 0.055″ stroke for marking), X-Axis 350 hpm, Y-Axis 280 hpm (on 1″ pitch @ 0.118″ stroke) Number of Auto-Indexer Stations: 2 Turret Rotational Speed: 30 rpm Auto-Index Rotational Speed: 60 rpm Table Type: Brush Clamping Type: Pneumatic

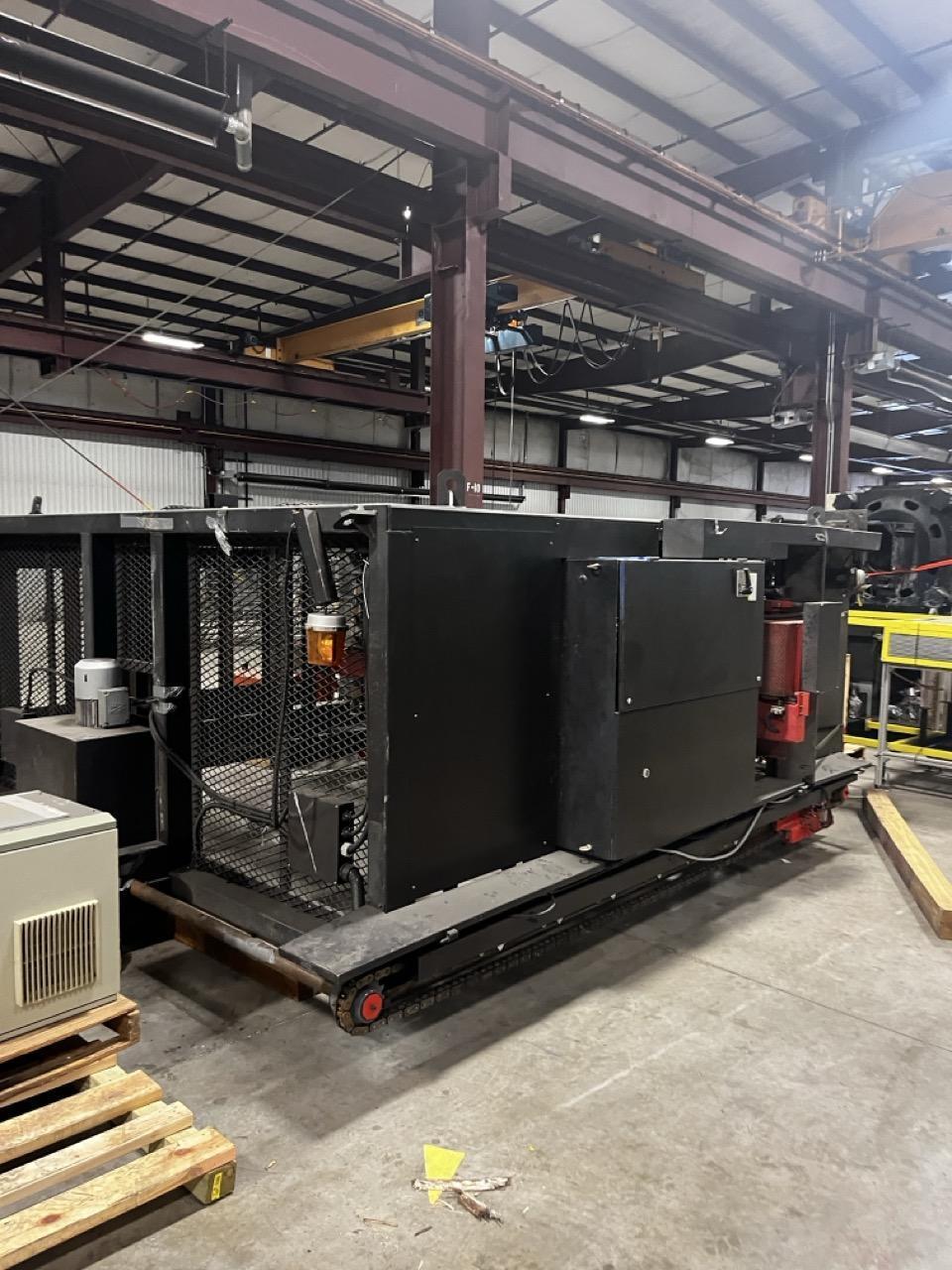

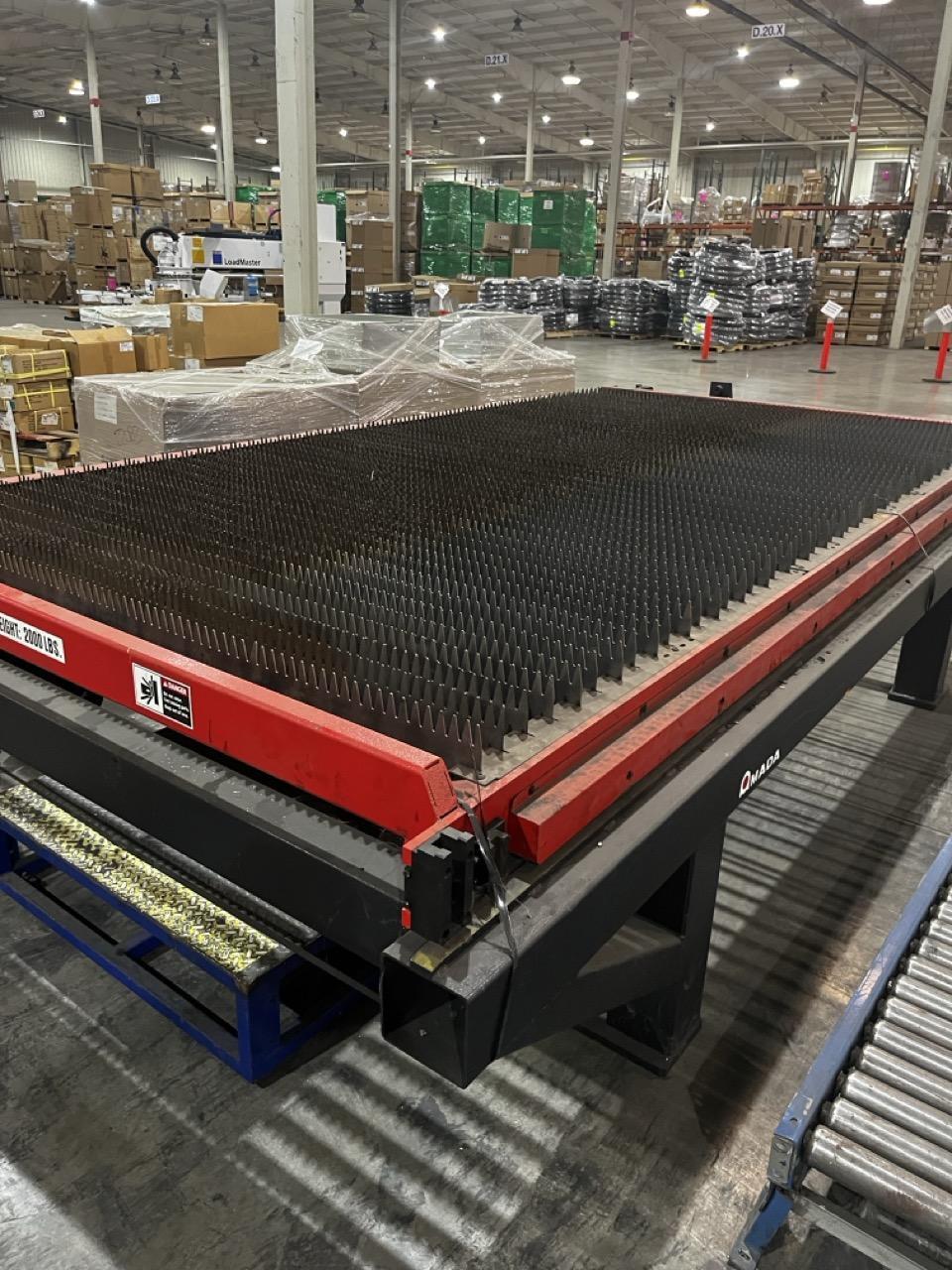

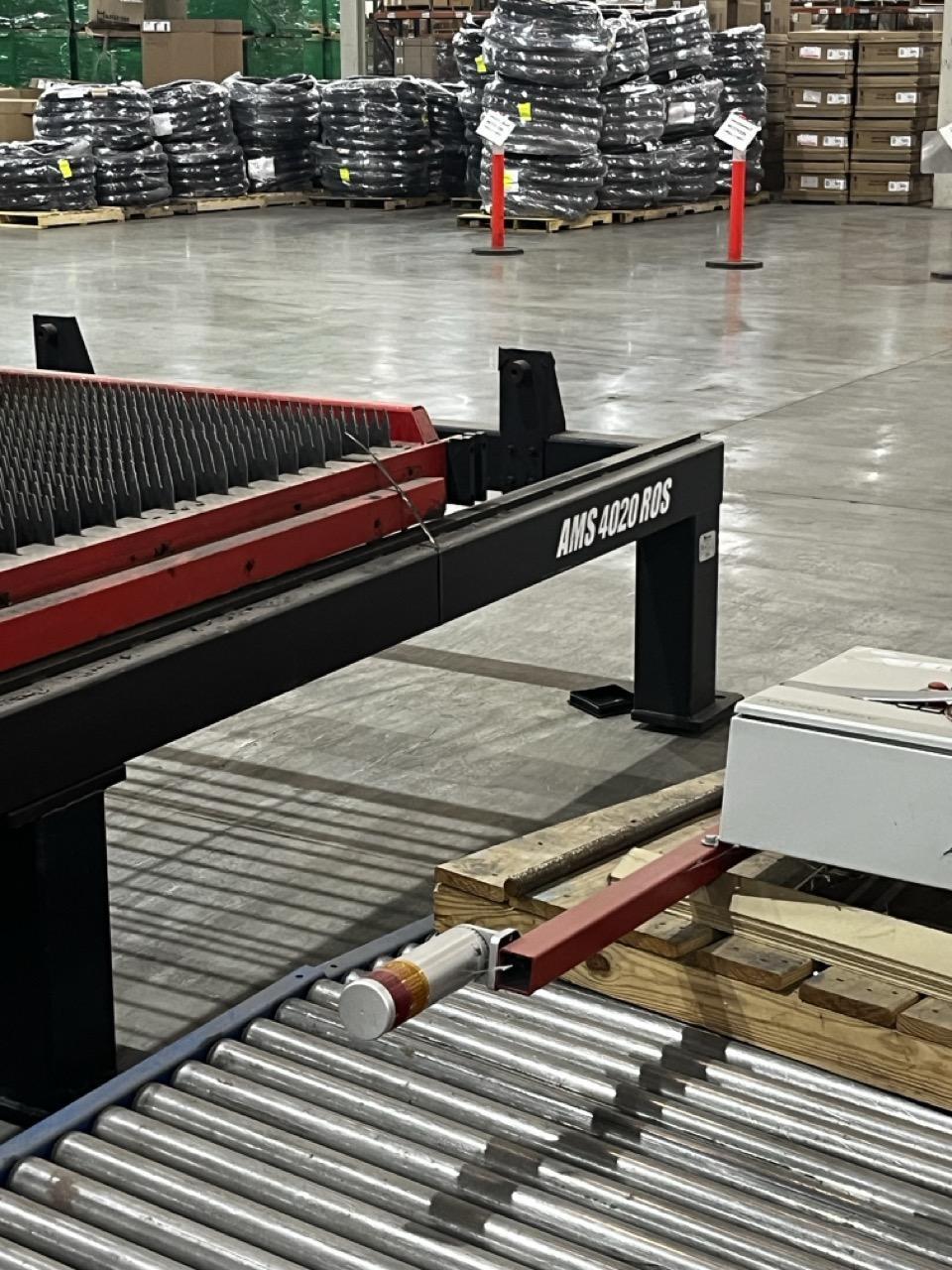

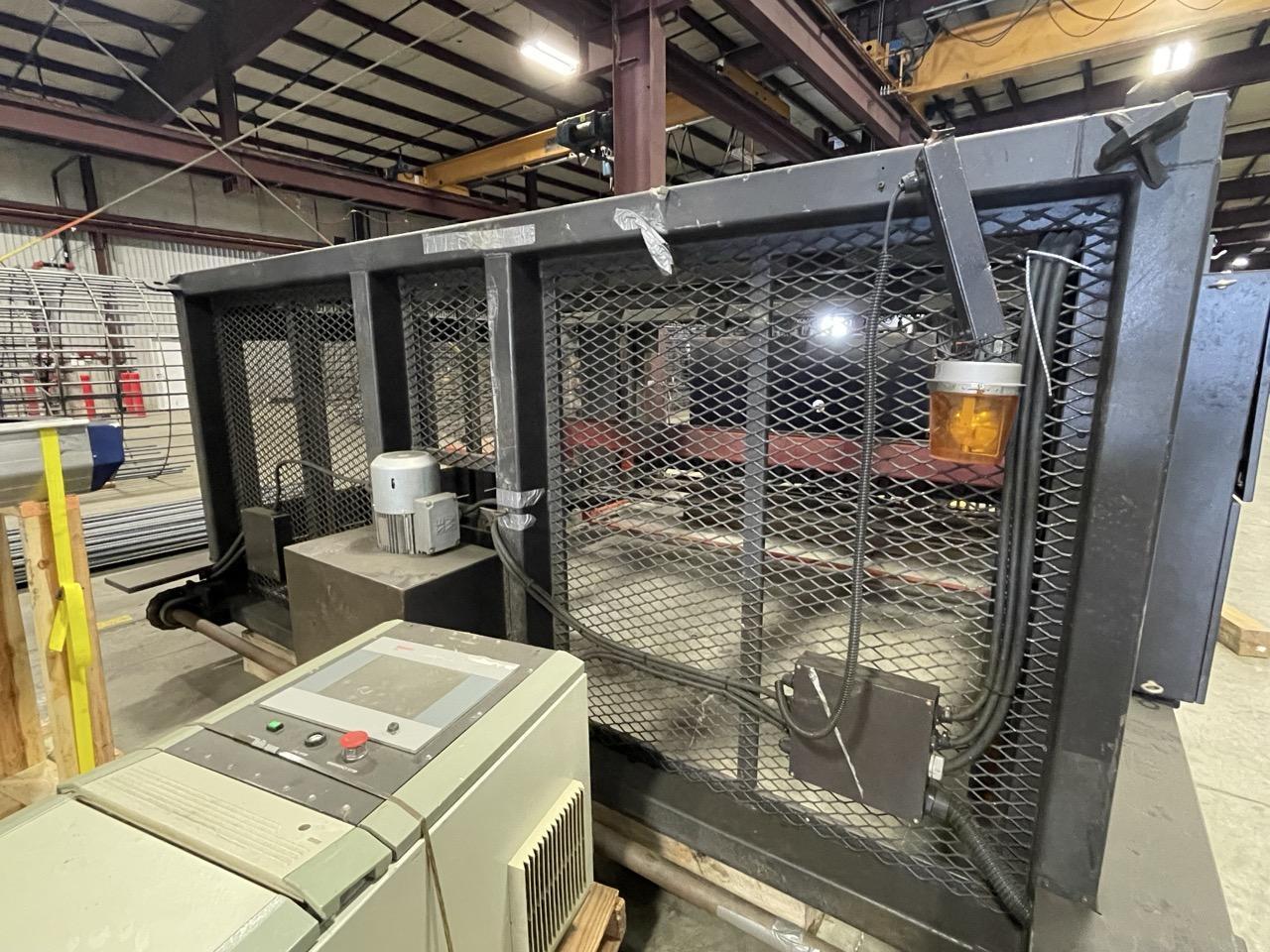

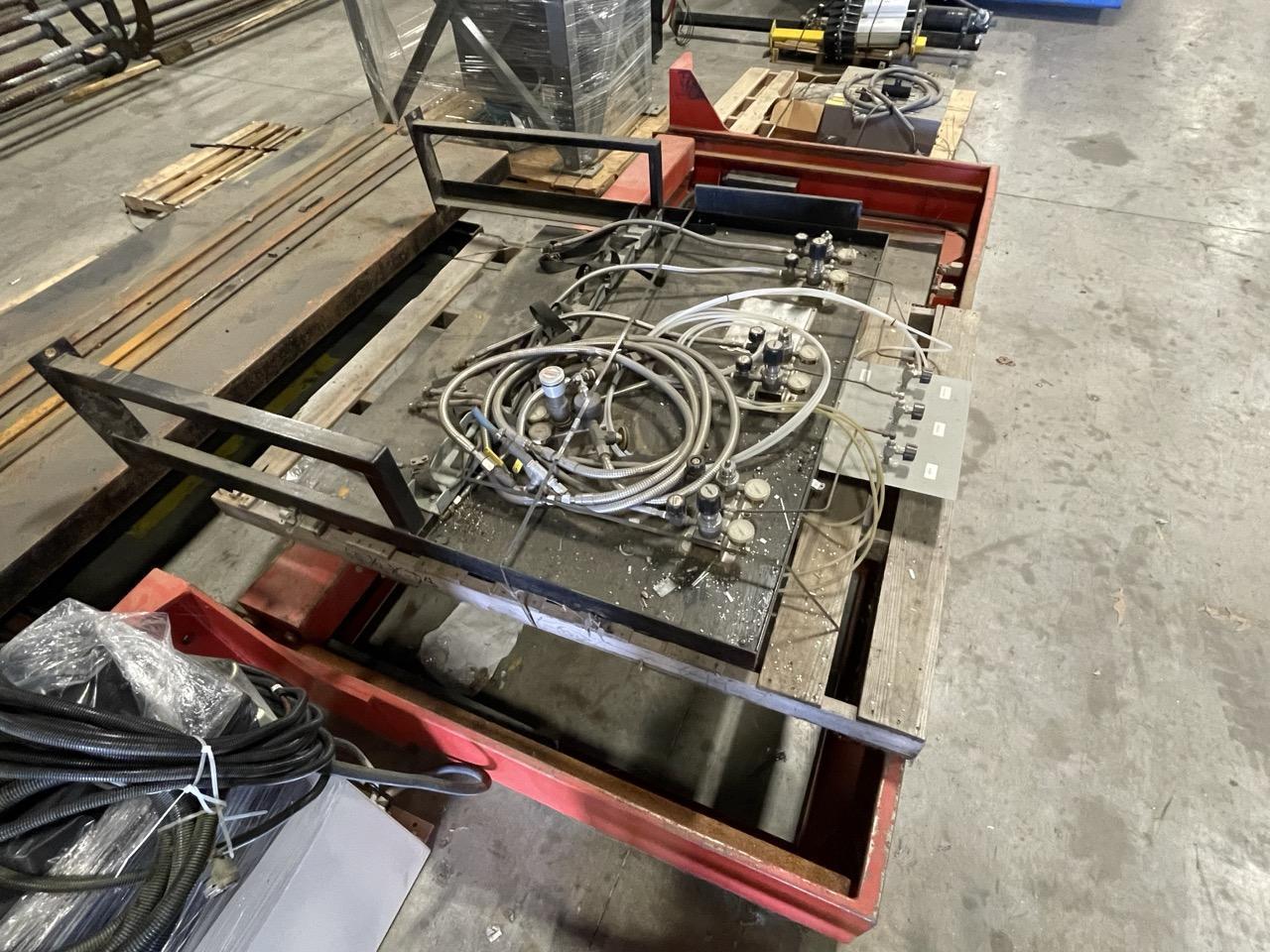

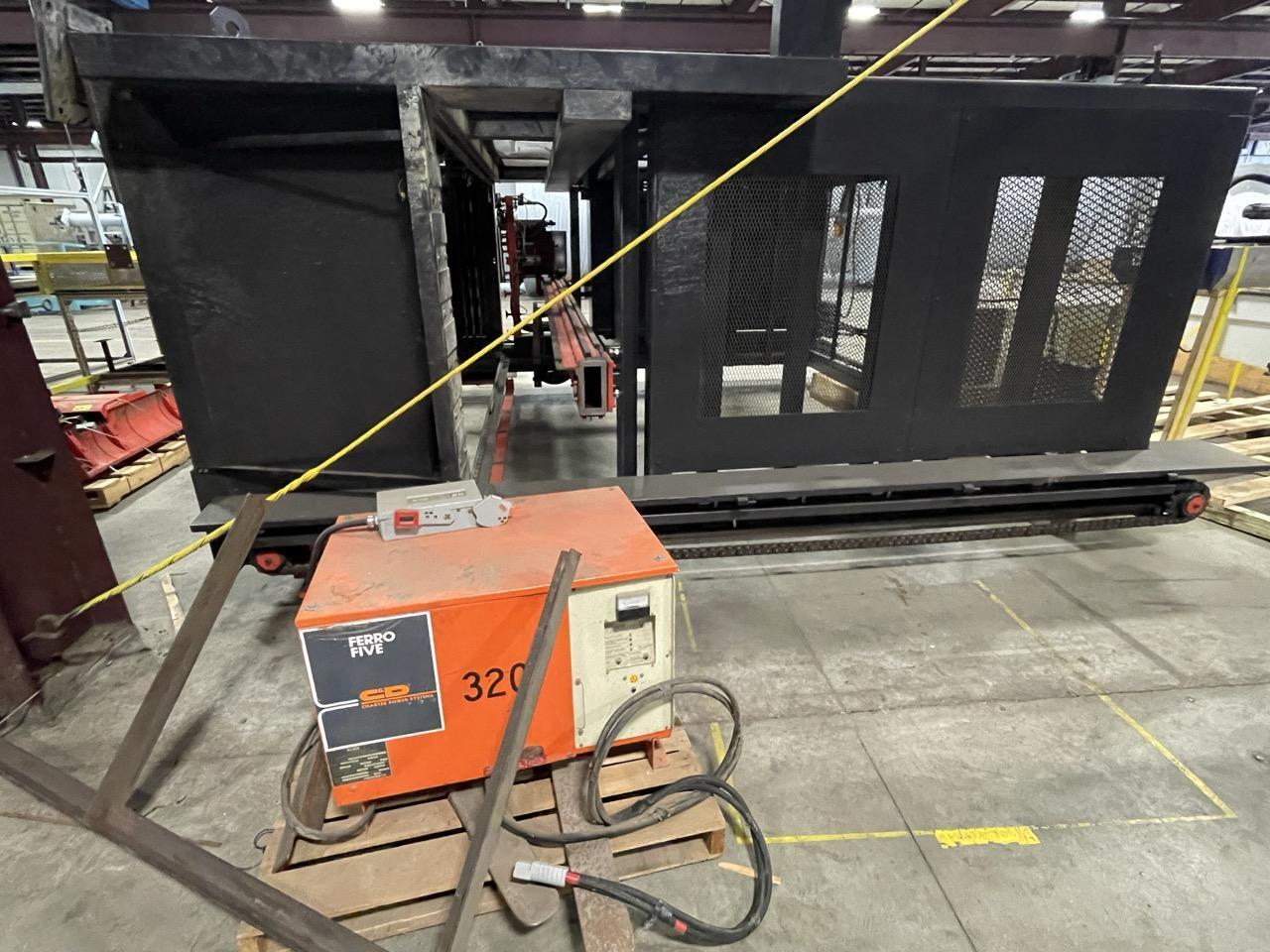

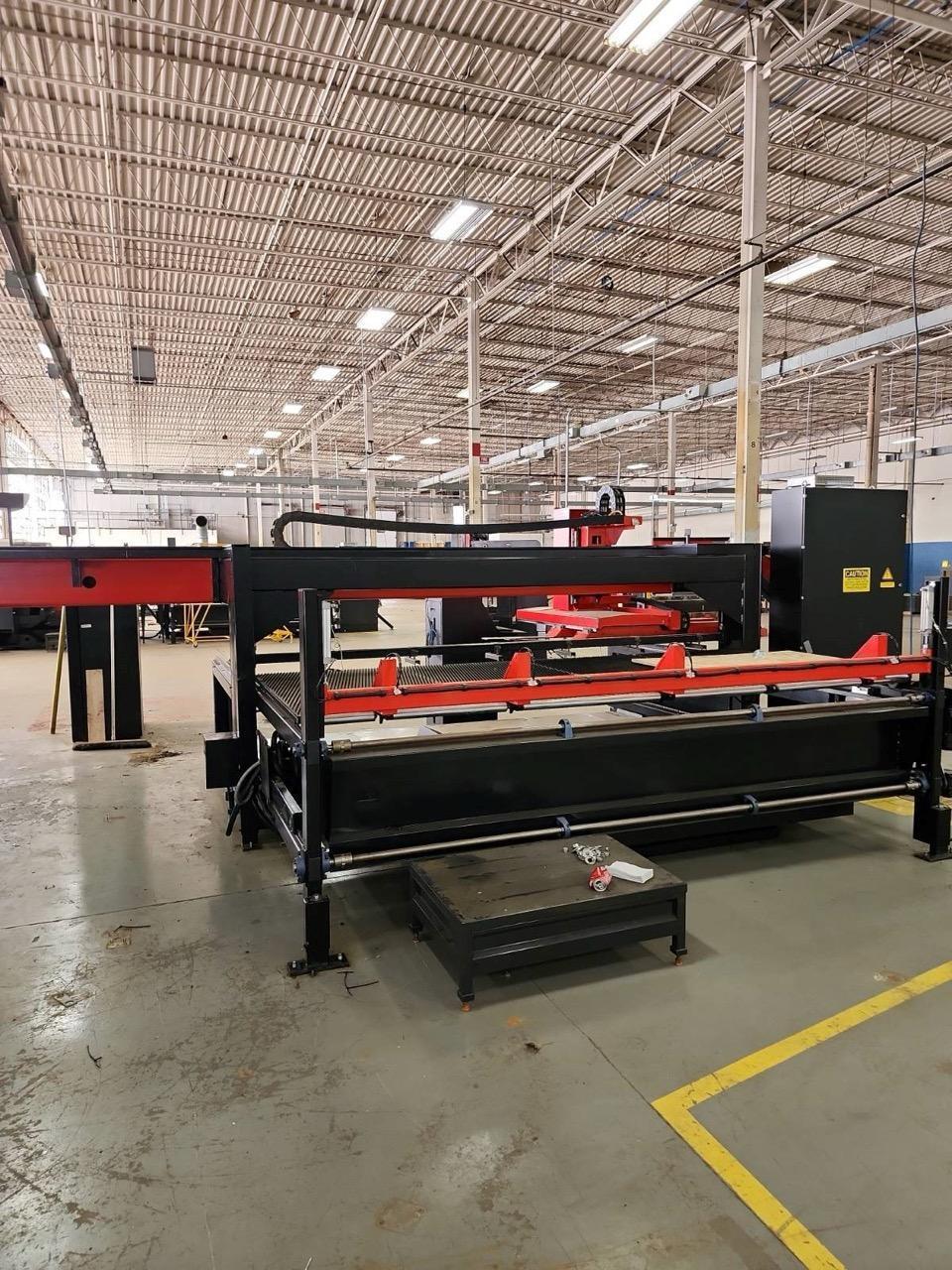

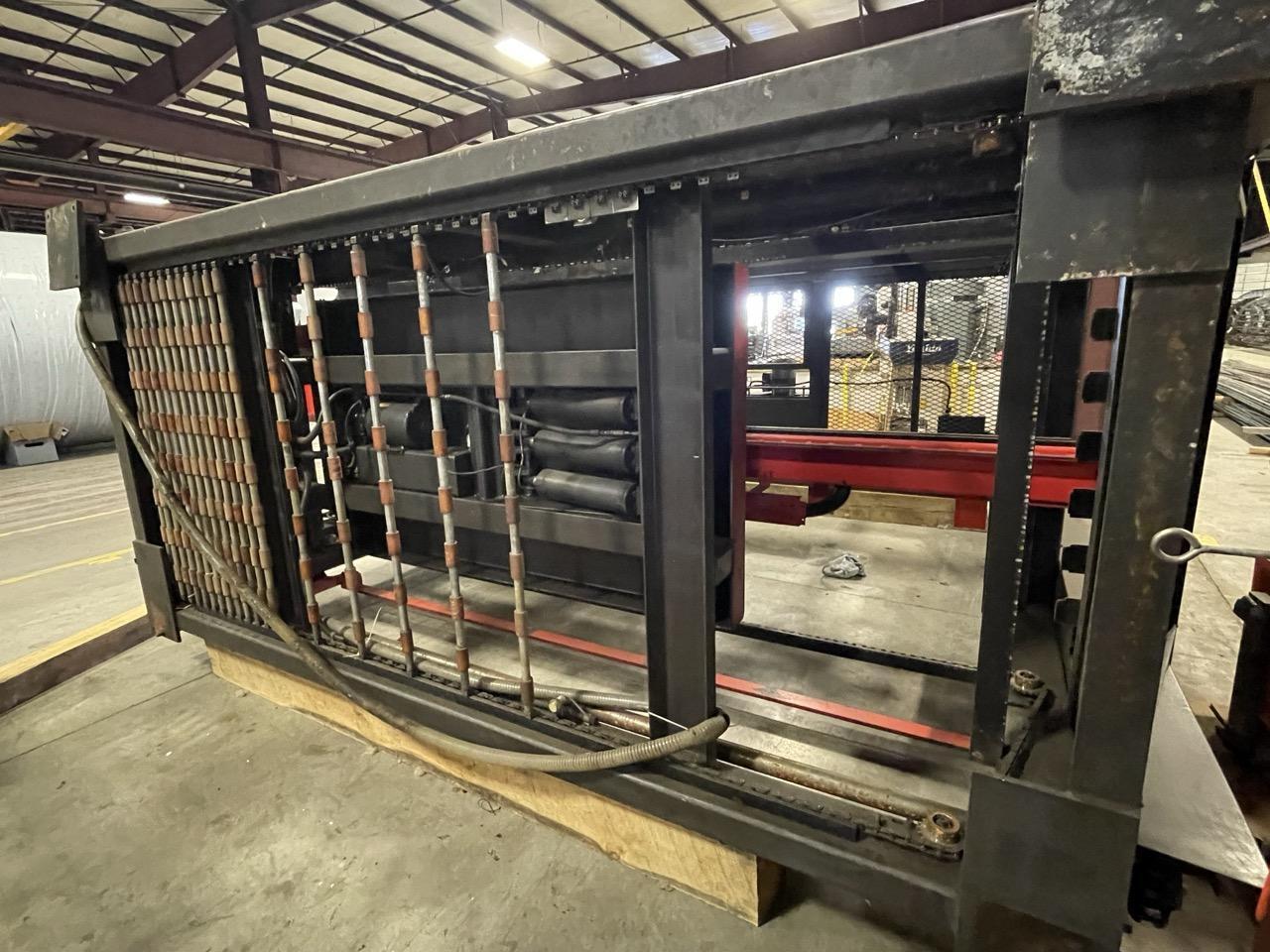

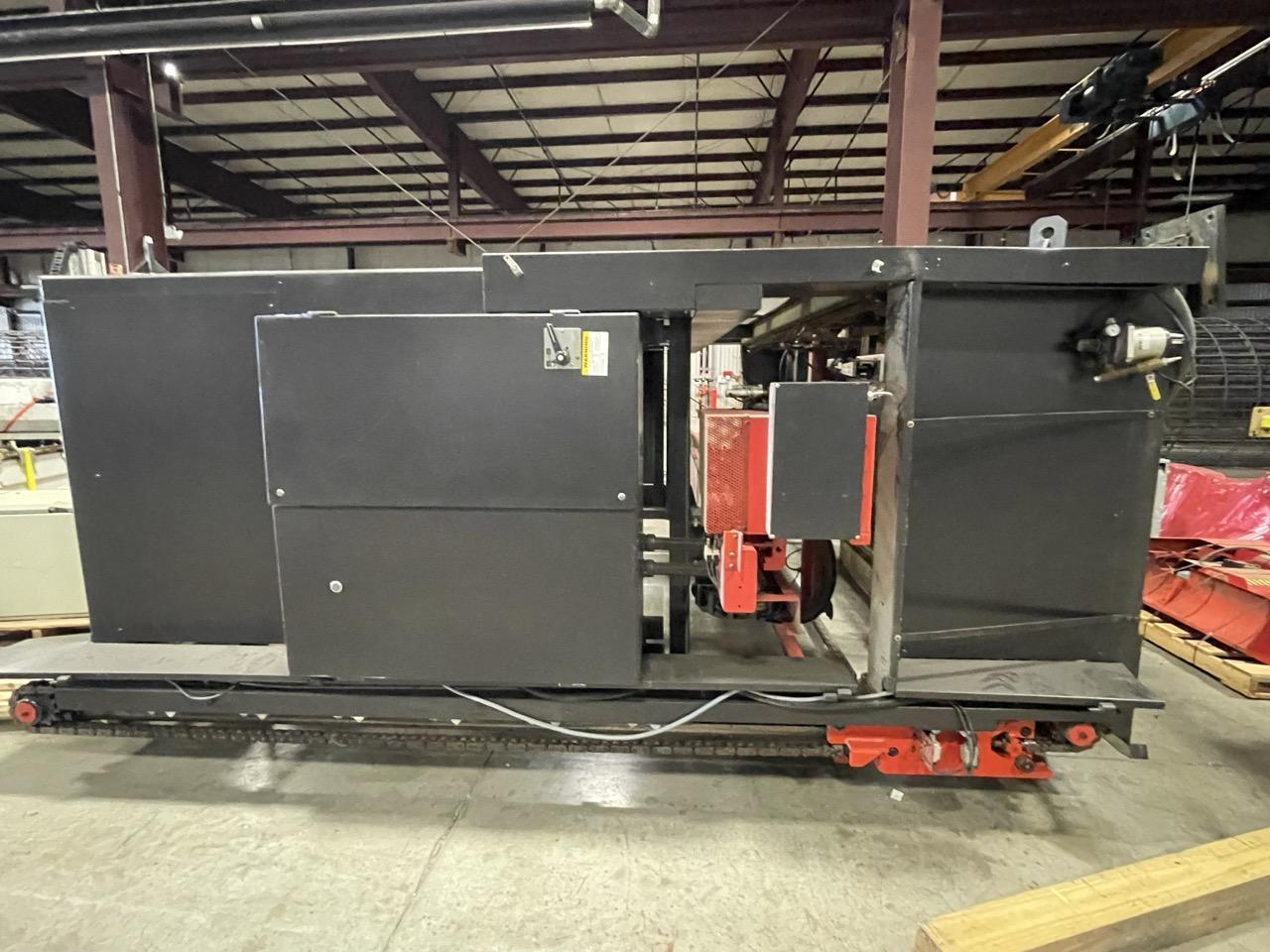

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: AMS4020ROS Loader

All specifications are assumed to be correct but must be confirmed by the purchasing entity.

No files or videos to display
