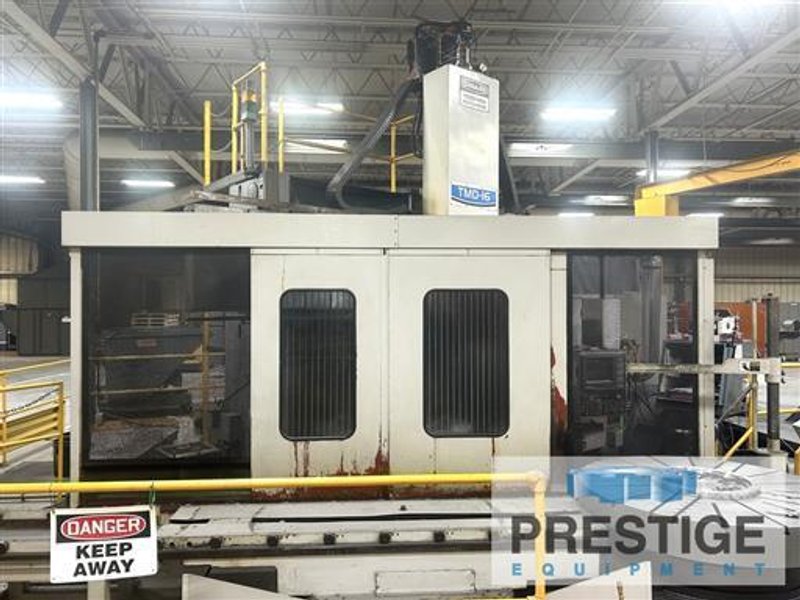

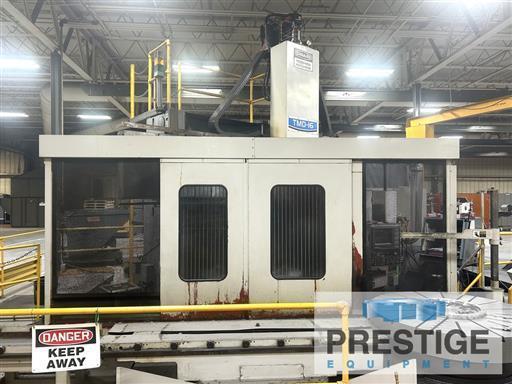

TOSHIBA TMD-16N 63" CNC Vertical Boring Mill With Live Spindle, Pallet Shuttle

SPECIFICATIONS:
Table Diameter 62.99"
Maximum Swing 78.74"
Maximum Turning Diameter 78.74"
Maximum Height Ram to Table Surface 63"
Maximum Cutting Height 55.1"
Vertical Travel of Ram 41.3"
Horizontal Travel of Ram Head -31.7"/+44.1"
Ram Cross Section 8.66" x 8.66"
Cross Rail Vertical Travel 19.68"
Table Speeds 6-280 RPM
Table Speed Ranges 2
Table Torque 22,000 Nm
Table C-Axis 360,000 Position
Spindle Mill & Drill Speeds 12.5-1500 RPM
Spindle Torque 390 Nm
Spindle Taper #50
Milling Spindle Motor 20 HP/14.7 HP
Table Drive Motor 60 HP/50 HP
X-Axis Rapid Traverse of Rail Head 472.44 IPM
Z-Axis Rapid Traverse of Ram 314.96 IPM
X and Z-Axis Feed Rates .0039-78.74"
Floor Space 313" x 288"
Machine Height 220"
Machine Weight W/O Pallet Changer 72,200 Lbs
Electrics 220V 50/60 Cycle



Equipped With:

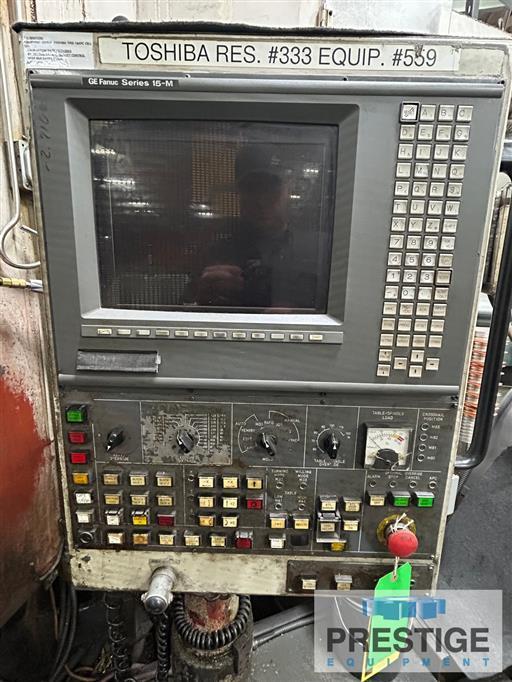

Fanuc 15T-C CNC Control

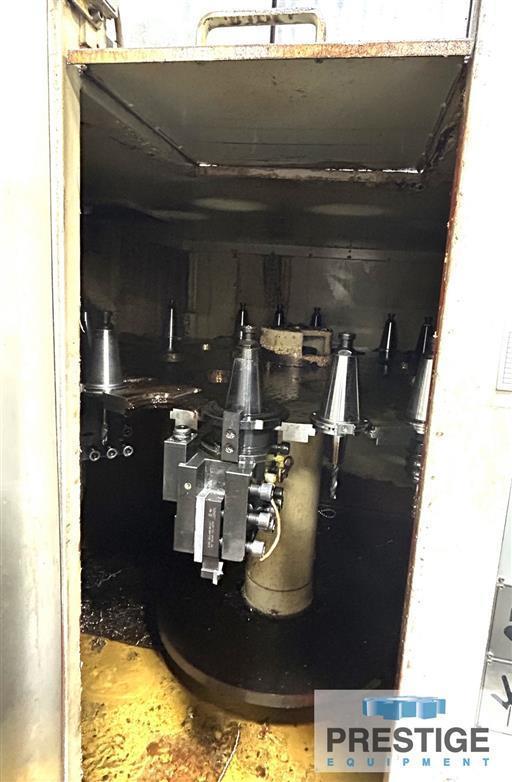

24-Station ATC With (8) Turning & (16) Milling Stations

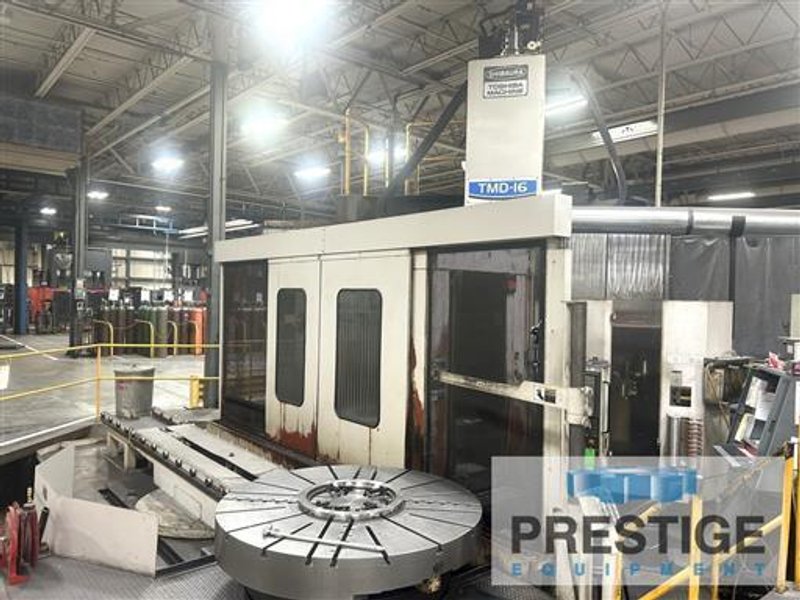

(2) 62.99" Face Plate Type Chucks With 2-Pallet Shuttle System
C-Axis Table For Milling & Drilling Operations
Continuous Thread Cutting
Fanuc AC Servo Motors and Drives
Coolant System
Chip Conveyor
