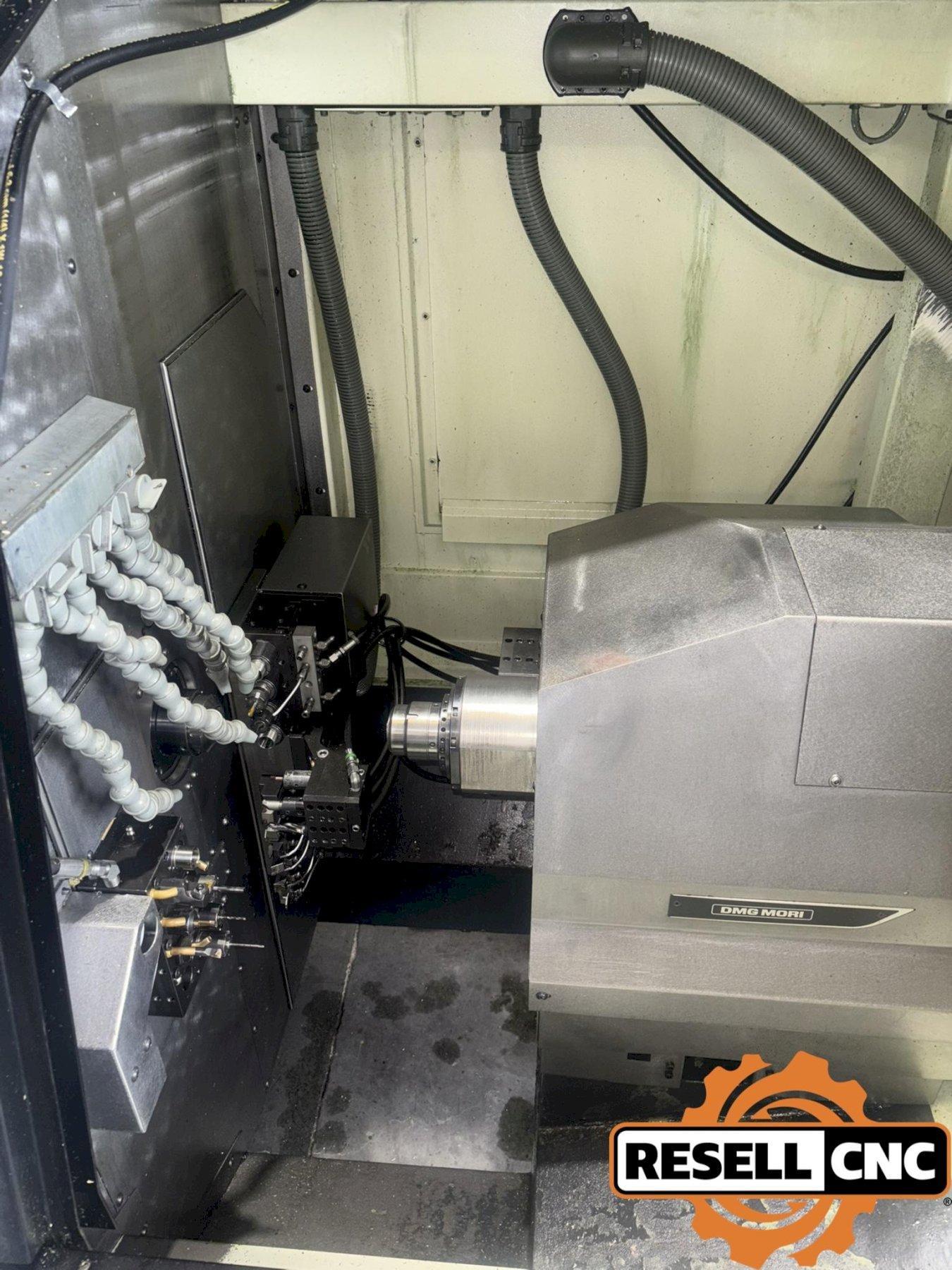

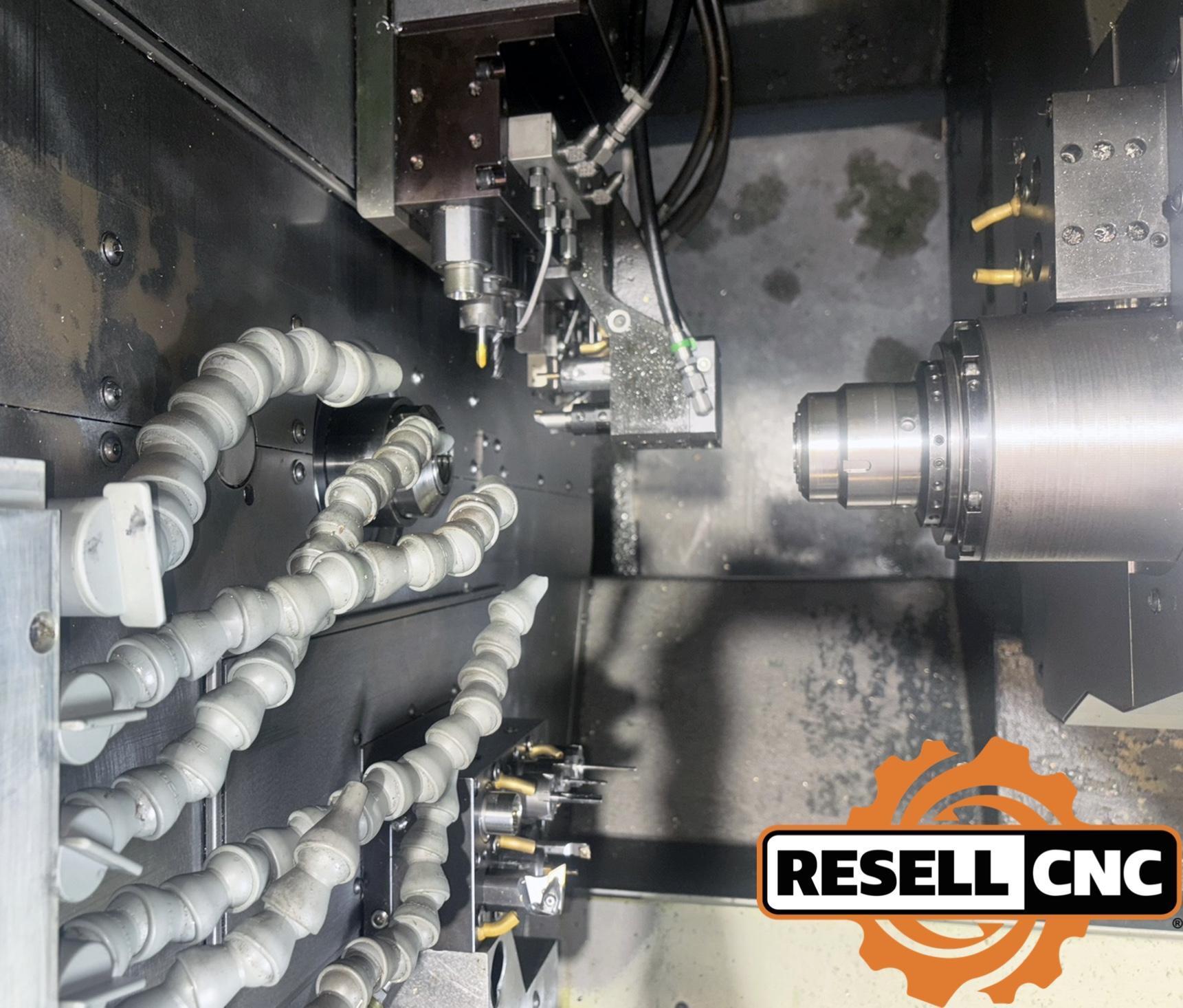

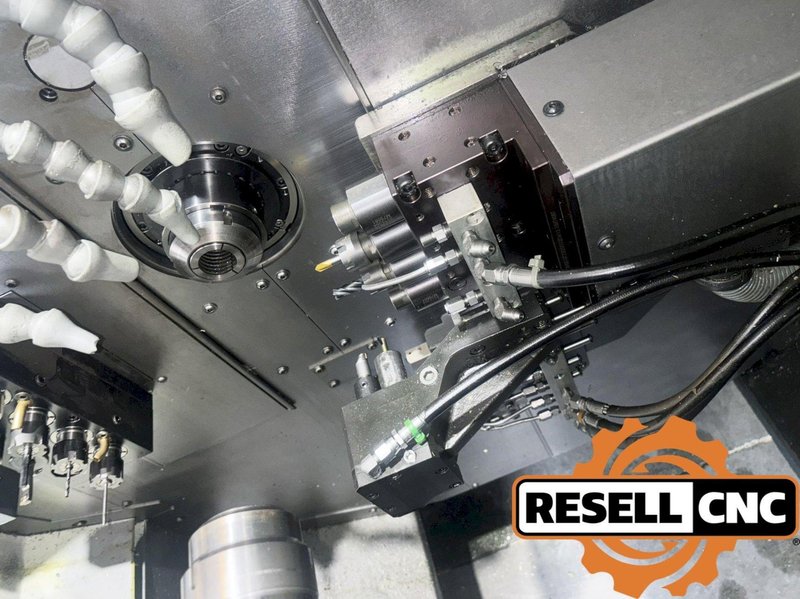

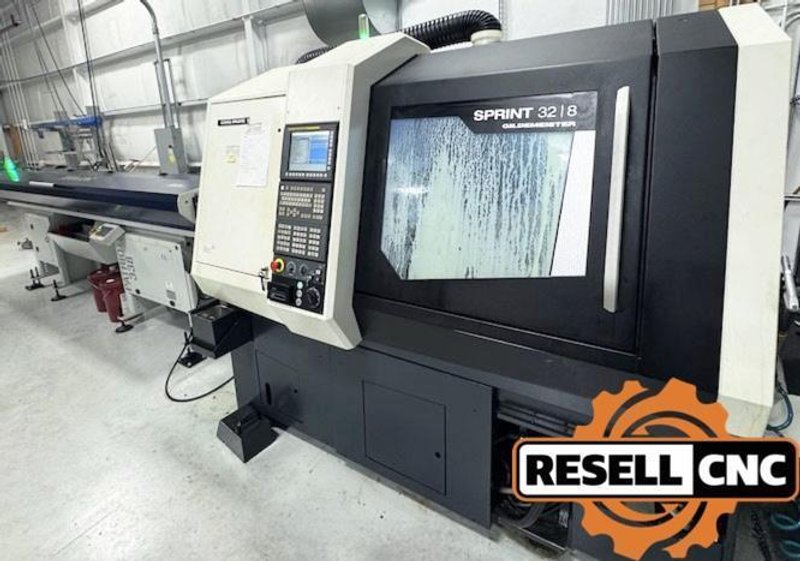

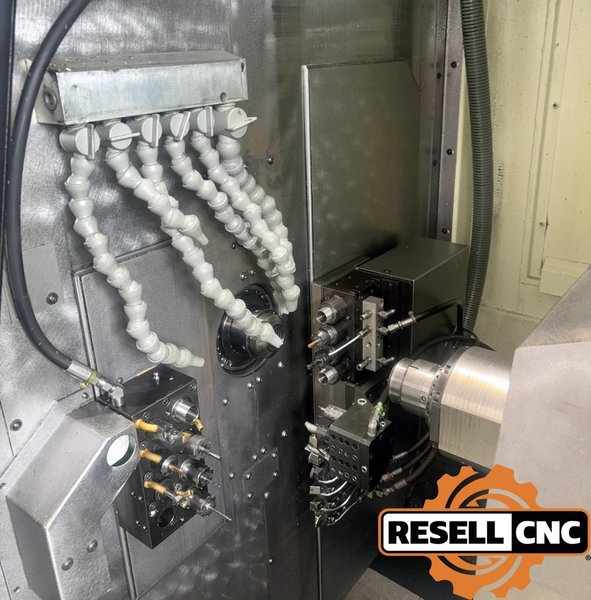

2018 DMG Mori Sprint 32/8 CNC Screw Machine w/ Barfeeder
Brand
Category
Model
Sprint 32/8
Stock #
15153
Year
2018
Condition
Used
Location
Florida
| Dimensions | 66" x 66" x 82" |
| Weight | 7826 pounds |
ABOUT THIS MACHINEBoost your productivity with this 2018 DMG Mori Sprint 32 — precision Swiss-style turning with integrated bar feeder for seamless, continuous operation. Ideal for high-volume, high-precision parts production with unmatched speed and reliability!
**All descriptions and specifications are preliminary and must be confirmed by buyer prior to purchase.** LIVE TOOLING / MILLINGC-Axis: Equipped With
Y-Axis: Equipped With
Live Tooling / Milling: Equipped With
SPECIFICATIONSX-Travel: 2.76"
Z-Travel: 9.45"
Distance Between Centers: 24"
Max Turning / Cutting Length: 23.60"
Rapid Traverse: 1575/1181 IPM
SPINDLEBar Capacity: 1.26"
Spindle Speed: 8,500 RPM
Spindle Motor: 10 HP
SECOND SPINDLETotal Spindles: 2
Sub-Spindle: Equipped With
Second Bar Capacity: 1.26"
Second Spindle Speed: 8500 RPM
Second Spindle Motor: 5 HP
TURRETTool Positions: 28
Turret Max RPM: 6000 RPM
Twin Turret: Equipped With
CONTROLControl Make/Model: Fanuc 32i-B Plus CNC Control
Control Options: Color Monitor
Additional Control Options: Dual Check Safety System
2 MB NC RAM External Threading Boring Hobbing Feed Thrust Reduction Position Monitoring Axial Stopping OPTIONSAdditional Machine Specs: Air Handler
C-Axis: (0.001°) Y-Axis: 15.94" Counter spindle X2/Z2: 11.81"/7.87" Tool holder on slide 1 Fixed turning tools 6 Tools for front machining/back-working 4/4 Driven tools 2 + 2 Maximum speed rpm 6,000 Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3 Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2 Maximum speed rpm 4,000 Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3 Maximum torque (S3 40 % /S1) Nm | ft lbs 5.25/4.5 | 3.9/3.3 Tool holder on slide Y2 On station for back working Fixed/driven tools for back-working 4/4 (5/4)* Maximum speed rpm 6,000 Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3 Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2 Tool holder on slide 2 Fixed/driven tools for back-working 2/0 (0/2)* (0/1 for polygons)* Maximum speed rpm 4,250 Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3 Maximum torque (S3 40 % /S1) Nm | ft lbs 3.5/3 | 2.6/2.2 Automatic Turning with 6 Linear Axes and 2 C-axis 8 driven tool stations as standard Driven tools spindles 6,000 rpm, 2.2 ft lb, 1.3 hp 2 control channels, 6 linear axes and 2 C-axes Tool Monitoring System with graphical tool load display as option Up to 2 tools working simultaneously Coolant Types: High Pressure Coolant
|
|
