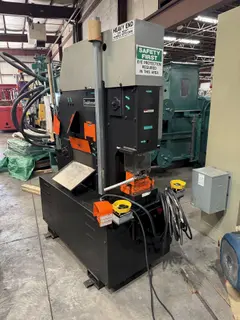

85 Ton Scotchman F18507 14M Hydraulic Ironworker
Brand
Category
Type
Model
FI 850 14M
Stock #
TMI85L
Year
1999
Condition
Very Good
Location
Illinois
|
SPECIFICATIONS:

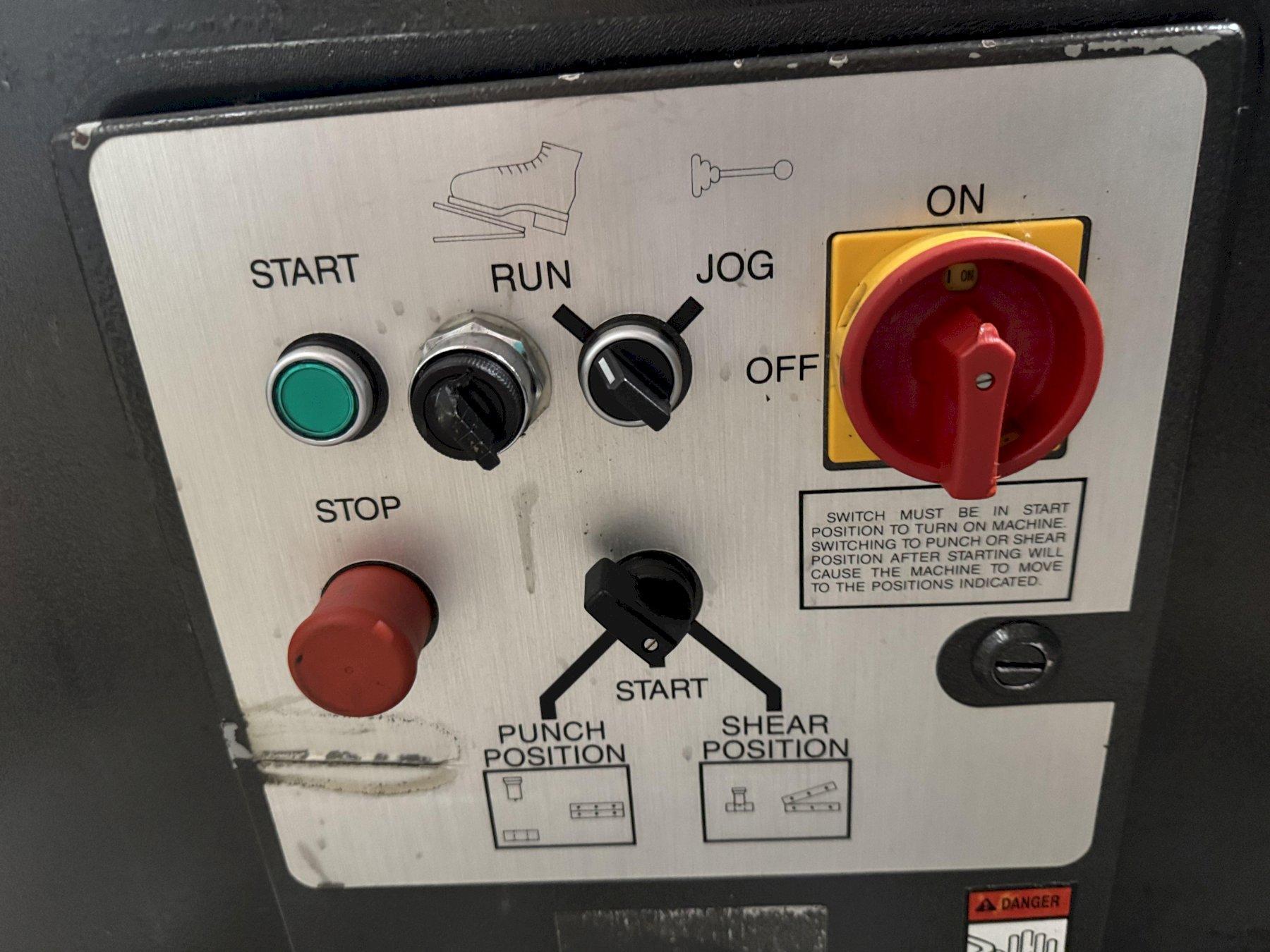

PUNCHING CAPACITY: Nominal Tonnage 85 Punch Diameter thru thickness 1-1/16" thru 1" Depth of Throat 7" ANGLE SHEAR: Angle at 90 deg 6" x 6", Angle at 45 deg 4" x 4" FLAT BAR SHEAR STATION: 14" length Capacity 1" x 12", 1/2" x 14" Material Back Gage and Mechanical Sheet Hold-Down ROD SHEAR: Round 1" Squares 1" RECTANGULAR NOTCHER (COPER) CAPACITY: 3" wide x 5" deep x 1/2" thickness EQUIPPED WITH Punch, Plate Shear, Rectangle Notcher, Rod Shear, Angle Shear Anti-Repeat Electric Foot Switch to actuate Punch End and Shear End. Adjustable Stroke Controls. Adjustable Stripper 1-Offset Die Holder 1-Notcher Table. 1-Shear Table. Point of Operation Safety Guards at each cutting station. Fork Lift Accommodations. MOTOR DRIVE: Wired 230 volts, 3-phase Hydraulic Pump 5 HP, 208-230/460 volts CONTROLS: Wired Low Voltage Located on Punch End & Rectangle Notcher End Emergency Stop Button. Located on Magnetic Control Box: Start / Stop Buttons. Run / Jog Switch. Dimensions: 60" LR x 30" FB x 77" Ht Approximate weight 4,200 lbs. |
