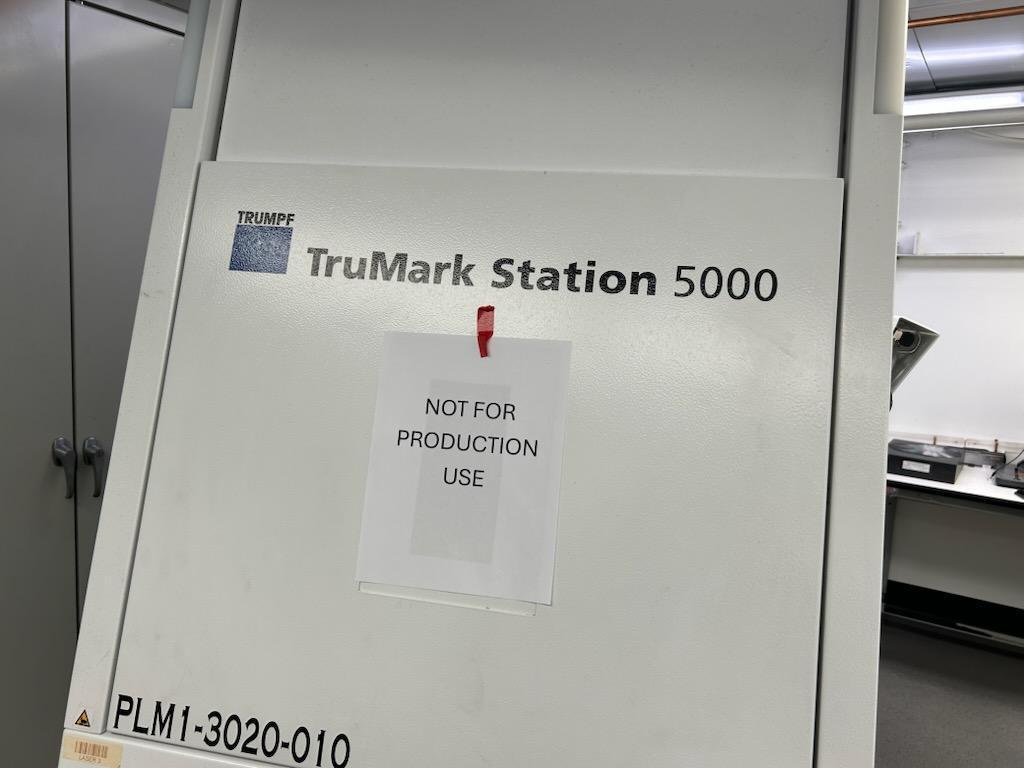

Trumpf TruMark Station 5000 Laser Engraving Machine, Trumpf 3000 Laser Head, 4" Rotary Table, New 2013
Brand
Category
Type
Model
TruMark Station 5000
Stock #
56264
Year
2013
Condition
Like New
Location
Connecticut
| CNC Control | yes |
| Type Of CNC Control | PC Computer |
| Laser Medium: | YAG |
| Laser Class | 1 |
| Workpiece Specifications - (W X H X D) | 26.77" (680mm) x 19.68" (500mm) x 27.55" (700mm) |
| Z-Axis Travel | 19.68" (500mm) |
| X-Axis Travel | 11.81" (300mm) |
| Y-Axis Travel | 11.81" (300mm) |
| C-Axis Travel | 360 Degrees |
| C-Axis Rotation Speed | TBD |
| Z Traverse Speed | 1.5m/min |
| X Traverse Speed | 6m/min |
| Y Traverse Speed | 6m/min |
| Wavelength | 1060 =/- 3 nm |
| Pulse Repetition Frequency | cw, cwm, 1 - 1000 kHz |
| Adjustable Pulse Duration | 9 - 200 ns |
| Max. Size Of Marking Field | 290 x 290 mm2 |
| Min. Focal Diameter | 41 um |
| Max. Internal Focal Position Adjustment | =/- 60 mm |
| Beam Quality M2/Instensity Allocation | 2.0 / low order mode |
| Scanner Calibration Accuracy | =/- 50 um |

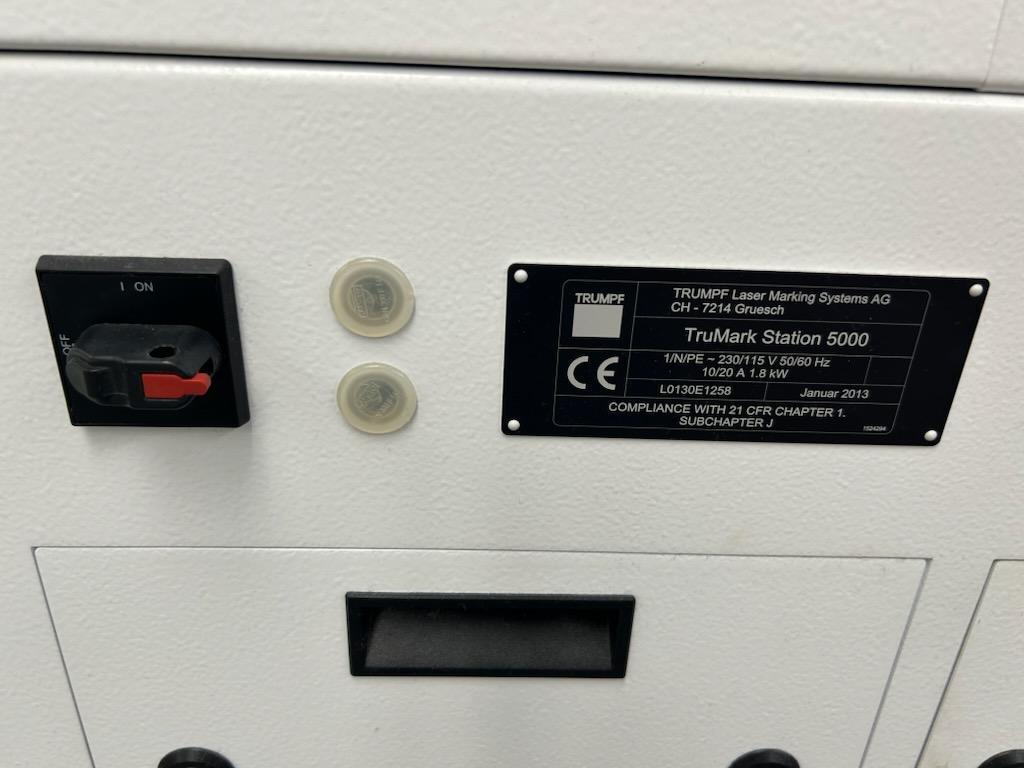

| Electric Voltage | 115V - 230V |
| Electrical Frequency | 50 Hz - 60 Hz |
| Dimensions Of Work Station (W X H X D) | 33.85" (860mm) x 78.74" (2000mm) x 51.57" (1310) |
|

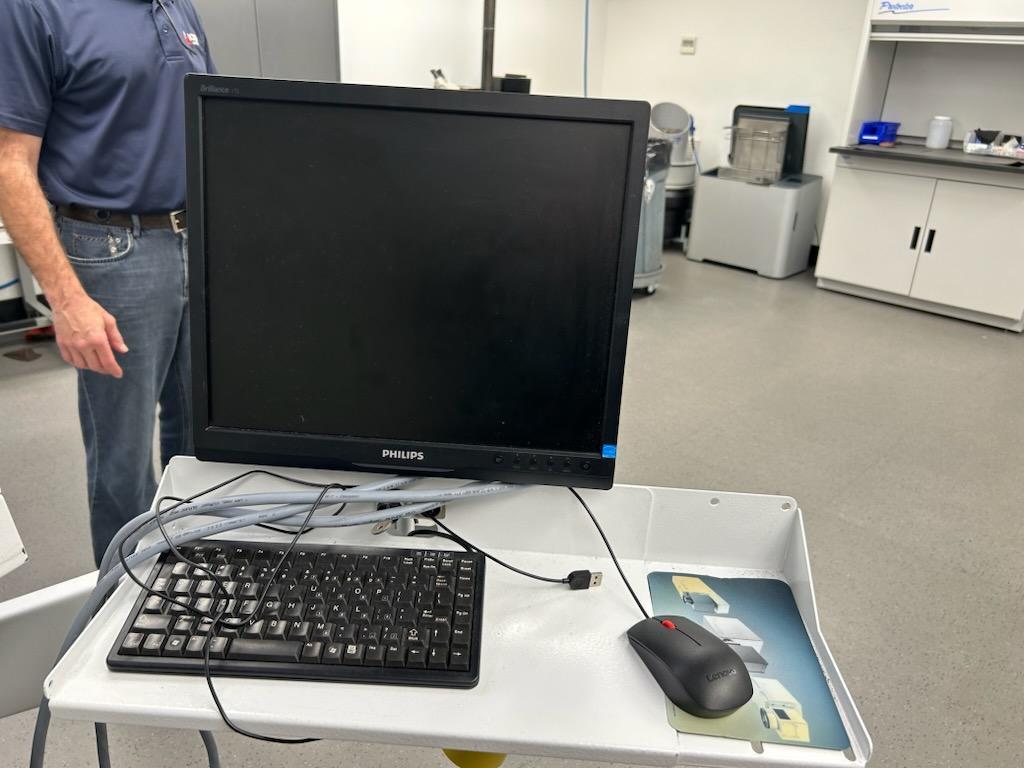

PC Computer with Keyboard and Mouse
Laser Marking Software TruMark 3000 Laser Generator Work Table 4" - 3-Jaw Rotary Chuck (Motorized) Fume Collection Encloser Specifications are Preliminary and Subject to the Purchasers Verification. |
|
