2.5" X 10" X 10" WATERBURY FARREL 4 HIGH NON REVERSING TEMPER ROLLING MILL (14501)
Brand
Category
Type
Model
4 HIGH NON REVERSING TEMPER ROLLING MILL
Stock #
14501
Year
Not specified
Condition
Not specified
Location
Not specified
| Max Width Workpiece | 10 inches |
| Work Roll Dia. | 2.5 inches |
| Back Up Roll Diameter | 10 |
| Roll Face Width | 10 |
|

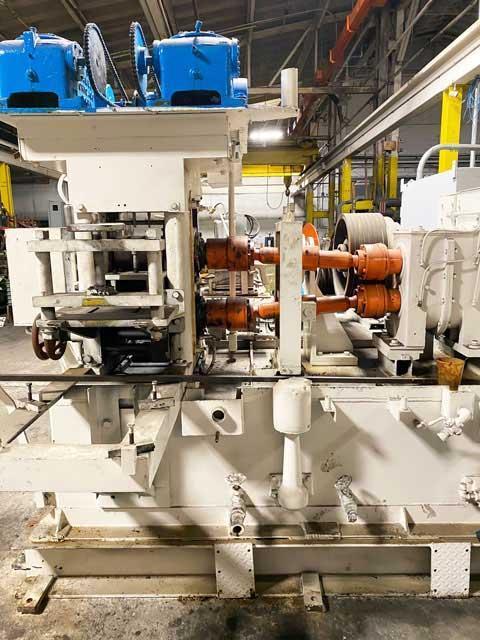

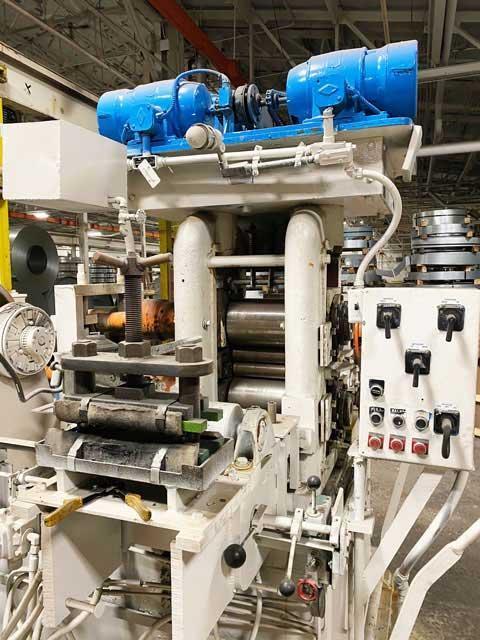

10" 4-HI Waterbury Farrel Temper Pass Mill

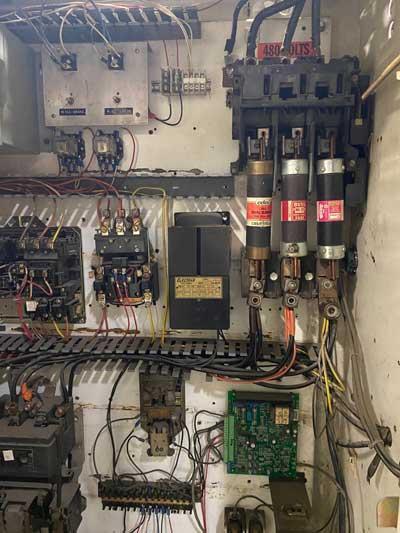

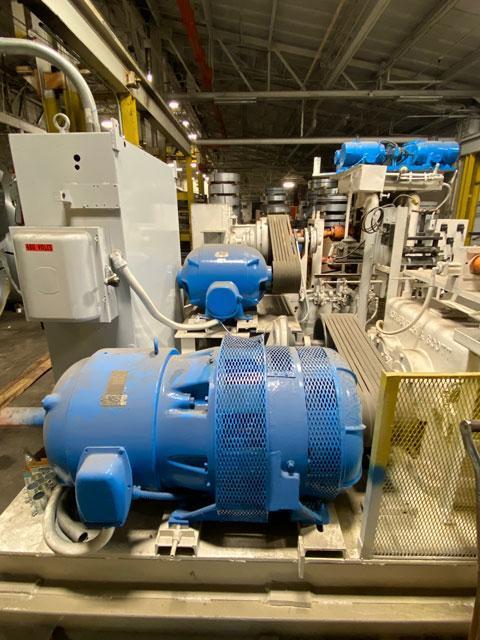

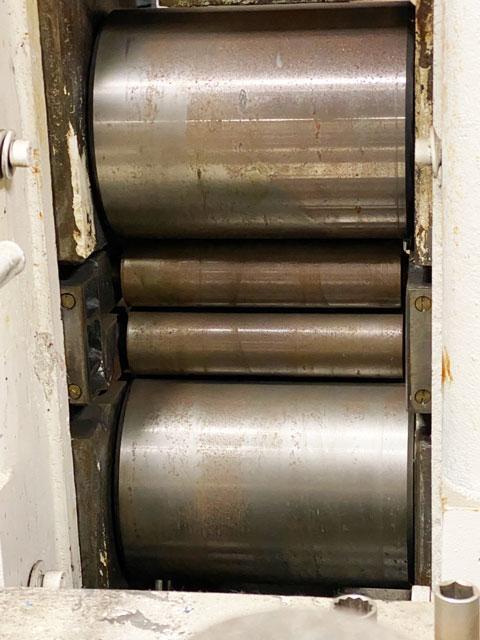

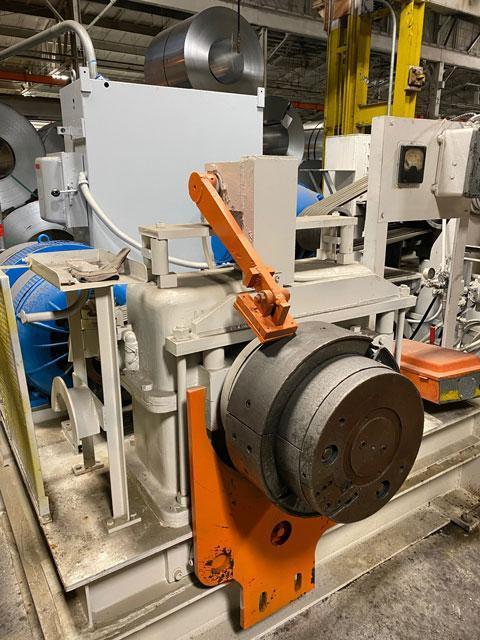

Stock: 14501 Type: Rolling Mills, 4-HI Manufacturer: Waterbury Farrel Co Non-Reversing Design Complete with the Following: Mandrel Uncoiler Hydraulic Expansion 16" (406mm) to 20" (508mm) ID 60" (1500mm) OD Sliding Base Mill Stand 4-HI Configuration Mill Traction by Driven Back Up Rolls 2 1/2" (63.5mm) Diameter Work Roll 10" (254mm) Roll Face 8" (203mm) Diameter Back Up Roll 10" (254mm) Back Up Roll Face 40 HP AC Motor Drive Motorized Screw Downs Recoiler 16" (406mm) to 20" (508mm) ID 11" (280mm) Drum Face 60" (1500mm) OD Hydraulic Drum 40HP AC Motor Drive Complete with Control **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
|
