Sharp SVL-2517 SZ-F CNC Vertical Machining Center – Mini Mill

Brand
Model
Make:SharpModel:SVL-2517 SZ-F
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Sharp
Model:SVL-2517 SZ-F
Year:2017 (Sold & Installed in 2018)
Condition:Used – Excellent



Features:
Fanuc 0i-MF CNC Control
Linear Way Construction All Axis
Z Axis Extended Travel
12,000 RPM High Precision Spindle
24 Station Side Mounted Automatic tool changer
CAT-40 Taper Spindle
10 HP  Spindle Motor
Spindle Chiller Unit
Rigid Tapping
USB Port & RS-232 Port
PCMCIA Card Slot
MPG Handwheel Control
Coolant System
Chip Tray
Levelling Pads



Travels:
X-Axis: 25.2″
Y-Axis: 16.9″
Z-Axis: 23.6″
Rapid Traverse Rates: 1417 IPM
Cutting Feed Rates: 394 IPM
Spindle Nose to Table (Min.- Max.): 3.9″ – 27.6″

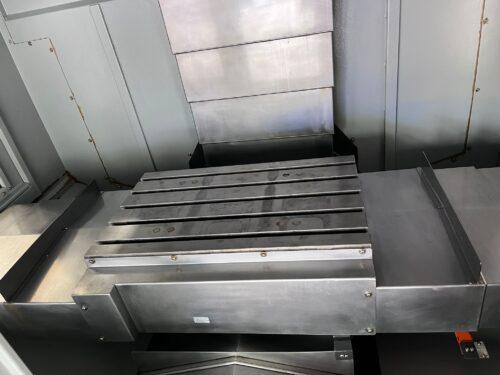

Table
Length: 27.5″
Width: 16.5″
T-slot (no. x width x pitch): 5 x 0.7″ x 3.14″
Max Weight on Table: 660 lbs



Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 10 HP



Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 15.4 lbs
Max Tool Dia: 2.9″ – 5.9″
Max Tool Length: 11.8″



General:
Air Required: 80 psi, 4 scfm
Power: 220v / 60 Hz / 3-Phase / 25 kva
Overall Dimensions: 79″ x 101″ x 115″ High Approx.
Weight: 8,492 lbs Approx.
