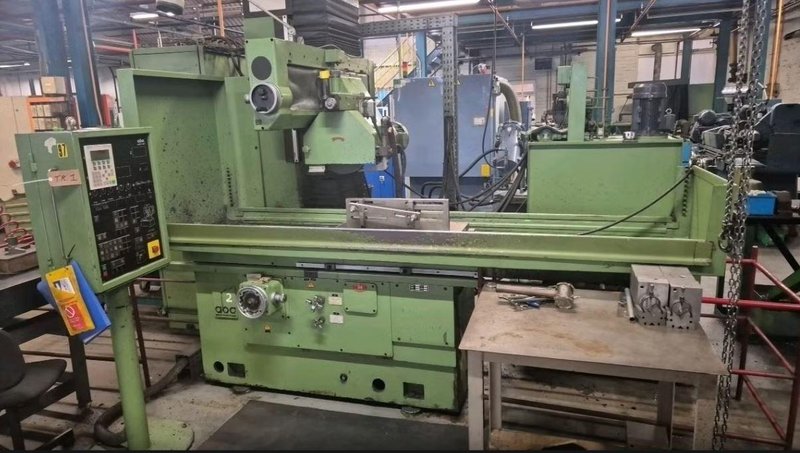

ABA 750/50 SURFACE GRINDER (1984)
Brand
Category
Type
Model
Not specified
Stock #
116890
Year
1984
Condition
Used
Location
Not specifiedNetherlands Antilles
|
ABA 750/50 SURFACE GRINDER (1984)
GRINDING LENGTH, MAX. 750 MM
GRINDING WIDTH, MAX. 500 MM
TRANSVERSE MOVEMENT OF THE SANDING SLIDE 450 MM
WORKING HEIGHT UNDER GRINDING WHEEL, MAX. 500 MM
GRINDING WHEEL SIZE 400 X 100 MM
GRINDING WHEEL SPEEDS, INFINITELY ADJUSTABLE FROM 300-3,000 RPM
TABLE SPEED, HYDR. 0 - 30 M/MIN
TABLE SPEED, CREEP FEED 0.02 - 1000 MM / MIN
VERTICAL FEED, INFINITELY VARIABLE 0.002 - 0.03 MM / STROKE
GRINDING SPINDLE DRIVE, MAX. 32 KW
TOTAL ELECTRICAL LOAD, APPROX. 50 KW - 380 V - 50 HZ
WEIGHT APPROX. 5,000 KG
|
