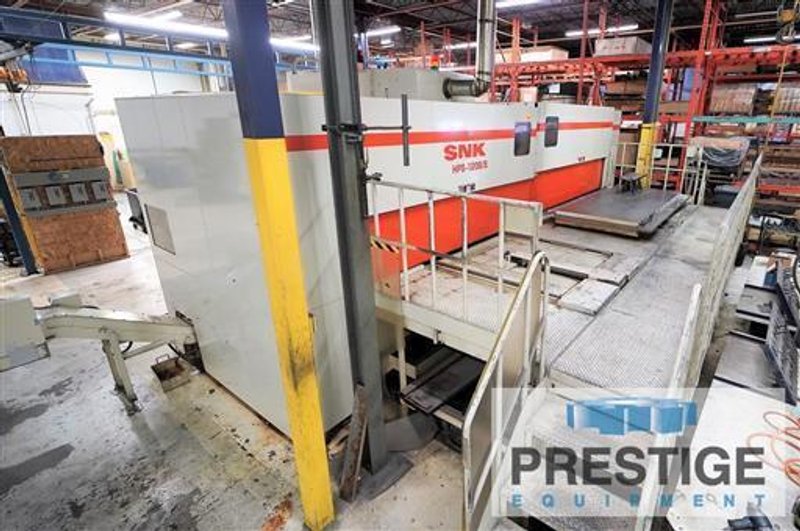

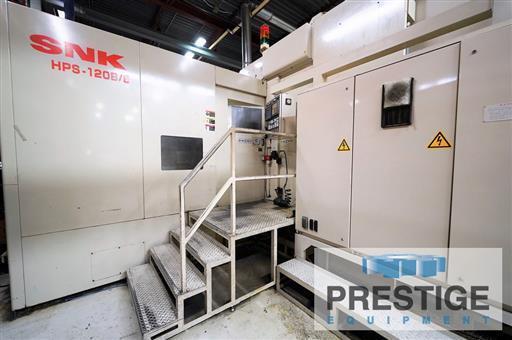

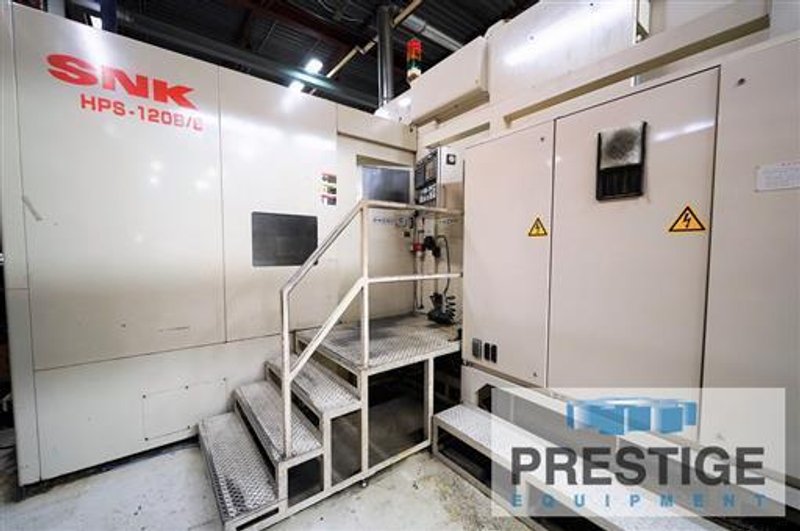

Machining Centers Horizontal CNC

SPECIFICATIONS:
X-Axis Travel 124.01"
Y-Axis Travel 51.96"
Z-Axis Travel 28.03"
A-Axis Spindle Head Tilt +/-90 Degrees
C-Axis Spindle Head Rotation +/-270 Degrees
Spindle Tilt Center To Spindle End 11.81"
SPINDLE:
Spindle Speeds 2000-20,000 RPM
Spindle Nose HSK-80A
Spindle Drive Motor 39 HP
TABLE:
Number Of Pallets 2
Pallet Size 120" x 48.03"
Permissable Workpiece Weight 8800 Lbs.
Table Positioning, Setup Horizontal
Table Positioning, Machining Vertical 90 Degrees
FEED RATES:
Rapid Traverse, X & Z Axes 944.88 IPM
Rapid Traverse, Y-Axis 787.4 IPM
Rapid Traverse, A & C Axes 0-1800 DPM
Cutting Feedrate, XYZ Axes 0.03"-787.4 IPM
Cutting Feedrate, A & C Axes 0-1800 DPM
Table Top to Horizontal Spindle 28.03"



Equipped With:

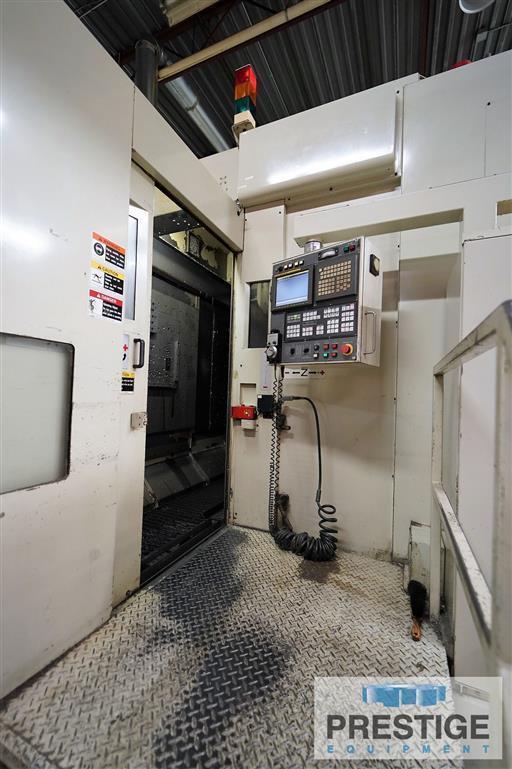

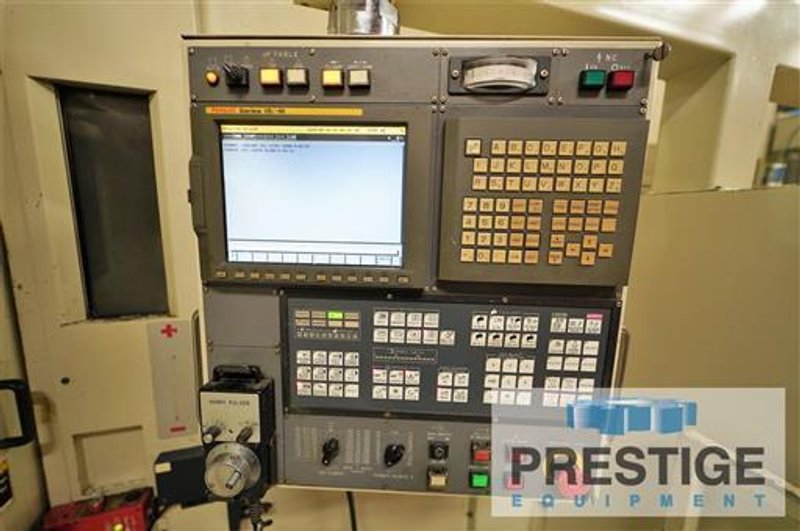

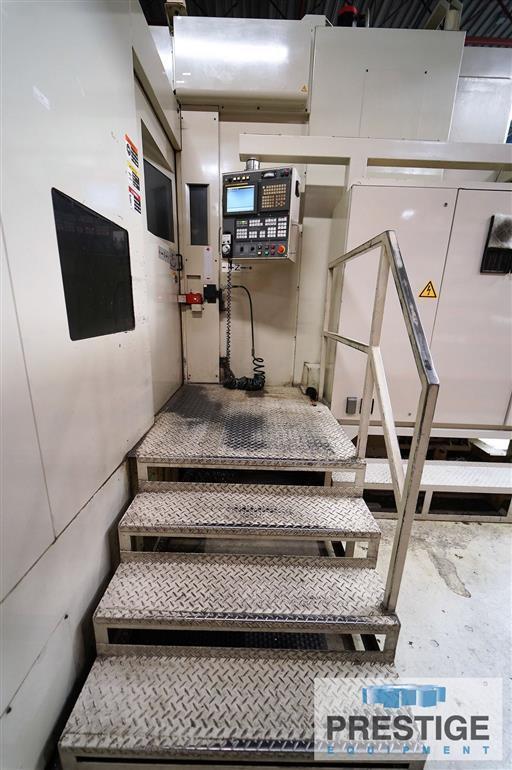

FANUC 15iMA 5-Axis CNC Control

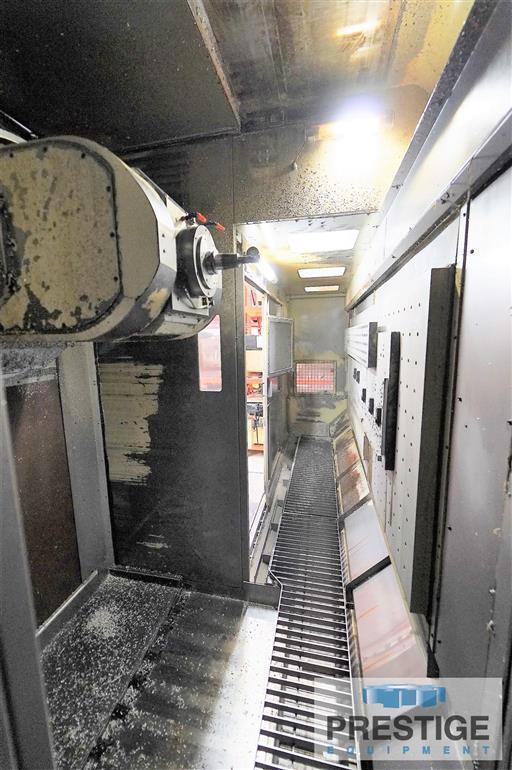

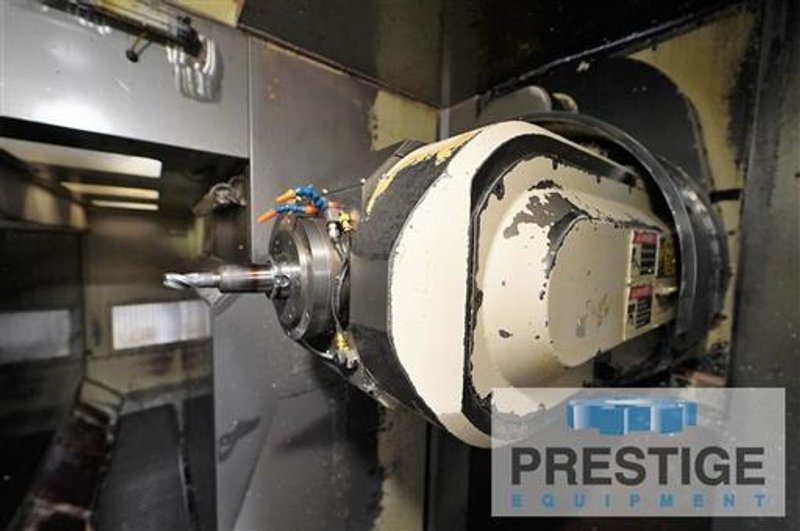

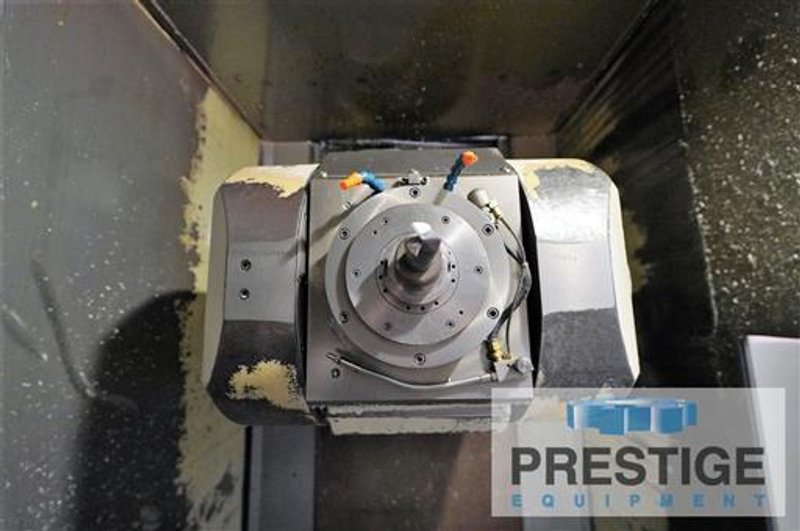

2-Axis Swivel Head
(2) 120" x 48.05" Pallets

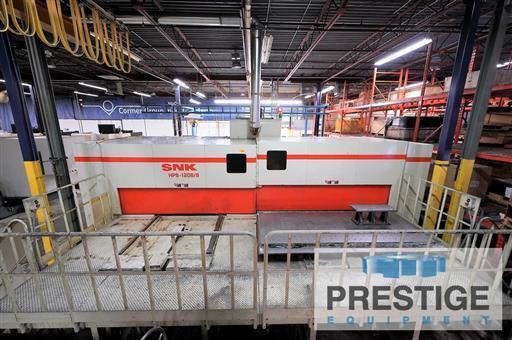

2-Station Automatic Pallet Changer

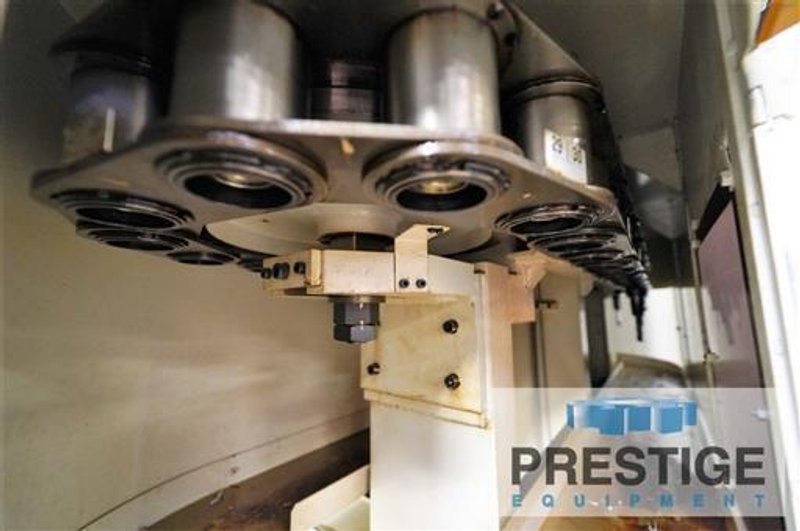

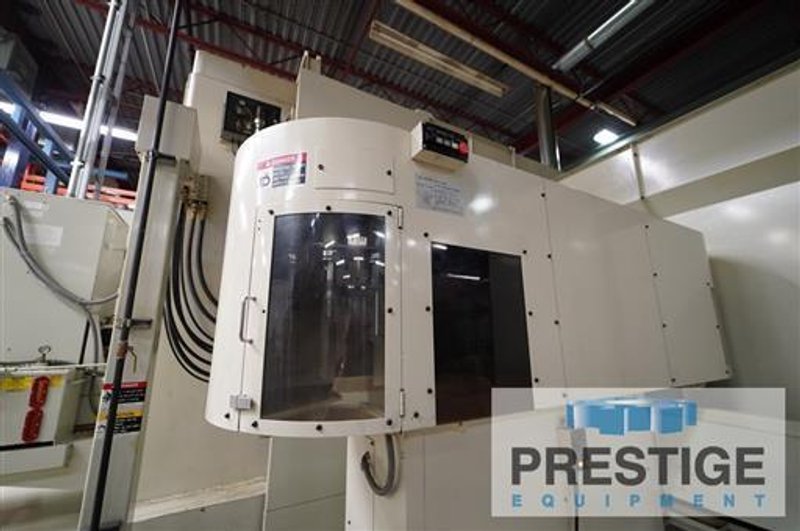

60-Position Automatic Tool Changer
Coolant Through Spindle
Brand New Spare Spindle Head

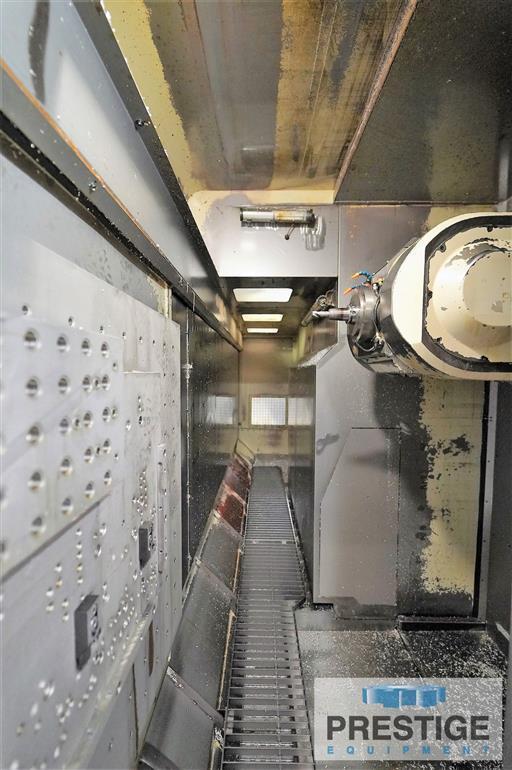

Full Splash Enclosure
Chip Conveyor
Tooling
