2018 HAAS VF-4SS | Machining Centers, Vertical

Haas VF-4SS CNC Vertical Machining Center
New: 2018

Specifications:

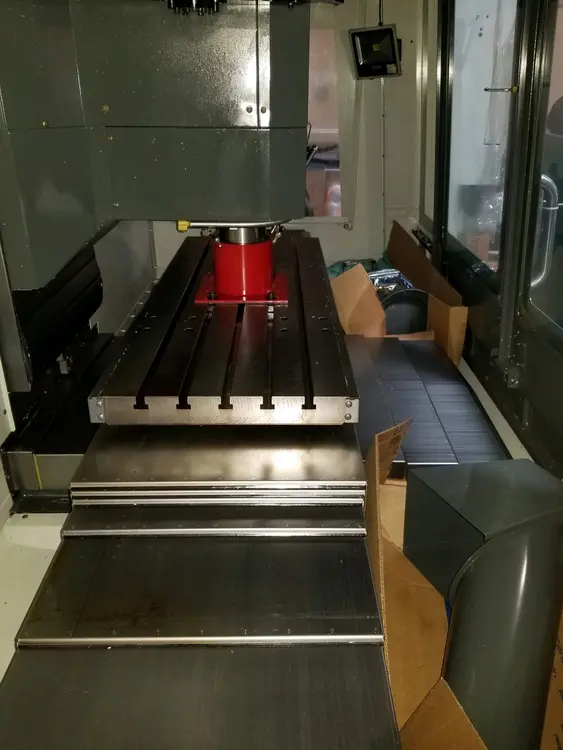

TABLE LENGTH 52"
TABLE WIDTH 18"
X-AXIS TRAVEL 50"
Y-AXIS TRAVEL 20"
Z-AXIS TRAVEL 25"
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 30
ROTARY OR TRUNNION Yes

Equipped With:
HAAS NEXTGEN CONTROL

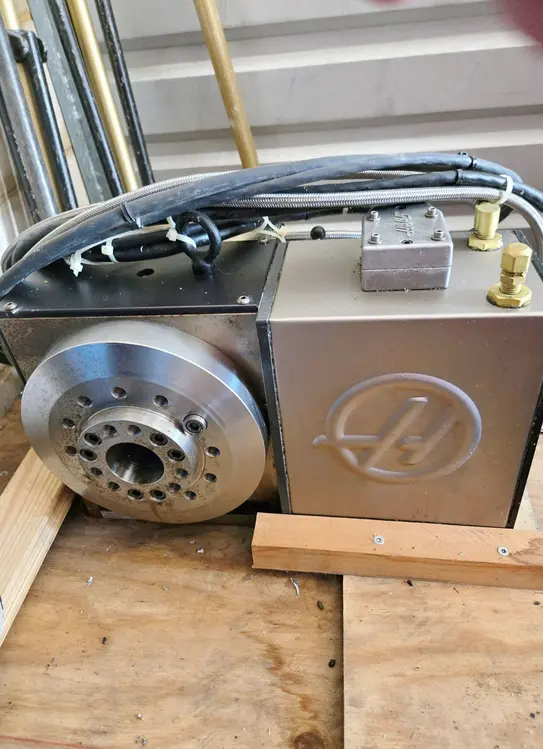

HAAS HRTA6 4TH AXIS ROTARY TABLE (A1-6 SPINDLE NOSE)
4TH AXIS DRIVE & WIRING
5TH AXIS DRIVE & WIRING
15,000 RPM SPINDLE

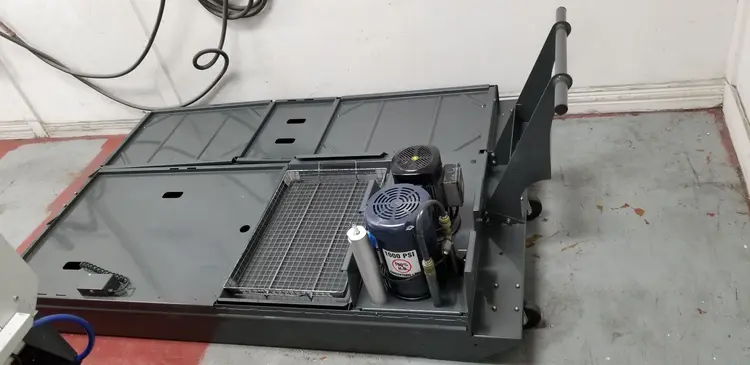

HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
SIDE-MOUNT TOOL CHANGER (30 ATC)
MINIMUM QUANTITY LUBRICATION SYSTEM
AUXILIARY COOLANT FILTRATION SYSTEM
ENCLOSURE EXHAUST SYSTEM
95-GALLON COOLANT TANK
THROUGH-TOOL AIR BLAST
HIGH-INTENSITY LIGHTING
AUTOMATIC AIR GUN
CHIP AUGER
COORDINATE ROTATION & SCALING
HIGH-SPEED MACHINING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB PORT
** MACHINE CUT PRIMARILY ALUMINUM
** APPROXIMATELY 5,000 CUTTING HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $185,000
** AVAILABLE FOR IMMEDIATE PURCHASE & REMOVAL
** SELLER REMOVED THE MACHINE FROM POWER IN 2023 & SENT TO THEIR RIGGER, WHILE SEARCHING FOR A NEW BUILDING

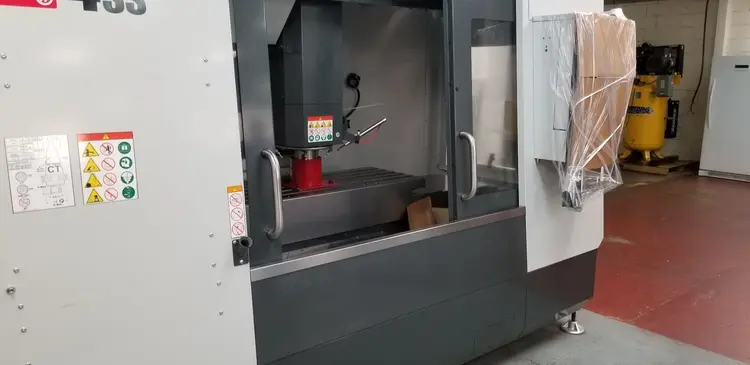

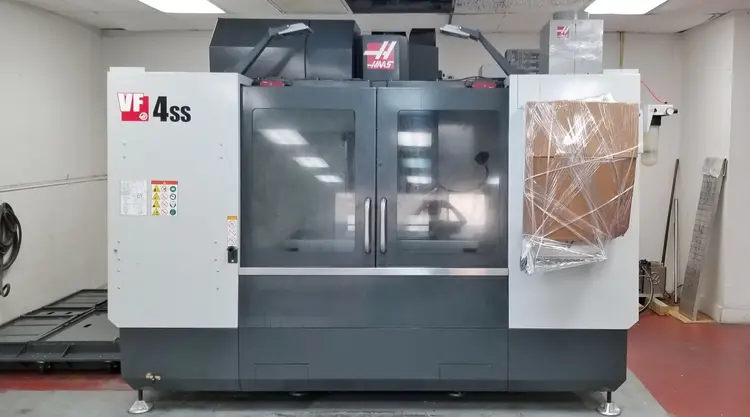

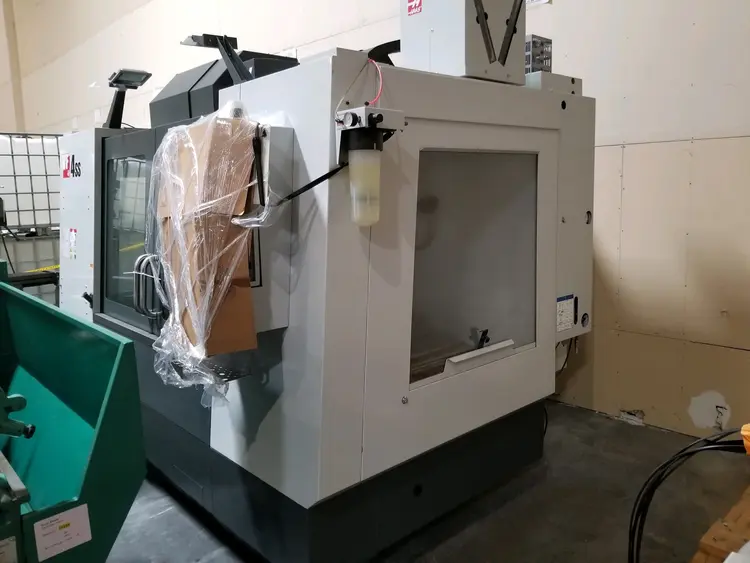

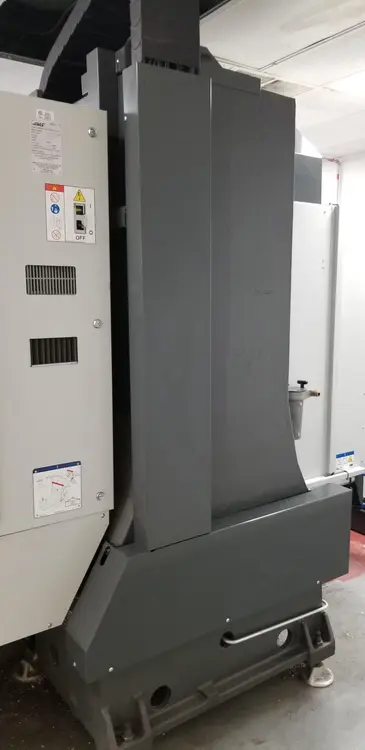

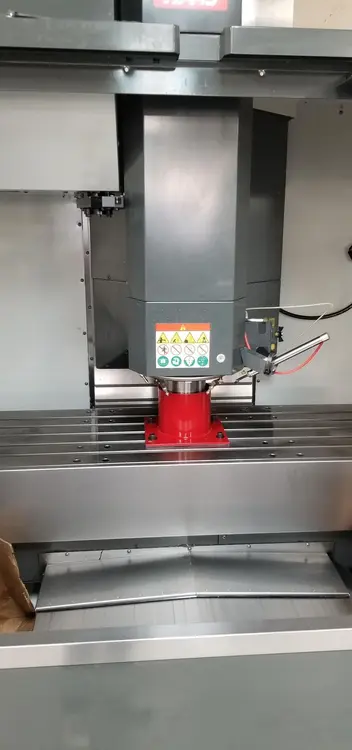

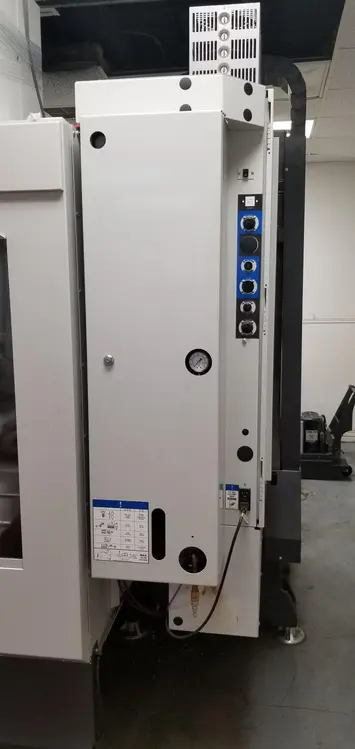

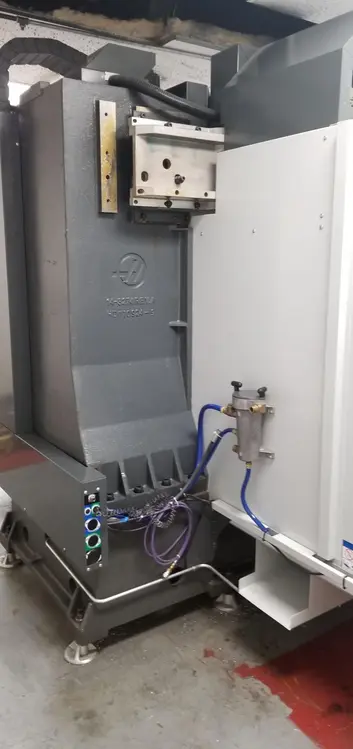

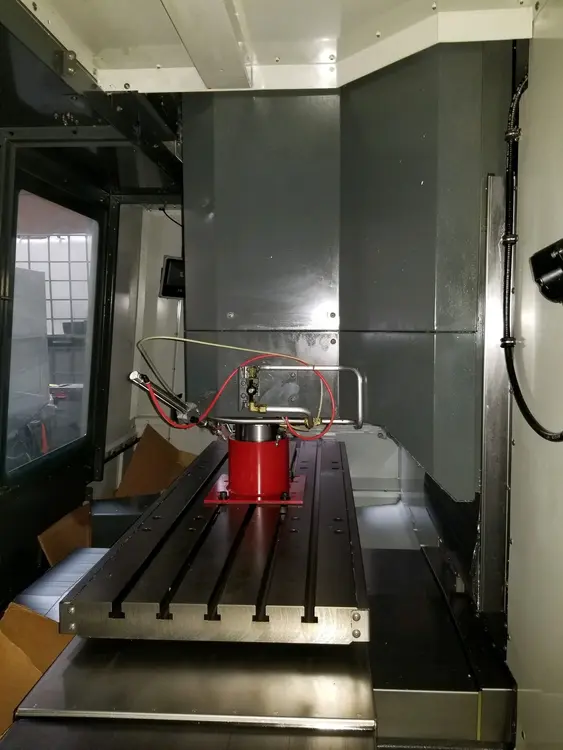

** PHOTOS IN QUOTE SHOW MACHINE PRIOR TO SHIPPING TO THE RIGGER IN 2023 & AT THE RIGGER’S WAREHOUSE IN 2025
