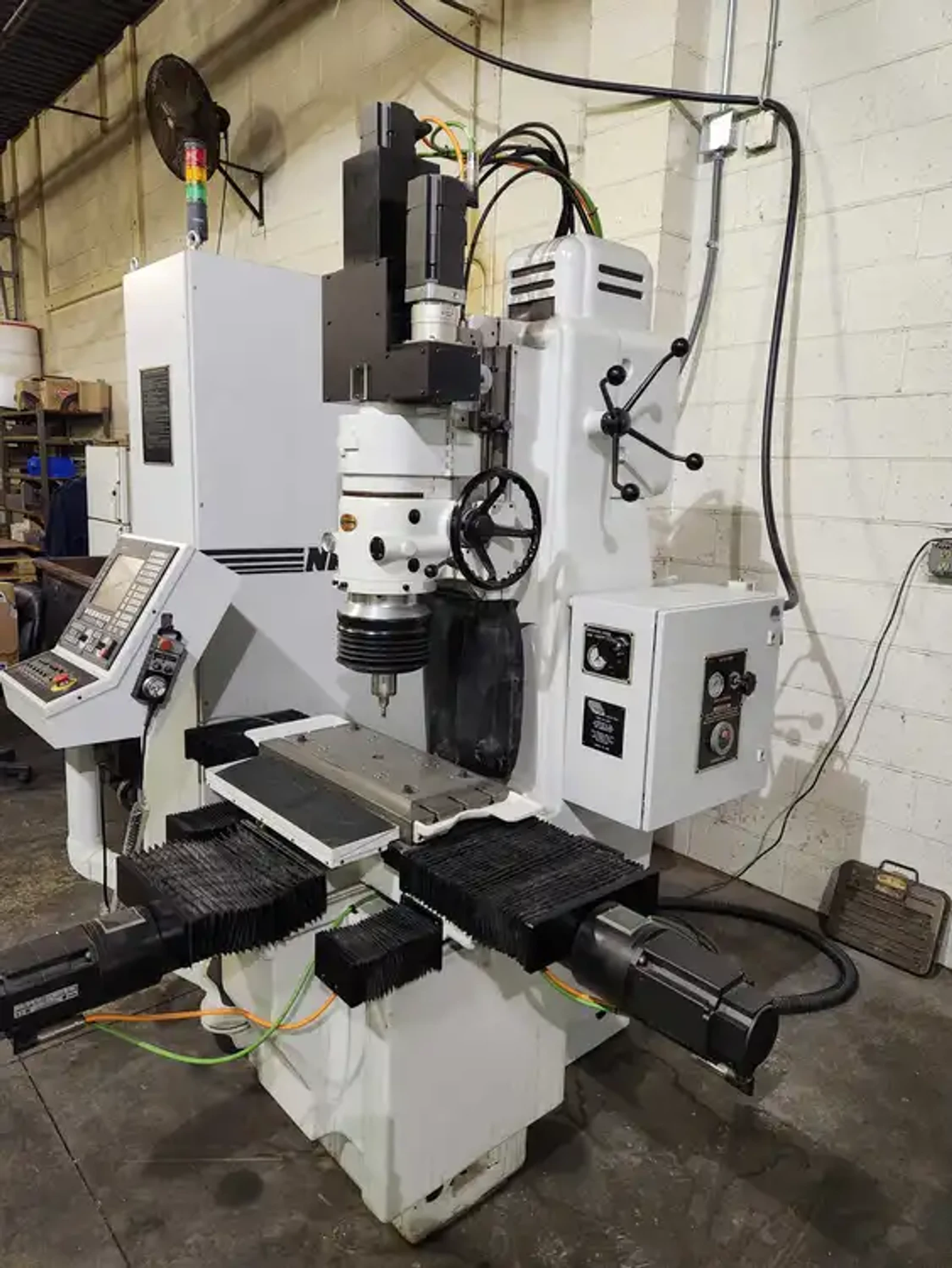

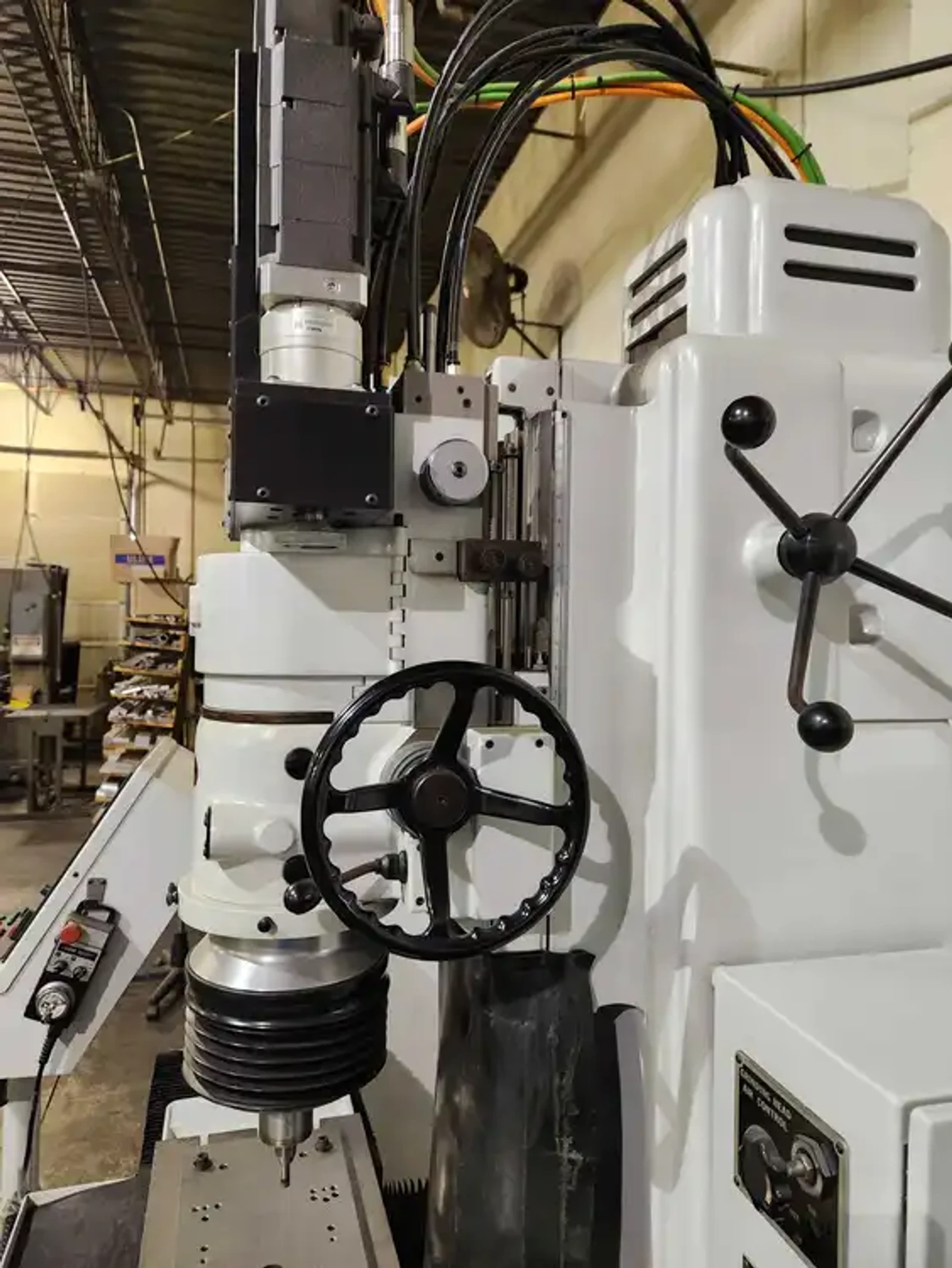

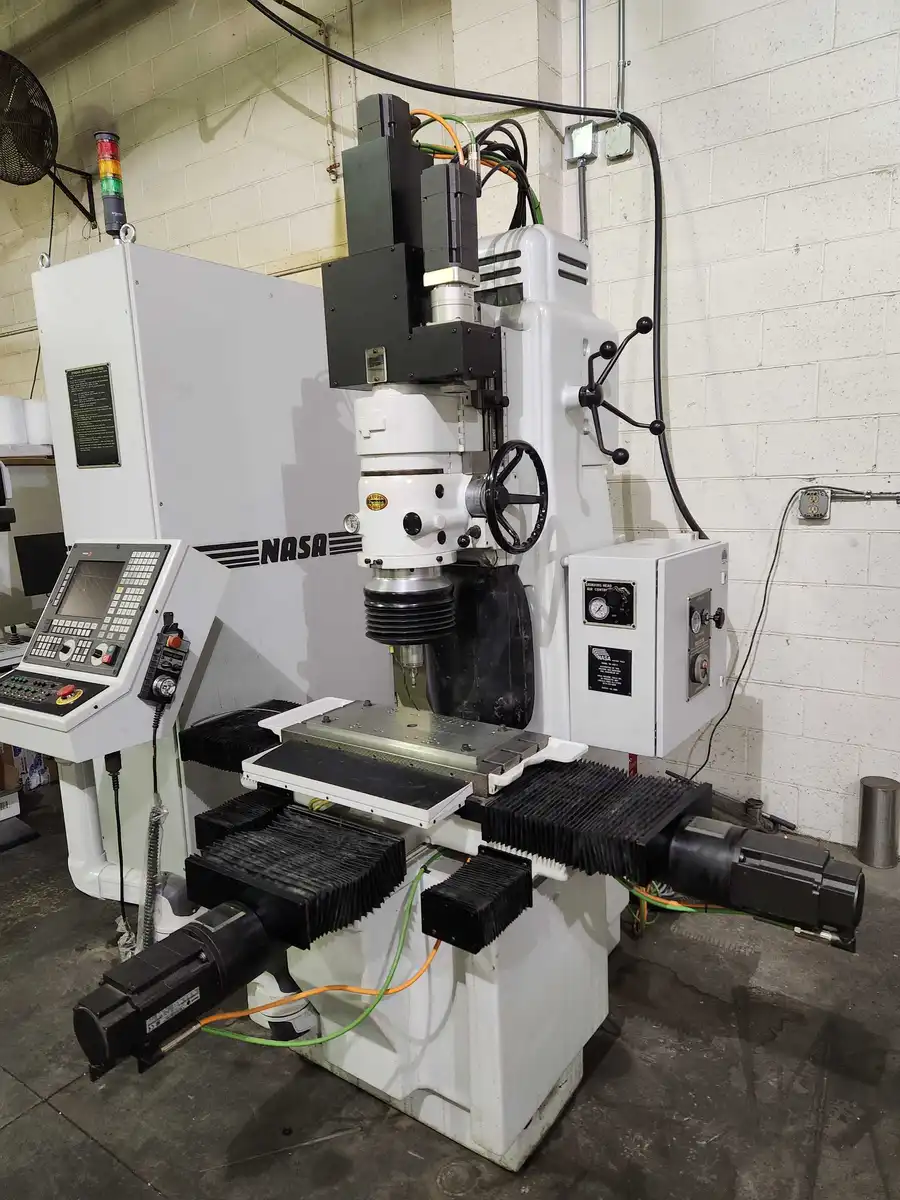

Nasa-Moore AGS-3 CNC Continuous Path Jig Grinder
Retrofit 2021

Specifications:
Table Size: 11" x 24"
Travels:
X-Axis: 17.5"
Y-Axis: 10.5"
C-Axis: 360 Degree
Rapid Traverse Rate: 60 IPM
Contouring Rate: 15 IPM

Equipped With::

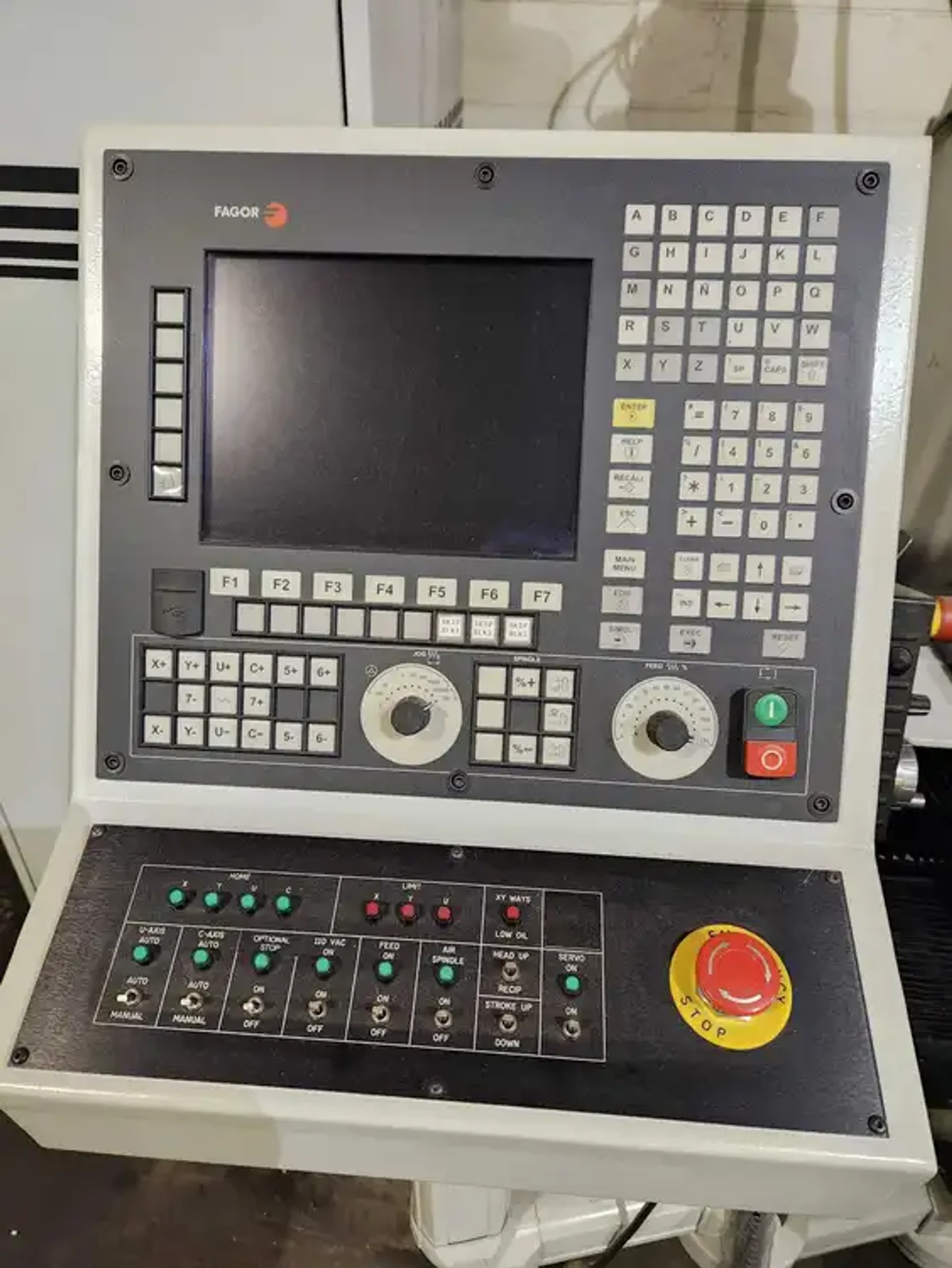

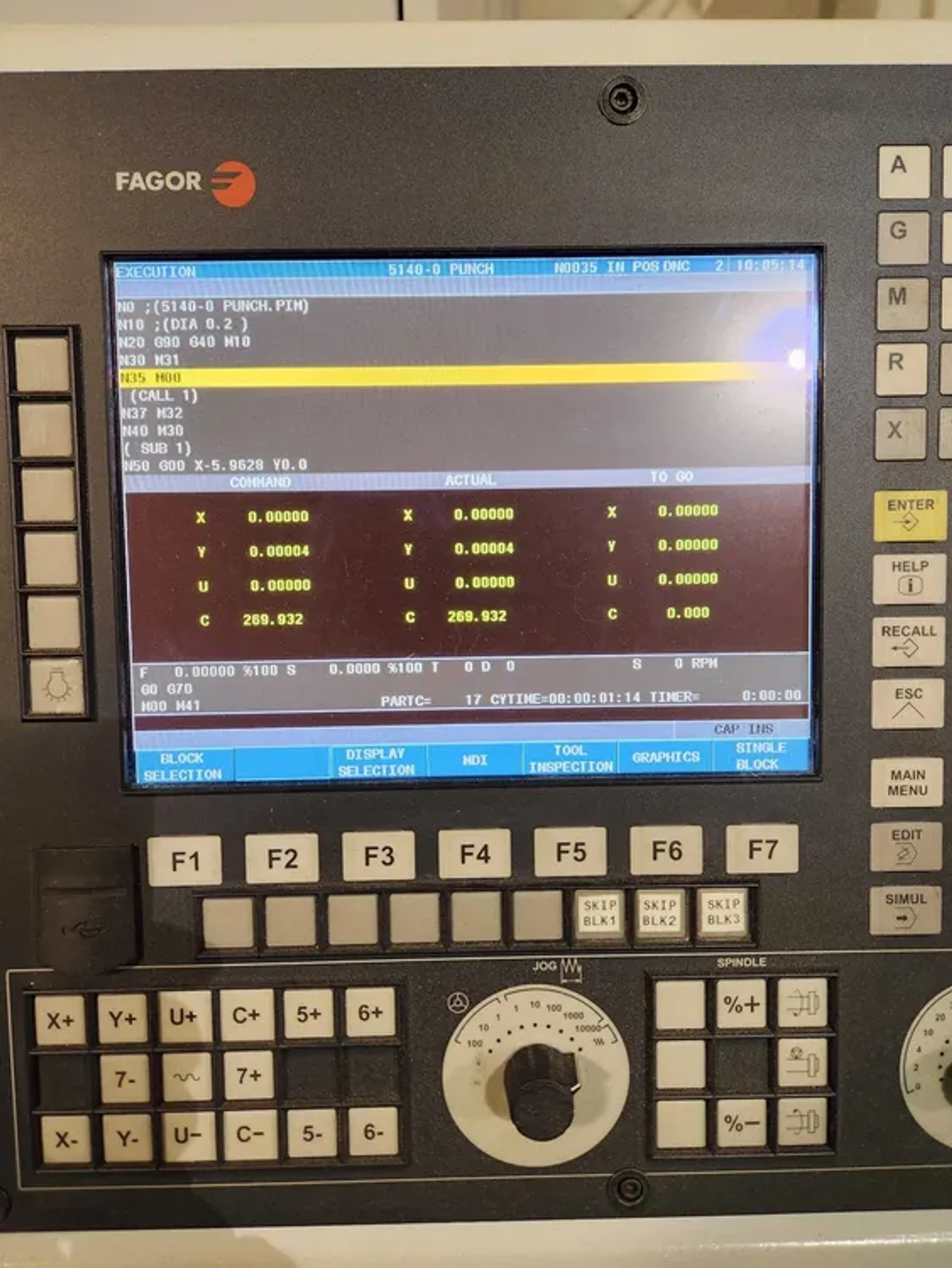

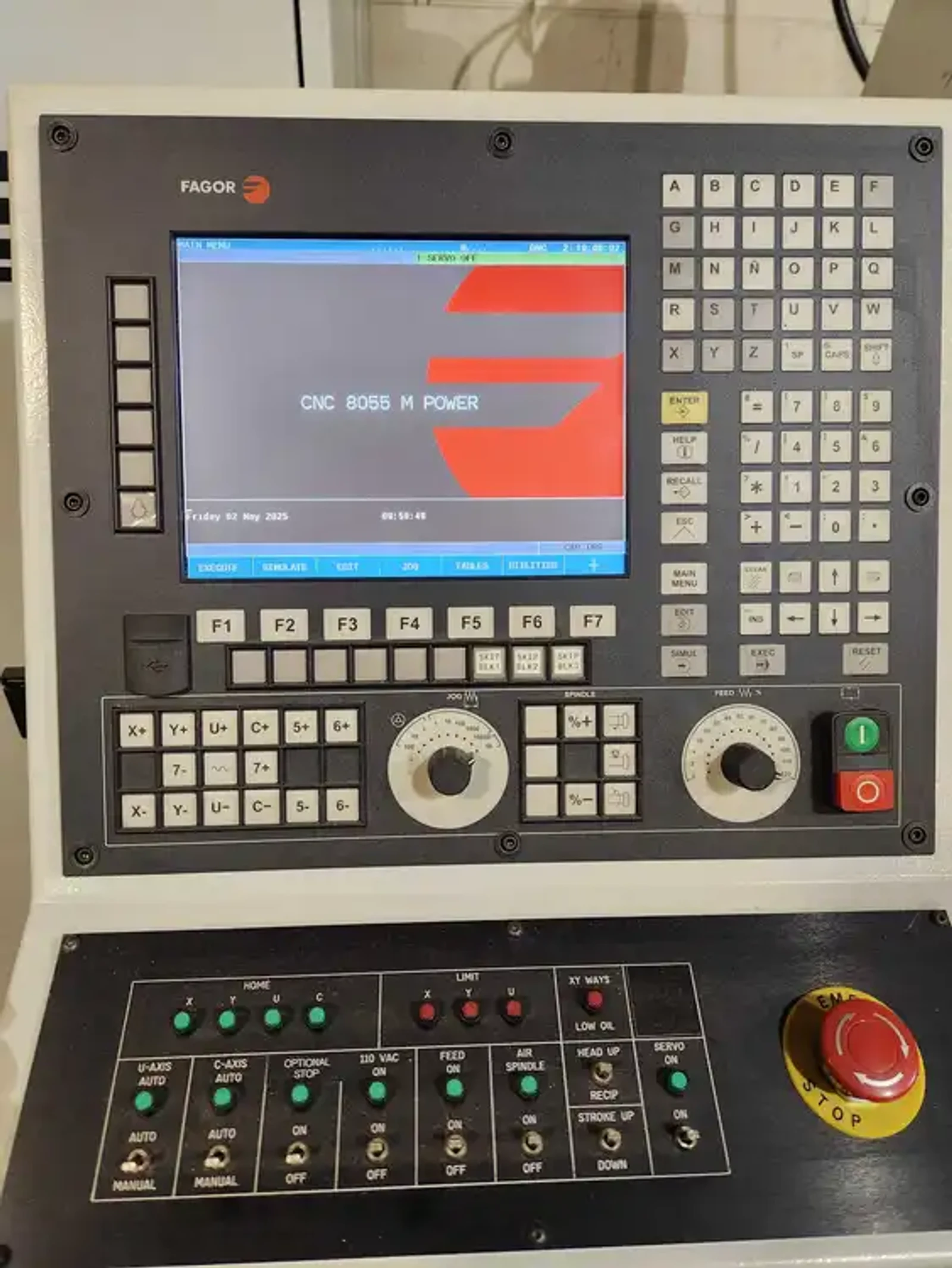

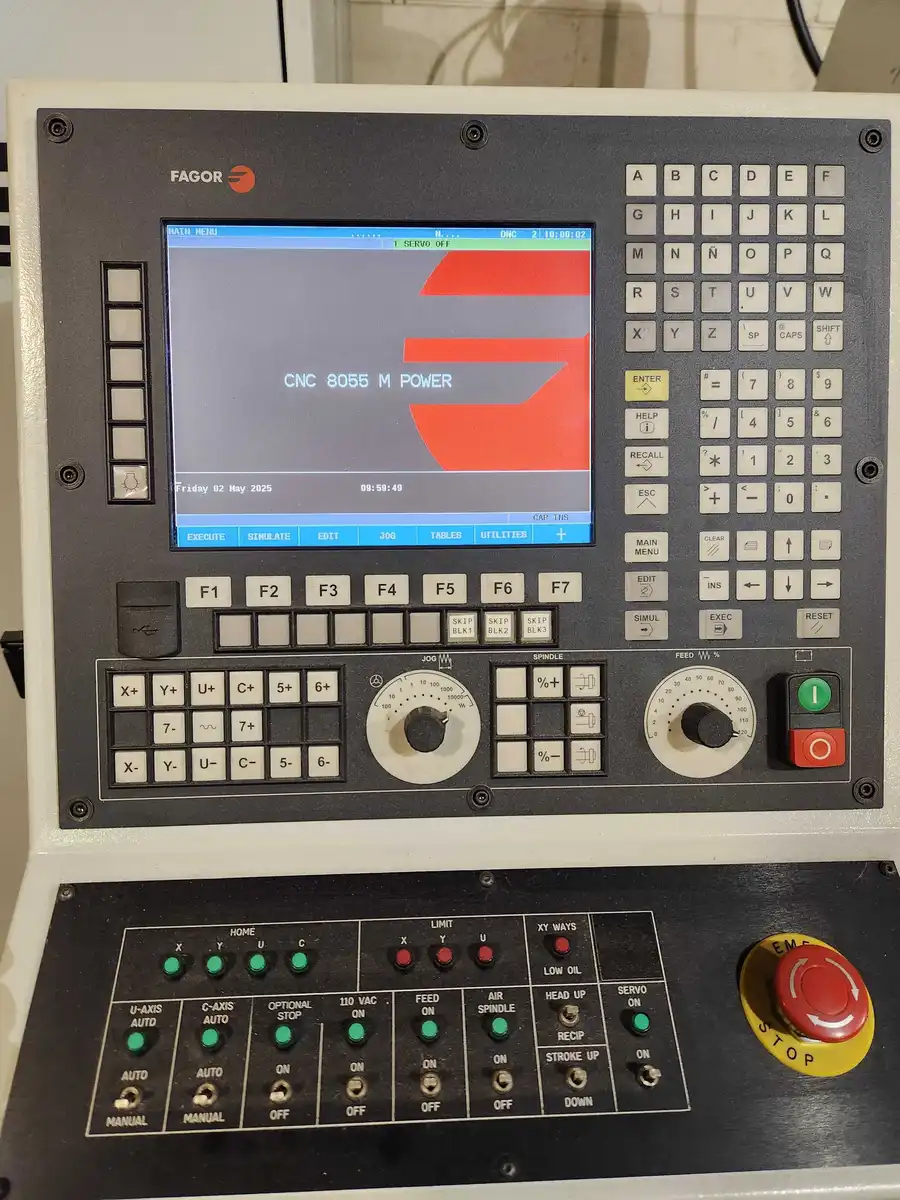

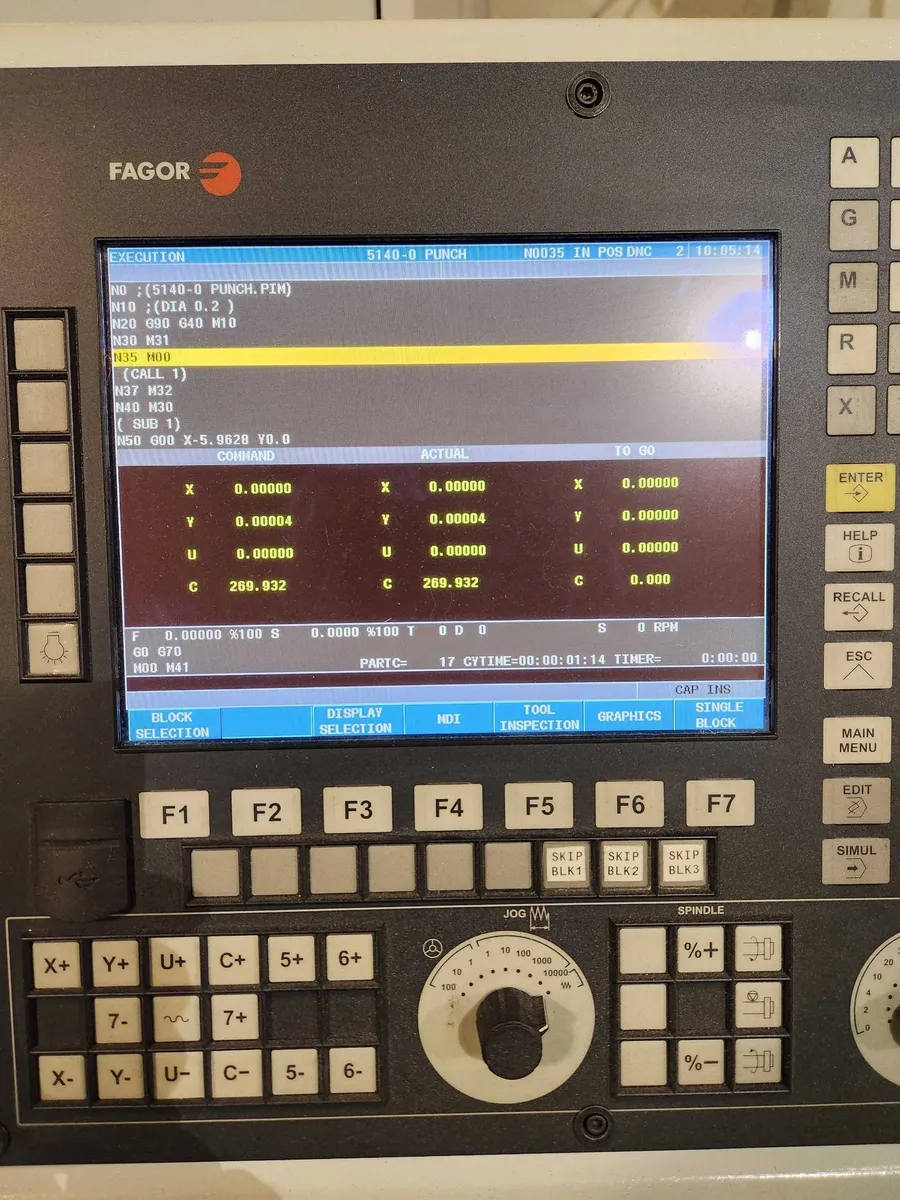

Fagor Model 8055 5-Axis CNC Control
Ultra Precision Ballscrews w/ 5000 line encoders
Precision Roller Bearing Way System w/ Accordion Way Covers
Oil Bath for Ballscrews

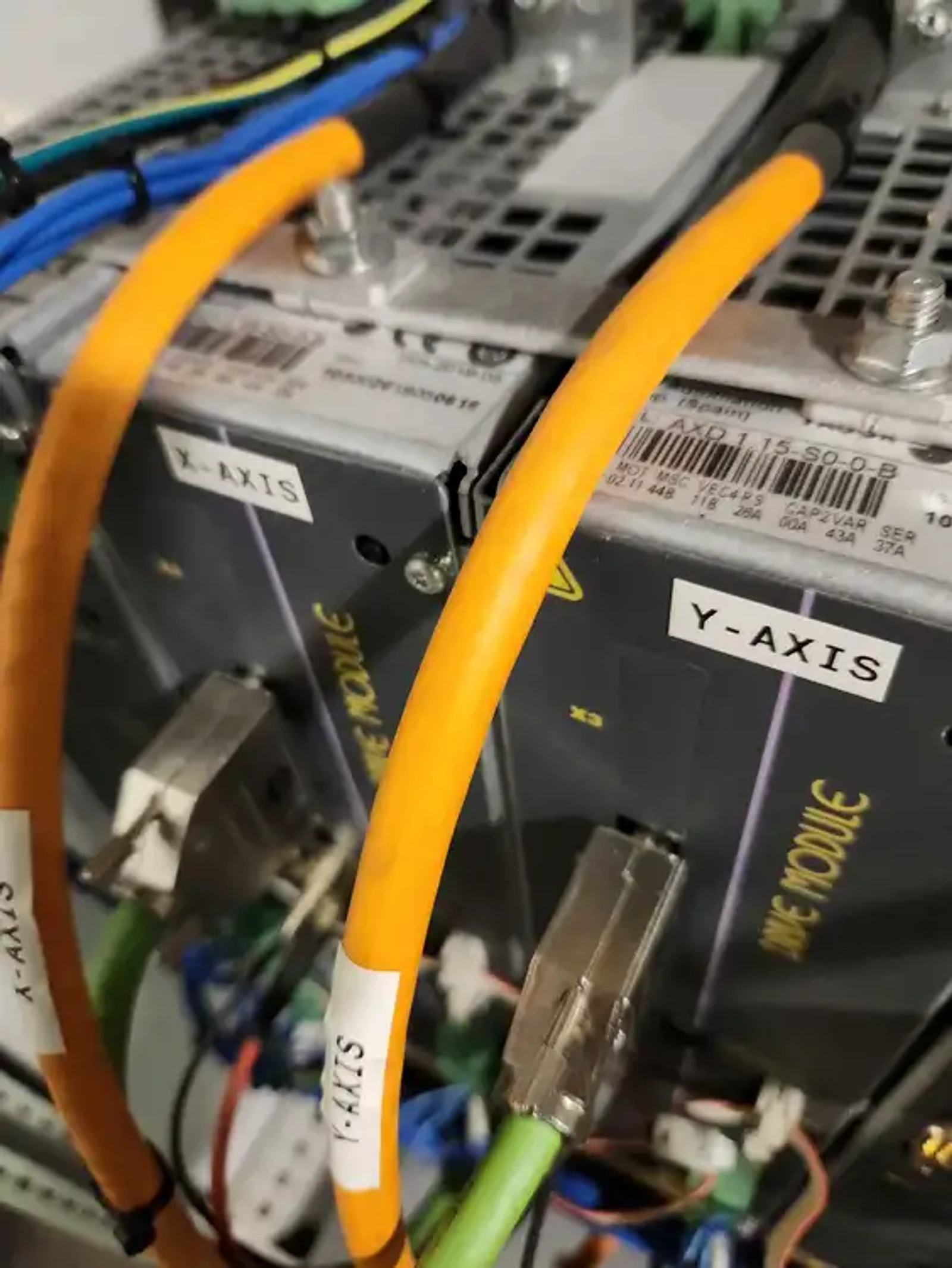

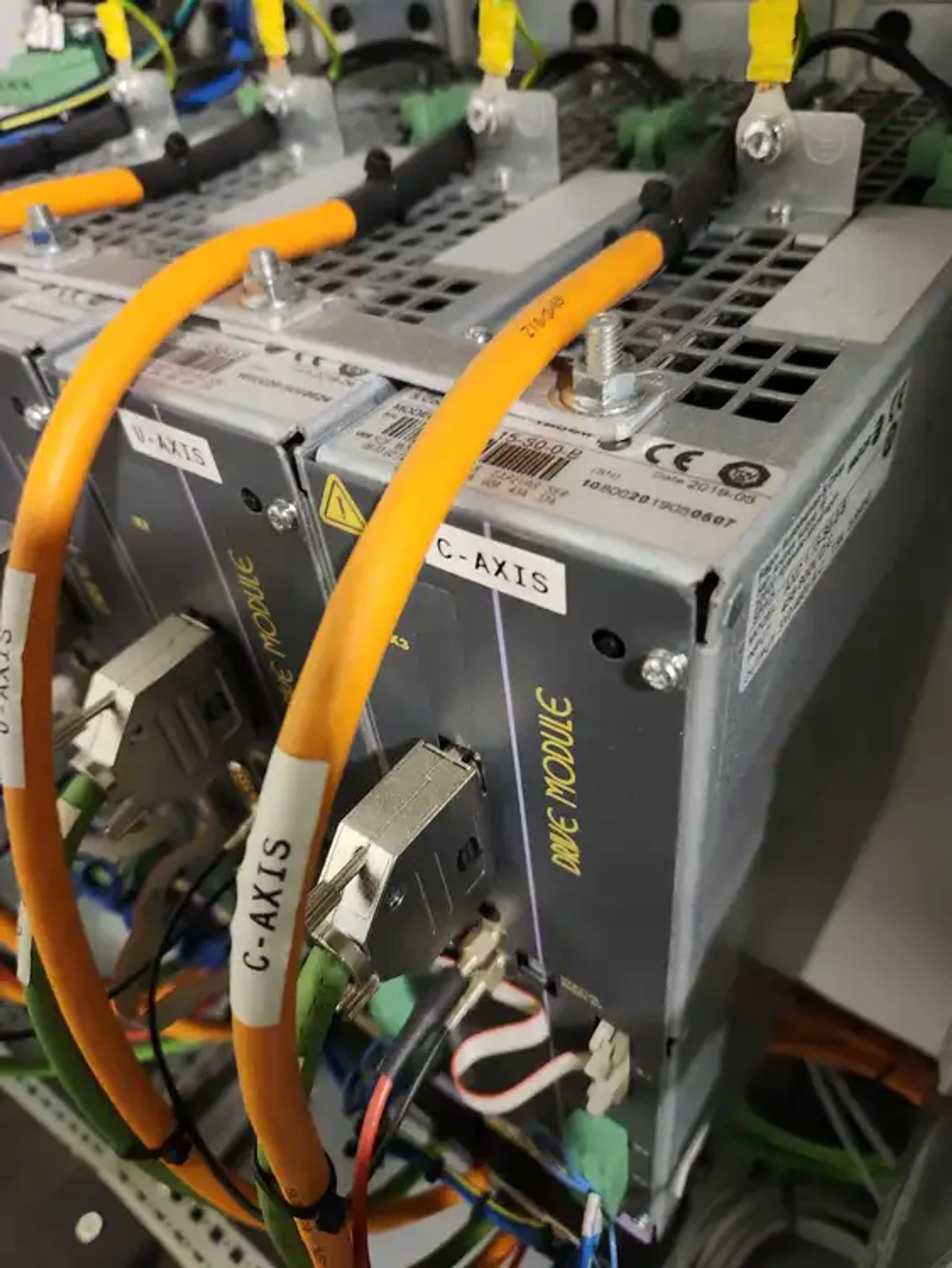

Closed Loop Drives

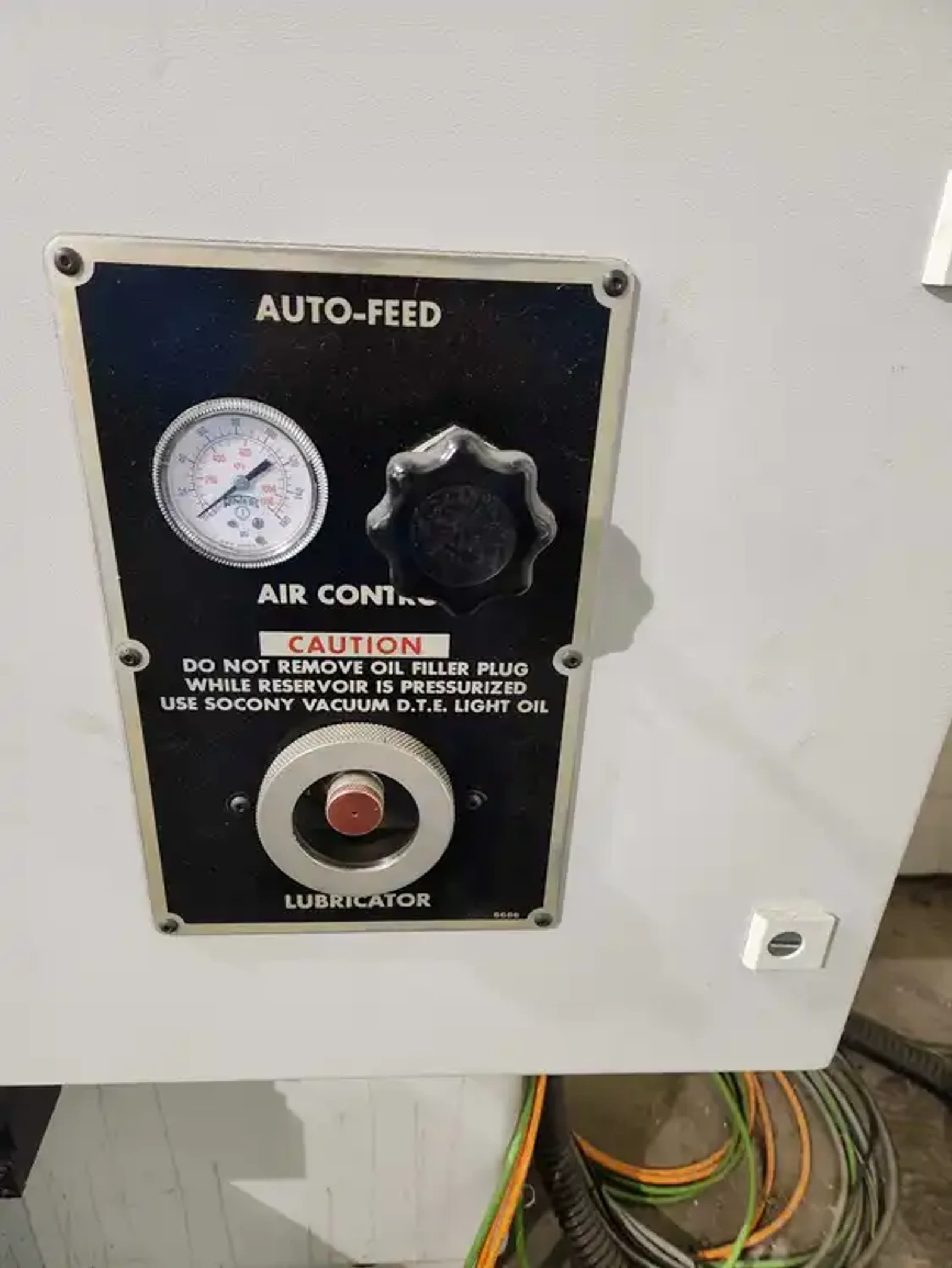

Automatic Lubrication System

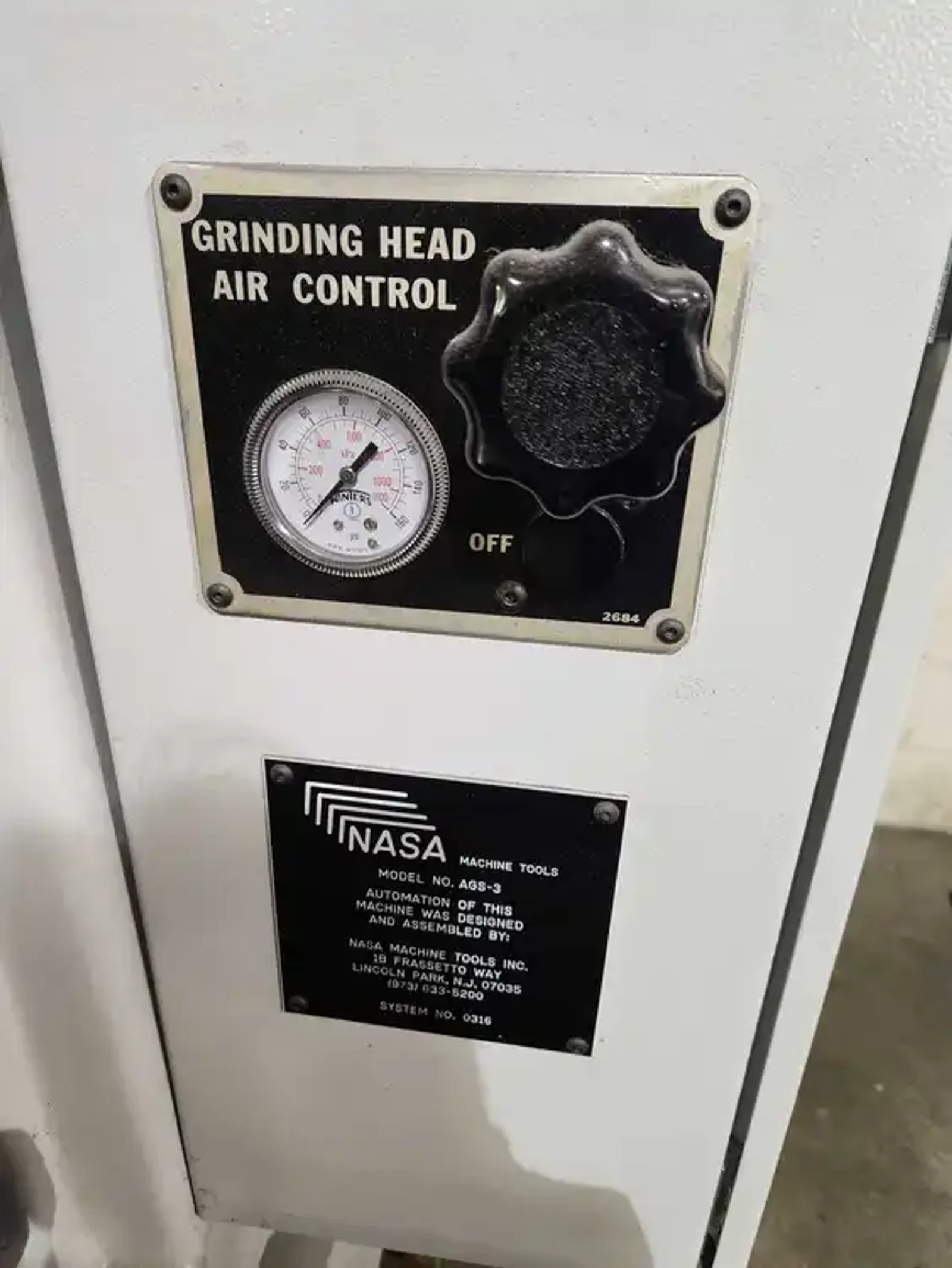

Programmable Main Spindle Speeds, Air Grinding
CNC Controlled PLANETARY Hole Grinding Modes
Programmable Chop Grind ON/OFF w/ Head Up Microswitch

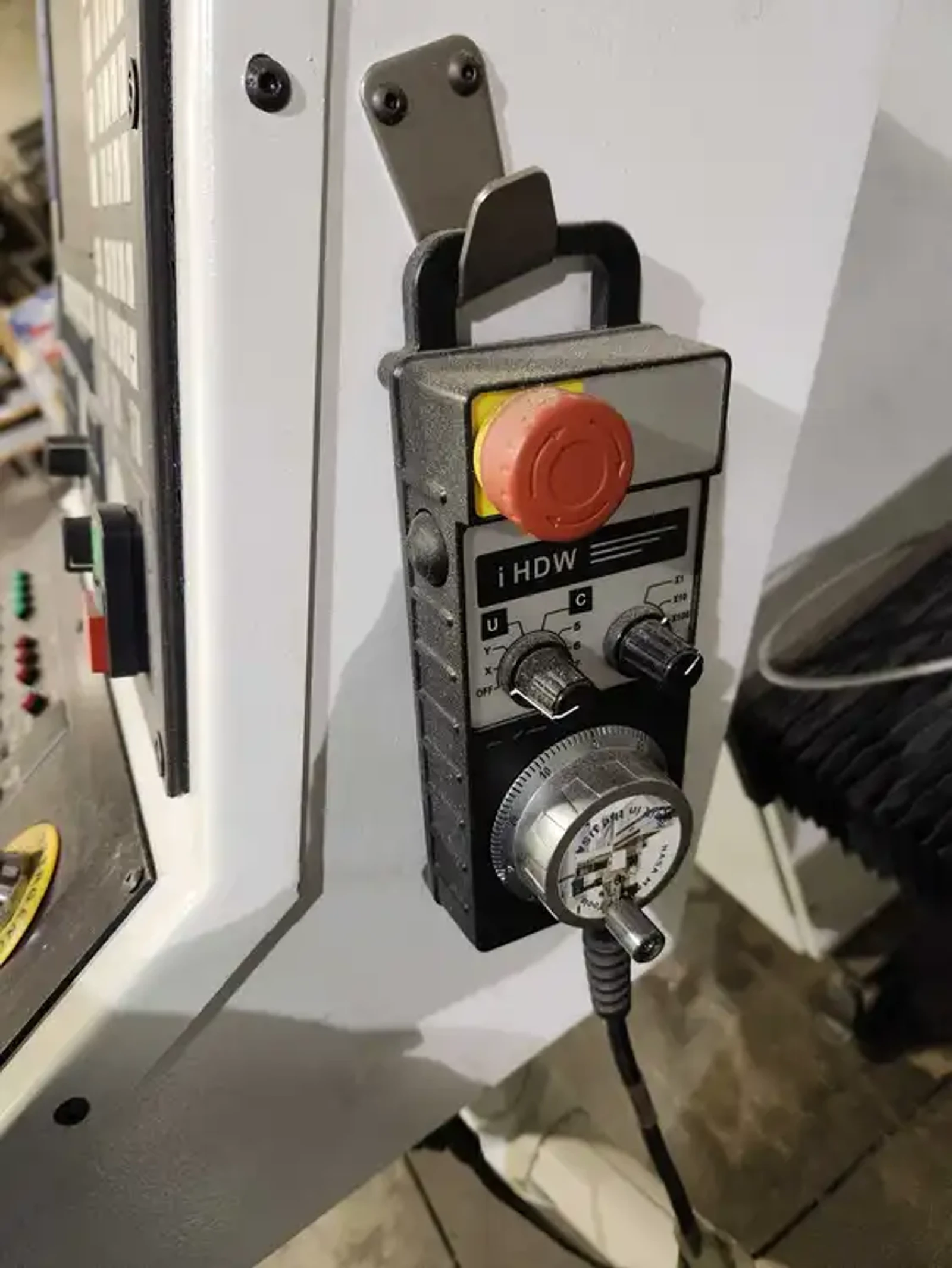

Manual Pulse Generator

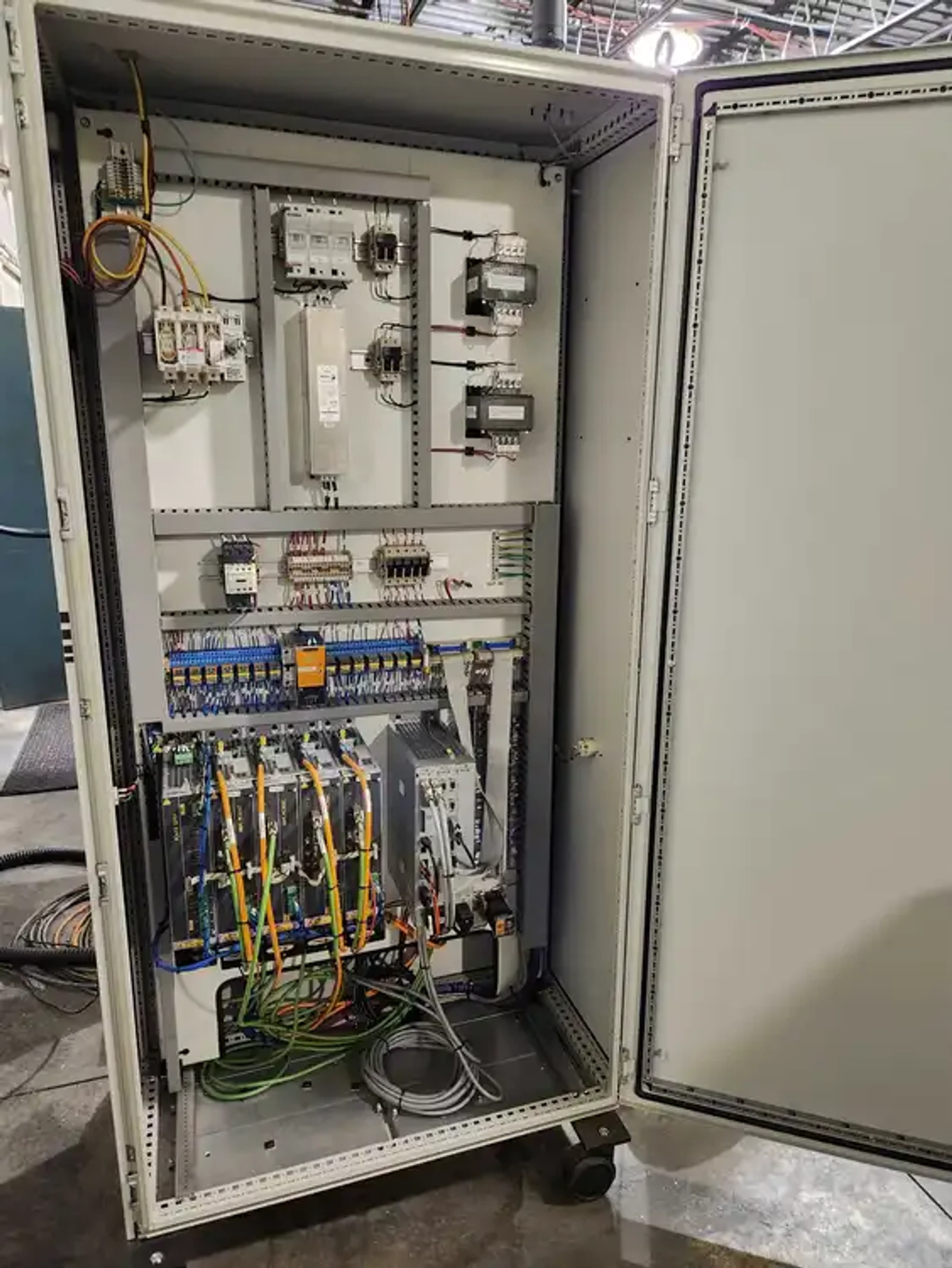

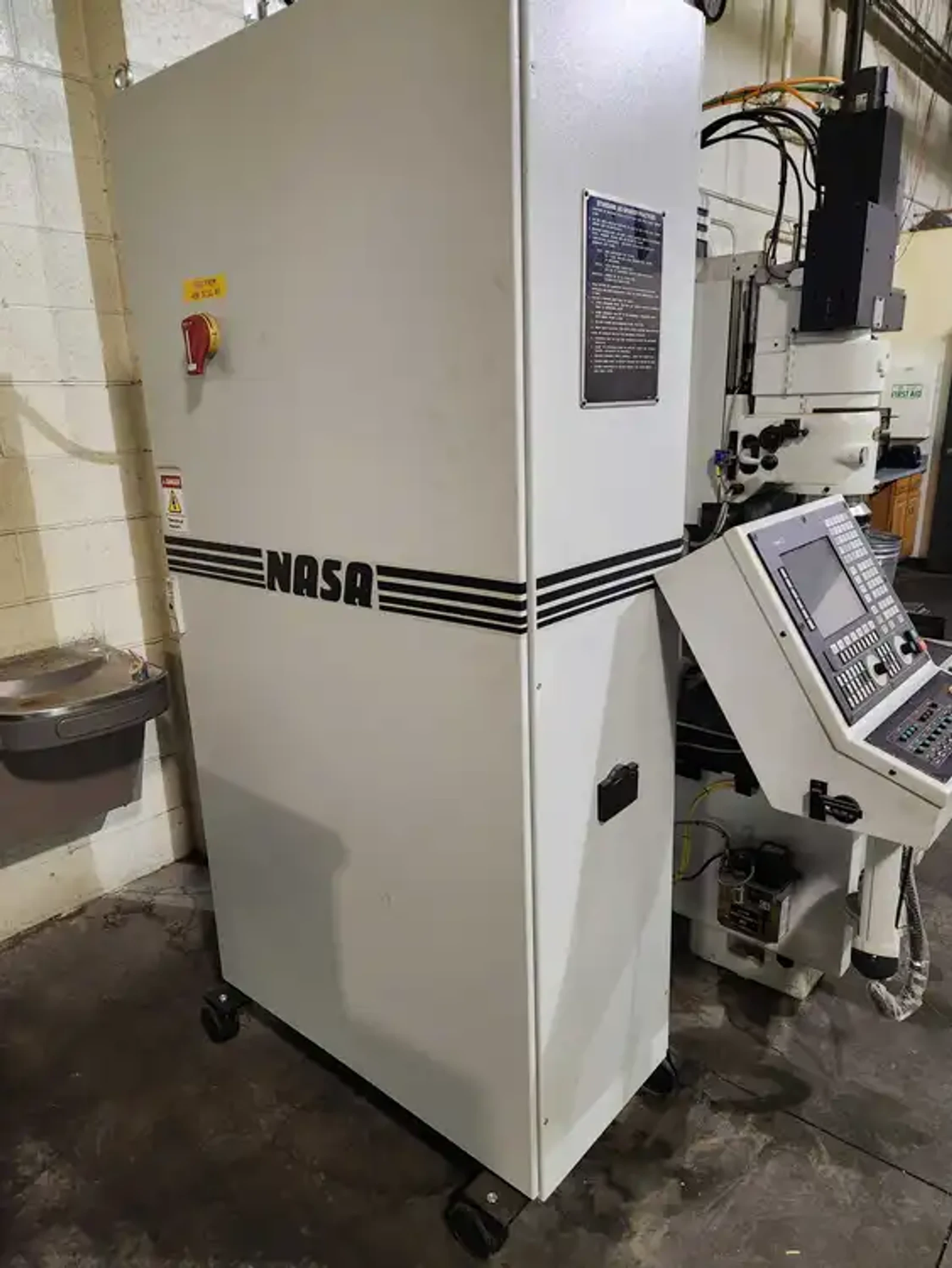

Pendant Type Control Cabinet
Complete Mechanical Rebuild w/ New Bearings, Seals, Switches, Scraping for Geometry & More

System Accuracies:
Positioning: 0.000080"
Contouring: 0.000120"

Note: $175,000 Retrofit Performed in 2021
