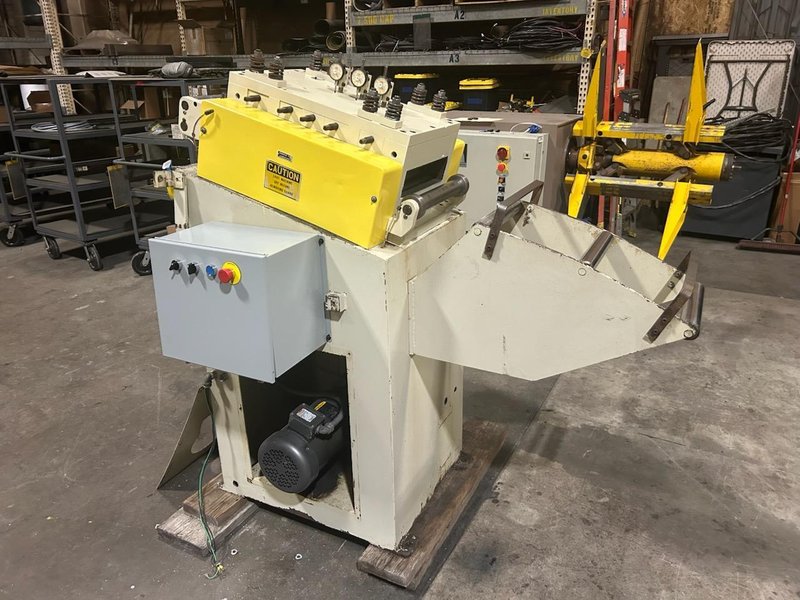

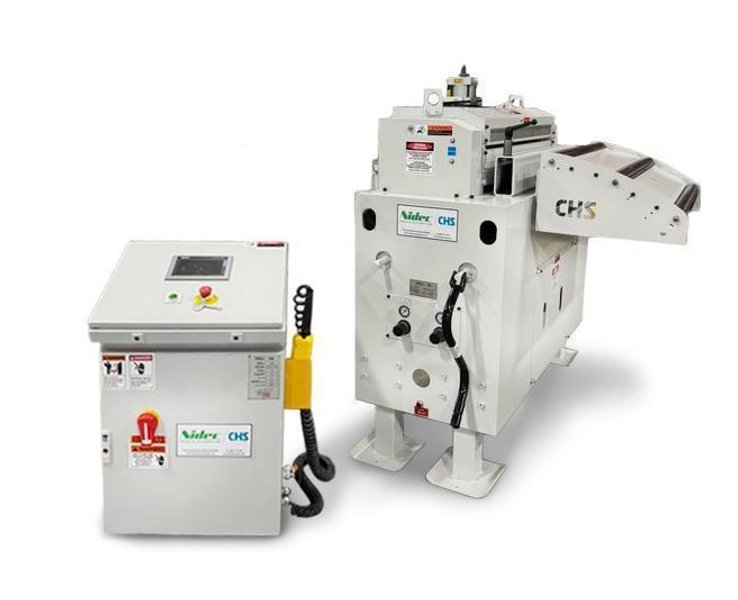

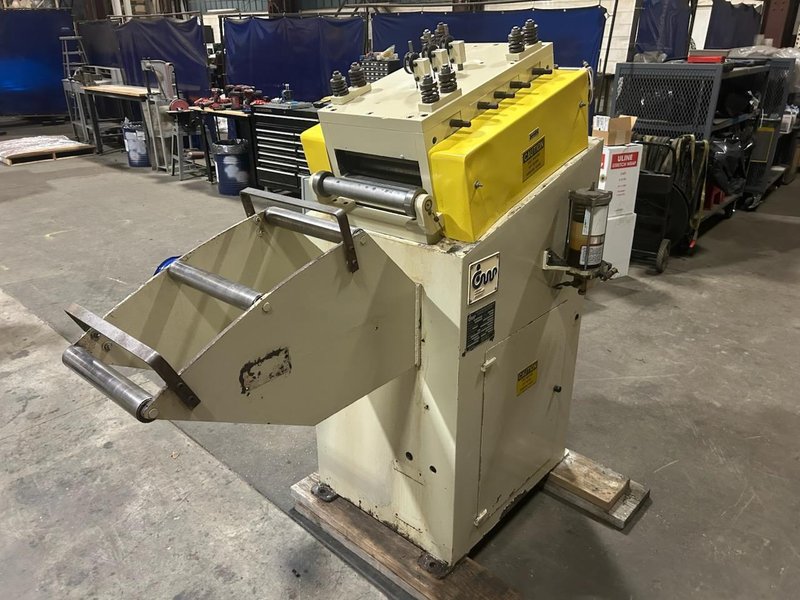

CWP / CHS Coil Feed Line 8,000 Lbs. x 12" Wide x .150"
Brand
Category
Type
Model
MX318 / 12X / 4RM18
Stock #
5564
Year
Not specified
Condition
Not specified
Location
Michigan
| Coil Weight Capacity: | 8000 pounds |
| Stock Width Capacity | 12 inches |
| Max Stock Thickness Capacity At Full Width | .150 inches |
| Minimum Expansion Range: | 19.5 inches |
| Maximum Expansion Range: | 24.5 inches |
| Coil O.D. Capacity: | 60 inches |
|

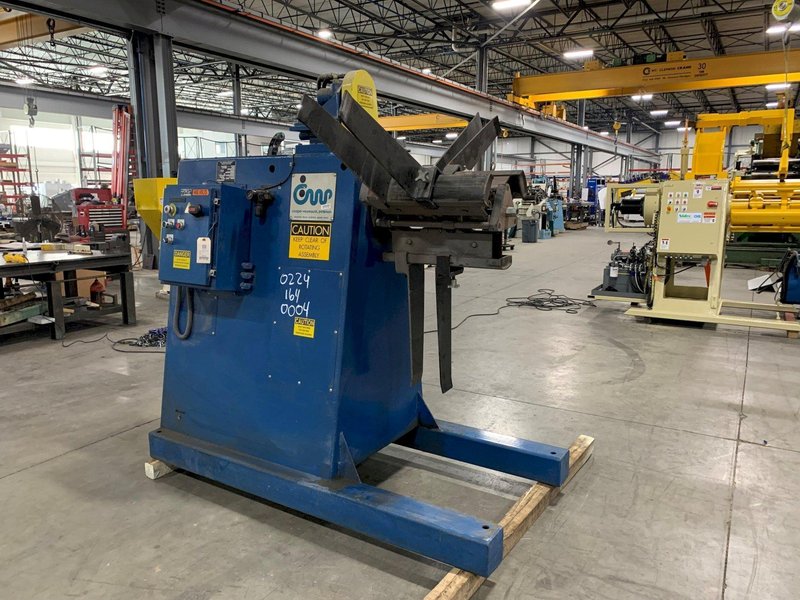

CWP Coil Reel Model No. 4R18
Three leaf mandrel Hydraulic mandrel expansion Adjustable keeper arms Air brake mounted on main spindle (adjustable tensioning) Hydraulic threading drive for jog forward and reverse CWP Powered Straightener Model No. 12C Entry and exit pinch rolls Seven straightening rolls x 2.75" diameter Adjustable stock width edge guides Exit cascade loop support rollers New AC Variable frequency drive package Operator's control station Jog forward and reverse Auto / Run cycle Laser variable speed loop control (NEW) CHS Servo Roll Feed Model No. MX-318 Three inch upper and lower feed rolls with matte chrome finish Piloting upper feed roll Adjustable stock width edge guides Cabinet base mounted with adjustable pass line AC Servo drive and controls Touchscreen HMI for operator's controls Remote pendant control for jog forward and reverse Consult sales for full servo feed features and details |
|
