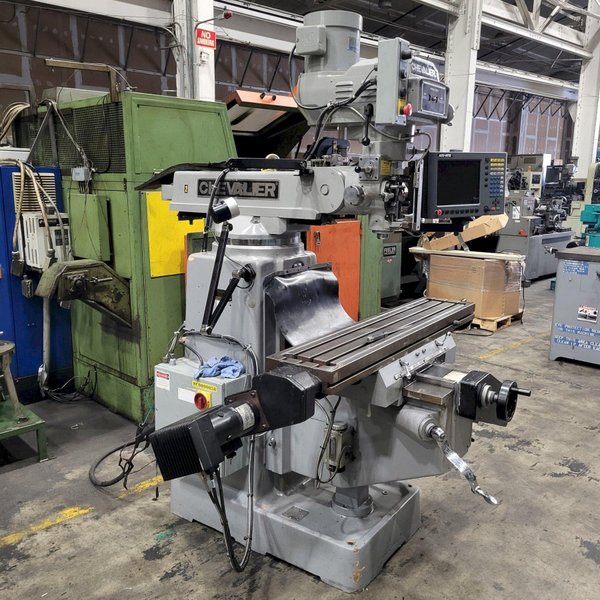

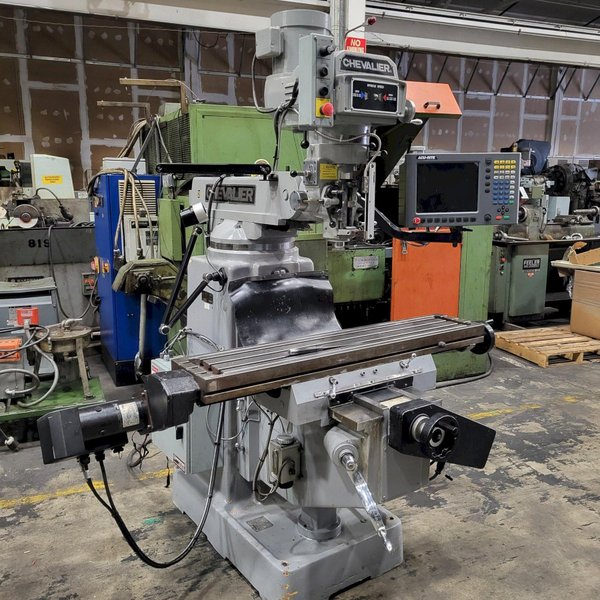

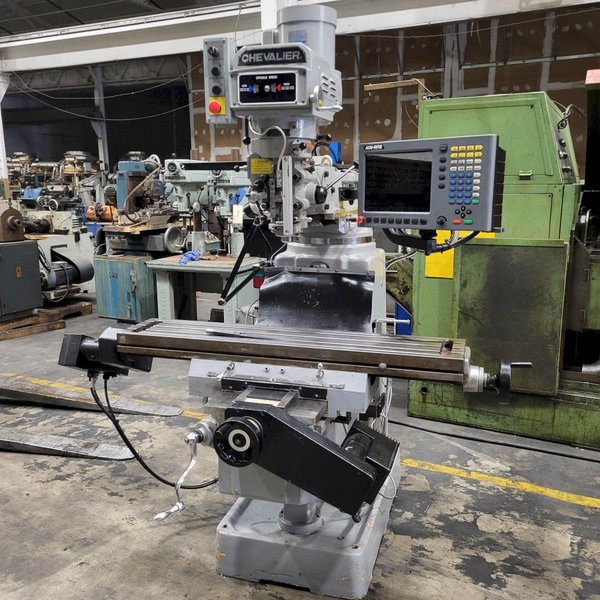

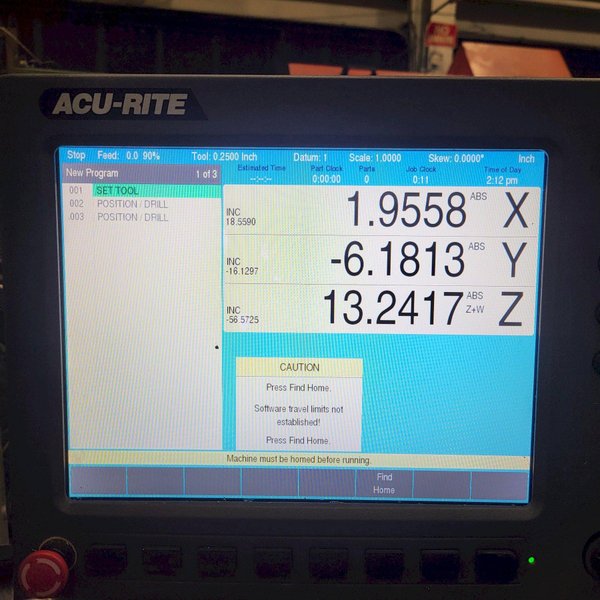

Chevalier 2 Axis CNC Milling Machine with AUC-Rite G2 CNC Control ( Mill Power G2)
Brand
Category
Type
Model
Not specified
Stock #
13602
Year
2008
Condition
Used
Location
Connecticut
| Table Size | 254mm x 1,270mm (10" x 50") |
| Longitudinal Travel | 760mm (30") |
| Cross Travel | 390mm (15 3/8") |
| Vertical Travel | (knee) 380mm (15") |
| Table T-Slots | Quantity 3/ Size 16mm (0.63") |
| Maximum Workpiece Weight | 430 Kg (946 Lbs.) |
| Vertical Spindle Motor | 3 HP |
| Spindle Speeds | 50-4,500 RPM |
| Spindle Taper | R8 |
| Spindle Nose To Table | 40-420mm ( 1 5/8"-16 1/2") |
| Spindle Centerline To Column Surface | 102-652mm (4"-25 5/8") |
| Quill Travel | 127mm (5") |
| Automatic Vertical Feeds ( Per Evolution Of Spindle) | 0.04, 0.08,0.14mm ( 0.0015",0.003", 0.006") |
| Head Swivel | R&L 90 Deg./ F&B 45 Deg. |
| Overarm Travel | 550mm (21 5/8") |
| Overarm Swivel | 360 Deg. |
| Weights (Approx.) | 1520 Kg (3,350 Lbs.) |
| Floor Space (O.A. Dim.) | 2000W x 2572D x 2150H mm ( 79" x 101 1/4" x 84 5/8") |
| Electrics | Set to Run in 230 Volts, 3 Phase |
