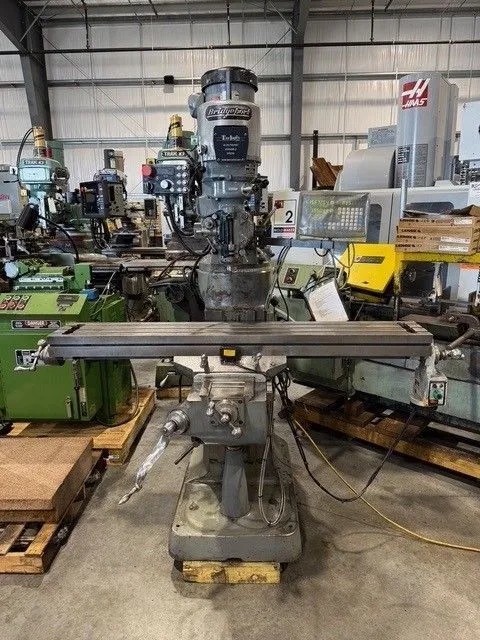

BRIDGEPORT Series 1 Custom EVS Electronic Variable Speed DRO USA #7528

BRIDGEPORT Series 1 Custom EVS Electronic Variable Speed DRO USA #7528

Name: BRIDGEPORT Series 1 Custom EVS Electronic Variable Speed DRO USA #7528
Brand: BRIDGEPORT
SKU: 7528
Availability: PreOrder

Brand

BRIDGEPORT

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Milling Machines

Manufacturer:

BRIDGEPORT

Model:

Series 1 CUSTOM

Year:

1985

Stock #:

7528

Status:

For Sale

Description

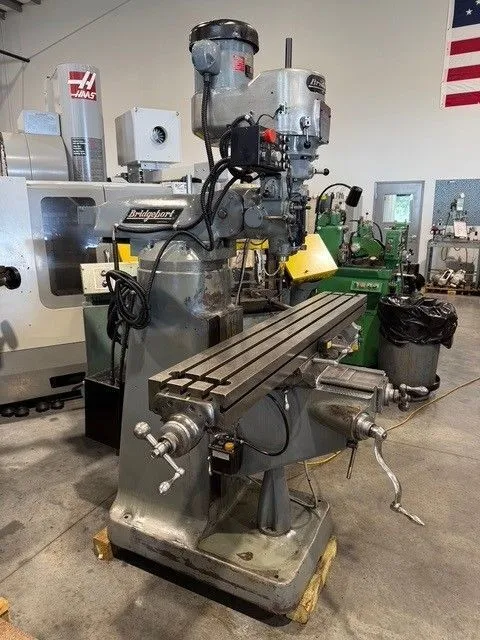

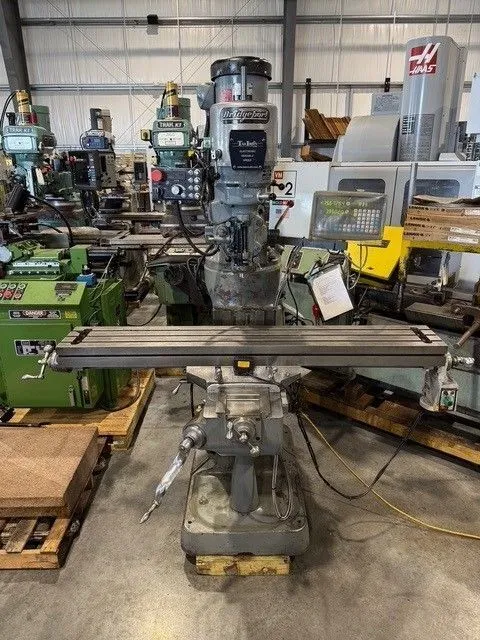

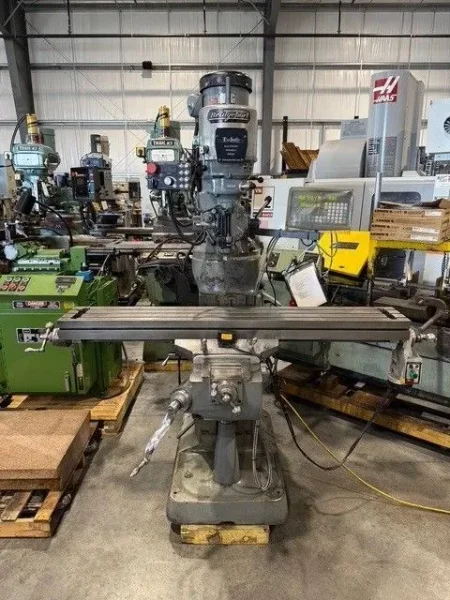

BRIDGEPORT Series 1 Custom EVS Electronic Variable Speed DRO USA #7528

BRIDGEPORT Series 1 Custom EVS Electronic Variable Speed DRO USA #7528
Reference # 7528
Model # Series 1 Custom

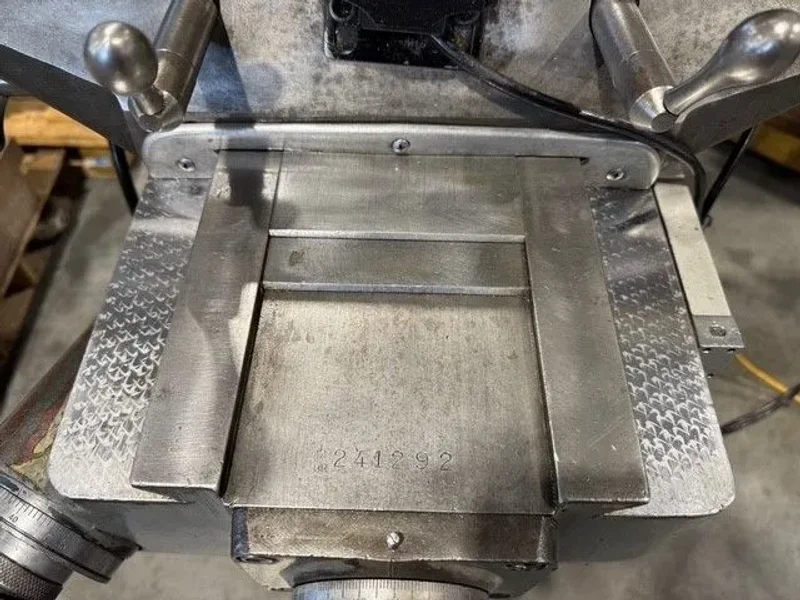

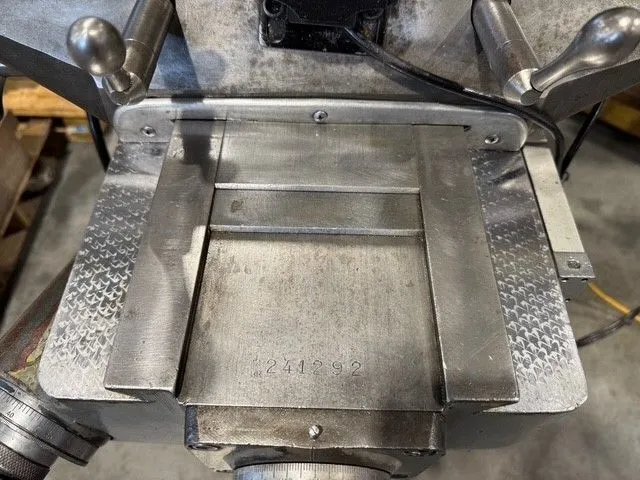

Serial # 241292
Year of manufacture- 1985’
Table working surface- 9“ x 60”
Number of t-slots- 3
Ranges-
Longitudinal- 44”
Cross- 12”
Vertical, knee- 16”
Quill-5”
Maximum/Minimum distance, spindle nose to top of table- 18.5"/2.5"
Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75"
Ram travel- 12”
Head tilt, left & right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
Turret rotation- 360 degrees
(3) Power quill feeds- - .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds, two ranges- 60-4,200 R.P.M
Spindle taper- R-8
Maximum collet capacity- ¾”

Machine was built by TAS IRON

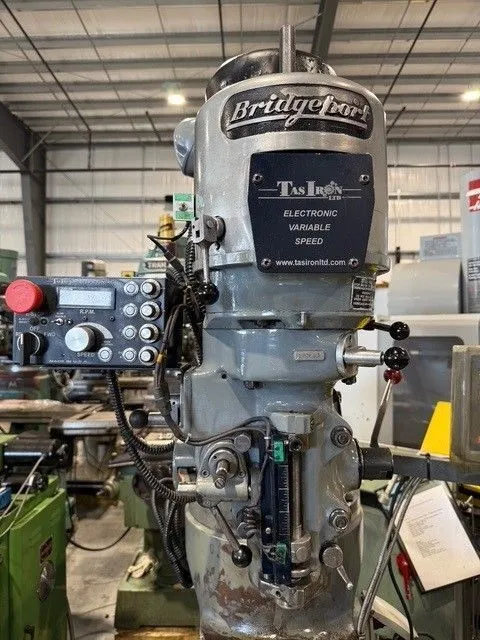

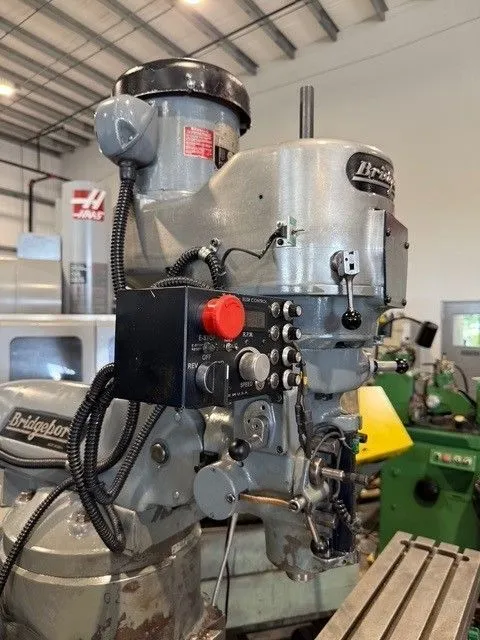

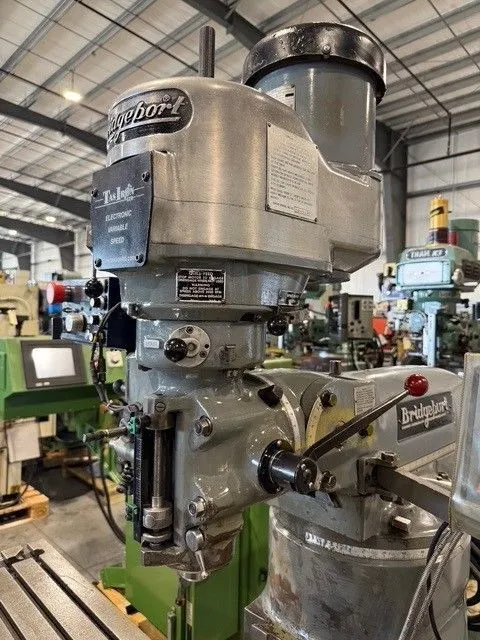

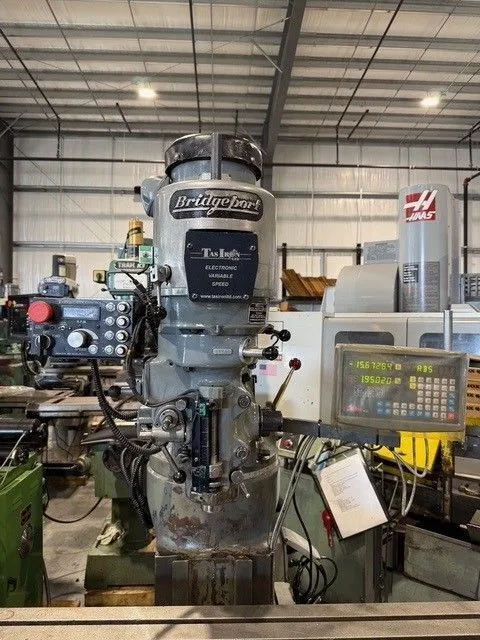

Upgraded “TAS IRON” EVS Electronic variable speed drive

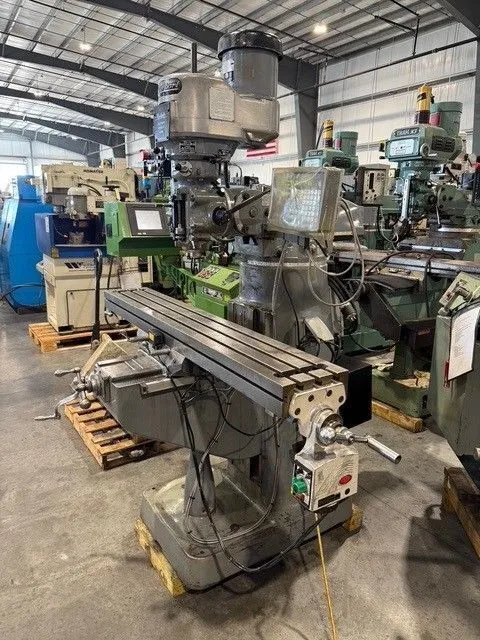

Power feed on X axis
2 axis DRO Digital Read Out
One-shot lubrication system
2 H.P. 3/60/230-460 volt spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 2200 Lbs.
Machine dimensions- 78” L x 57” w x 83’’ H
Machine location- F.O.B. Sarasota, Florida
