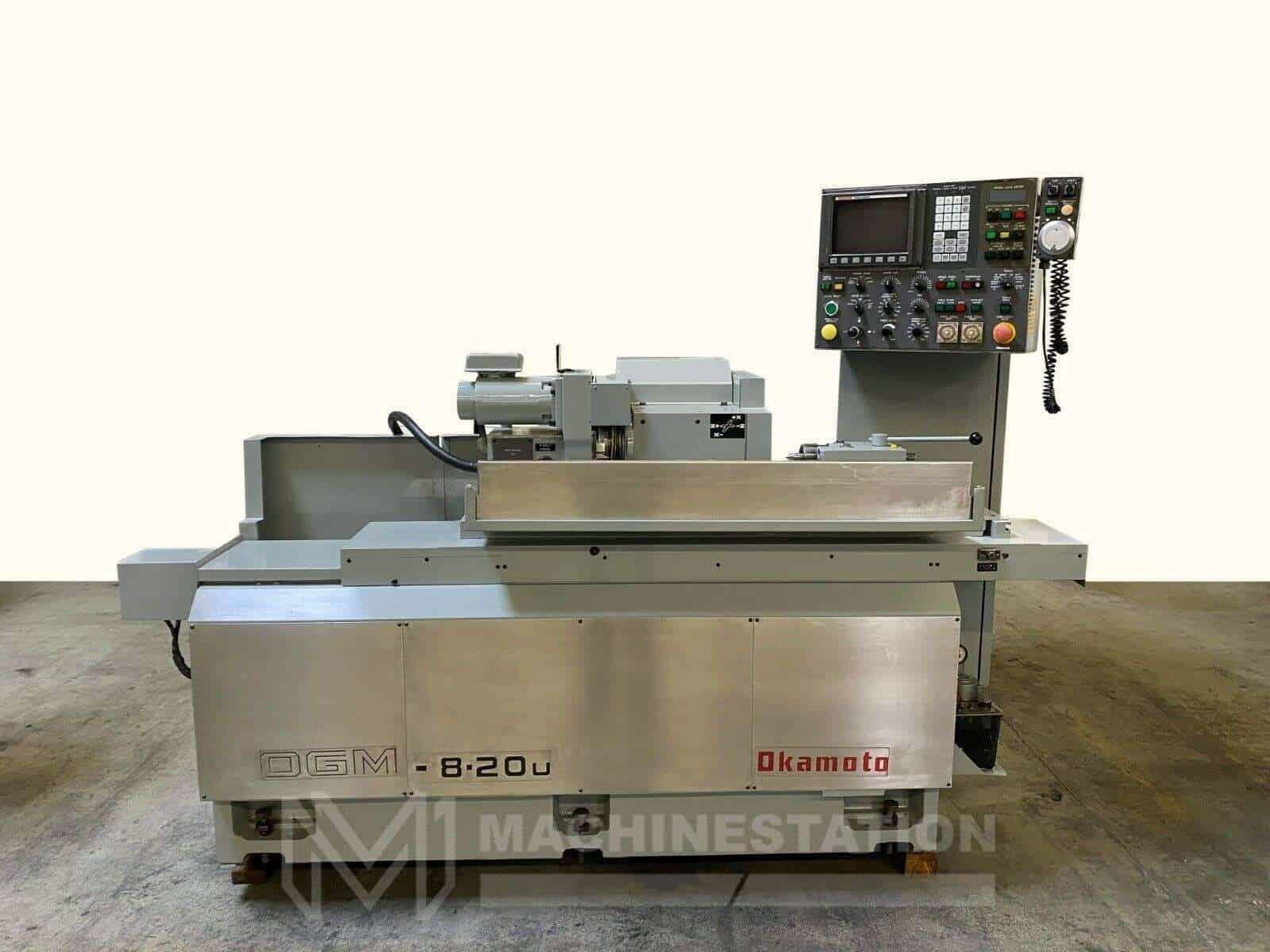

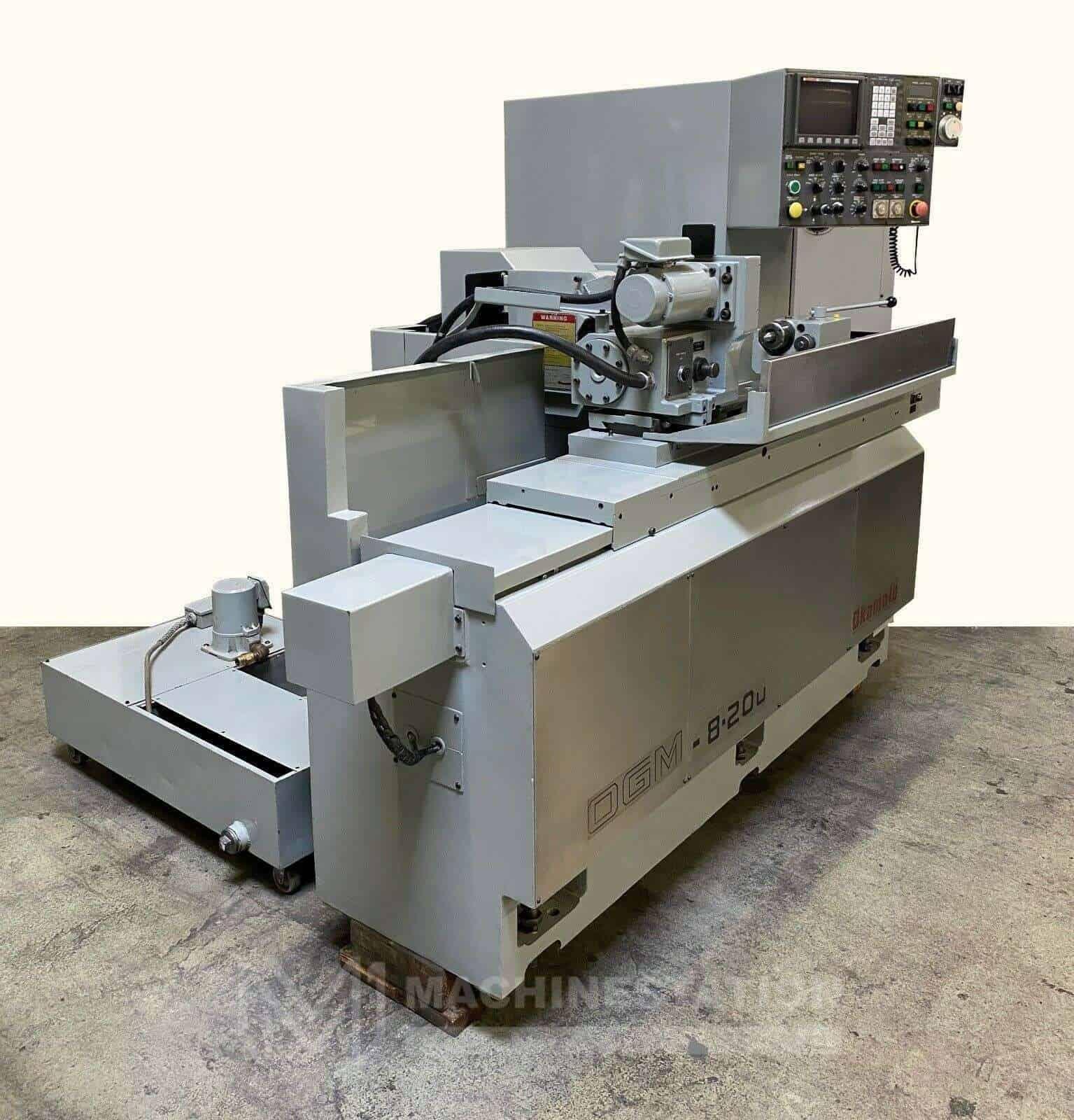

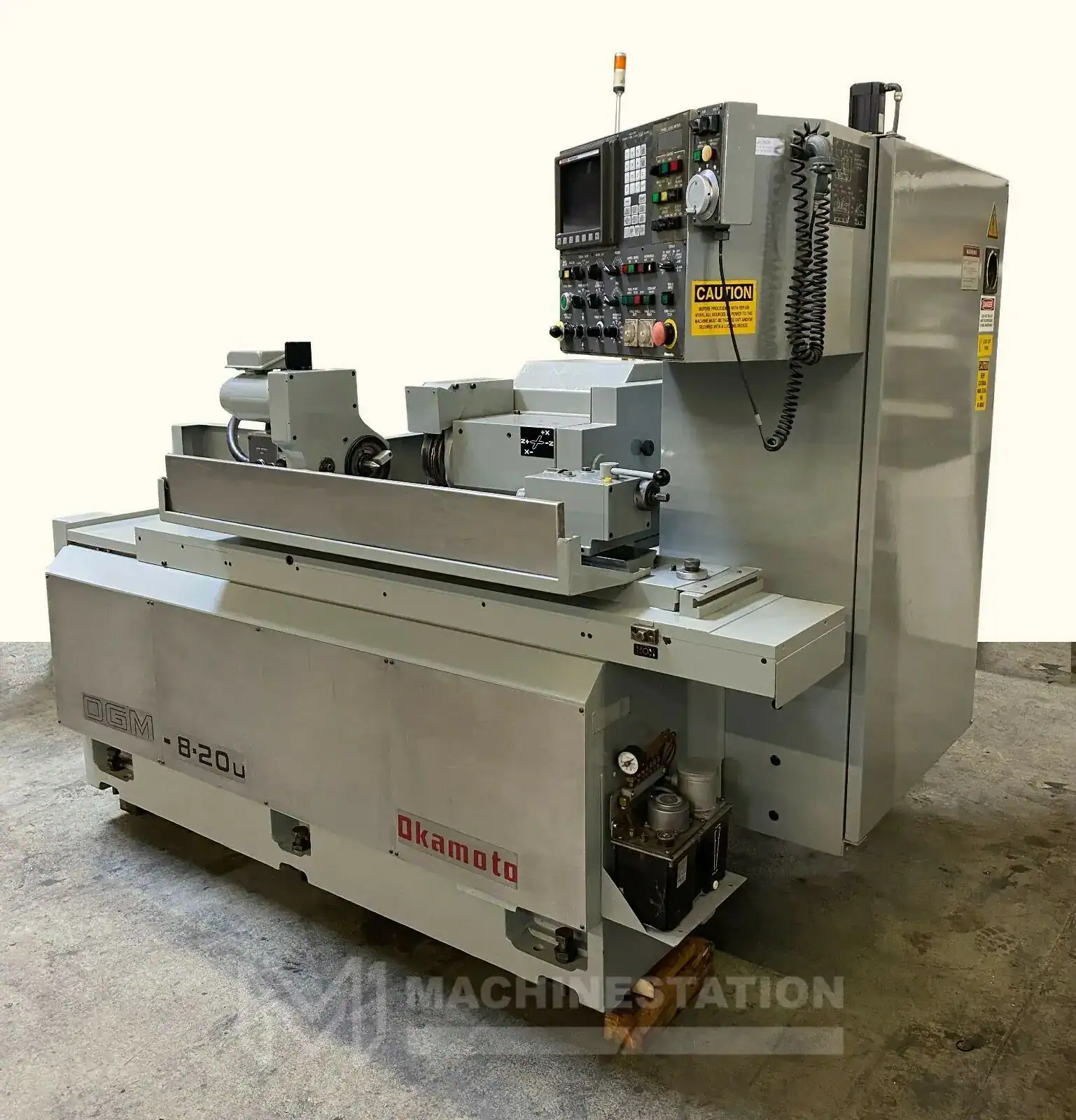

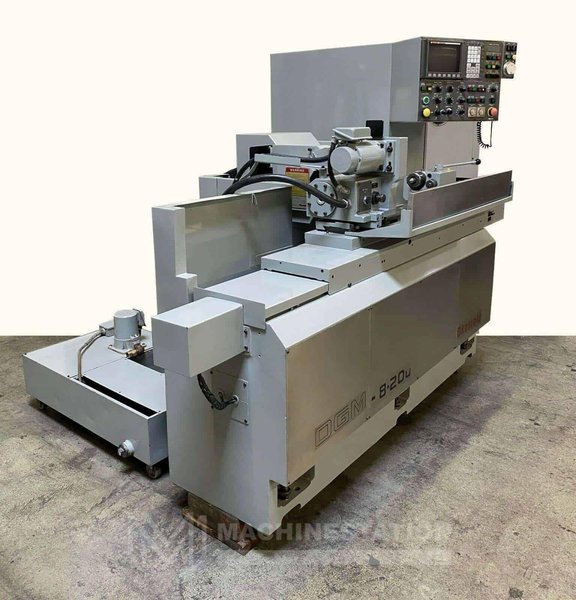

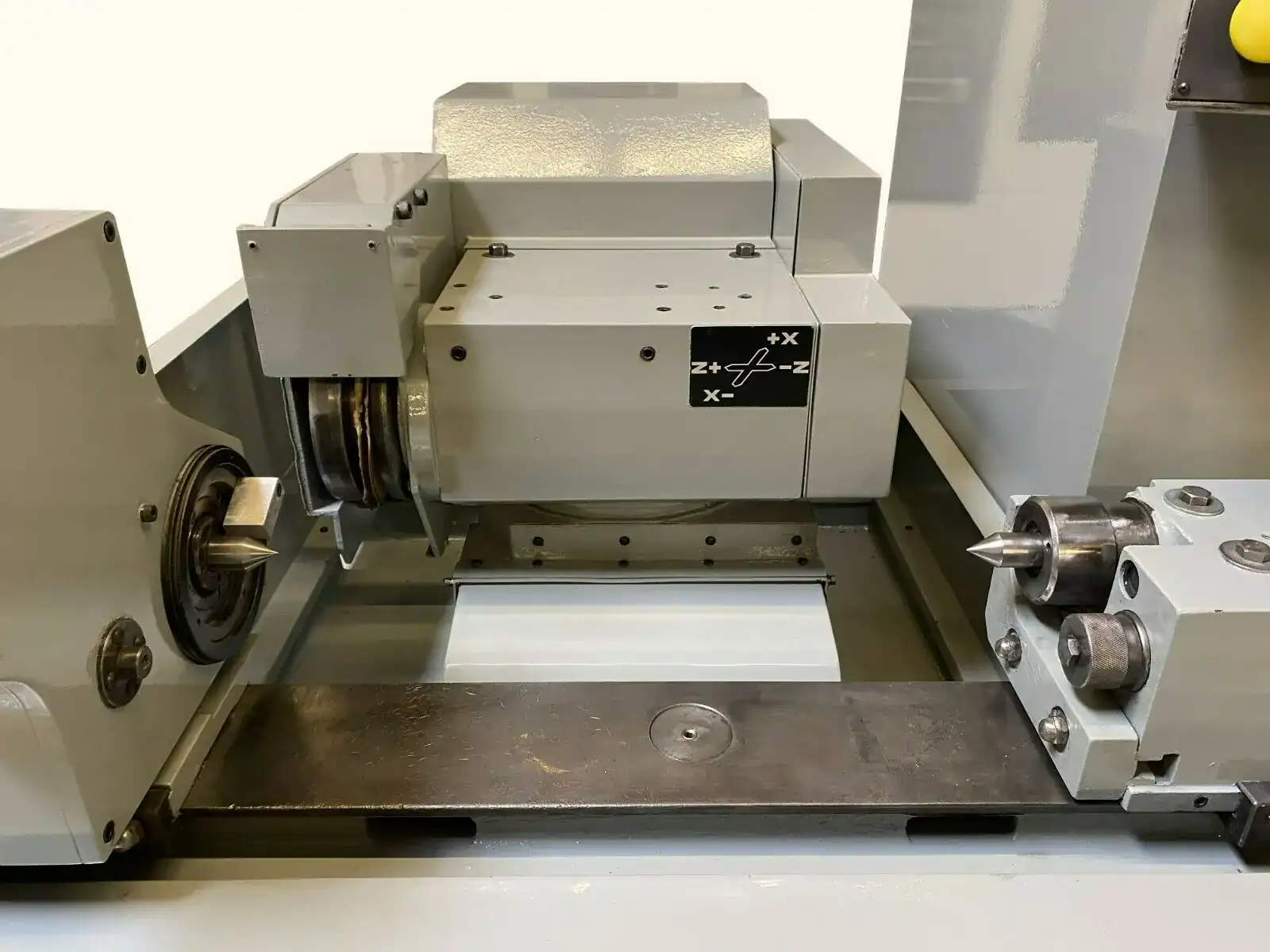

Okamoto OGM 8-20U CNC OD Universal Cylindrical Grinder

Brand
OKAMOTO
Category
Grinding Machines
Type
Grinders
Model
OKAMOTO OGM 8-20U
Stock #
115050
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: OKAMOTO
Model: OGM 8-20U
Year:
Condition: Used – Good
Equipped With:

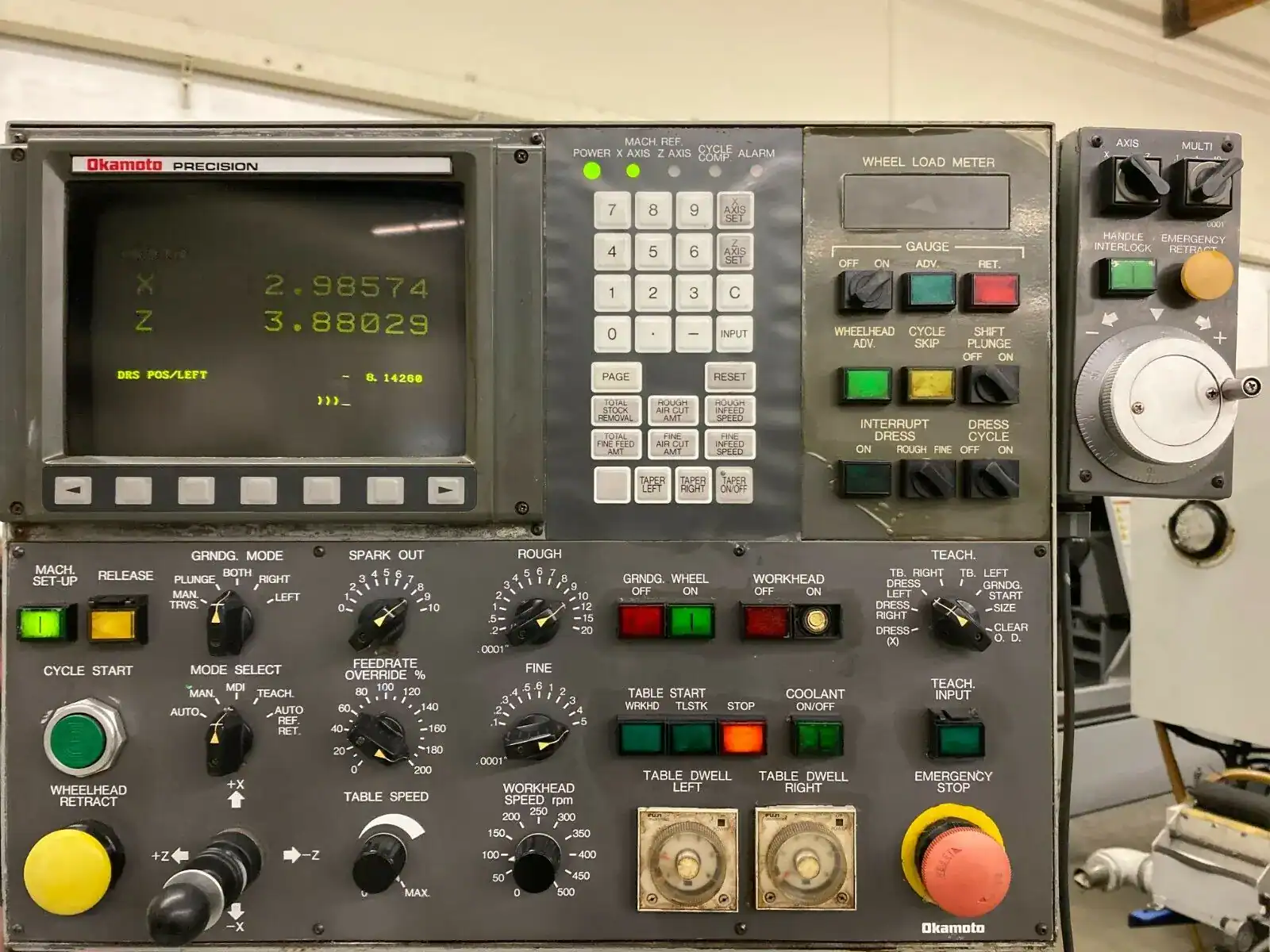

Fanuc 21-GA
Absolute/Incremental Combined Programming
4 x Subprograms
Swivelable Table & Wheel-Head
MPG Control
Inch / Metric Conversion
Stored Stroke Check
Auto Reference Point Return
Automatic Acceleration & Deceleration
Coolant System
Automatic Lubrication system
Manuals
Capacity:
Max Grinding Diameter: 7.87″
Max Grinding Length: 19.68″
Max load Capacity: 44 lbs
Swing Over Table: 8.66″
Distance Between Centers: 19.68″
Grinding Wheel:
Speed: 2010 RPM
wheel Size: 12″ X 1″ X 5″
Wheelhead:
X Axis Infeed Travel: 7.87″
Swivel Angle: +/- 30°
Least Travel Increment: 0.0001”
Rapid Feed Rate: 158″
Cont. Feed Rate: 0.0001″ to 158″
Motor: 5 HP
Workhead:
Swivel Angle: +30 – 90°
Center Taper: MT-3
Spindle Bore Dia.: 0.68″
Speed: 15-500 RPM
Motor: 1 HP
Table:
Z Axis Travel: 25.59″
Swivel Angle: +4 /-9°
Least Travel Increment: 0.0001”
Rapid Feed Rate: 158″
Cont. Feed Rate: 0.0001″ to 158″
Tailstock:
Tailstock Quill Stroke: 0.78″
Tailstock Taper: MT-3
General:
Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 15 kva
Overall Dimensions: 106″ x 63″ x 66″ High
Weight : 5500 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - Okamoto OGM 8-20U CNC OD Universal Cylindrical Grinder
Okamoto ACC-818NC Precision CNC Grinder, 2022 – Coolant System, Fine Line Electro Magnetic Chuck
OKAMOTO

Grinders
Okamoto OGM 12-20PB CNC Cylindrical Grinder
OKAMOTO

Grinders

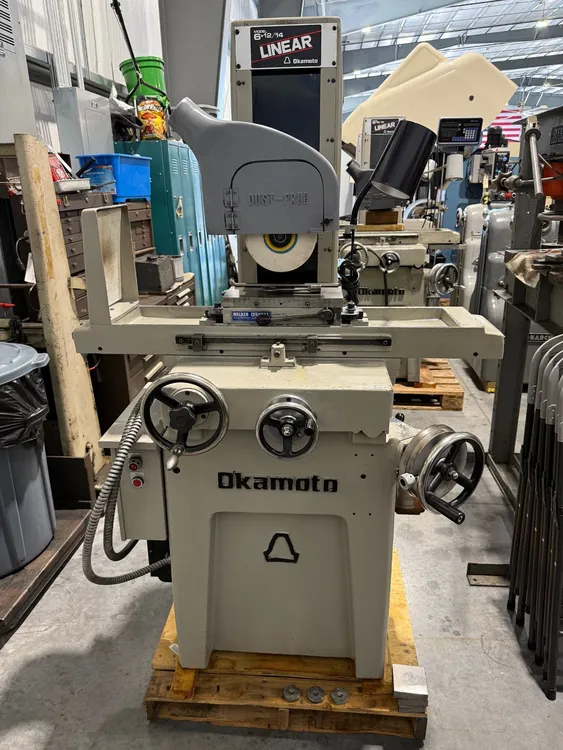

OKAMOTO LINEAR 612 6” x 12” Precision Hand Feed Surface Grinder #7491
