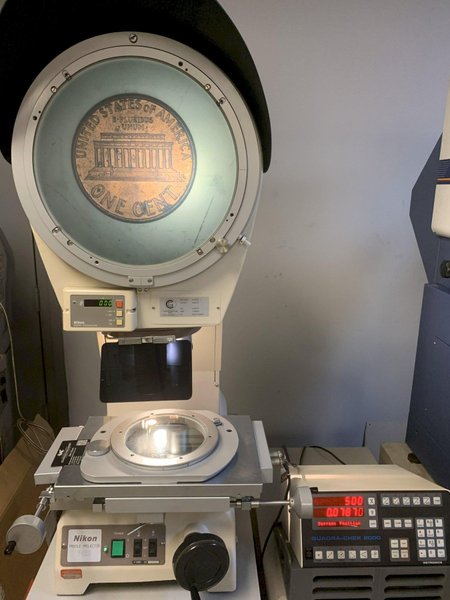

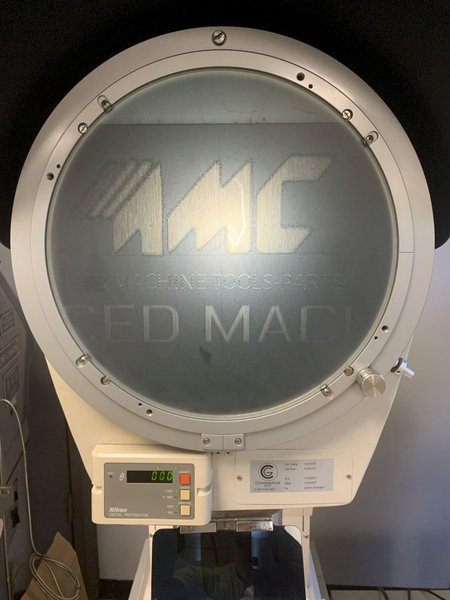

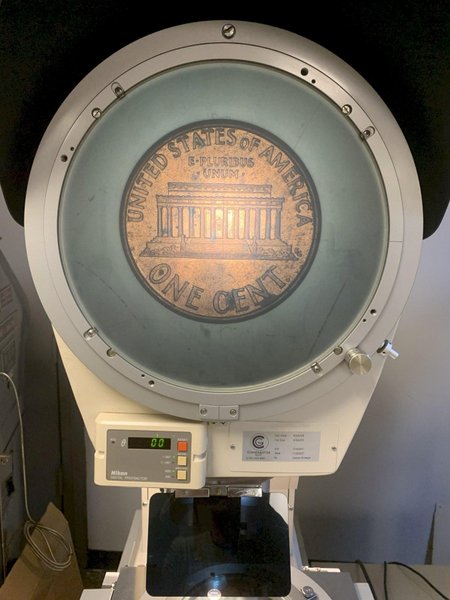

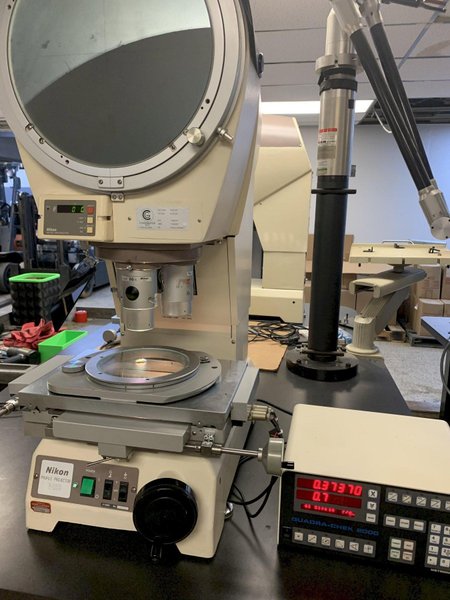

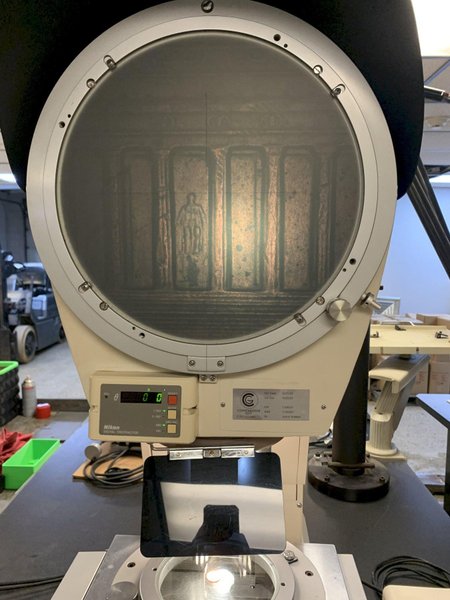

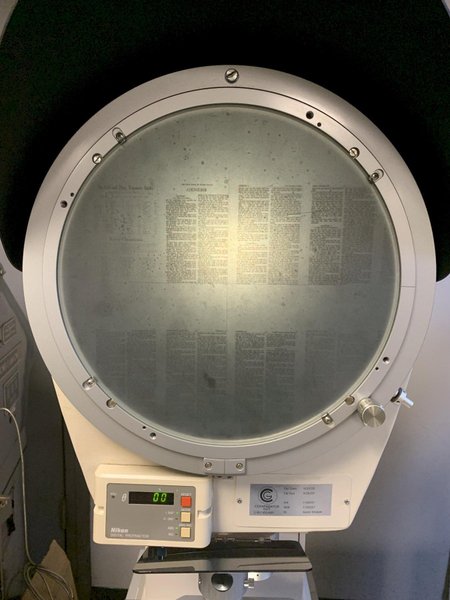

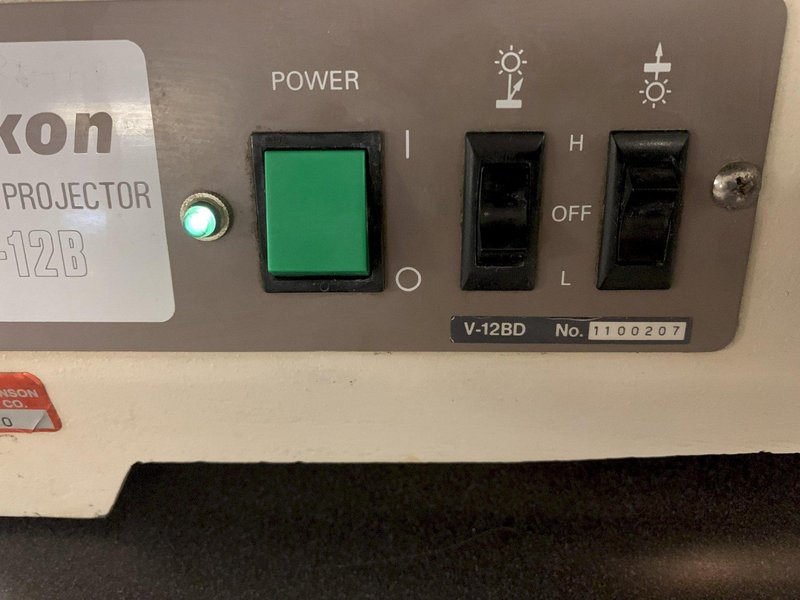

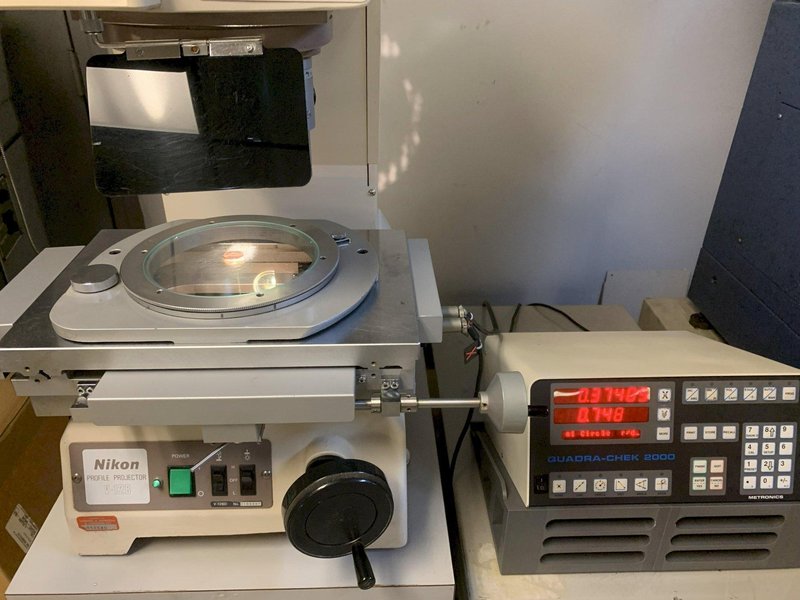

12" NIKON Model V-12BD Bench Top Vertical Beam Optical Comparator, S/N 1100207.
Brand
Category
Type
Model
V-12BD
Stock #
34872
Year
Not specified
Condition
Used
Location
Not specified
|
Specifications:

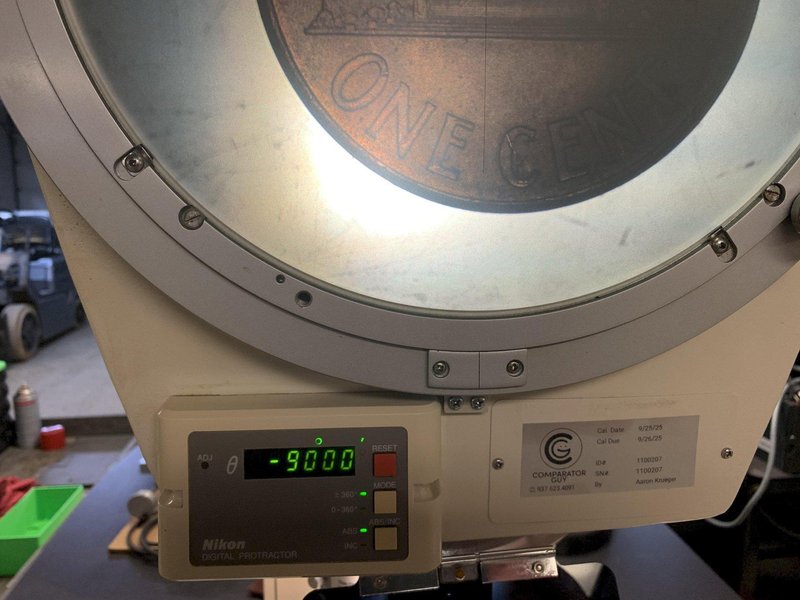

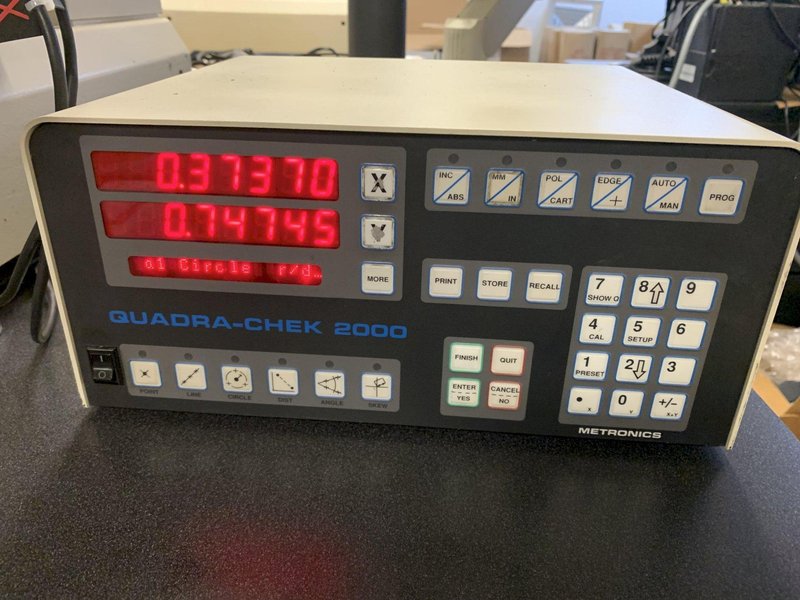

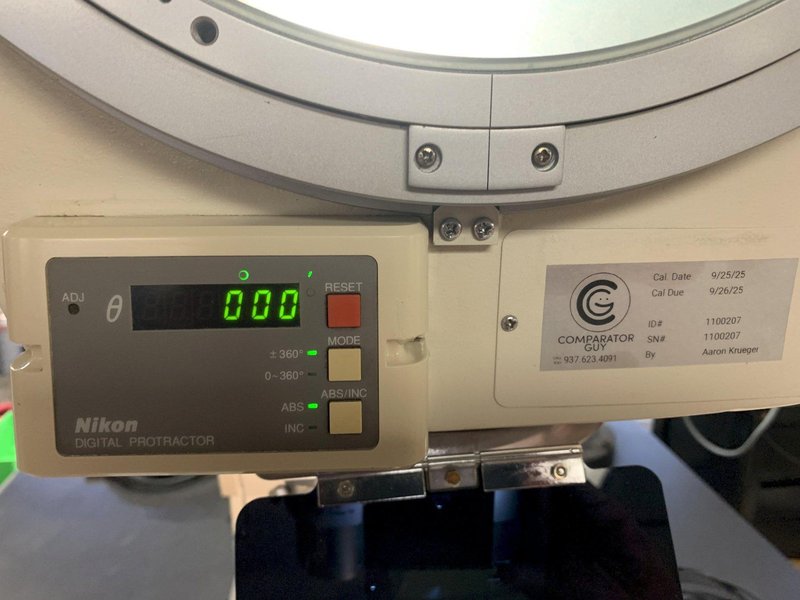

Screen Diameter - 12" Stage Table Size - 7.1" z 13.9" Stage Travels - 6" x 4" Stage Capacity - 15 Lbs. (not including sub table) Stage Glass Insert - 6.3" x 8.2" Glass Insert Size in Rotating Table - 6.5" diameter Max Height of Specimen - 4" (not including sub table) Chart Rotation - 360º Illumination - High/Low Intensity Control , 24v / 150w Image Type - Erect and Unreversed Electrics - 1/60/110 VAC Unit Dimensions - 16.1" x 25.5" x 42.1" Unit Net Weight - Approx 245 Lbs. Shipping Weight - Approx 450 Lbs. Equipped with: Quadra Chek 2000 Digital Readout Built-In Digital Protractor with Fine Rotation Knob (reading to 1 minute arc). 6 x 4 Linear Measuring Stage with Hand Cranks Removable Rotating Sub Table (Type 3) Linear Encoders / Min Reading 0.001" mm / .00005" Digital Protractor Fine Rotation Knob Built-In Surface Illumination Manual 3-Position Lens Turret - 10x 50x 100x (others may be available) Screen Hood Instruction Manuals Machine currently being serviced and should be ready soon. Specifications subject to independent verification by the buyer. |
