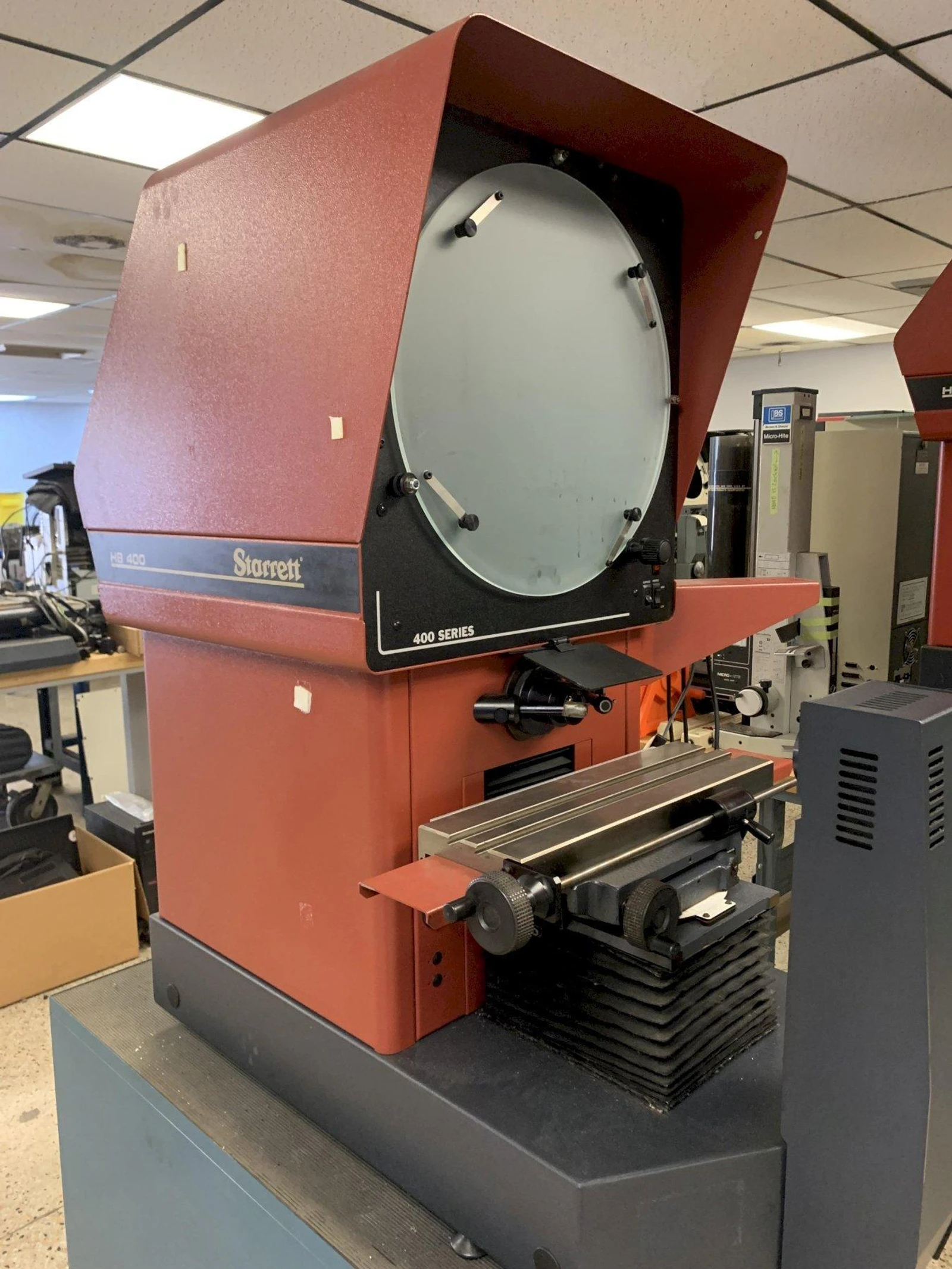

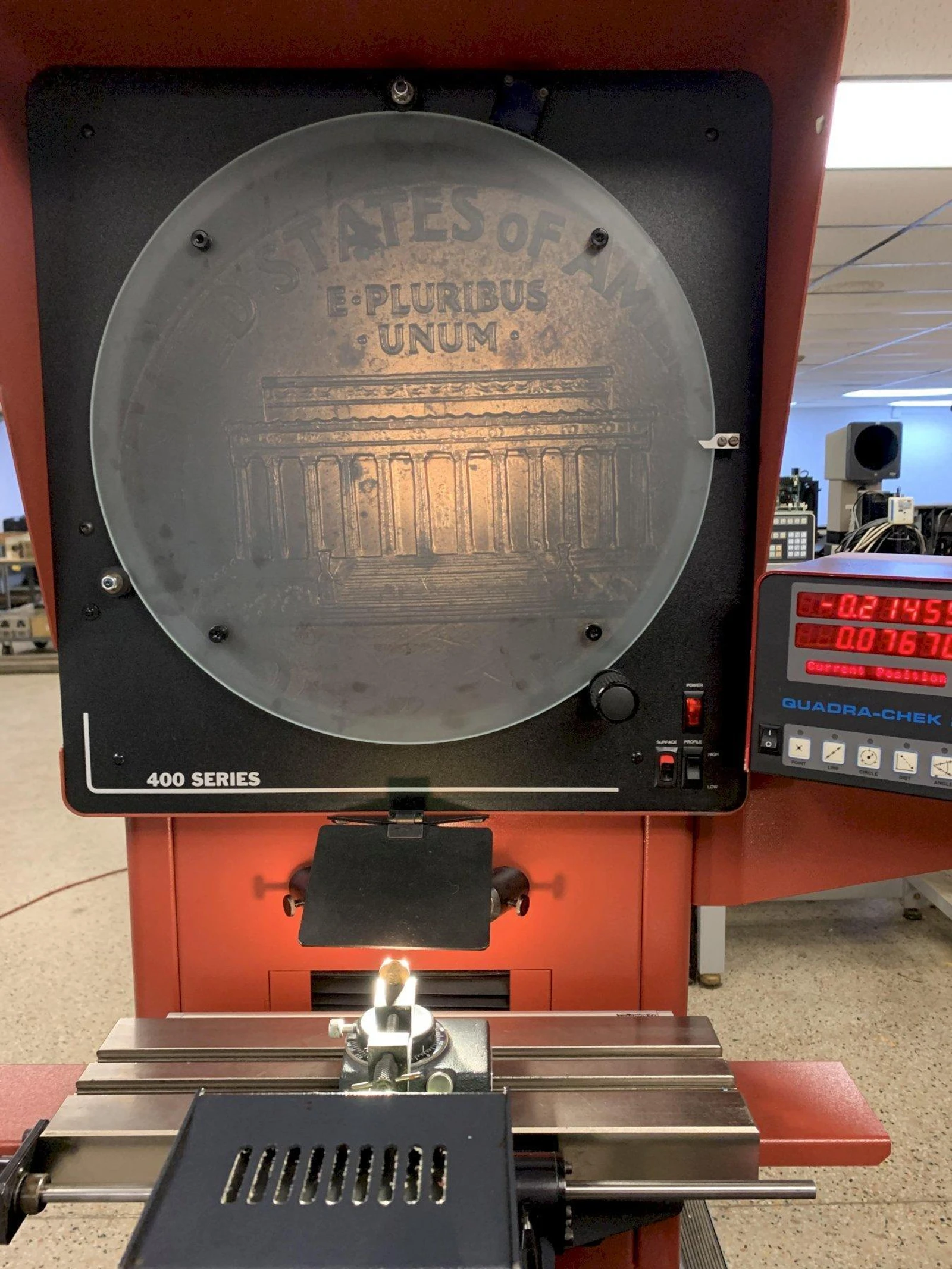

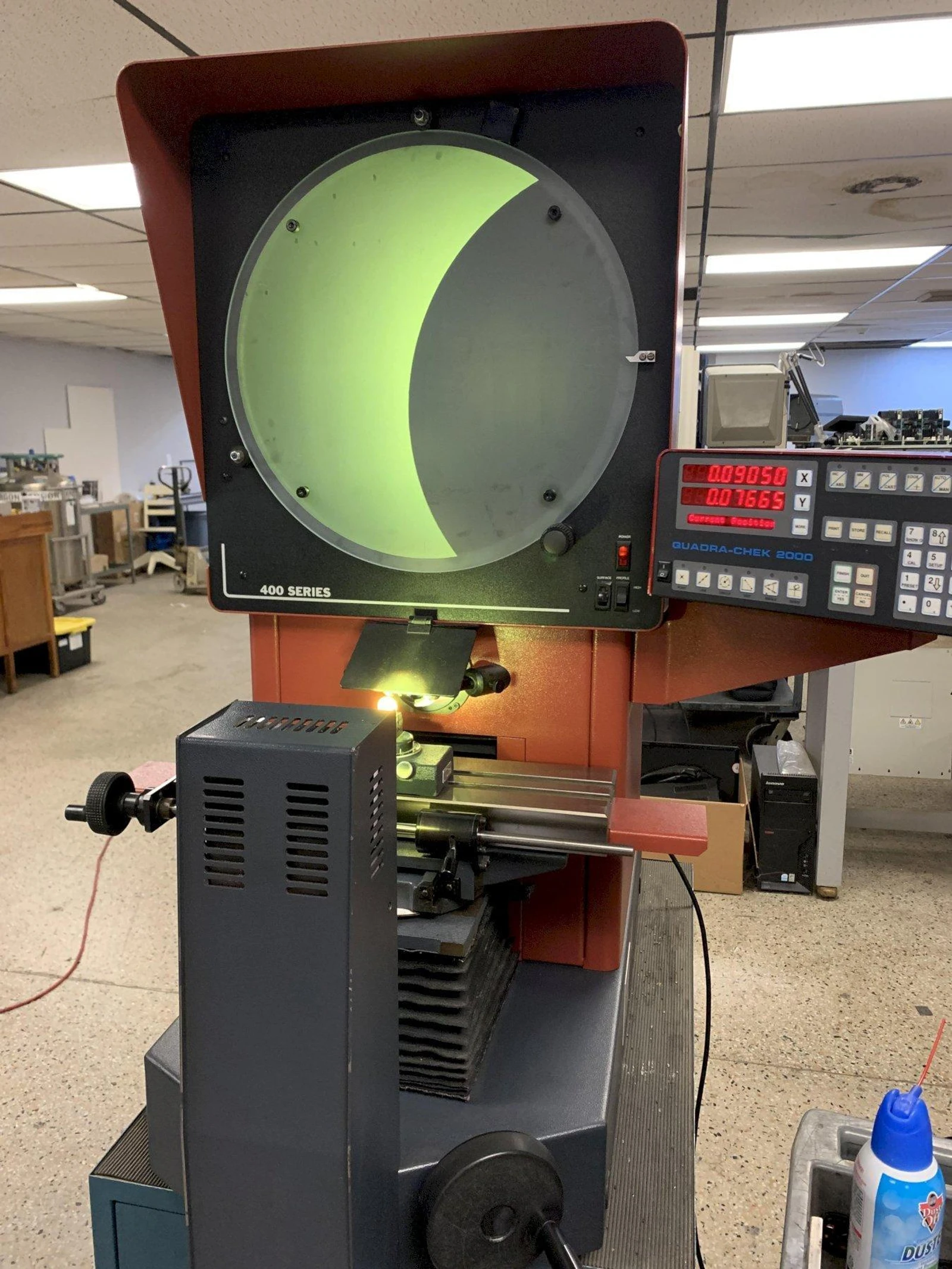

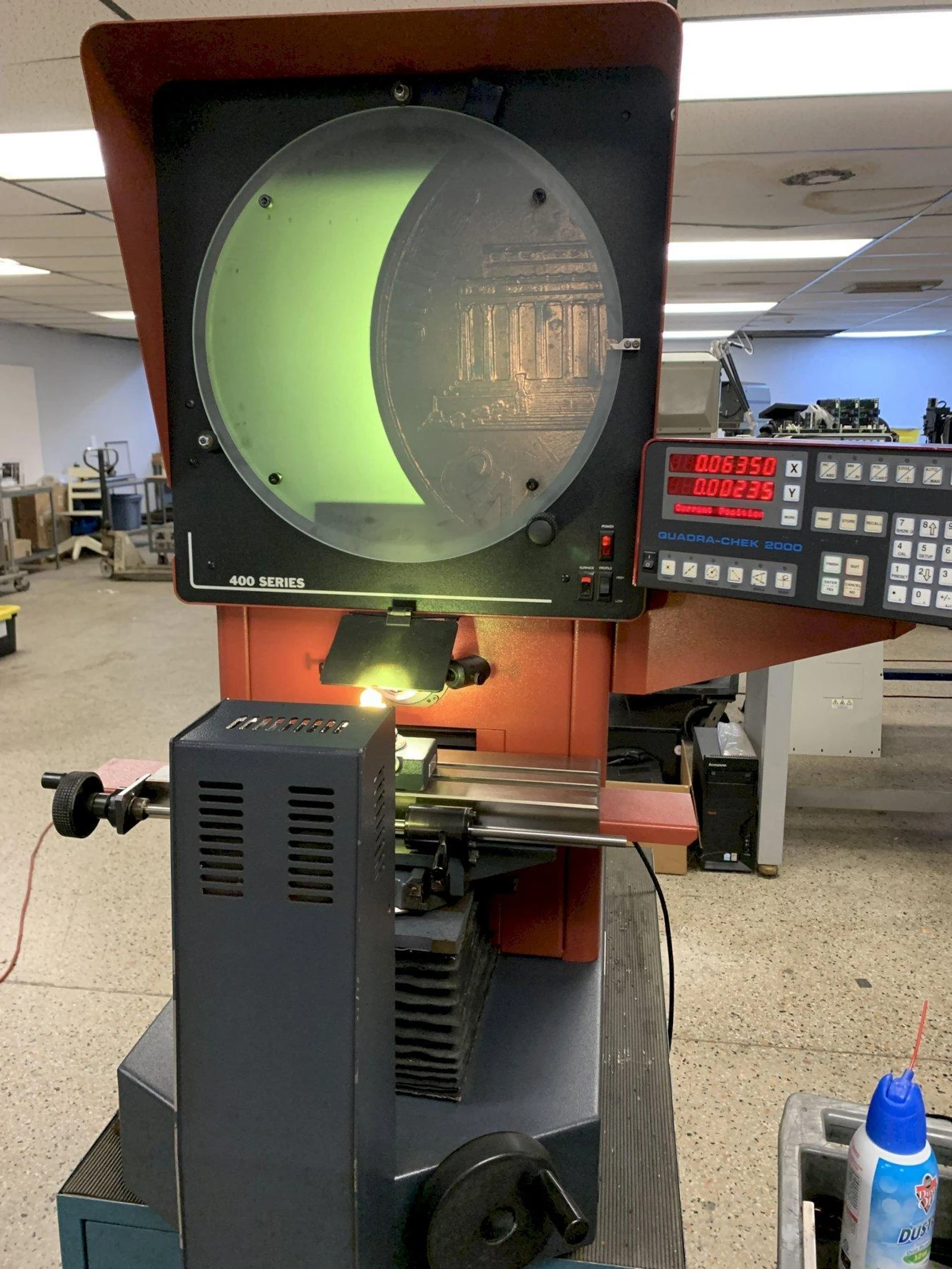

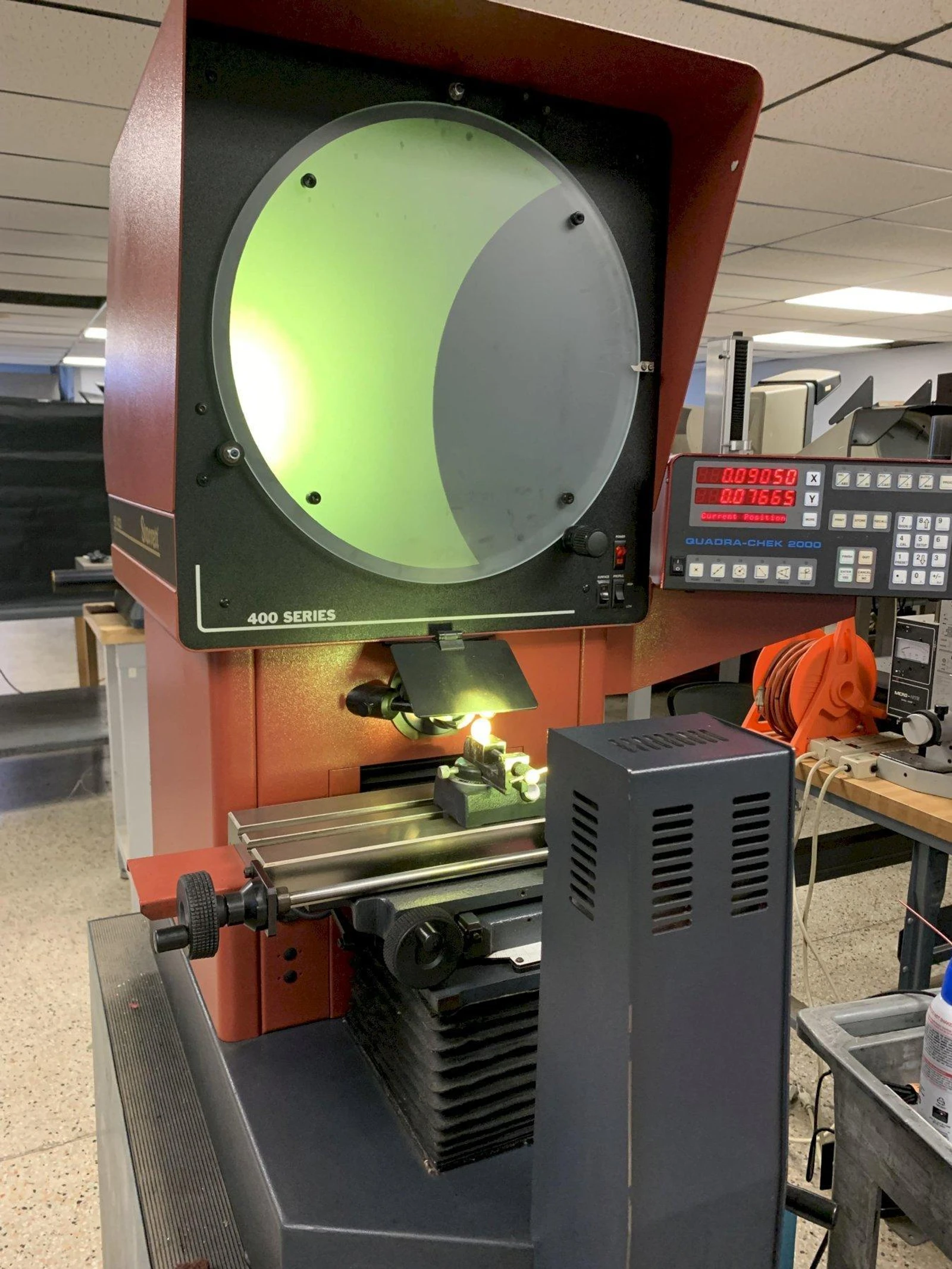

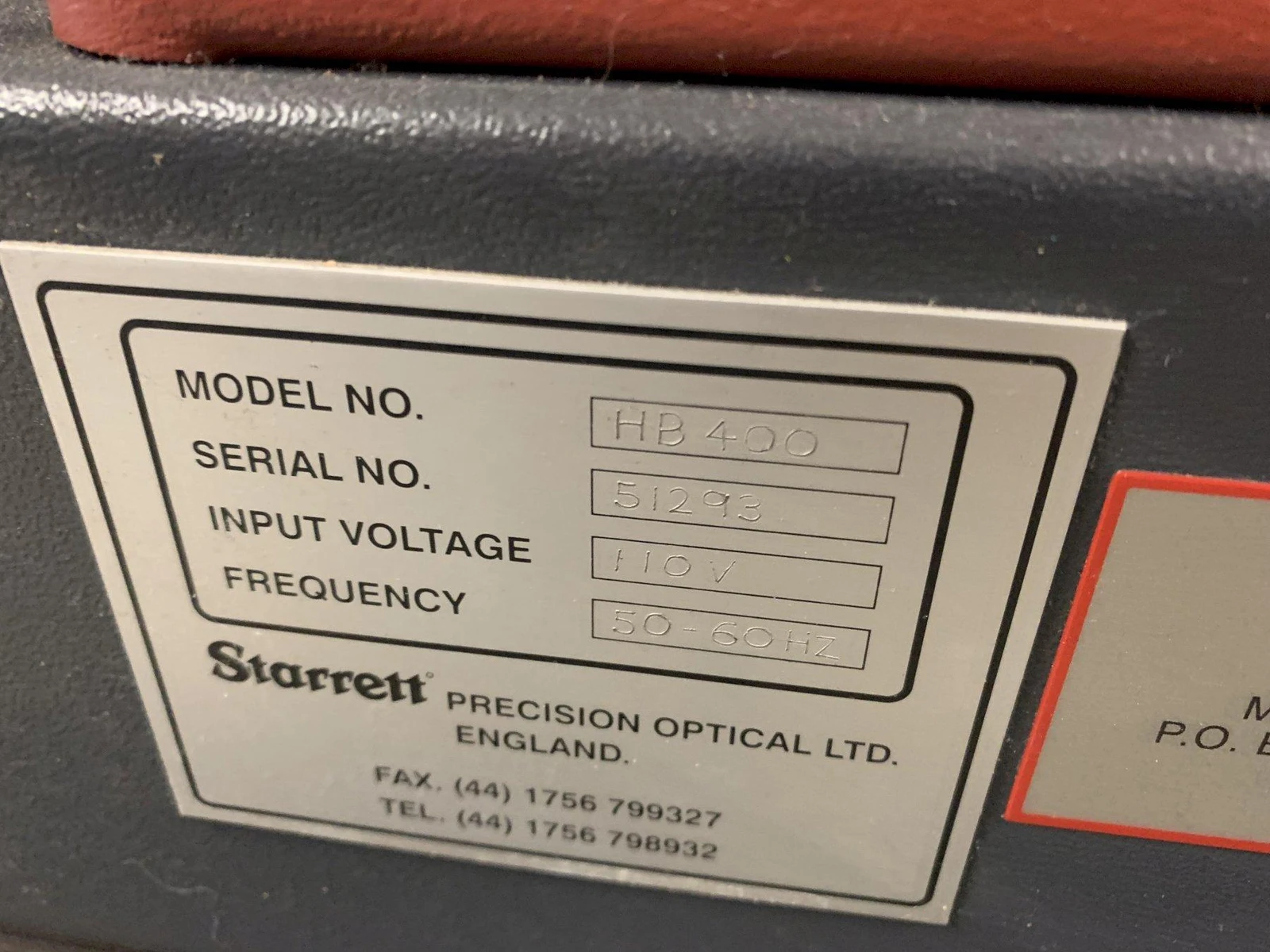

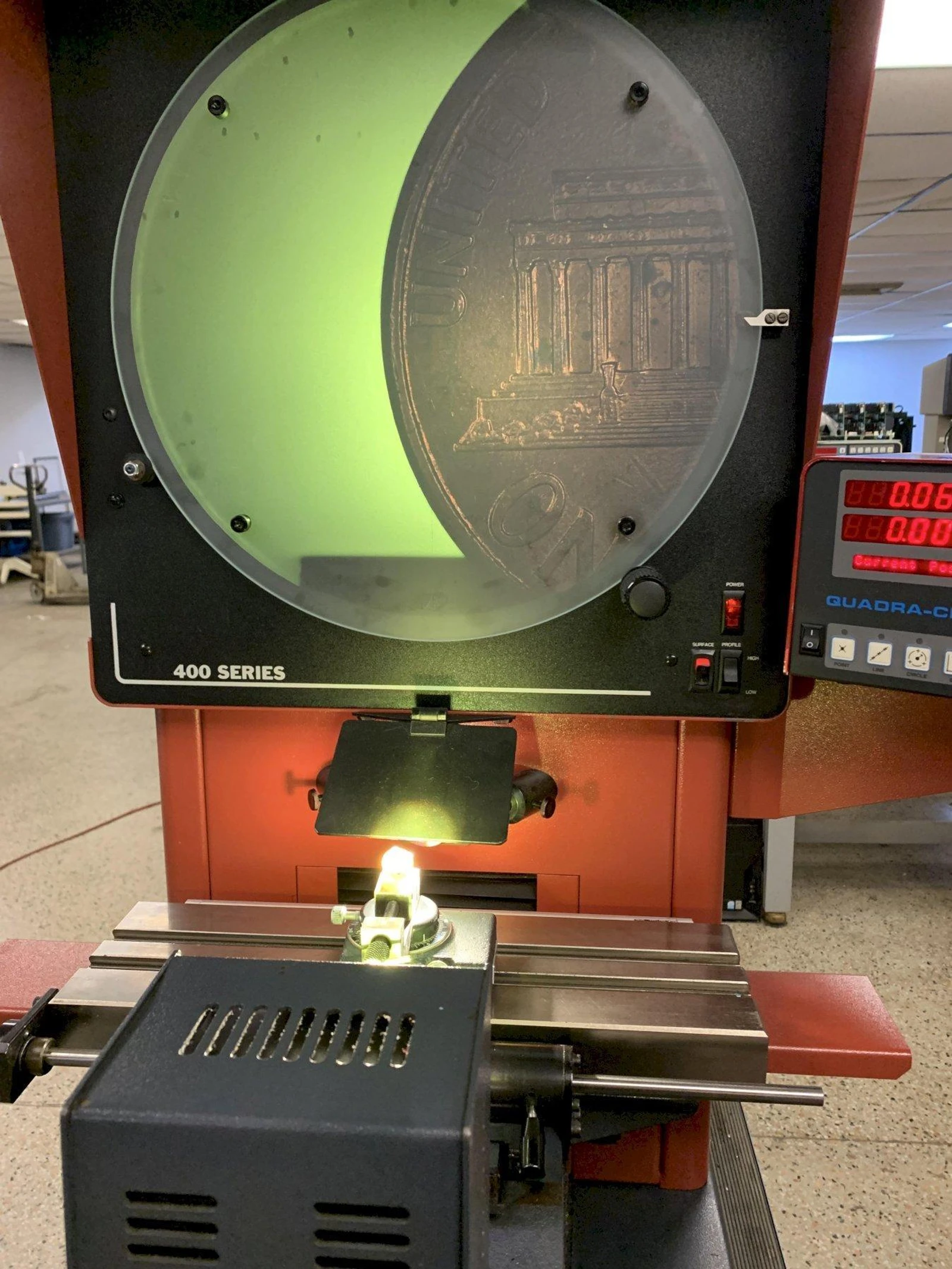

16" STARRETT Model HB400 Horizontal Bench Top Optical Comparator, S/N 51293, New approx 2006.
Brand
Category
Type
Model
HB400
Stock #
34870
Year
2006
Condition
Used
Location
Ohio
|
Specifications:

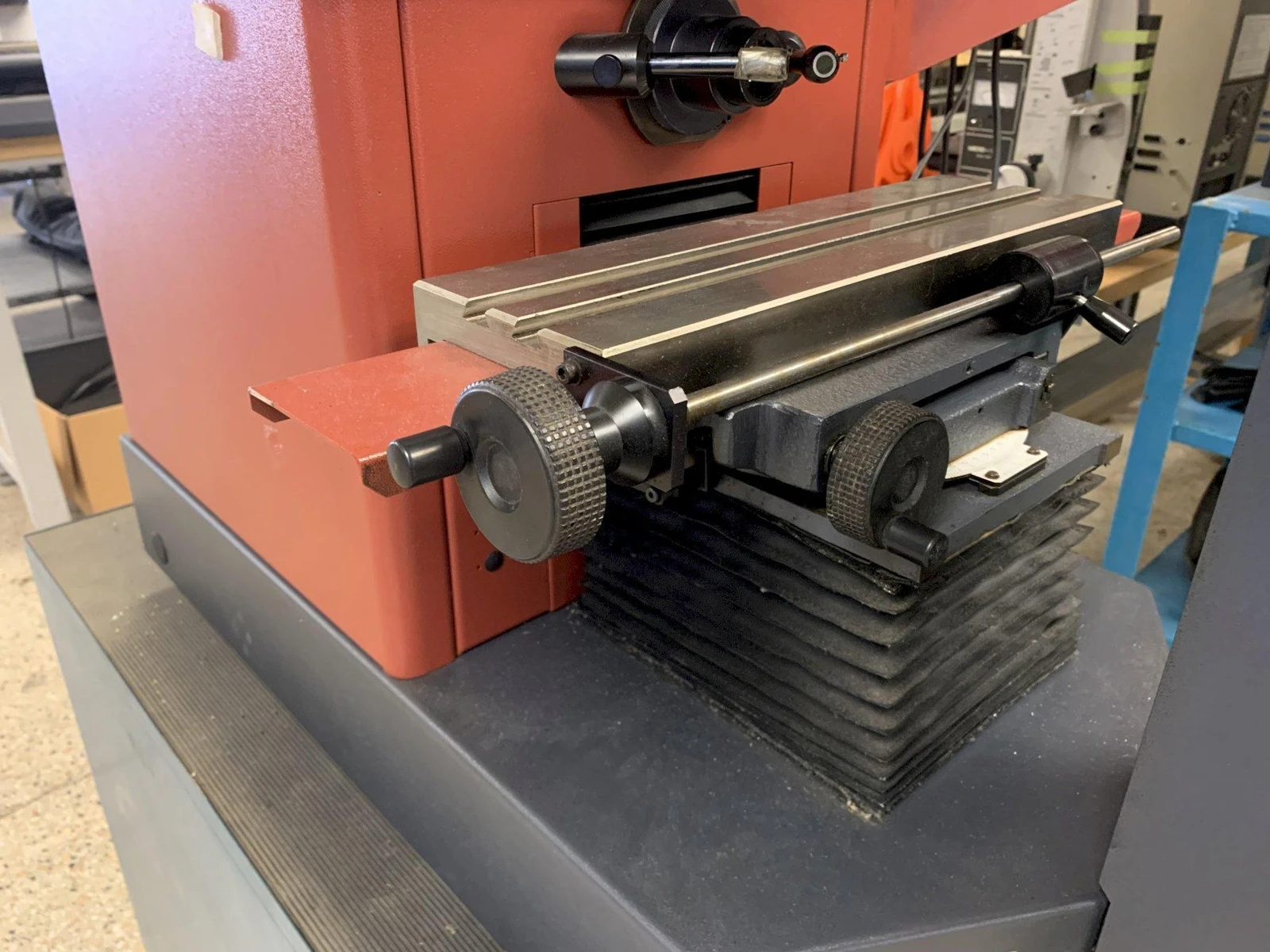

Screen Diameter Viewing Area - 16" Workstage Size - 17" x 5" Measuring Travels - 10" x 6" Focus Travel - 3" Table Load Capacity - 110 Lbs. Table Helix Adjustment - ± 15º Electrics - 1/60/115 V Dimensions with DRO - 37" LR " x 41" FB x 43" H Net Weight - 275 Lbs. Crated Shipping Weight, Approx - 540 Lbs. Equipped with: Quadra Chek 200 Digital Readout (not pictured) Heidenhain 0.00005" Resolution Scales Q-Axis for Angle Measuring Fully Retractable Duplex Fiber Optic Surface Illumination Quick Release Table for Fast Positioning (X-Axis) Fan Cooled Lamp House Switchable High / Low Profile Intensity with Green Filter (1) 20X Magnification Lens (Lens mag subject to confirmation) Plain Crosshair Chart with Chart Clips Vertically Corrected Image Necessary Manuals Availability pending for machine to be cleaned and serviced. Approx 4 to 6 weeks. |
