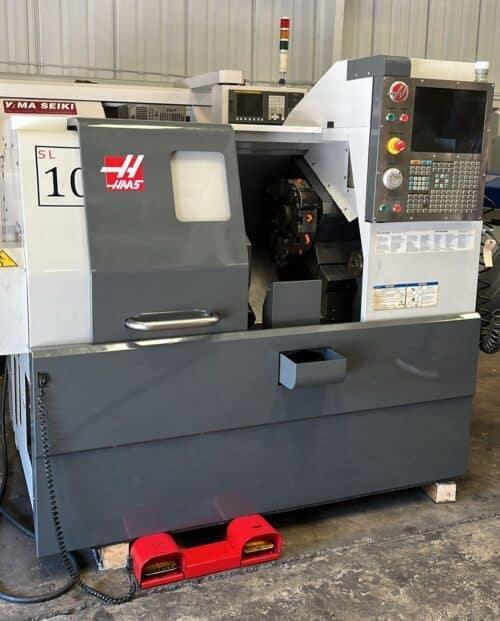

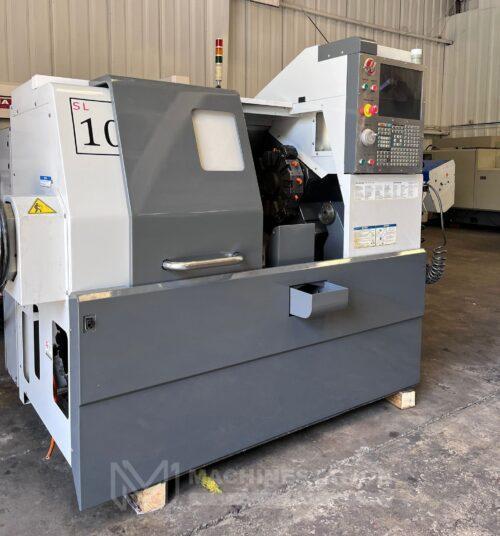

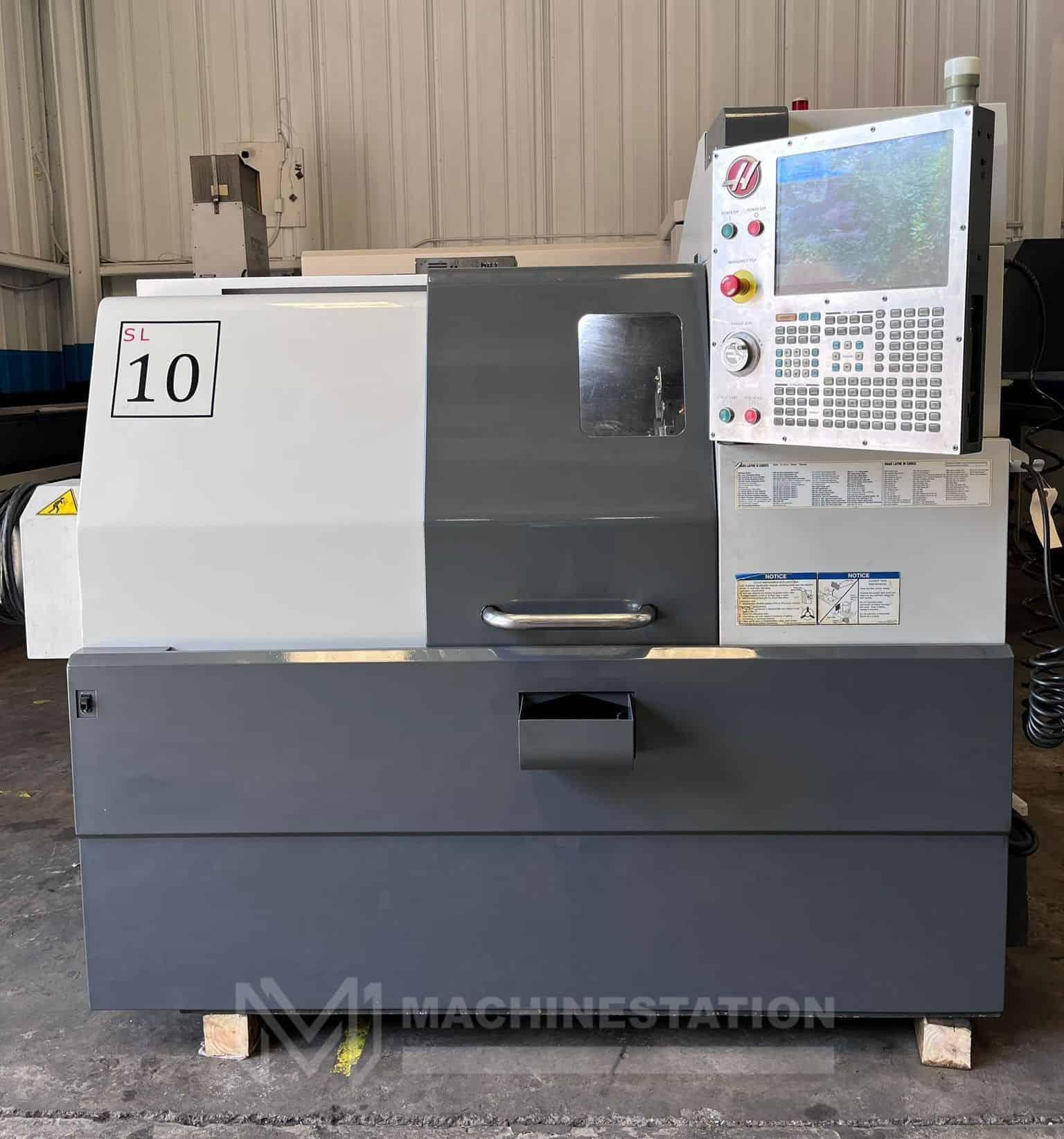

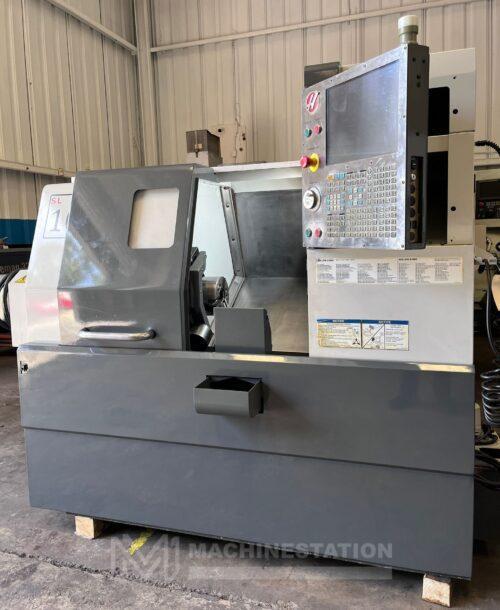

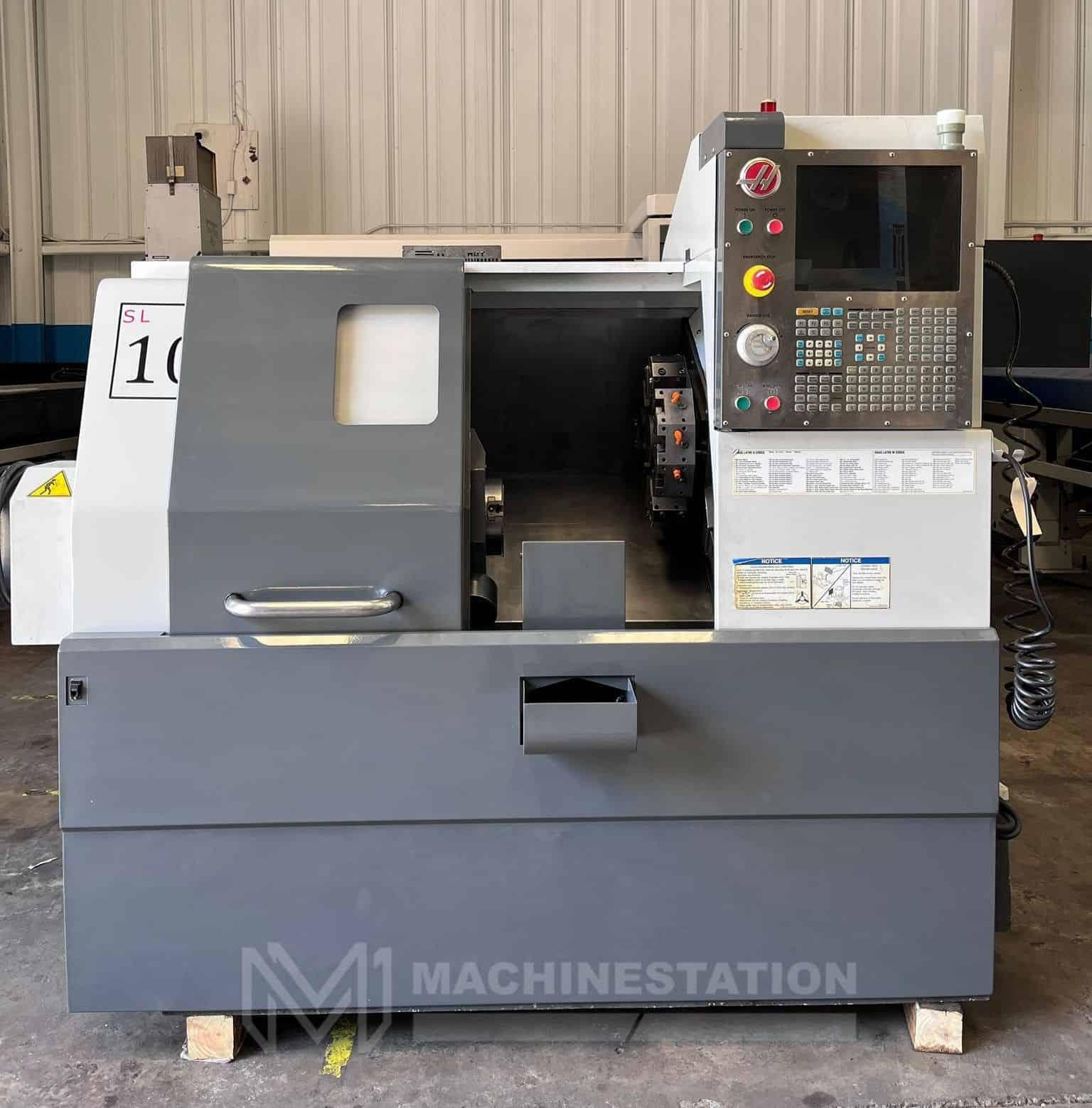

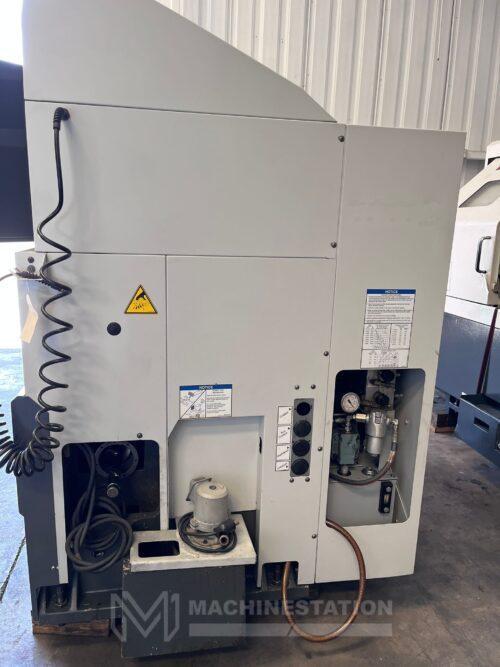

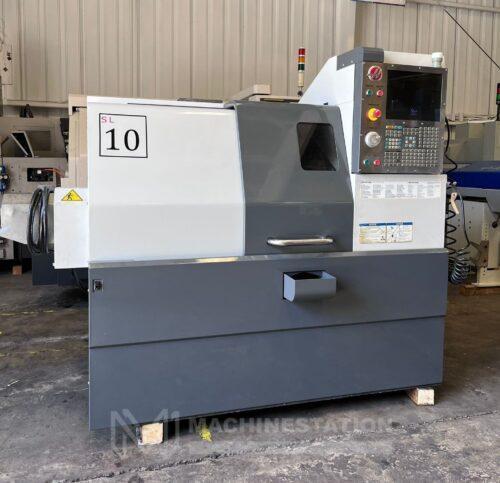

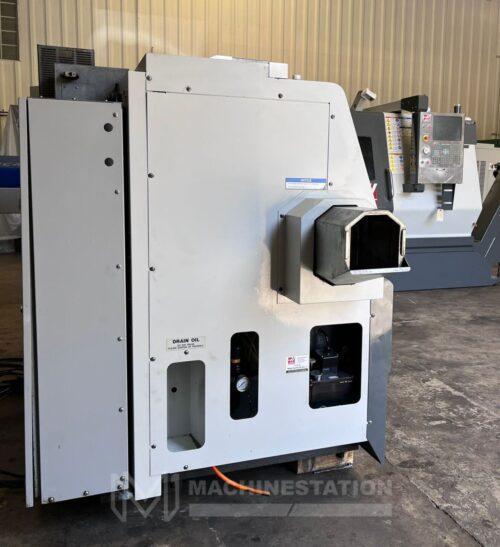

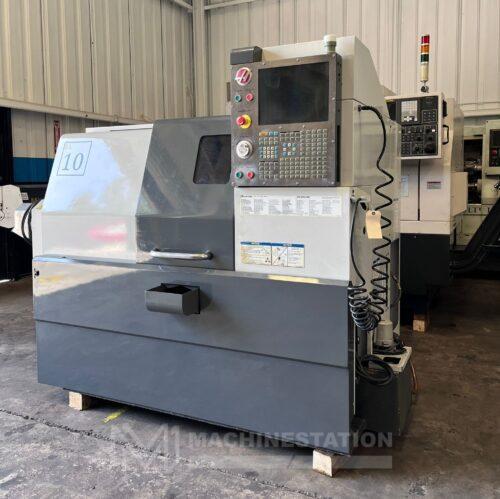

Haas SL-10 CNC Turning Center – Lathe

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
SL-10
Stock #
112773
Year
2010
Condition
Not specified
Location
Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Haas
Model: SL-10
Year: 2010
Condition: Used – Good



Equipped With:

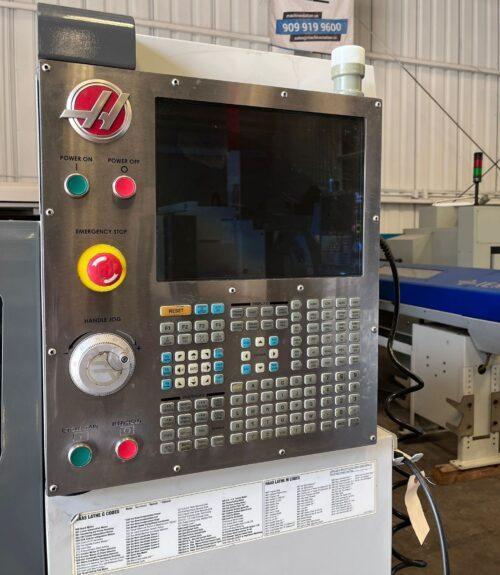

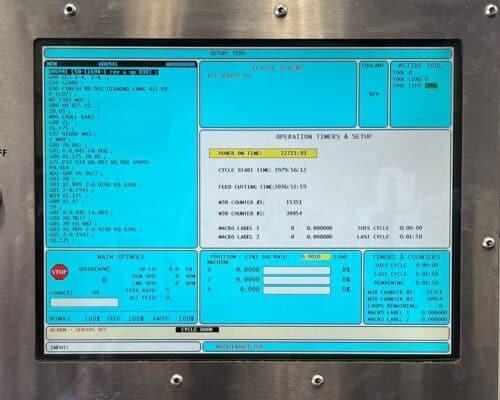

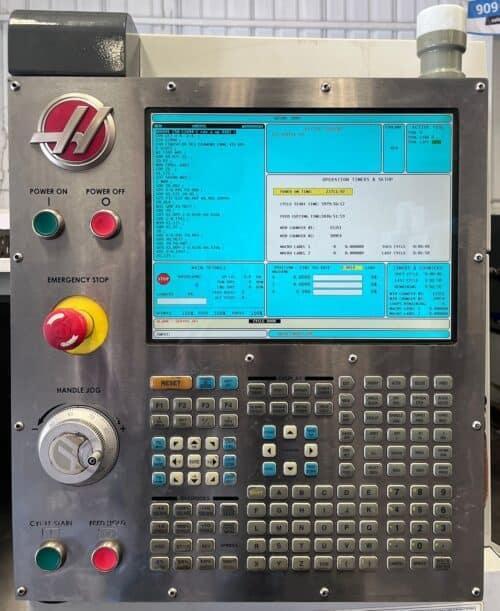

Haas CNC Control

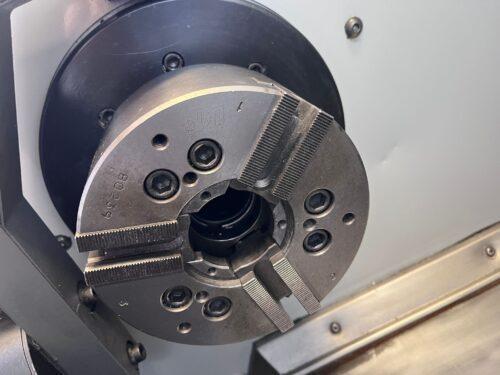

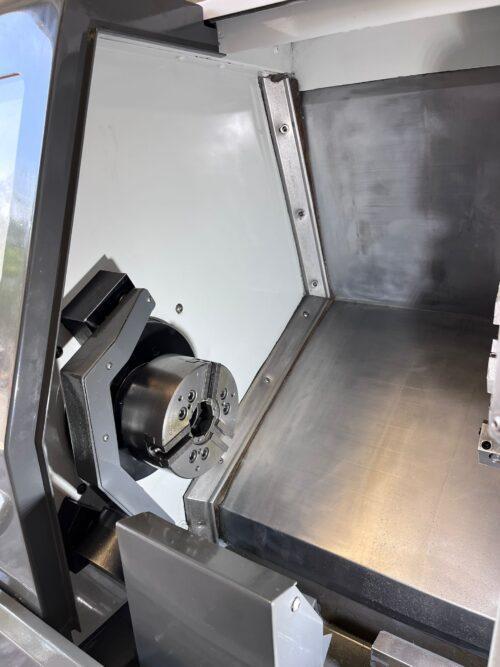

6.5″ 3-Jaw Hydraulic Chuck
Bar Feeder Interface

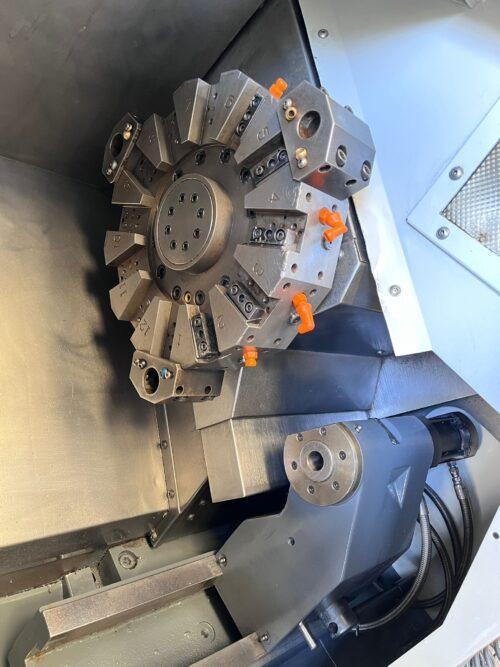

12 Station Automatic Turret
Tool Presetter
Part Catcher

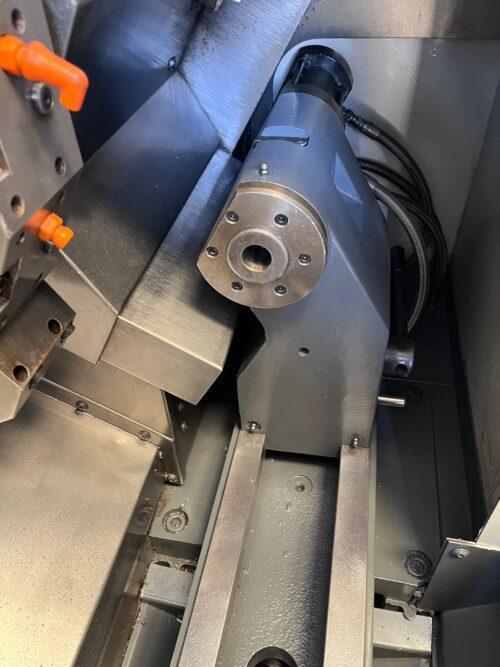

Tailstock
Coolant System
Foot Switch

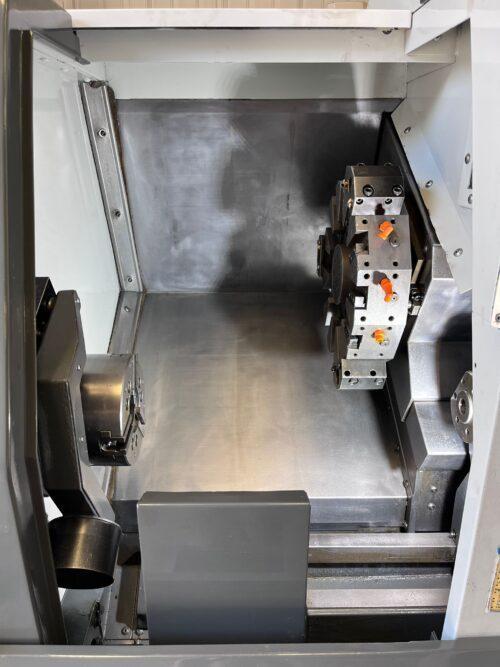

(3) Boring Tool Holders Mounted on Turret (As shown in the images)



Capacity:
Maximum Swing over Bed : 16.25″
Maximum Turning Diameter :12.0
Maximum Turning Length : 16.0″
Maximum Bar Capacity : 1.75″



Travels:
X-Axis Travel : 7.88″
Z-Axis Travel : 16.0″



Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM



Spindle:
Spindle Nose : A2-5
Spindle Bore : 2.31″
Spindle Speed : 6,000 RPM
Spindle Motor : 15 HP



Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Turret Type: Bolt On Turret



Tailstock:
Tailstock Taper: MT-3
Tailstock Quill Travel: 3.8″



General:
Air Requirement: 4 scfm @ 100 psi

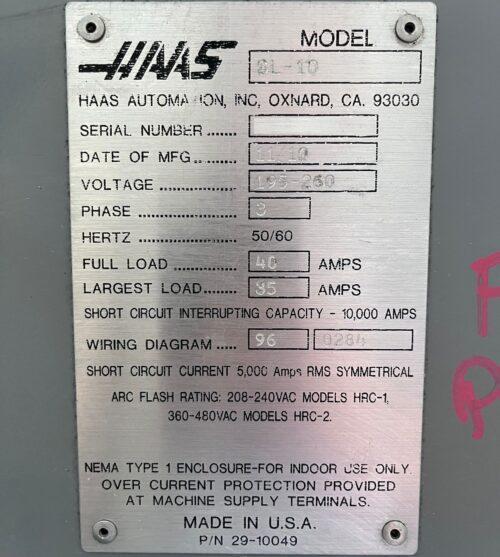

Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 126″ x 70″ x 81″ High Approx.
Machine Weight : 7,900 lbs. Approx.
