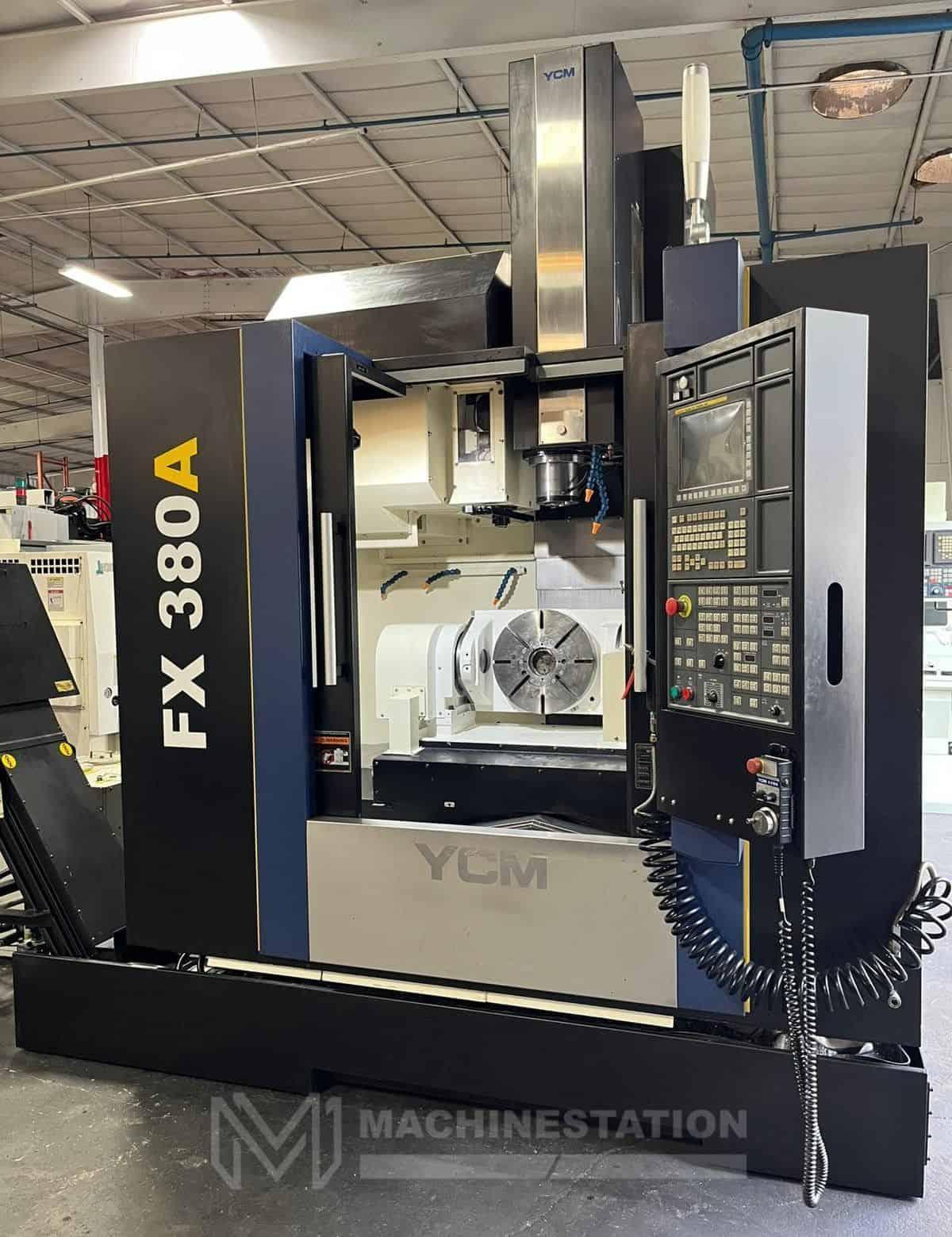

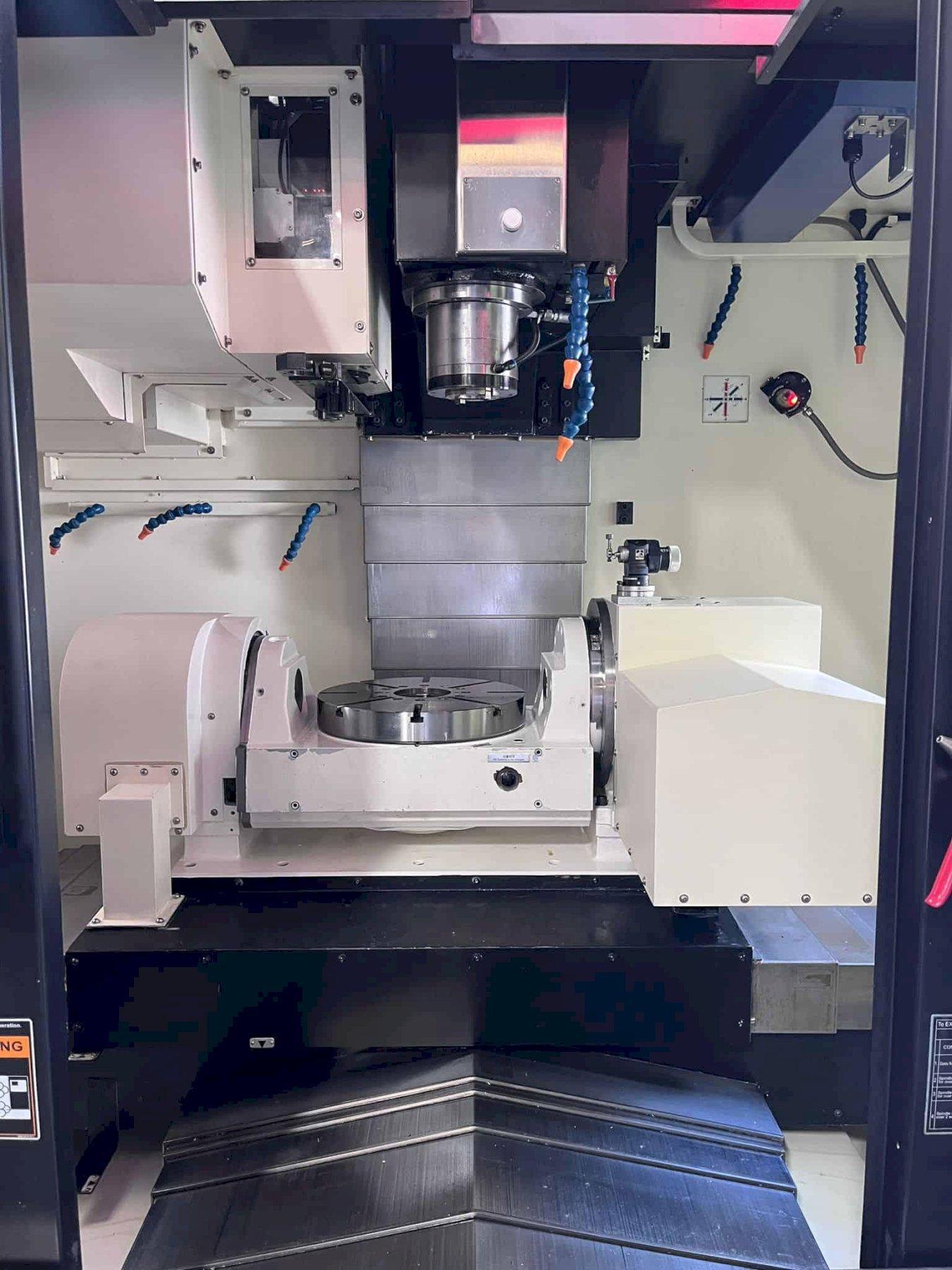

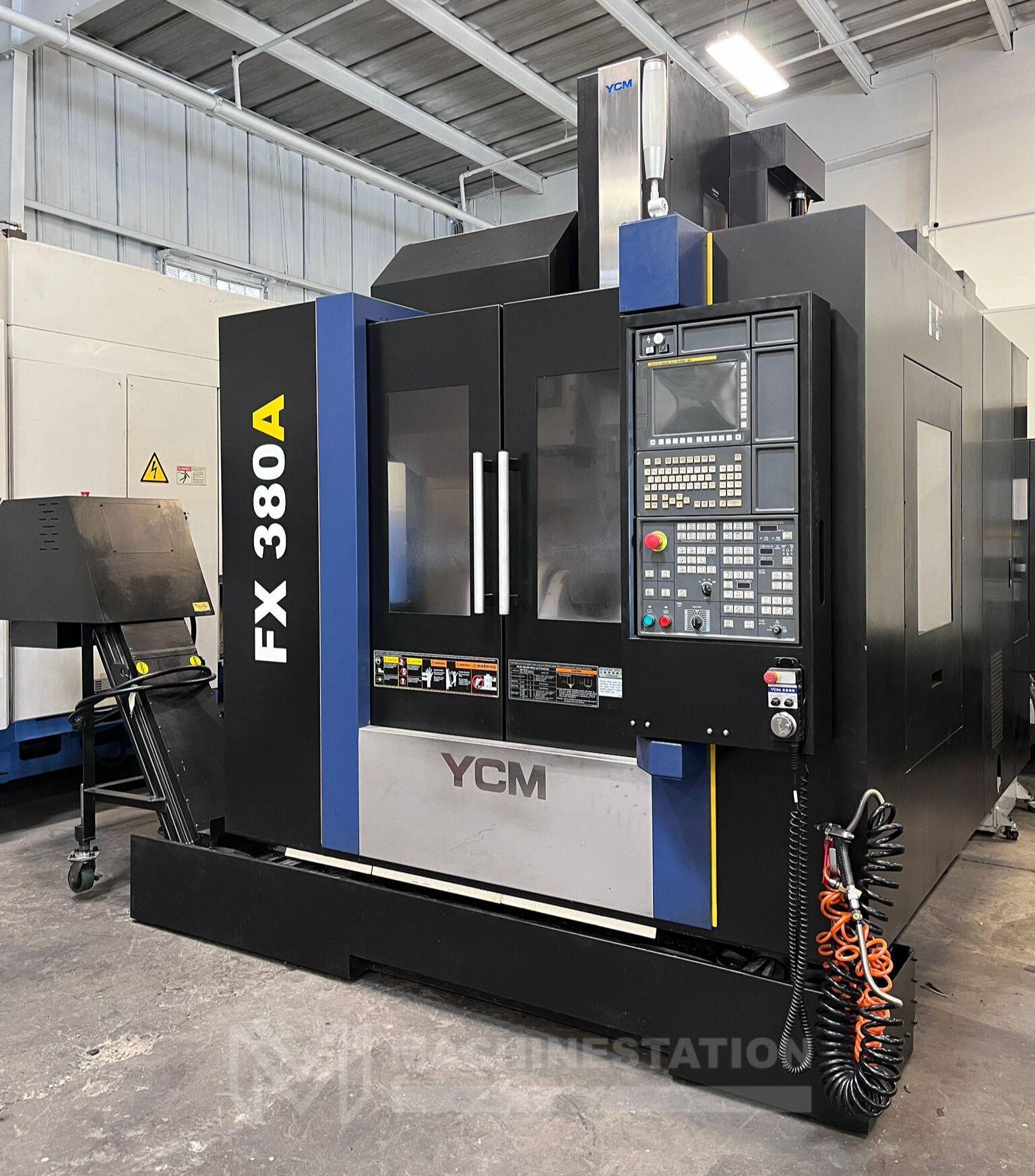

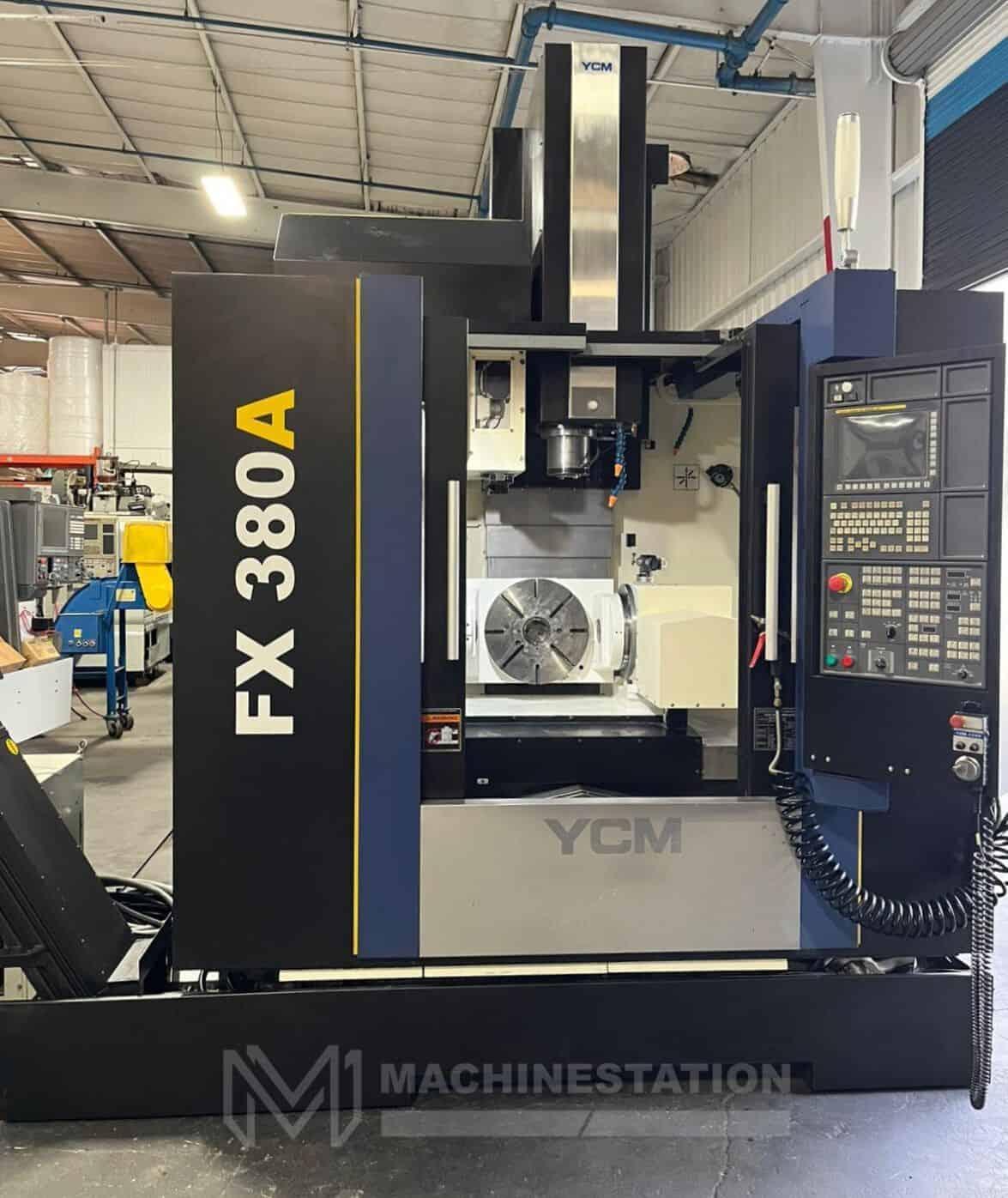

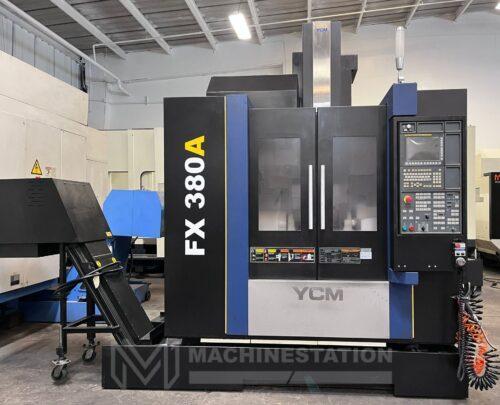

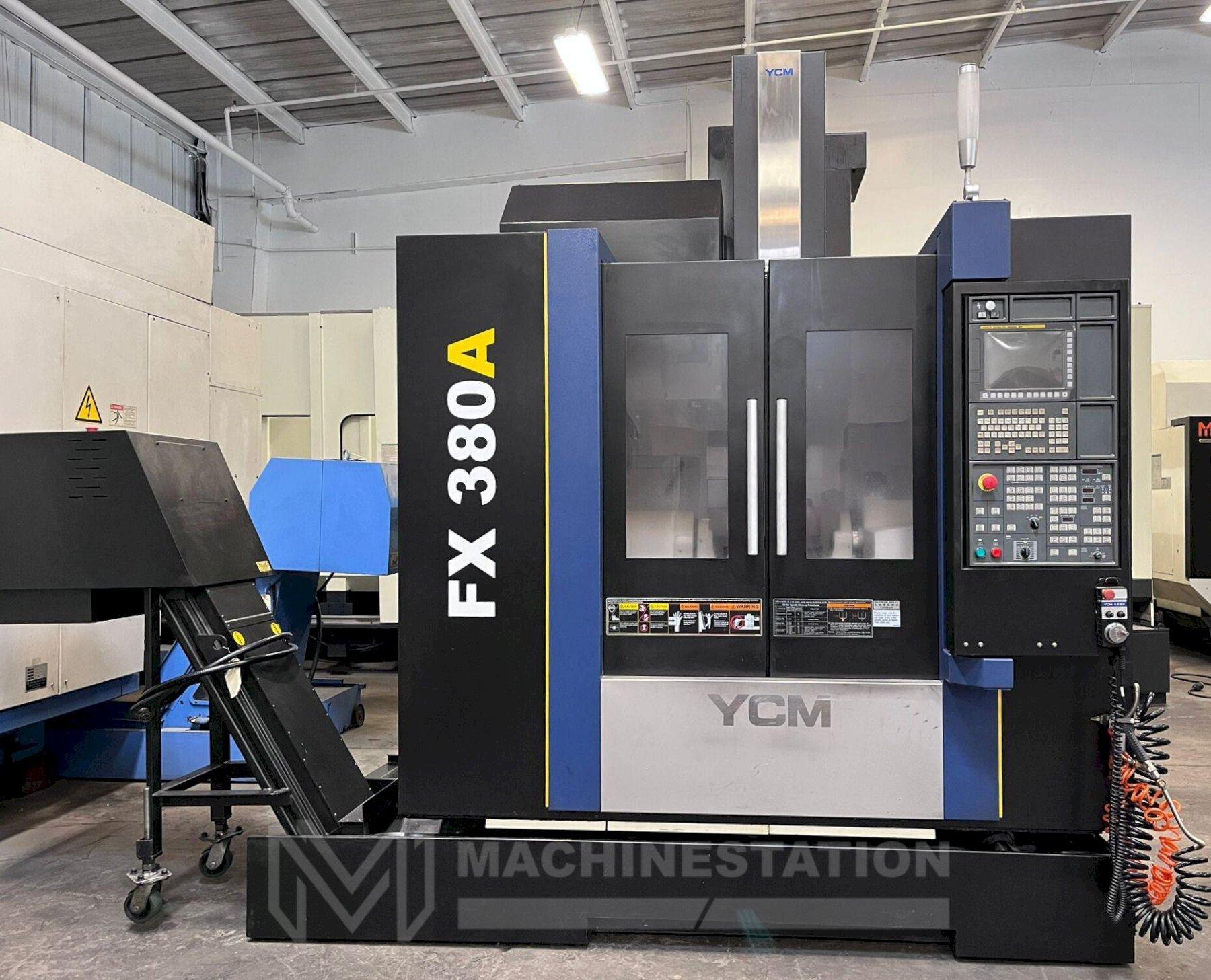

YCM FX-380A 5 Axis CNC Vertical Machining Center – Mill

Brand
YCM
Category
Machining Centers
Type
Machining Centers, Horizontal, (5-Axis or More)
Model
Make:YCMModel:FX-380A
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:YCM
Model:FX-380A
Year:2017
Condition:Used – Good

Features:

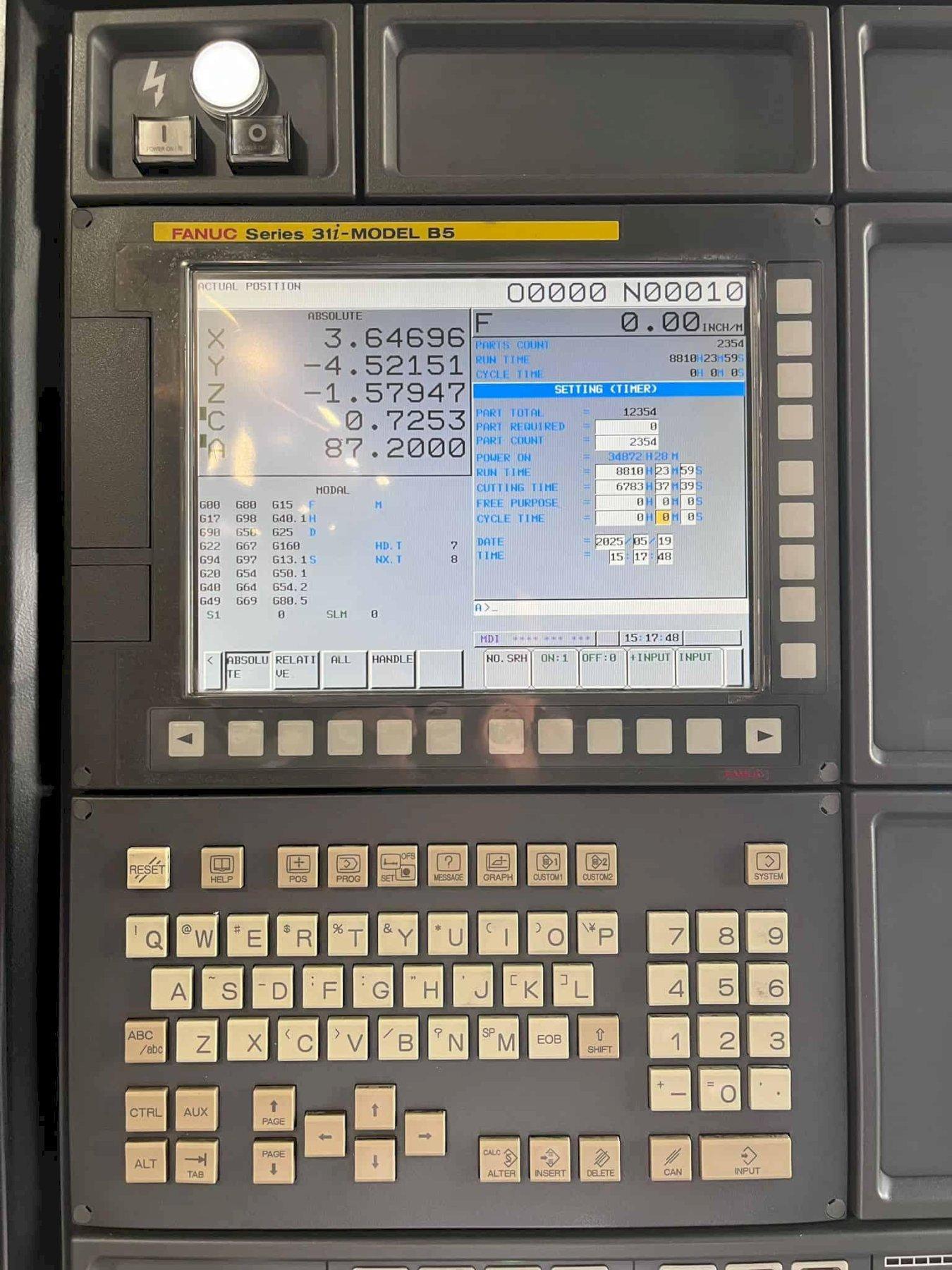

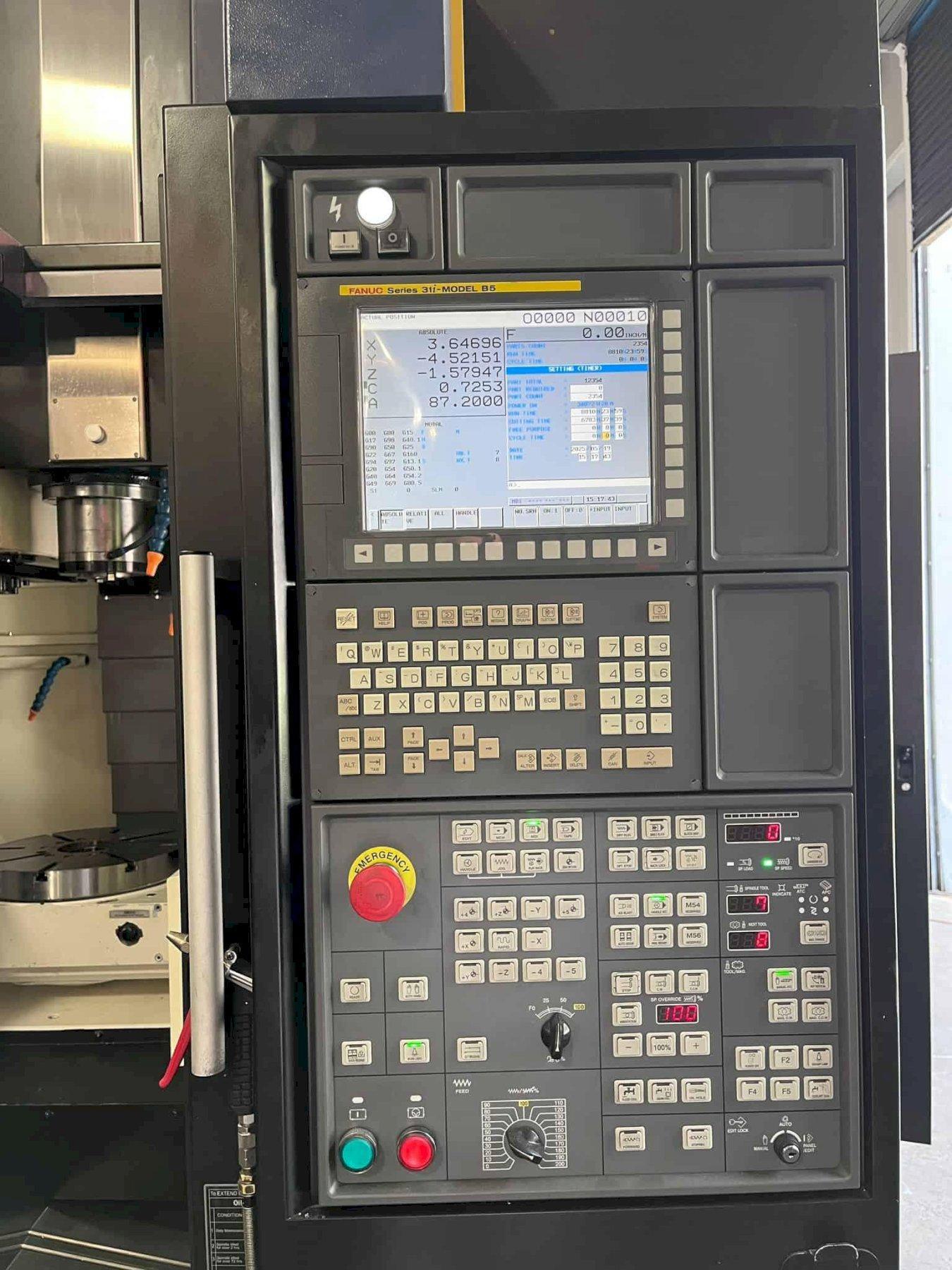

  • Fanuc 31i-B5 Series CNC Control
  • Simultaneous 5-Axis Cutting

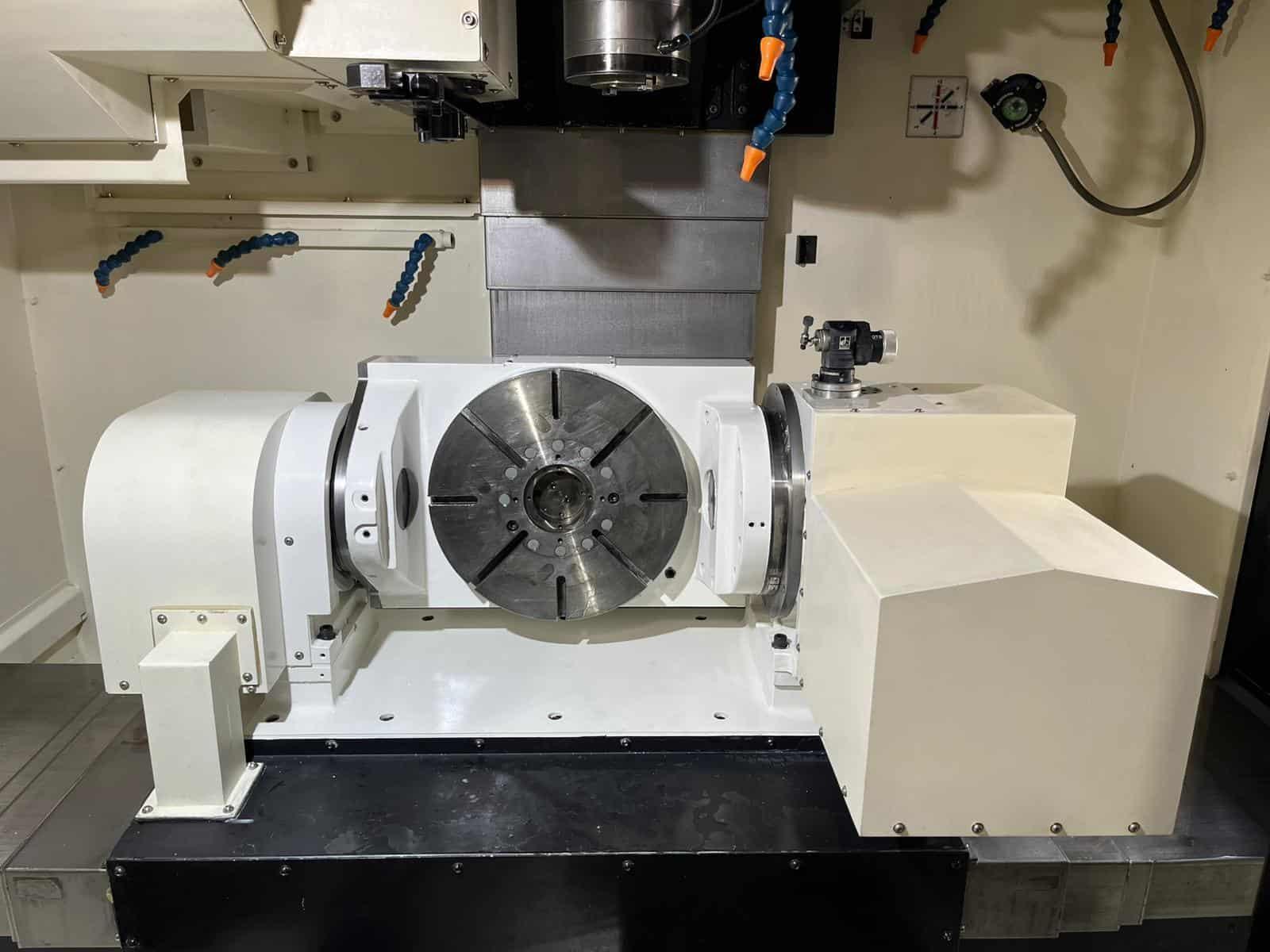

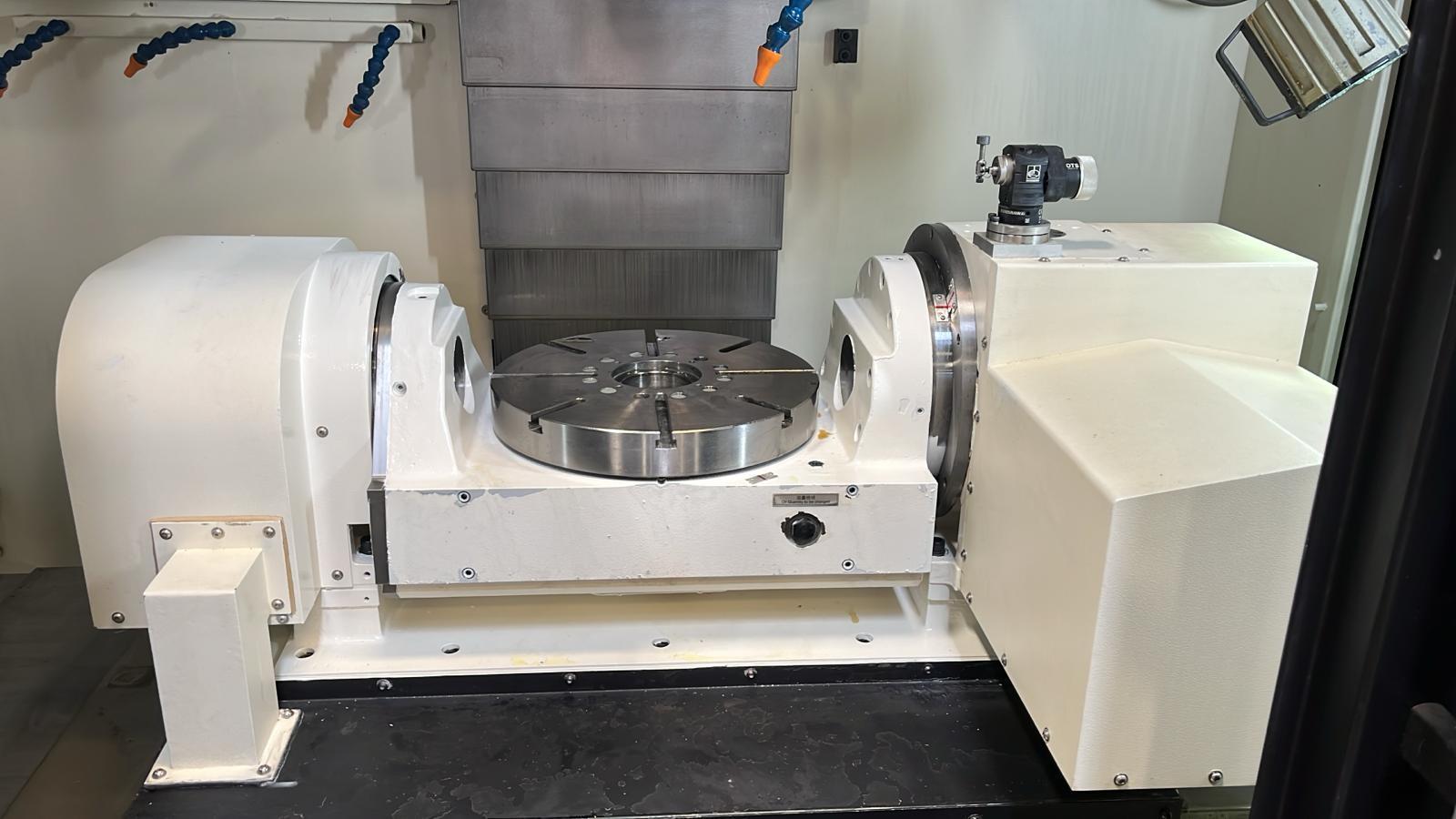

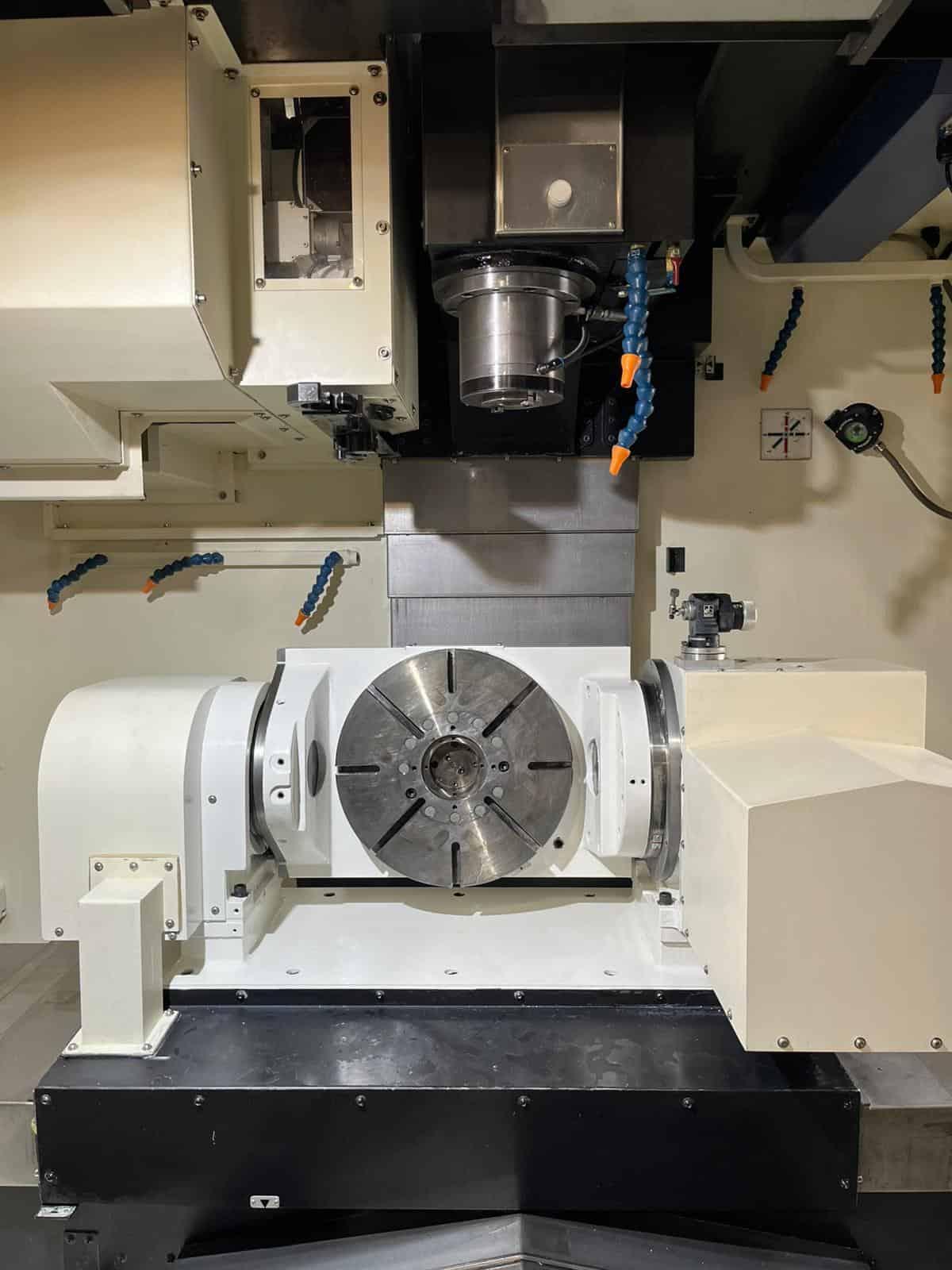

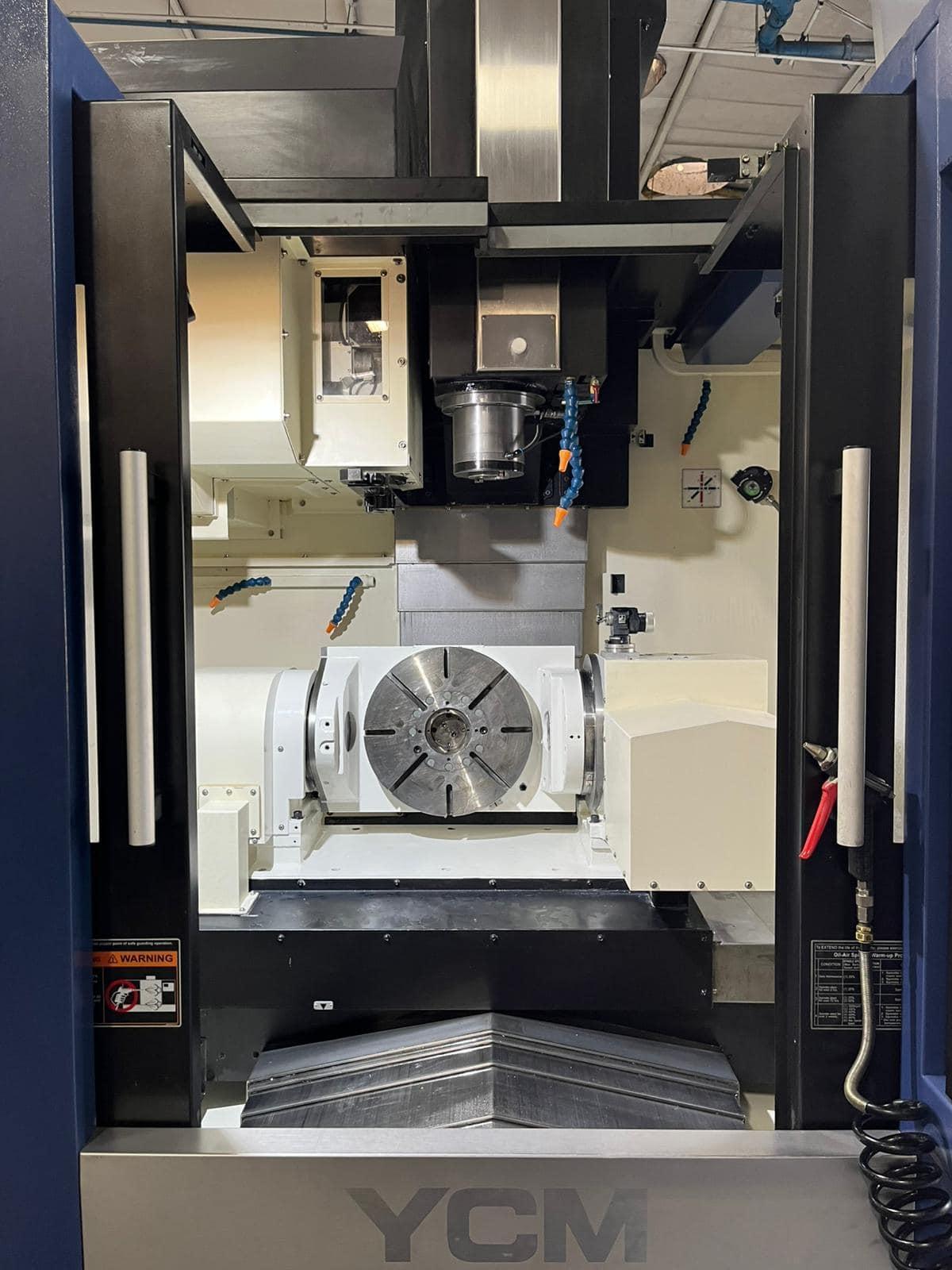

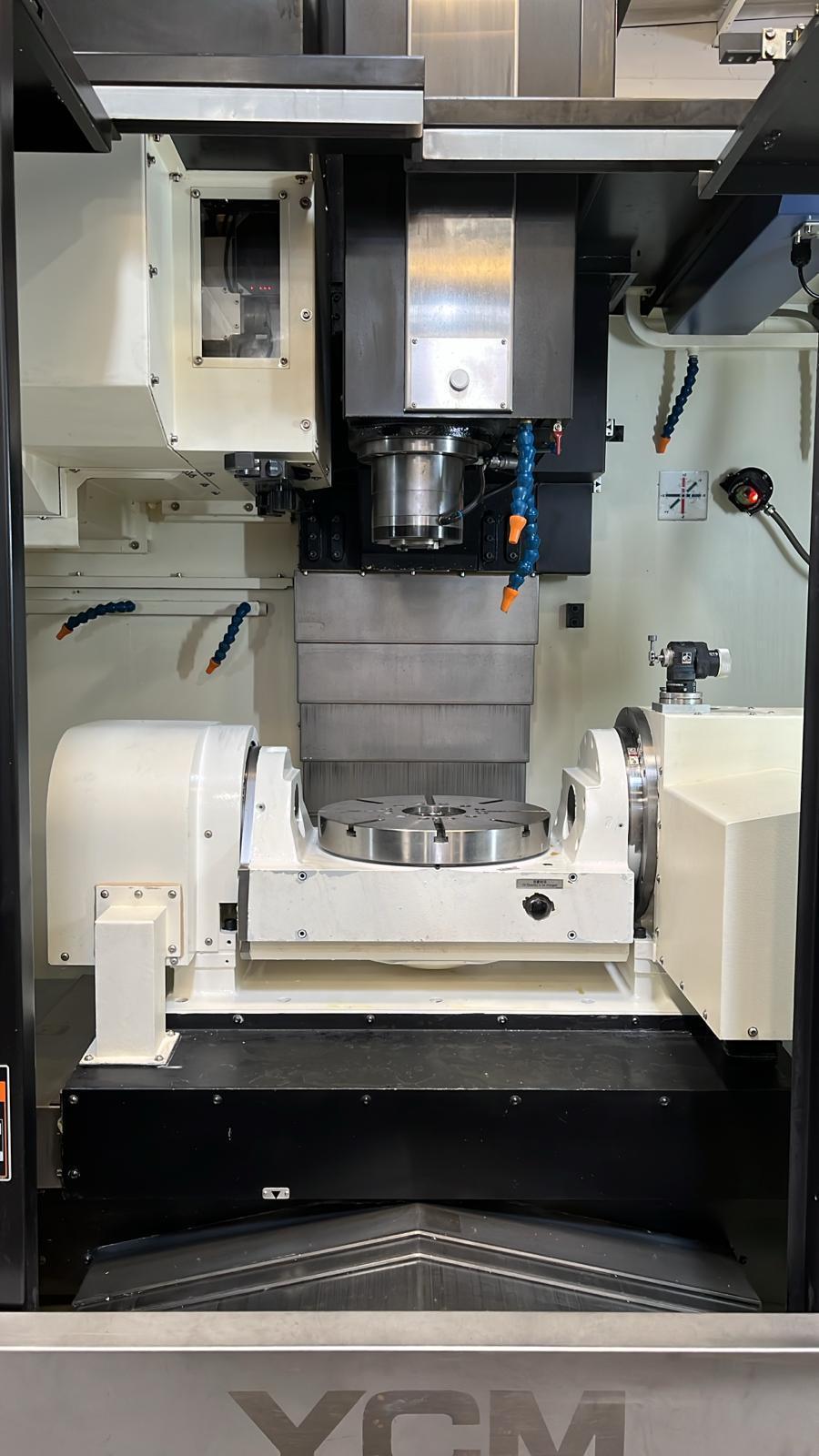

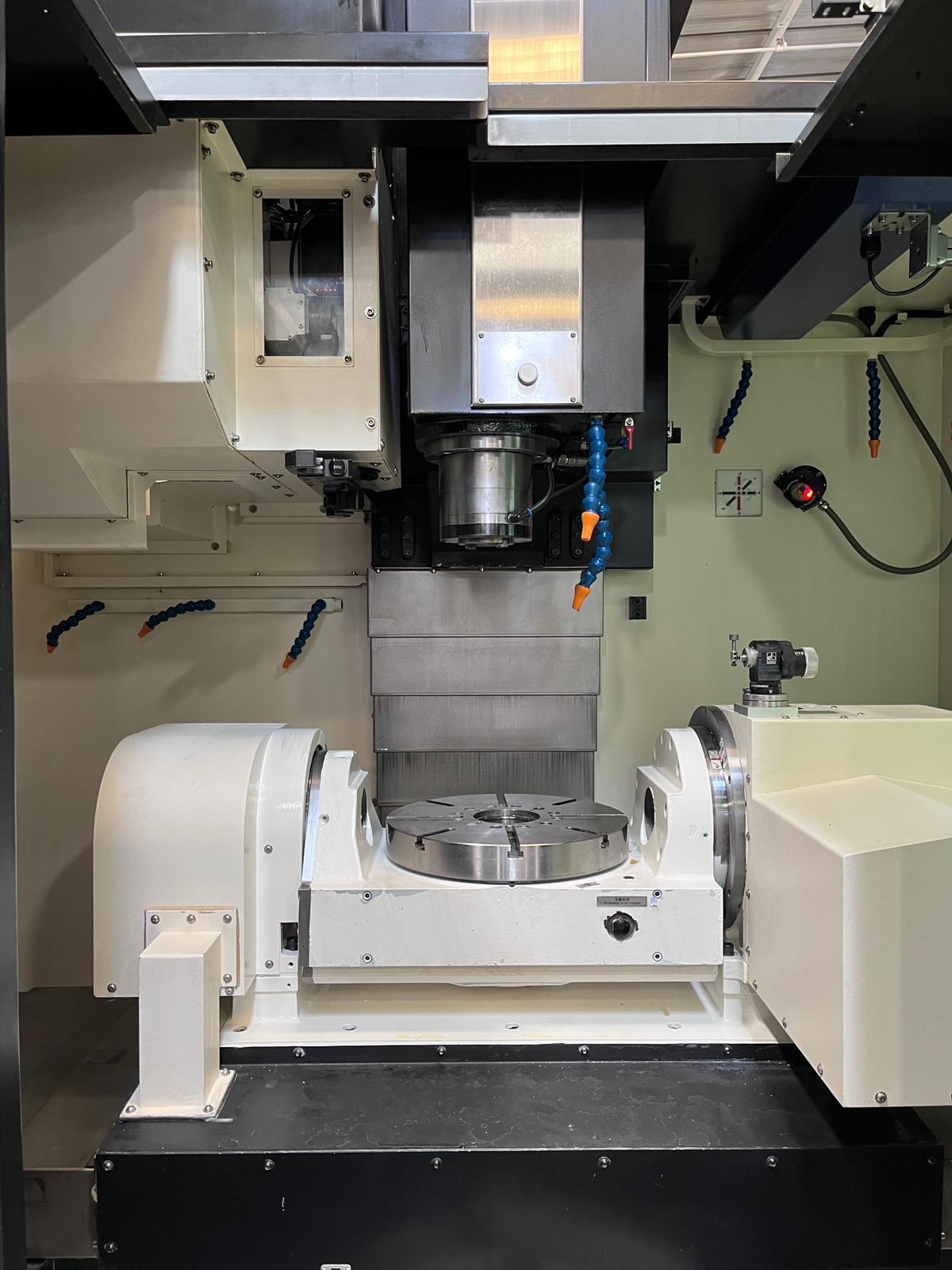

  • NC Programmable Swiveling Trunnion Table 14.96” Diameter

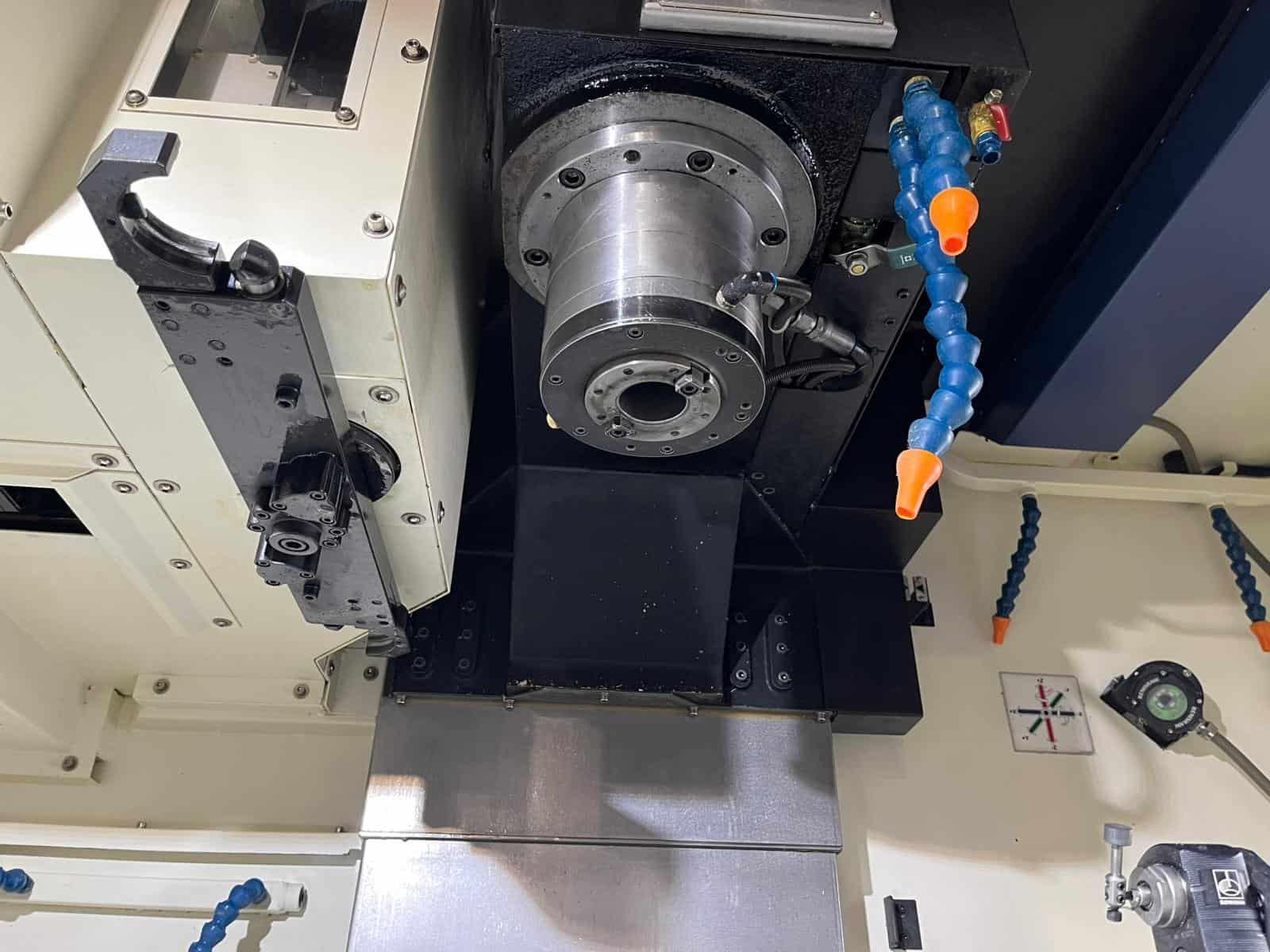

  • 12,000 RPM High Precision Spindle

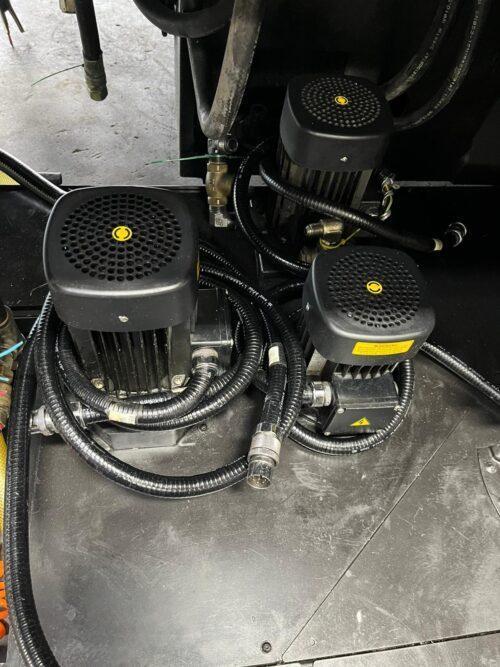

  • Through Spindle Coolant
  • 30 Station Automatic Tool Changer

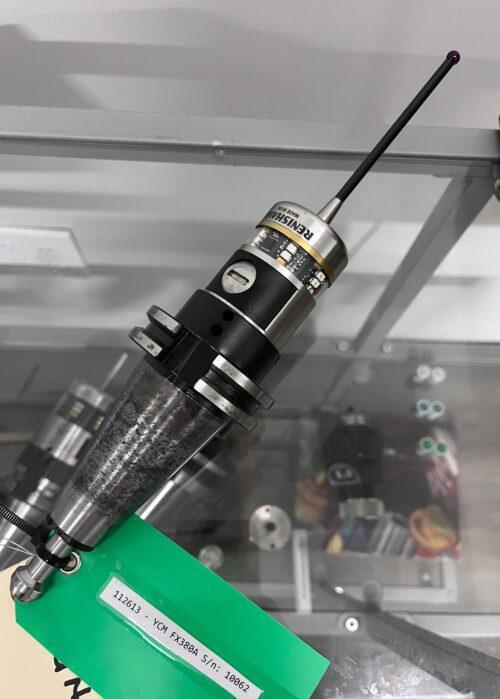

  • Renishaw Probing System (Probe Included)

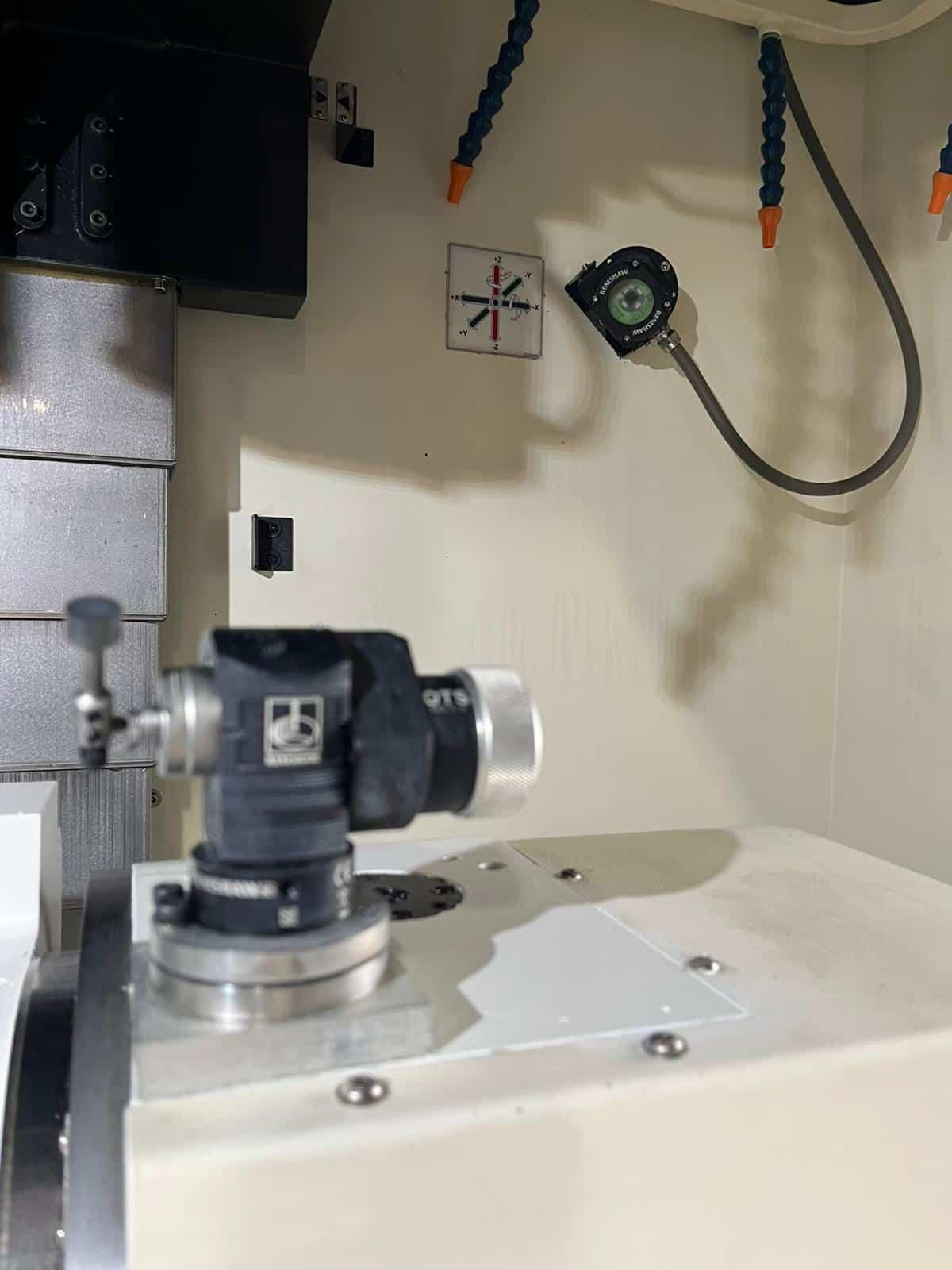

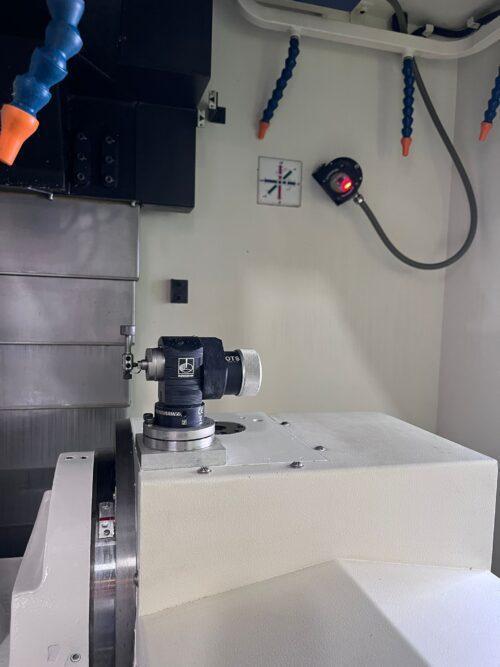

  • Tool Presetter
  • Hand Wheel MPG Control

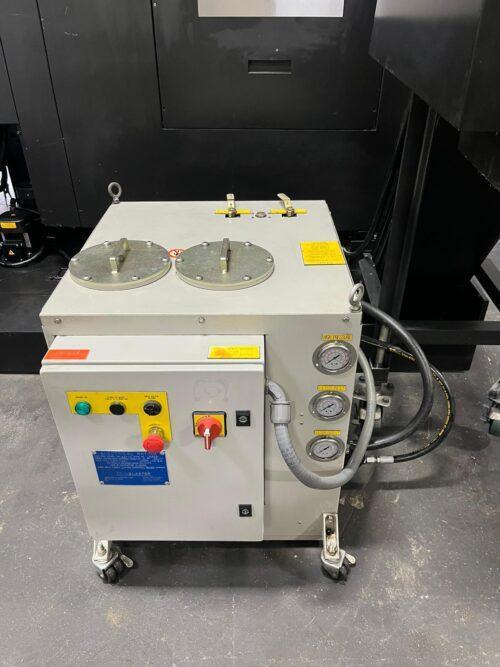

  • Spindle Chiller
  • USB, PCMCIA Ports
  • Spindle Orientation
  • Rigid Tapping
  • Absolute Incremental Programming
  • Fast Rapid Traverse Rate
  • Chip Conveyor
  • Work light

Travels:

  • X Axis: 27.56″
  • Y Axis: 20.47″
  • Z Axis: 18.90″
  • A Axis: 150° (+30°/– 120°) ( Table Tilt )
  • C Axis: 360° ( Table Rotate )
  • Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
  • Rapid Traverse Rates Z Axis: 944 Inch Per Minute
  • Cutting Feed Rates: 393 Inch Per Minute

Table:

  • Table Diameter: 14.96″
  • T-Slots: 0.47″ Radial
  • Max Weight on Table: 441 lbs

Spindle:

  • Taper Size: 40
  • Speed Range: 12,000 RPM
  • Spindle Power: 30 HP

Automatic Tool Changer:

  • Capacity: 30 Tools
  • Taper: 40
  • Max Tool Size: 3″ X 11.2″
  • Max Tool Weight: 13.2 lbs.
  • Tool Change Time: 5.5 Second

General:

  • Air Required: 80 psi 4 scfm
  • Power: 200v – 220v / 50 Hz/60Hz / 3-Phase / 40 kva
  • Overall Dimensions: 103″ X 98″ X 120″ High Approx.
  • Weight: 13,690 lbs Approx.
