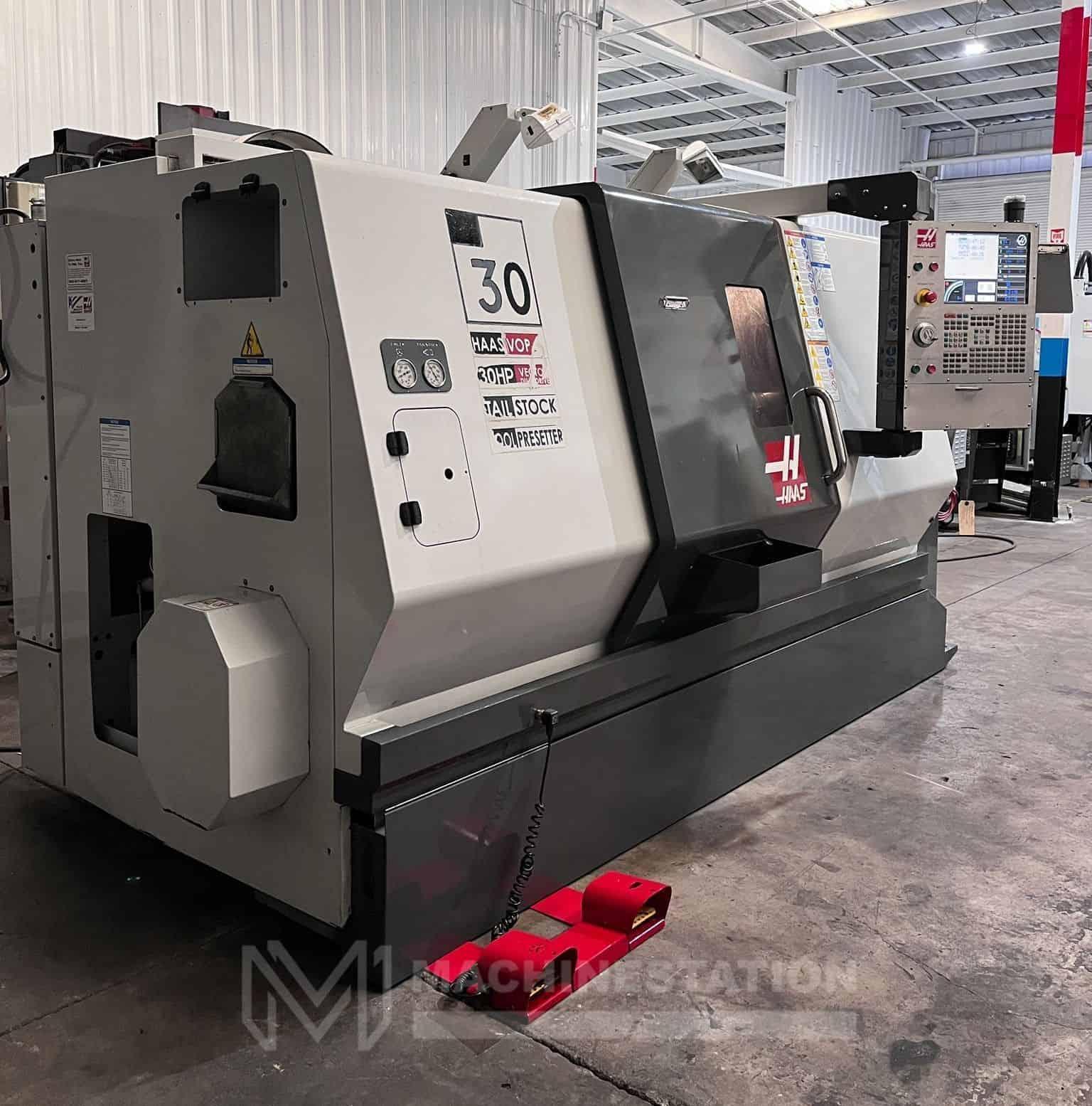

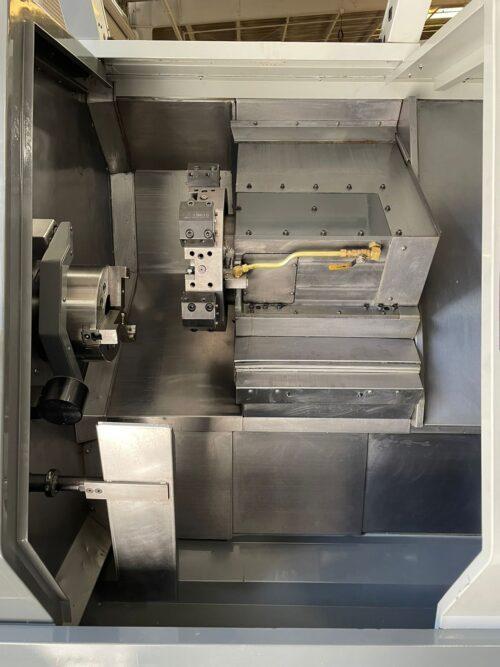

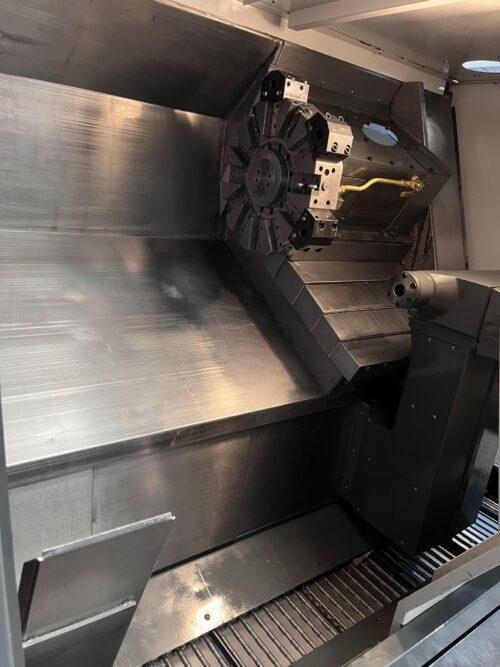

Haas SL-30T CNC Turning Center – 10″ Chuck Tailstock Lathe

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Make:HaasModel:SL-30T
Stock #
Not specified
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:Haas
Model:SL-30T
Year:2007
Condition:Used – Good



Equipped With:

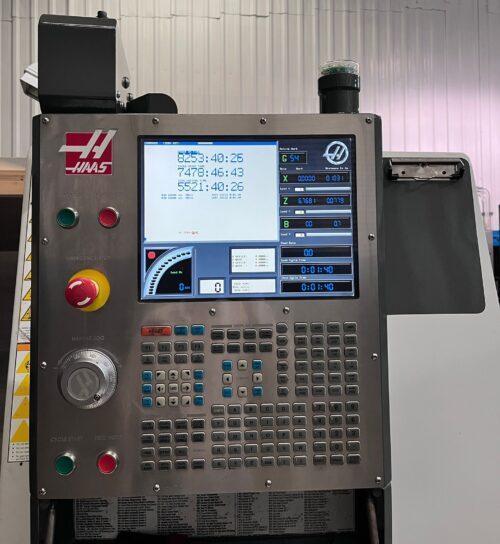

Haas CNC Control
Haas VOP Package

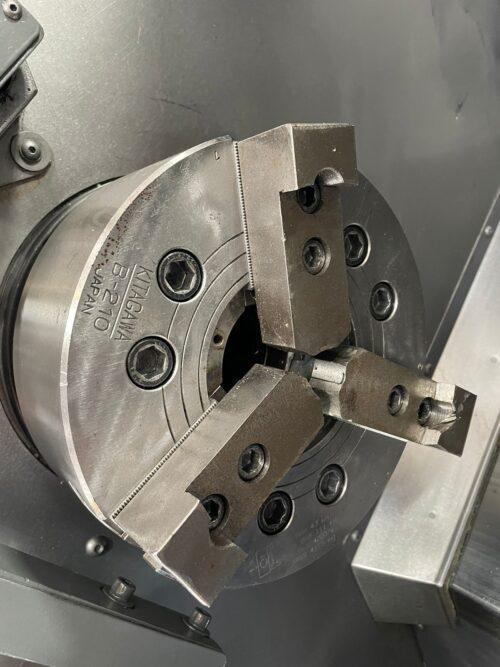

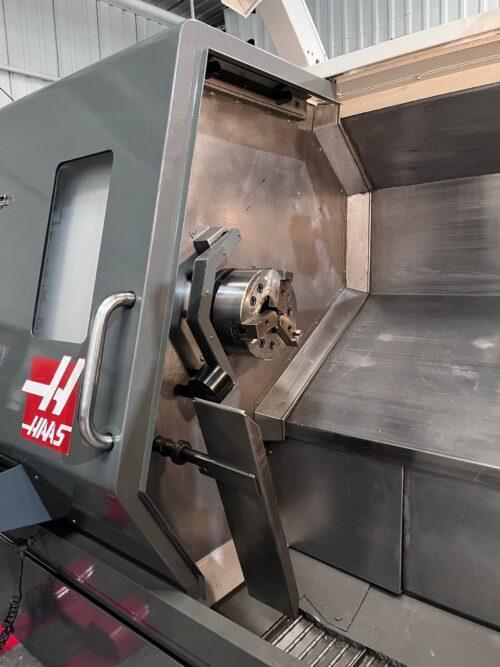

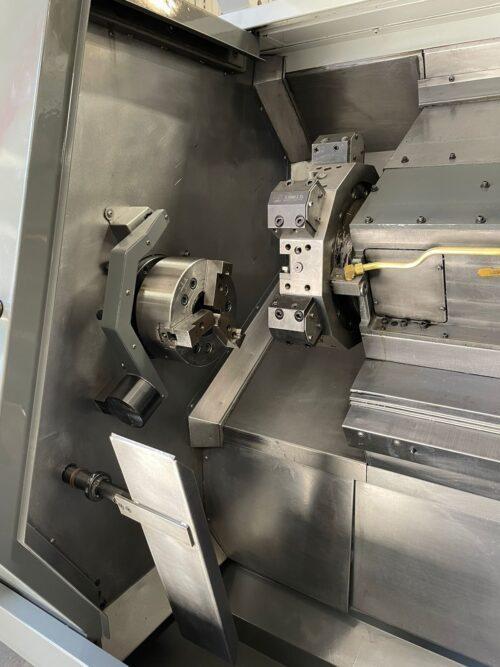

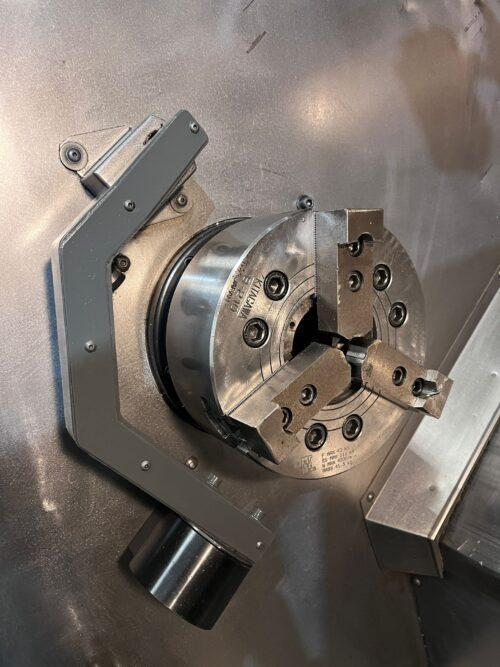

10″ 3-Jaw Kitagawa B-210  Chuck
30 HP Vector Dual Drive

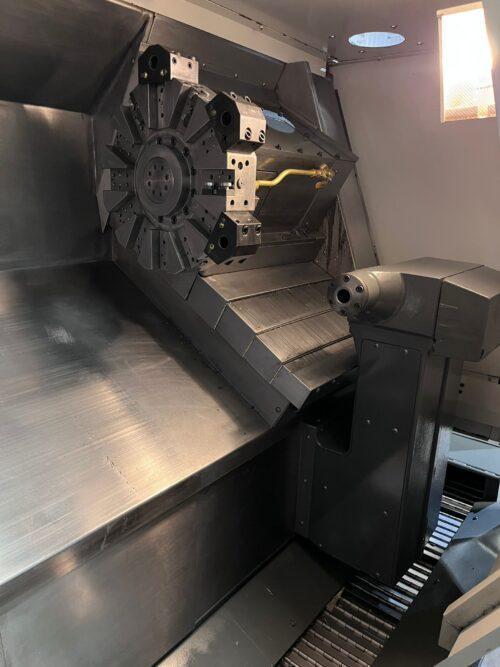

12 Station Bolt-on-Turret
Tool Presetter
Part Catcher
A2-6 Spindle
3.5″ Big Bore Spindle
USB Port

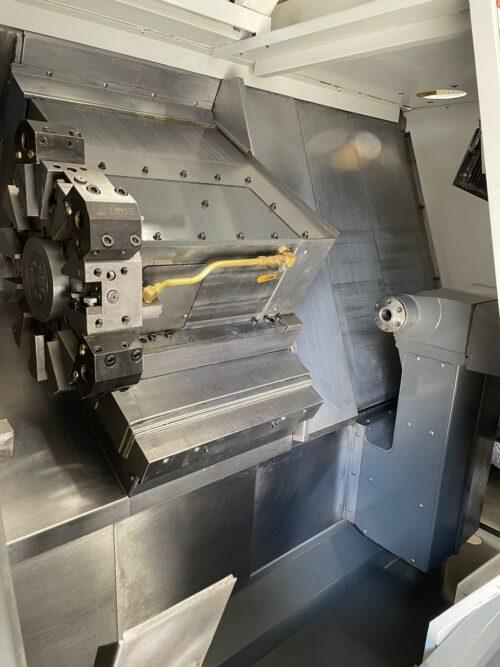

Tailstock
Coolant System

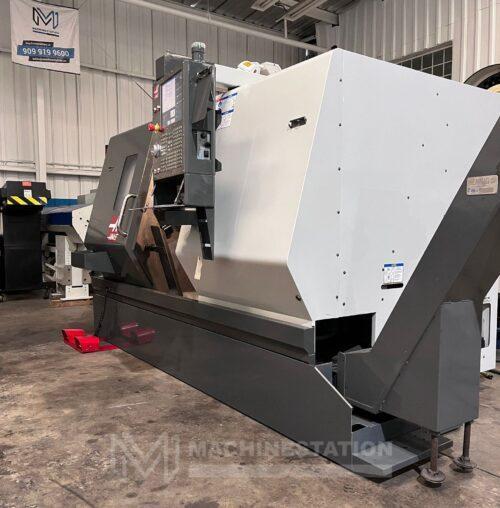

Chip Conveyor
Automatic Lubrication system
Foot Switches
Work Lights

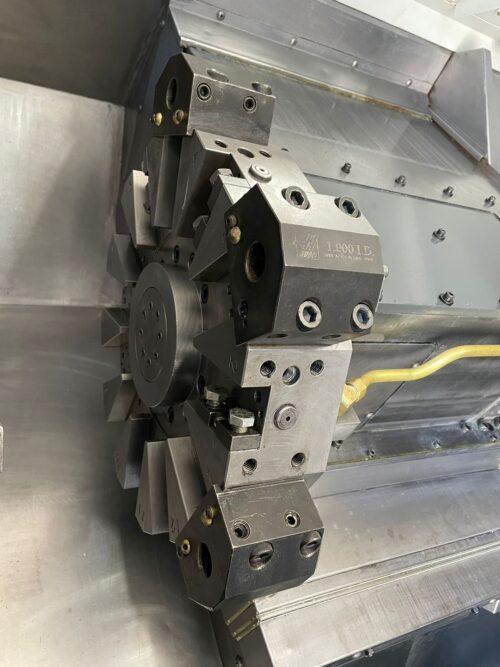

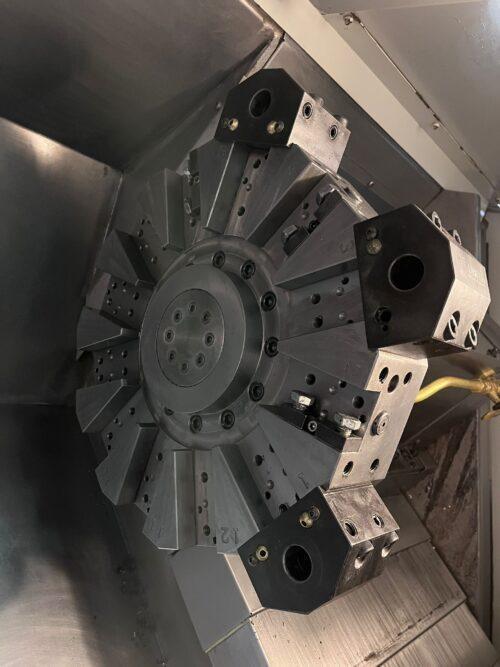

(3) Boring Tool Holder Mounted on Turret (As shown in the Images)



Capacity:
Max Turning Diameter : 15.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 34.0″
Max Bar Capacity : 3.0″
Distance Between Centers : 32.5″



Travels:
X Axis Travel : 9.4″
Z Axis Travel : 32.5″



Feedrate:
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM



Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 3400 RPM
Spindle Motor: 30 HP



Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Type: Bolt-on-Turret



Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″



General:
Air Required: 100 psi 4 scfm
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 170″ x 90″ x 98″ High Approx.
Machine Weight: 11,000 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - Haas SL-30T CNC Turning Center – 10″ Chuck Tailstock Lathe

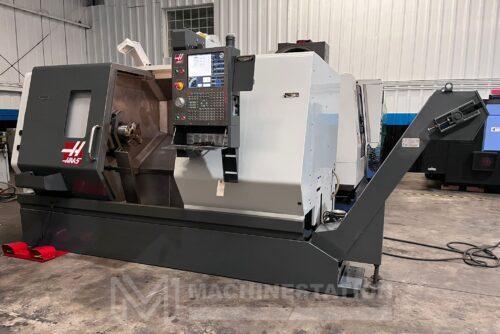

Haas ST-40 CNC Turning Center
HAAS

Turning Centers

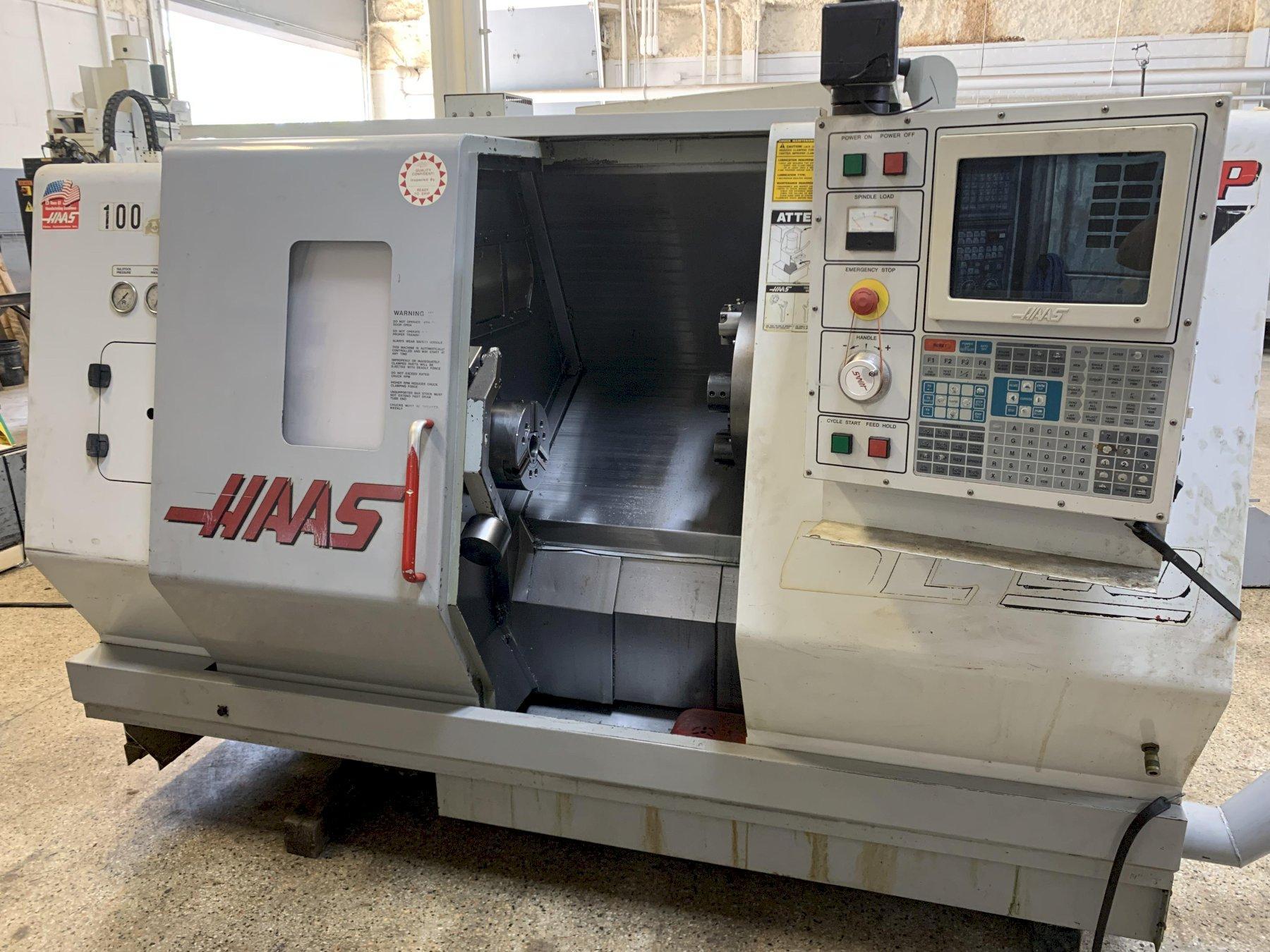

HAAS Model SL-20T CNC Turning Center / Lathe, S/N 62259, New 1999.
HAAS

Turning Centers

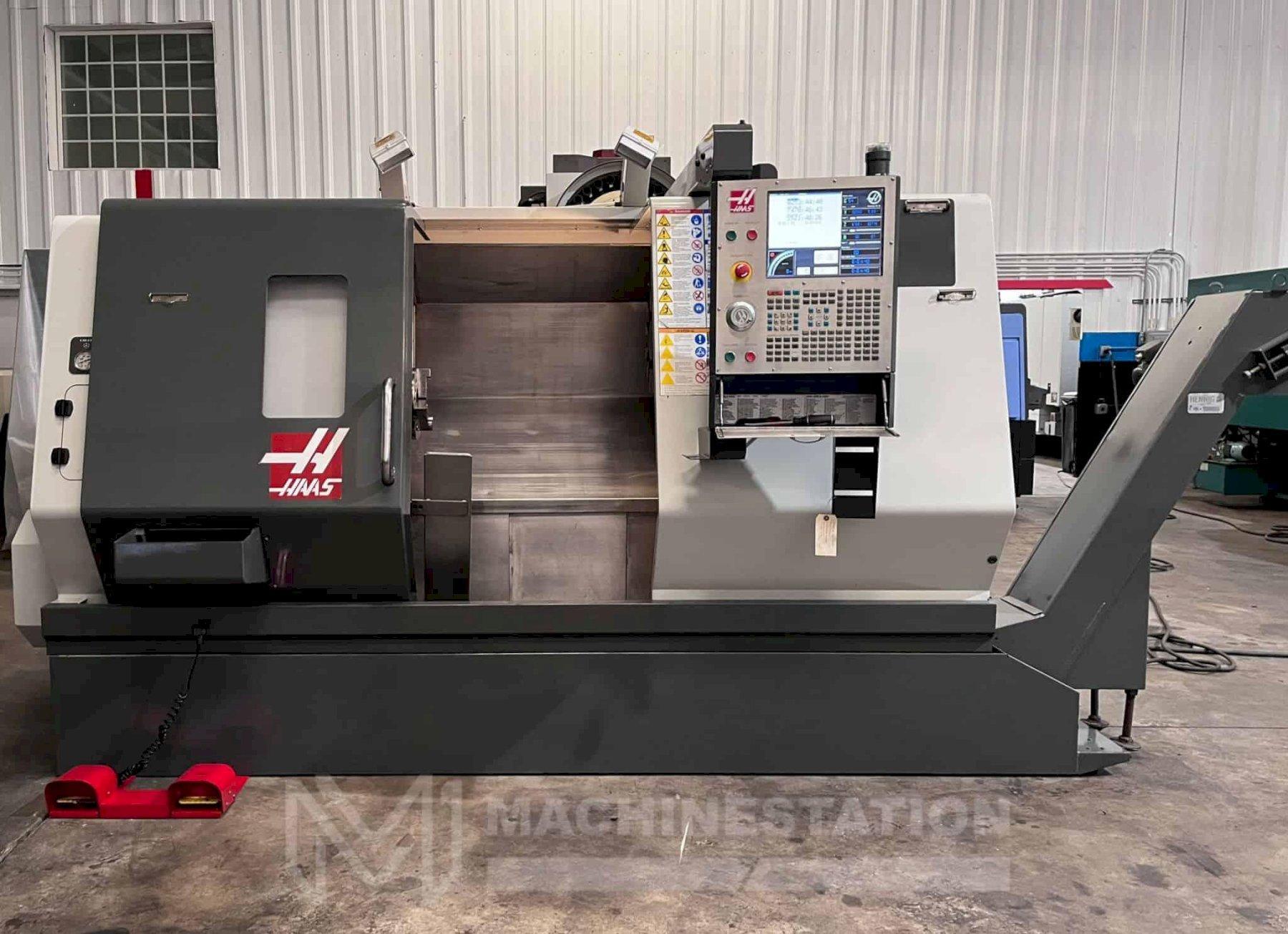

Haas ST-20 CNC Turning Center – 2015
