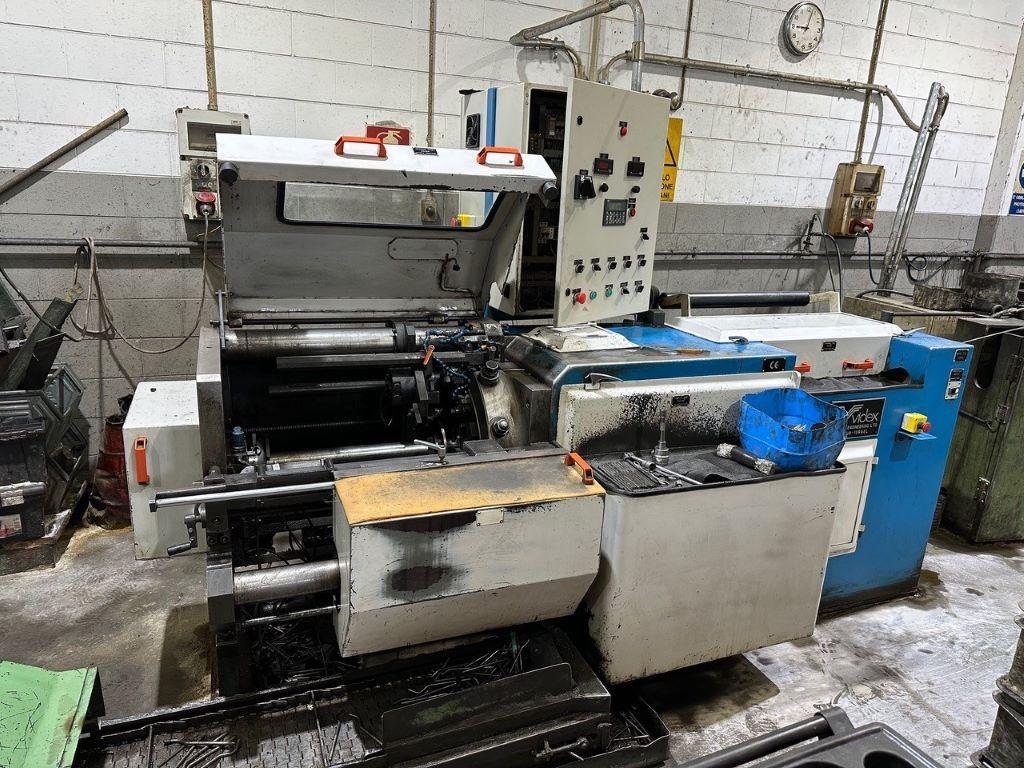

VIDEX VAS-20BRH FULLY AUTOMATIC BENT BOLT PLANETARY THREAD ROLLING MACHINE
Brand
Category
Model
VAS-20BRH
Stock #
9054
Year
2007
Condition
Used
Location
Not specified
|
Machine setup for Radiator Hooks with a press in the center
** For production of bent bolts with threads on one end,
such as eye bolts & anchor bolts
>>Fully Automatic production from Wire Coil, Straighten, Cut, Thread & Bend. All-in-One Machine.
Wire diameter range: 6.9 to 11.6 @ 650 N/mm2 Maximum length of Radiator hooks: 310 mm
Wire diameter: 6.90 mm, pressed to 4.3 mm
Wire diameter: 8.70 mm, pressed to 5.9 mm
Wire diameter: 10.6 mm, bending without pressing
Production rate of pressed parts: 50 PPM
Production rate of non-pressed parts: 100 PPM
Straightening the wire: 5 mm - 11 mm @700 N/mm2 (100 kips)
Cutting to length: up to 800 mm as standard, or longer upon request
Thread rolling: (M6 to M12) on one end, from 20 mm to 97 mm long
Bending to shape: 100 Anchor Bolts per minute (length before bending up to 300). Slower on longer parts.
6-80 Eye Bolts and open eye bolts/minute |
