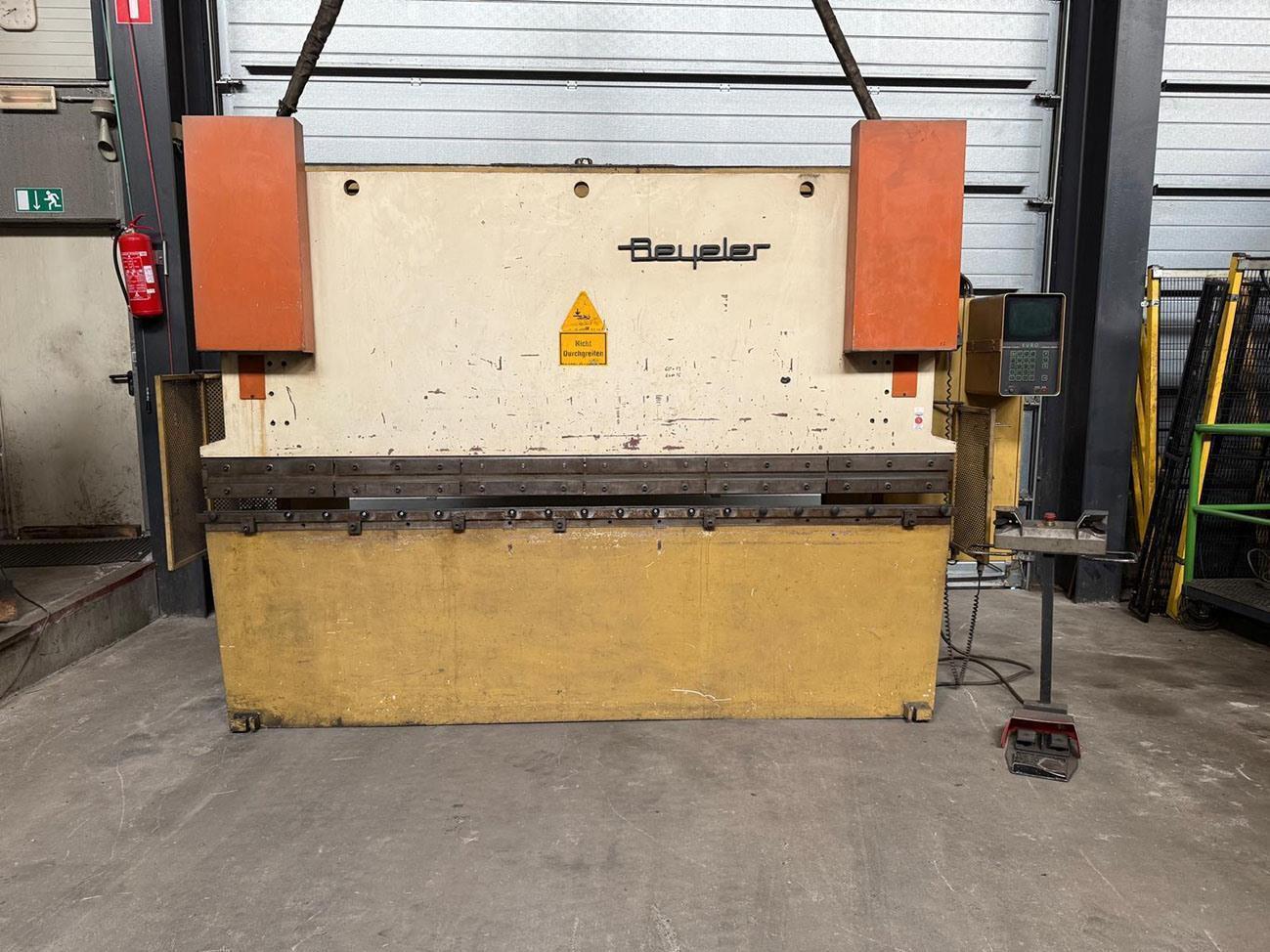

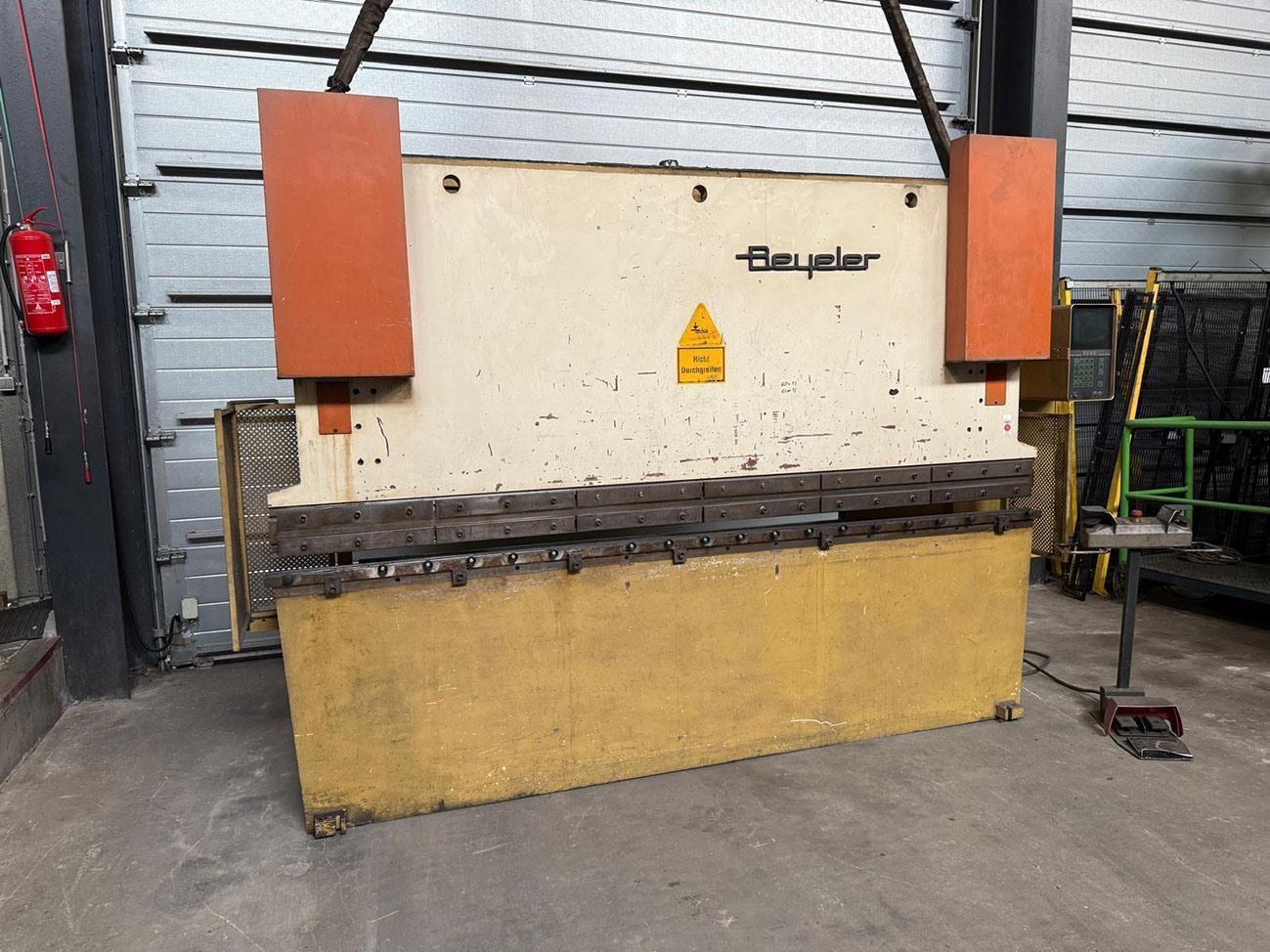

Beyeler - RH 100 ton x 3100 mm CNC

Brand
BEYELER
Category
Bending & Forming Equipment
Type
Hydraulic Press Brakes
Model
RH 100 ton x 3100 mm CNC
Stock #
O.01 15850
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Capacity 100 ton x 3100 mm

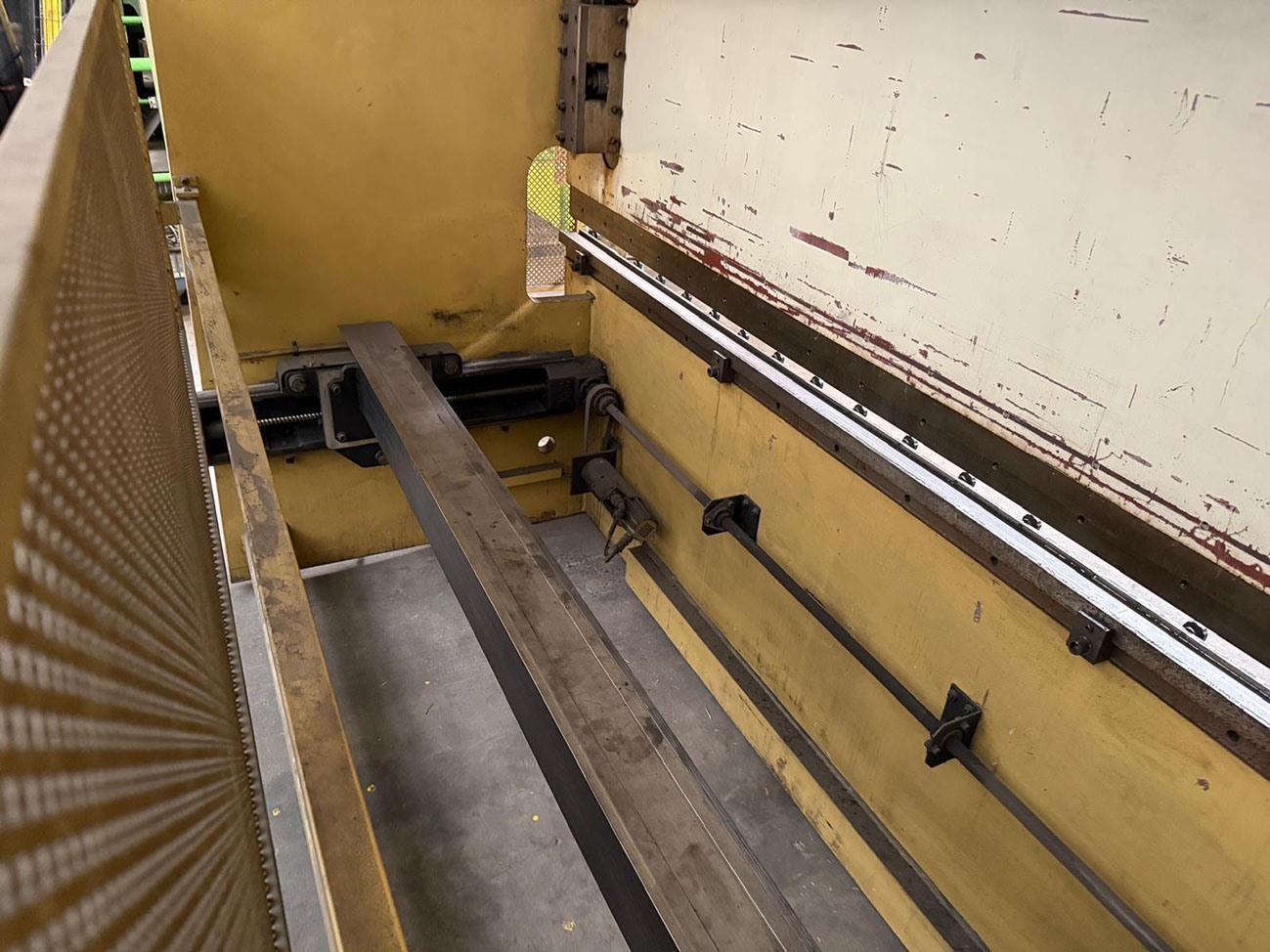

  • Backgauge manual
  • Passage between uprights 2630 mm
  • Max stroke 215 mm
  • Max distance between table -- ram 410 mm
  • Depth of throat 255 mm
  • Locking speed 100 mm/sec
  • Working speed 6,5 mm/sec
  • Electric motor (power) 5,5 kW
  • Length 3300 mm
  • Depth 1550 mm
  • Height 2450 mm
  • Weight 7 ton

Additional info

  • 3 axes Y1/Y2/X

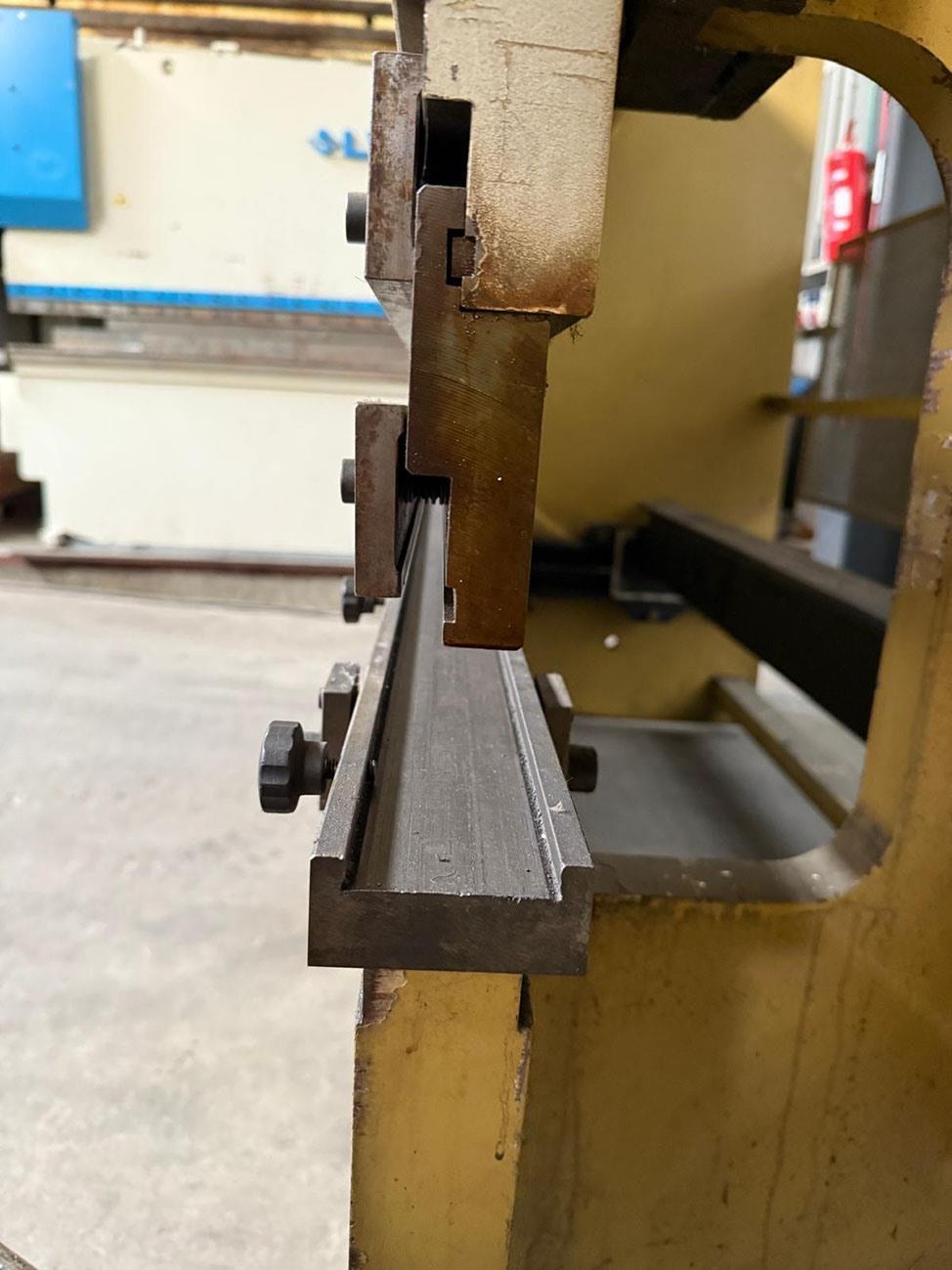

    upper and lower Amada system tooling
