Lasers Fiber CO2 Tube

CAPACITY:
Maximum Laser Output 3 KW
X-Axis Carriage Travel 121"
Y-Axis Laser Head Travel 61"
Z-Axis Laser Head Travel 3.93"
Maximum Sheet Size 60" x 120"
Max. Material Thickness, Mild 1"
Max. Material Thickness, Stainless .5"
Max. Material Thickness, Aluminum .5"
Max. Positioning Speed, X & Y Axis 4,724 IPM
Repeatability +/-0.0002"
Max. Material Weight 2,000 Lbs



Equipped With:

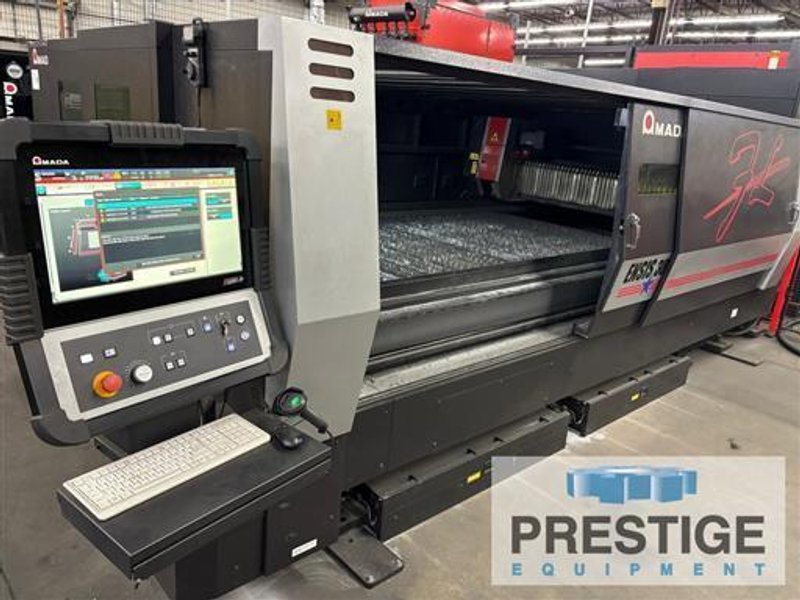

Amada AMNC 3i CNC Control With Color LCD Touchscreen
Dual Pallet Shuttle Tables
Amada Ensis 3000 3KW Oscillator
Automatic Nozzle Changer
Clean Cut Feature

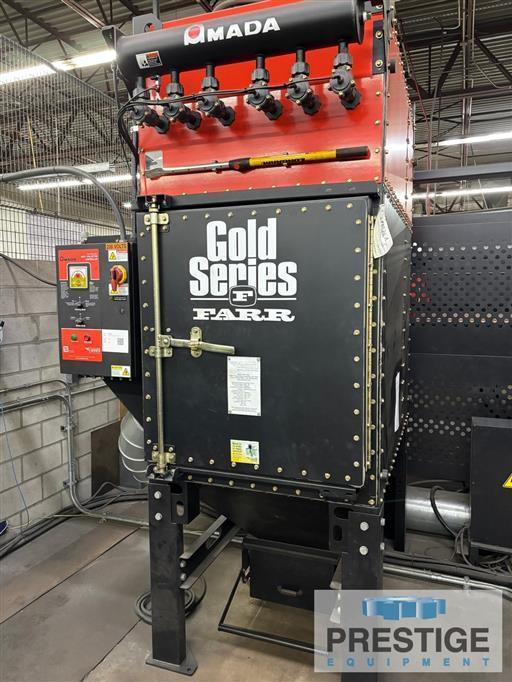

Dust Collector

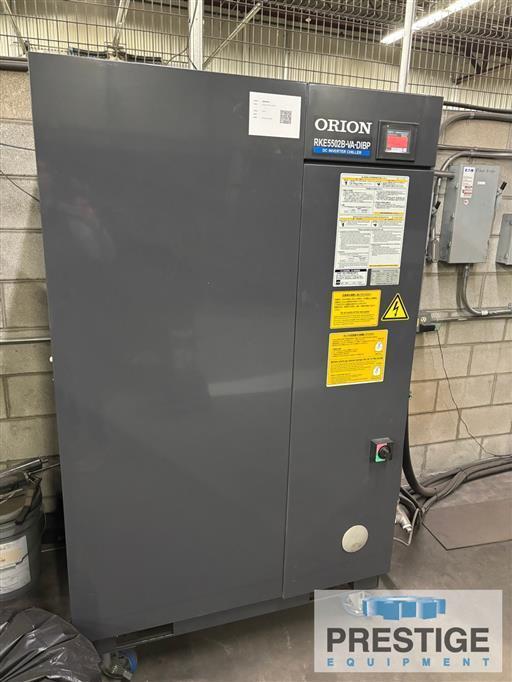

Orion Chiller

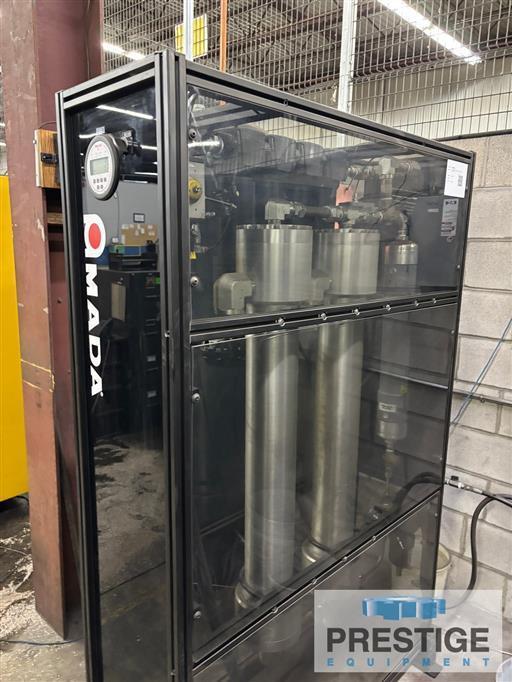

Liberty Nitrogen Generator

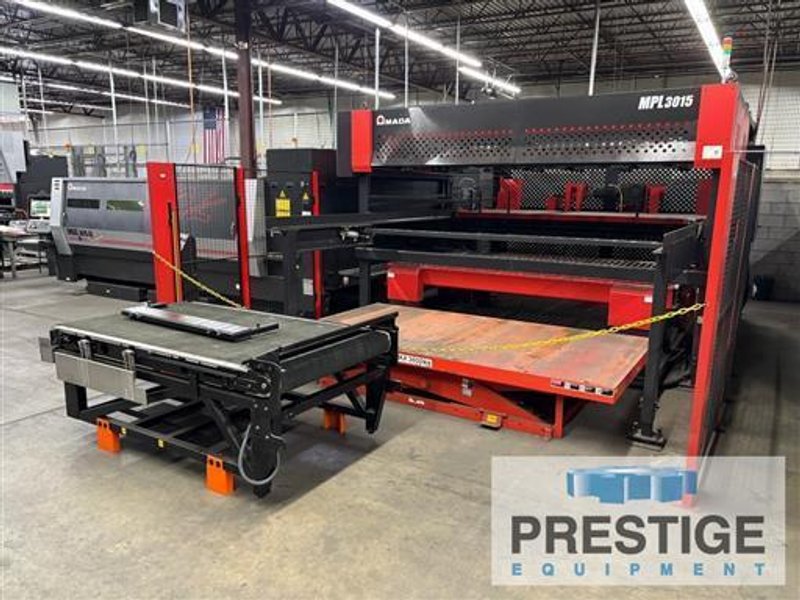

Amada MPL3015 Compact Material Loading Unit


NOTE: Power On:29,829 Hours
Operating Time: 12,472 Hours
Cutting Time: 6,463 Hours
