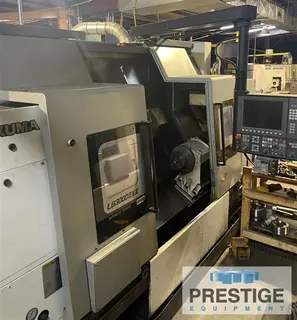

Okuma LB-3000EX-II-MYW 800 CNC Turning & Milling Center

SPECIFICATIONS:
Swing Over Bed 22.83"
Swing Over Cross Slide................. 18.5" 18.5"
Maximum Cutting Diameter 13.39"
Maximum Cutting Length 31.5"
Distance Between Spindles 42.72"
X-Axis Travel 10.24"
Z-Axis Travel 39.76"
Spindle Bore 3.59"
Spindle Nose A2-8
Main Spindle Speed 4,200 RPM
Main Spindle Motor 40 HP
Sub Spindle Motor 15 HP
Sub Spindle Speed 6000 RPM
Milling Spindle Speed 6000 RPM
Milling Spindle Motor 15 HP



Equipped With:
Okuma OSP-P300LA CNC Control
Main Spindle With 10" 3-Jaw Chuck
Sub Spindle With 6" 3-Jaw Chuck
Big Bore Option
12-Station Turret With Live Milling
Y-Axis & C-Axis
High Pressure Coolant
Helical Cutting for MY
Cariable Spindle Speed Threading
Negative Tool Radius Comp
Inverse Time Function
Rapid Traverse Override Switch
Off-Center Turning Function


HOUR COUNT: OPERATING HOURS: 6,791
CUTTING HOURS: 5,755


NOTE: Inspect in Plant Under Power
