Laser Source: RAYCUS 12,000W fiber laser

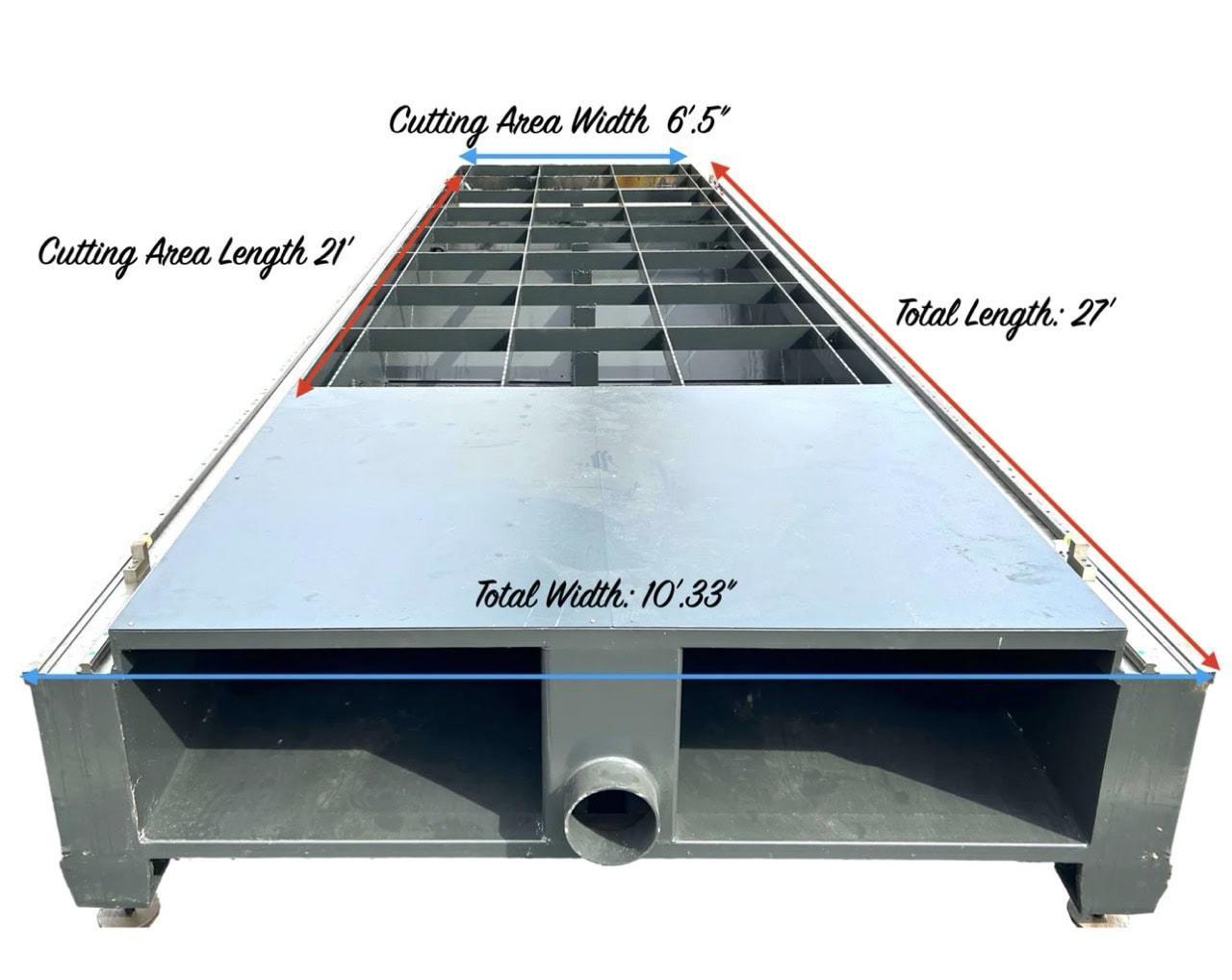

Working Area: 254 x 787 inches (approximately 6′ x 21′)
Cutting Head: Boci BLT 441 Automatic Focus
Control System: FSG9100_AB Axis-B44
Overall Dimensions: 323″ x 124″ x 79″
Weight: Approximately 14,330 lbs.
Cooling System: Hanli-12000W water chiller
Max Speed: 100-120 m/min
Max Acceleration: 0.8G
Positioning Accuracy: ±0.05 mm/M
Warranty: 2 years
Voltage: 480V 3Ph 60Hz
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
