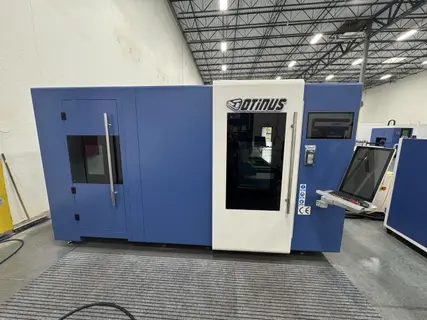

12,000 Watt 5′ x 10′ Otinus Fiber Laser Cutting Machine W/ Tube Cutter, 2024 – In Stock, Install & Training Included!
Brand
Category
Type
Model
VF1530C-12000W
Stock #
848231
Year
2024
Condition
Not specified
Location
Not specified
|
Power Supply: 380V/60HZ
Max sheet size: 10′ x 5′
Positioning accuracy of X/Y axes: ±0.05 mm
Positioning repeatability of X/Y axes: ±0.03 mm
Max idle speed: 120000 mm/min
Max travel acceleration: 1.5 G
Nominal power output: 12.0 kW
Power consumption: 73.0 kW
Source brand: MAX Photonics and Raycus as available options for selection
Power supply: ~3×480 V 60 Hz or other
Ingress protection rating: IP54
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,With Rotary Tube Cutter Attachment All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
