Balemaster 372‑A Horizontal Baler System with Twin City Trim Waste Fan Integration, Manual Tie, and Full Ducting Package

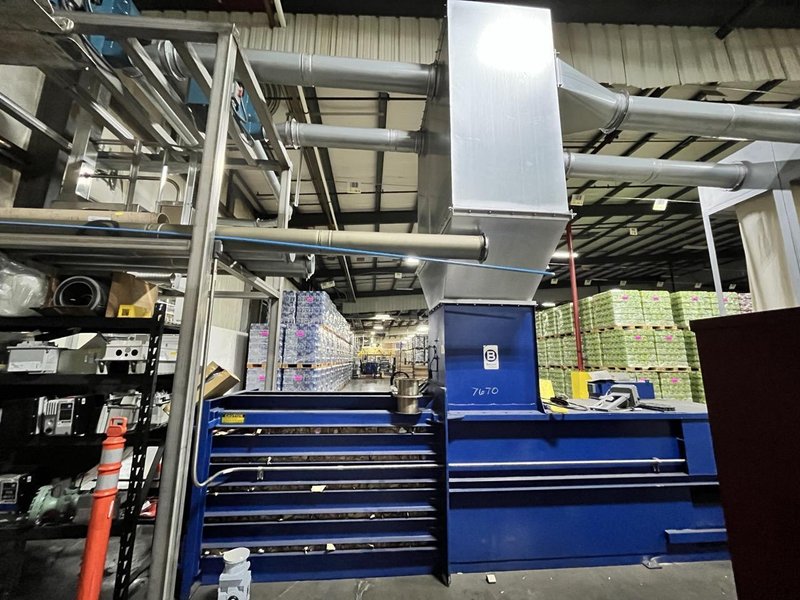

Equipment Overview This Balemaster 372‑A horizontal baler system is a complete, high-throughput closed-end baler integrated with dual centrifugal fans and overhead ducting for pneumatic trim waste extraction. Built for rugged use in print, paper, or packaging environments, this unit includes a manual tie configuration, LPR sensor activation, and selector-based baling cycle controls.

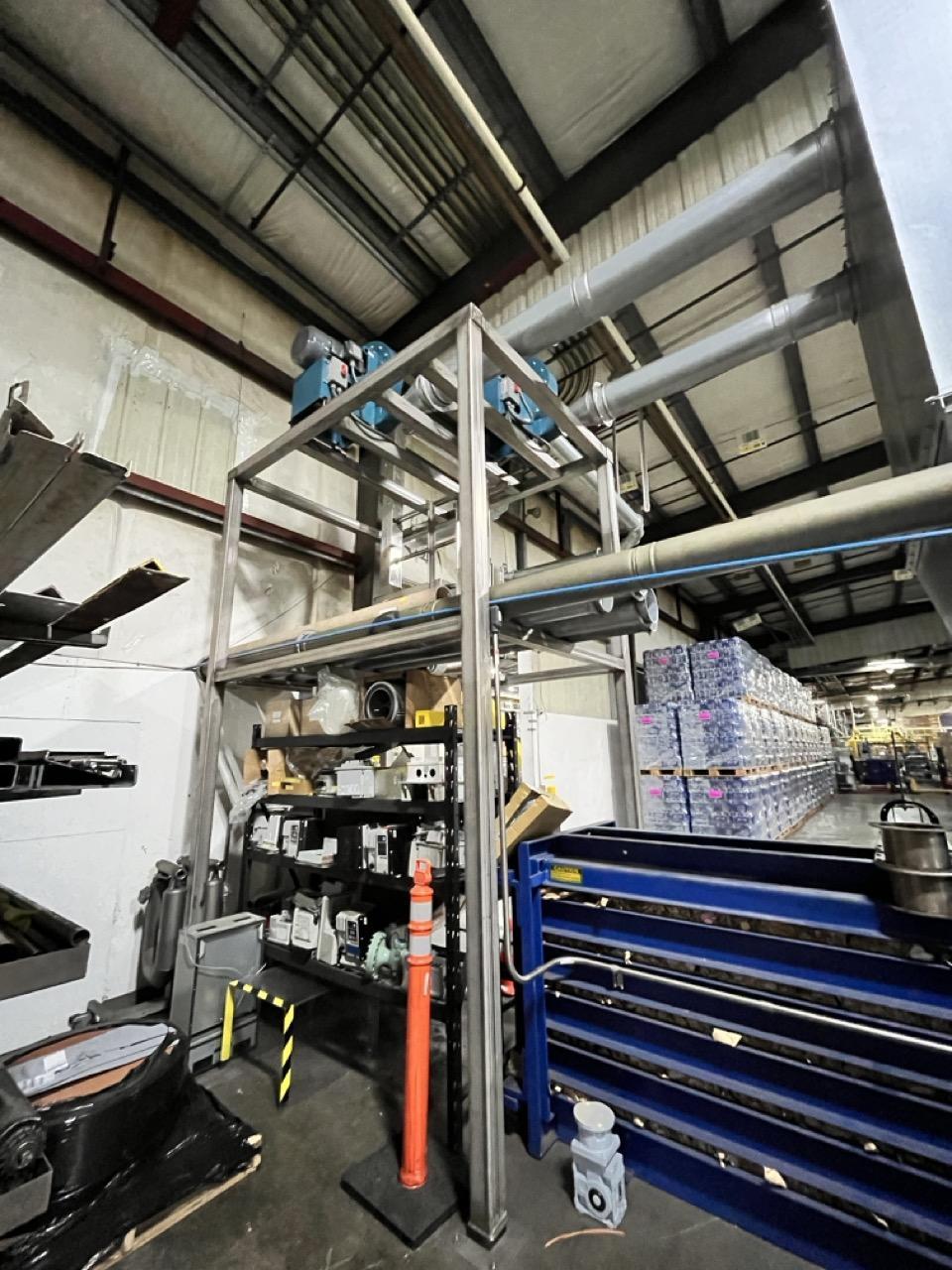

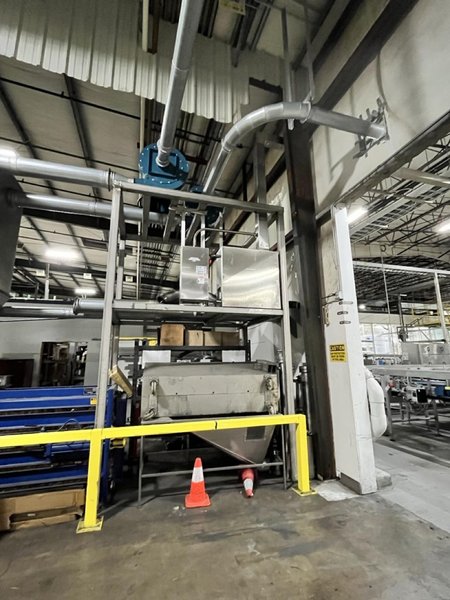

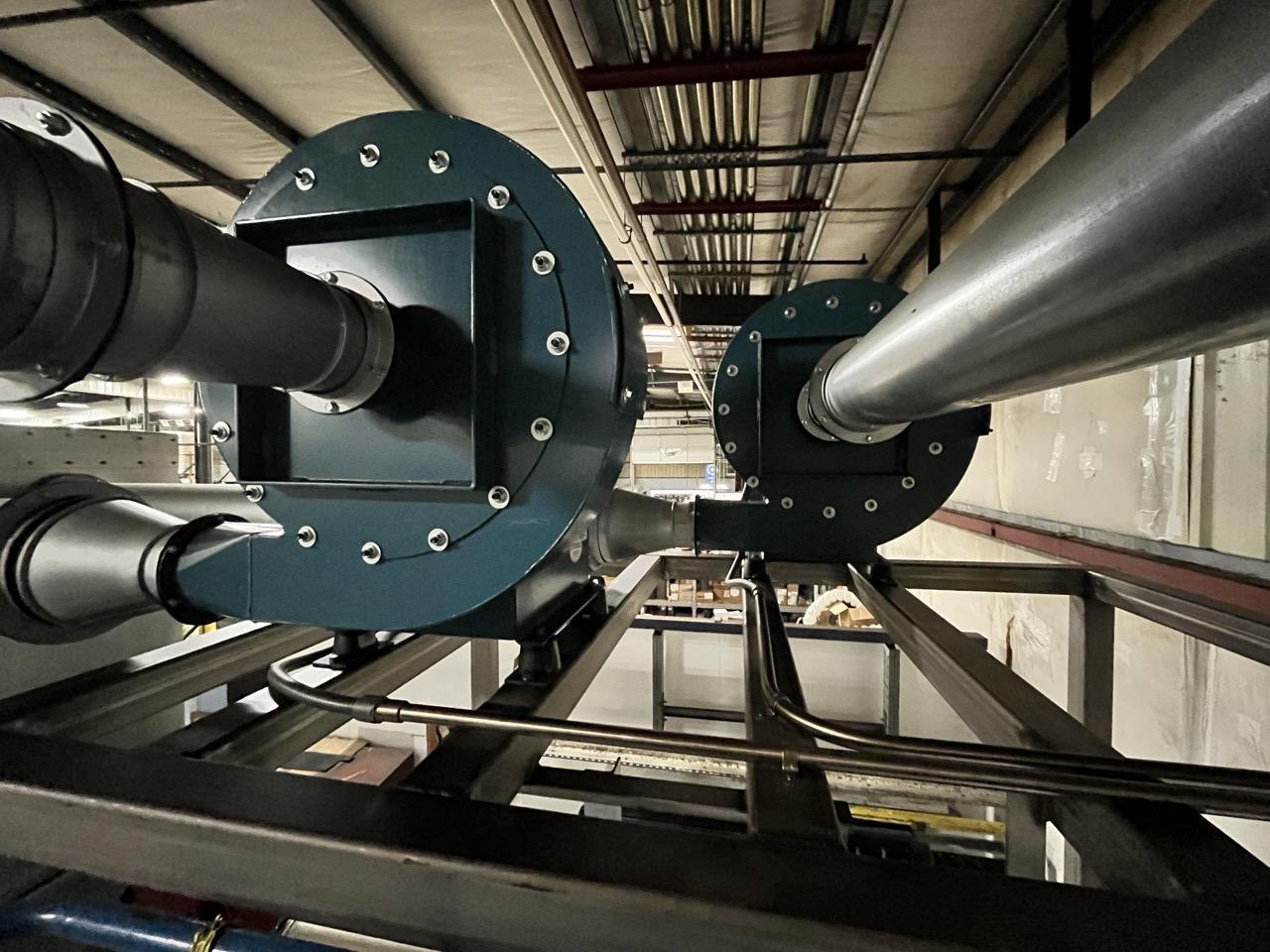

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,System includes: – Balemaster 372‑A baler – Twin City Fan & Blower PBW-1906 units – Custom-fabricated duct system with overhead drop – Lockout-compliant electrical panel – REC-verified schematics and PM history

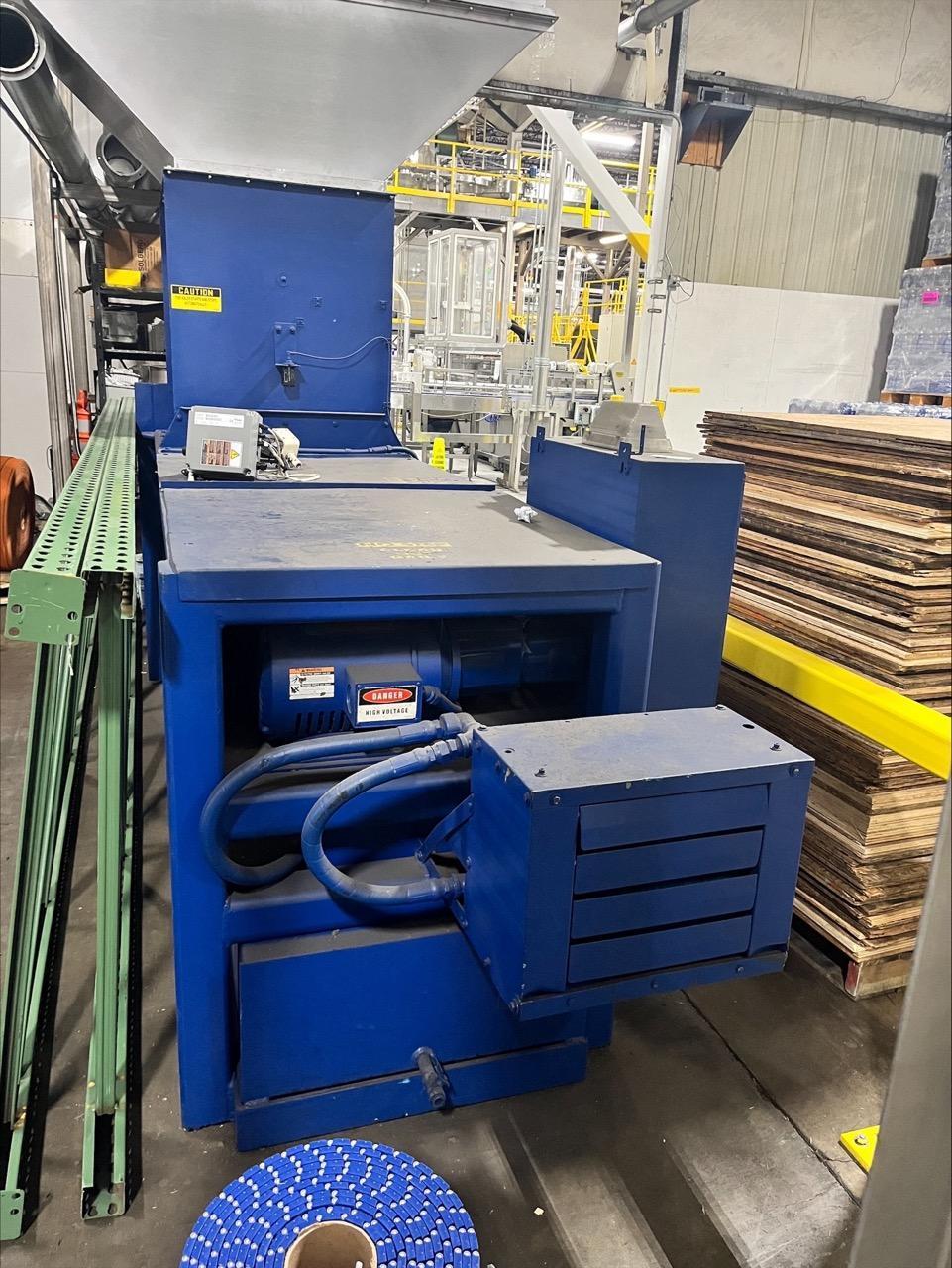

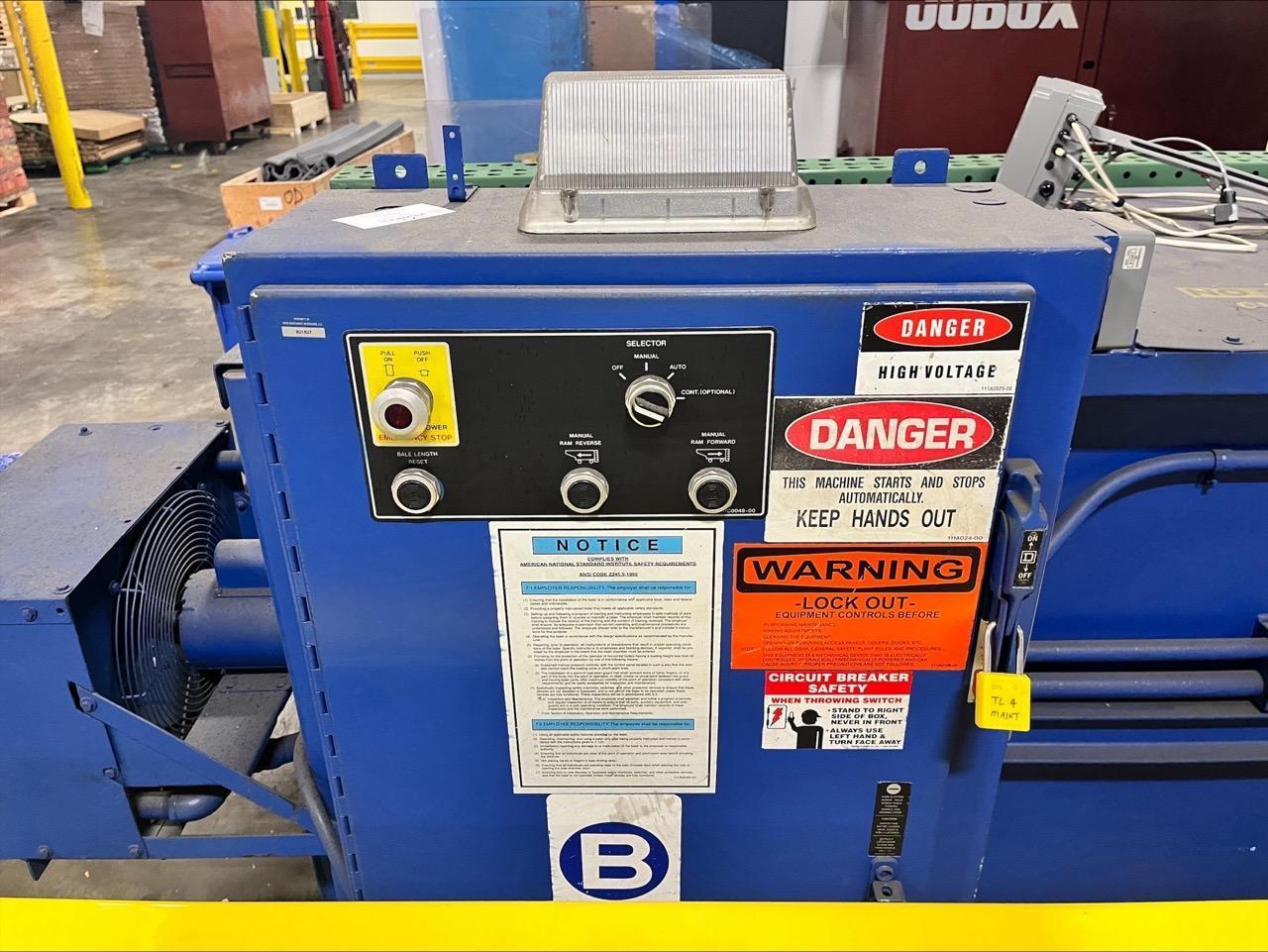

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features & Specifications – Horizontal closed-end baler system with integrated trim waste fan array – OEM: Balemaster (East Chicago Machine Tool Corp.) – Model: 372‑A Balewel – Bale size: 30″ W × 42″ H × 72″ L – Feed opening: 28″ W × 32″ H – Hydraulic cylinder bore: 6″ – Main hydraulic pressure: 1500 PSI – Relief valve pressure: 1800 PSI – Hydraulic pump motor: 15 HP, 3-phase, 230/460 V (est.) – Oil reservoir capacity: ~100 gallons (estimated) – Manual wire tie system with dual horizontal tie slots – Control modes: Manual / Automatic / Continuous – LPR photo-eye sensor for automatic cycle start – Limit switches: Ram retract, Ram advance, Bale limit, Door closed – Emergency stop: Keyed, lockout-compliant mushroom-style button – Cycle control: Push-button forward/reverse and selector-based logic – Control panel power: 110 V via step-down transformer – Electrical panel includes magnetic starter, transformer, relay logic – Machine frame: Welded steel construction, closed-end configuration – Dimensions (baler only): 168″ L × 55″ W × 92″ H – Full system footprint: 192″ L × 90″ W × 140″ H – Electrical panel dimensions: 48″ W × 20″ D × 60″ H – Estimated weight (baler only): 11,000 – 12,500 lbs – Estimated total system weight: 15,000 – 17,000 lbs – Integrated pneumatic trim waste system (dual fans) – Fan type: Twin City Fan & Blower, Model PBW-1906 (Qty: 2) – Fan motors: Estimated 5–10 HP each, belt-driven, 3-phase – Fan mezzanine height: ~10′ platform, ~140″ overall height with duct – Ducting system: Galvanized steel, multi-inlet, cyclone drop into hopper – Function: Continuous pneumatic waste feed into baler via cyclone – Accessories included: Full duct system, mezzanine fan support, control panel, trim feed chamber

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
