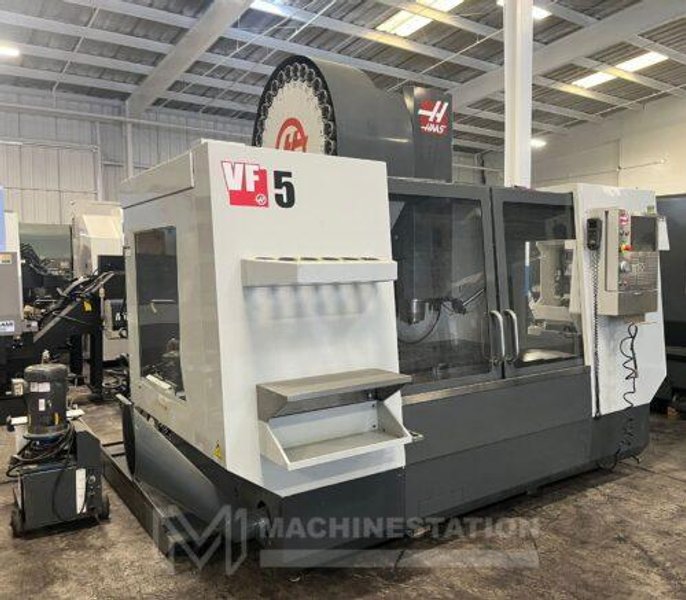

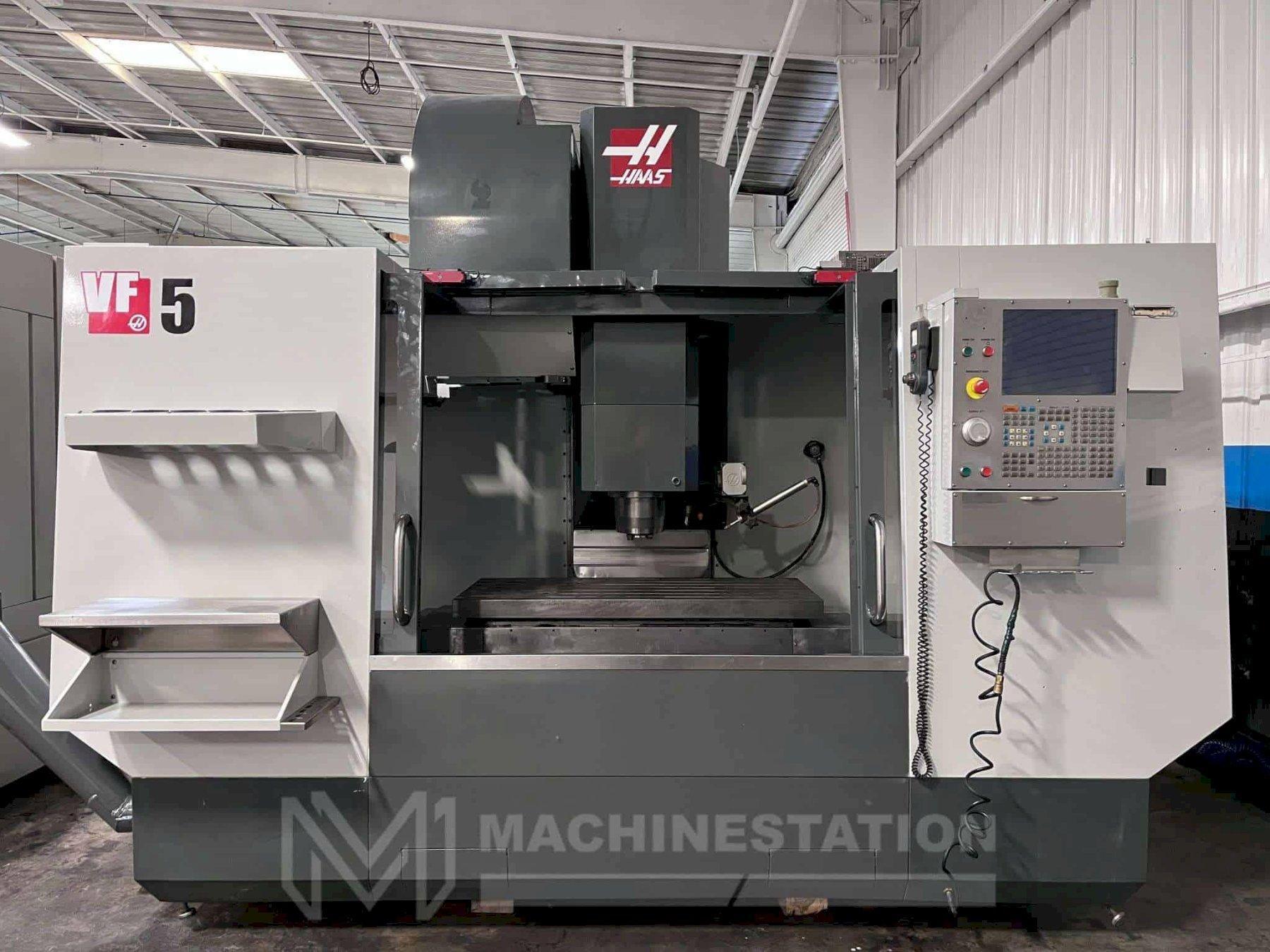

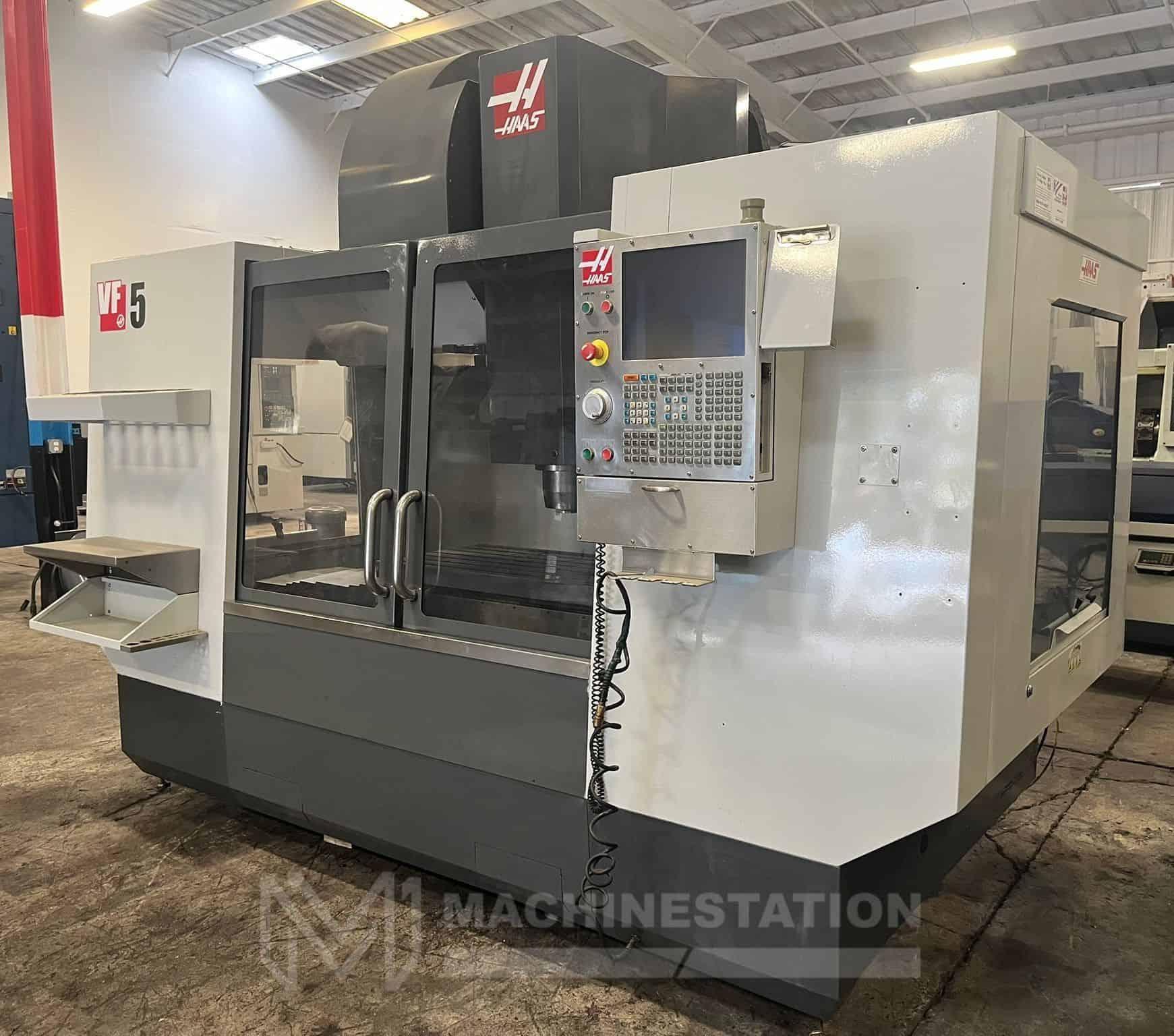

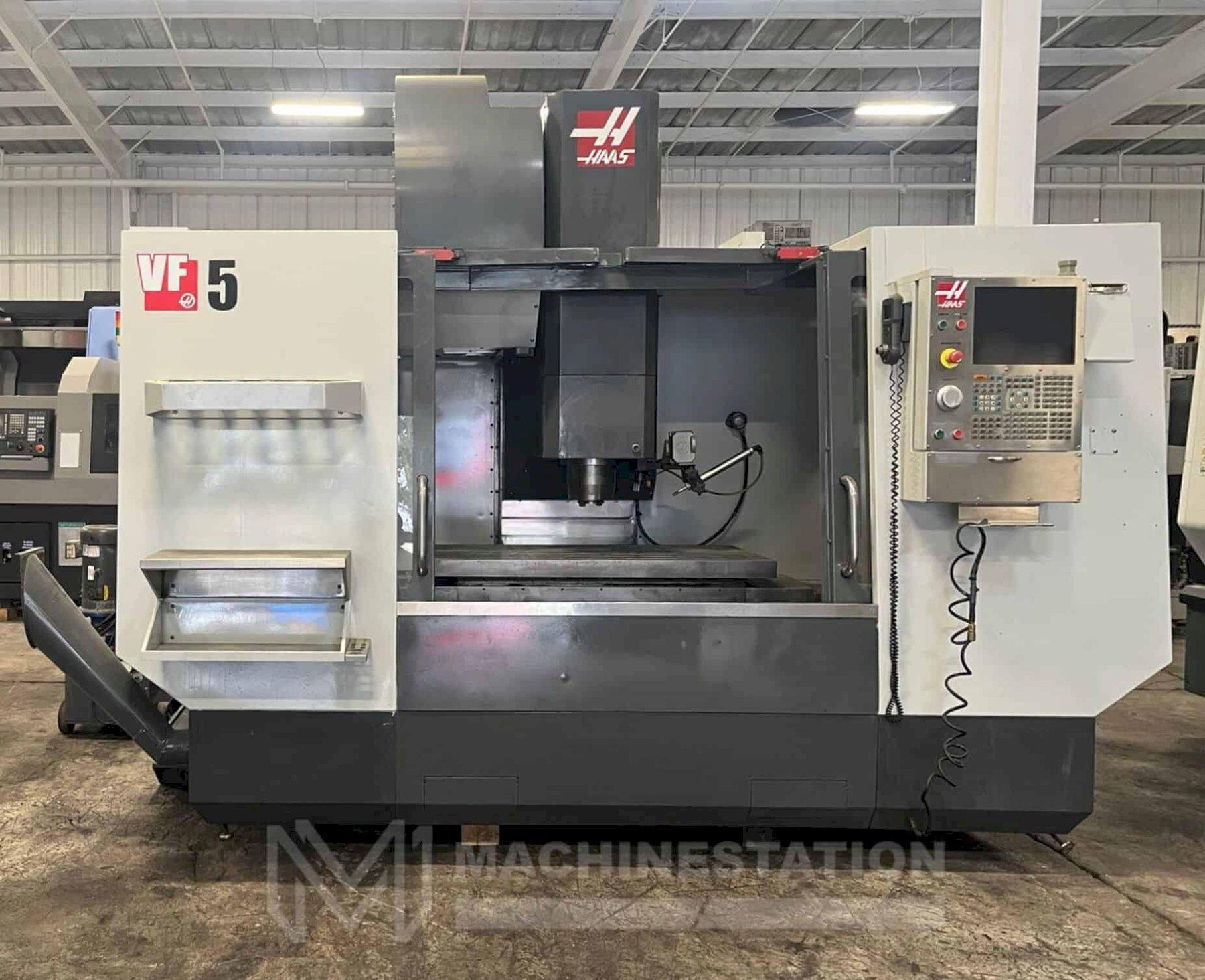

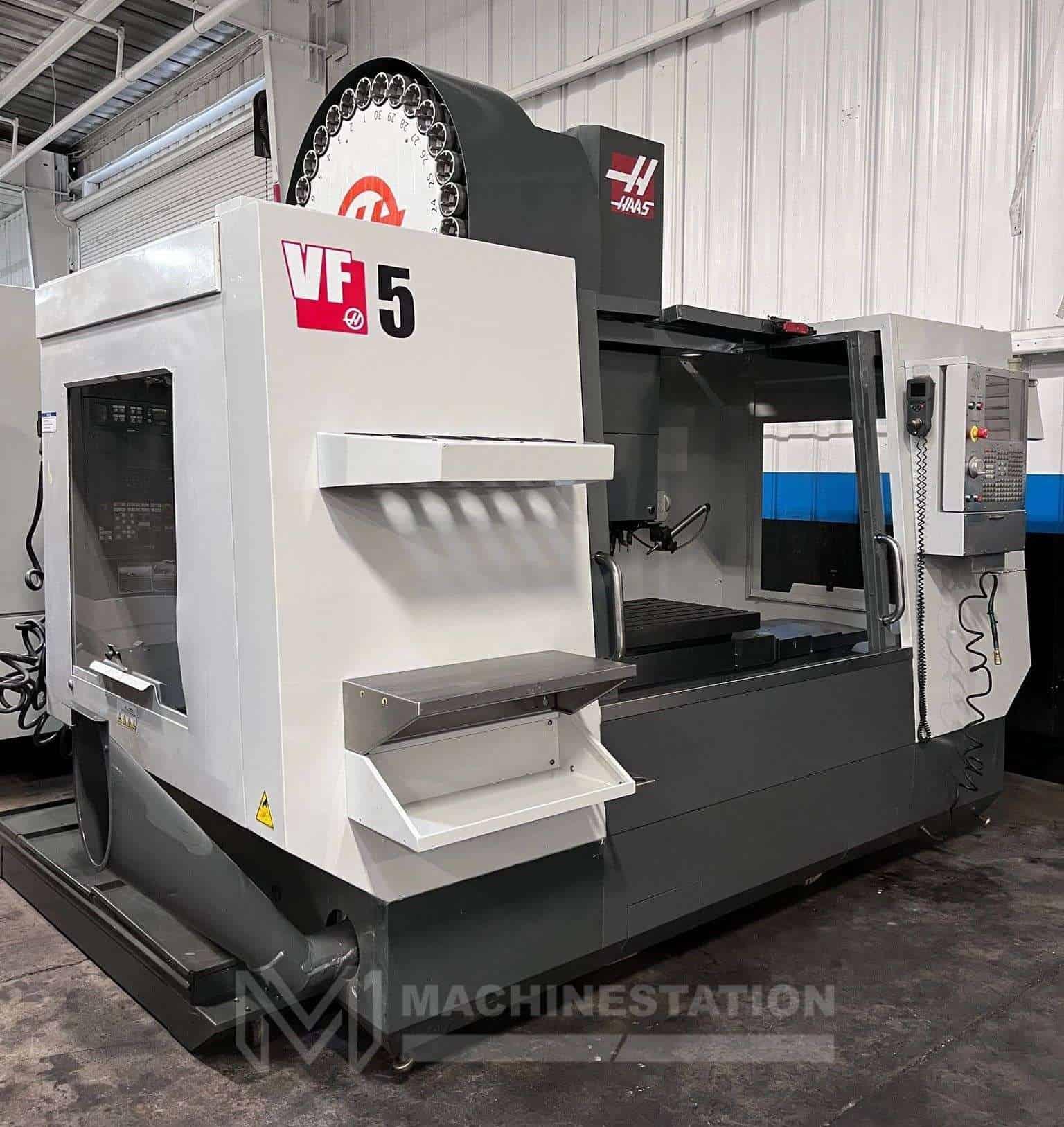

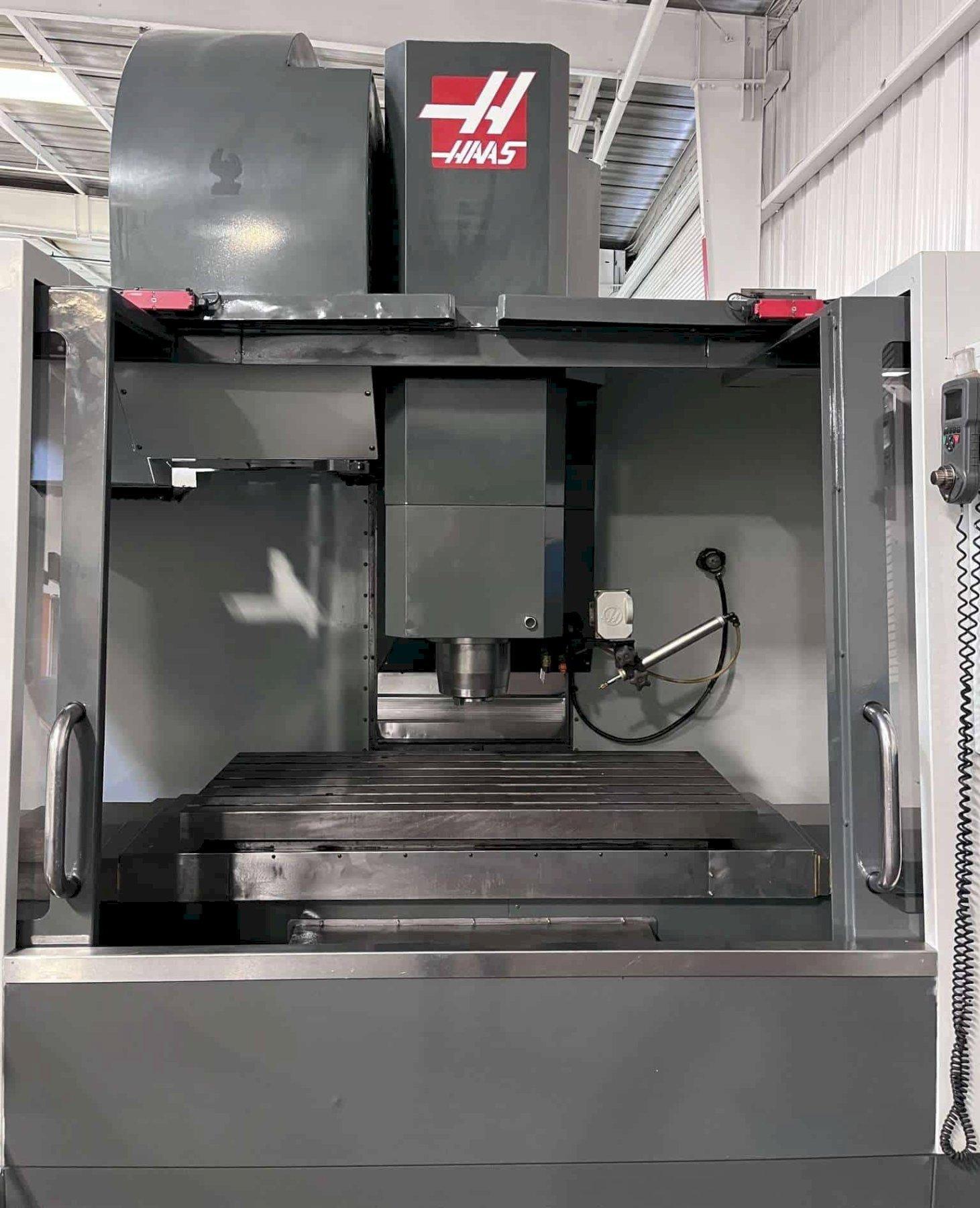

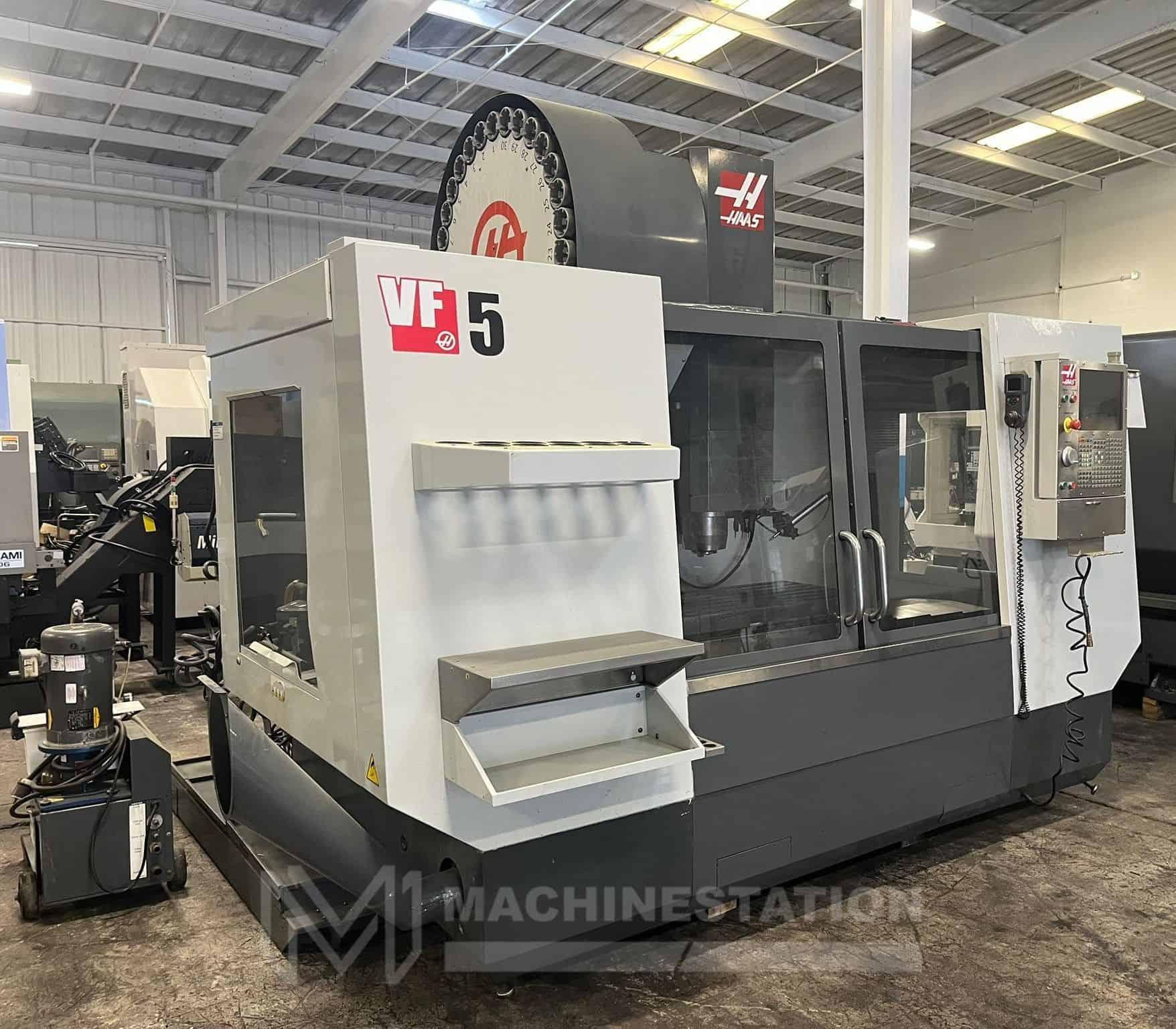

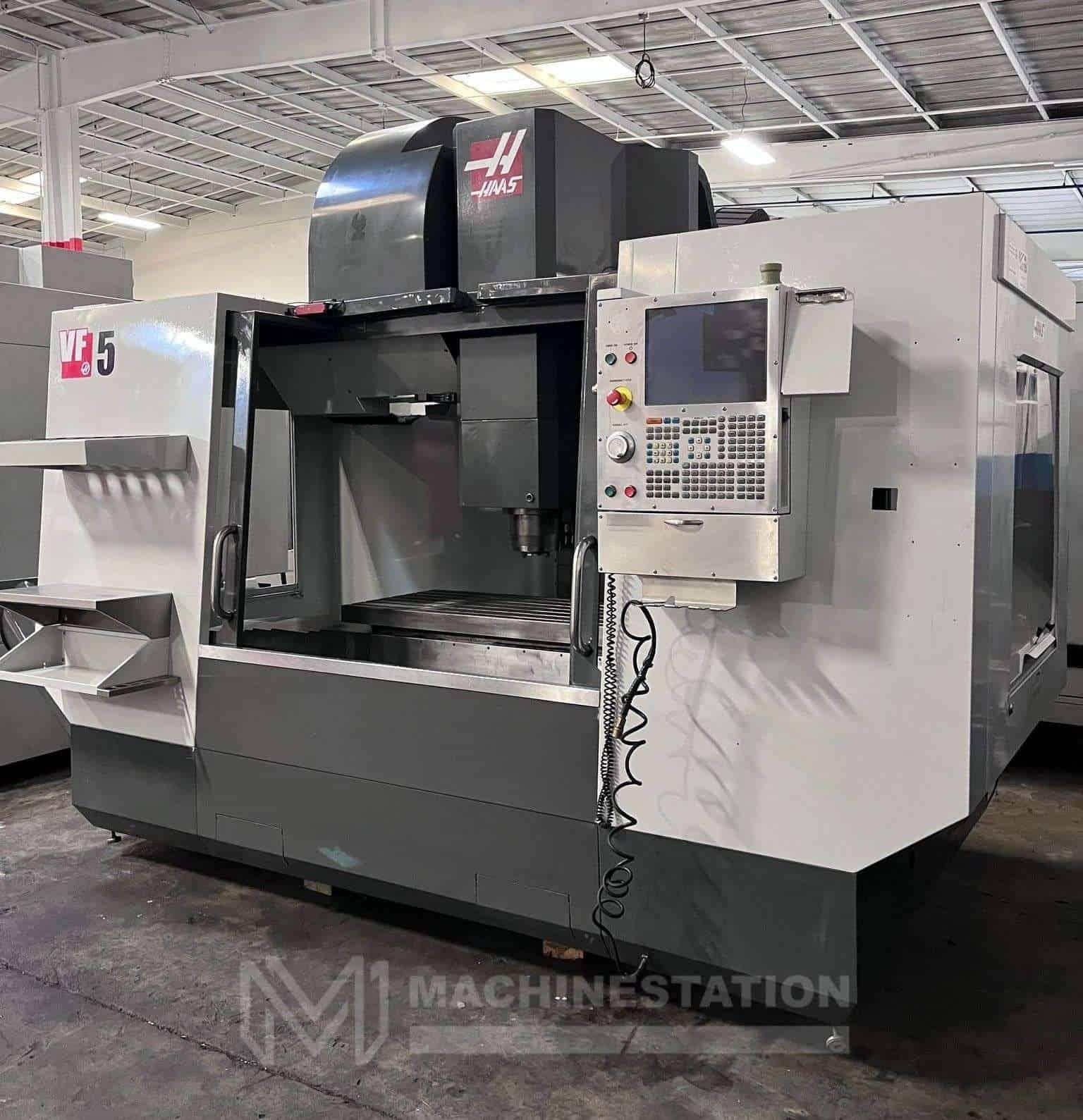

Haas VF-5/50 CNC Vertical Machining Center – 50 Taper Mill

Haas VF-5/50 CNC Vertical Machining Center – 50 Taper Mill

Name: Haas VF-5/50 CNC Vertical Machining Center – 50 Taper Mill
Brand: HAAS
SKU: 112431
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	HAAS
Model:	VF5/50
Year:	2011
Condition:	Used – Good

Features:

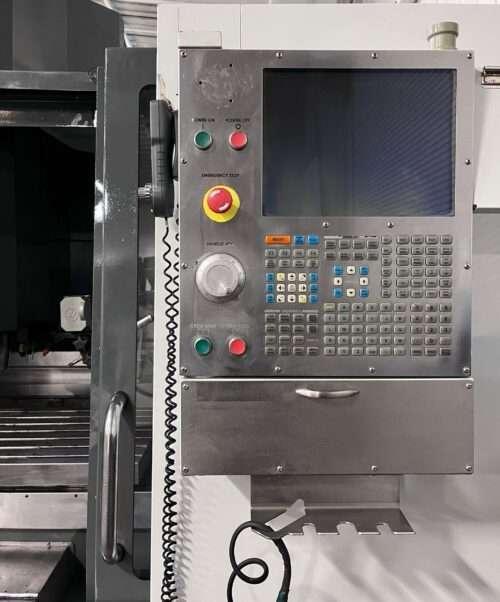

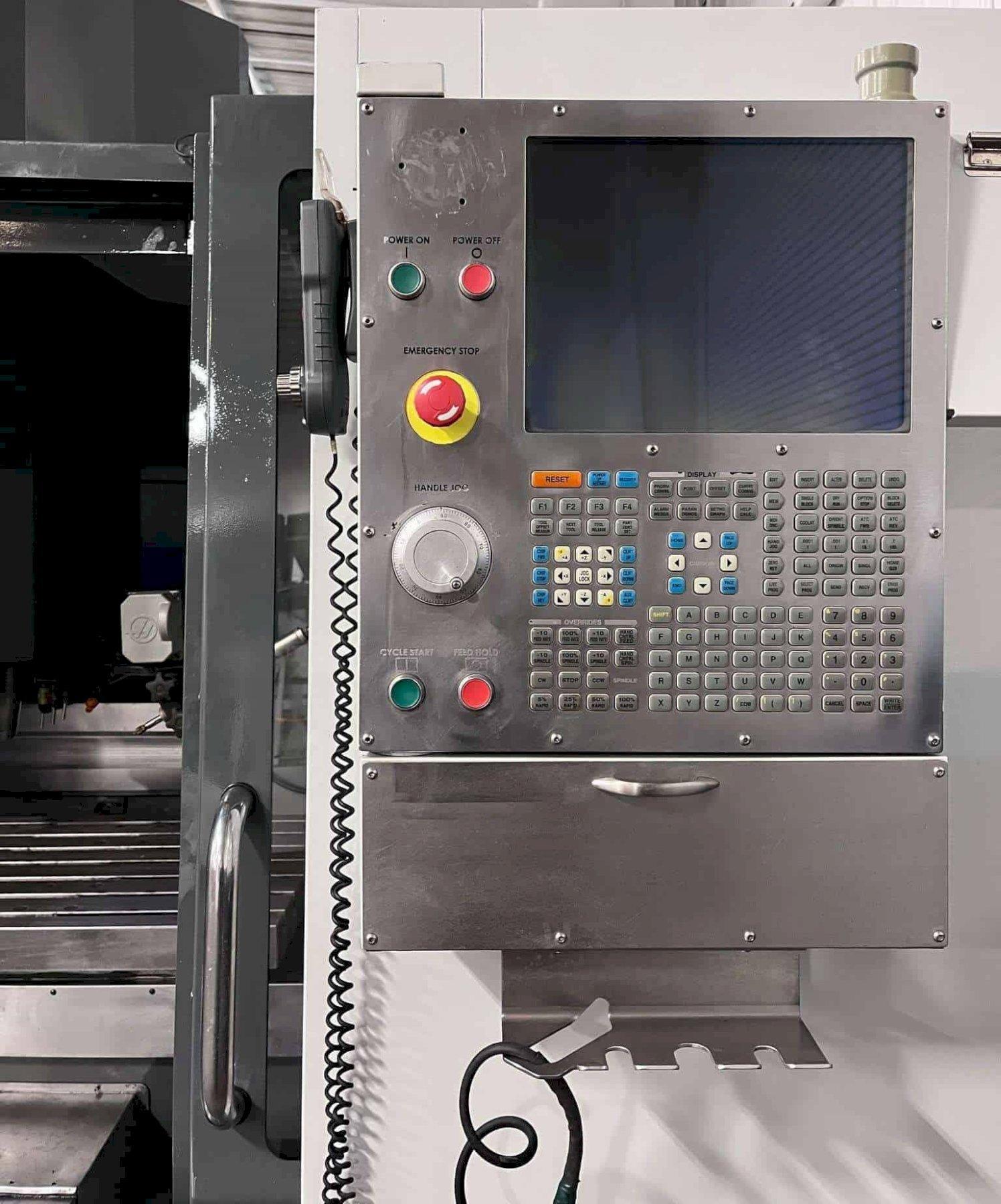

Haas CNC Control
7500 RPM Spindle
50 Taper Spindle
30 HP High Torque Spindle

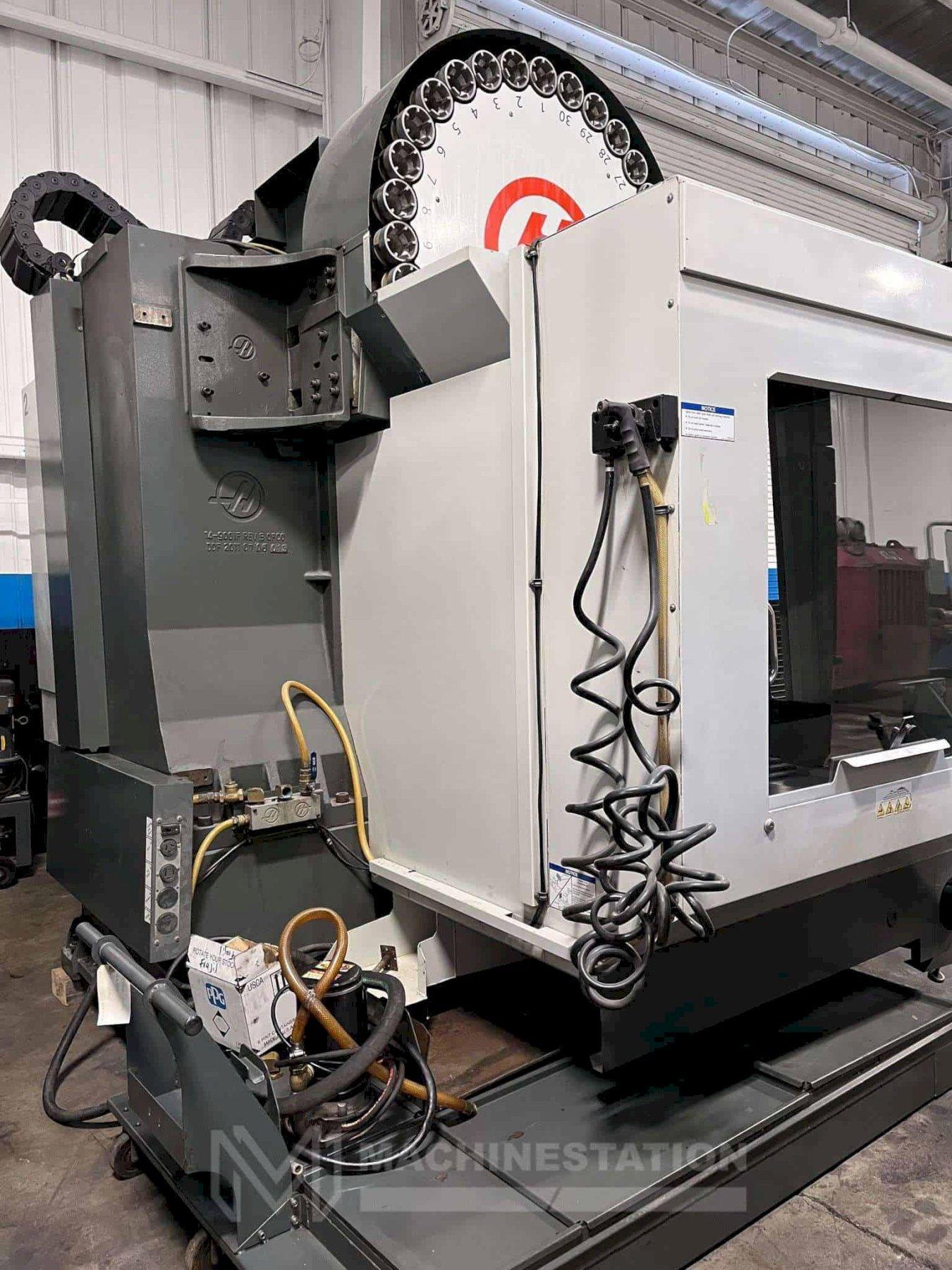

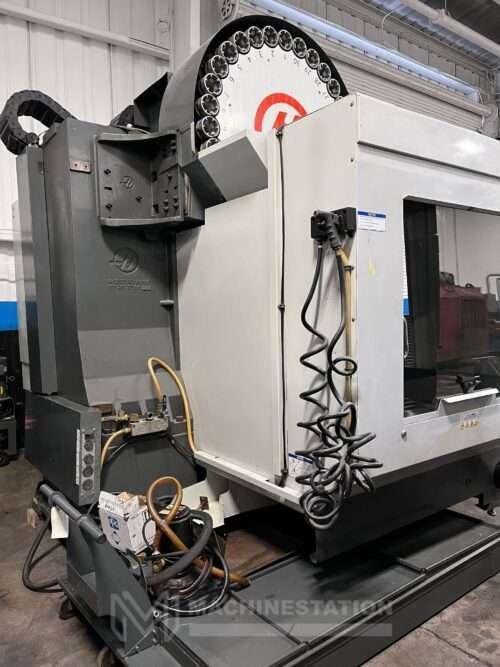

30 Station Automatic Tool Changer

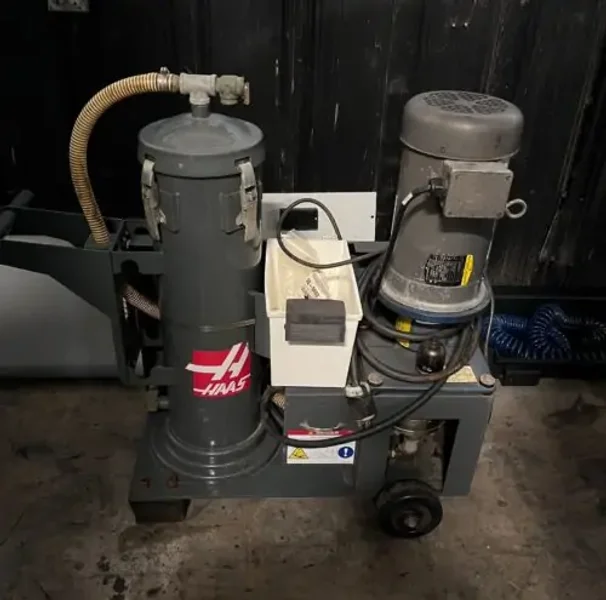

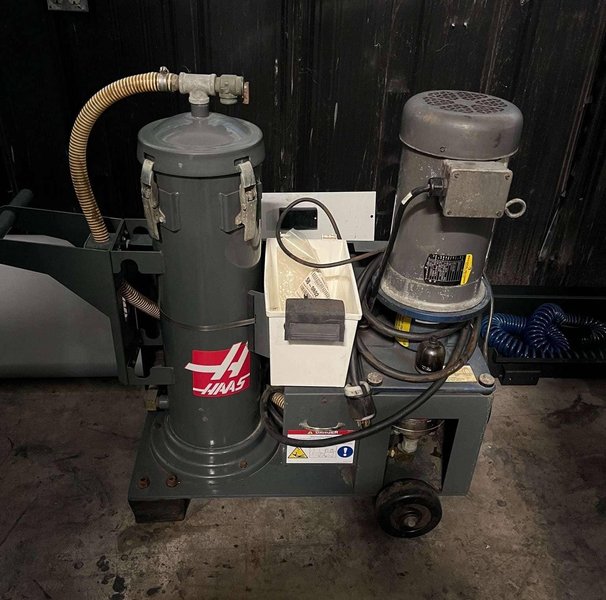

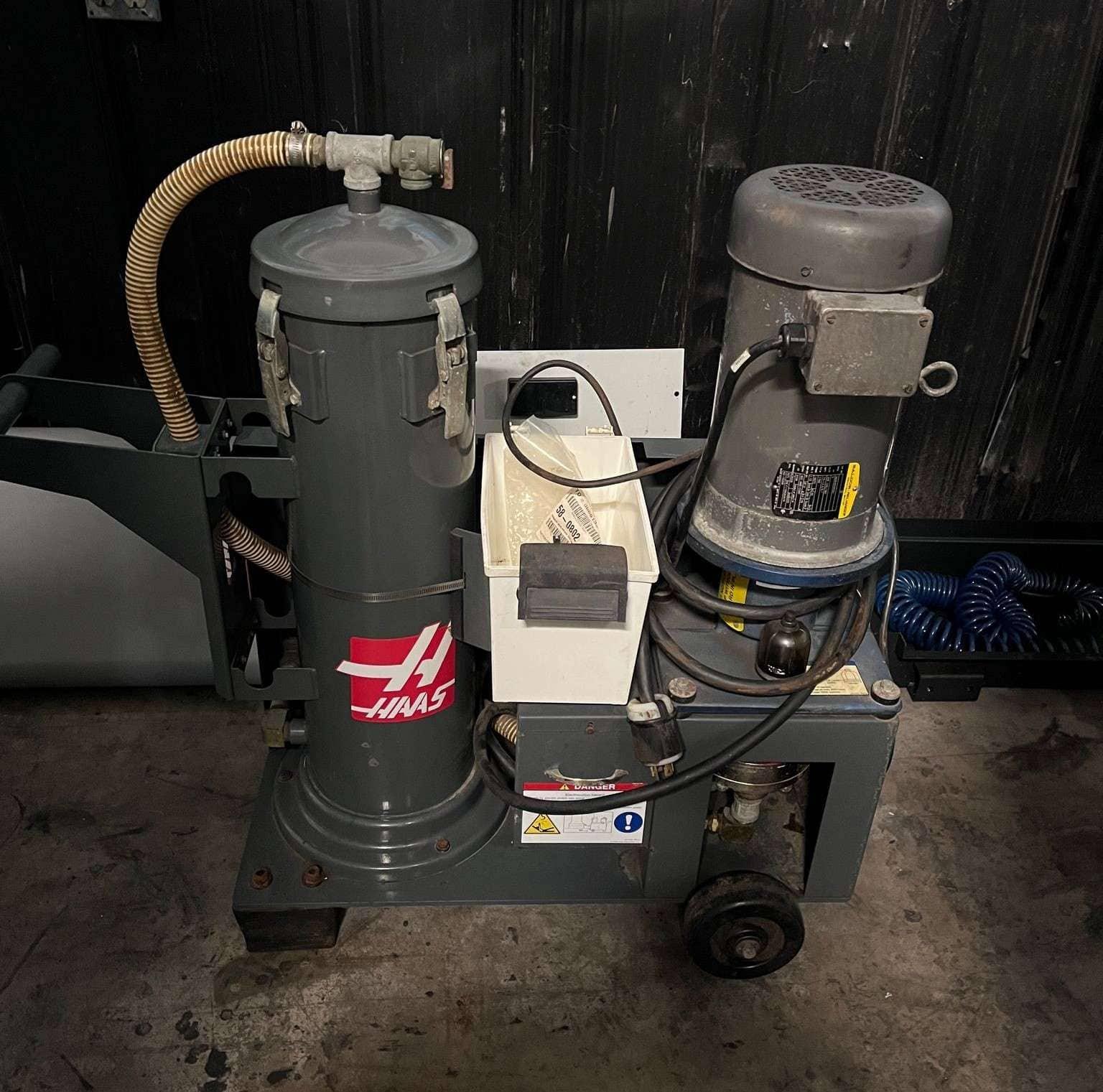

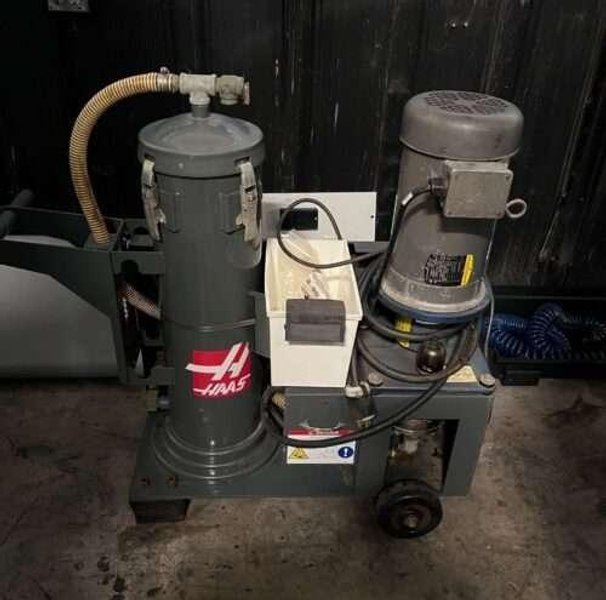

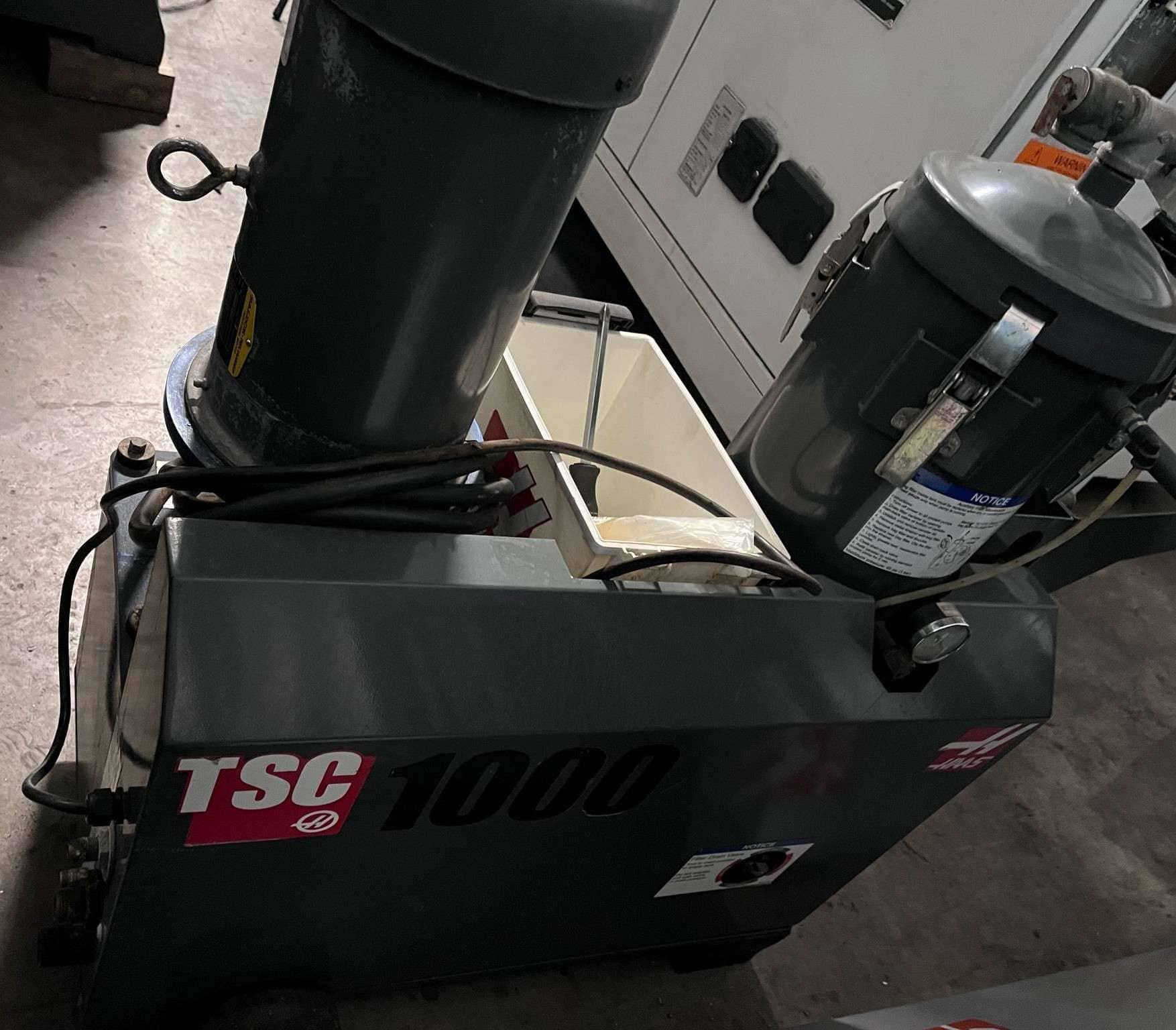

Through Spindle Coolant
Renishaw Reciever Installed
MPG Handwheel Control
Rigid Tapping
Spindle Orientation

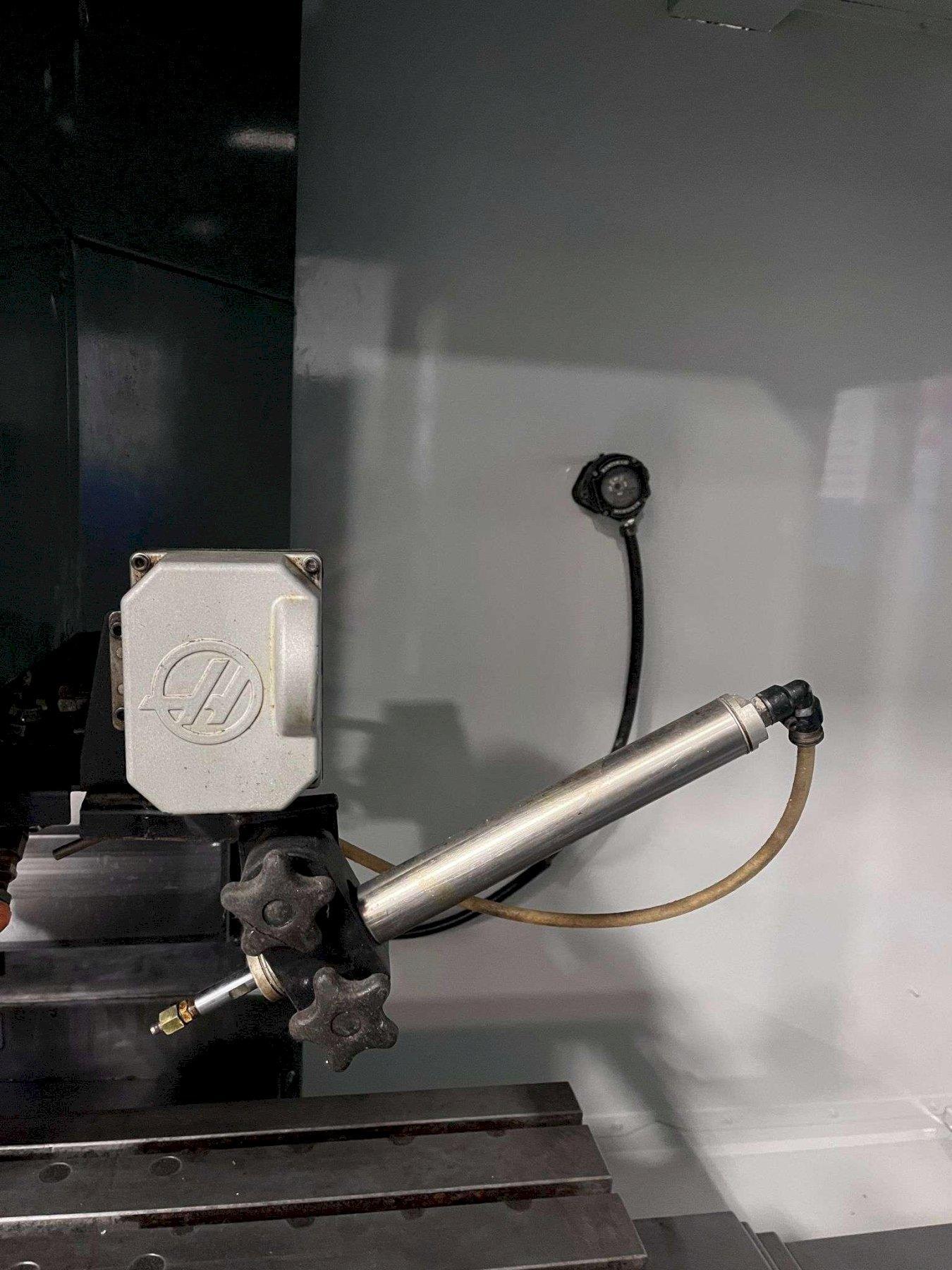

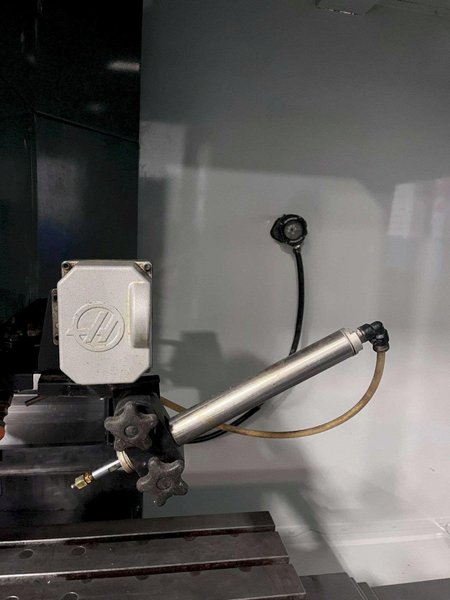

Programmable Coolant Nozzle
Coolant System
Chip Auger

Travels:
X-Axis: 50″
Y-Axis: 26″
Z-Axis: 25″
Rapid Traverse Rates: 710 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 7.9″ – 32.9″

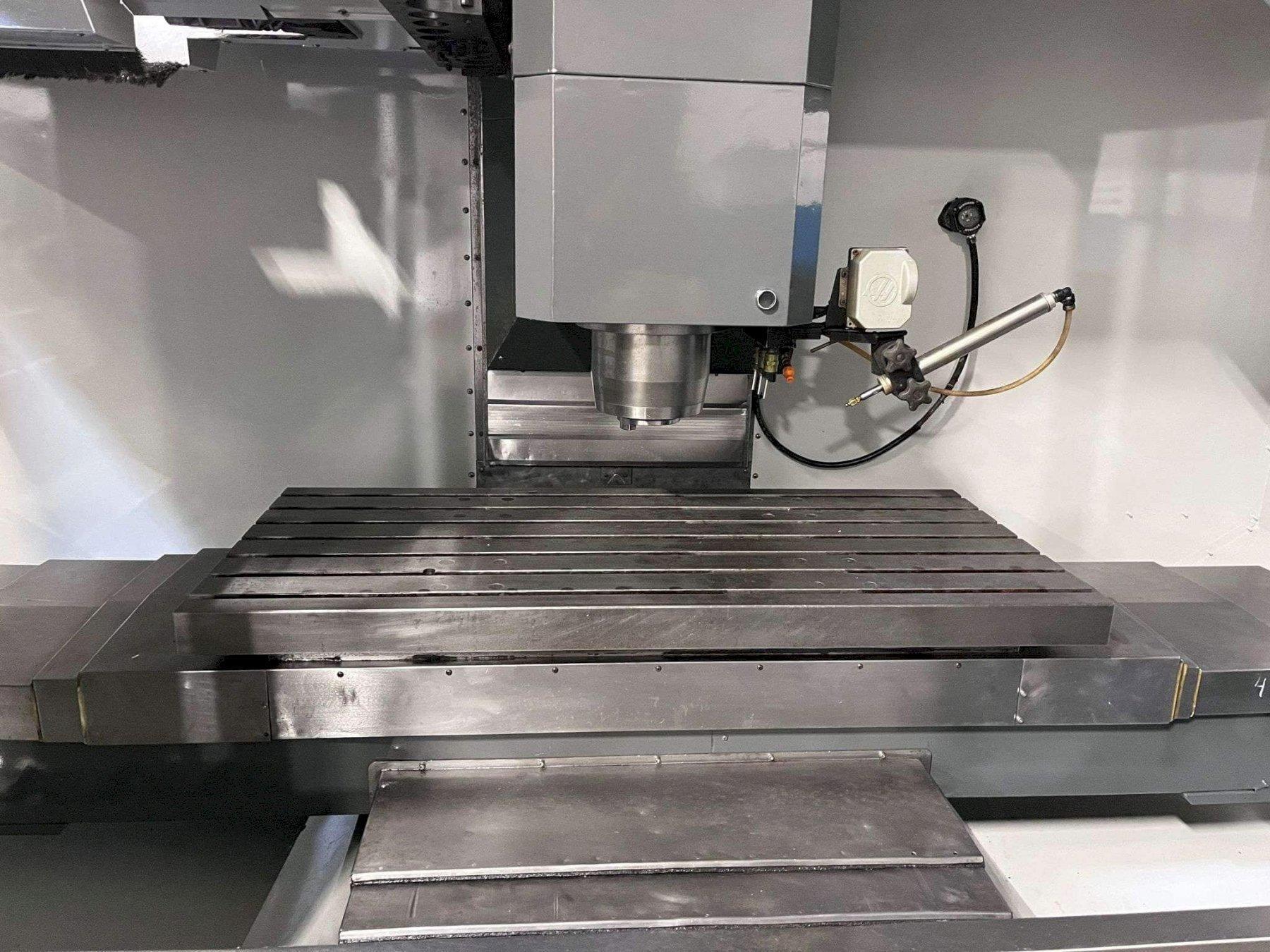

Table:
Length: 54″
Width: 24″
Number of Std T-Slots: 7
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

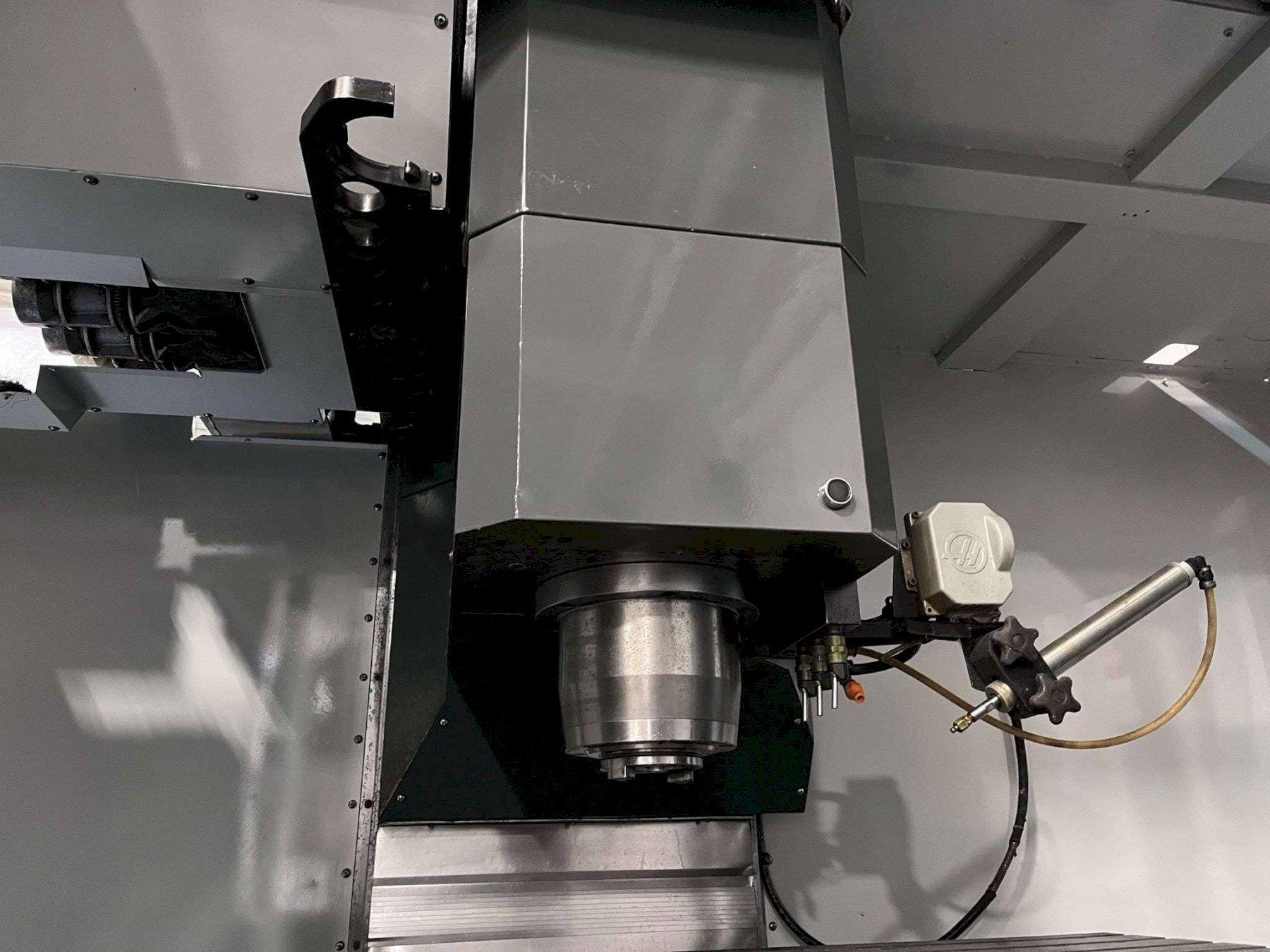

Spindle:
Taper Size: 50
Speed Range: 7500 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

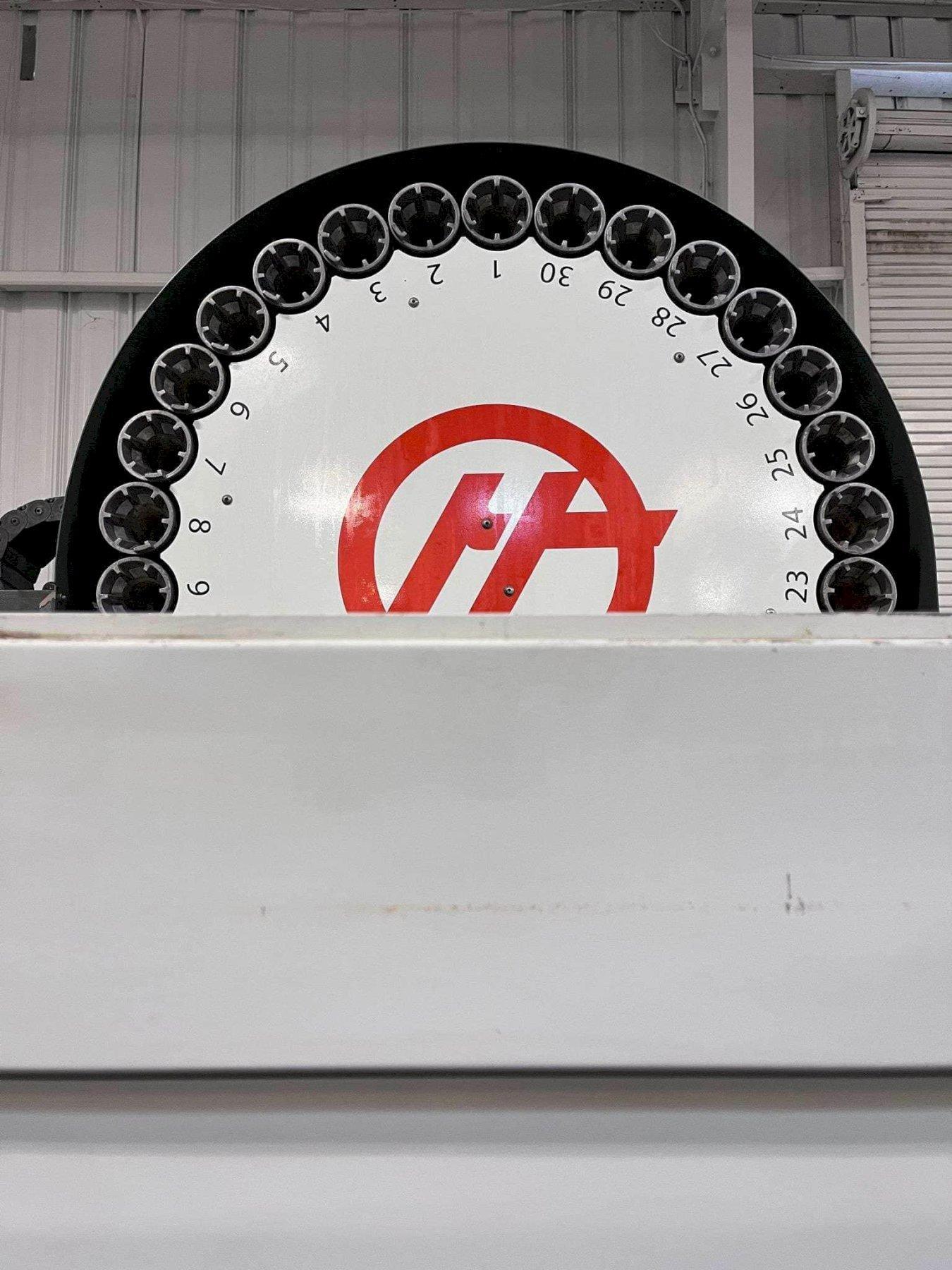

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 30 lbs
Max Tool Diameter (Full): 4″
Max Tool Diameter (adjacent empty): 7″
Max Tool Length: 16″
Tool Changing Time: 4.2 Seconds
