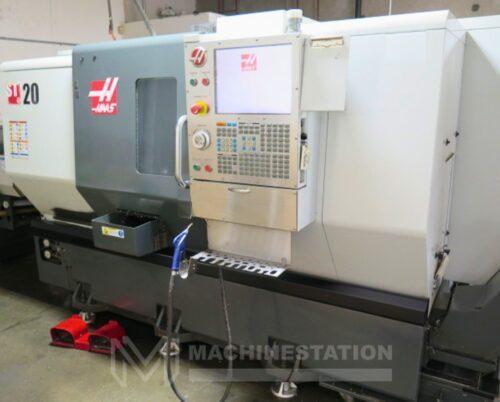

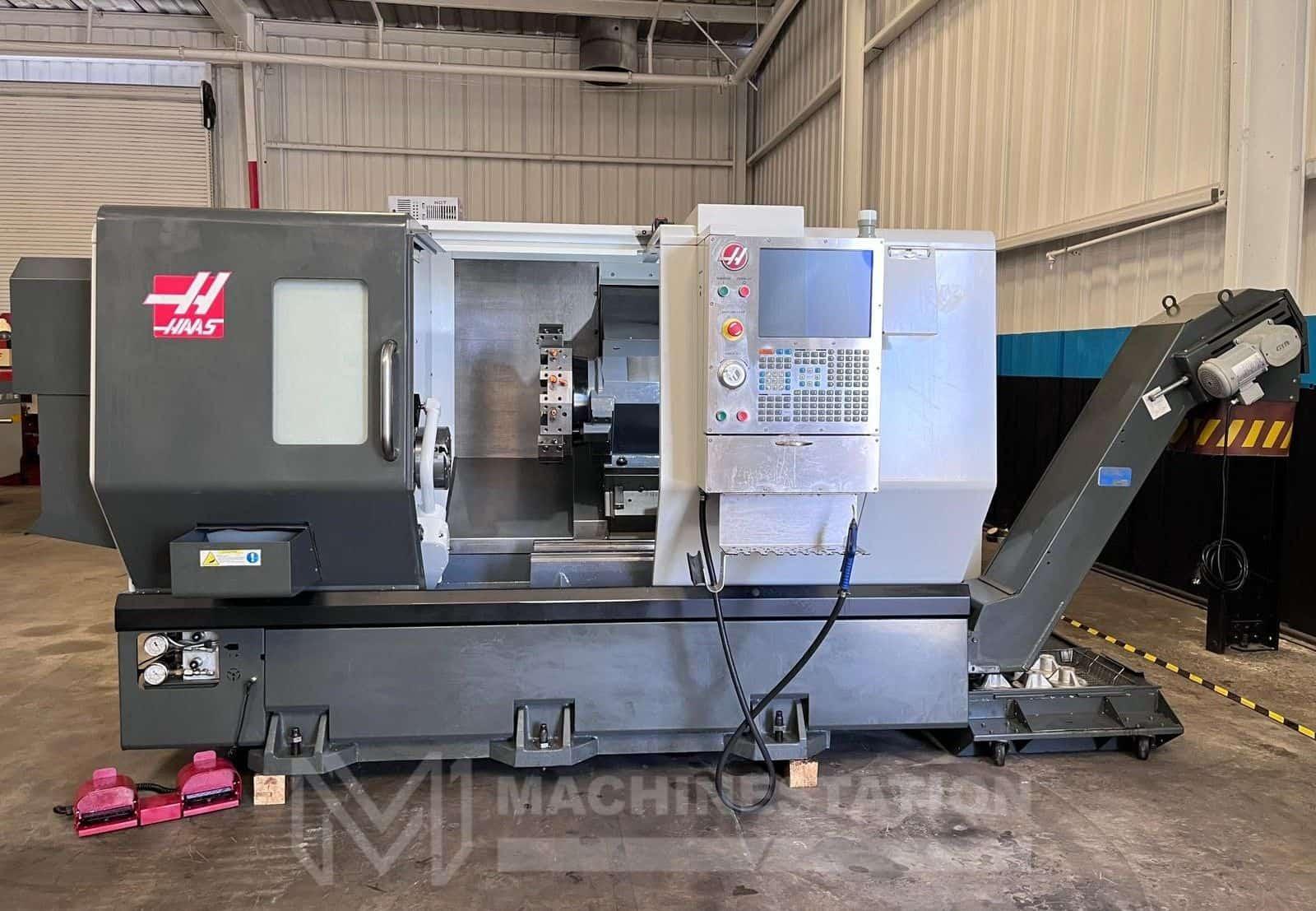

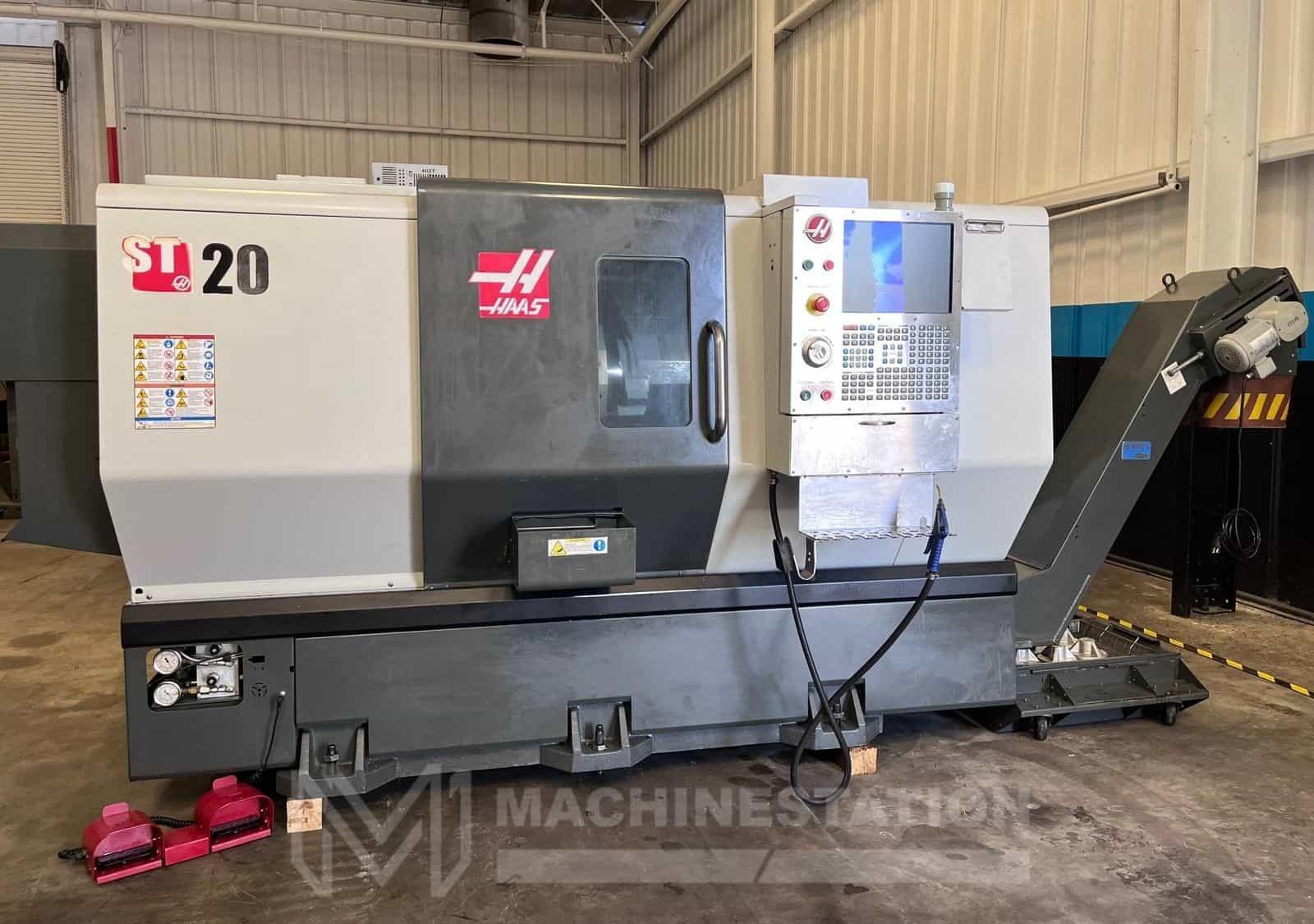

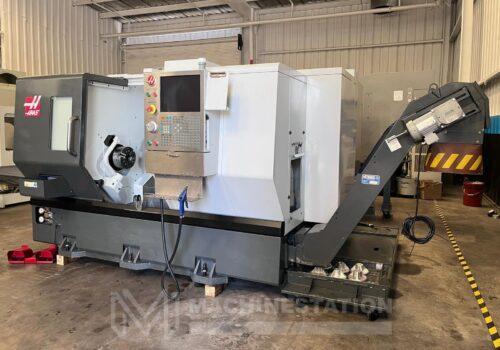

Haas ST-20 CNC Turning Center – 2015

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
ST-20
Stock #
112772
Year
2015
Condition
Not specified
Location
Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Haas
Model: ST-20
Year: 2015
Condition: Used – Excellent



Equipped With:

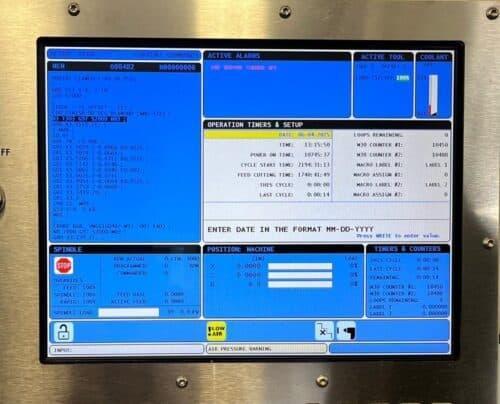

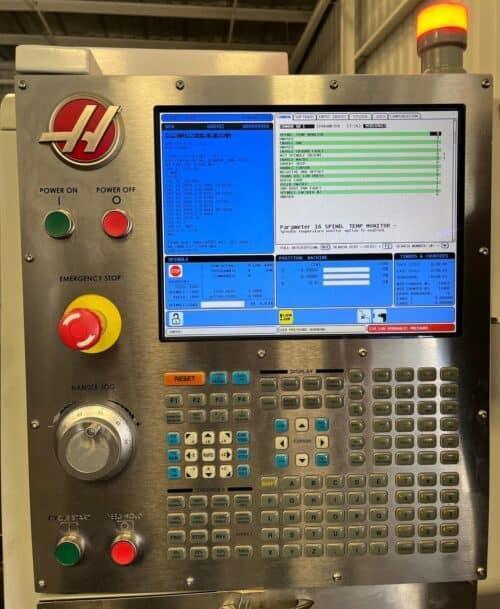

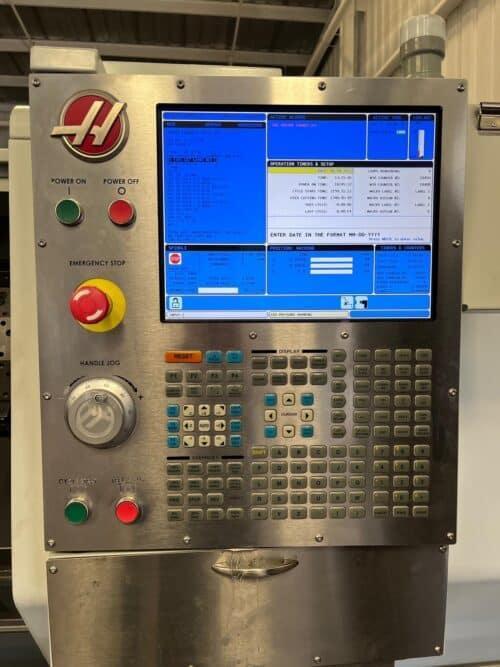

Haas CNC Control

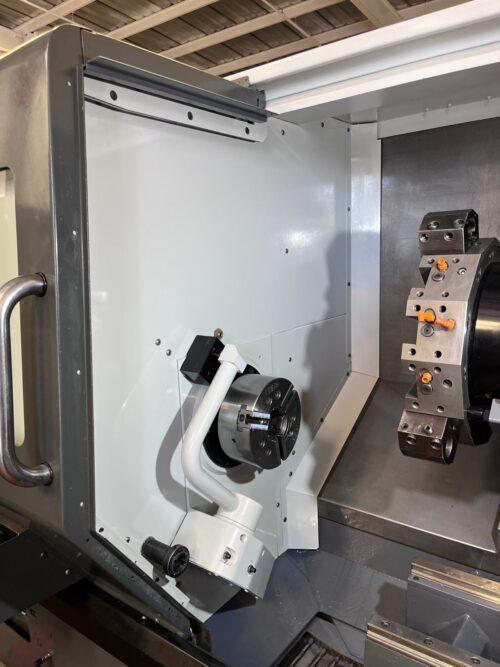

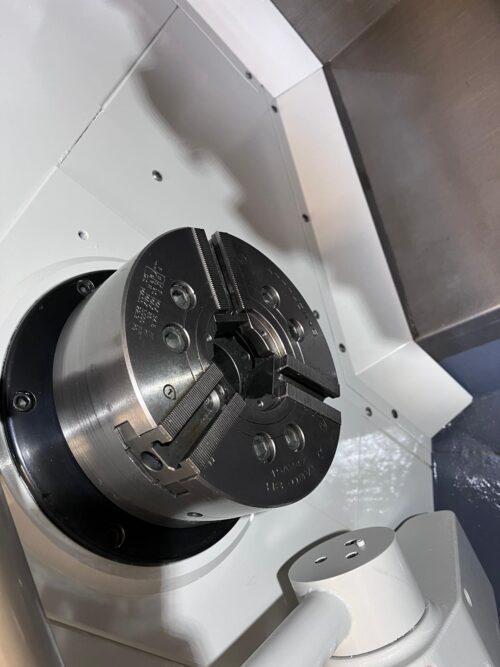

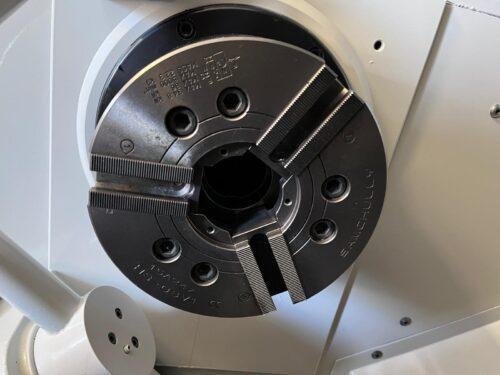

8” 3-Jaw Hydraulic Chuck
A2-6 Spindle Nose

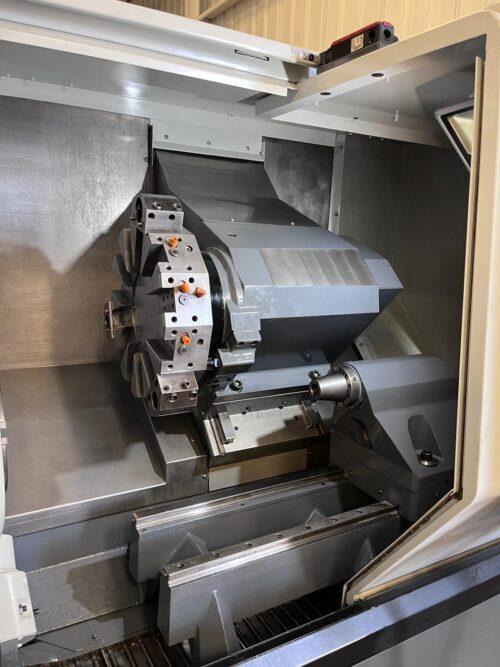

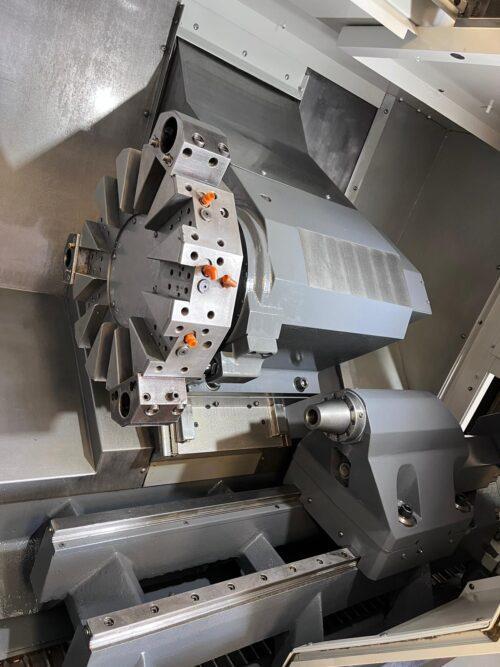

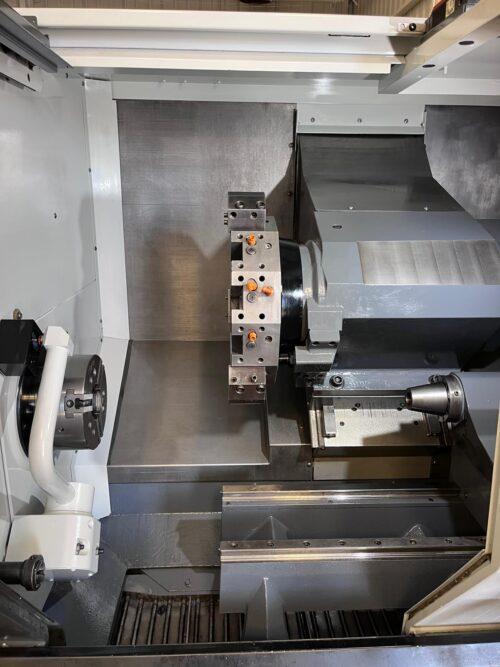

12 Station Automatic Turret
Tool Presetter (Upgraded $5,895 value Included) – Speeds up Changeovers and Setup
Part Catcher (Upgraded $3,595 value Included) – Streamlines Part Handling
Visual Part Programming System & User-Definable Macro
Rigid Tapping

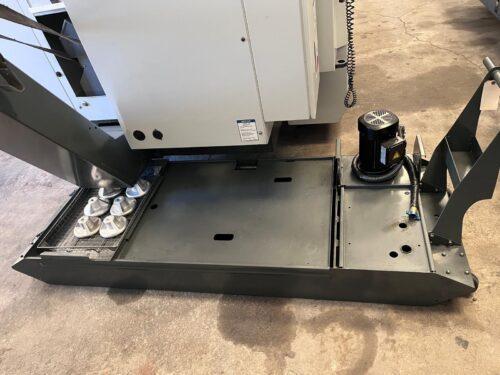

Coolant Tank with Pump
Oil Skimmer (Upgraded $895 value Included) – Keeping Coolant Tank Free of Tramp Oils
Programmable Hydraulic Tailstock (Upgraded $8,195 value Included) – Excellent For Longer Parts
Bar Feeder Interface – Enabled

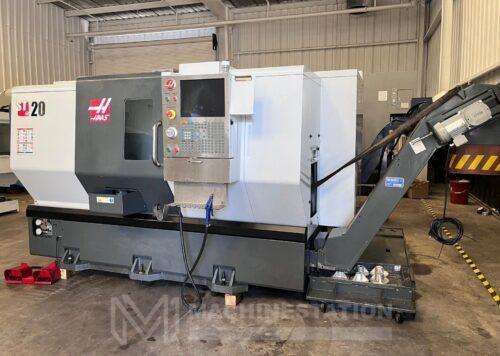

Belt Type Chip Conveyor (Upgraded $5,895 value Included) – For Efficient Chip Removal

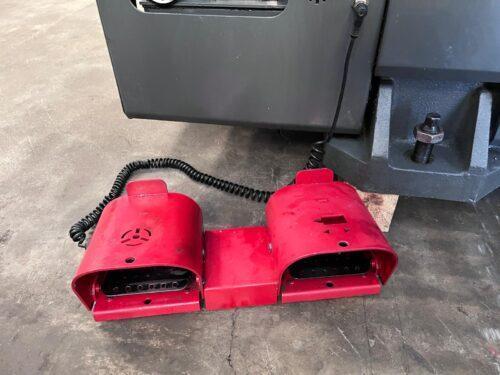

Foot Switches
Levelling Pads

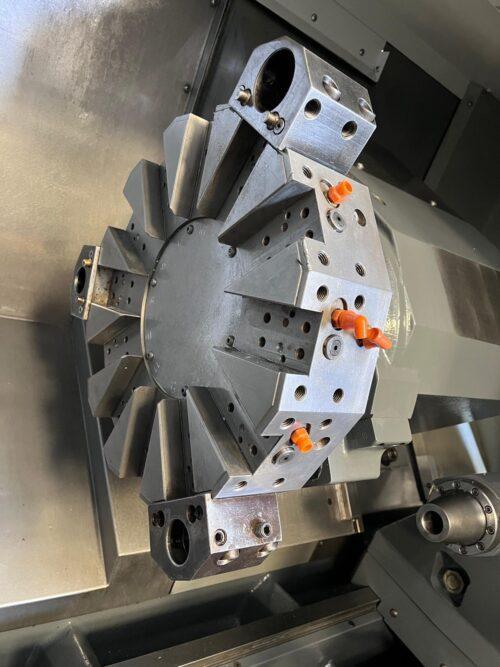

(3) Boring Tool Holders are Mounted on Turret (As shown in the images)



Capacity:
Max Turning Diameter : 13.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 22.5″
Max Bar Capacity : 2.50″



Travels:
X Axis Travel : 8.4″
Z1 Axis Travel : 22.5″



Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM



Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP



Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Turret Holders Type: BMT



Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″



General:
Air Requirement: 4 scfm @ 100 psi
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 142.5″ x 90″ x 92″ High
Machine Weight: 8820 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?
