12,000# Atlas Bundle Turnover

Brand
ATLAS
Category
Coil Handling Equipment
Type
Upenders / Down-Enders
Model
Not specified
Stock #
11838
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

YEAR: 1995

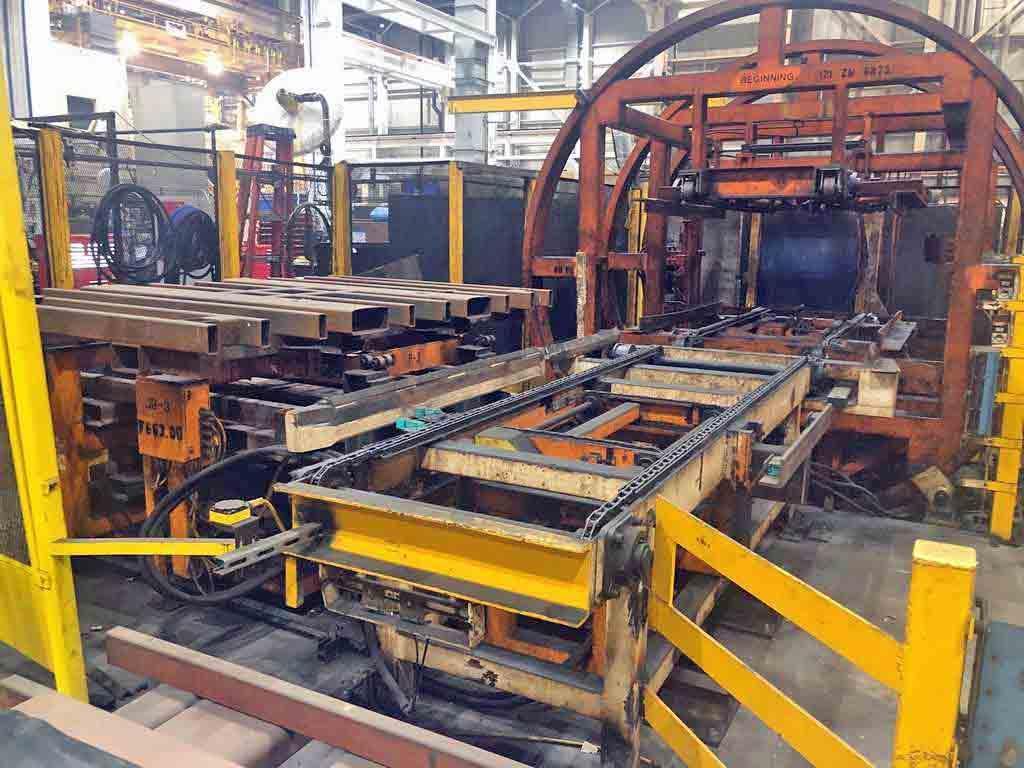

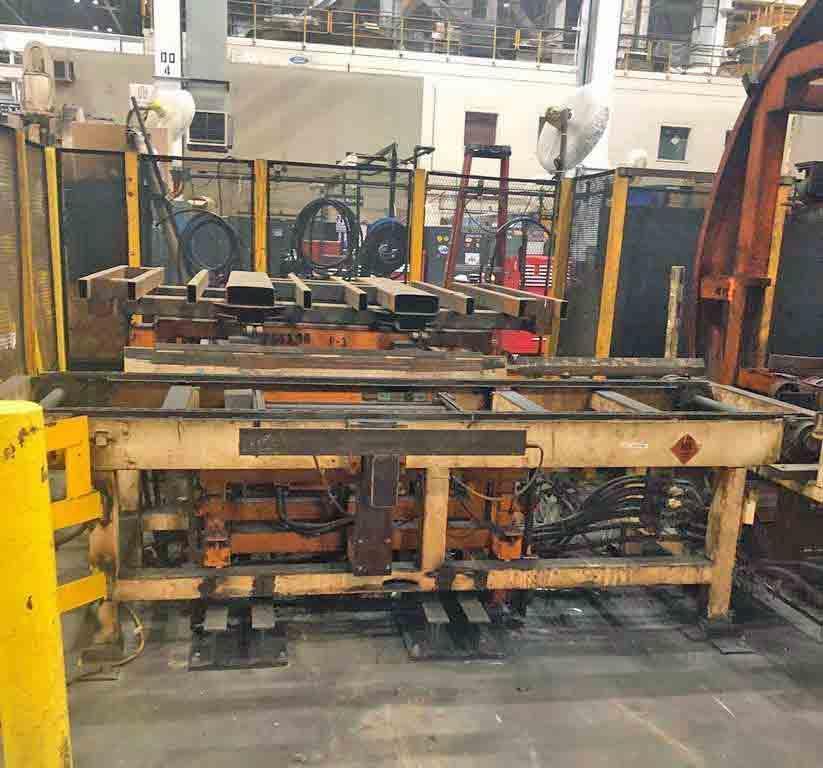

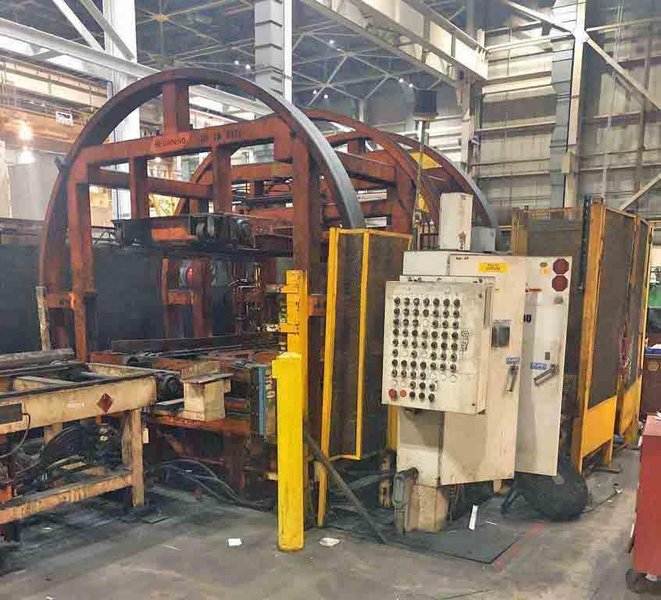

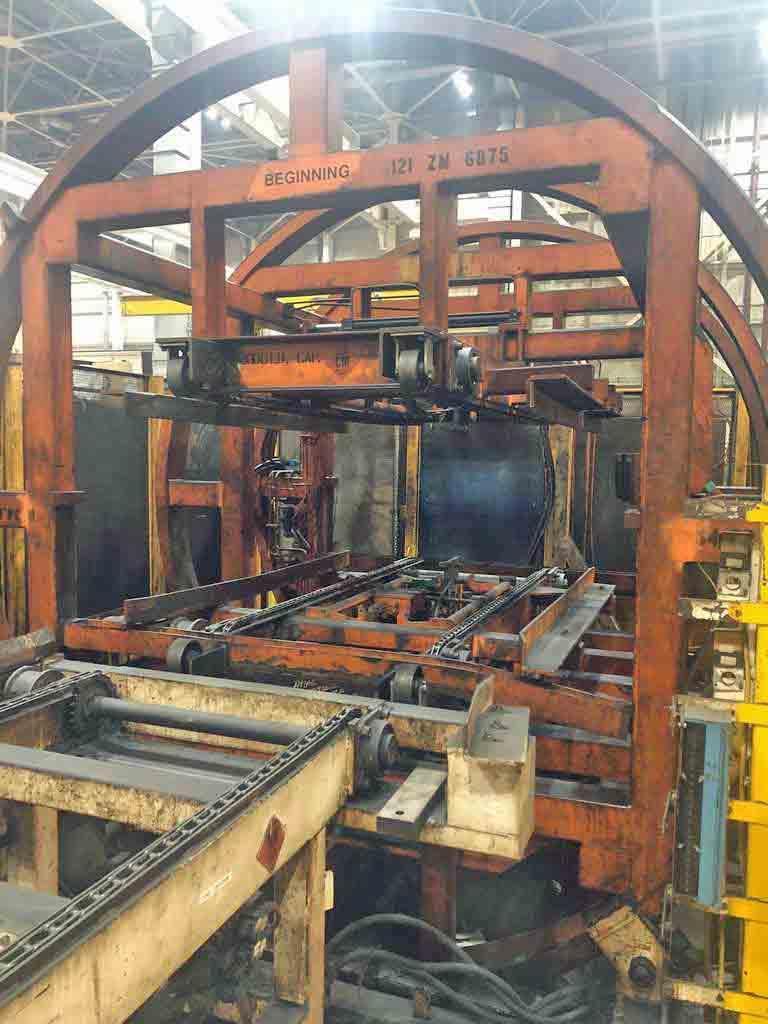

Atlas Bundle Turnover

Capacity: 12,000 lbs.

-Bundle Turnover with 2 Sets of chains for in/out feed of material.
-Gap (Distance between conveyor chain when fully open): 36"
-Width (Opening Left to Right between Frames): 89"
-Depth: From frame to frame is 112.50", 94" of Flat Chain
-Pass Height: 53" (to be confirmed)
-2 Sets of rows of chain conveyor
-Clamping via (4) Ball Screw Jacks with 20.50" of closure

-Chain Conveyor:
Right Angle Transfer capability
2 Sets of chain conveyor each direction
Feeds material into the cavity

-Lift Conveyor:
2 rows of chain conveyor

-Overall Dimensions: Approx. 15' L x 11' W x 11'7" H

No files or videos to display
