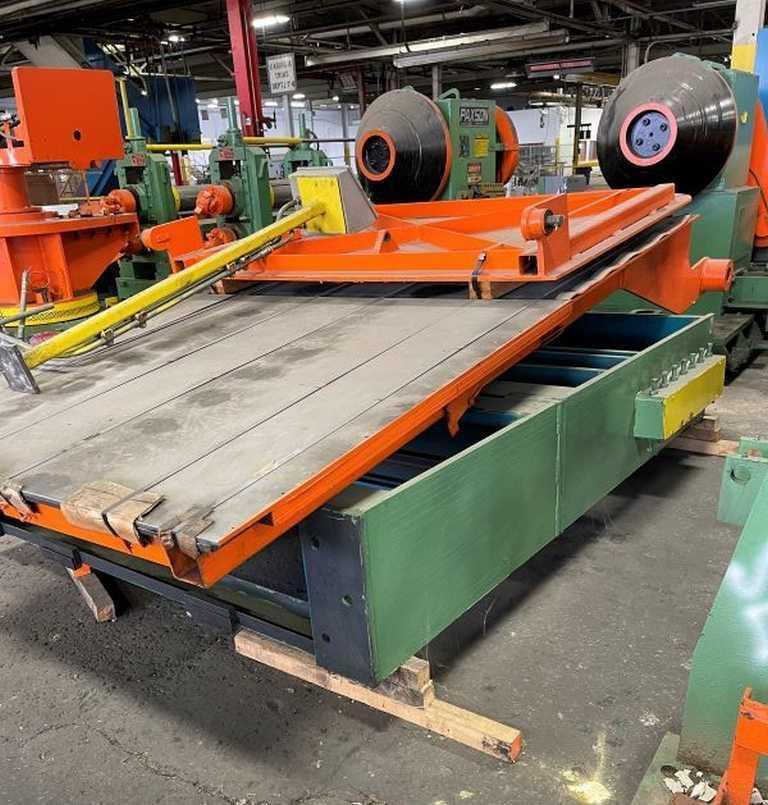

72" x 9.00" x 60,000# Paxson Slitting Line

YEAR: 1970

Driven Head Loop-Type Slitting Line

Coil Weight: 60,000 lbs.
Coil Size: 20" to 24" ID x 72" OD
Line Direction: Left to Right
Year: 1960 - 1970's (Updated Controls)

Consisting of the following;

-Entry Coil Car:
Above Ground "L" Type
Self-Contained Hydraulics
Electric Cable Reel
Pushbutton Control

-Uncoiler:
Double Cone Type
Hydraulic Motor Threading Drive
Water Cooled Brakes on each Head
Slide Bases

-Peeler Table:
Hydraulic Cylinder Operated

-Pinch Rolls:
Adjustable Side Guides

-(2) Slitter Heads:
9" Dia. Arbors
Two Drop in Heads
75 HP Reliance DC Motor, 650/2100 RPM, 500 V

-(2) Scrap Winders:
Two Motor Driven Scrap Winders
Self-Dumping

-Tension Stand:
Drag Board Type

-Recoiler:
20" Dia. Drum
Hydraulic Clamp and Expansion
Hydraulic Pushoff
Overarm Separator
100 HP DC Motor, 650/1950 RPM, 500 V, W/Blower

-Exit Turnstile:
Two Arms
Hydraulic Pushoff

-Hydraulic Power Units:

-Good Controls, Tooling, Spare Parts

-Line is removed and in storage
