60" x 7.00" x 60,000#/45,000# Paxson / Braner Slitting Line

60" x 7.00" x 60,000#/45,000# Paxson Slitting Line

Driven Loop / Injector Head

Material Processed: CR, Galv. Aluminum & Painted
Maximum Entry Width: 60"
Maximum Entry Weight: 60,000 lbs.
Maximum Exit Weight: 45,000 lbs.
Coil ID Range Entry: 20" to 24"
Coil ID Range Exit: 20" to 24"
Line Speed: 80 - 700 FPM (Coil Build-Up Mode)
190 FPM (Bare Drum Speed)
Line Direction: Right to Left

Consisting of the following:

-Entry Coil Car: Paxson (ref# 11821)
Capacity: 60.000#
56" Wide Bed
72" O.D. Capacity
Self-Contained Hydraulics
Retractable Cable Reel

-Uncoiler: Paxson (ref# 11823)
Capacity: 60,000# x 72" wide
Mandrel Type
Hydraulic Expansion
20" - 24" Coil I.D. Range
4 Segment Pumpkin Tooth Mandrel
Slide Base
Water Cooled Brake
5 HP AC Motor Feedup Drive, 1735 RPM, 230/460 V

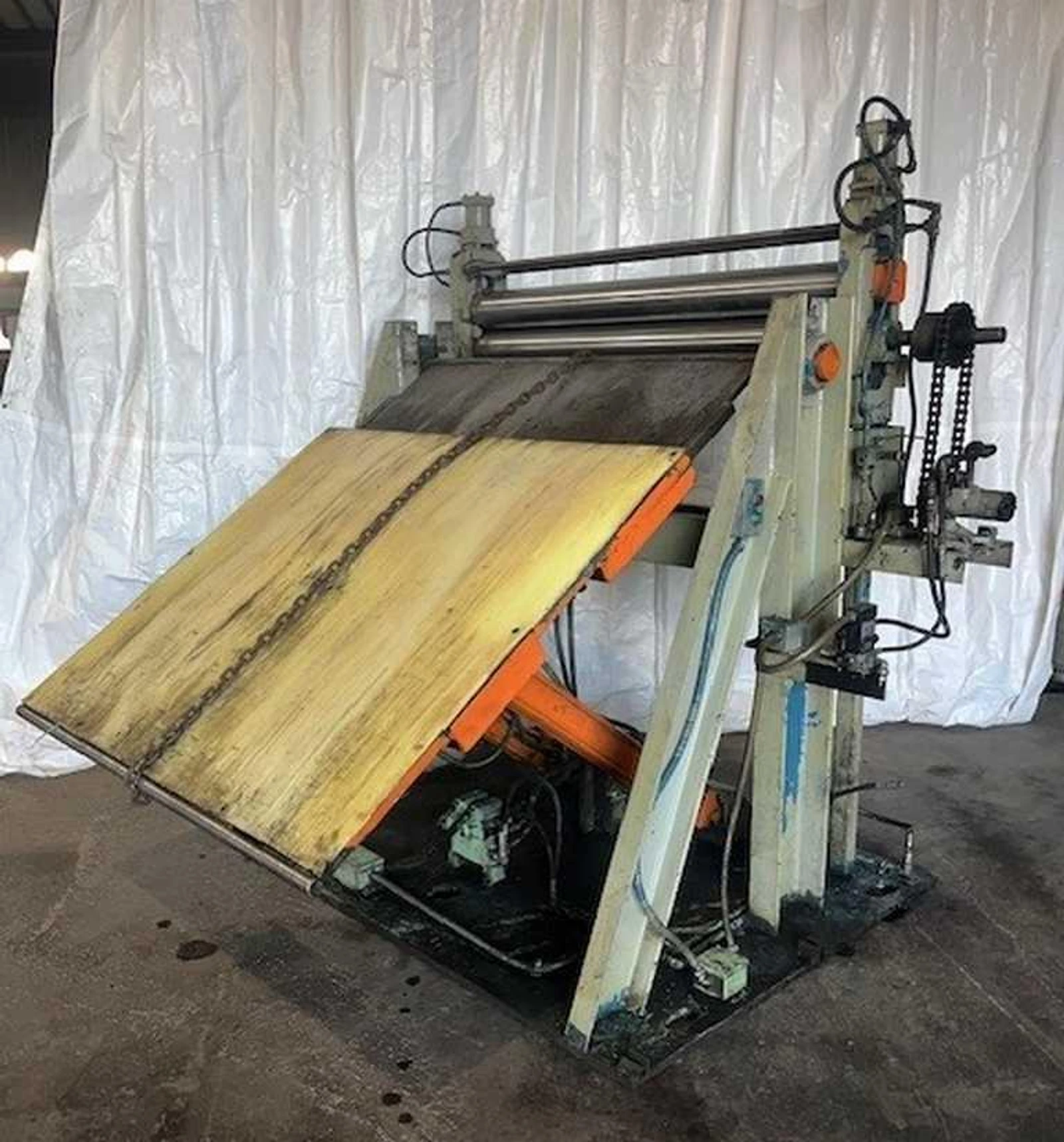

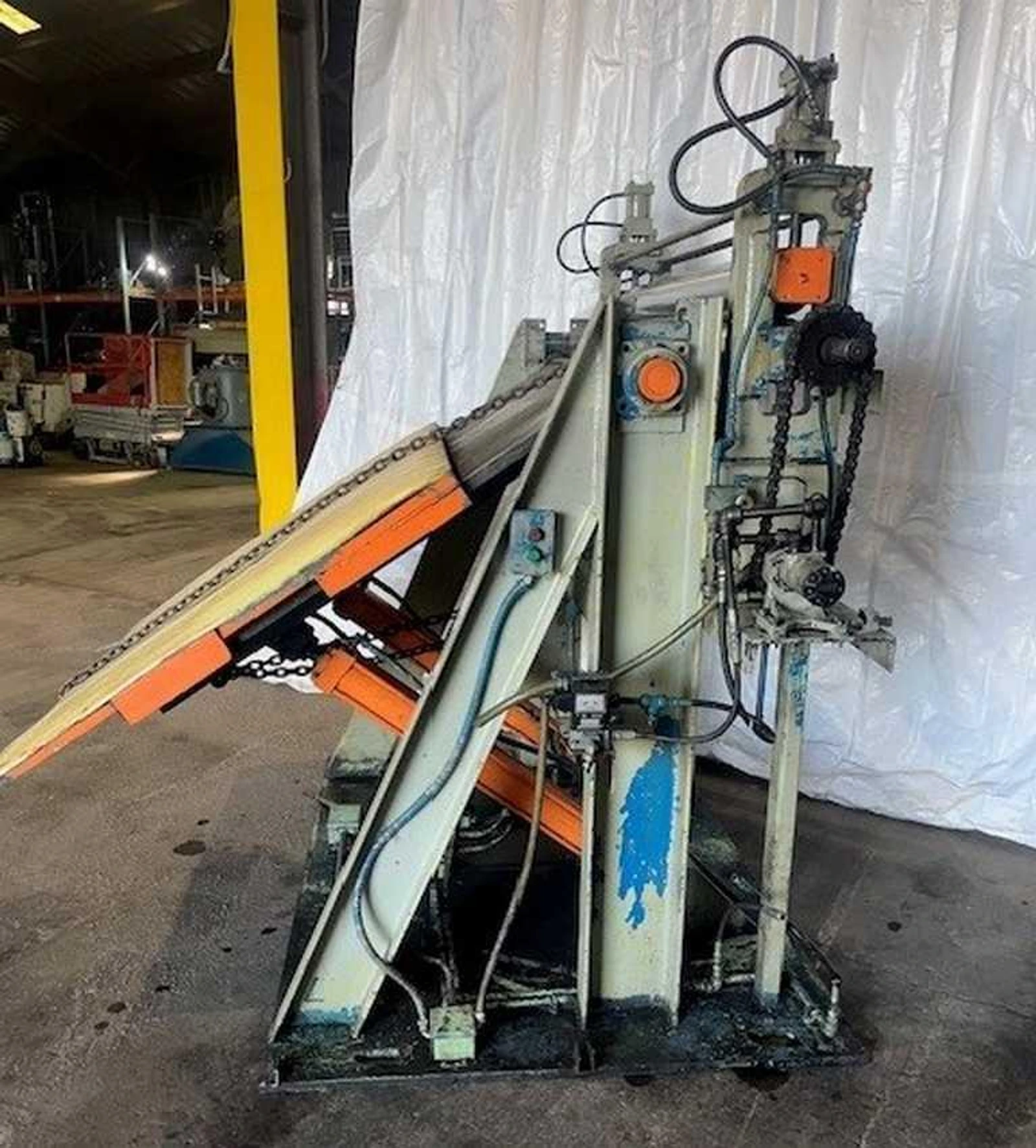

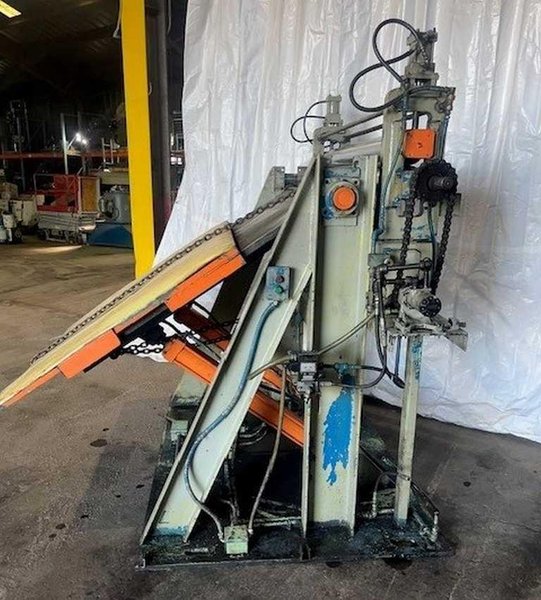

-Peeler Table:

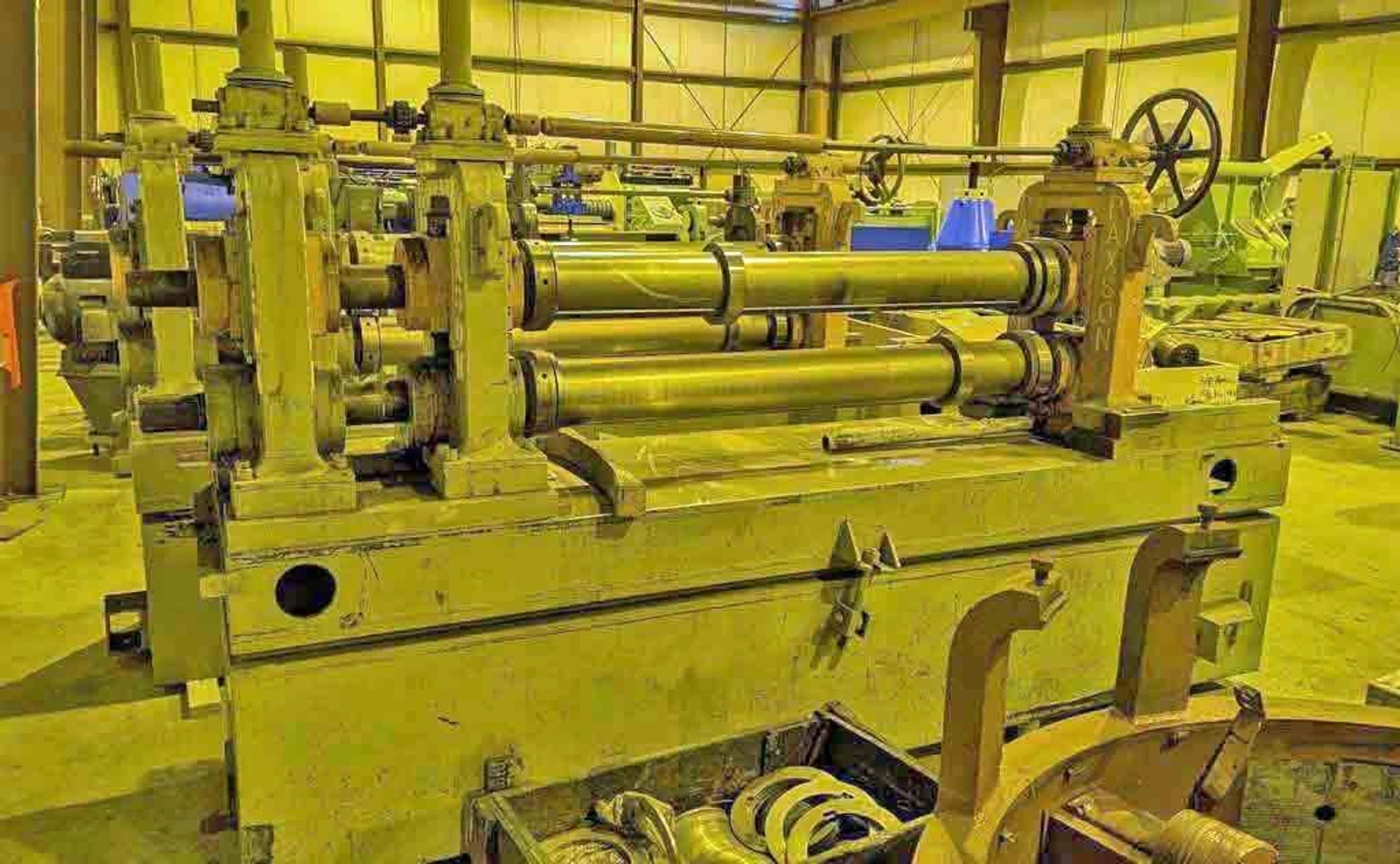

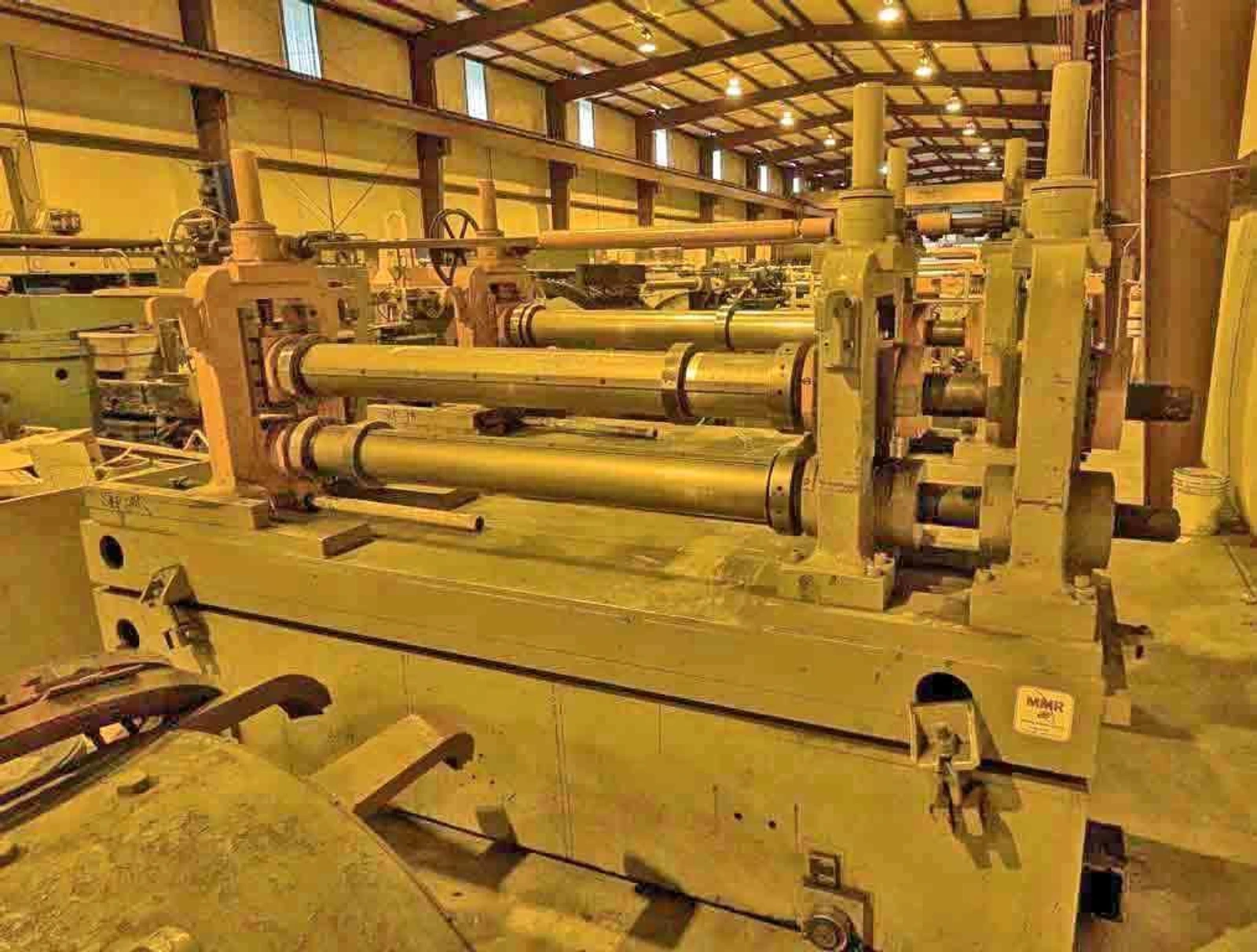

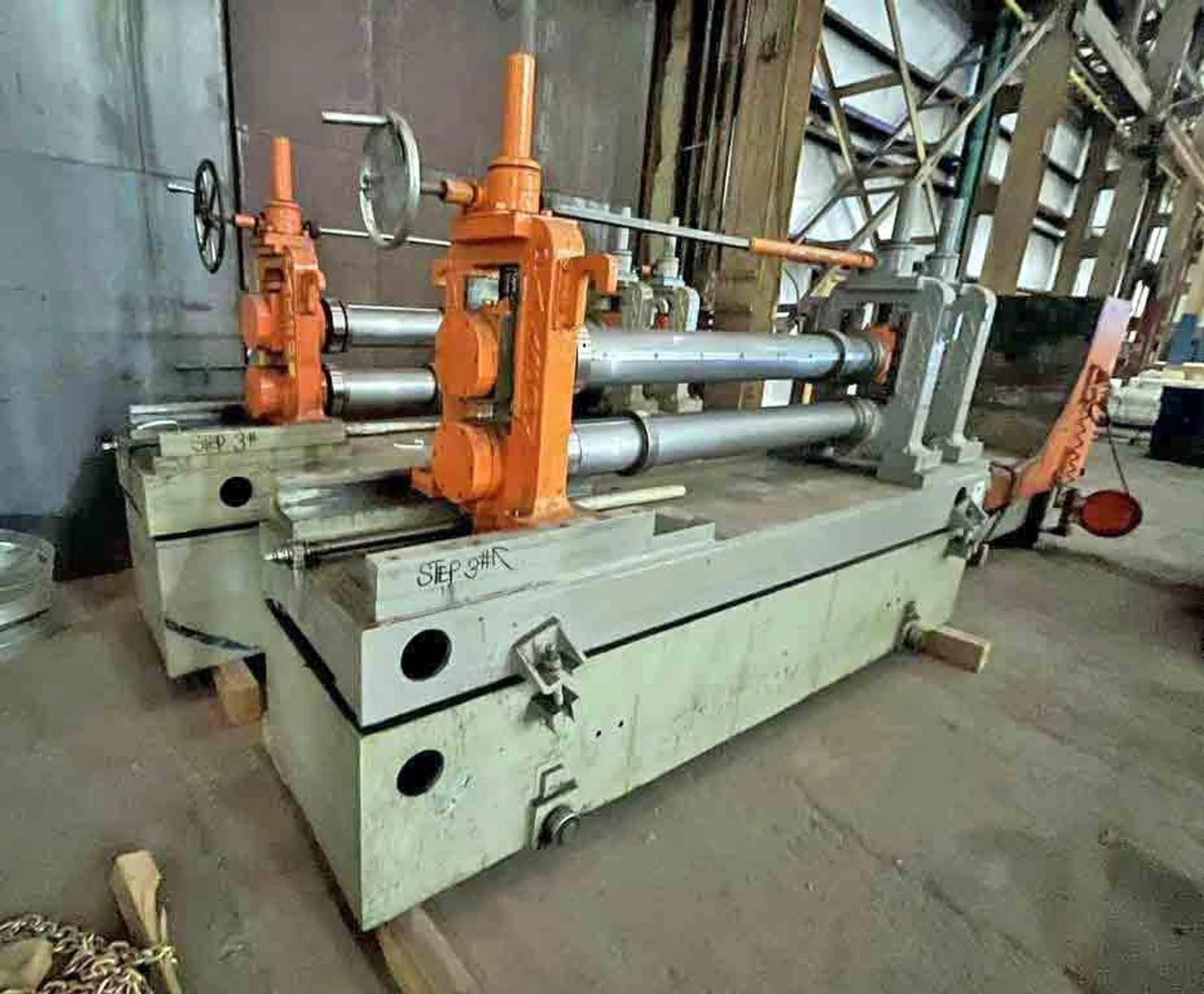

-(2) Slitter Heads: Paxson
Injection Head Design
7.00" Dia. x 62" Face Arbors
Entry Side Guides
100 HP DC Motor, 850/1750 RPM, 500 V
In-Line Reducer w/5.952:1 Ratio
Slitter Tooling

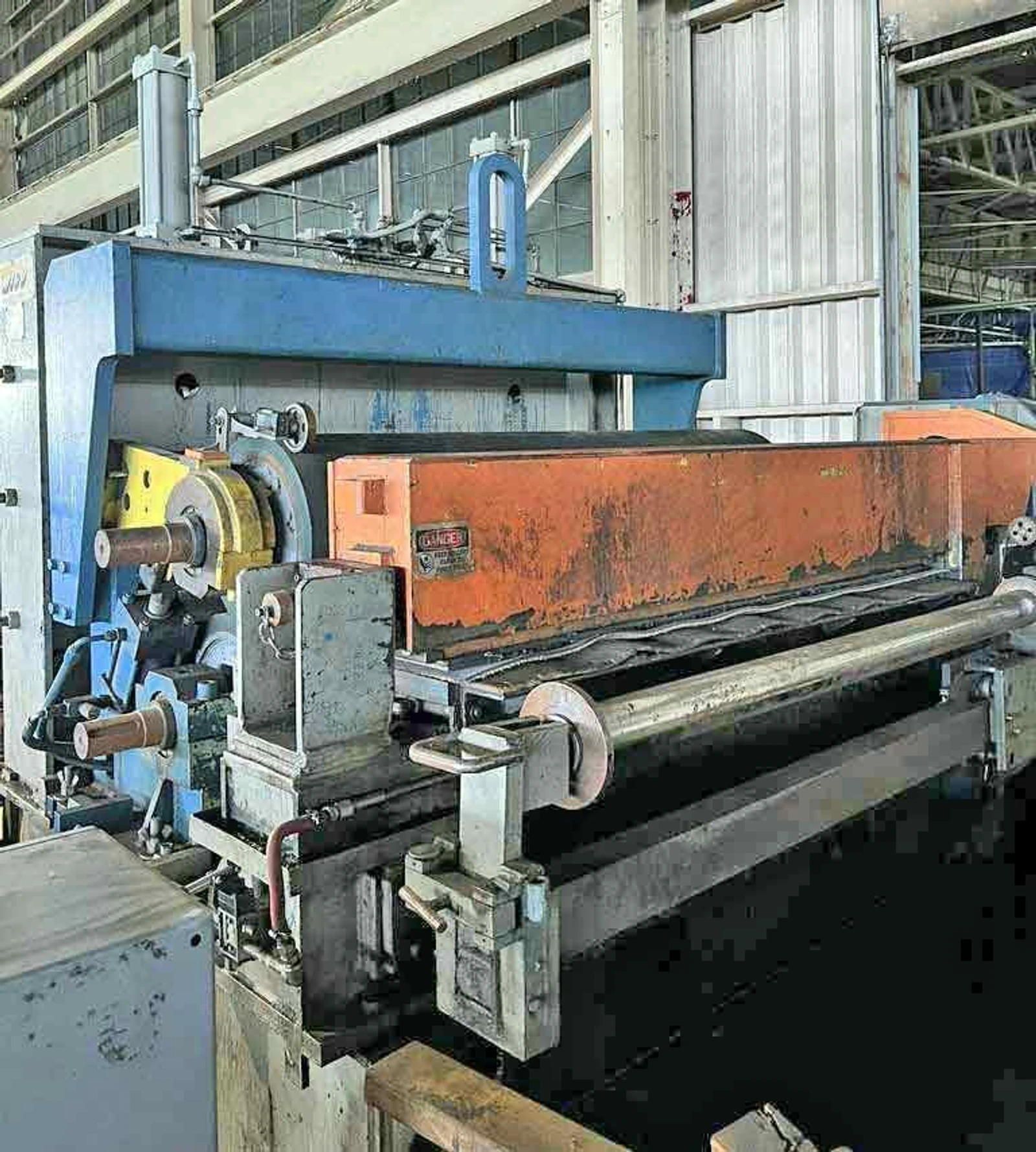

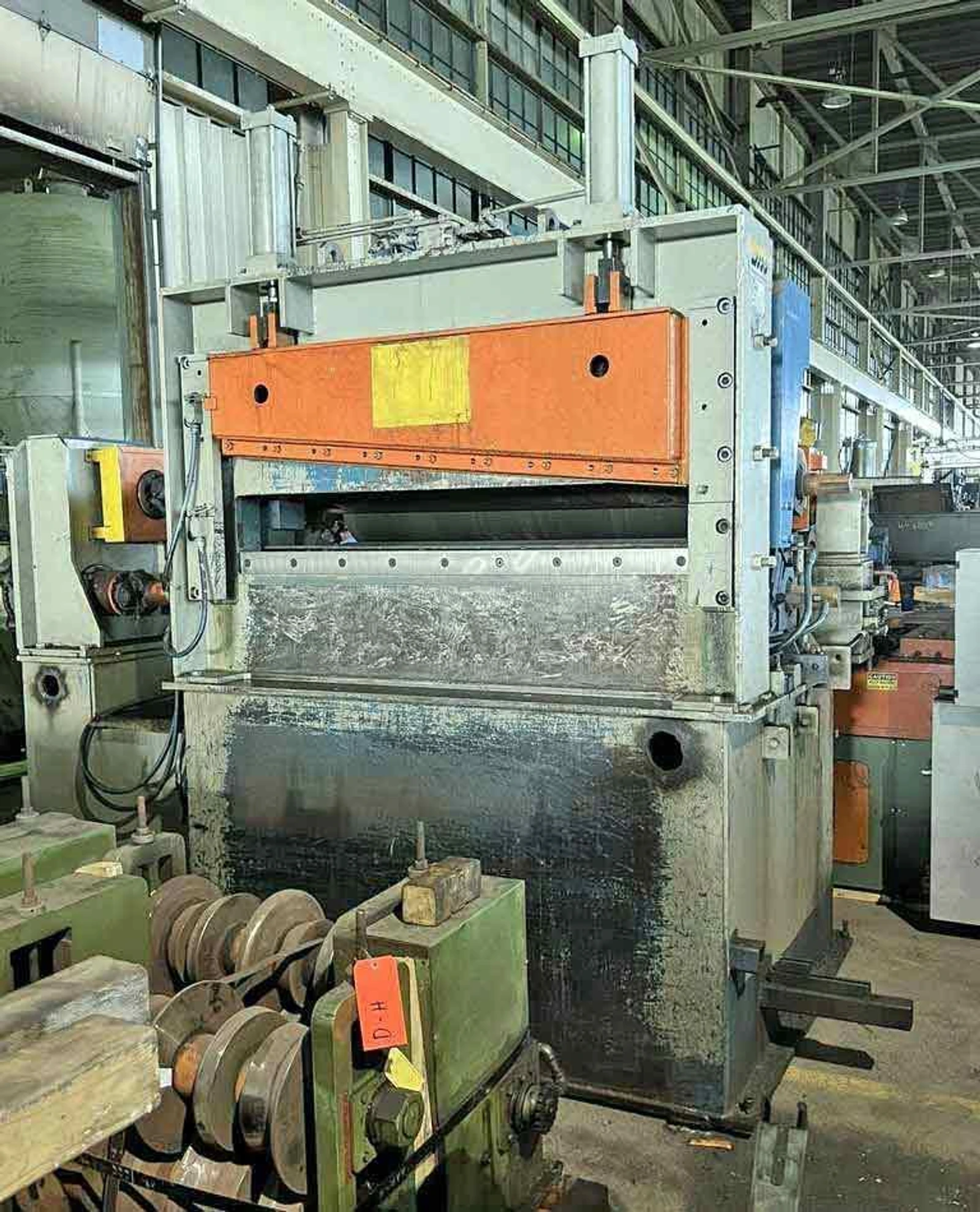

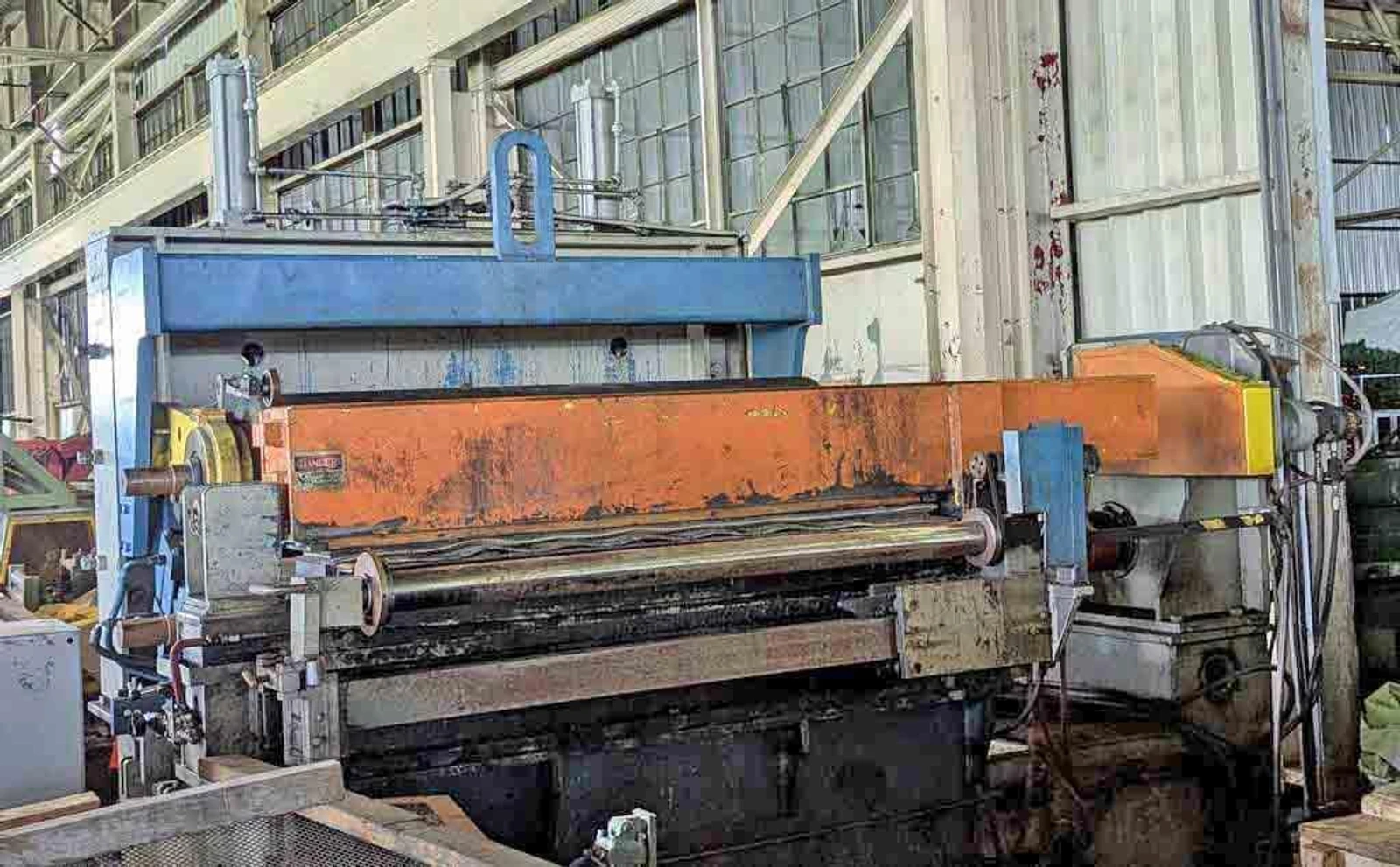

-Tension Stand: Mico
60" Wide Combination Pad and Roll Type
Roll Stand is a Quick Change Style
Entry Separator Tooling Shaft
Cartridge Type
Drag Type Tension Unit w/Air Bladder
Alligator Type, Air Cylinder Open/Close
(2) - 16" Dia. x 66" Face Urethane Coated Rolls
Hydraulic Motor Threading Drive
(2) Eaton 214WCB Water Cooled Brakes
Exit Hydraulic Crop Shear
66" Face 4 Sided Blades
65" Pass Line
Overall Size: 150" L x 77" W x 128" High
23,000 lbs.

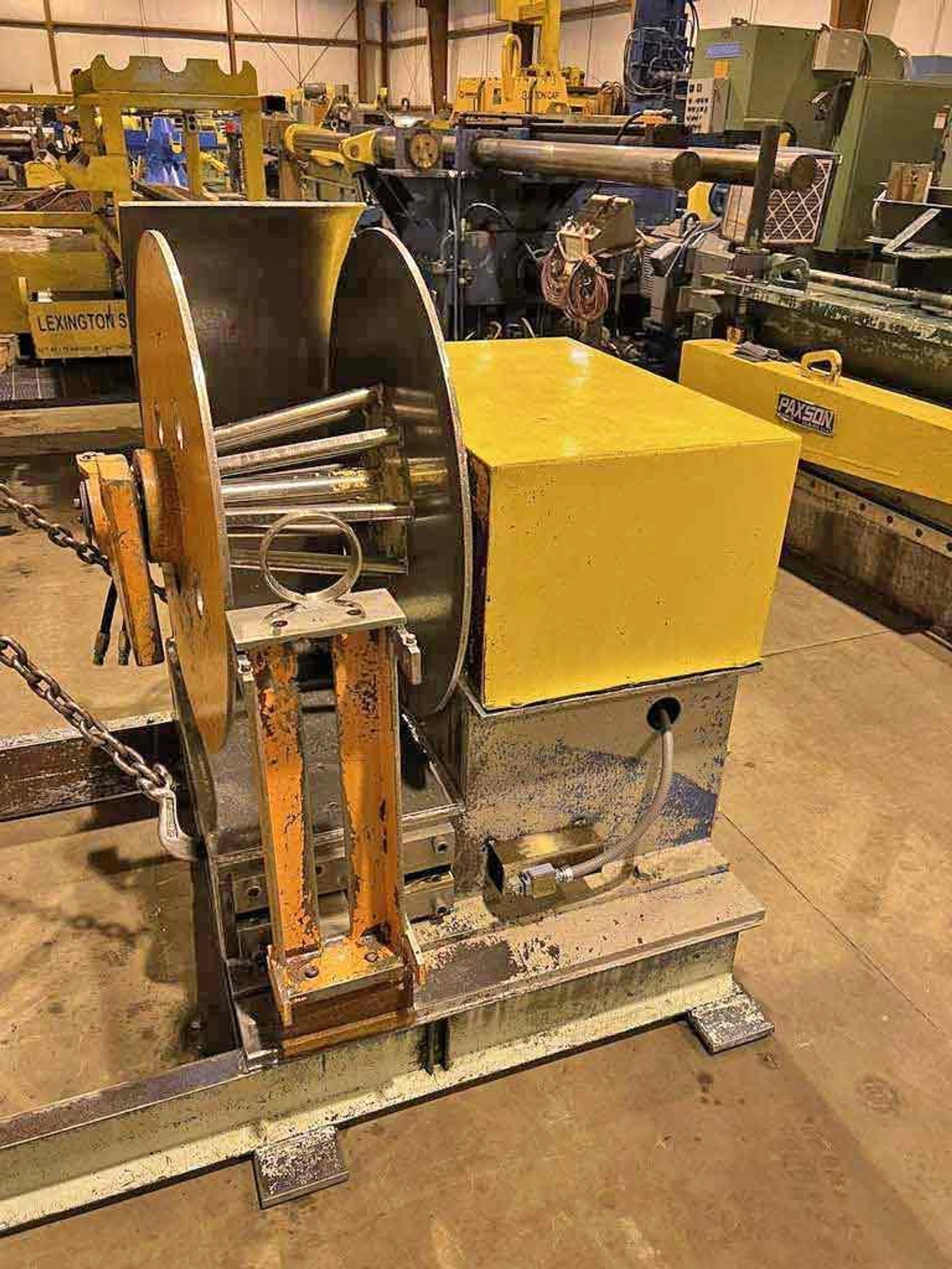

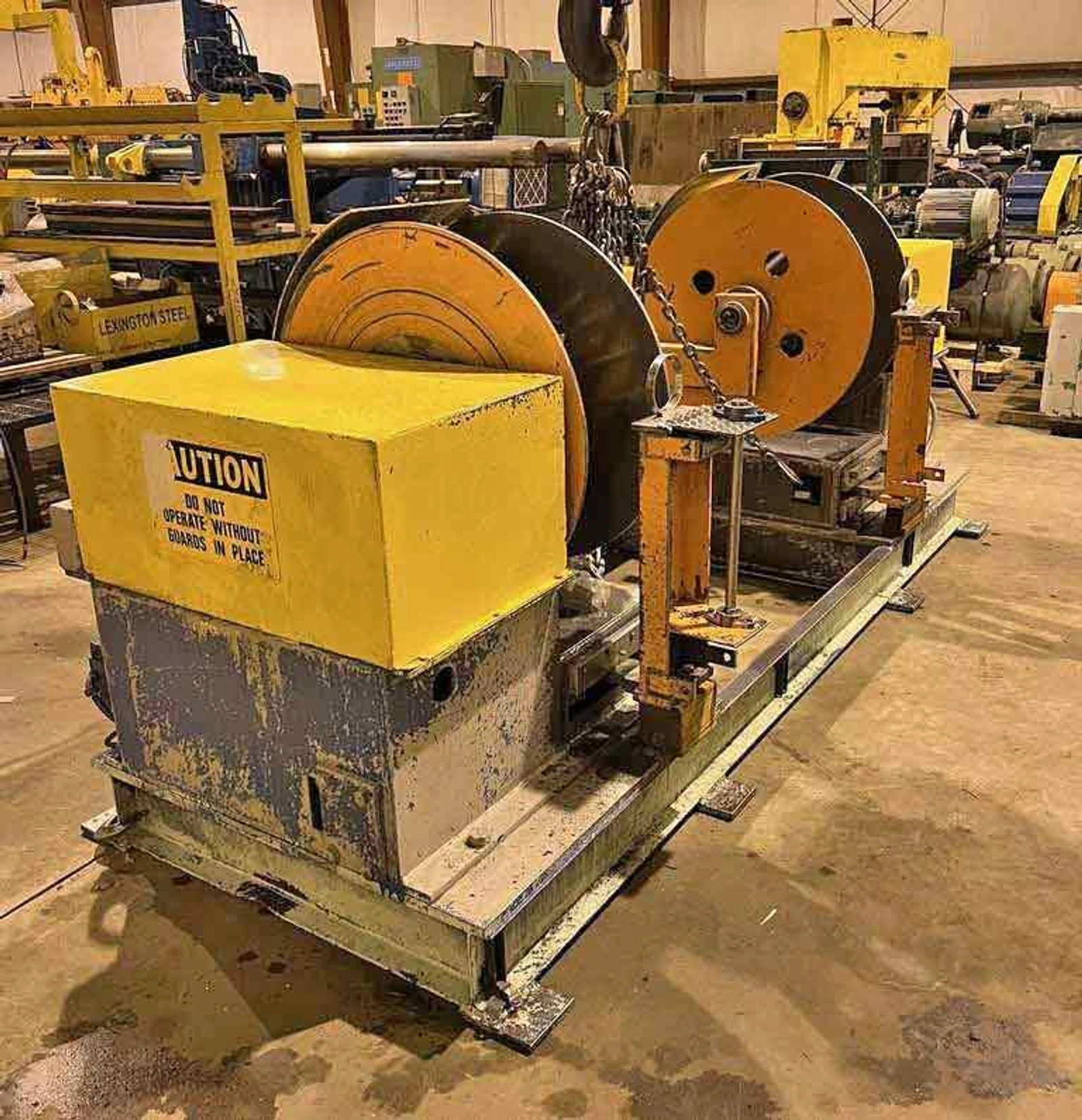

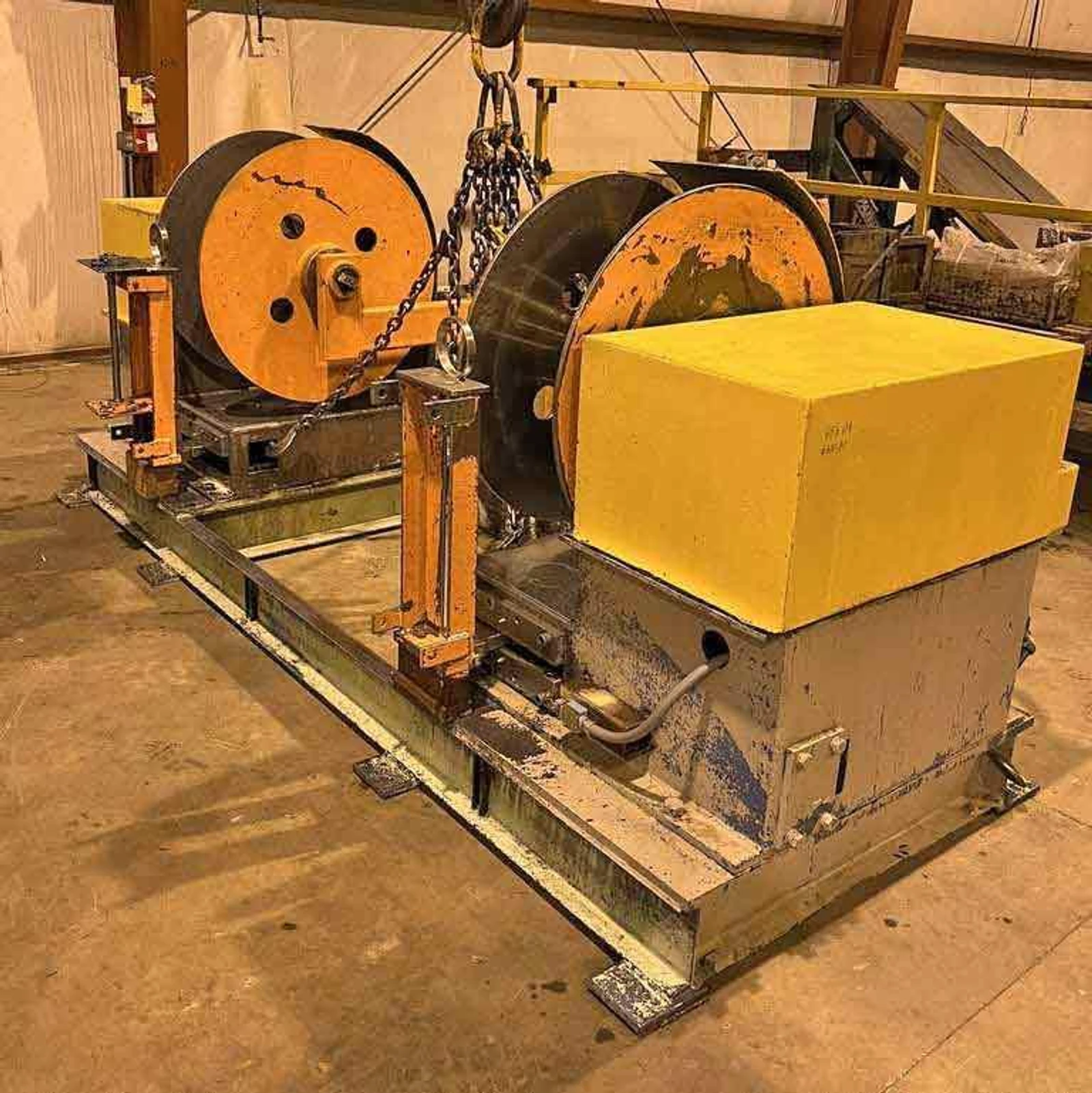

-(2) Scrap Winders:
Approx. 13" W x 32" Dia. Scrap Ball Capacity
Hydraulic Motor Driven
Powered Scrap Dump
Oscillate Wind

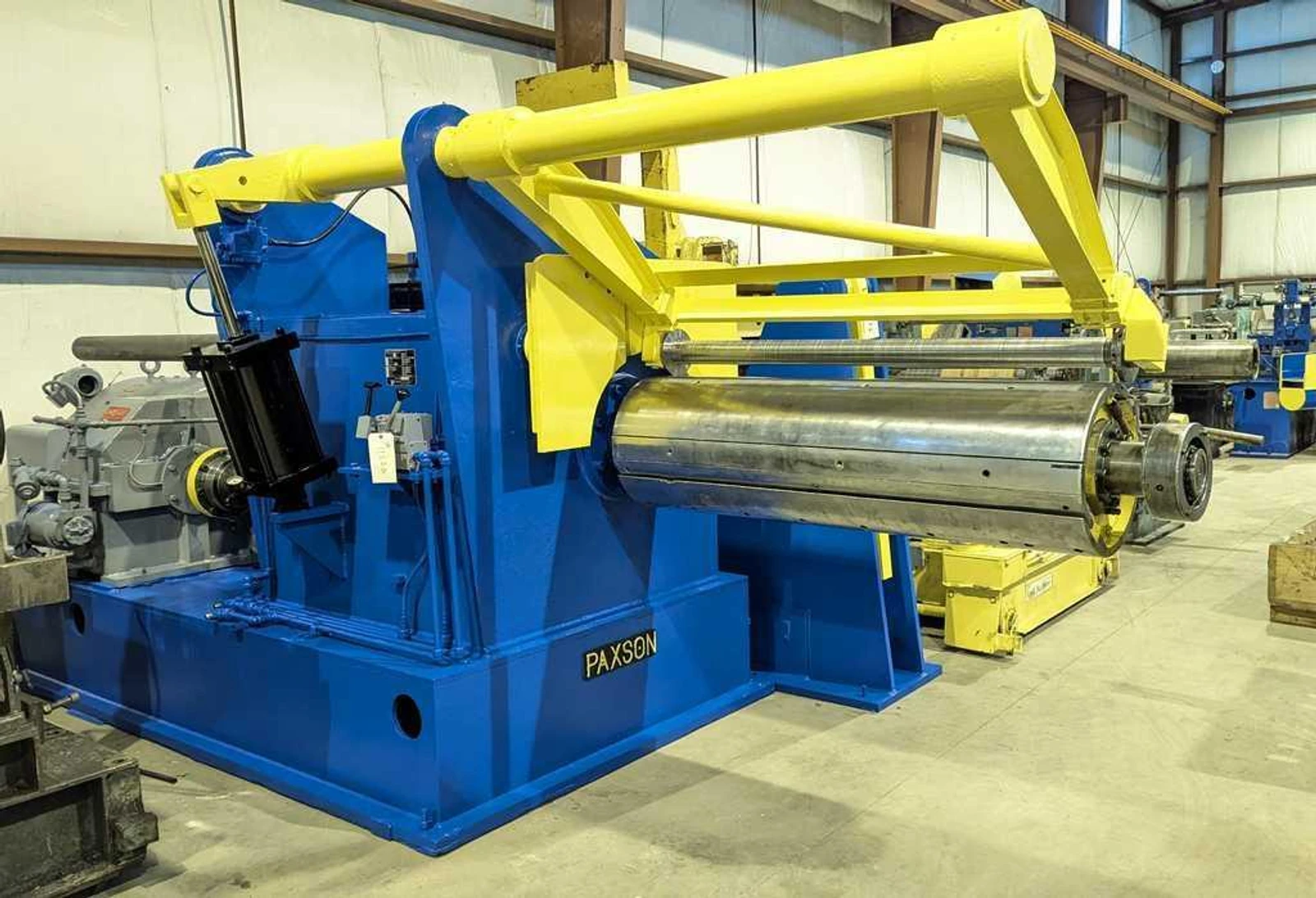

-Recoiler: Paxson
45,000# x 60" Capacity (with Outboard Support)
S/N: 11349-7-8
20" Dia. x 66" Face Drum w/24" pads
Powered Clamp and Expansion
Overarm Separator
Hydraulic Pushoff
150 HP Main Motor, 850/2000 RPM
Main Gear Box w/3.5:1 Ratio (approx.)
Secondary Reducer w/10.8:1 Ratio
Passline: 48" from Floor to center of Drum

-Outboard Bearing Support:

-Less Electrics:

-Removed and in storage: Toledo, OH.
