60" x 7.00" x 40,000# Loopco Slitting Line

Width: 60"
Weight Capacity: 40,000#
Coil I.D. Entry: 19.50" - 24"
Coil I.D. Exit: 20"
Line Speed: 300 and 600 FPM
Line Direction: Left to Right

Consisting of the following:

-Loopco "L" Type Coil Car:
Self Contained Hydraulic Power Unit
Hydraulic Motor Travel

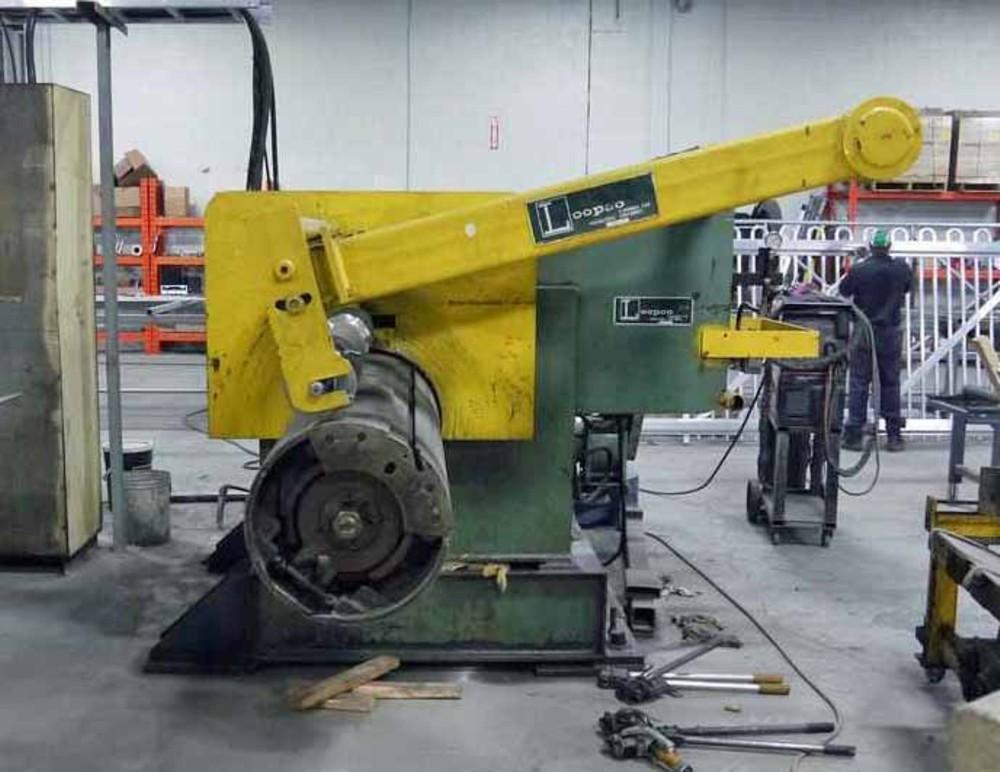

-Loopco Mandrel Uncoiler:
Hydraulic Expansion
Powered Overarm Holddown Roll
Sliding Base
Water Cooled Brake
Feedup Drive

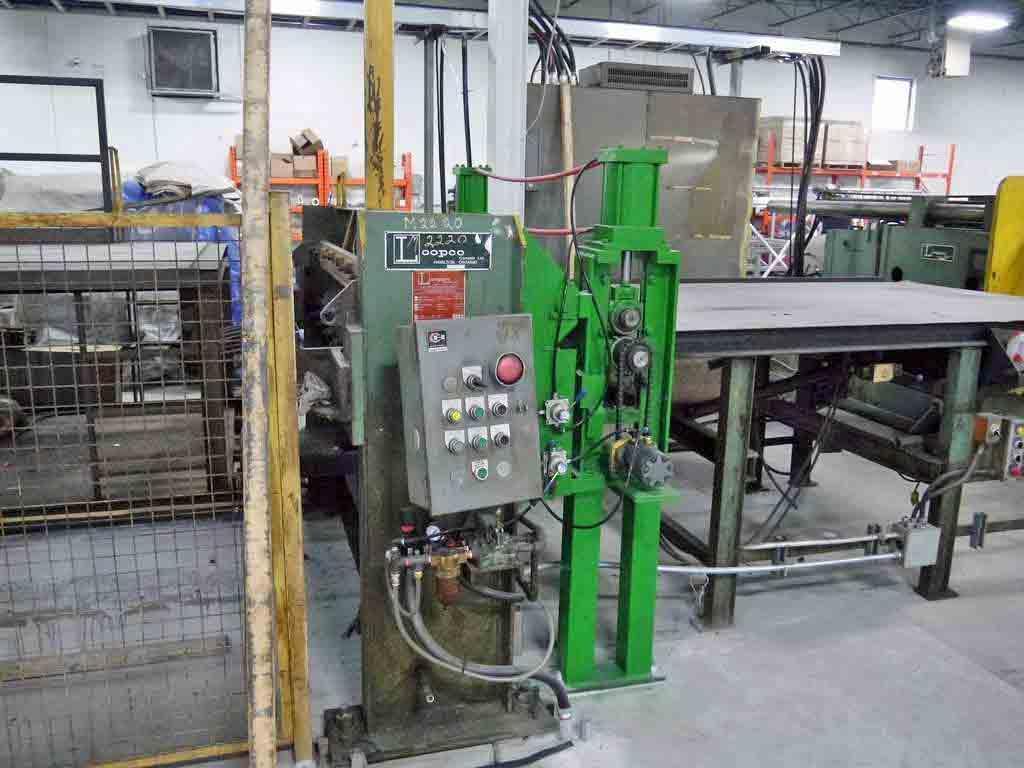

-Loopco Entry Unit:
Peeler Table
Driven Pinch Rolls
Roller Side Guides

-Loopco Slitter Head:
Crane Type Removable (1 Head)
7" Dia. Arbors
AC Gear Motor Threading Drive

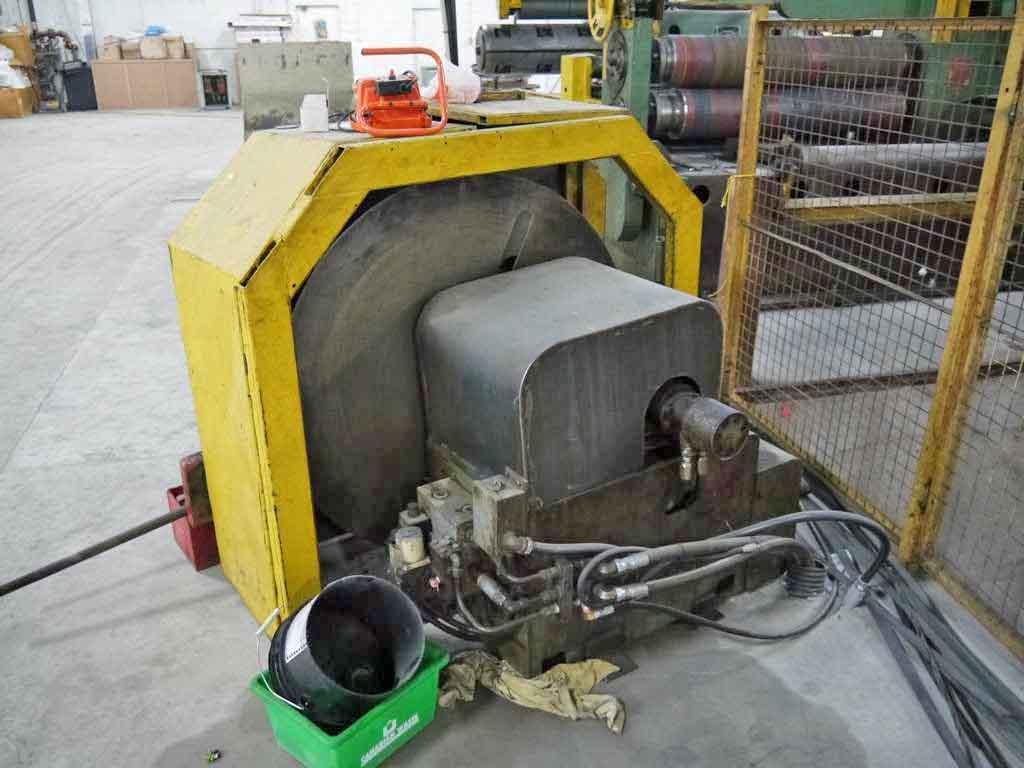

-(1) Scrap Winder:
Hydraulic Motor Drive

-Pit Cross Over Table:

-Loopco Drag Board Tension Stand:
Air Bag Tension Type
Exit Driven Pinch Rolls

-Cross Over Table to Recoiler:

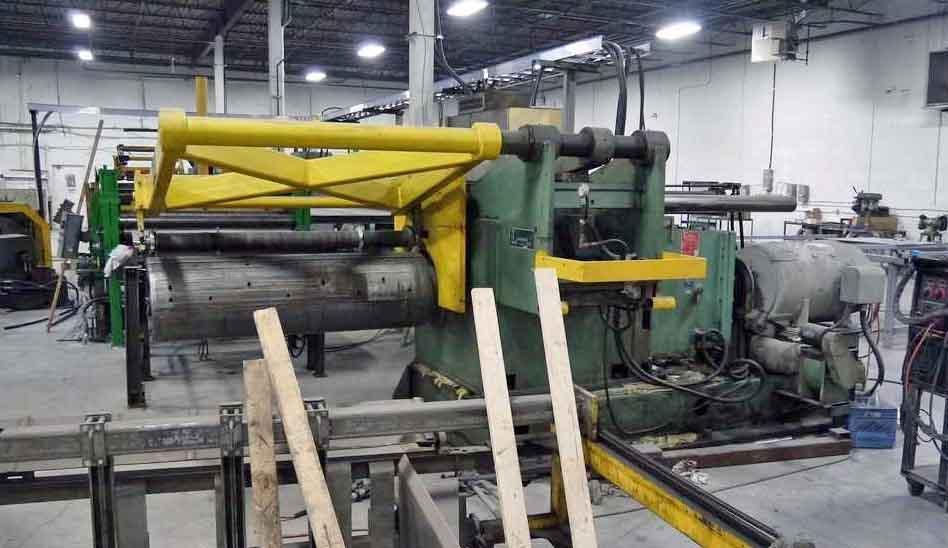

-Loopco Recoiler:
20" Dia. Drum
Hydraulic Expand & Grip
Overarm Separator
2 Speed Reducer w/34.34:1 & 17.17:1 Ratios
75 HP DC Motor, 650 - 2000 RPM, 500 V

-2 Arm Turnstile

-Slitter Tooling and Tooling Cart

-Hydraulic Unit

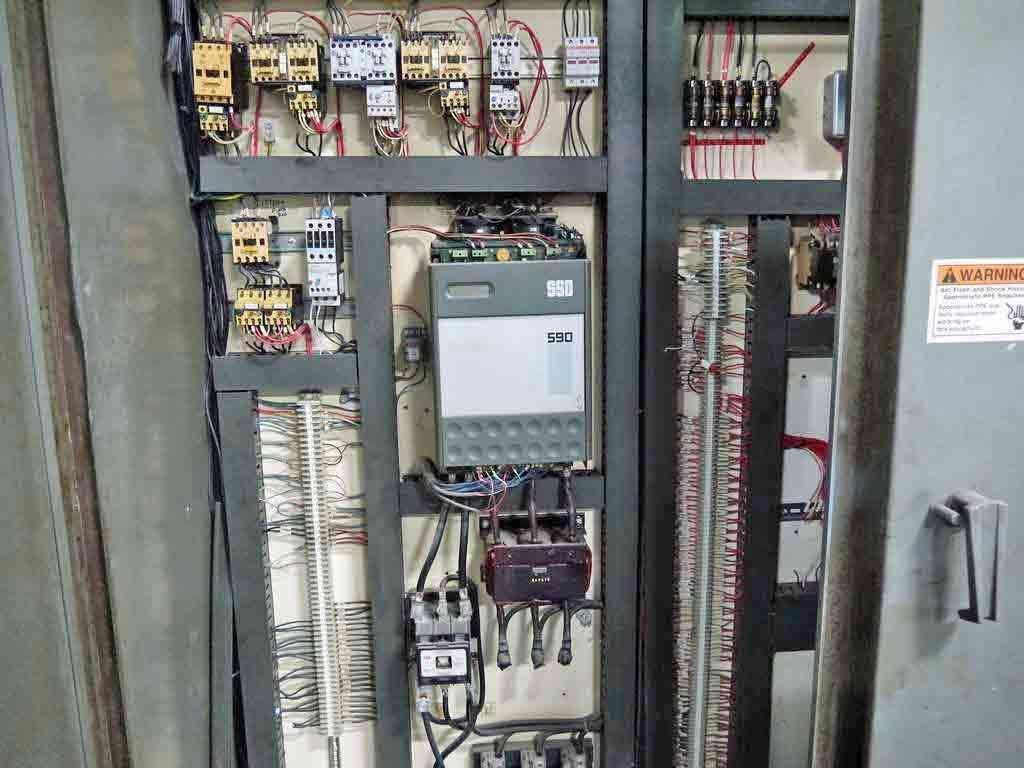

-Controls

-Line is Installed
