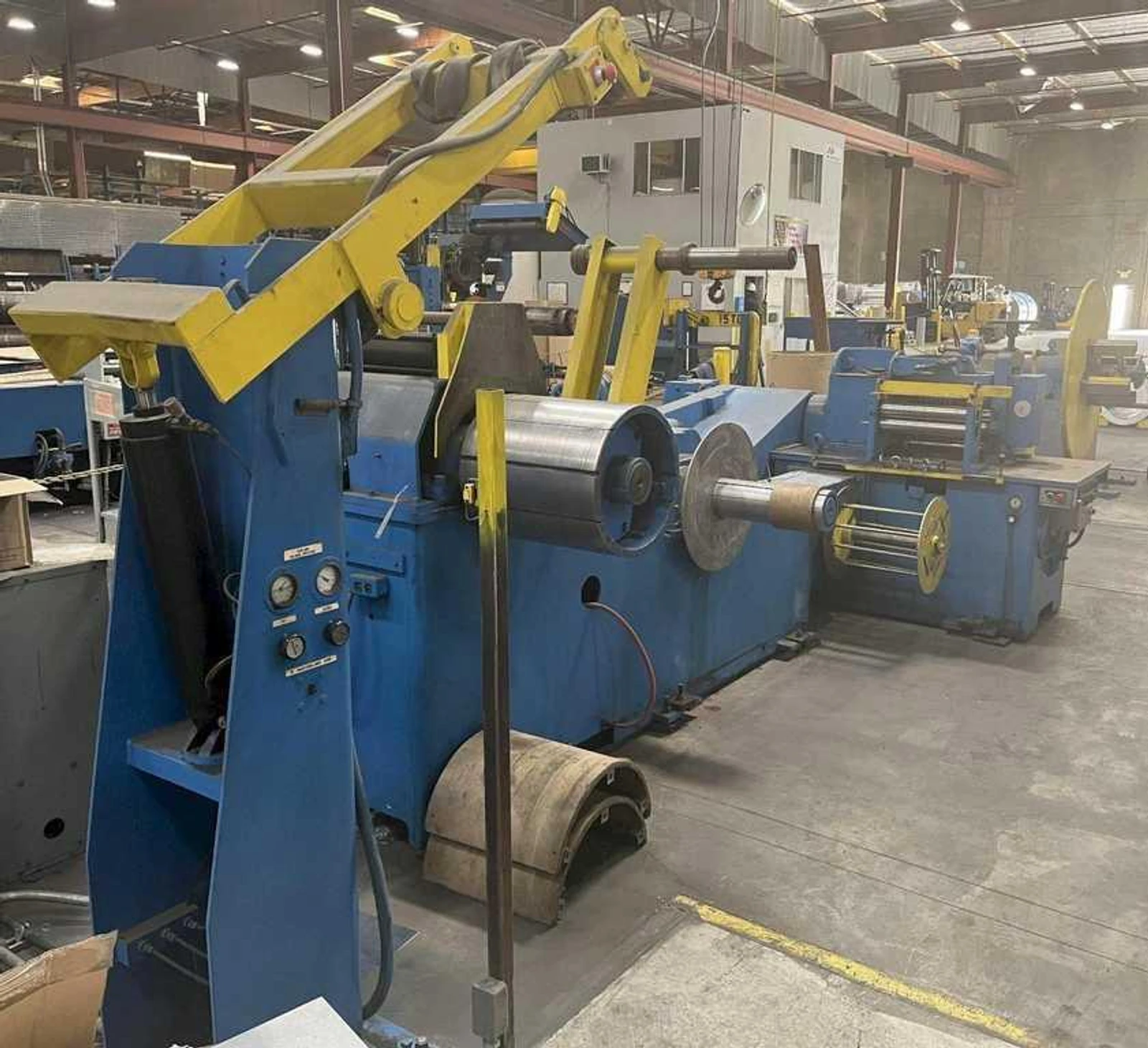

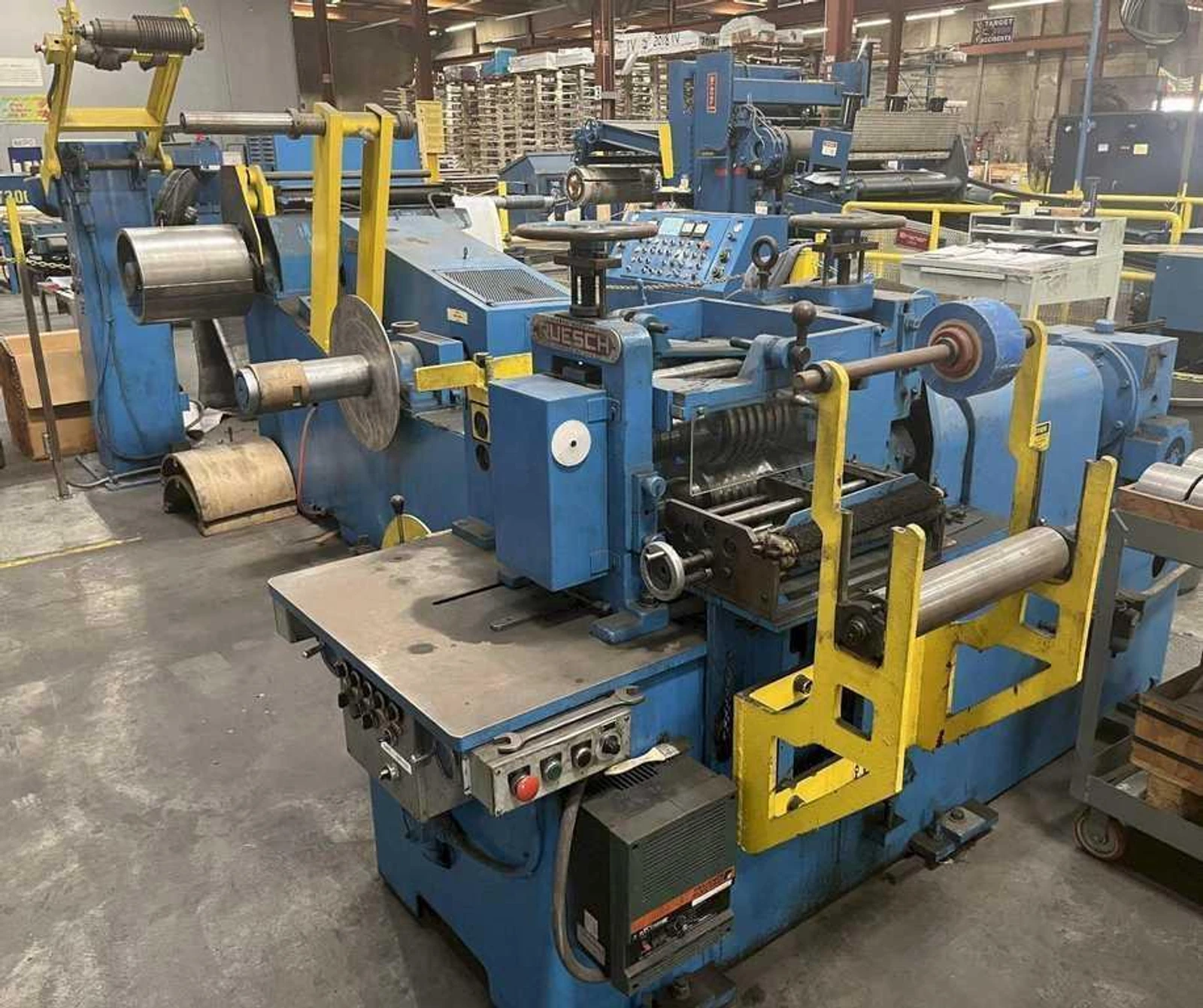

18" x 2.875" x 4,000# Ruesch Slitting Line

18" Ruesch Slitting Line

-Line Direction: Left to Right
-Main Motor: 30 HP DC
-DC Drive: Variable Speed

Consisting of the following:

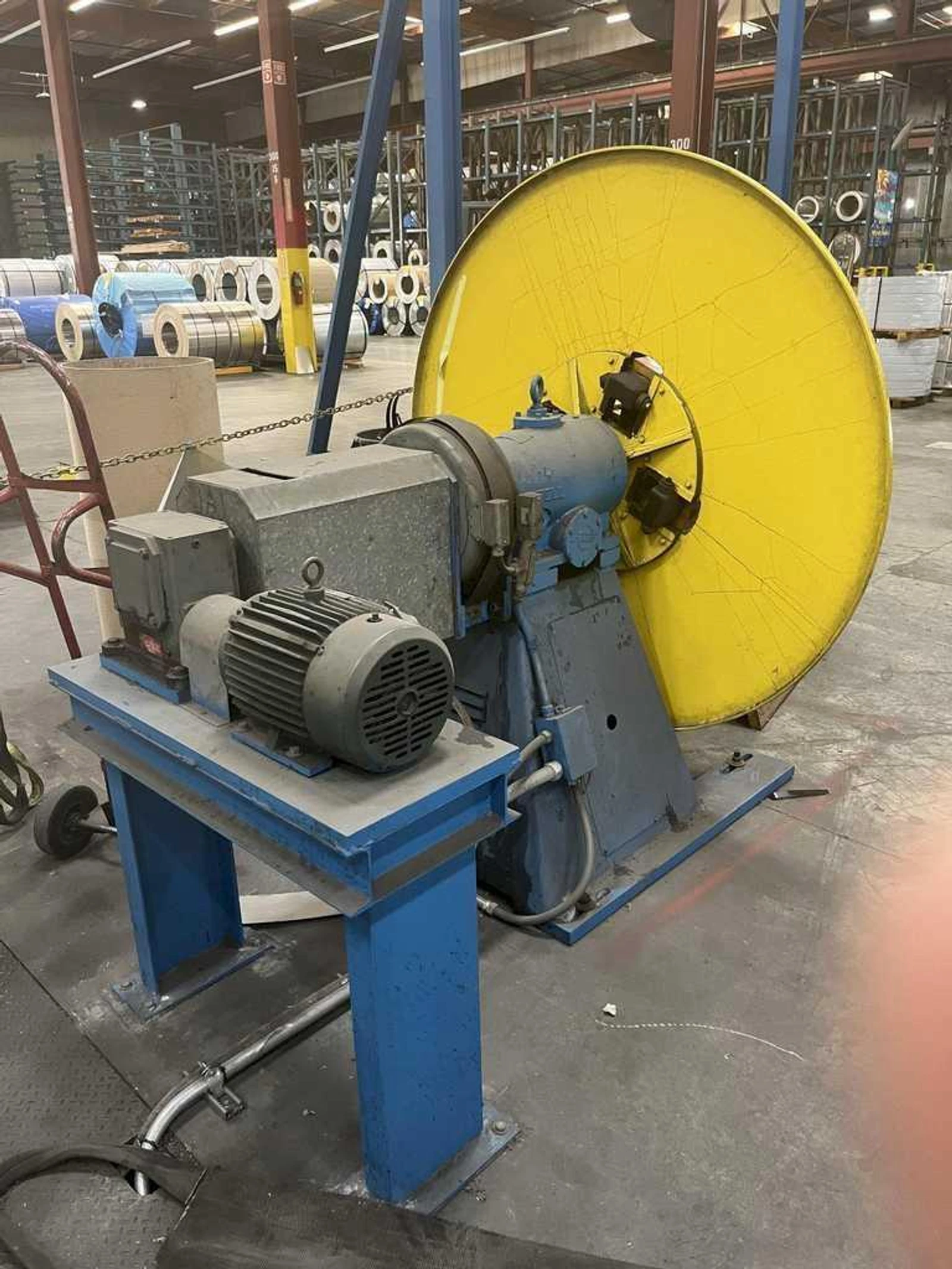

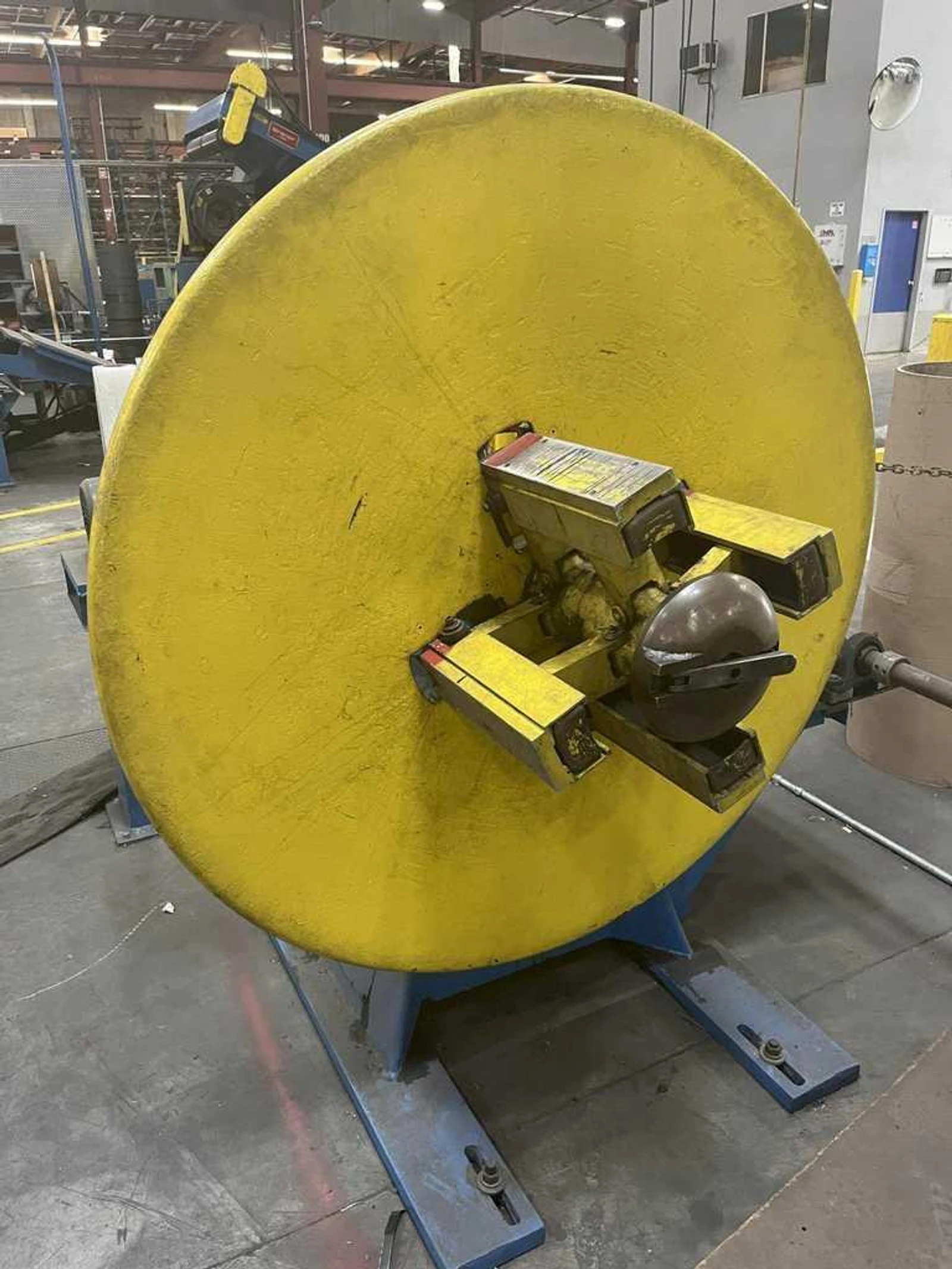

-Littell Uncoiler:
Model: 40-12
Coil Width: 12"
Coil Weight: 4,000 lbs.
Coil I.D.: 16" - 20"
Manual Expansion
Coil O.D.: 60"
AC Drive Motor thru Right Angle Reducer

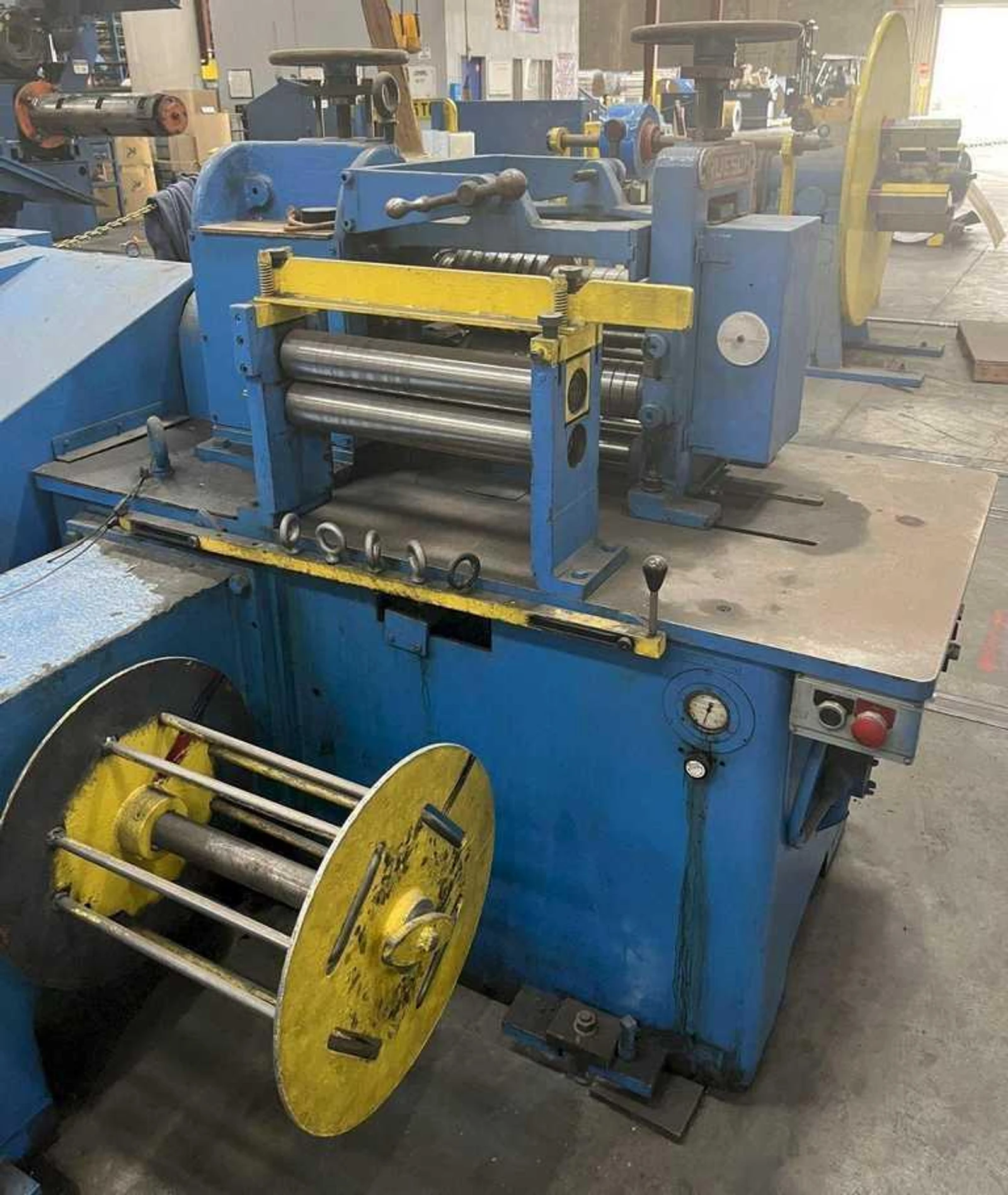

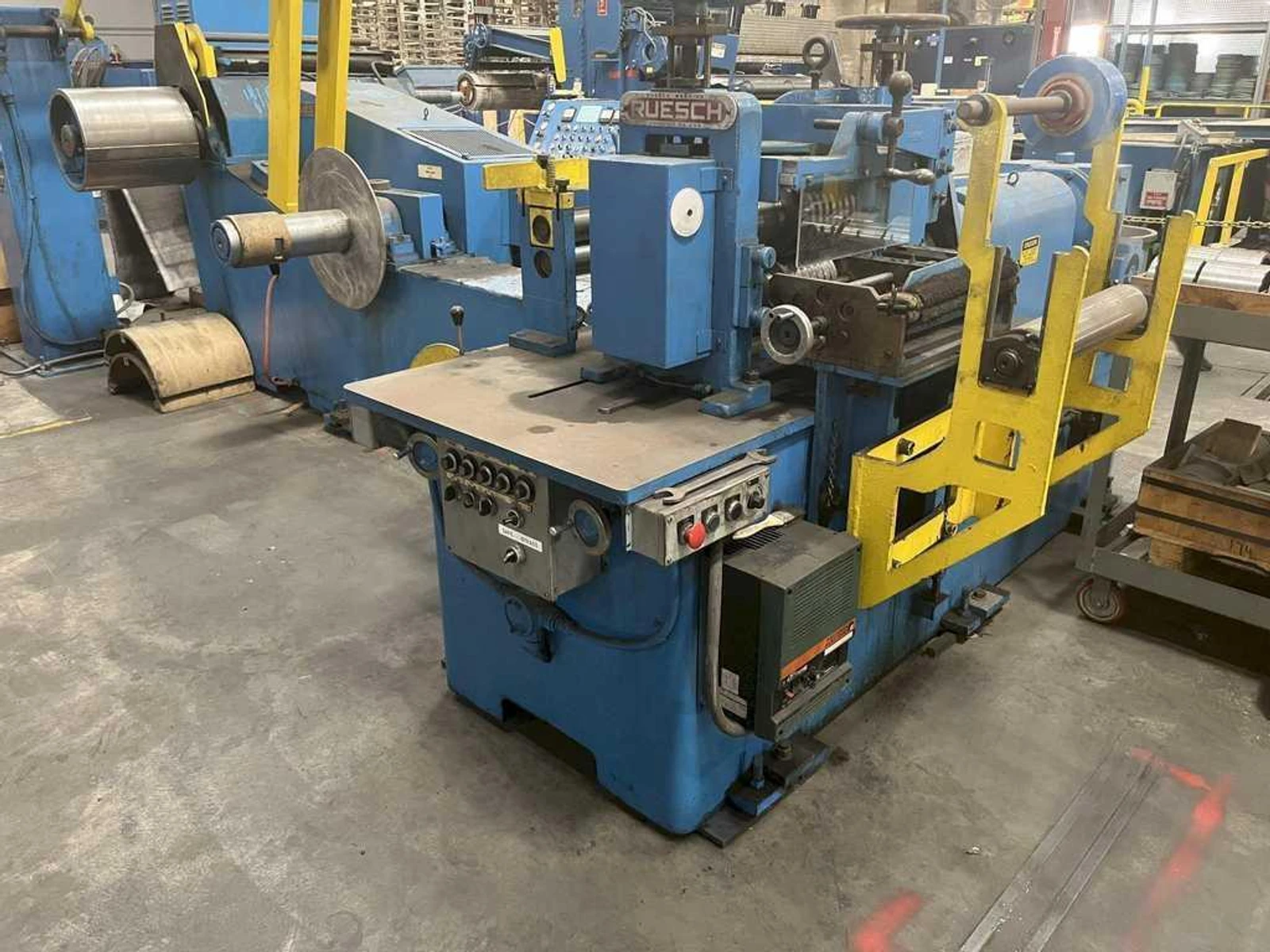

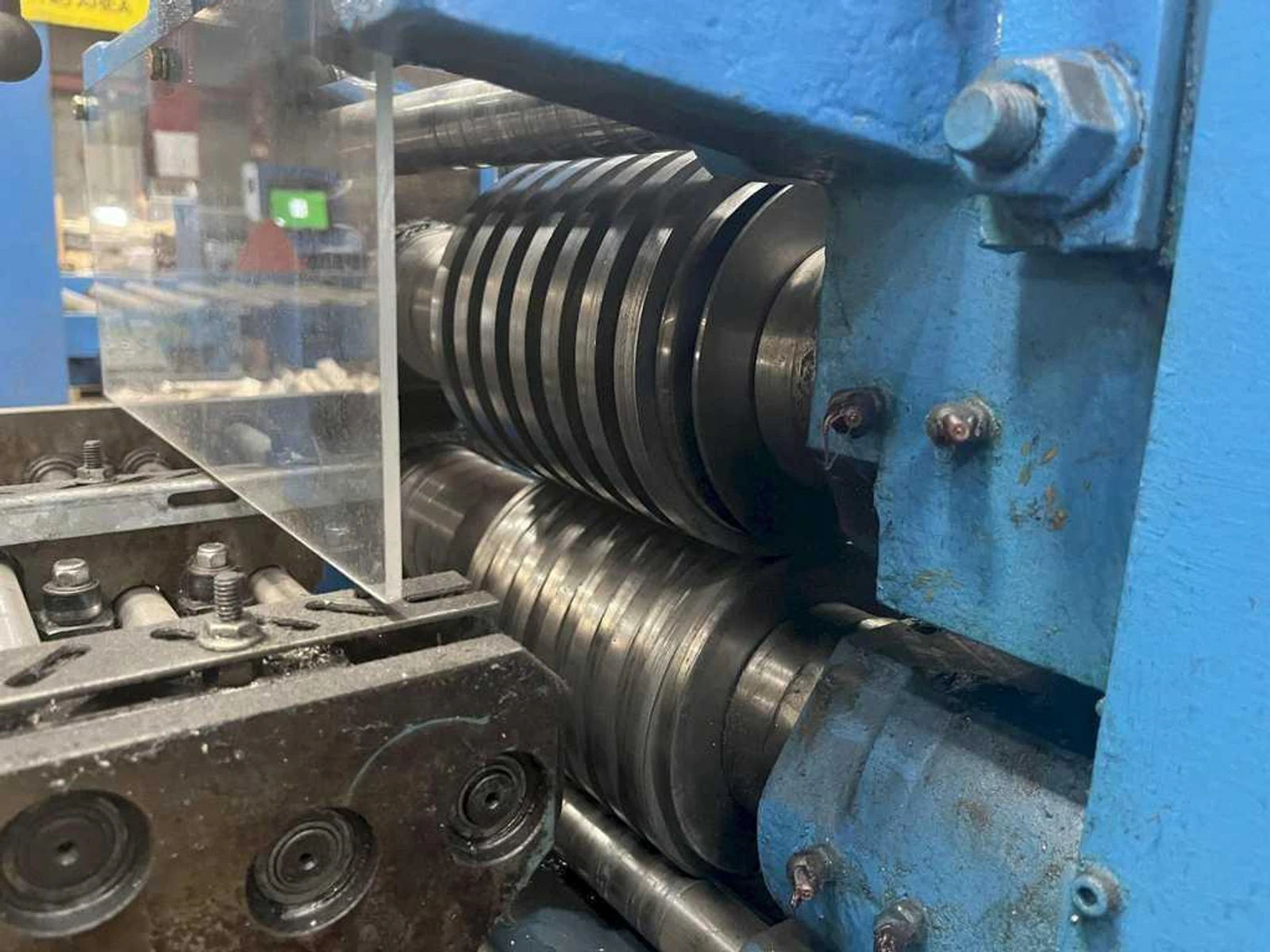

-Slitter Head:
Entry Pasline Roll
Entry Edge Guides
2.875" Dia. x 14" Face Arbors
Steel Stripper Ring Assembly
Exit Pinch Rolls

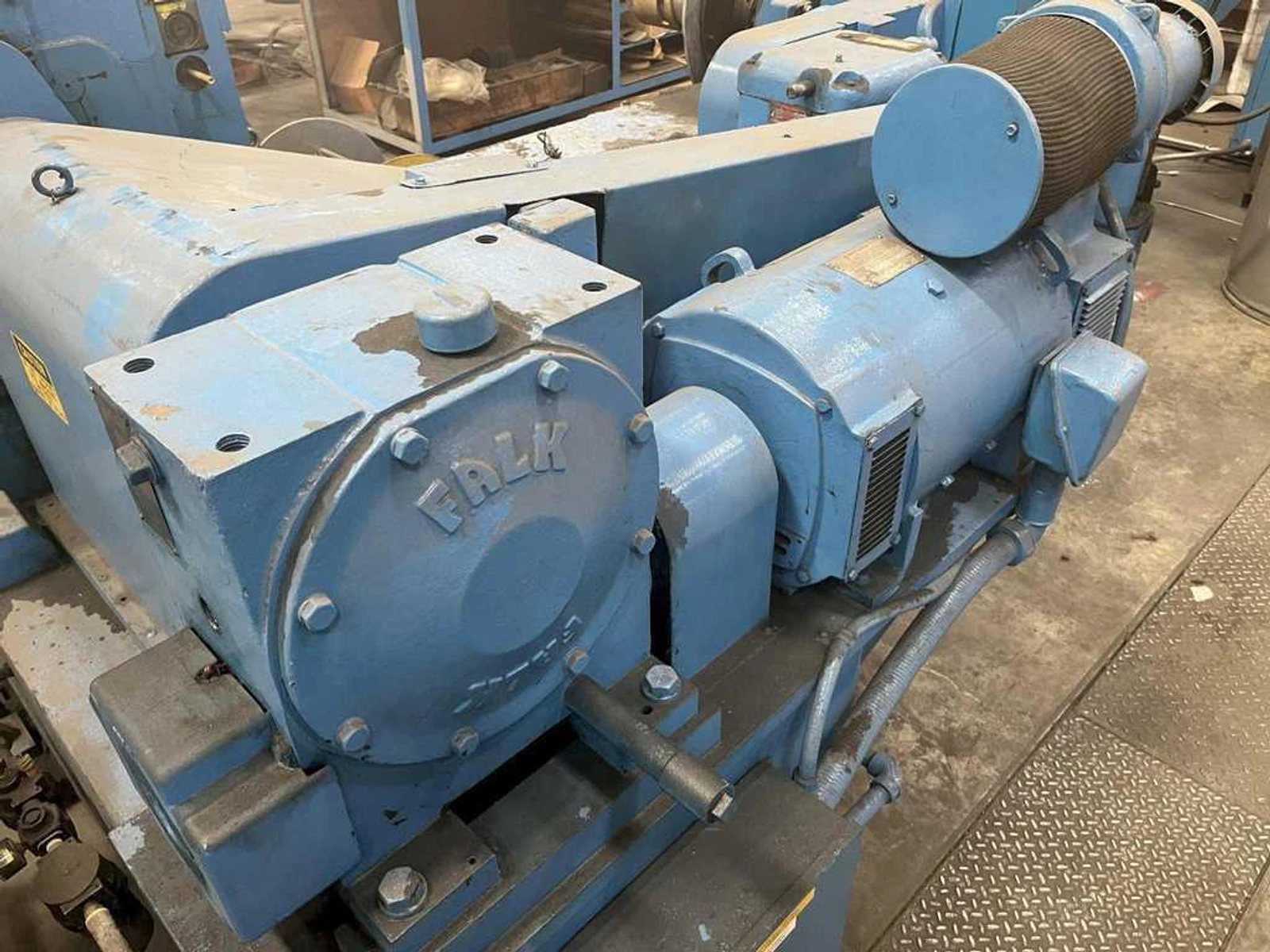

30 HP DC Motor, 1750/2300 Rpm, 240 V
2 Speed Transmission
Common Drive with Recoiler
Reliance VS Drive

-Scrap Winder:

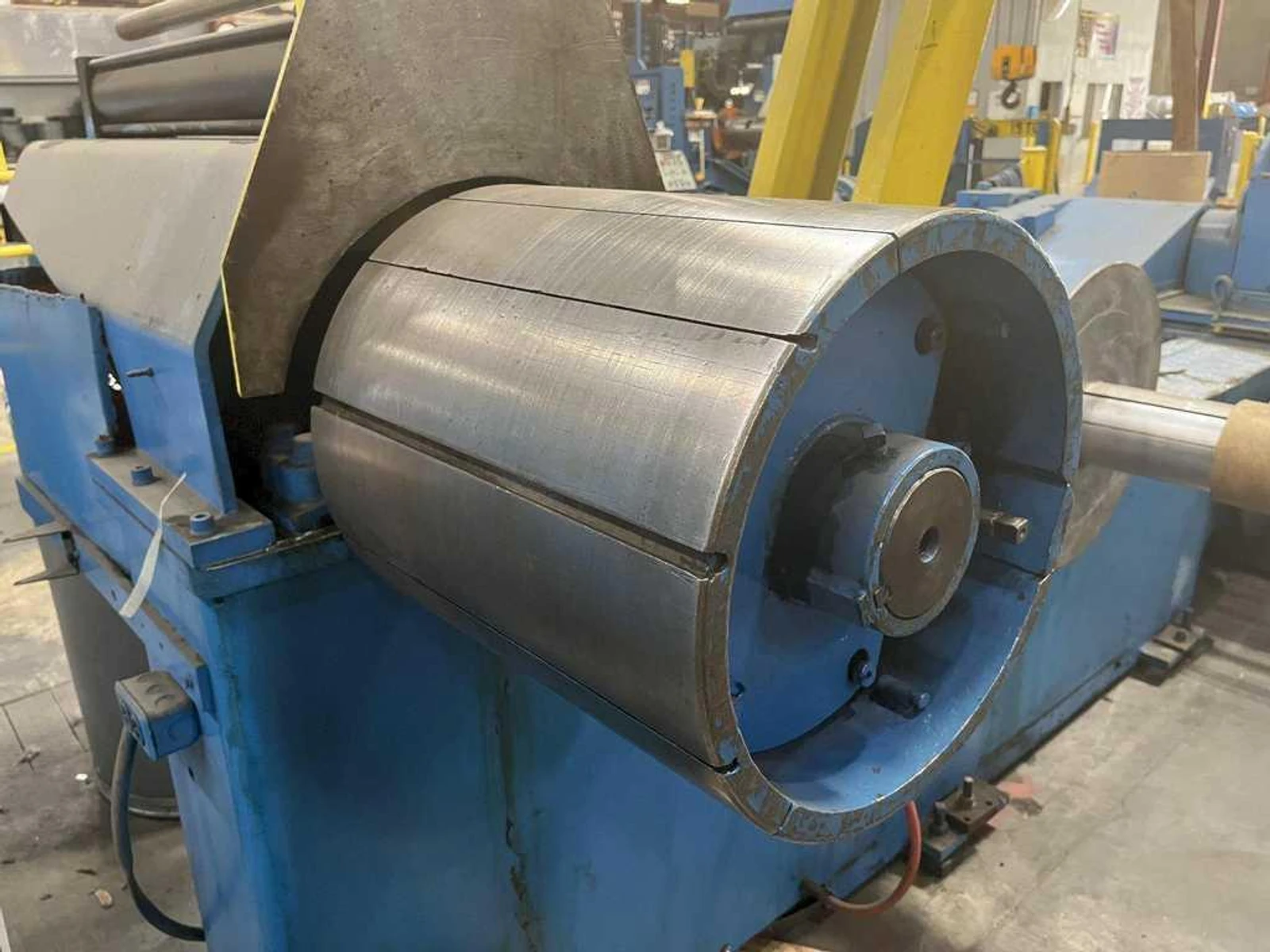

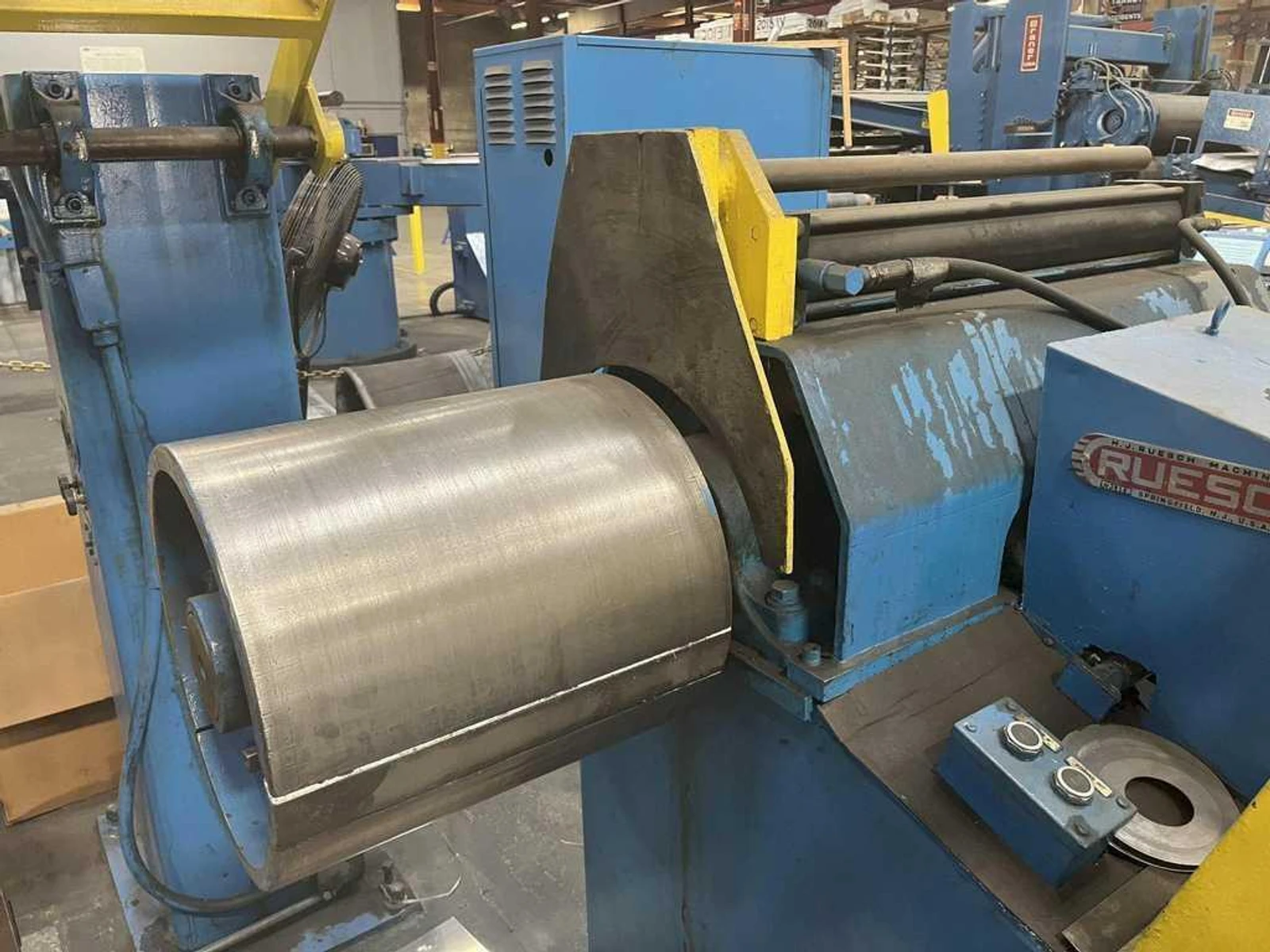

-(2) Recoilers:
Recoiler #1: 12" & 14" Dia. Drums

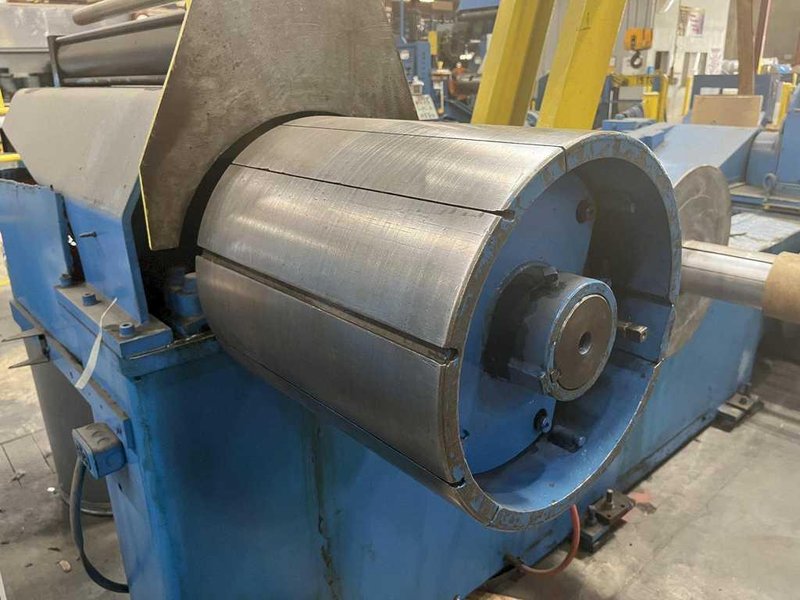

Recoiler #2: 20" Dia. x 16" Face Drum w/24" Pads
Manual Expansion
Material Slot (No Gripper)
Hydraulic Pushoff

-Freestanding Overarm Separator:

-Single Arm Turnstile:
Motorized Pushoff

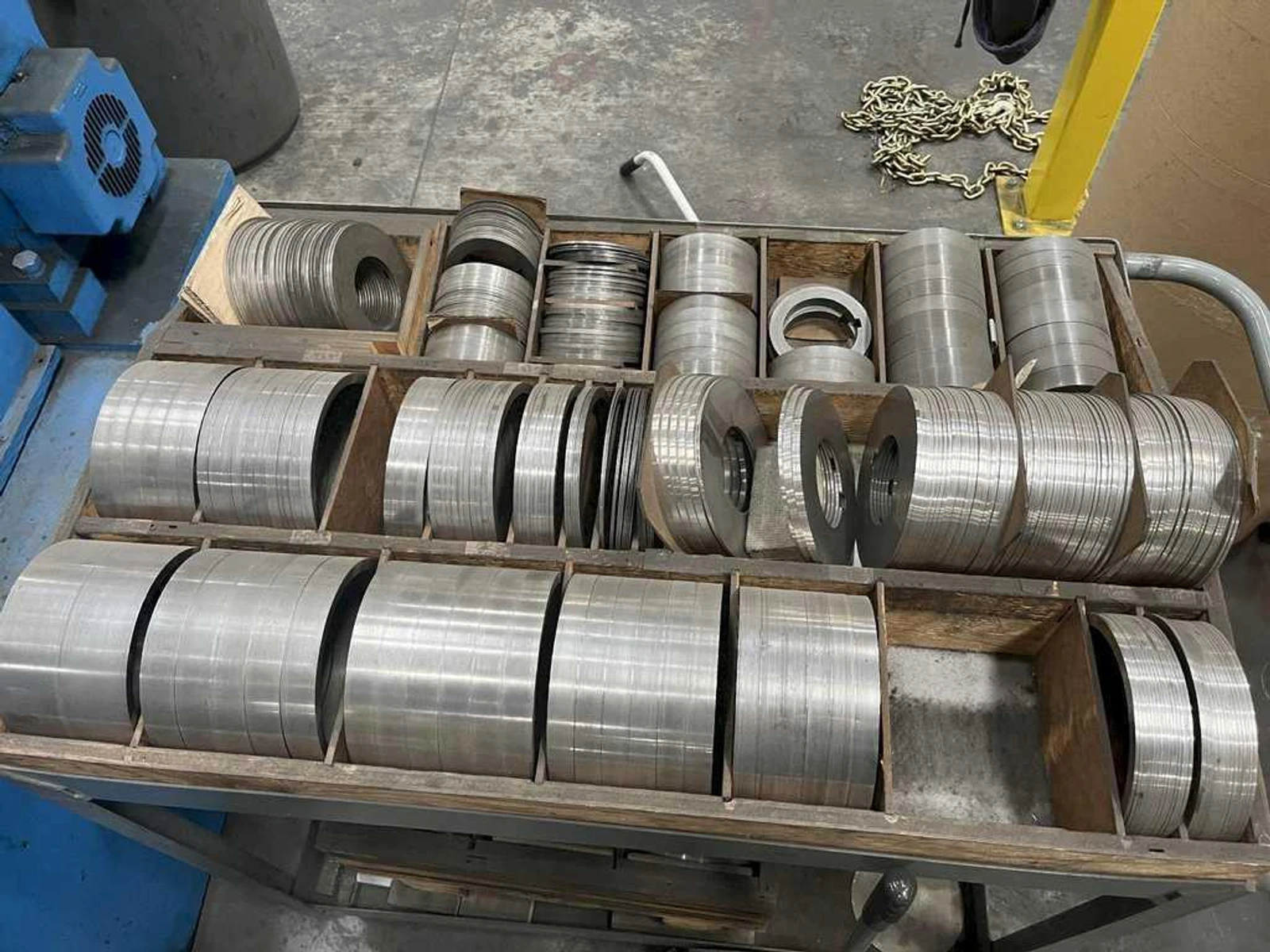

-Tooling:
