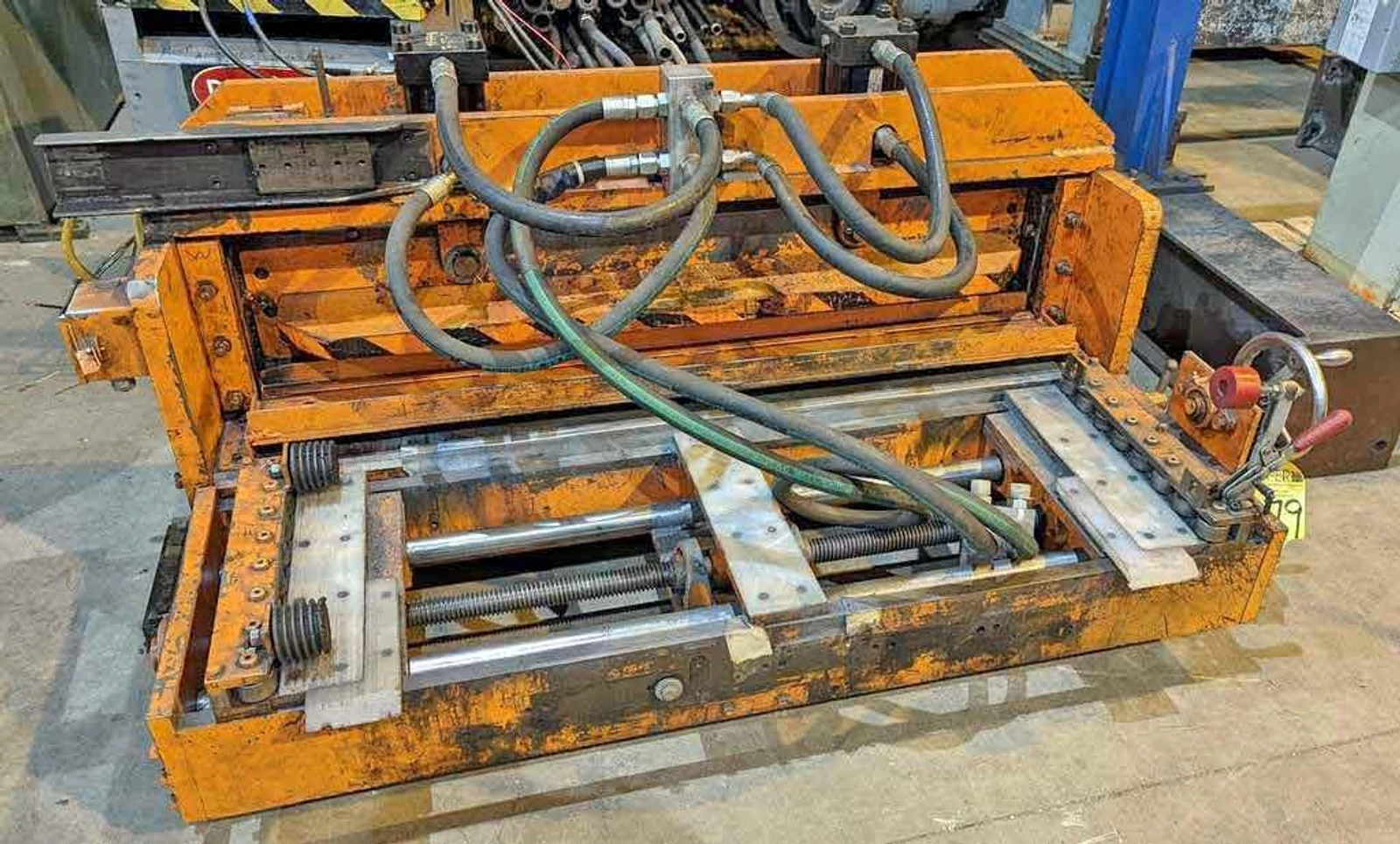

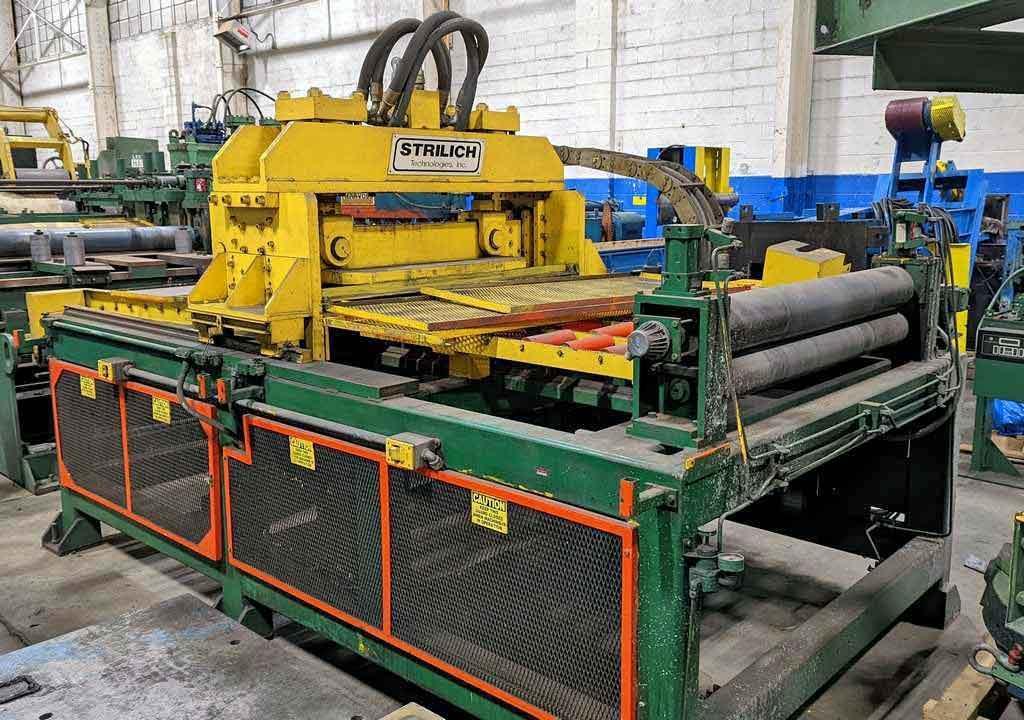

0.036" x 4' Strilich Hydraulic Shear

YEAR: 2000

-Strip Width: 48"
-Material Thickness: 0.036" Maximum, 0.015" Minimum
-Maximum Yield: 35,000 psi

-Four (4) sided high carbon - high chrome shear blades,
Top Blade bowtie, Bottom Blade straight rake.
-Bottom Blade Size: 50" L x 1.5" H x 0.75" W
-Strokes Per Minute: 70 (40 Cuts Per Minute)

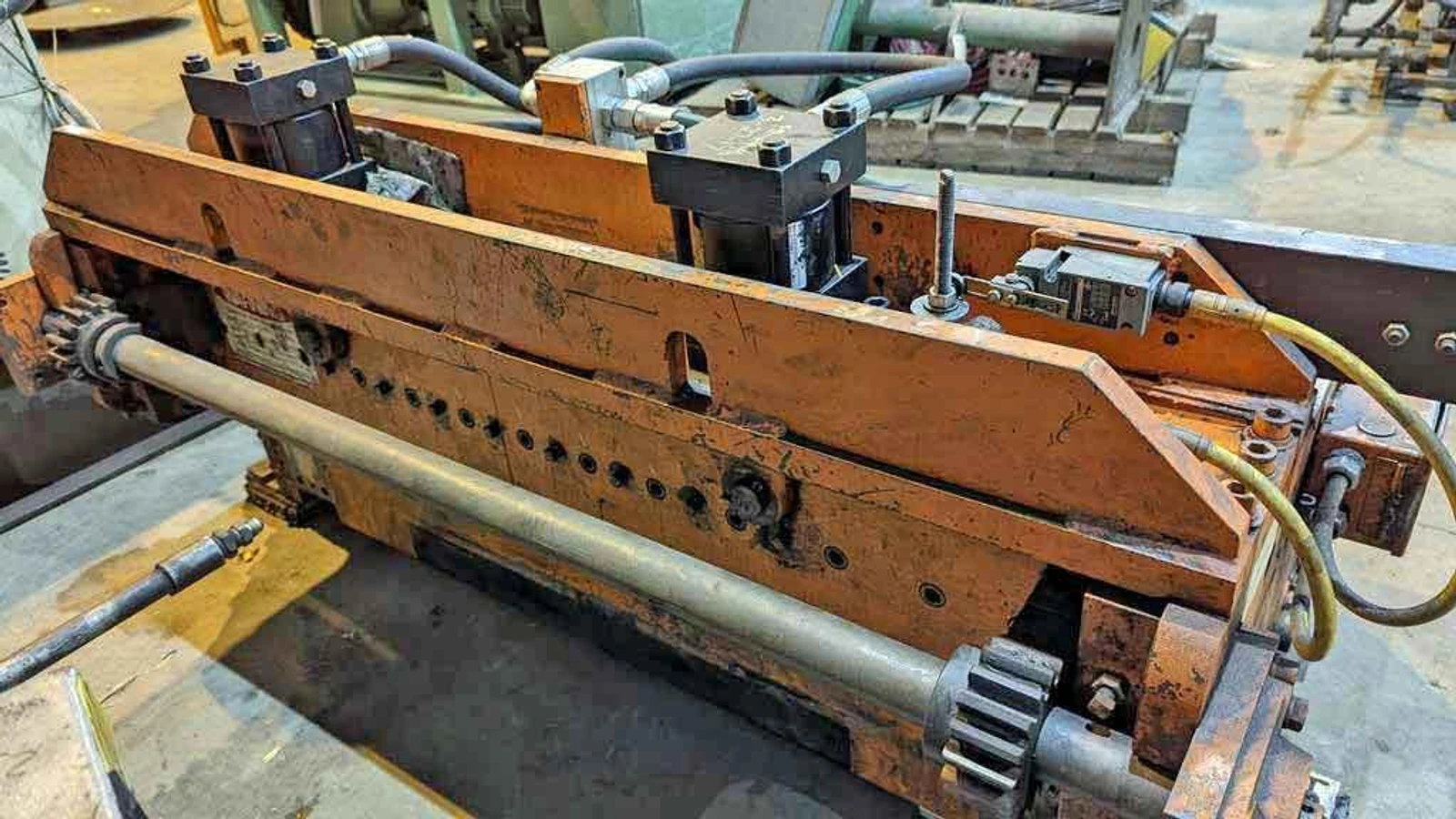

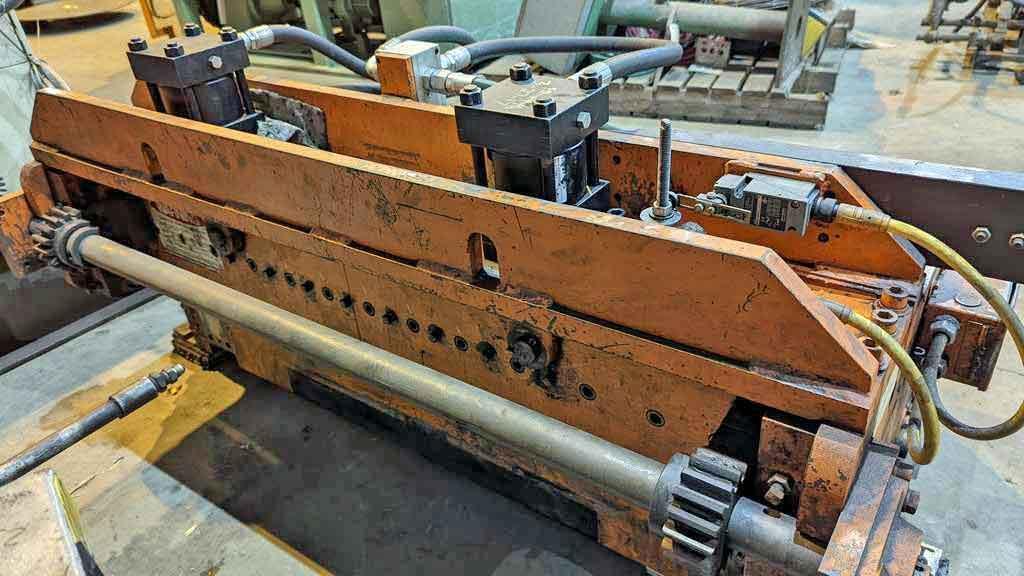

-Shear ram actuated through two (2) heavy duty hydraulic cylinders and
rides on replaceable bronze wear plates.

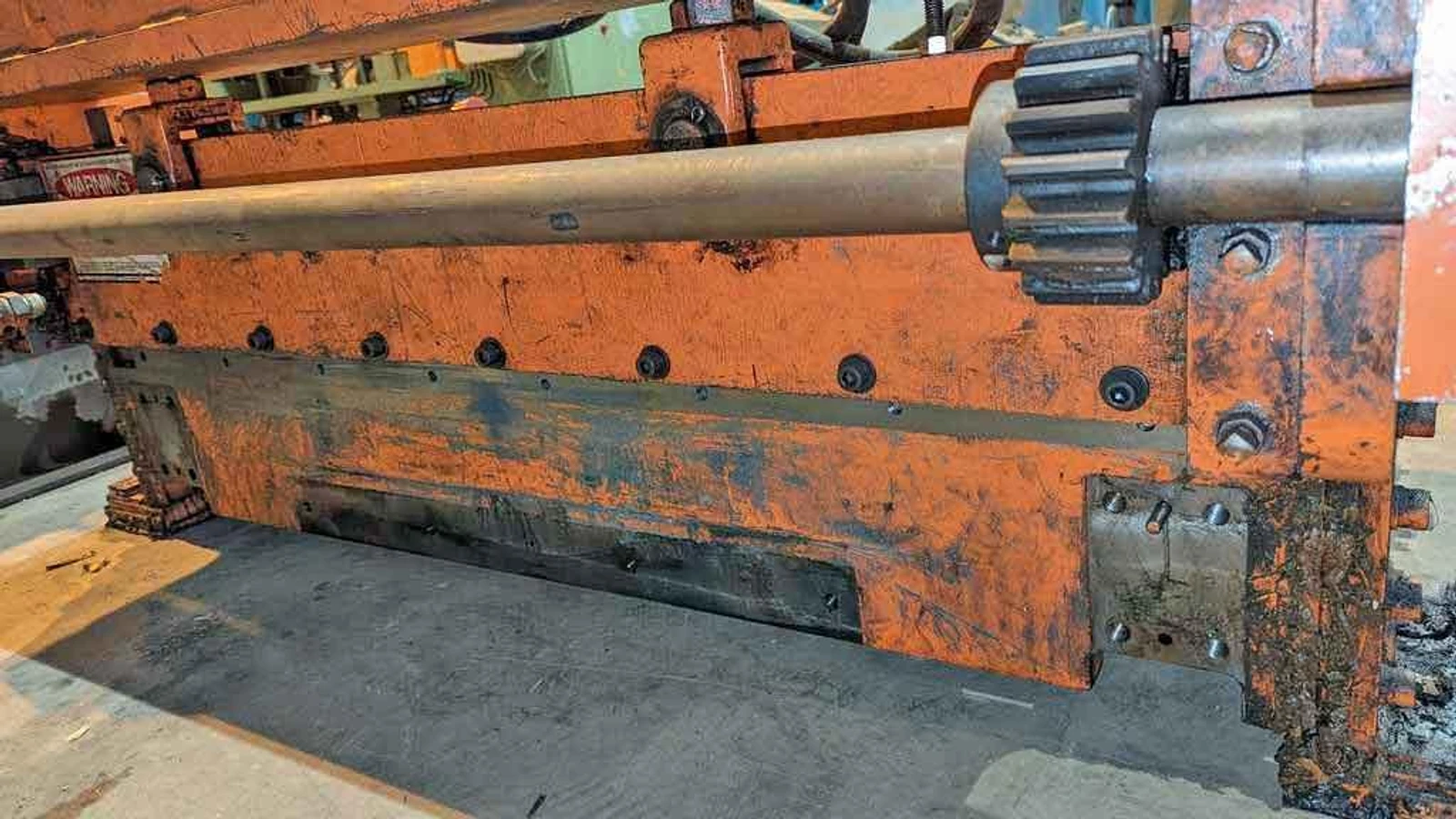

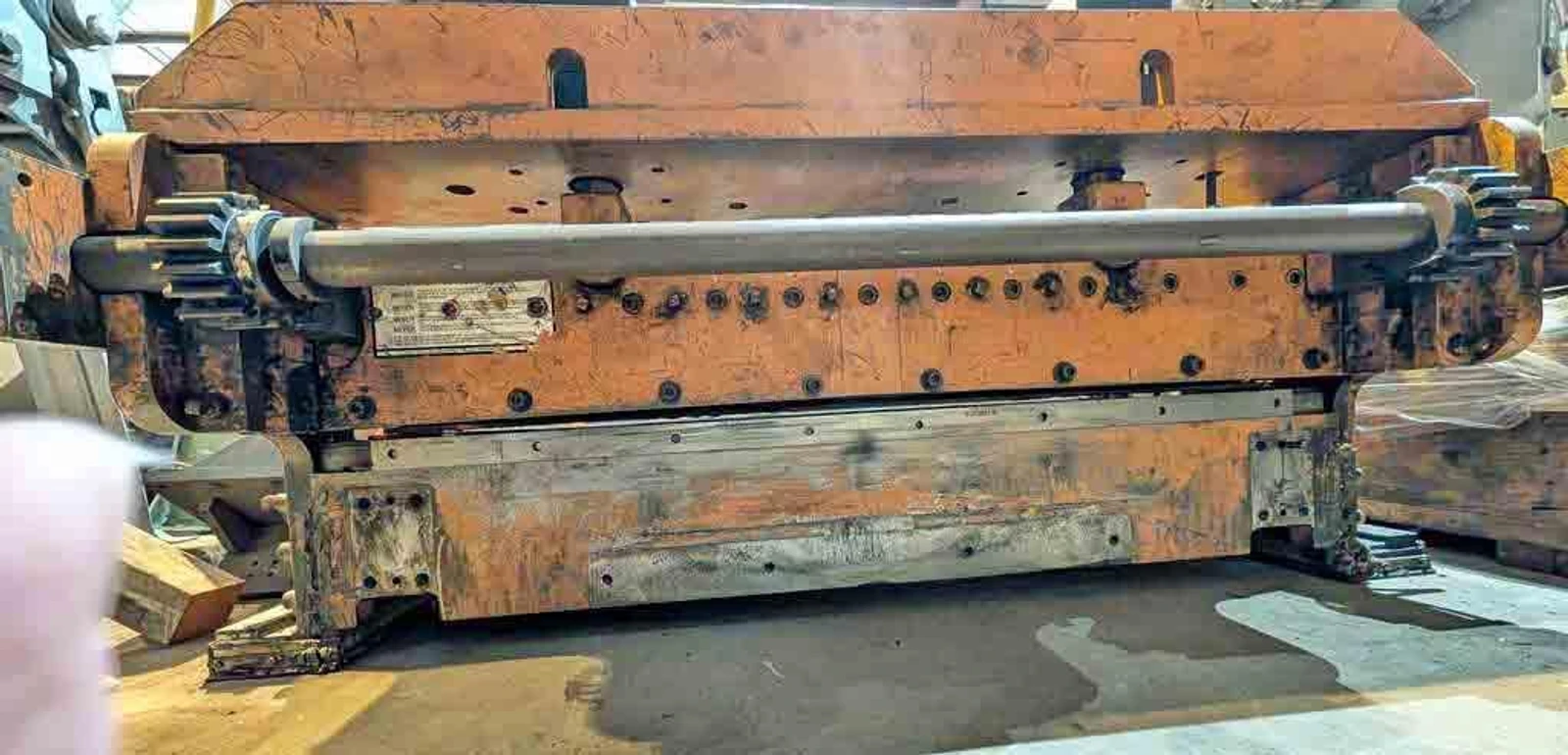

-Rack & Pinion Shear Ram Design.

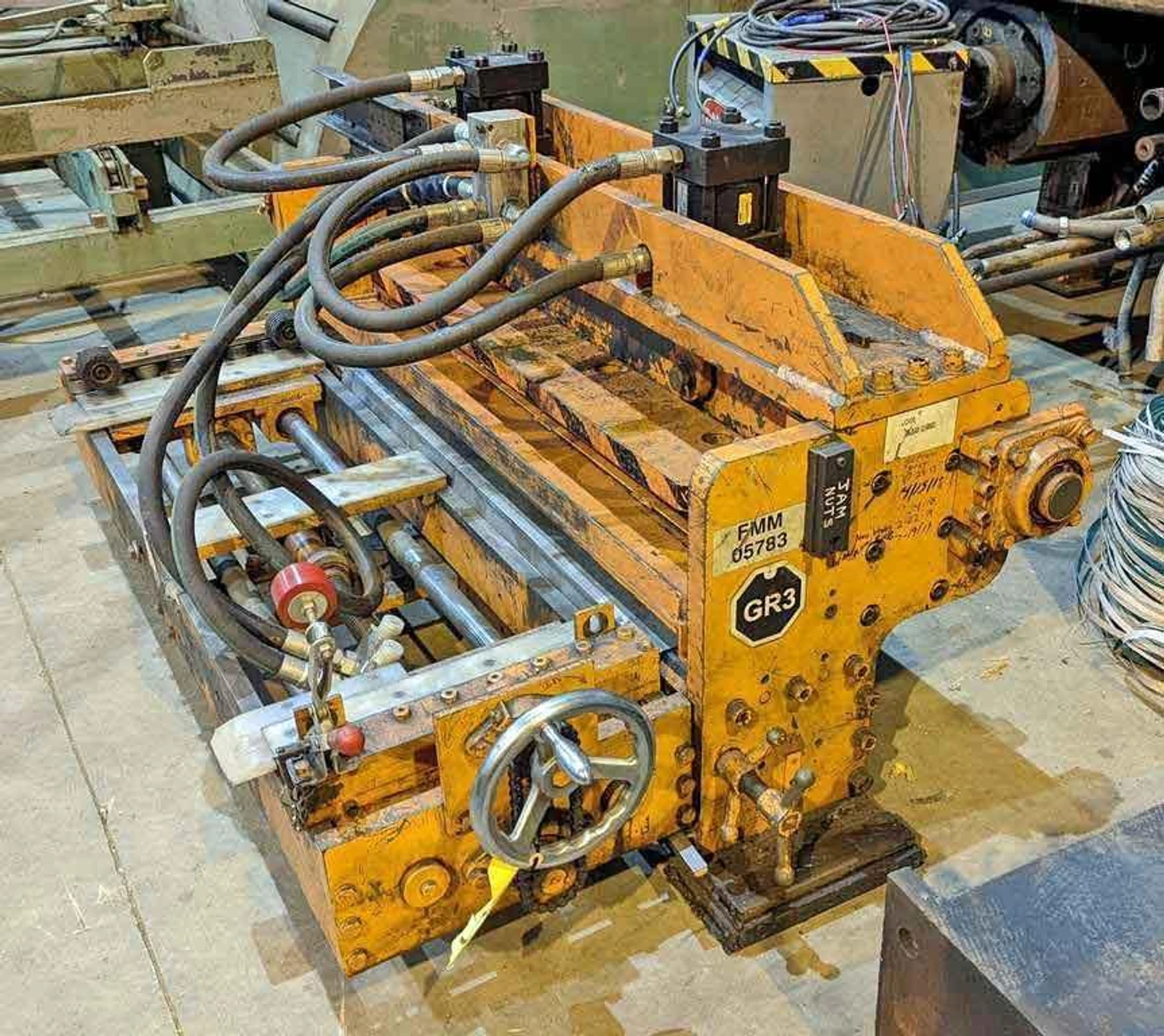

-Hardened roller type entry guide assembly is mounted on shear
and includes a +/- 1/2" lateral micro-adjustment with center indicating
position pointer. This single point adjustment allows for slight off-center
positioning of the incoming strip.
Guides are adjusted relative to centerline through left and right hand
acme screw arrangement with a hand wheel.
-Passline: 11.25" from Floor to top of bottom Blade
-Less Fabricated Base
-Overall Size: 72" L x 40" W x 33" High

-In Storage: Toledo, OH.
