2,000# x 10" Progressive Traverse Wind Recoiler

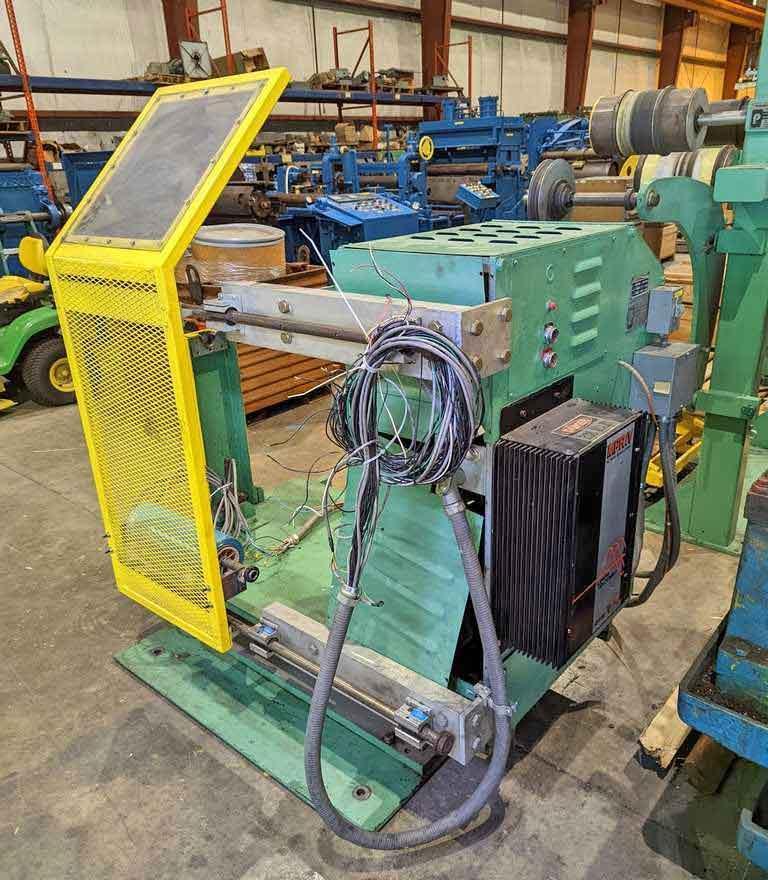

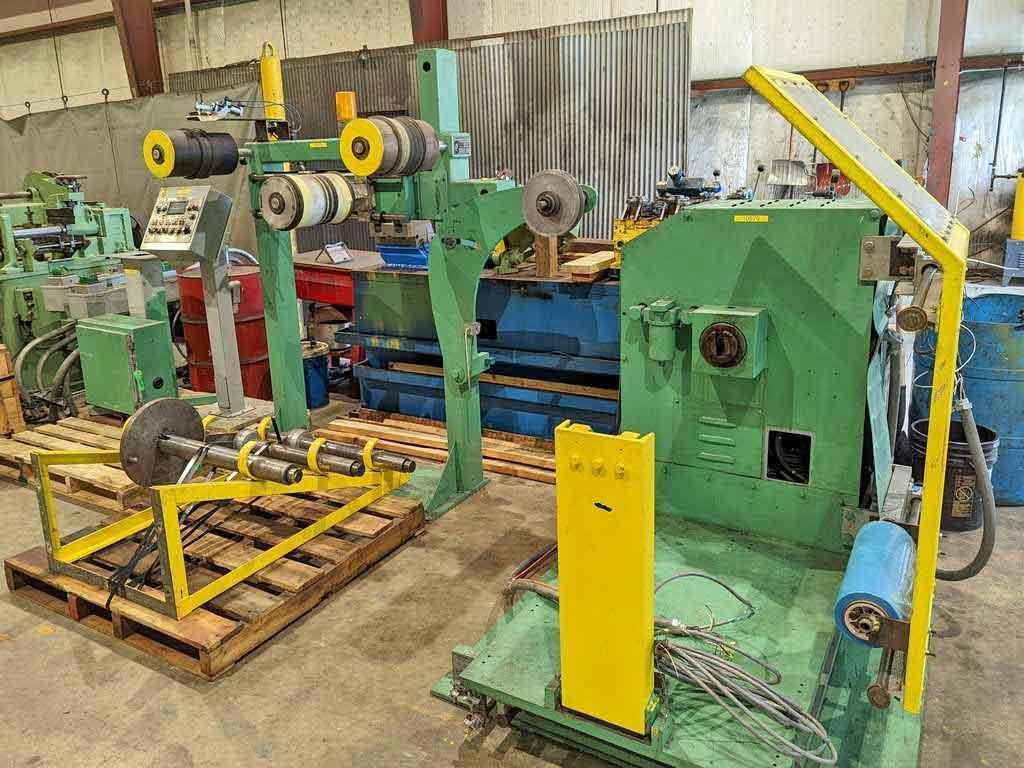

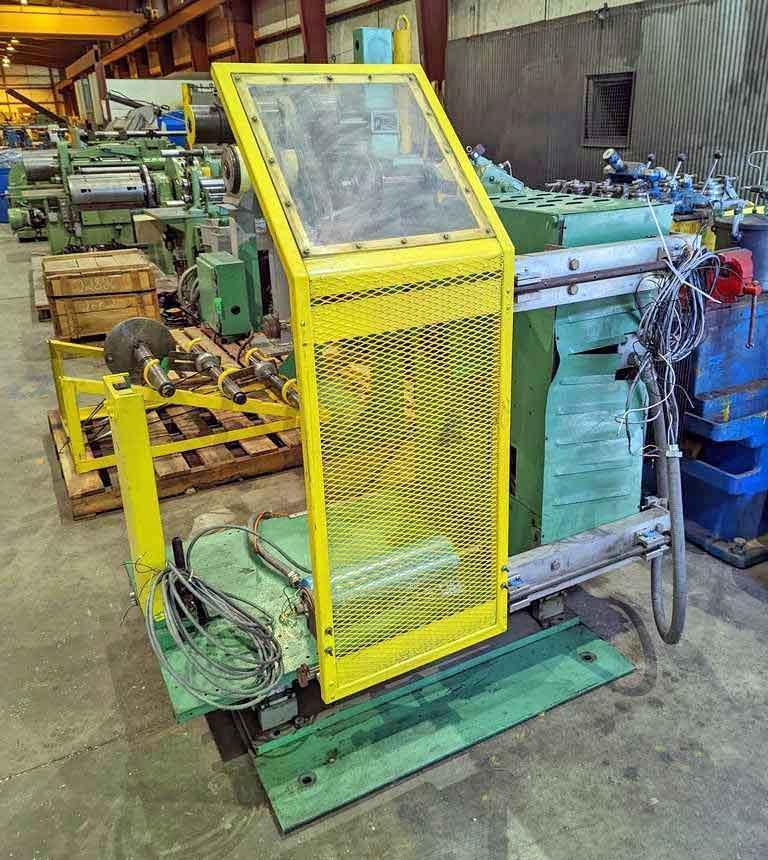

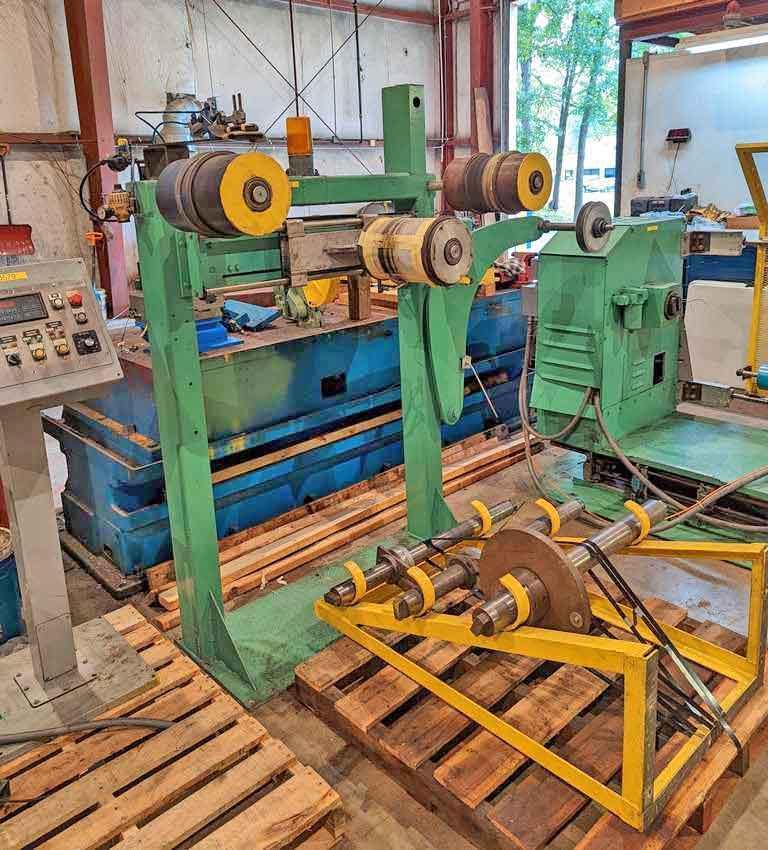

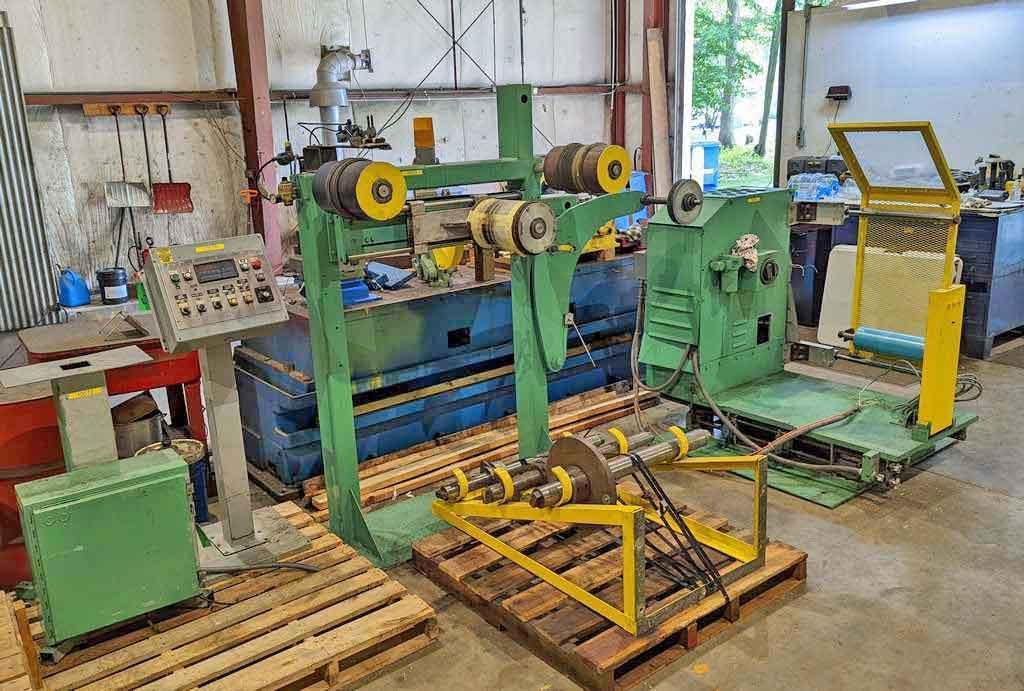

Progressive Machine Co. Traverse Wind Recoiler

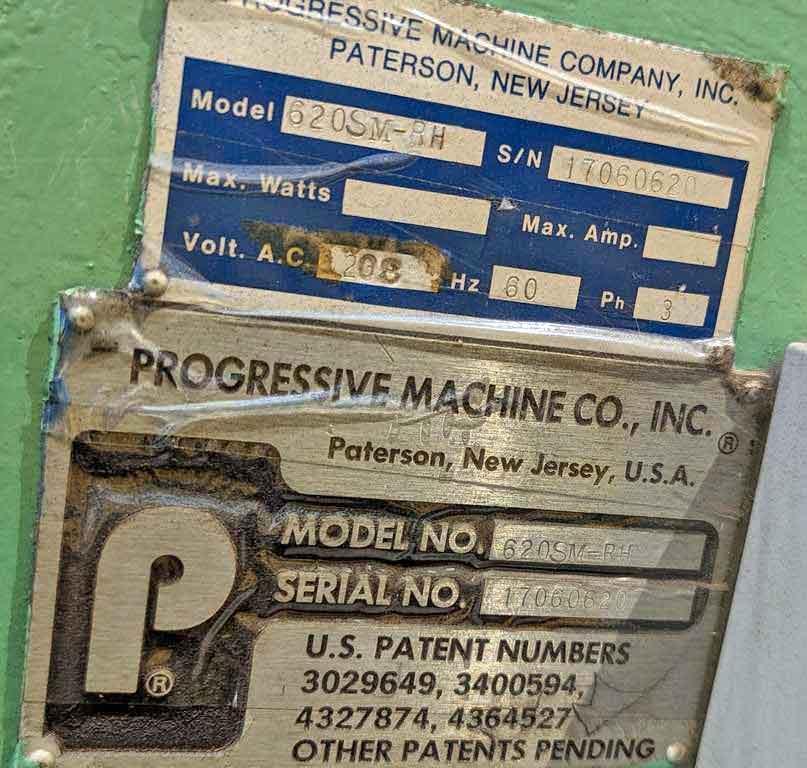

Model: 620-SM-RH
Serial Number: 17060620

Spooler Machine No.: SO# 37370
Maximum Coil Weight: 2,000 Lb.

Spool Size:
O.D.: 30" (762mm)
I.D.: 15" (381mm)
Width: 10.5" (267mm)
Hole Diameter: 5" (127mm)
Note: Spools not Included

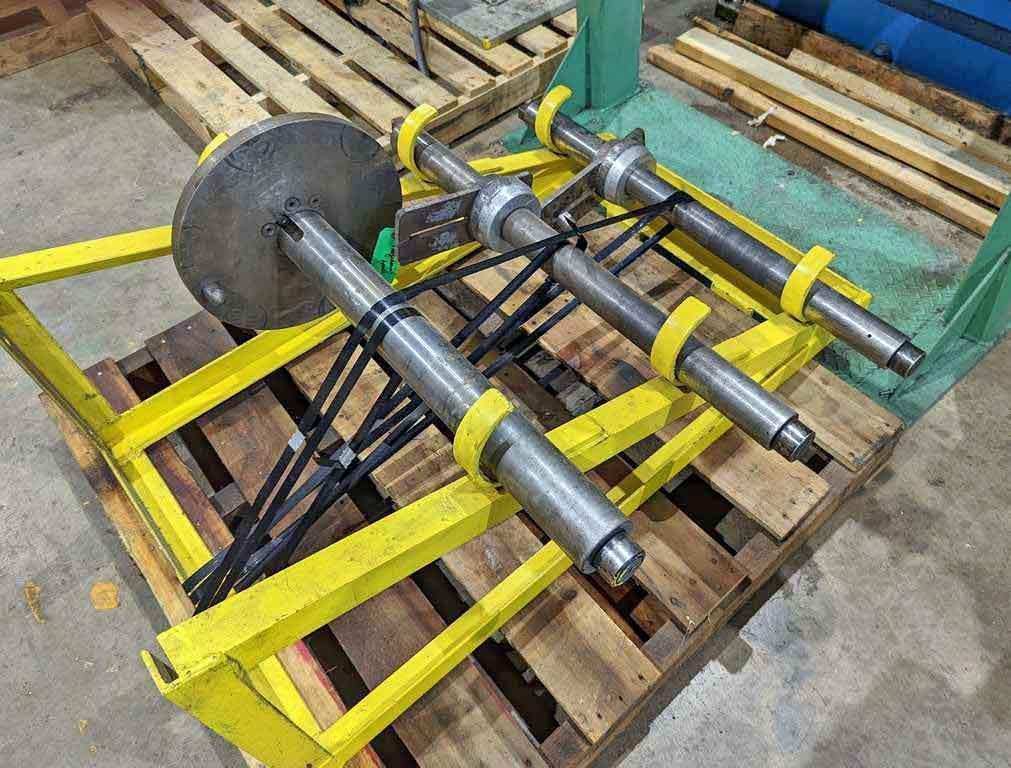

Recoiler Shafts:
(2) - 2.5" Dia. x 34" Face Width
(1) - 3" Dia. x 34" face Width

Strip Thickness:
Minimum: 0.005" (0.127mm)
Maximum: 0.060" (1.53mm)

Strip Width:
Minimum: 0.300" (7.62mm)
Maximum: 2" (50mm)

Line Speed: 150 - 400 FPM (45-122M/Min.)
Normal Tension: 15 Lbs. (6.8 Kg)
Type Of Tension: Pneumatic
Drive Motor: 3 HP, 1800 RPM, 3 PH, 60 HZ.
Adjustable Frequency Control
Digital Control Set Up
Overall Size: 67" L x 49" W x 68" High

Includes:

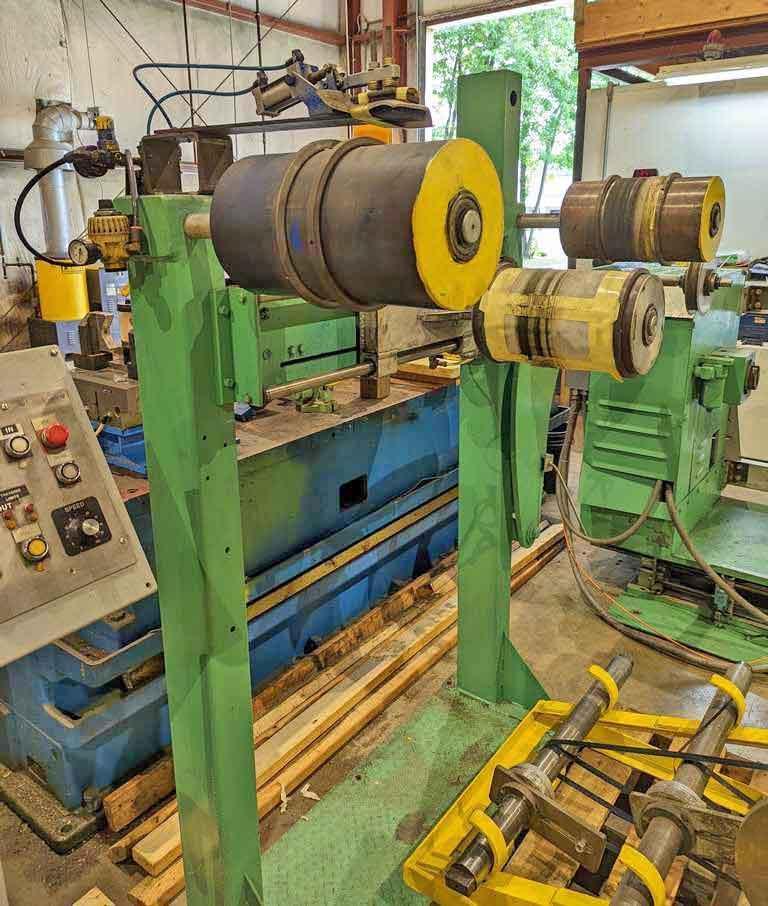

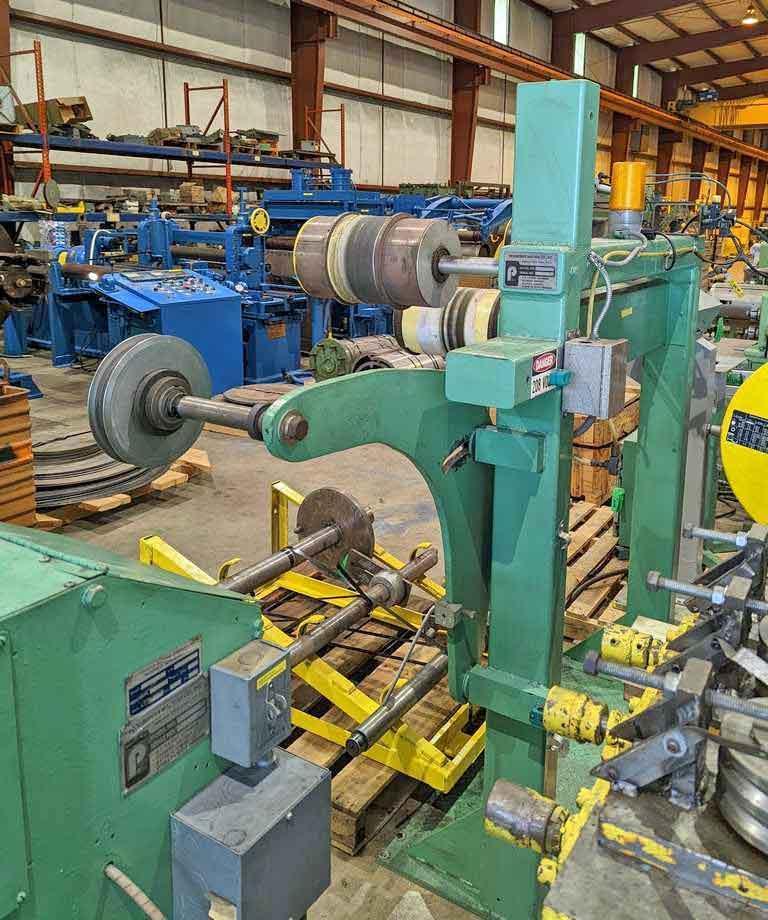

Entry Side Tension Stand:

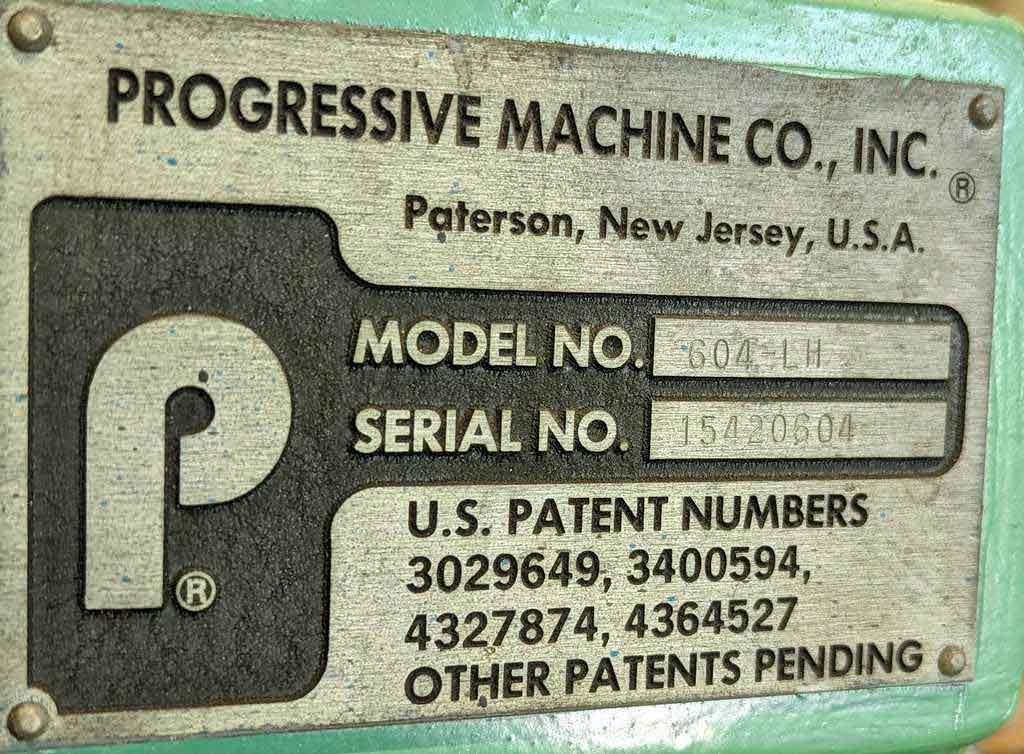

Manufacturer: Progressive Machine Co. Inc.
Model No.: 604 LH
Serial No.: 15420604
(3) - 8" Dia. x 14" Face Rolls
(1) - 7.5" Dia. Strip Guide Roll
Overall Size: 85" L x 34" W x 78" High

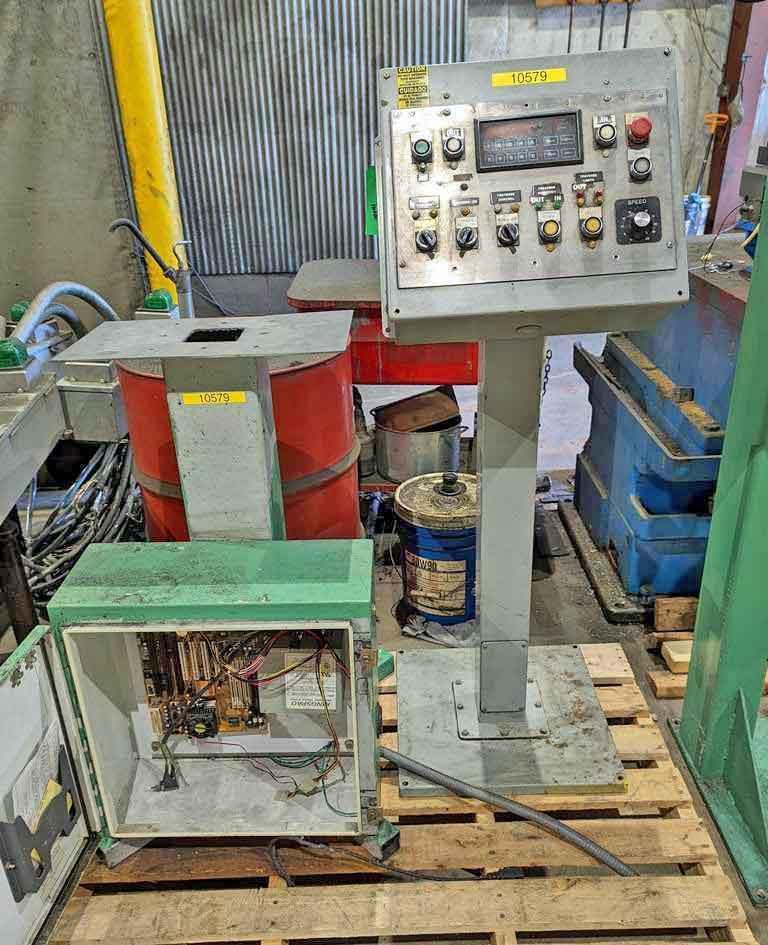

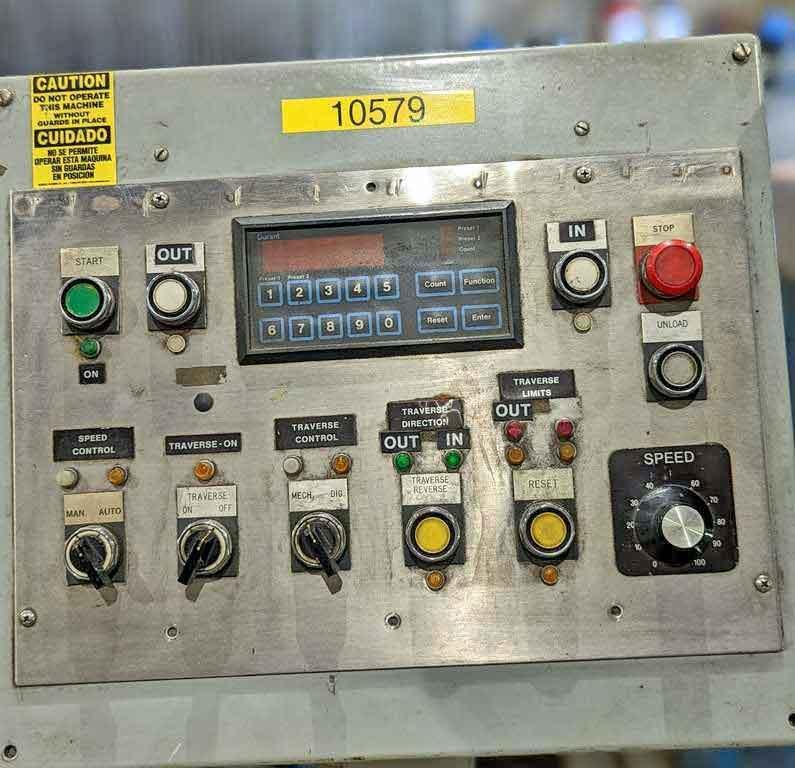

Main Operators Control Panel:

Operators Manual Included

In Storage: Toledo, OH.
