80 Ton Bradbury Cutoff Press

Brand
BRADBURY
Category
Printing & Graphic Arts
Type
Presses
Model
Not specified
Stock #
10546-HK
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING

YEAR: 1983

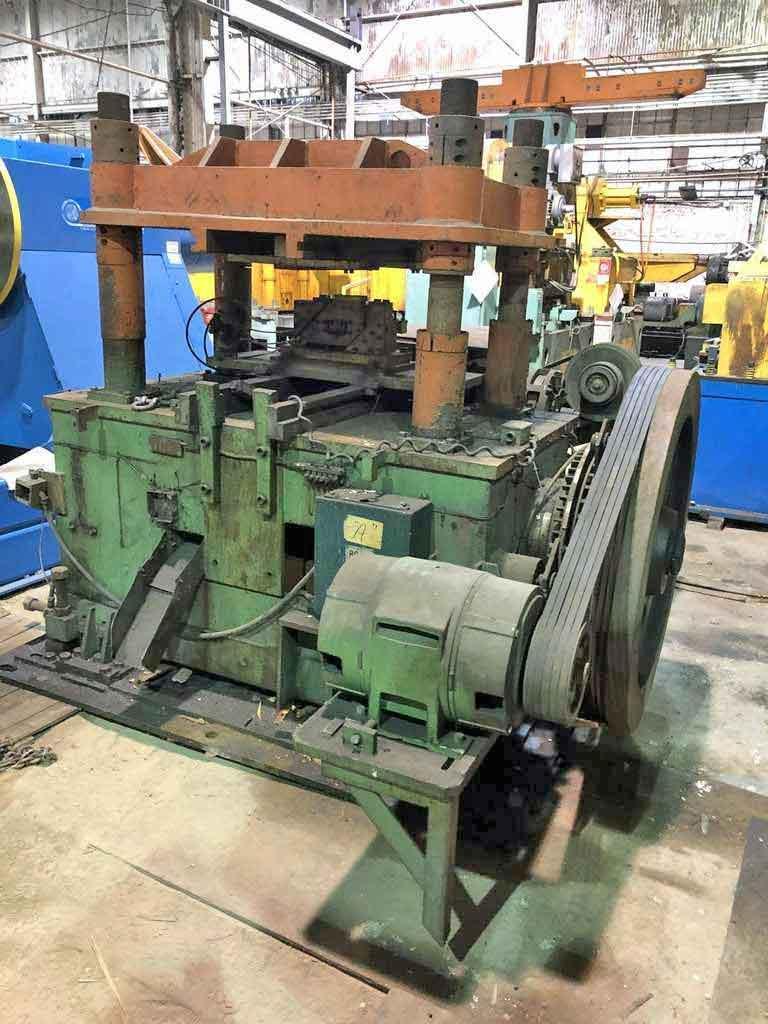

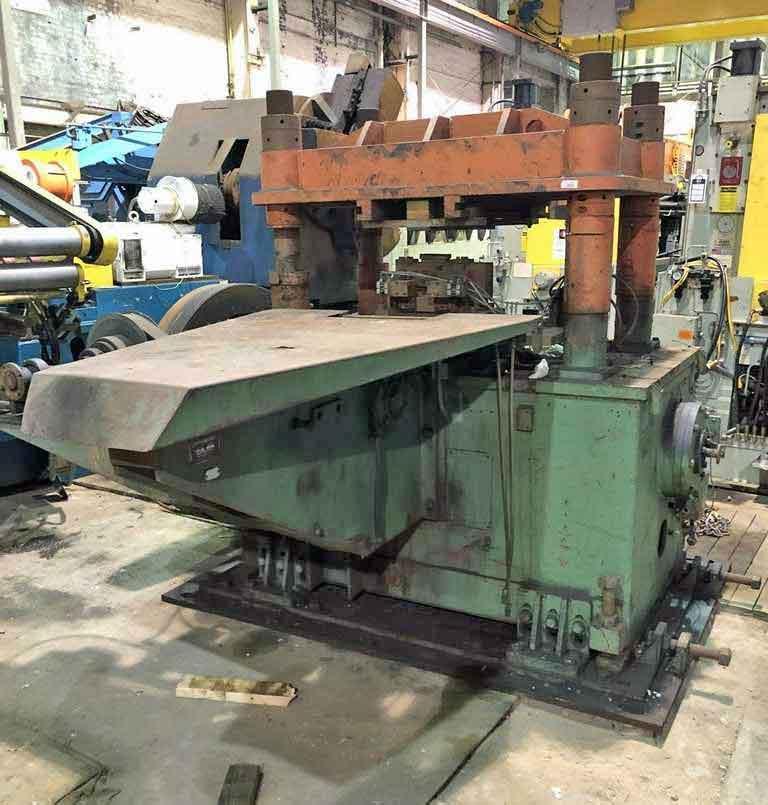

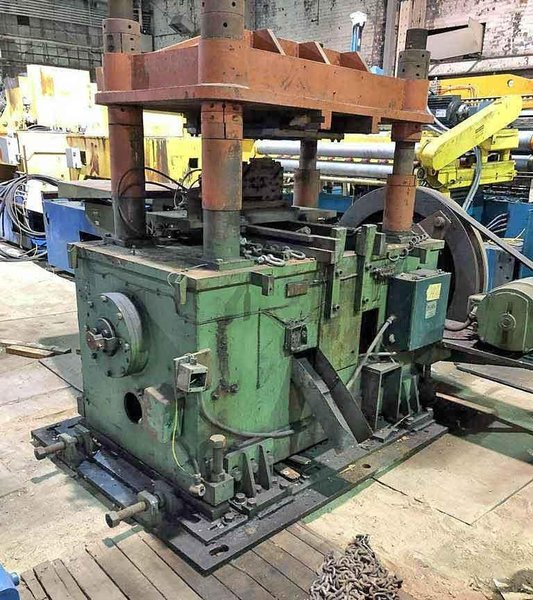

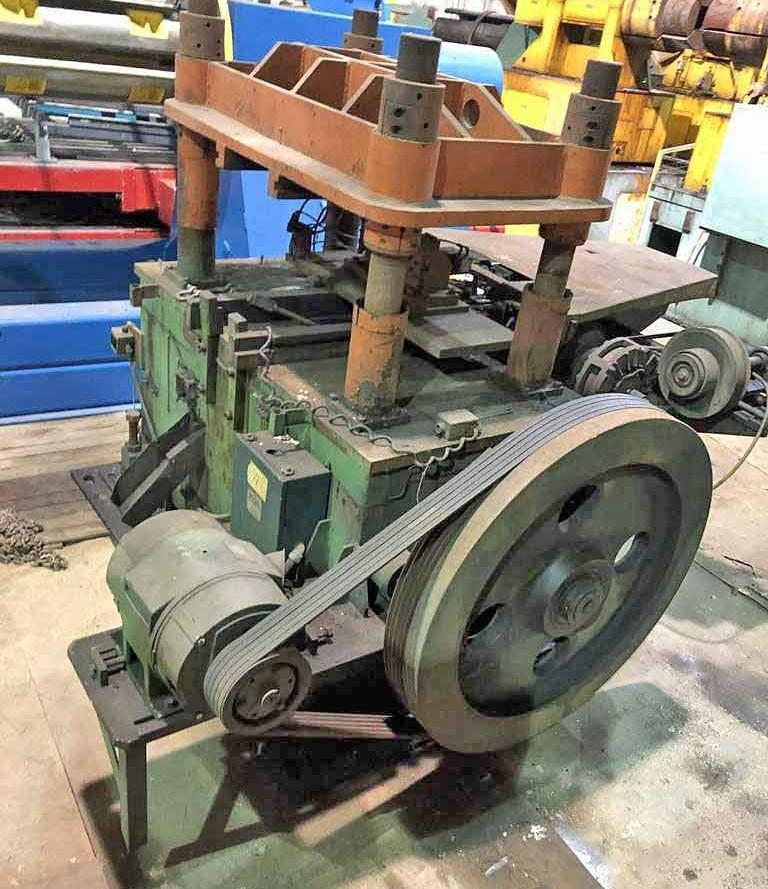

Bradbury Cut-Off Press

Model: 80T BCO under driven, 4 Post Press
Work order #12090
Built 1983

-Capacity: 80 Ton
-Between Posts: 42" R-L, 20.5" F-B
-Passline Height: 49.5"
-Shut Height 13.5"
-4" Dia. Posts
-4" Stroke
-19.5" of slide on the cylinder actuated accelerator.
-The existing Cutoff Die is for a 3.5" x 2" Stud.
-Motor: 15 HP, 1175 RPM, 230/460 V, 44/22 Amp.
-35 cuts per min.
-High speed cycle, 240 crank rpm
-Lincoln auto lube
-Slug Chute
-Left to Right line direction
-Overall Dimensions: 125" L x 96" W x 83" H
-Weight: 17,000 lbs. (Flywheel Cover is 230 lbs.)
-In Storage: Detroit, MI
