Stretch Wrapping Machine, Signode

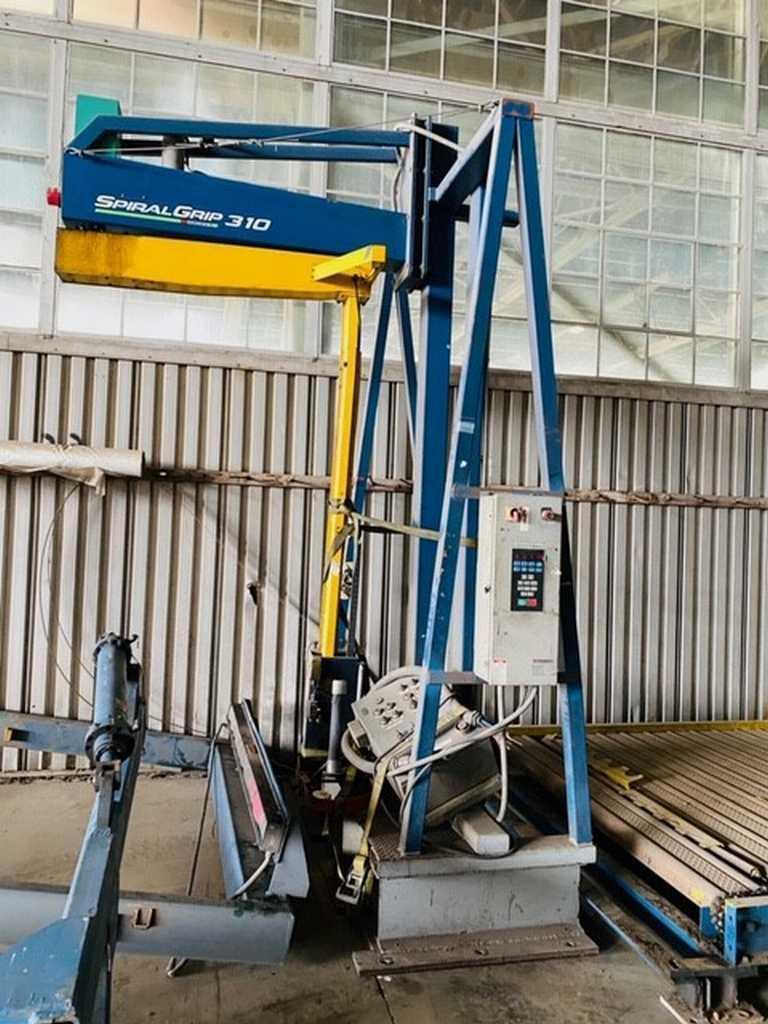

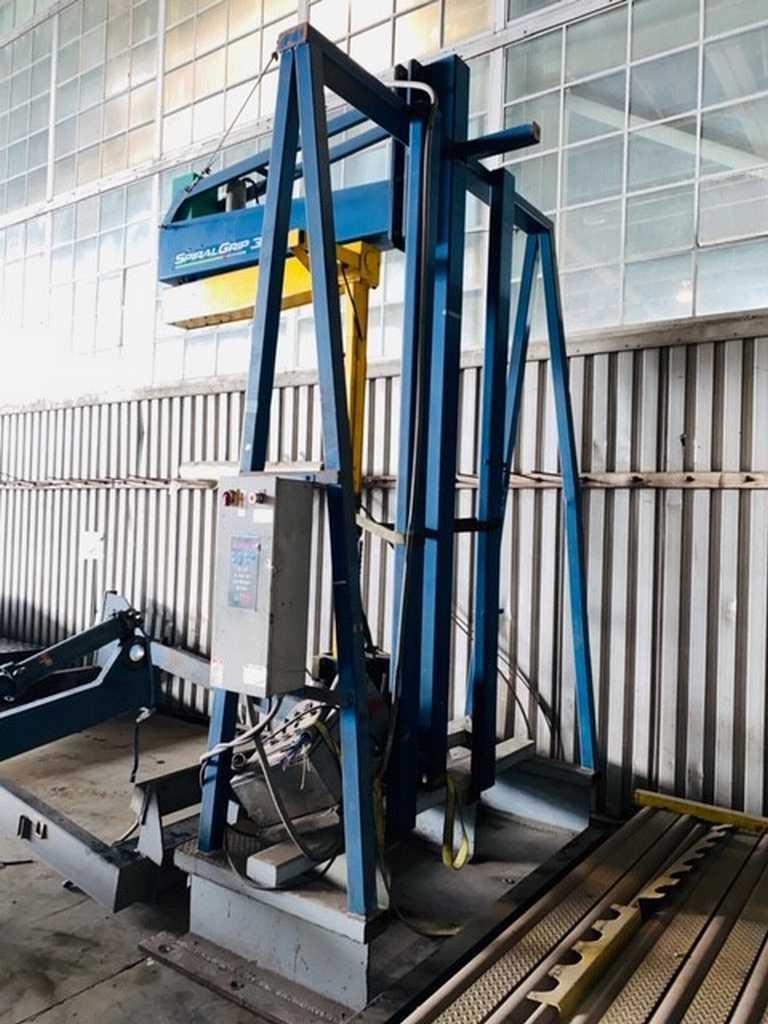

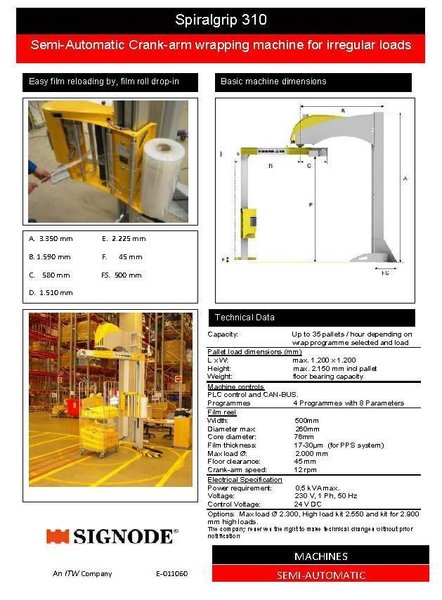

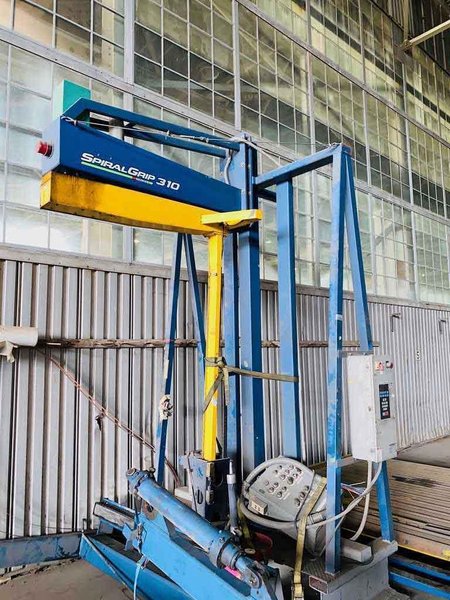

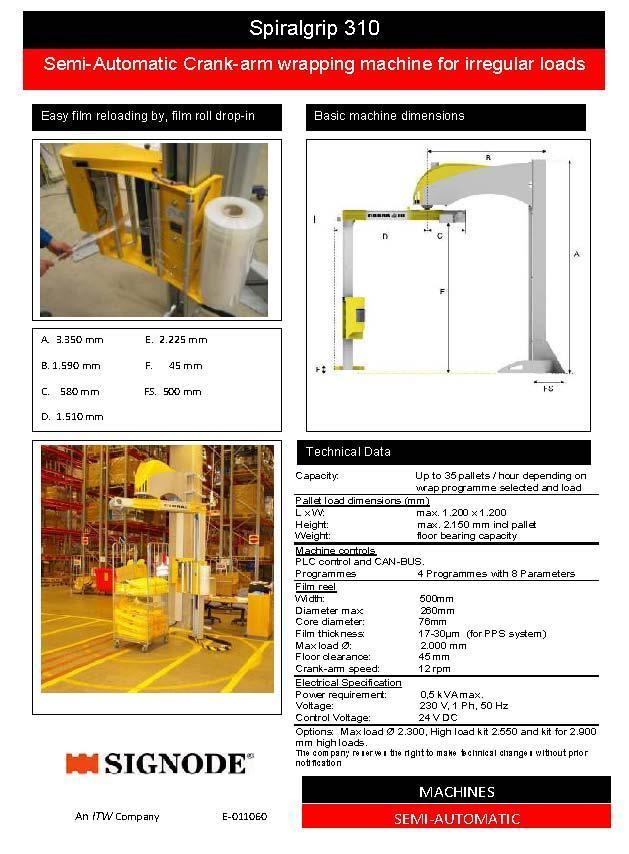

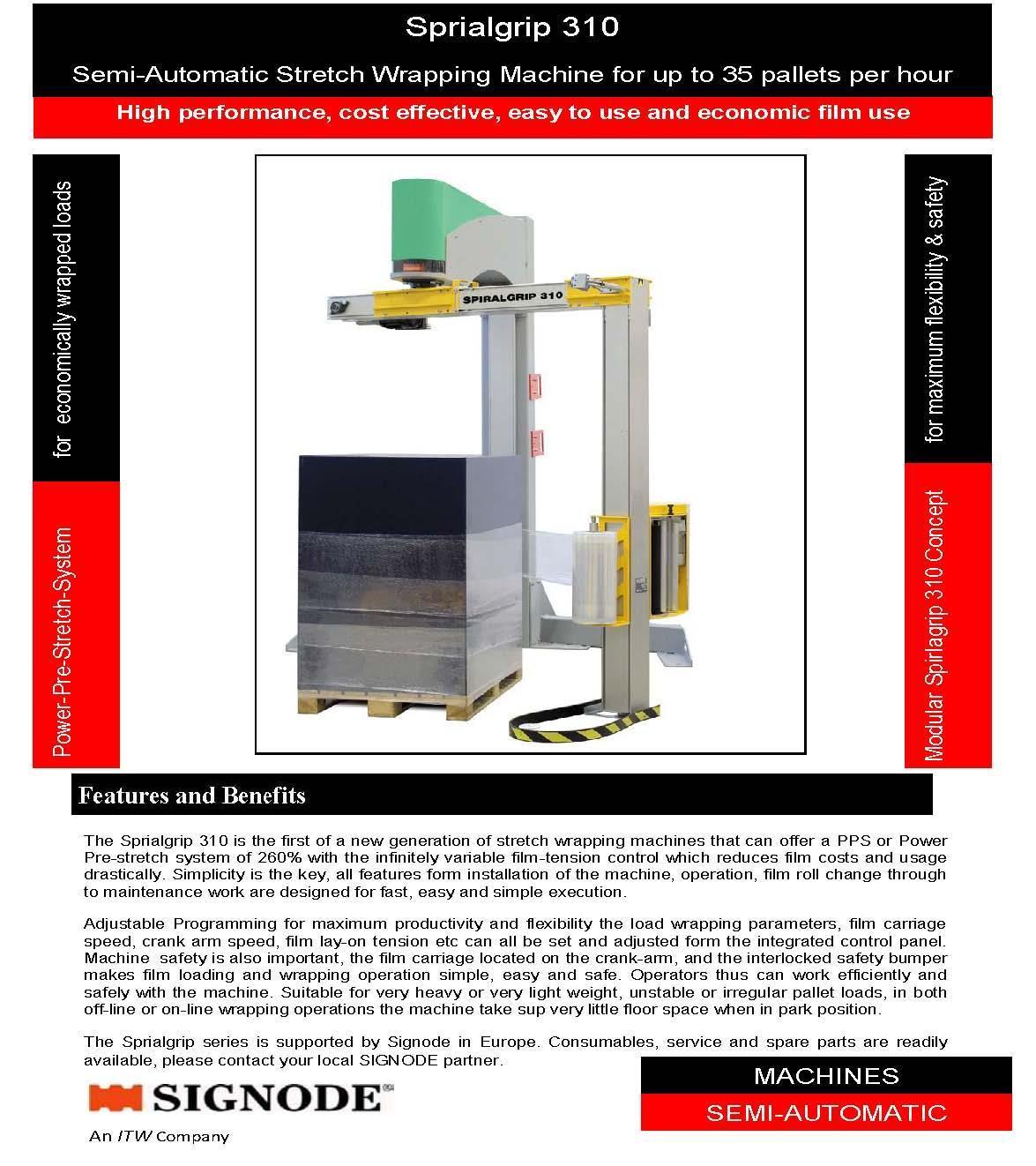

Signode SpiralGrip Semi-Automatic Overhead Stretch Wrapping System

Model: 310

-Rotation Speed: 12 RPM
-Loads Per Hour: 35 Approx.
-Average Cycle Time: 30 Sec.
-Min. Wrap Height: 2" (51mm)
-Max. Wrap Height: 84" (2135mm)
-Max. Load OD: 84"

-Film Delivery Type: Sensor Stretch, Powered Pre-Stretch
-Max. Roll Width: 20" (500mm)
-Film Roll Diameter: 10" (250mm)
-Core Size: 3" (76mm)

-Overall Size: L x W x Height: 57" x 56" x 128"(1460mm x 1435mm x 3265mm)
-Operating Voltage: 110 V, 1 Phase

-2 Sections of Floor Conveyor:
90" Roll Face x 90" Long x 40,000 lbs capacity.

-Shipping Weight: 3,000 lbs. approx.

-In Storage: Toledo, Ohio
