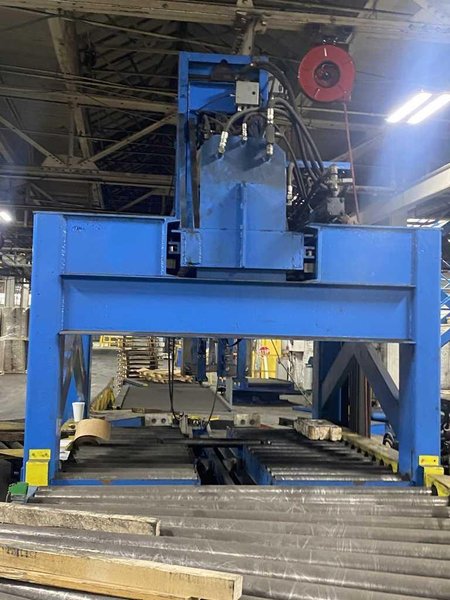

10,000# x 72" Chicago Banding Line Stacker System

YEAR: 2017

Chicago Slitter Coil Packaging Equipment

Capacity: 10,000 lbs. x 72" O.D. Coils

Consisting of the following:

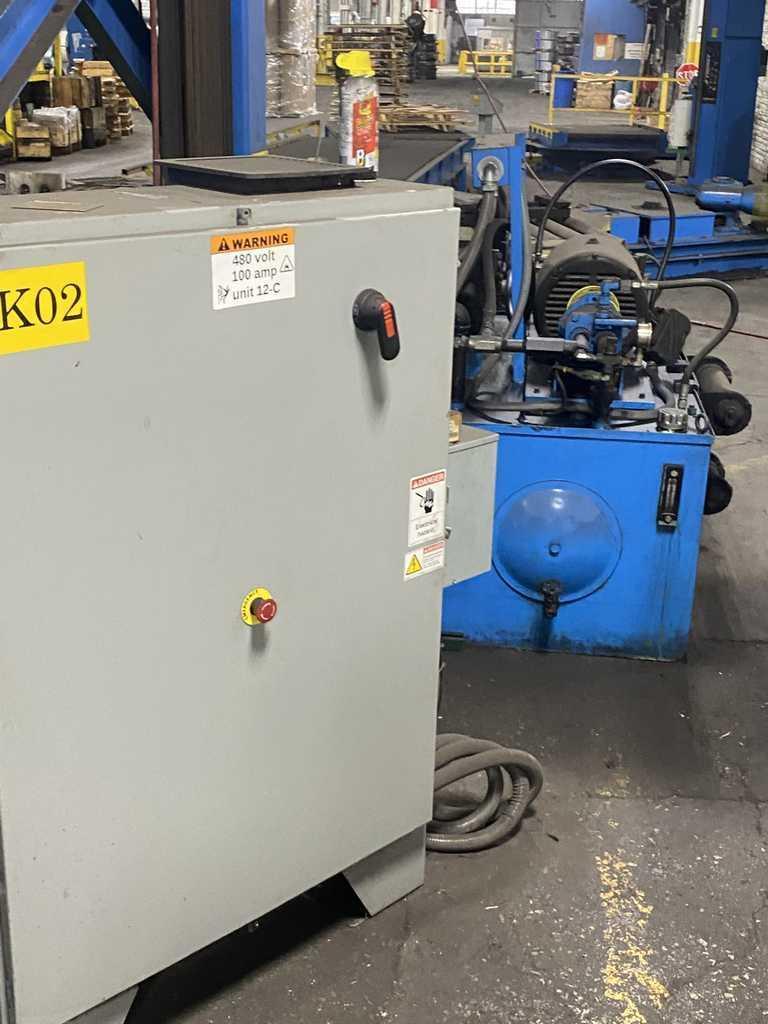

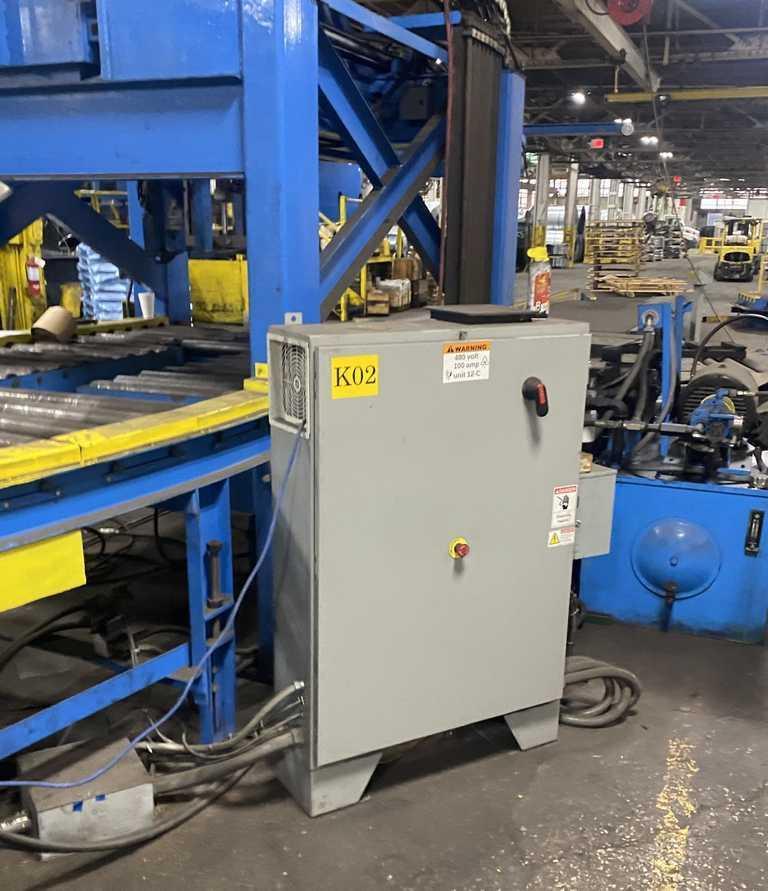

-Automatic ID/OD Stacker with electrical Panel & Hydraulics:
Capacity: 30" Max. Height x 72" OD x 10,000 lb. Coils
Frame: Floor mounted heavy duty

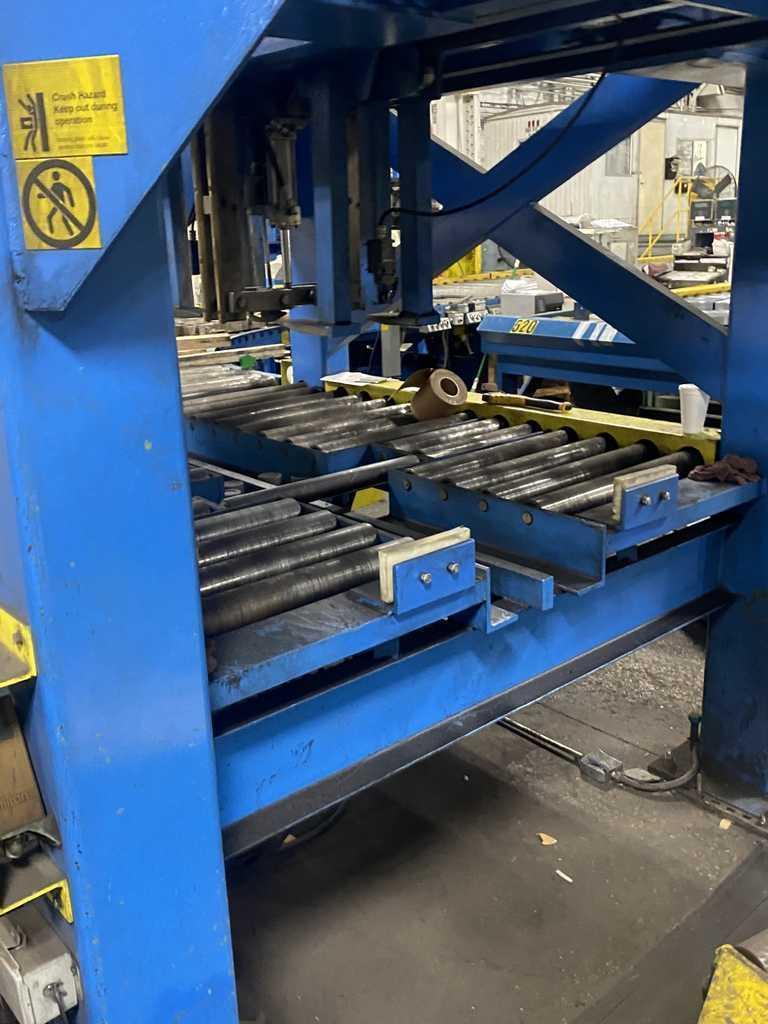

Coils enter the Stacker via a Conveyor System and are centered
on the indexing table. The ID/OD Feet lower down with the four
ID feet opening and the two OD feet closing. The coil is then
transported out with the Stacker Carriage and lowered onto a
pallet on the Turnstile.

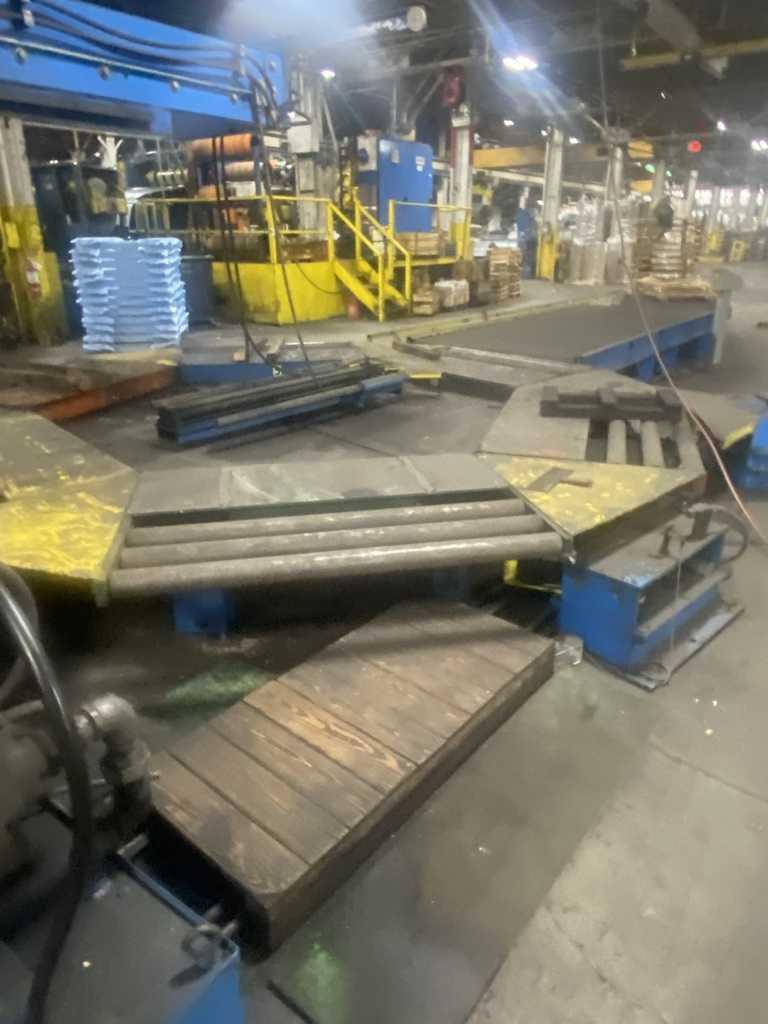

-Six Position Driven Turntable:
Capacity: 6 Coil Stacks
10,000 lb. per position
Stack Height: 30" Max.

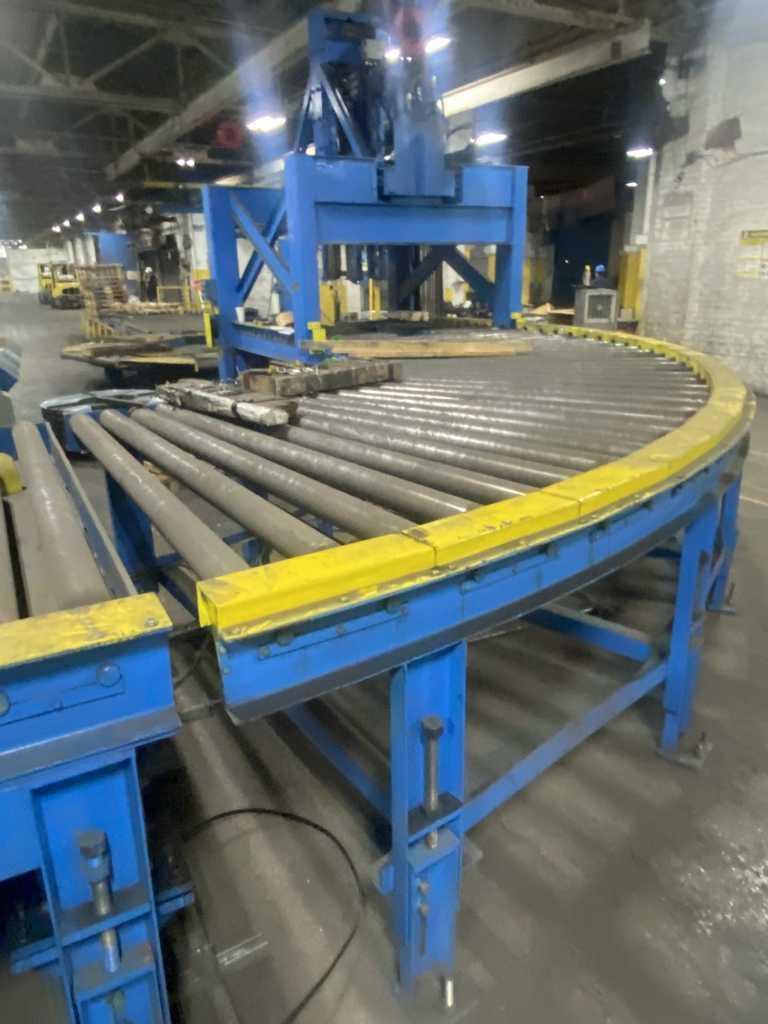

-10,000 lb. Capacity Driven Skid Bander
The table consists of a conveyor top mounted on a large diameter bearing.
The table accepts skids as they are pushed off of the turntable. The operator
straps on side of the skid, rotates the table, straps the other side and
discharges the skid.

-Skid Bander Scale:
10,000# Load Cell Floor Scale - Mettler Panther

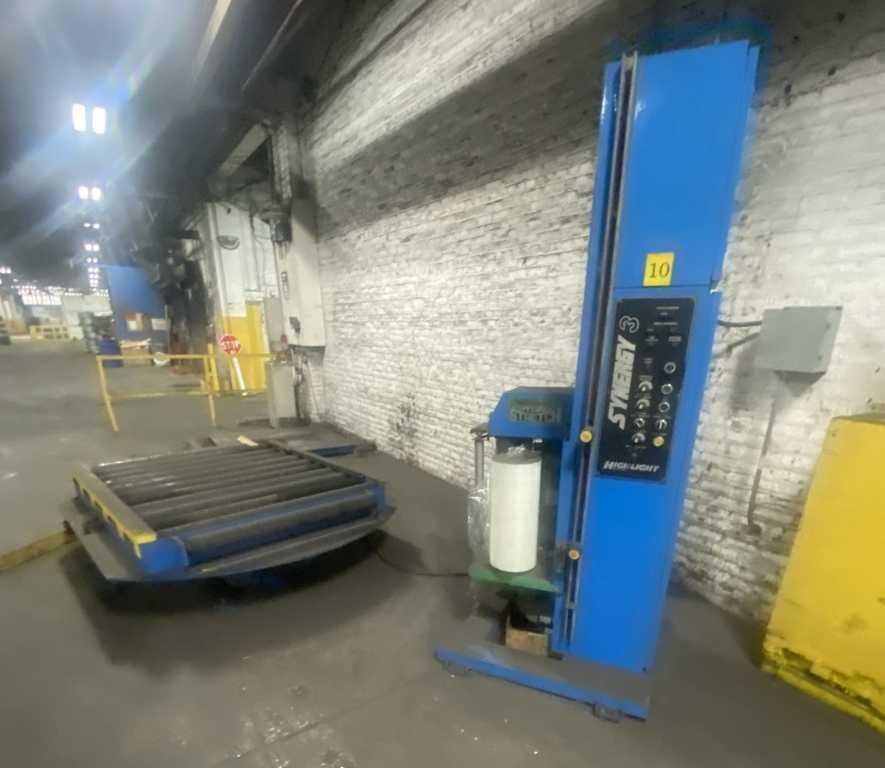

-Conveyorized Automatic Stretch Wrap System
High Light Synergy
