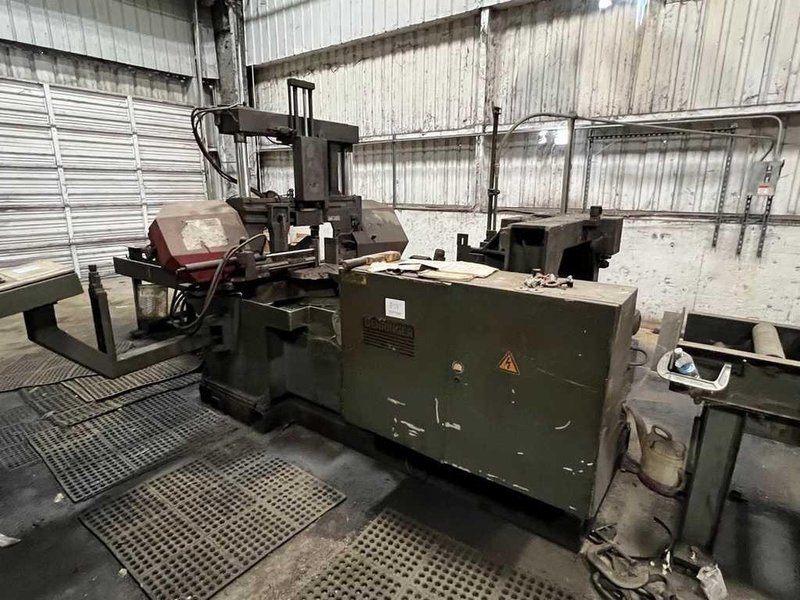

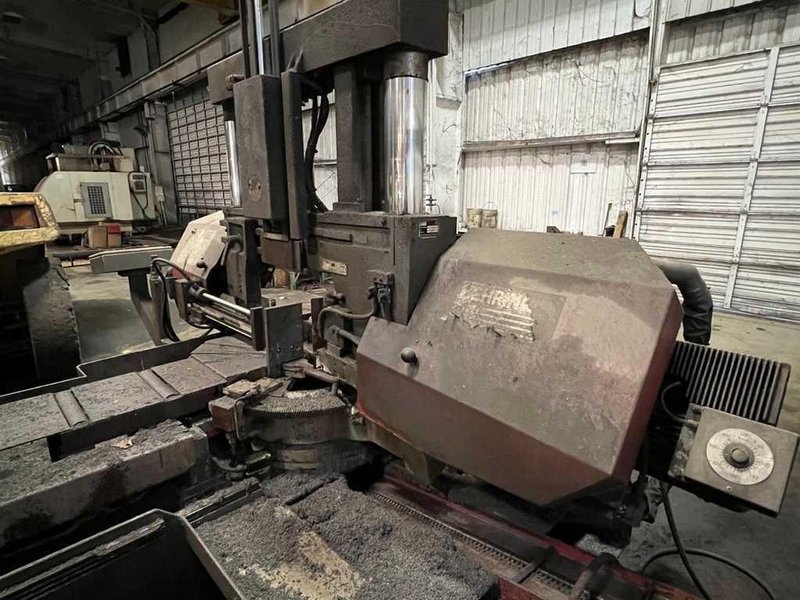

Saw, Band, Horizontal, Behringer

YEAR: 1997

Automatic Mitre Dual Column Band Saw

-Model Number: HBP 310
-Rect-Cap (H): 15.713" at 90 deg
-Rect-Cap (W): 13.49" at 90 deg
-Round: 12.2" at 90 deg
-Miter Rect. Cap. 13.7" x 12.2" at 45 deg right
-Miter Rect. Cap. 10.6" x 12.2" at 45 deg right
-Power: 7.5 HP
-Type (Auto, Manual, Semi): Auto
-Blade Width: 1.5"
-Blade Thickness: 0.5"
-Blade Length: 213"
-Control: CNC (Rittal CP 6011)

-Carriage Load Capacity: 5,000 lbs.
-Mitre Cutting: 0 - 45 Degrees Left
0 - 45 Degrees Right
-Shuttle Stroke: 0-118" Single Stroke
-Cutting Speeds: 75, 140, 220 & 350 FPMPLC Controller w/BBT-20
Operators Terminal.
-Fully Automatic Dual Mitre Programming
-Fully Automatic Hydraulic Blade Tensioning
-Rapid Approach Sensor
-Front Material Clamping
-Horizontal & Vertical Clamping
-Feed Carriage with Clamp

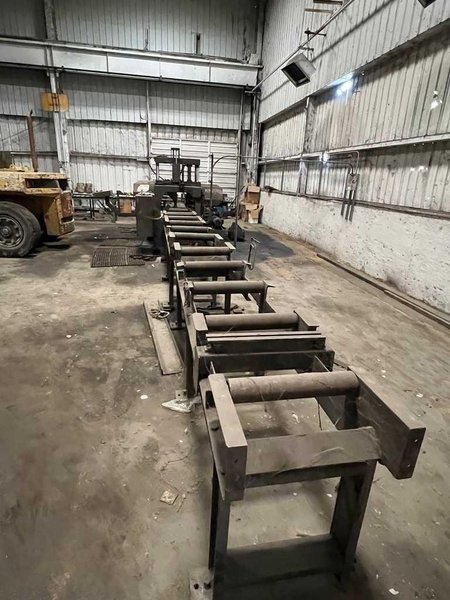

-Input & Output Roller Conveyors
-Side Exit Chip Conveyor
-Flood Coolant
-2 HP AC Hydraulic Pump
