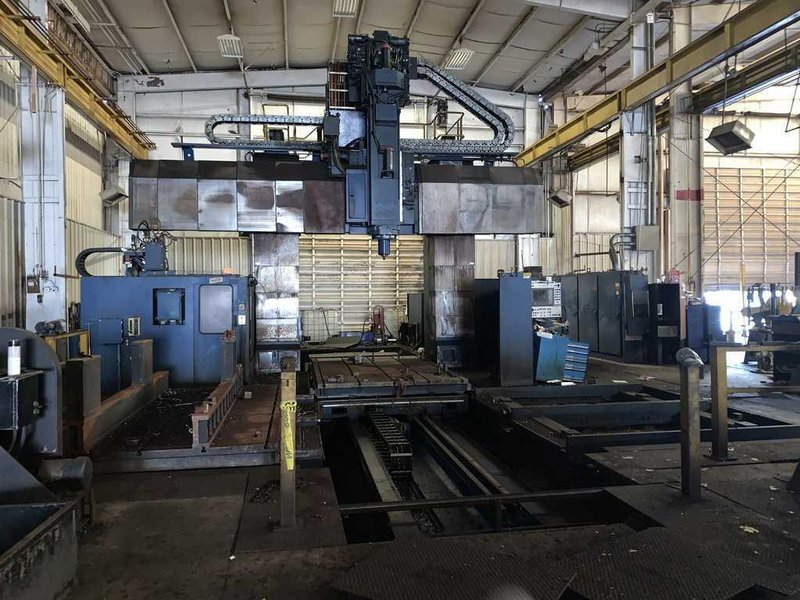

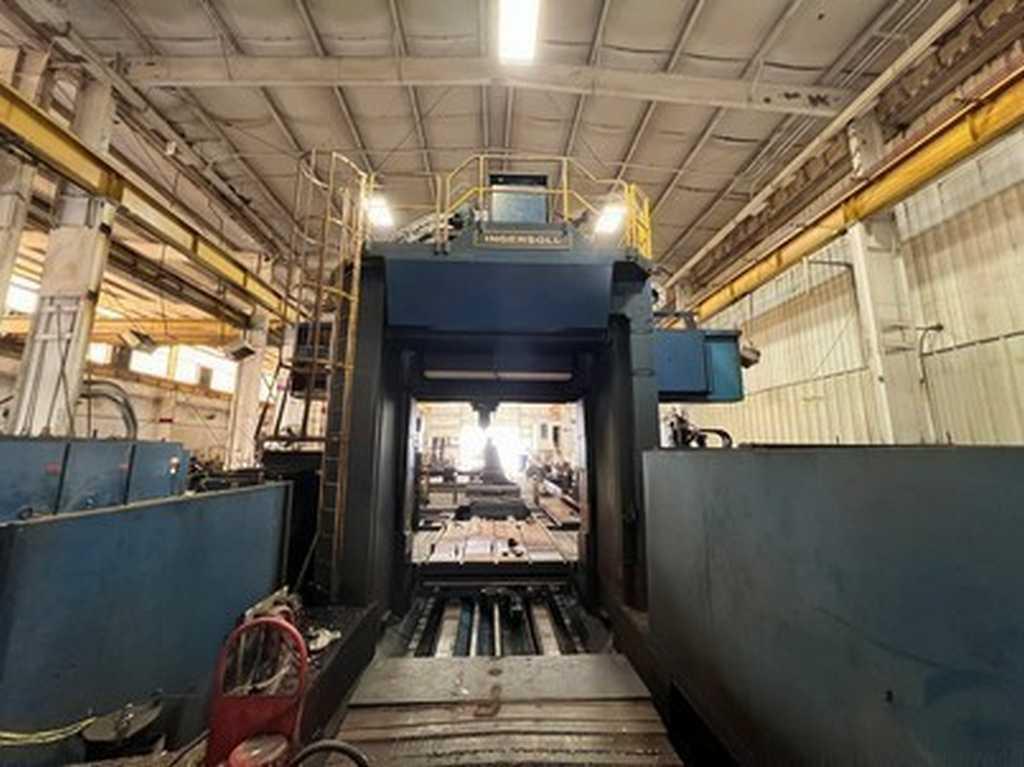

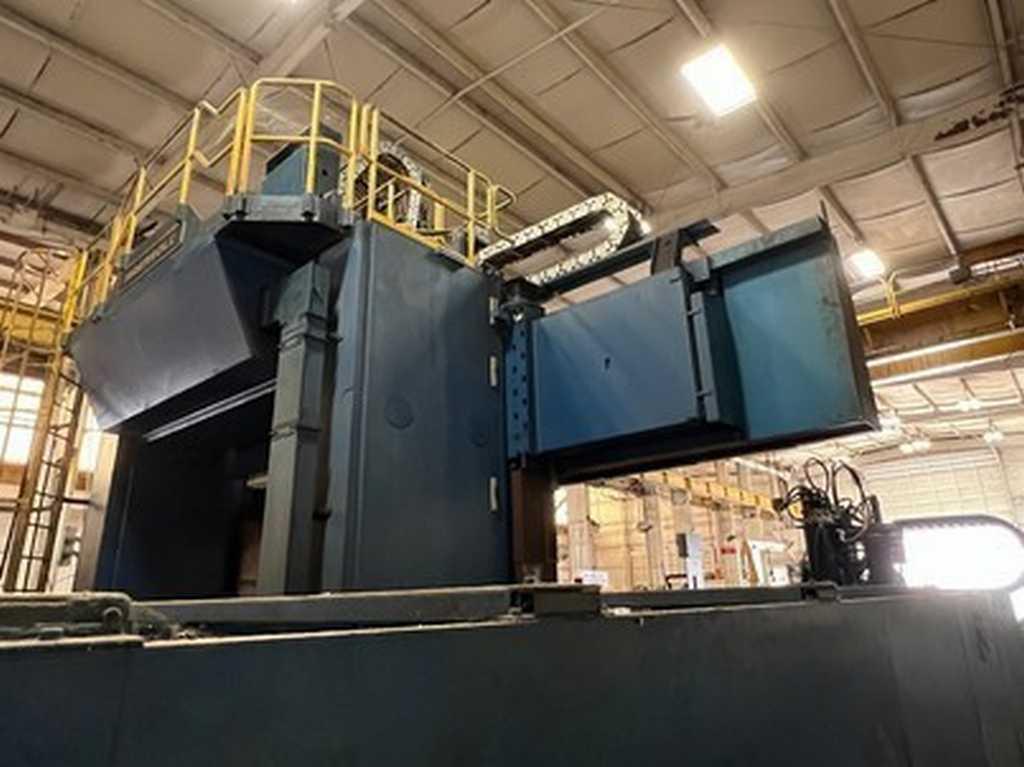

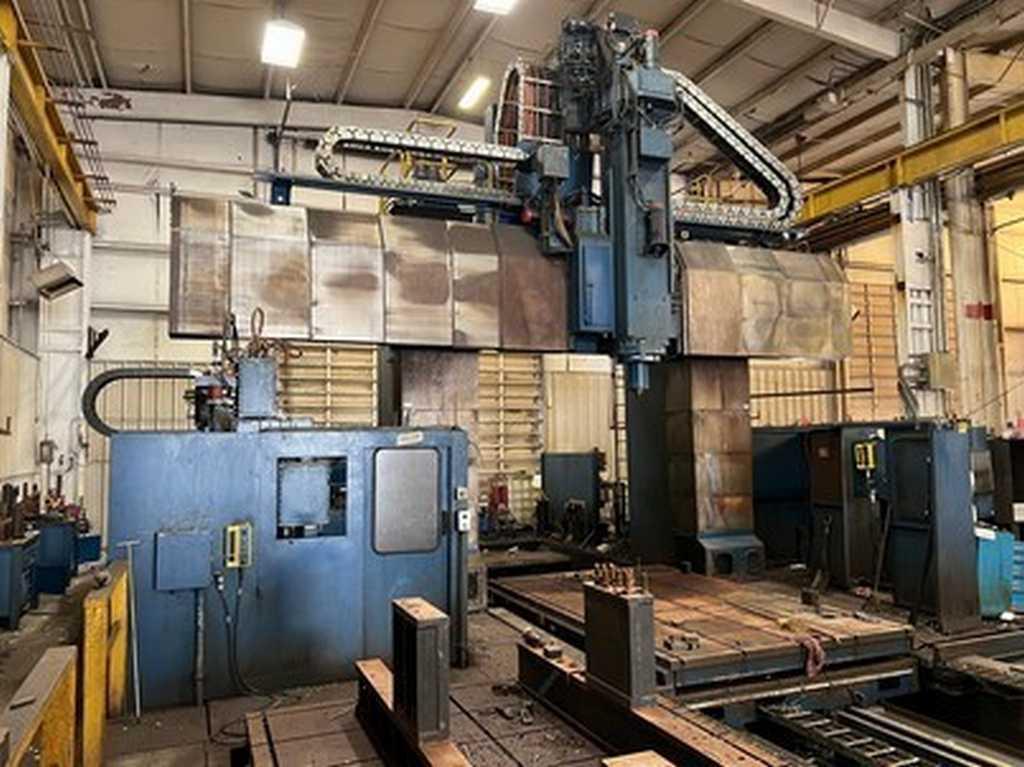

Machining Center, Ingersoll Rand

YEAR: 1996

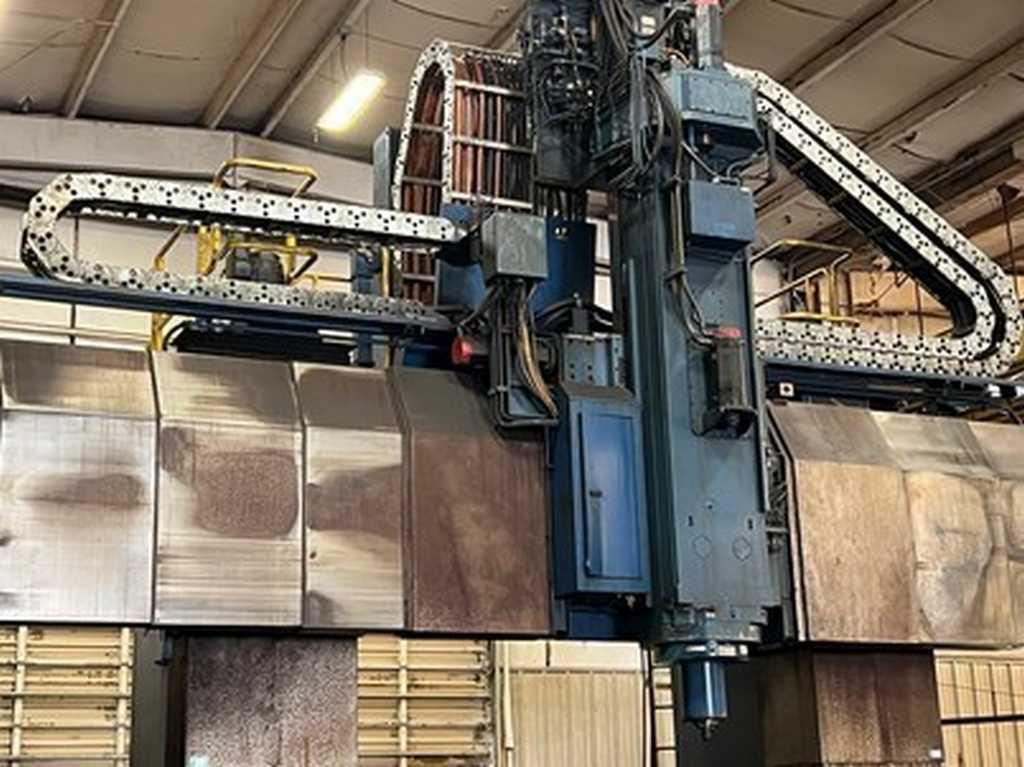

CNC Controlled 6 Axis Single Head Vertical Spindle Machining Center

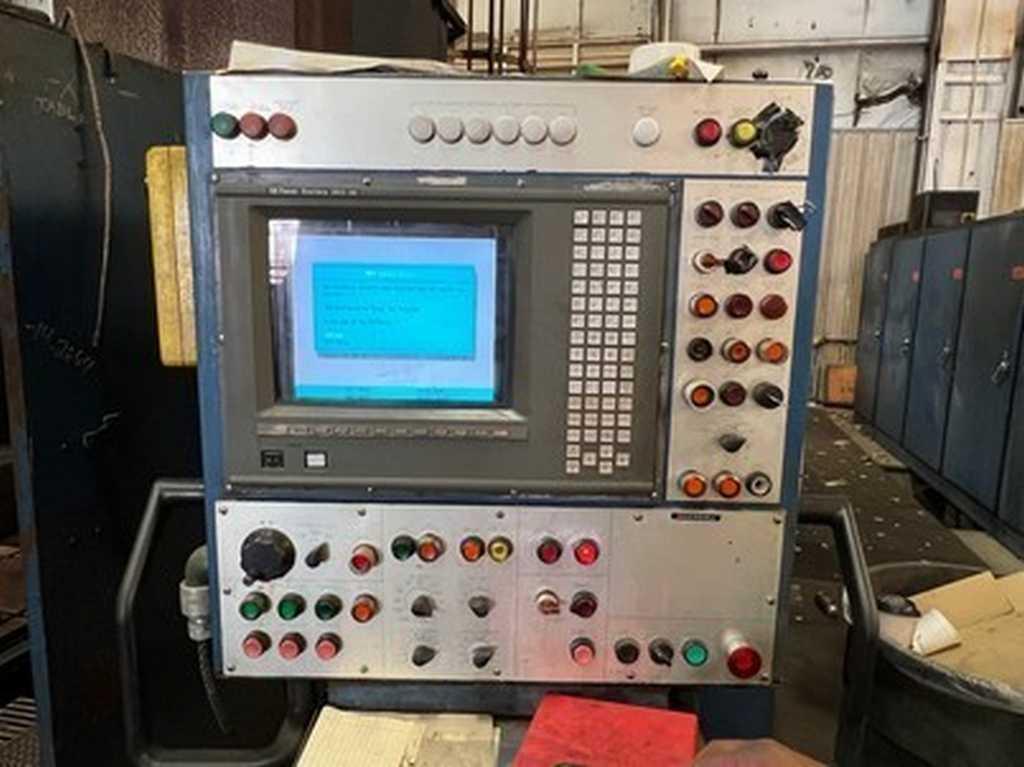

Control: CNC (Fanuc)
Dimensions: 544" W x 422" W x 314" H

-6 Axis Machine, 5 with Contouring
-Spindle Speed: 20 - 4000 RPM
-Continuous Power: 50 HP AC from 180 RPM
-Ram Size: 23" x 24" (585mm x 610mm)
-Ram Travel: 39.4" (1000mm)
-Ram Thrust: 6600 lb. (3000 kg)
-Width Between Column Covers: 118.1" (3000mm)
-Height from Pallet to Ram: 108.2" (2750mm)

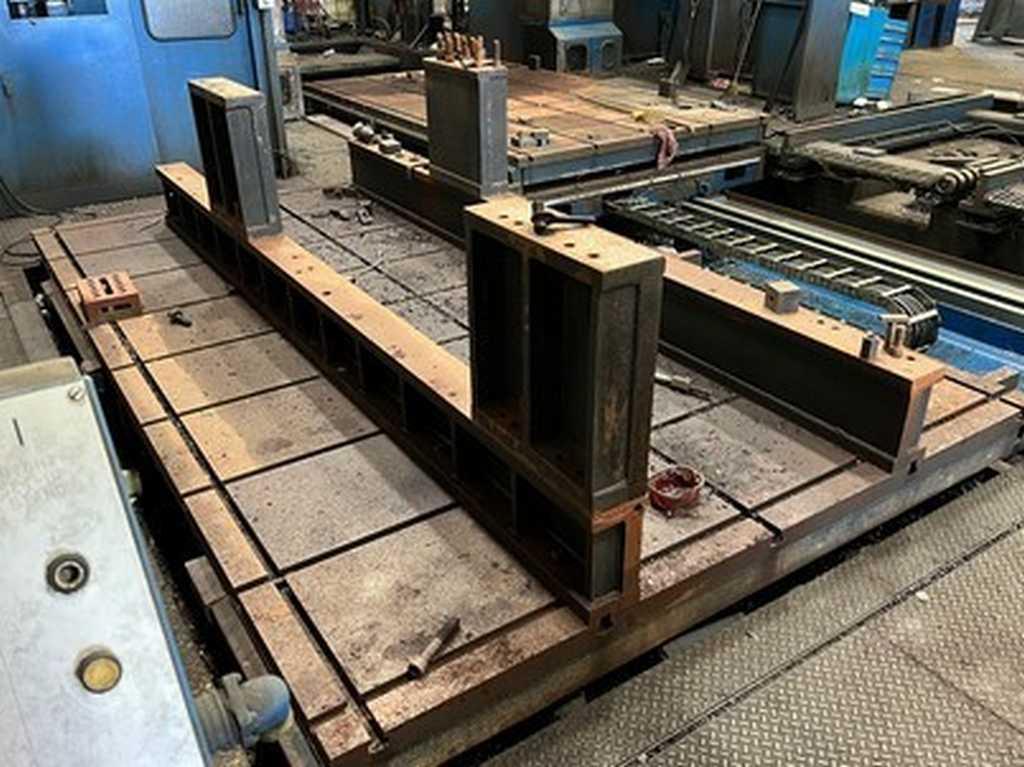

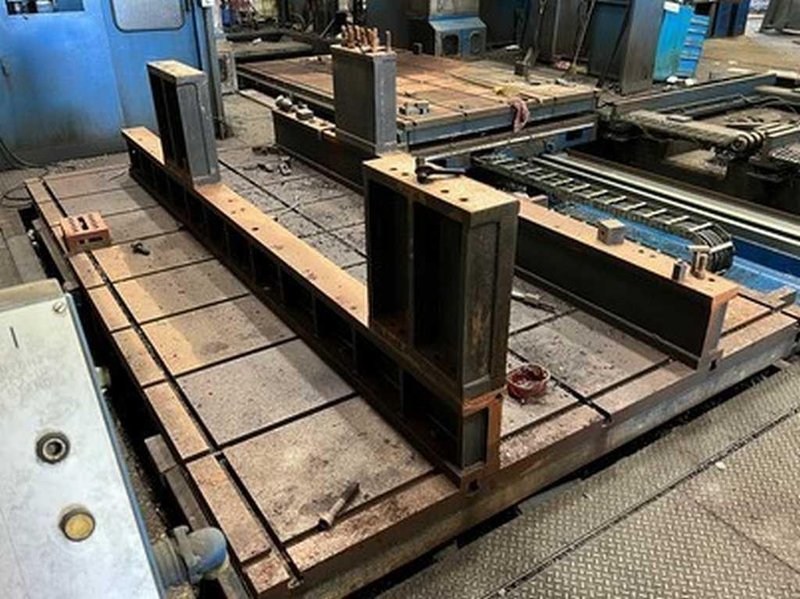

-Pallet Width: 98.4" (2500mm)
-Pallet Length: 157.5" (4000mm)
-Max. Load of Pallet Receiver: 88148 lb. (40000 kg)

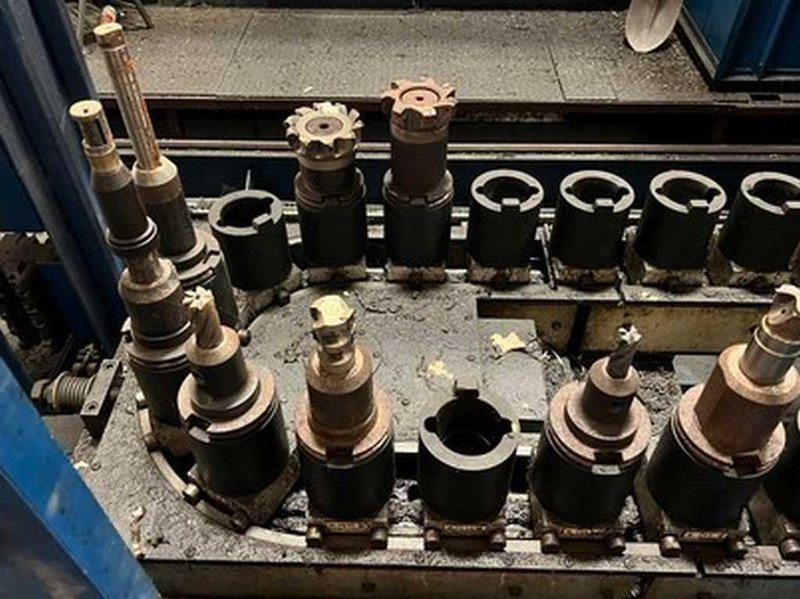

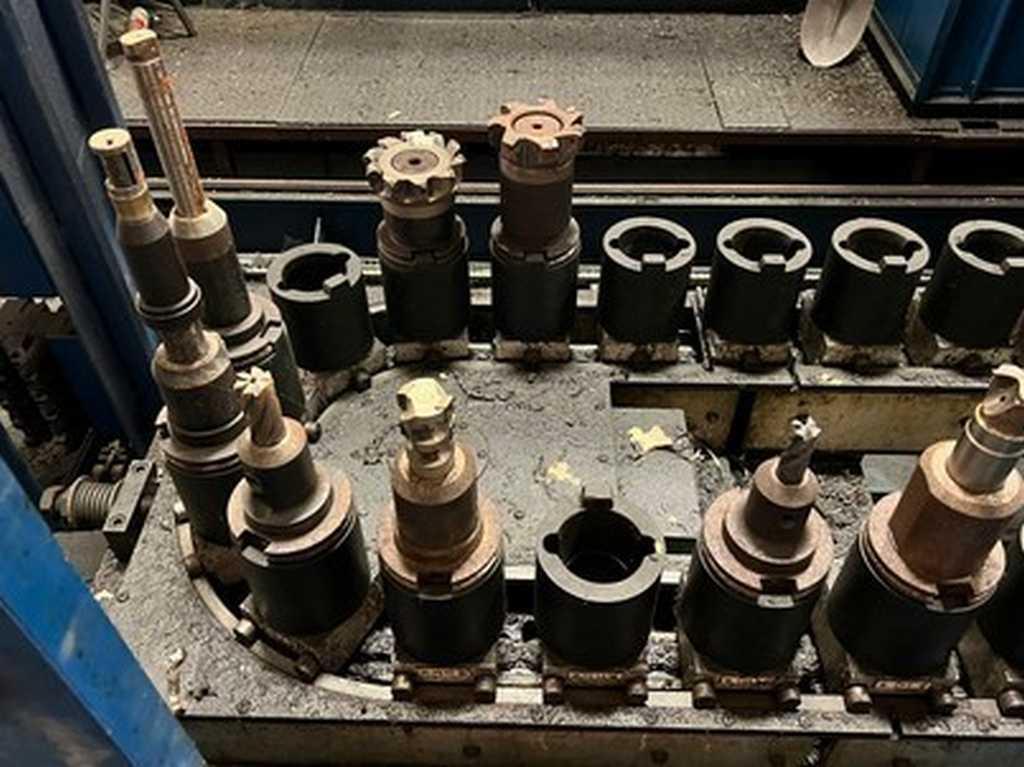

-Bertsche 100 Pocket (#50 Taper) Tool Changer
-CNC Controlled Straight & Right Angle Changing Capabilities
-8 Station Spindle Transporter

-Installed & Under Power
