Beam Drilling System, Peddinghaus

YEAR: 1981

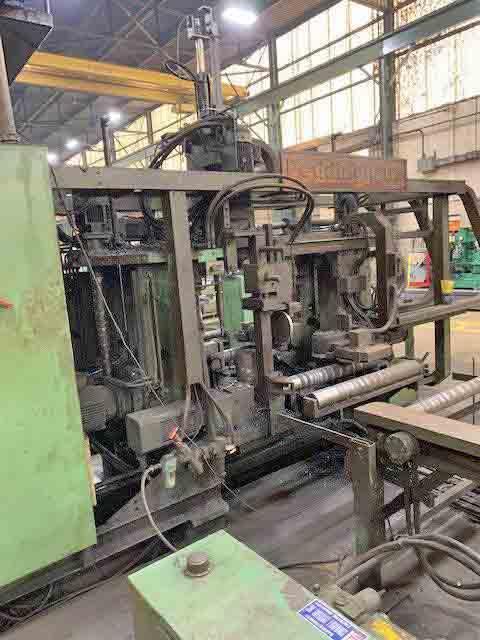

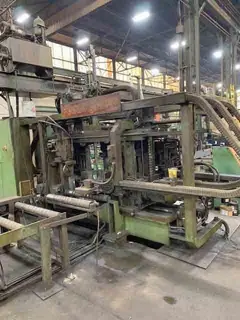

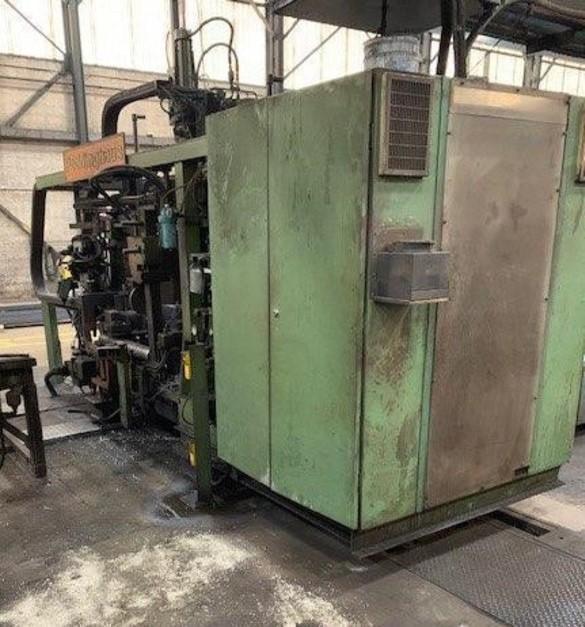

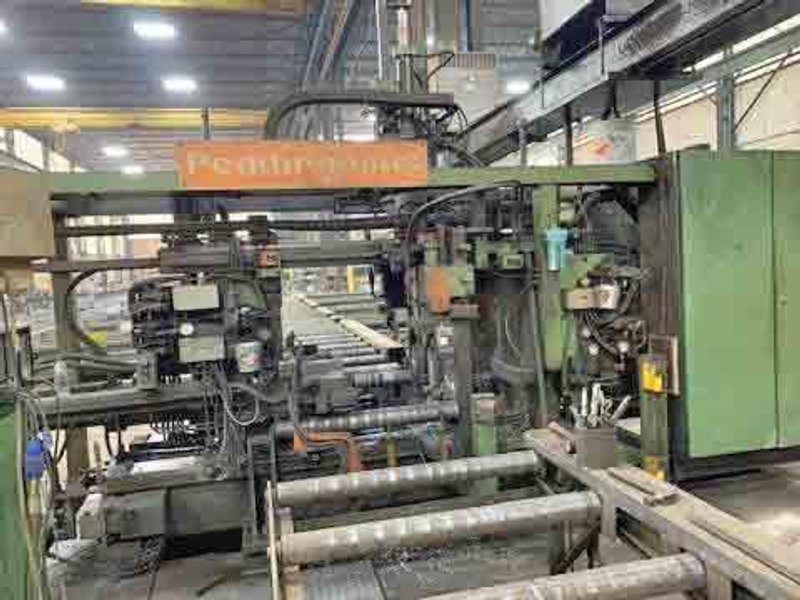

Peddinghaus Single Spindle Beam Drilling System

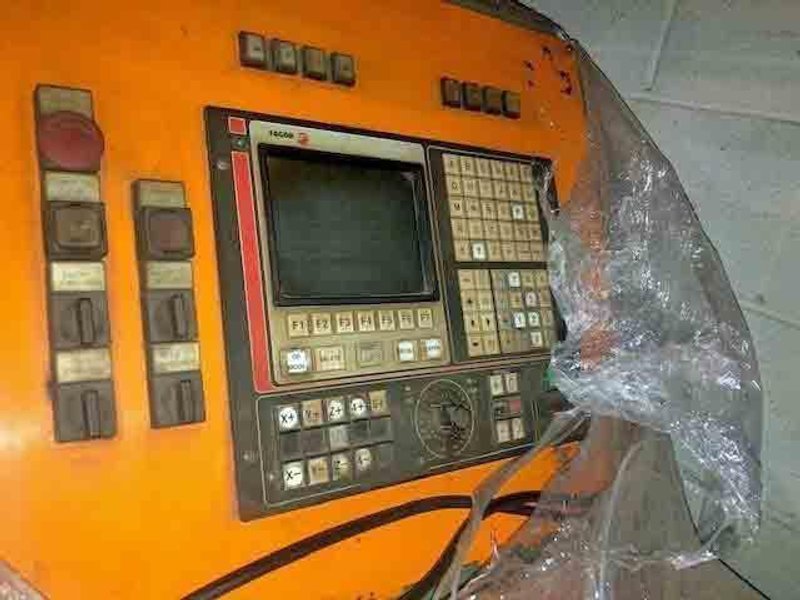

with 4 Axis CNC Control and Servo Drive.

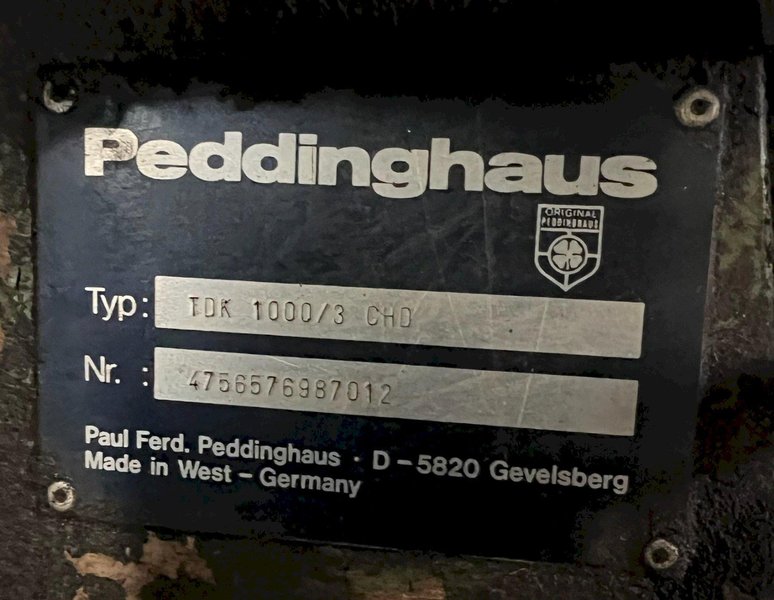

Model Number: TDK-1000/3 CHD

-Min. Beam Length: 63"
-Max. Width: 40"
-Max. Height: 24"
-Max. Weight: 17,000 lbs
-Max. Web Thickness: 4"
-Max. Flange Thickness: 7"
-Hydraulic Motor Power: 10 HP
-Pressure: 2200 PSI

-One Web Drill Assembly with one spindle
-Two Flange Drill Assemblies each with one spindle
Spindle Stroke (both): 12"
Spindle feed (Variable): 1 to 8 IPM
Traverse speed (Variable): Up to 65 FPM
Workpiece feed rate: 32 to 130 FPM
Feed rate is workpiece weight dependent
1,200 lbs = 130 FPM
Over 5,000 lbs = 32 FPM

-Operating Manual, Electrical Schematics and Spare Parts List included.

-In Storage: Toledo, OH.
