72" x 0.500" x 60,000# Herr Voss Cut To Length Line

YEAR: 1995

Strip Width: 30" to 72"
Strip Thickness: 0.096" - 0.500" @ 40,000 PSI
Coil I.D. Range: 20" to 30"
Coil O.D. Range: 39" to 84"
Coil Weight: 60,000 lbs.
Sheet Length: 24" to 24'
Stack Height: 18" (including skid)
Max. Stack Weight: 40,000 lbs.
Line Speed: 175 FPM

Consisting of the following:

-Entry Coil Staging Ramp:
3 Coil Positions
Hydraulic Transfers

-Pit Type Coil Lift:

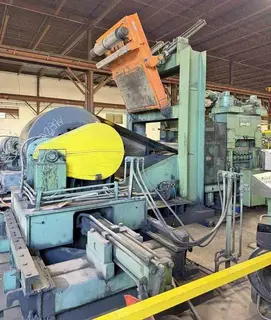

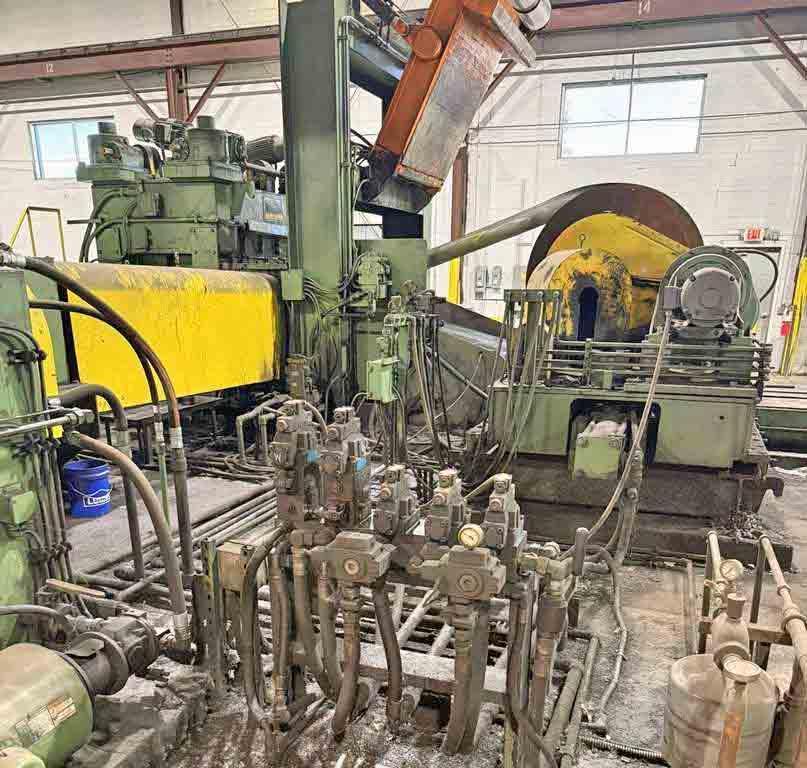

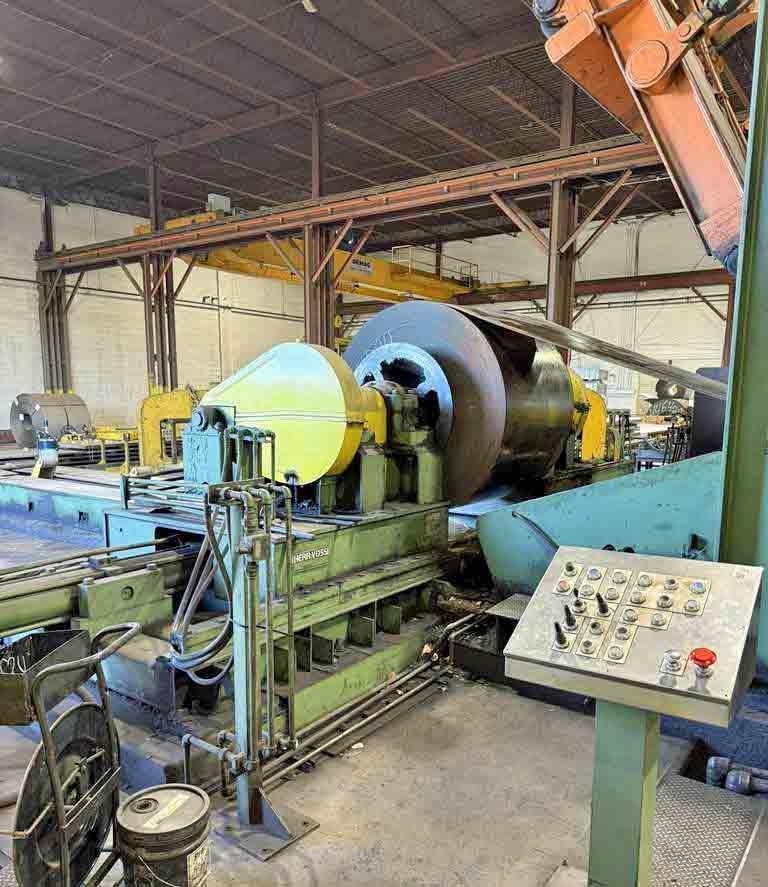

-Double Cone Uncoiler:
Water Cooled Drag Brake on both Heads
Powered Threading Drive
Sliding Base

-Entry Station:
Heavy Duty Motorized Overarm Holddown Roll
Articulation Peeler Table

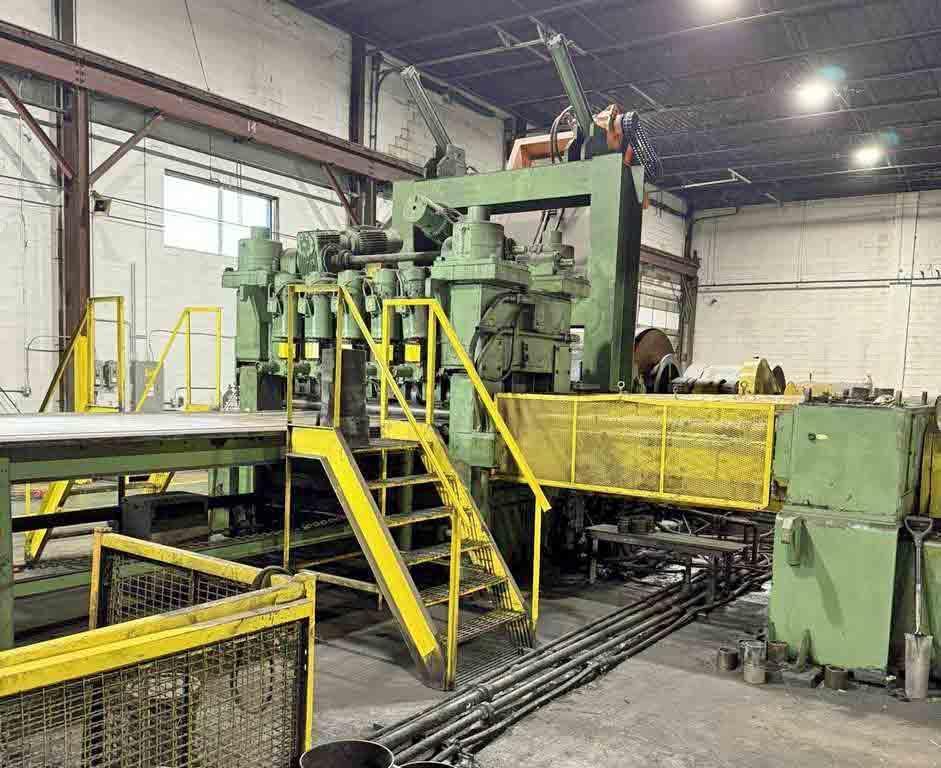

-Herr Voss Precision Leveler:
Model VKL 88/4.5-11/5-4HI
Capacity: 0.096" - 0.500" @ 40,000 PSI
(0.230" Max. @ 80,000 PSI)
4.5" Dia. x 88" Face Rolls
11 Roll Leveler - 5 over 6
5 Flights of Backups

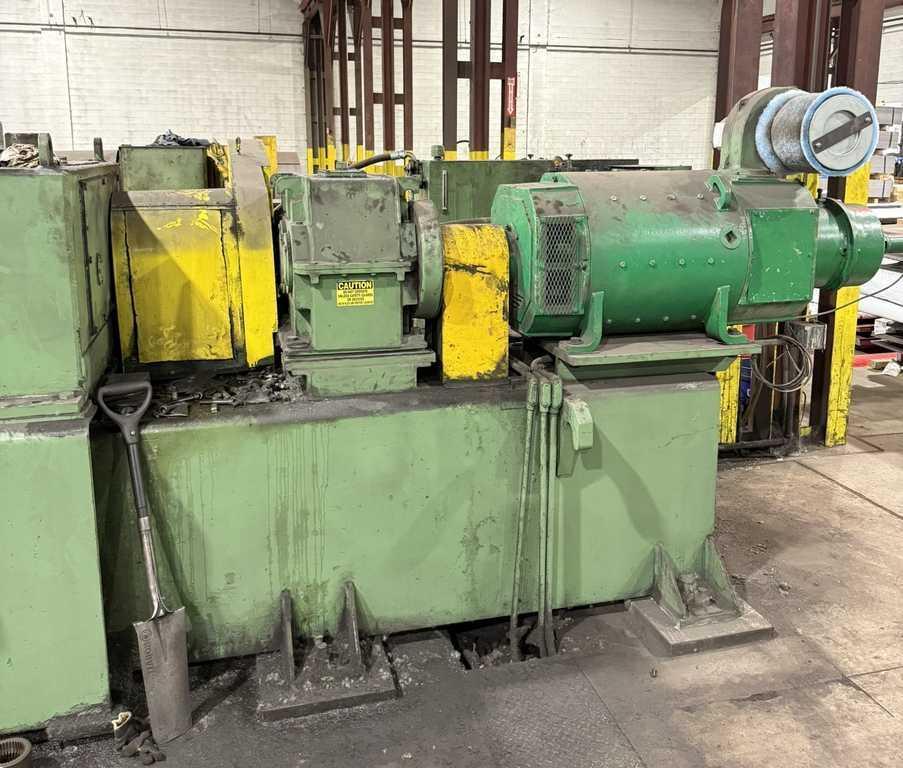

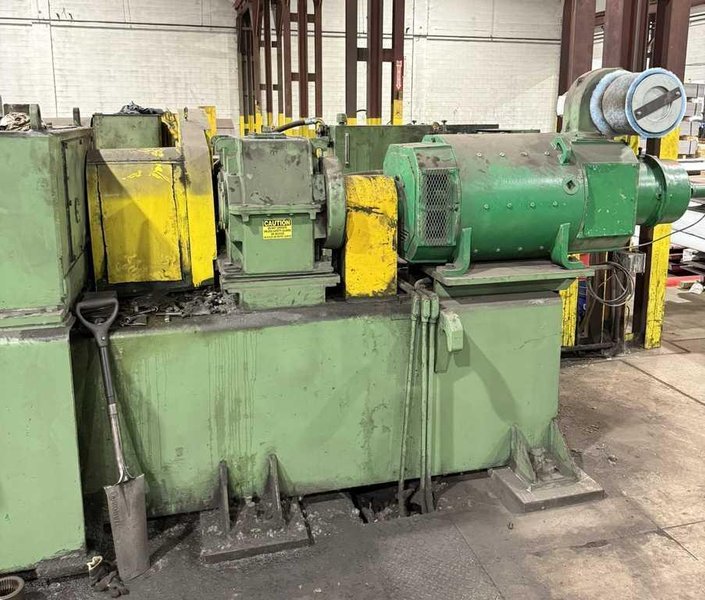

200 HP DC Motor, 850/1700 RPM, 500 V, W/Blower
Line Speed: 175 FPM

-Inspection Conveyor:
10' Long

-Side Guide Unit:
Hydraulic Motor powered Adjustment

-Measuring Roll:

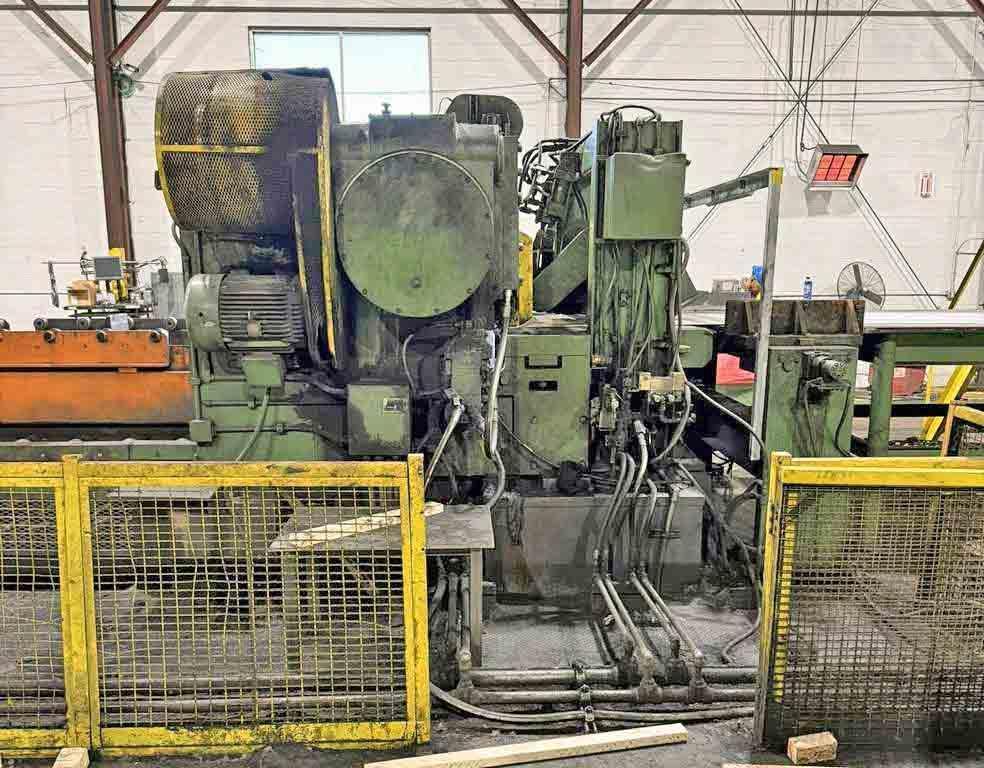

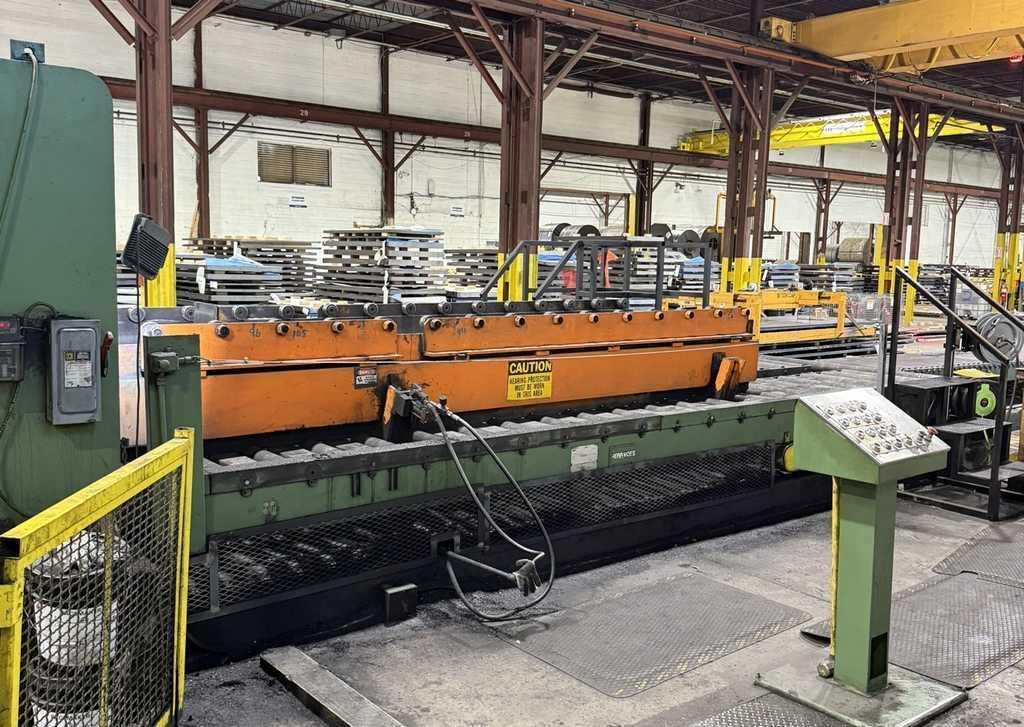

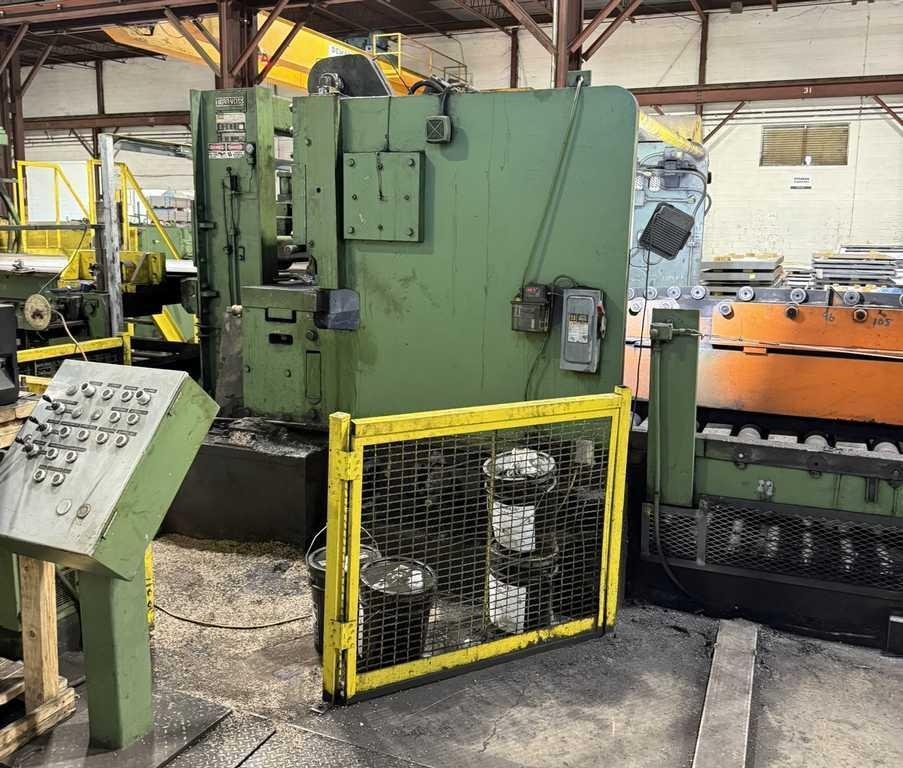

-Mechanical Downcut Shear:
Air Clutch and Brake
AC Motor Driven Flywheel

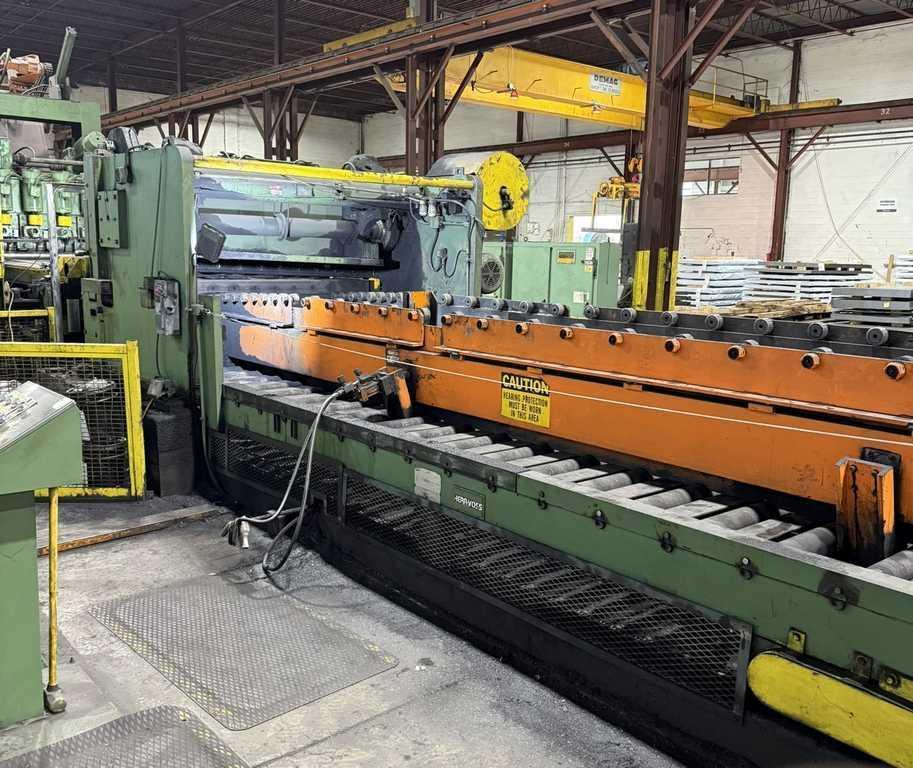

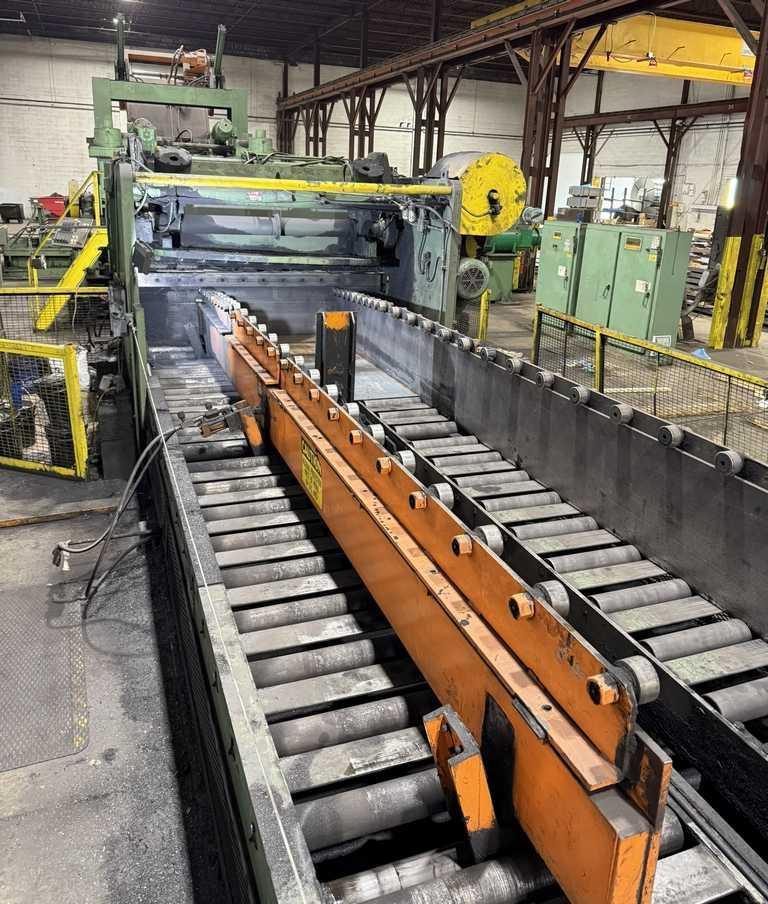

-Drop Stacker:
21' Long, End Discharge
Powered Roller Conveyor, 28' Long

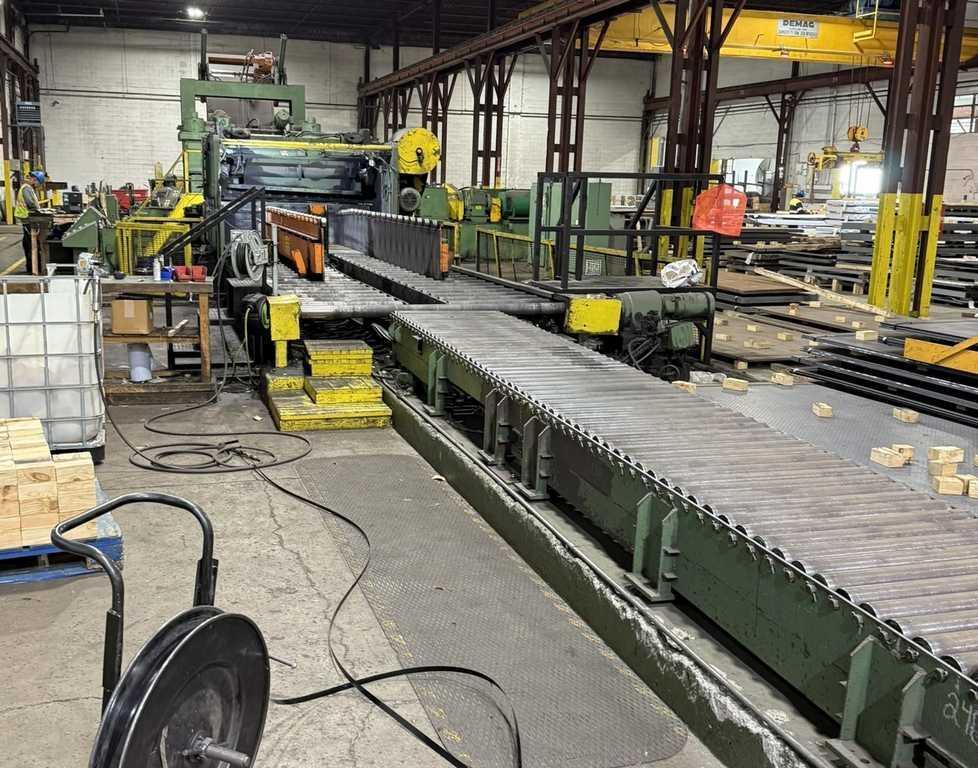

-In-Line Powered Runout Conveyor:
30' Long

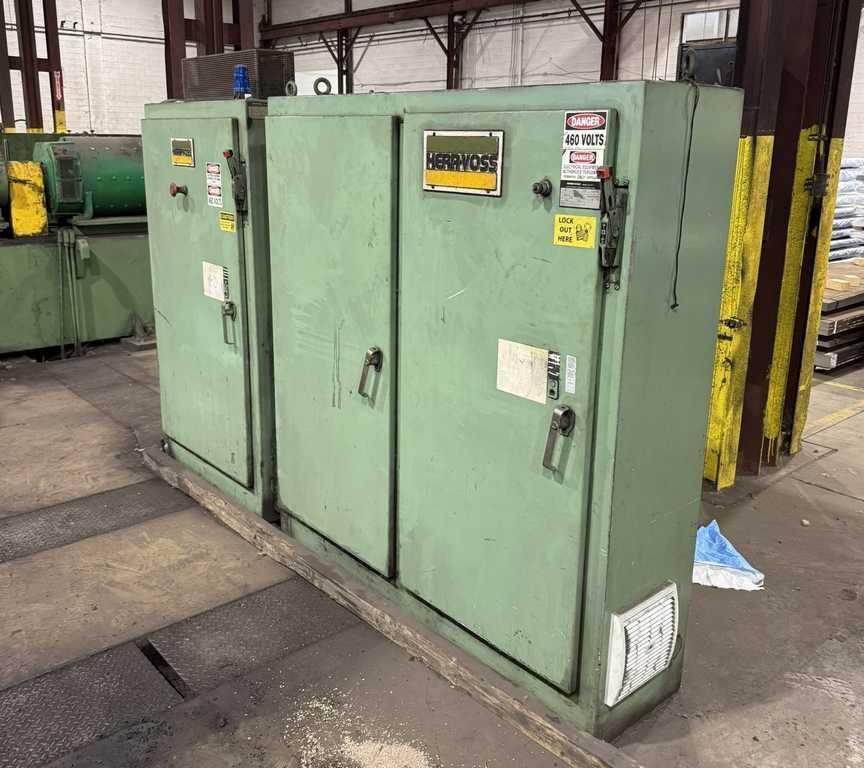

-Controls & Hydraulics:

-Spare Parts:

-Overall Line Length: 123' (Including Entry 3 Coil Staging Area)

-Line Direction: Left to Right

-Installed and Under Power; Toledo, OH.
