48" x 0.045" Herr Voss Cut To Length Line

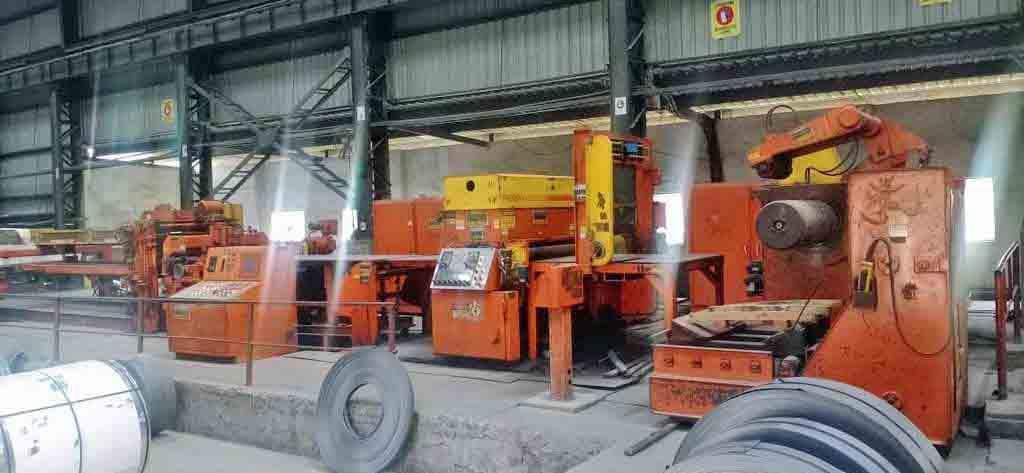

Herr Voss Cut-to-Length Line

-Width: 48" (1220mm)
-Thickness: 0.012" - 0.045" (0.3 - 1.15mm)
-Material: CR GI
-Line Direction: Right to Left

Consisting of:

-Entry Coil Car:
Self-Contained Hydraulics
Pendant Control

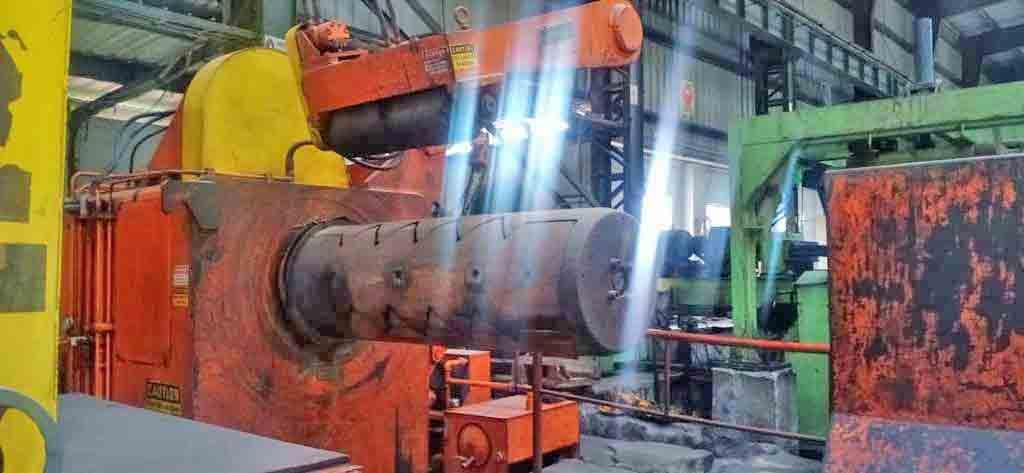

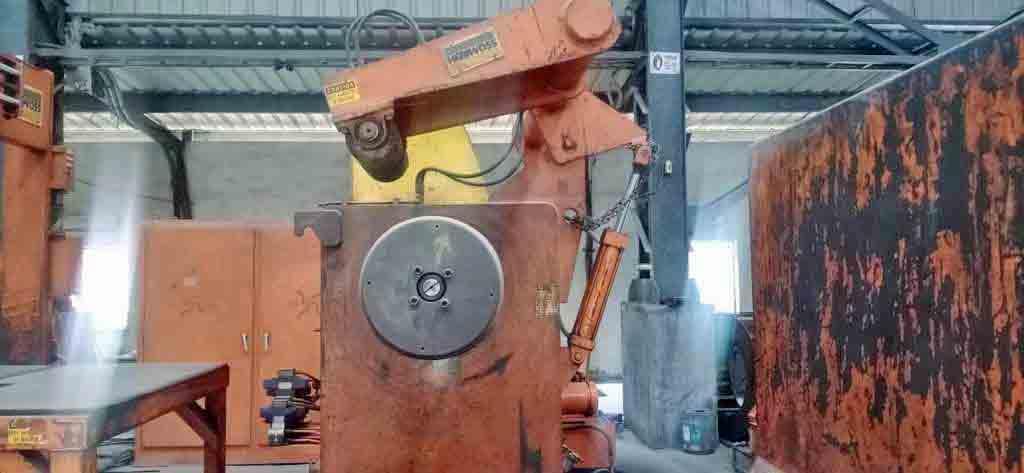

-Uncoiler:
Hydraulic Expansion
Pumpkin Tooth Drum
Powered Holddown Roll
Threading Drive
Brake
Sliding Base

-Automatic Edge Control:

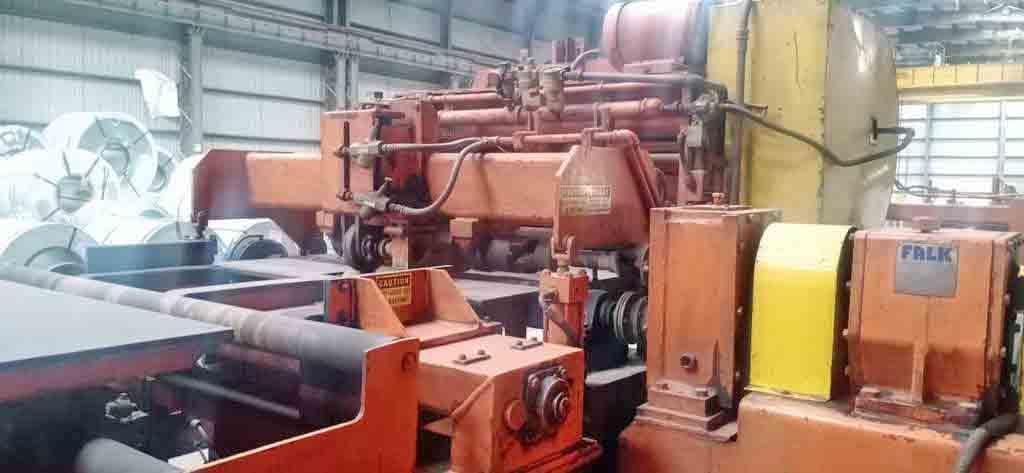

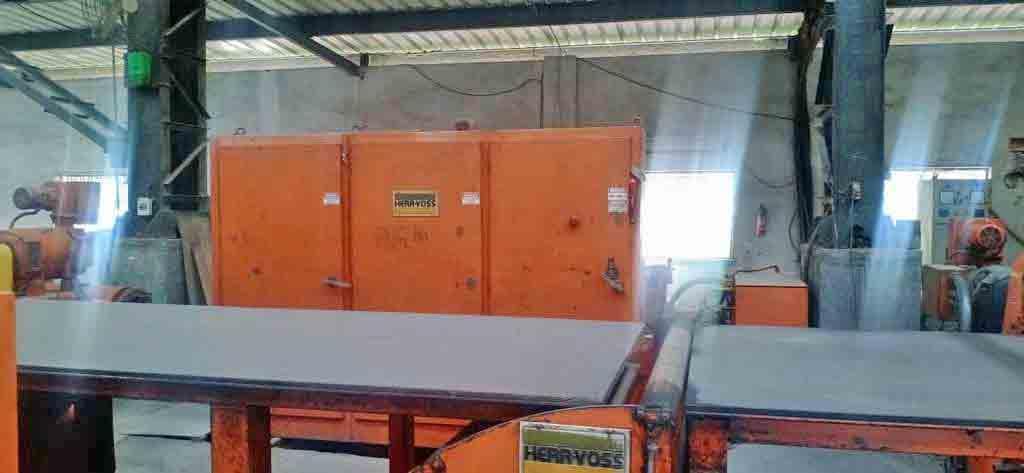

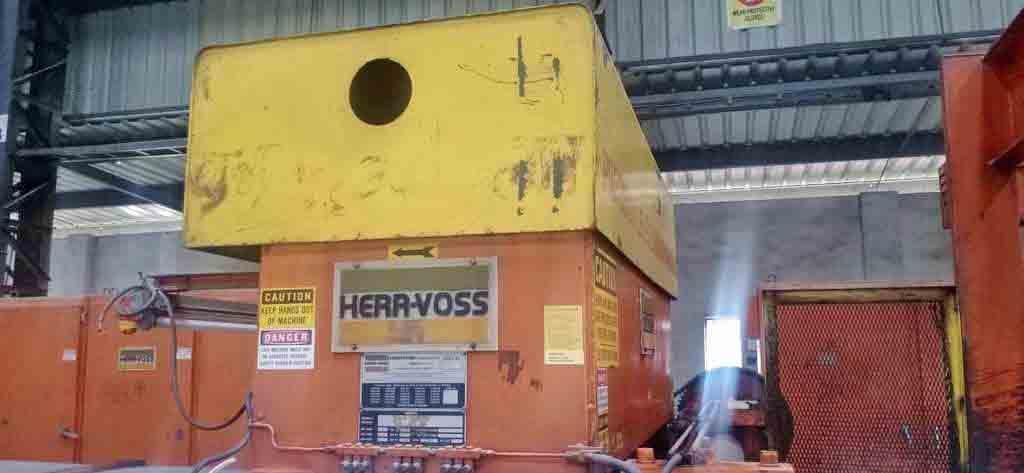

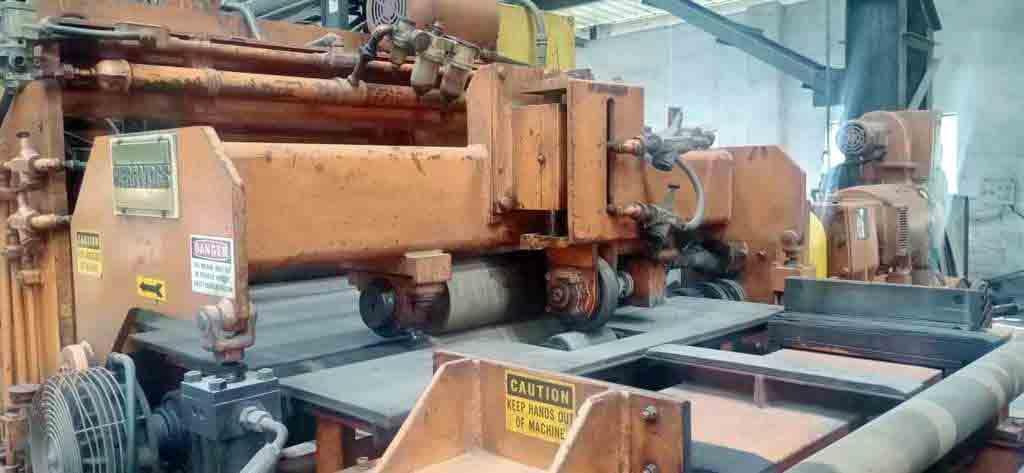

-Herr Voss Precision Leveler:
19 Work Rolls
0.875" Dia. Rolls
9 Flights of Backups
7 Flights Motorized
Entry Driven Pinch Rolls

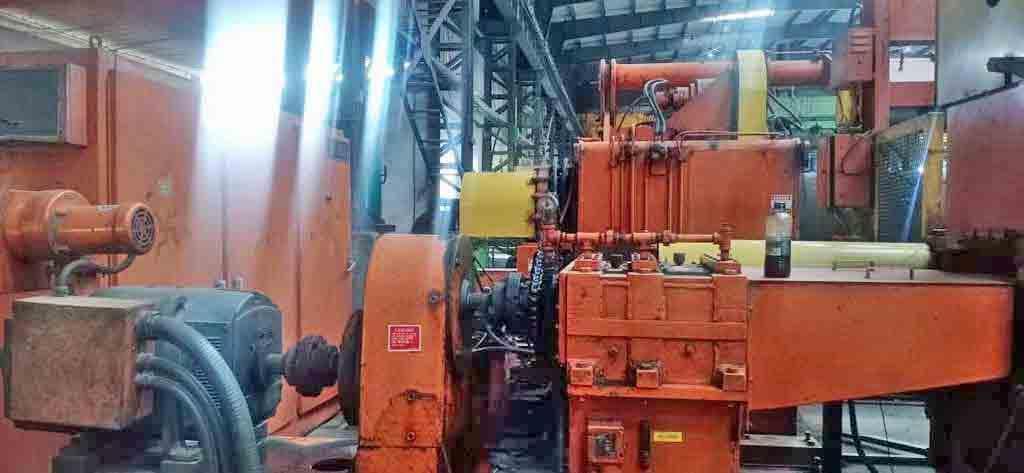

DC Motor w/Blower

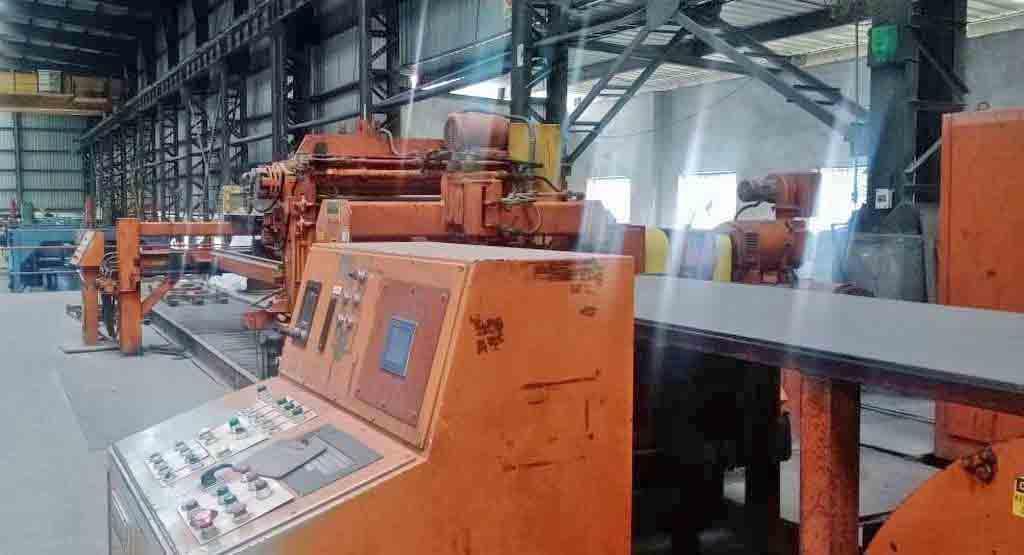

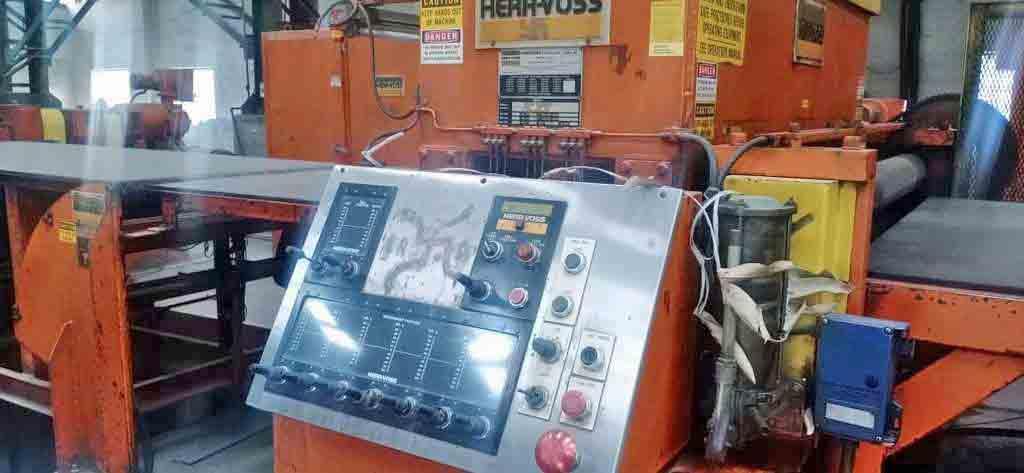

-Operators Panel with Joystick Controls:

-Looping Pit:

-Precision Roll Feed:
Entry Side Guides

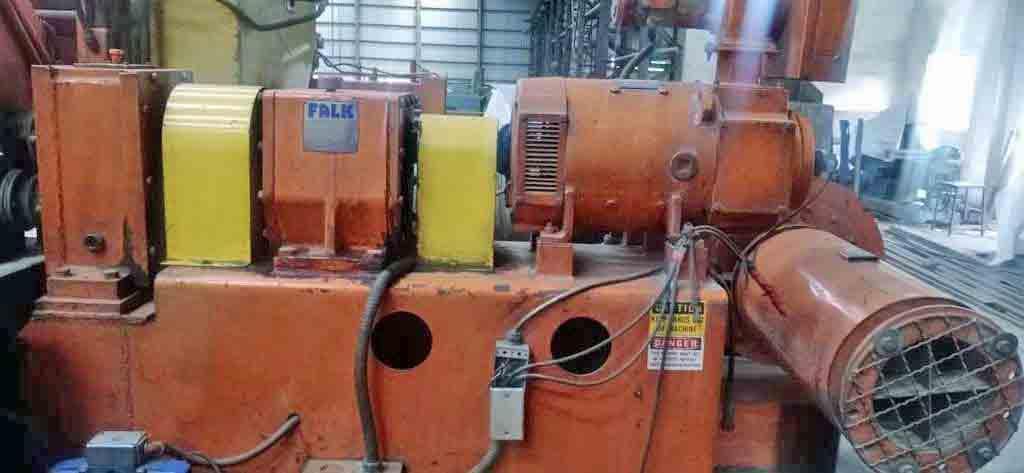

DC Motor w/Blower

-High Speed Shear:
AC Motor
Air Clutch and Brake

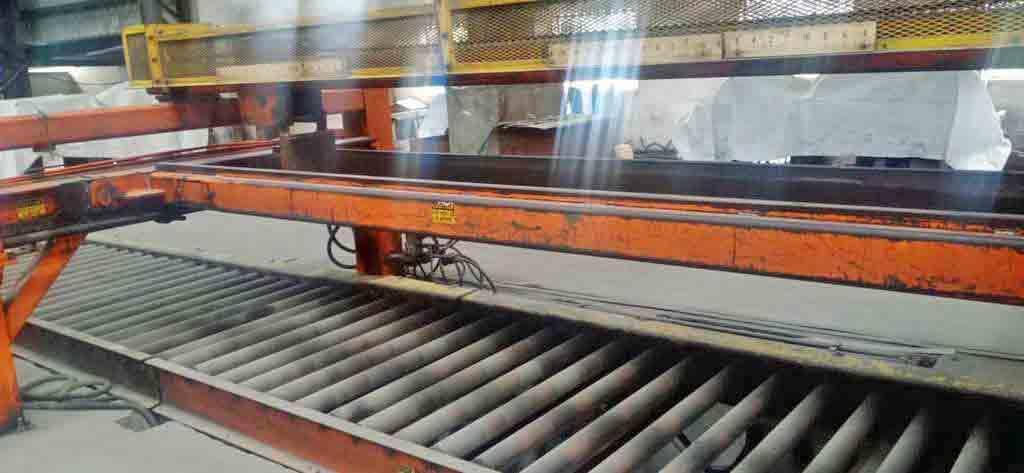

-Automatic Stacker:
Powered Width Adjustment
Powered Length Adjustment
Powered Roller Conveyor
End Discharge

-Discharge Conveyor:
Powered Rolls

-Installed and under power
