Coil Forming Machine, Burr Oak

YEAR: 1997

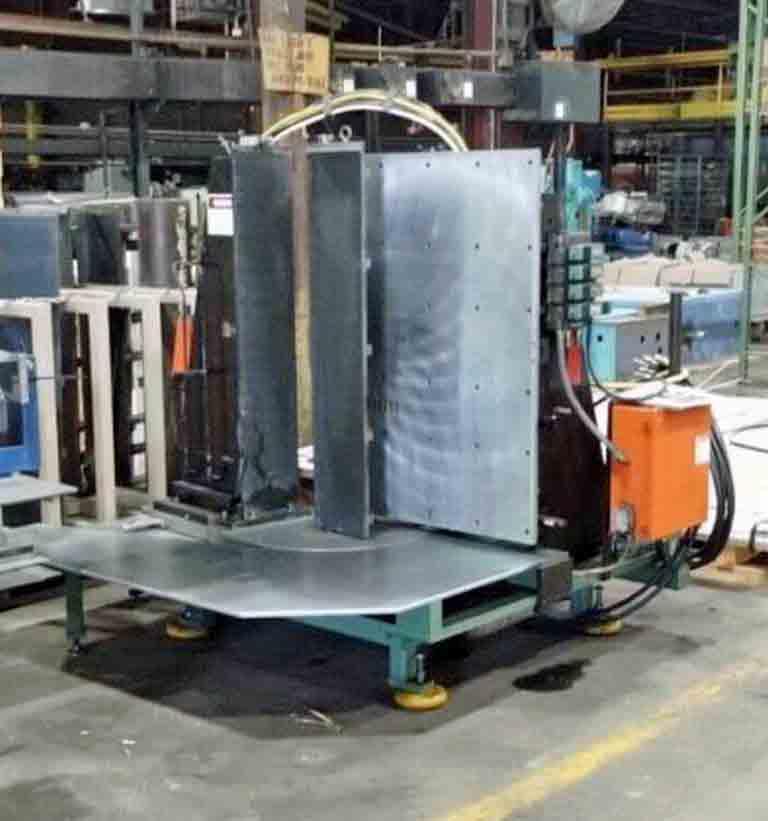

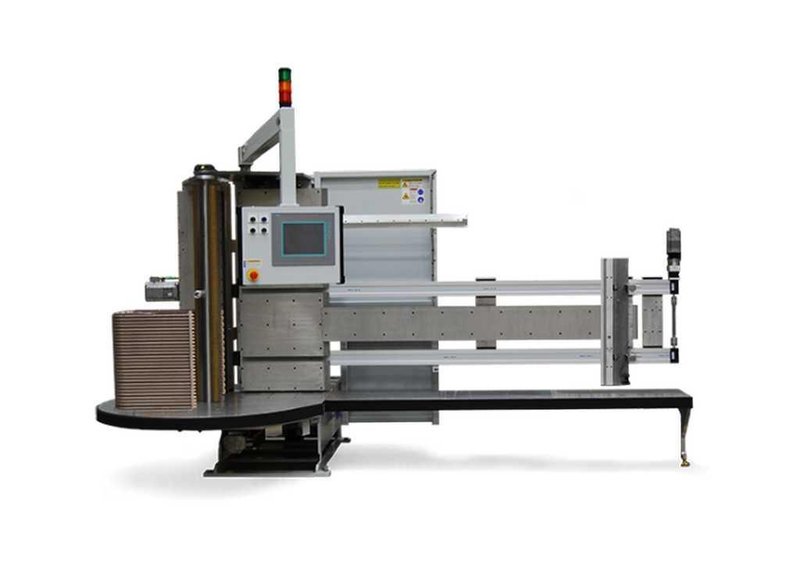

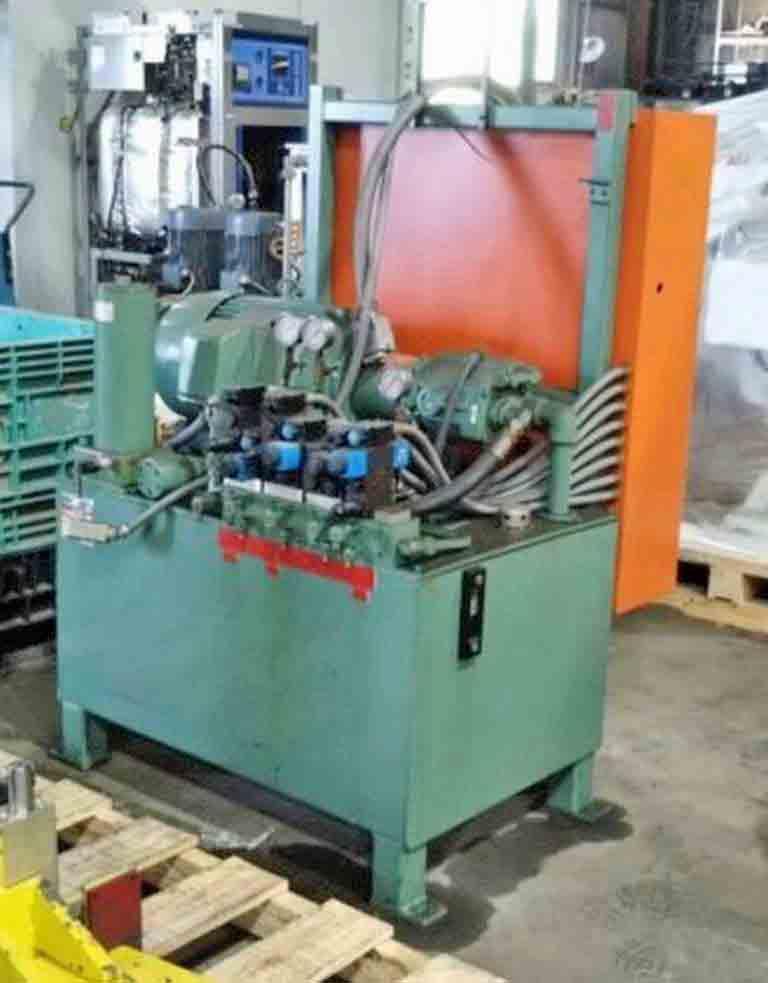

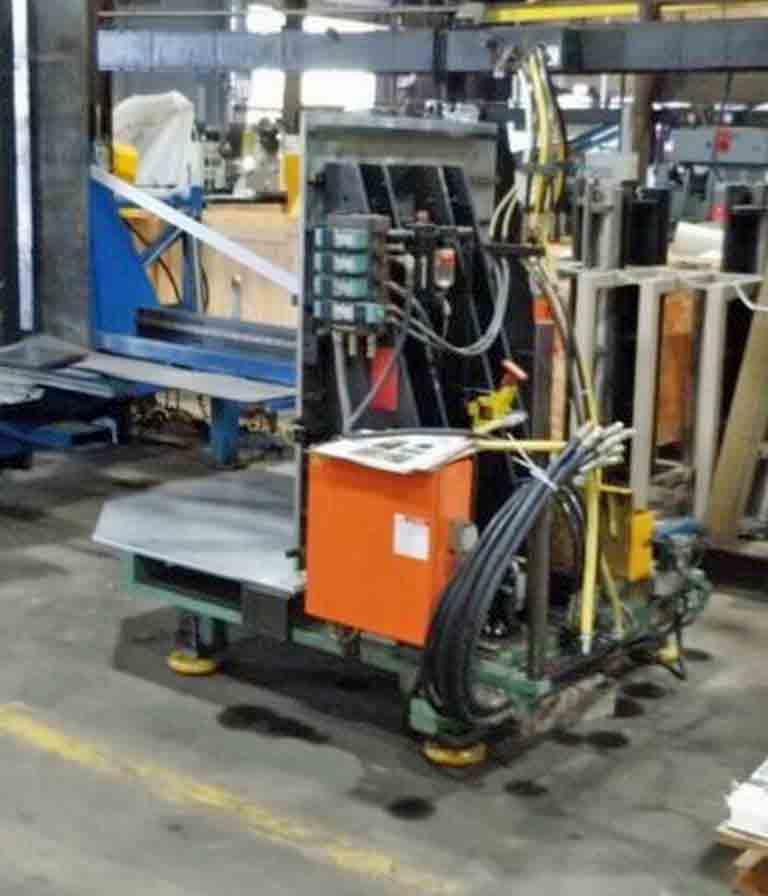

Burr Oak Coil Forming Machine

Consisting of:

-Vertical Arbor Coil Forming.

-Oak coil form machines produce high-quality distortion-free bends in coils.

-Recent innovations provide the ability to make bends that were previously
impossible when using very low-strength, enhanced fin designs.

-These machines will form single row coils or multiple single-row coils
joined at one end.

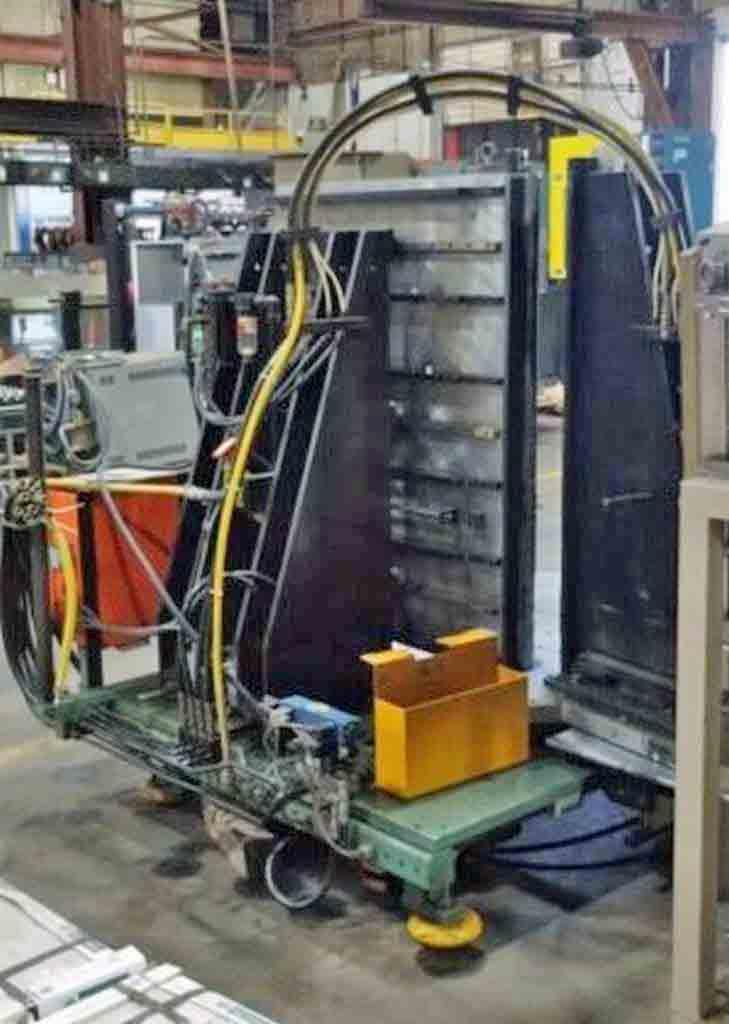

-The vertical arbor coil form machine incorporates a single,
vertically oriented bend arbor that produces one, two, or three 90� bends,
which create L-, U-, or box-shaped coils.

-The cycle time required to produce a single bend, after the coil has been
loaded and positioned is approximately 10 seconds.

-The vertical arbor technique leaves the mechanical bond between the fin and
tube undisturbed, ensuring maximum heat transfer.

PRODUCTION:
1 minute for a single row 3 bend coil
Includes time required for loading, machine processing and unloading

COIL TYPE:
Round Tube Plate Fin (RTPF) Single
1+1 Row Coil
1+1+1 Row Coil
Micro Channel Coil (MCHX)

COIL SIZE:
Up to 60" (1.5 m) wide
Up to 118" (3 m) long

TECHNICAL:
Forms round and flay-tube coils up to 60" wide and 3 meters long.

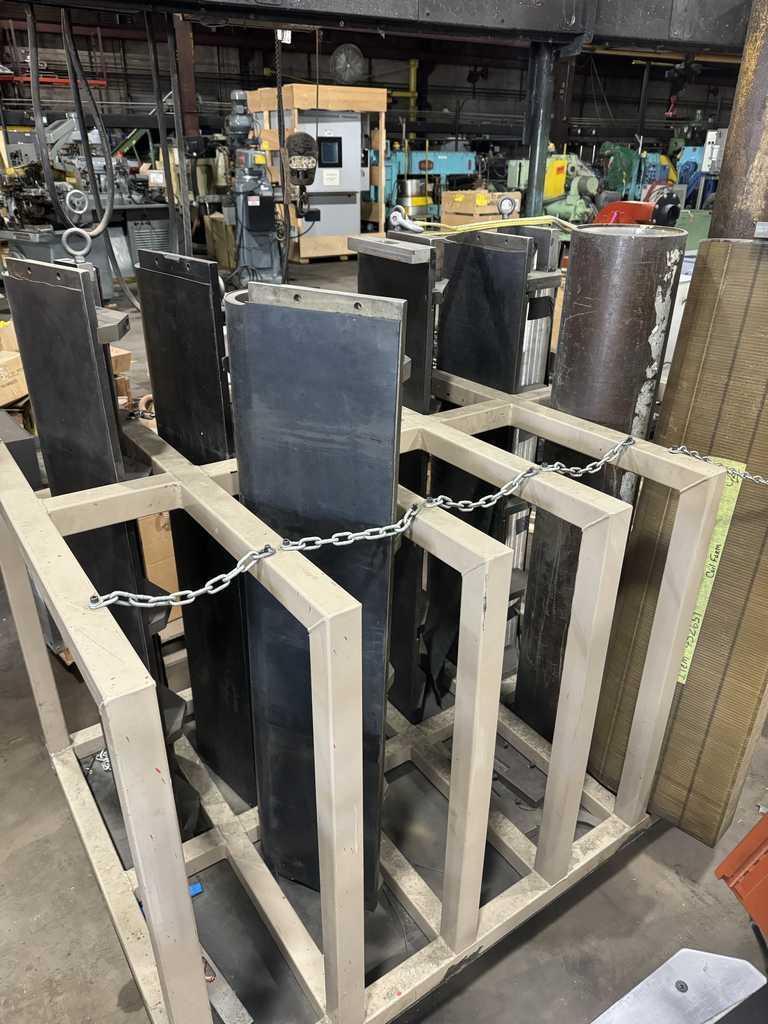

Soft surface arbors enable tighter bends without fin damage.
Forms bend up to a total of 200 degrees.
Forms radii as small as 2 1/4" (57 mm) and as large as 18" (457 mm).
Forms up to three 90 degree bends or more if bends are less than 90 degrees.

USER:
Single operator can load flat coil on table and activate the "Cycle Start"
button.
Machine will automatically position coil(s) for each bend, perform the
operation, and present the finished coil at completion.
Touchscreen controls feature part recipes.
Optional bar code scanner prevents forming wrong pieces of stock.

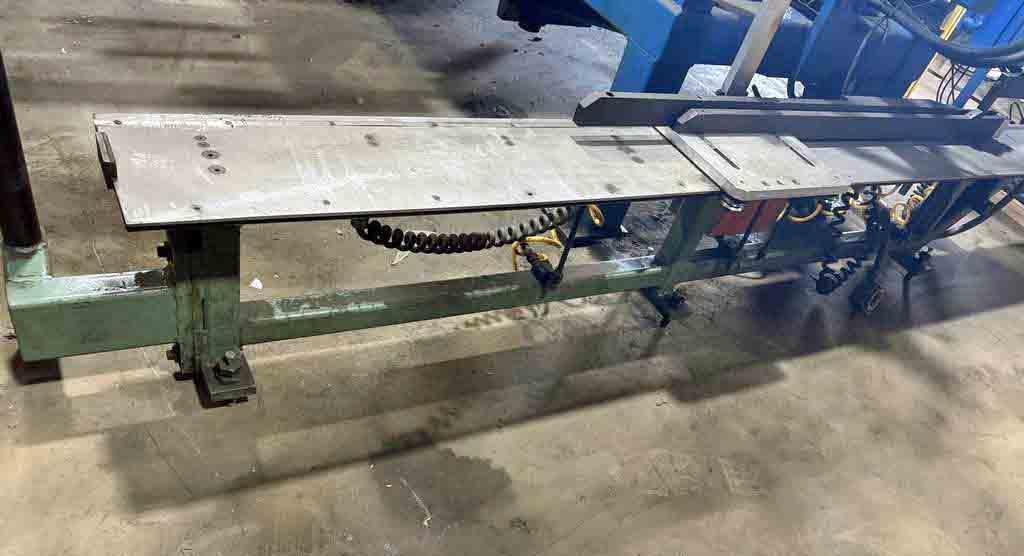

Optional coil loading table allows machine to cycle while operator loads
next coil.
Ability to offload coils onto a table or conveyor system.
Operator touchscreen controls can be configured for different languages.

FOOTPRINT:
216" (5.5 m) long
135" (3.5 m) wide
95" (2.4 m) tall

WEIGHT: 6,000 lbs (2,722 kg)

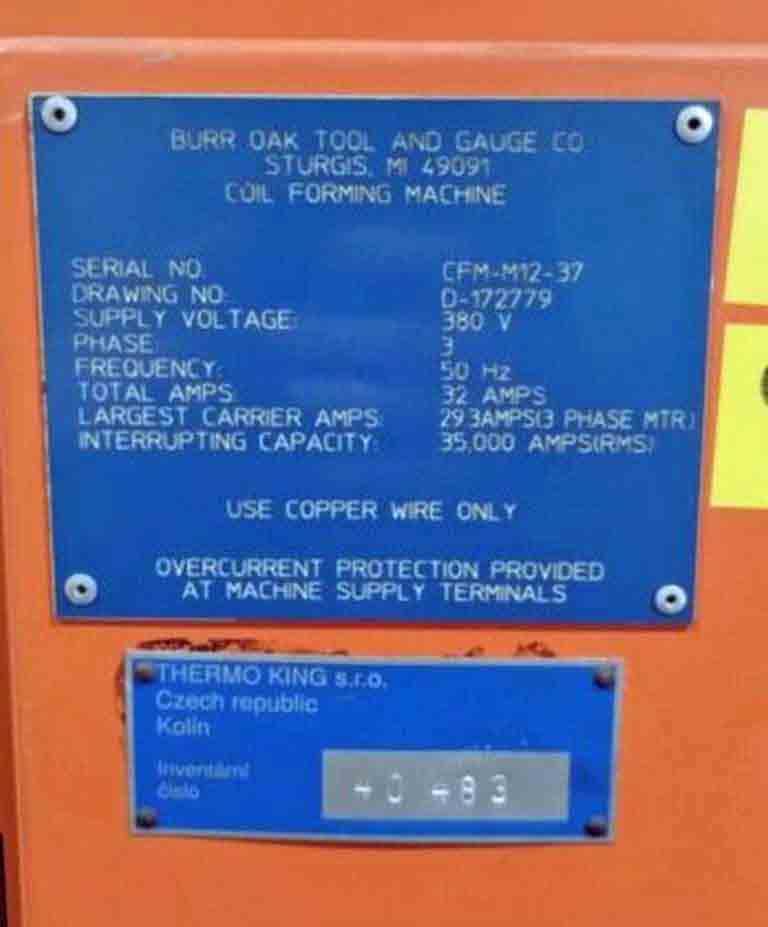

POWER: 15 KW @ .80/.82 PF
24 VDC Controls

-In Storage: Toledo, OH.
