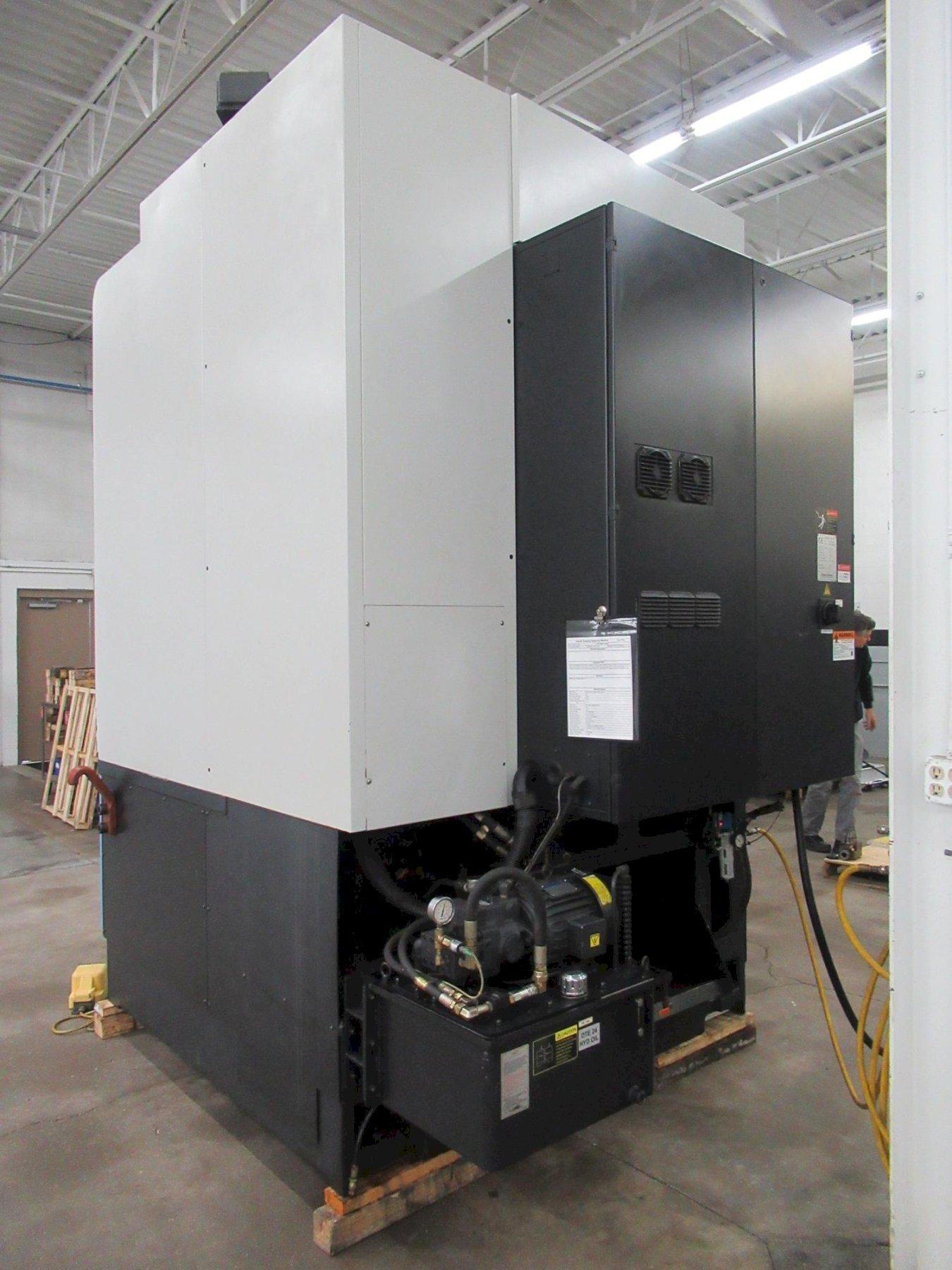

Doosan Puma V550ML CNC Vertical Turning Center with Live Milling, 20" Chuck, Chip Conveyor, New 2011
Brand
Category
Type
Model
V550M
Stock #
7218
Year
2011
Condition
Not specified
Location
Not specified
|
CNC Control: Doosan Fanuc i Series CNC Control Maximum Swing: 30.7" Max Turning Diameter: 19.68" Max Turning Length: 24.20" Spindle Height Surface From Floor: 41.73" Chuck Size: 20" 3-Jaw Hydraulic Chuck Spnsdle Nose: A2-11 Hole Through Spindle: 4.33" Spindle Speeds: 20 -2,000 RPM Spindle Torque: 509 Ft- Lbs. Max Spindle Orientation: C-Axis, (.001 Degree) C-Axis Max Speed: 55.5 RPM Turret Travels (X/Z): 14.57" x 24.02" Rapid Traverse (X/Z): 787 IPM Turret Capacity: 12 Stations (Live Milling Capable) Turret Index Time: .7 Second 1 Tool / 1.08 Sec 6 Tools Max Number of Live Tools: 12 Live Tool Max Speed: 3,000 RPM Rotary Tool Drive: 7.5 HP Main Spindle Drive: 50 / 40 HP Equipped With: Doosan Fanuc Series i CNC Control, 12 Station Tool Turret with Live Milling, 2-Speed Gearbox, Samchully HC21 21" 3-Jaw Hydraulic Chuck and Acutator, Auto-Door, Coolant System, Rear-Discharge Chip Conveyor, Rigid Tapping, (2) Live Milling Tool Holders (Axial), (2) BOring Holders, (1) Turning Holder, Fanuc Manuals, Machine Instruction Manual, Machine Parts Manual, Electrical Schematics, Program Manual, Parameters, Chuck Jaws Electrics: 200/220 Volt, 3 Phase 148.41 FLA |
