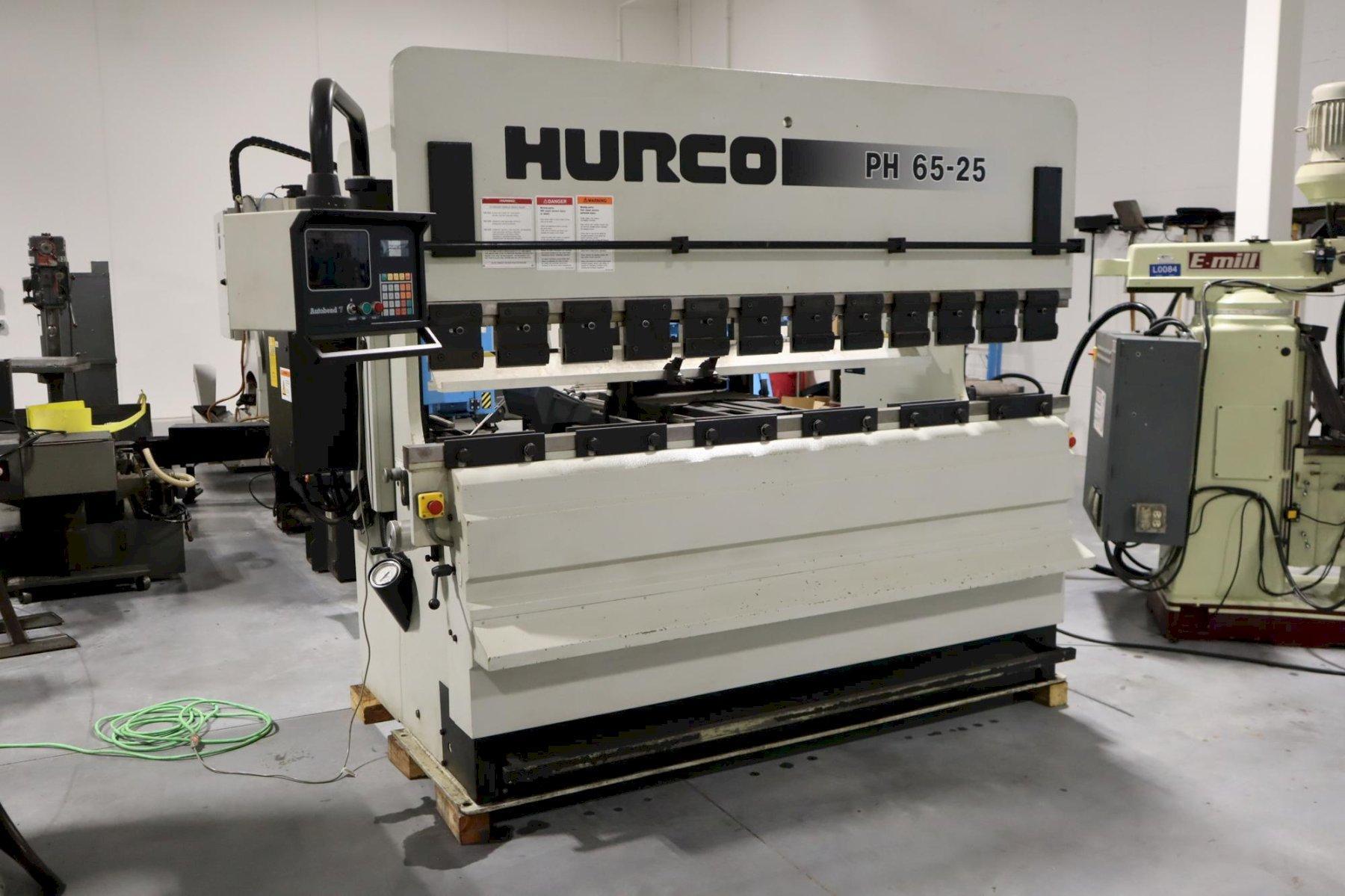

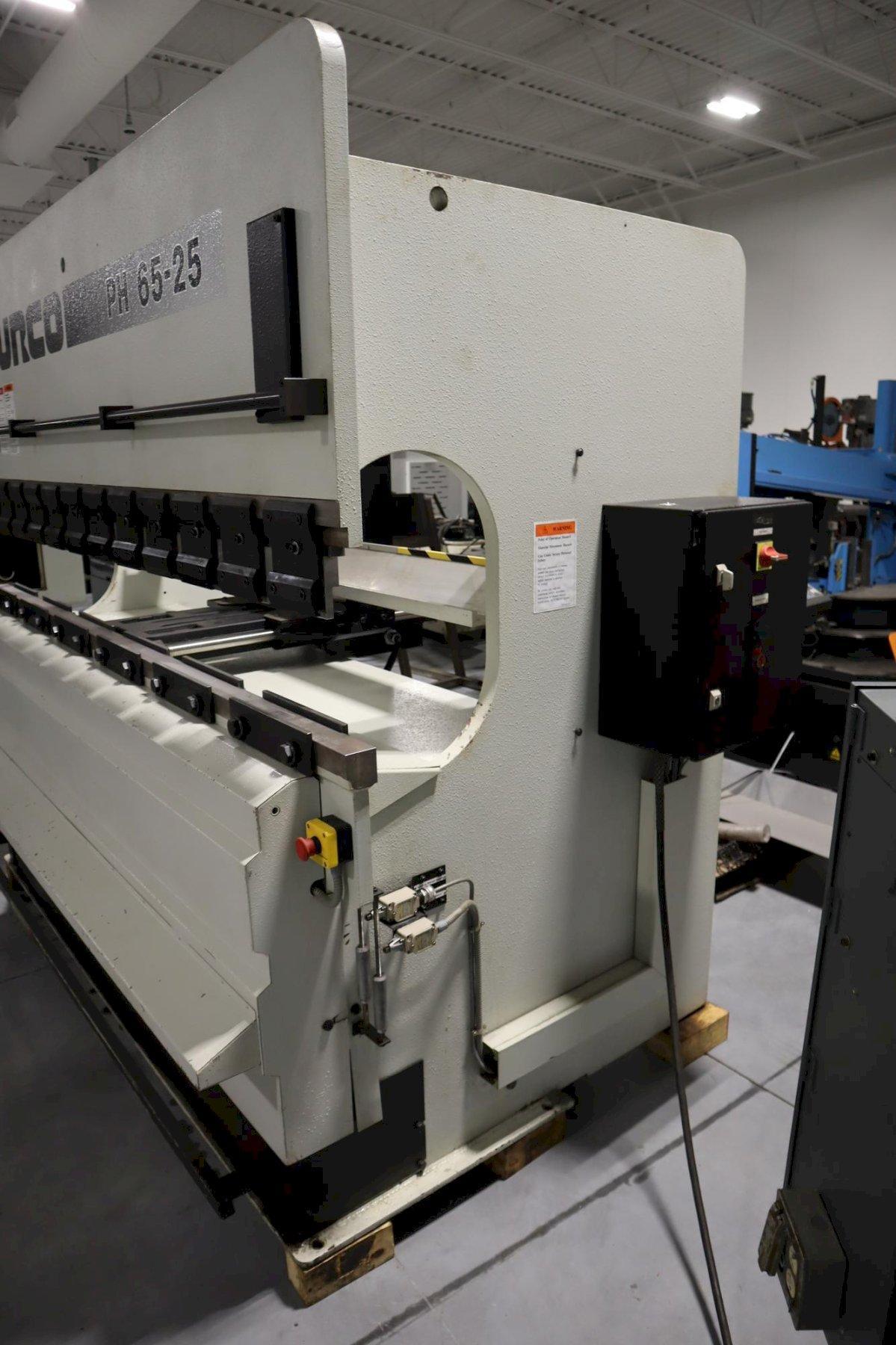

Hurco PA65-25 CNC Hydraulic Press Brake, 71 Ton x 98", Hurco AutoBend 7 Control and Back Gauge, Large Assortment of Dies
Brand
Category
Type
Model
PA65-25
Stock #
7186
Year
1999
Condition
Not specified
Location
Not specified
|

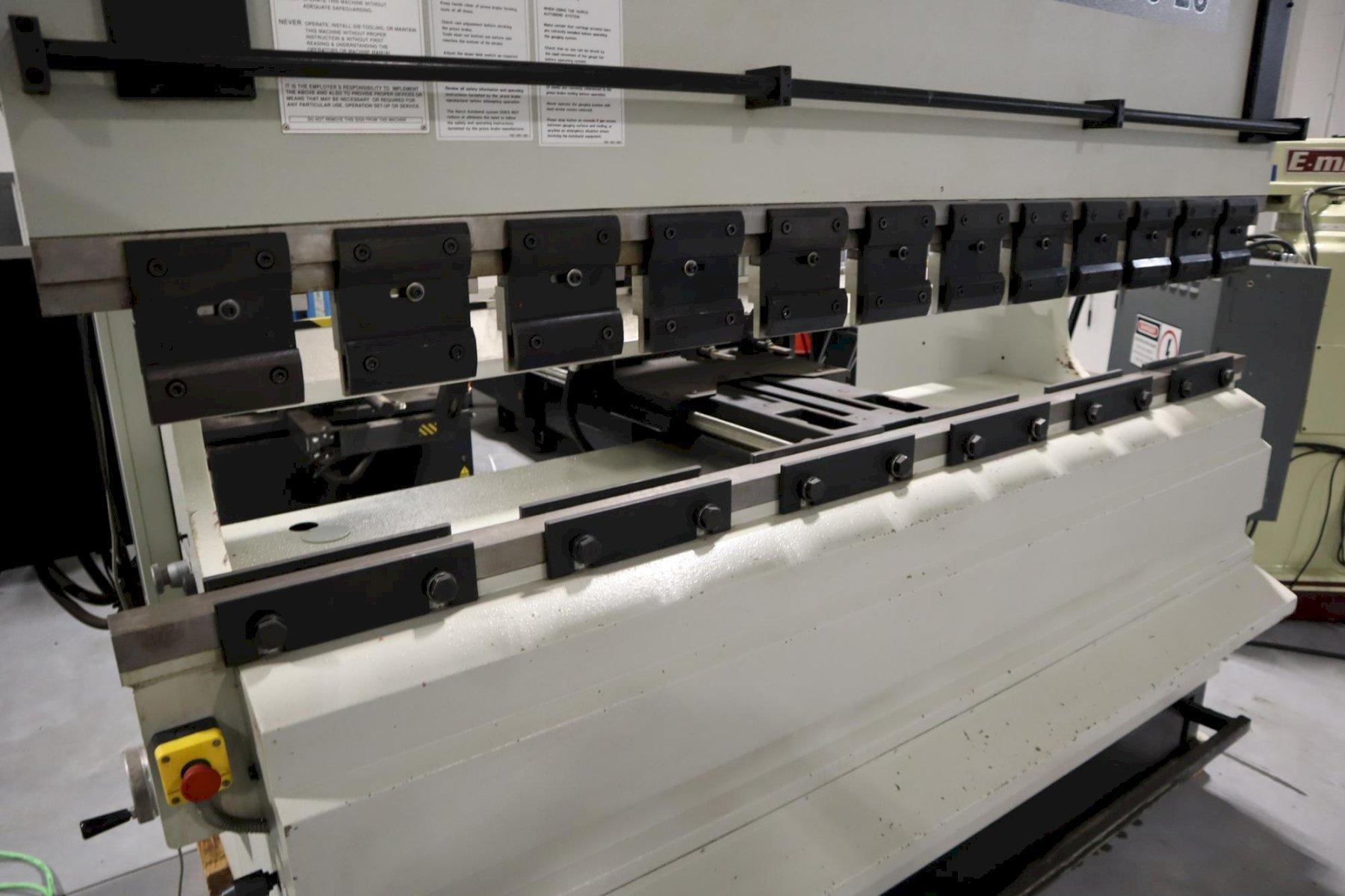

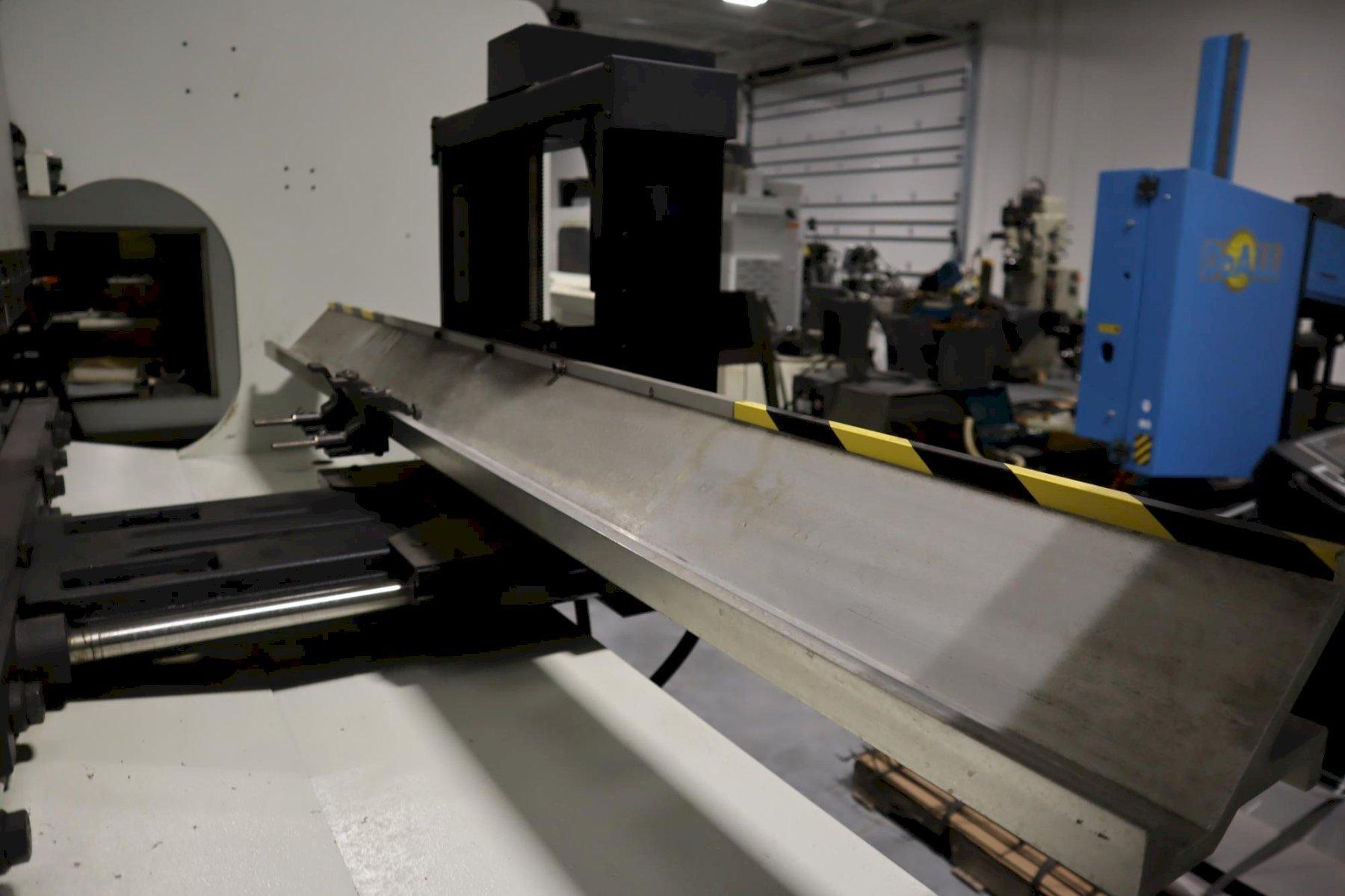

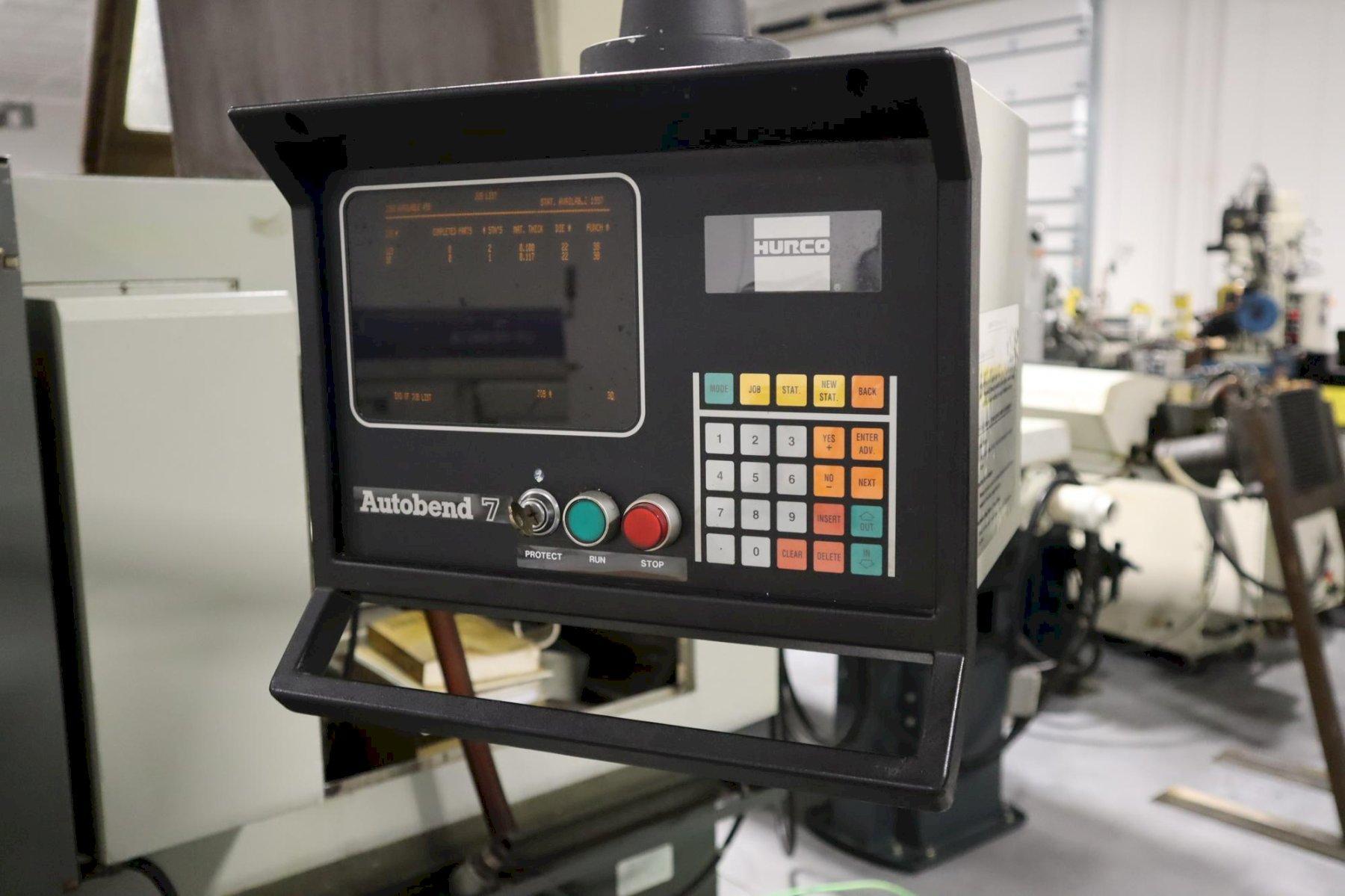

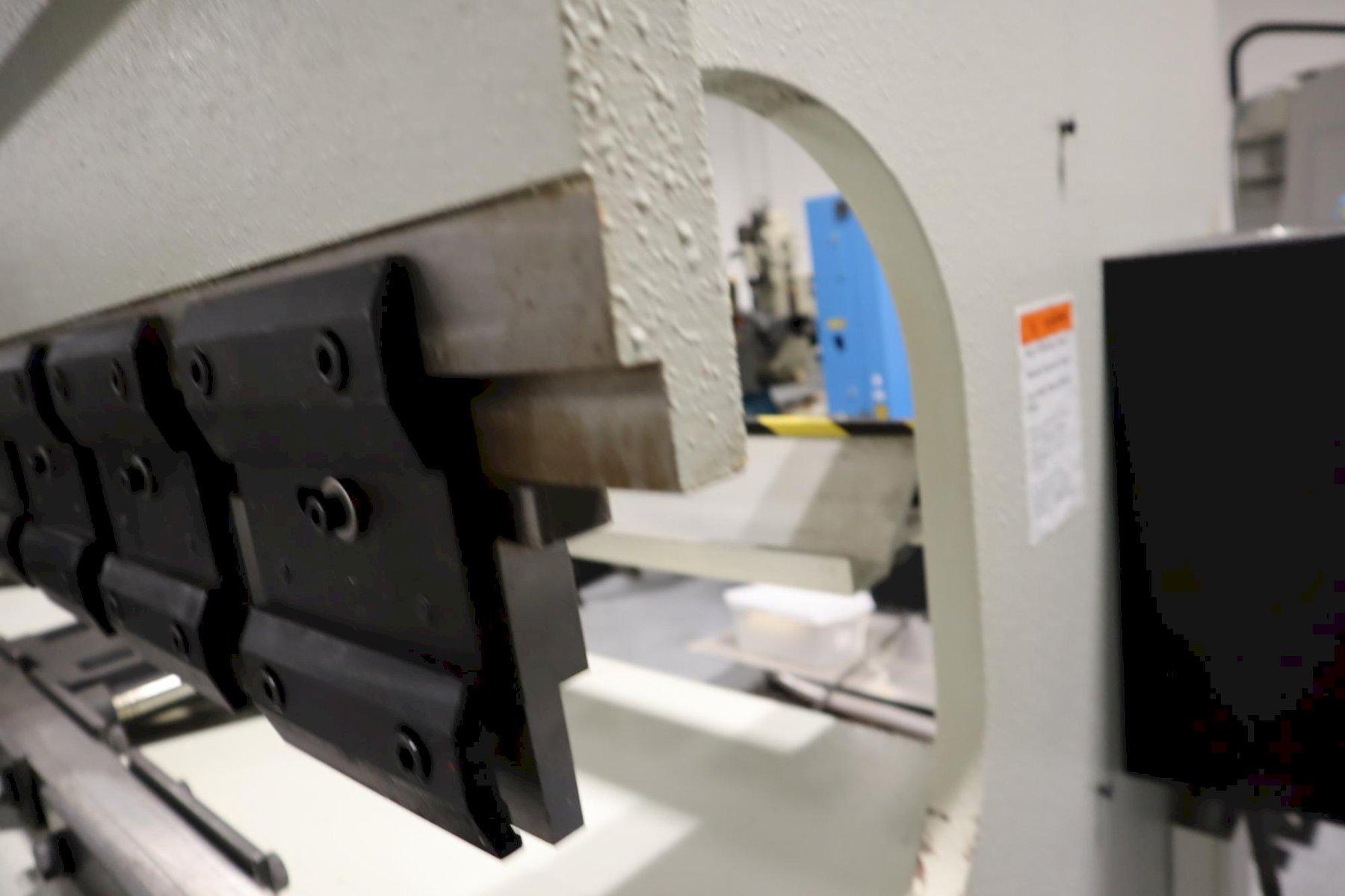

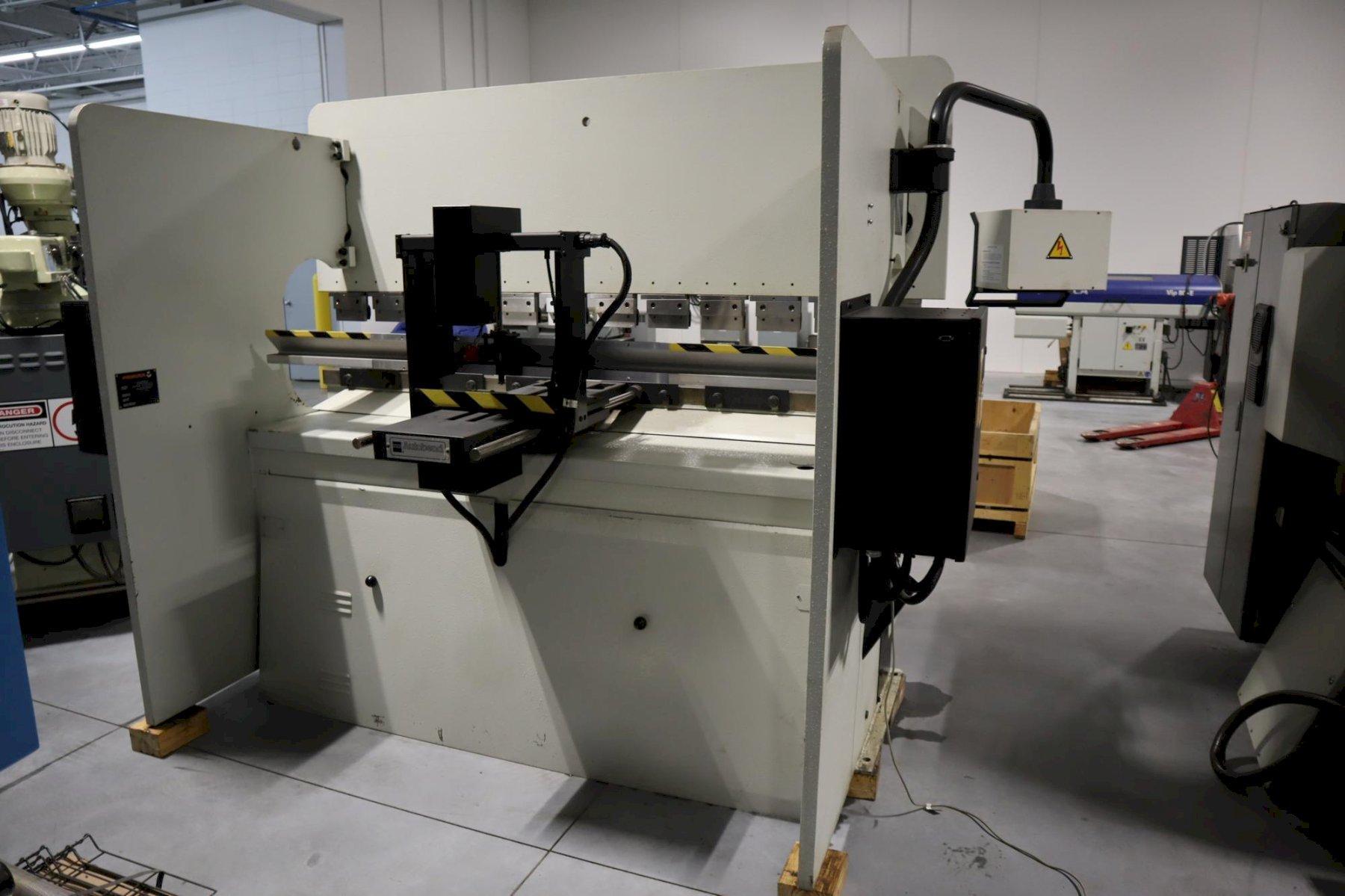

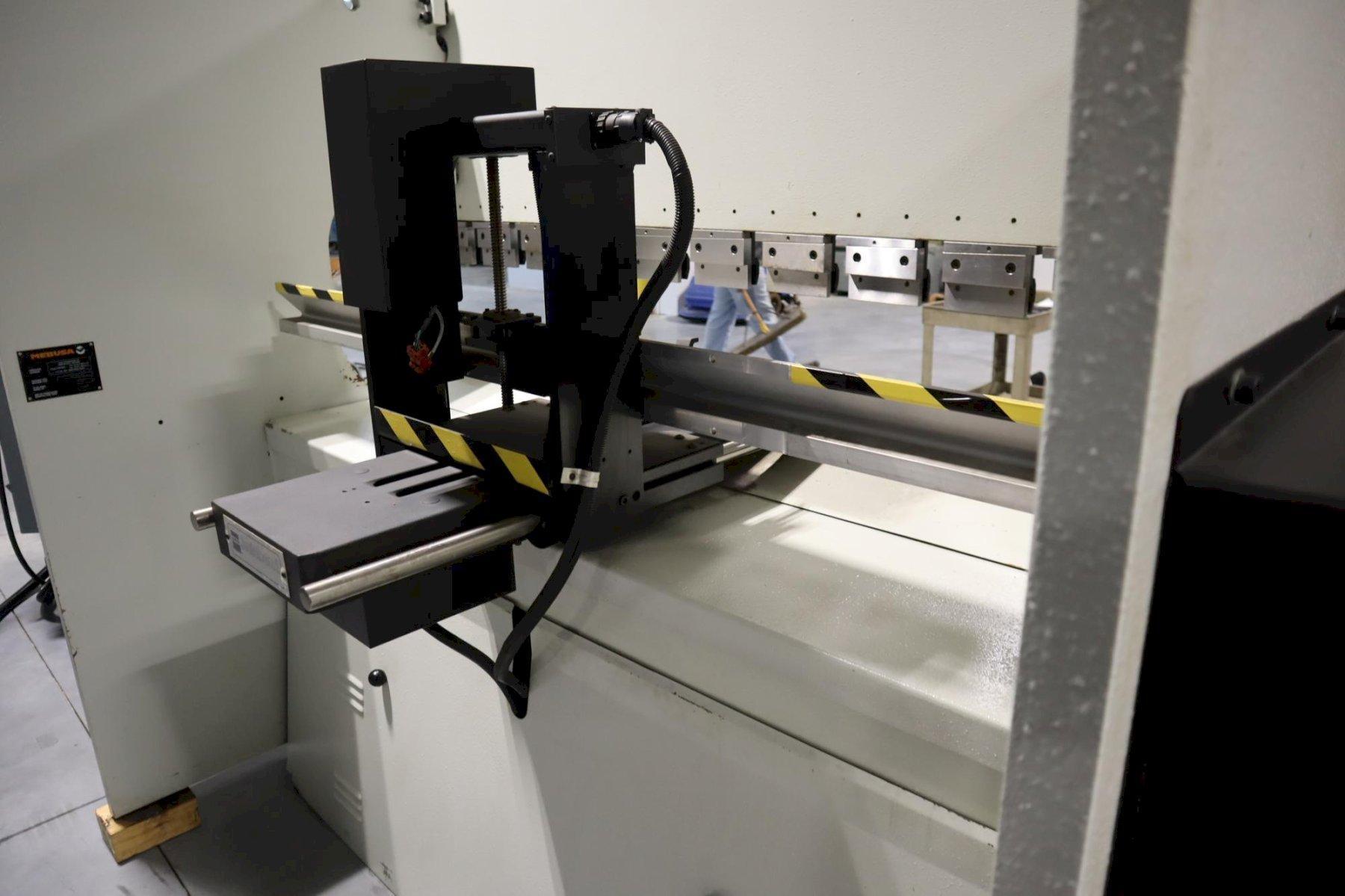

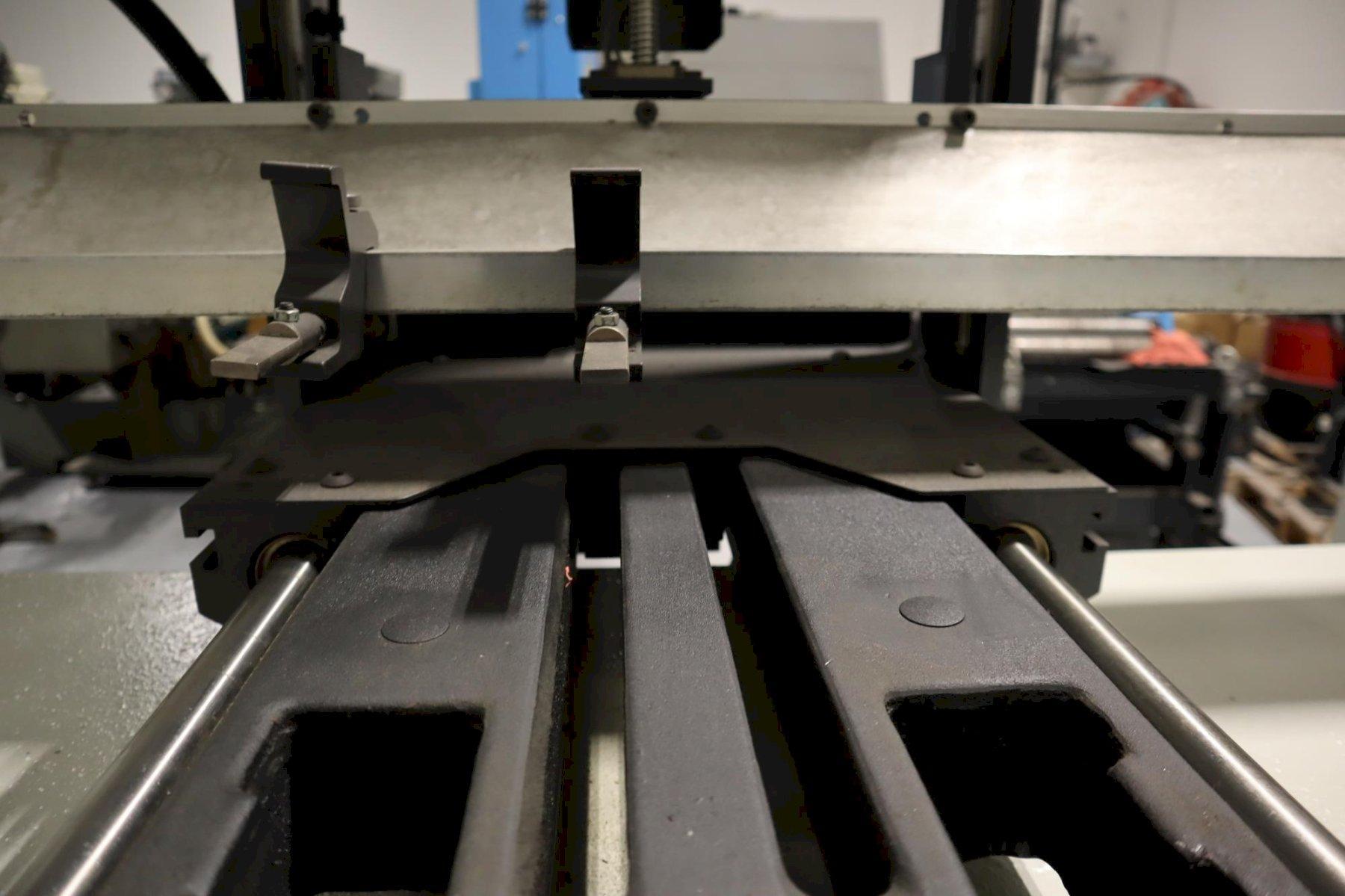

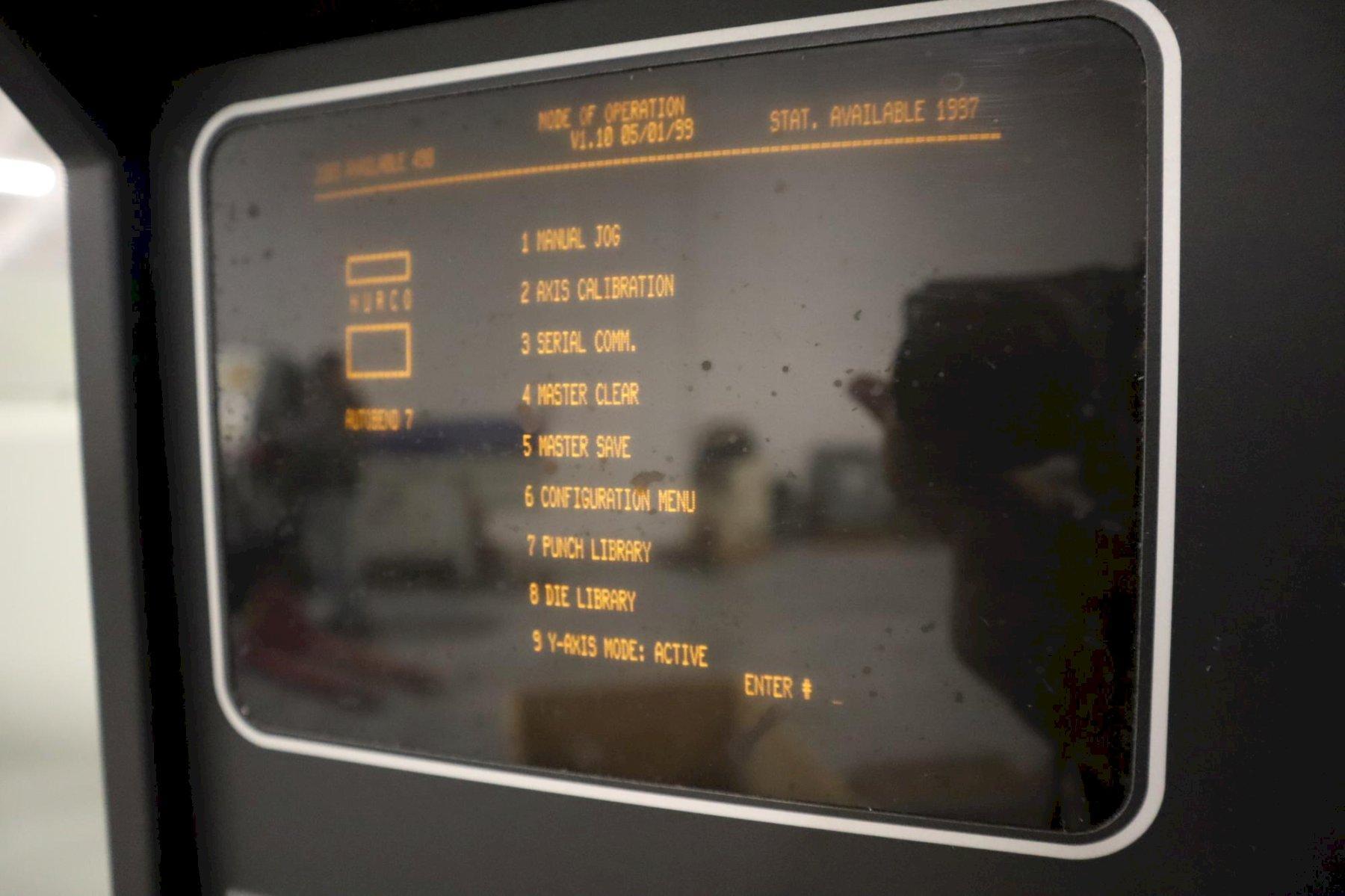

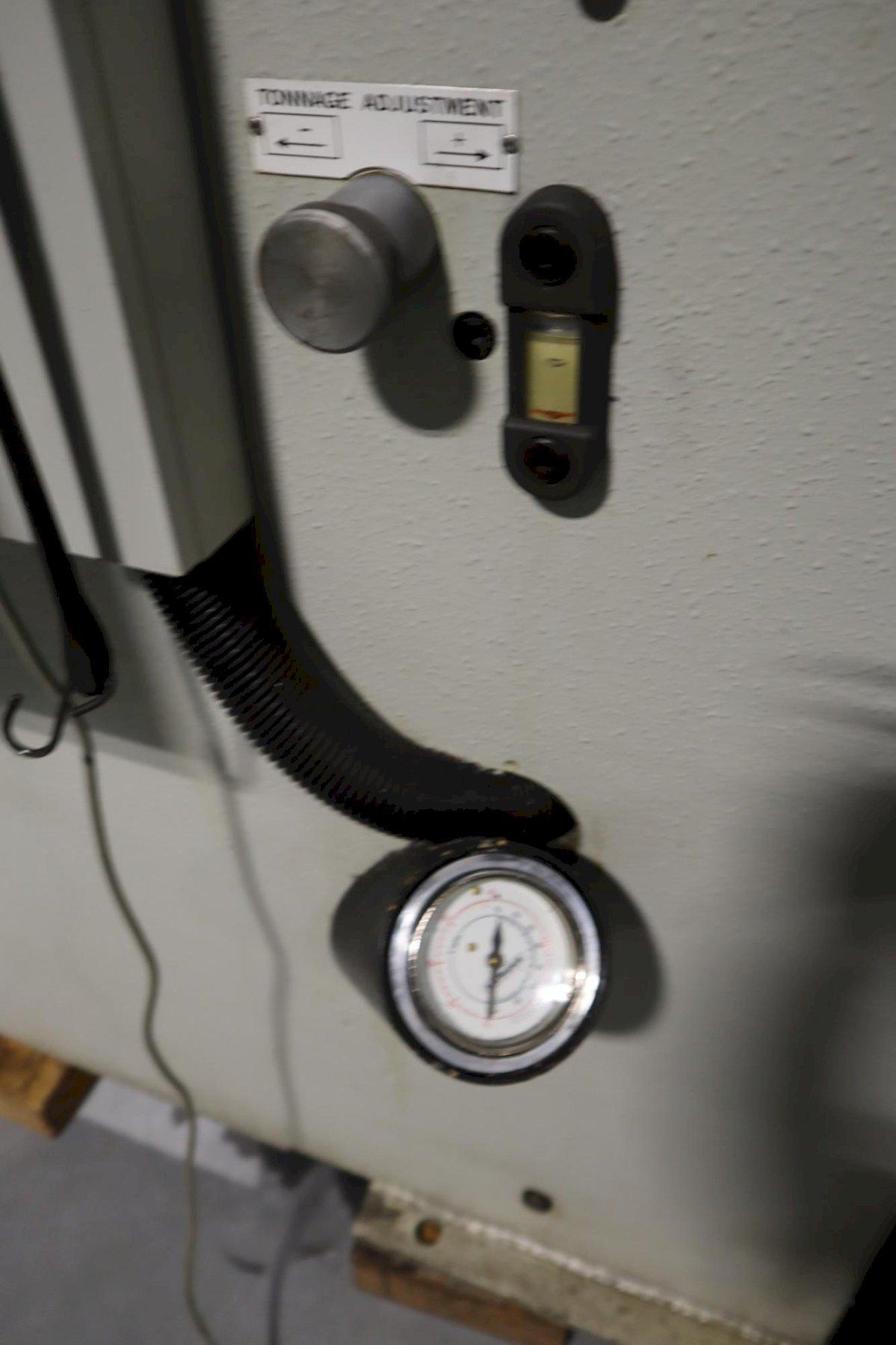

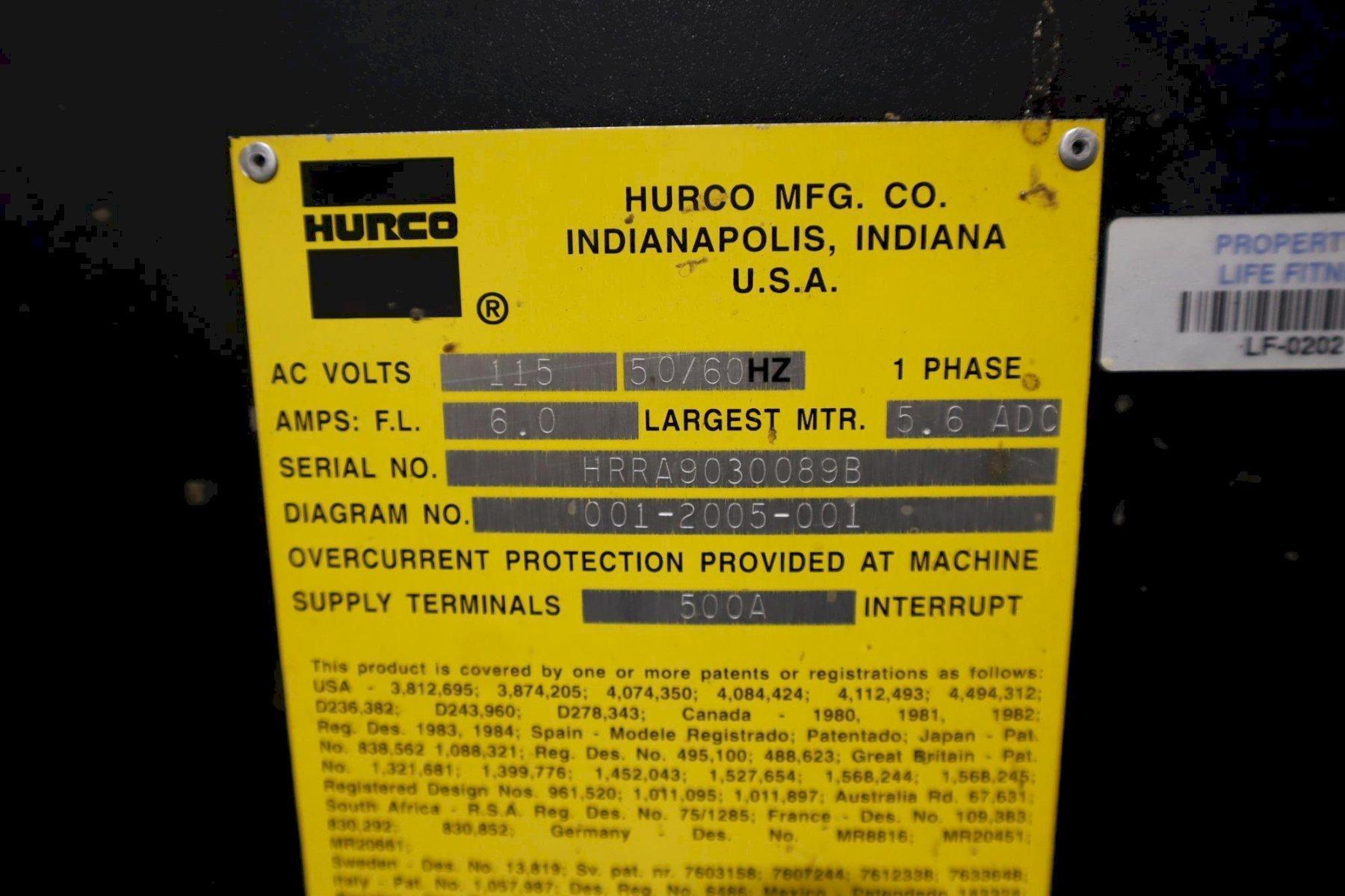

Control: Hurco Autobend 7 CNC Control of Ram and Backgauge Tonnage Capacity: 71 US / 65 Metric Tons Bending Capacity: 8' x 14 Gauge Bed and Ram Length: 98.43" (2500mm) Distance Between Housings: 85" Ram Approach Speed: 106 IPM Bending Speed(s): 17 IPM Ram Return Speed: 142 IPM Programmable Controlled Axes: Y (Ram) X, R (Backgauge Vertical) Programmable Backgauge Distance: 24" Throat Depth: 15.75" Maximum Ram Stroke: 3.94" Max Open Height: 14.6" Closed Height: 11.81" Drive Motor: 4.0 HP Description: Hurco Hydraulic Press Brake with Hurco Autobend 7 Controls is an up-acting hydraulic press brake. Model PA65-25 has a 71 US Ton Capacity and a 98" Bed and Ram. Equipped With: Hurco Autobend VII CNC Control, Programmable Upacting Ram, Programmable X and R Axis Backgauge, Ram Clamps, Lower Die Holders, Tonnage Controls, Ram Tilt Control, Large Assortment of Dies and Die Holders, Remote Foot actuator, Manuals. Electrics: Machine: 230/460V 3 Phase Control: 115 V Single Phase |
